Study Plan

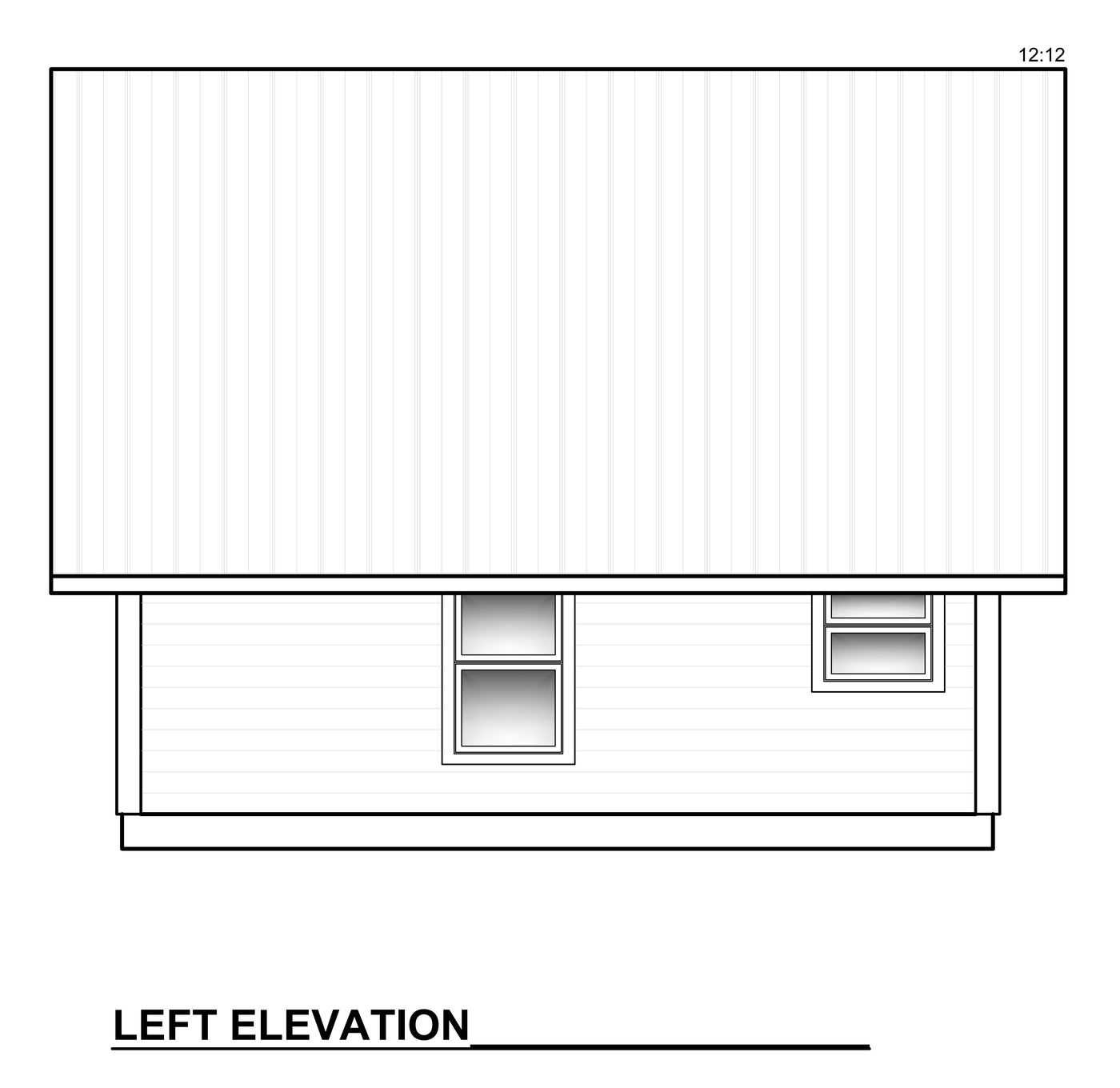

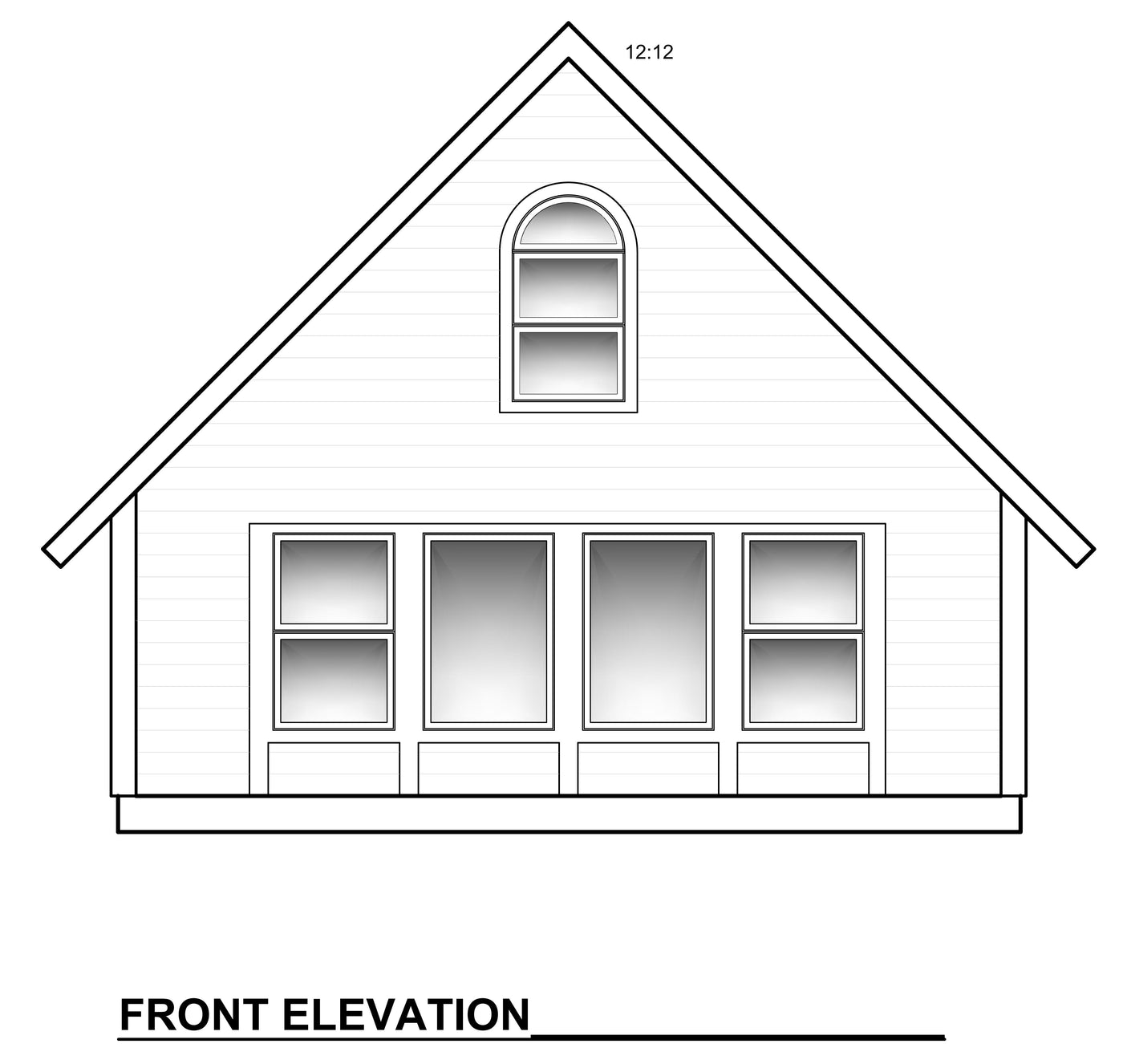

A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU / Garage |
| Bedrooms | 1 |
| Bathrooms | 1 |
| Stories | 2 |
| Main Sq Ft | 576 |
| Loft Sq Ft | 288 |
| Basement Sq Ft | 0 |
| Total Sq Ft | 864 |
| Garage | Yes |
| Basement | — |
| Reference | Transformer |
About this plan
The Transformer by Sierra Log & Timber is a clever 864 sq ft log cabin with a knack for making every inch count. Ideal for couples or small families dreaming of a cozy retreat, it offers a welcoming main floor with 576 sq ft for gathering, cooking, and unwinding. The kitchen and living area flow together, while a main-floor bedroom and full bath keep things practical. Upstairs, a 288 sq ft loft gives you options—set it up as a second bedroom, a quiet reading nook, or a tucked-away studio. With two bathrooms and a garage for gear or projects, the Transformer is ready for weekend escapes, guest quarters, or even full-time living for those who like to keep things simple. Like all Sierra Log & Timber plans, it can be tailored to fit your vision, blending craftsmanship with lasting comfort. Read our story on the TRANSFORMER so you know its history.

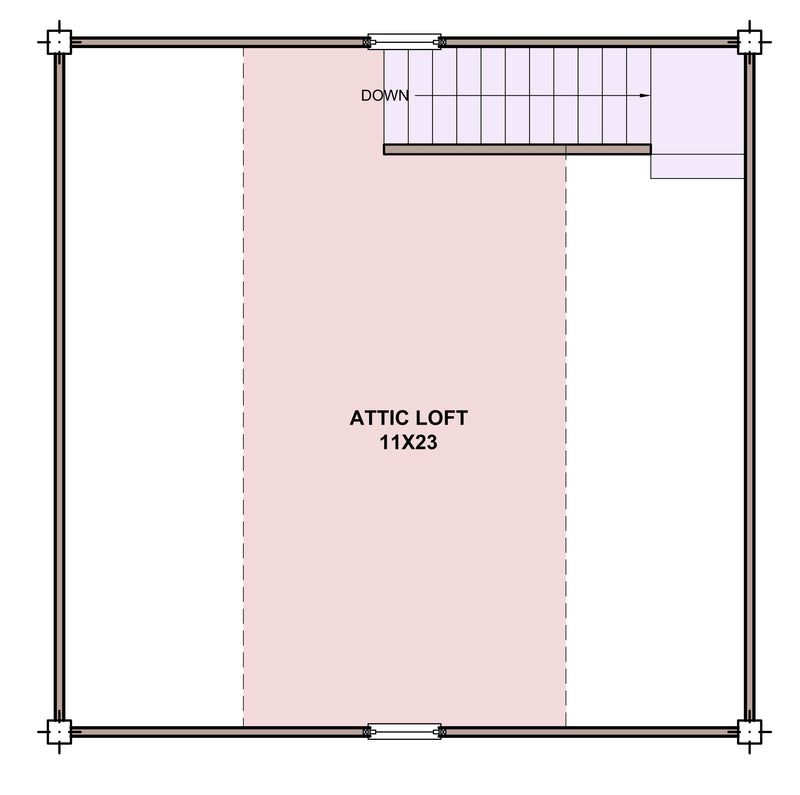

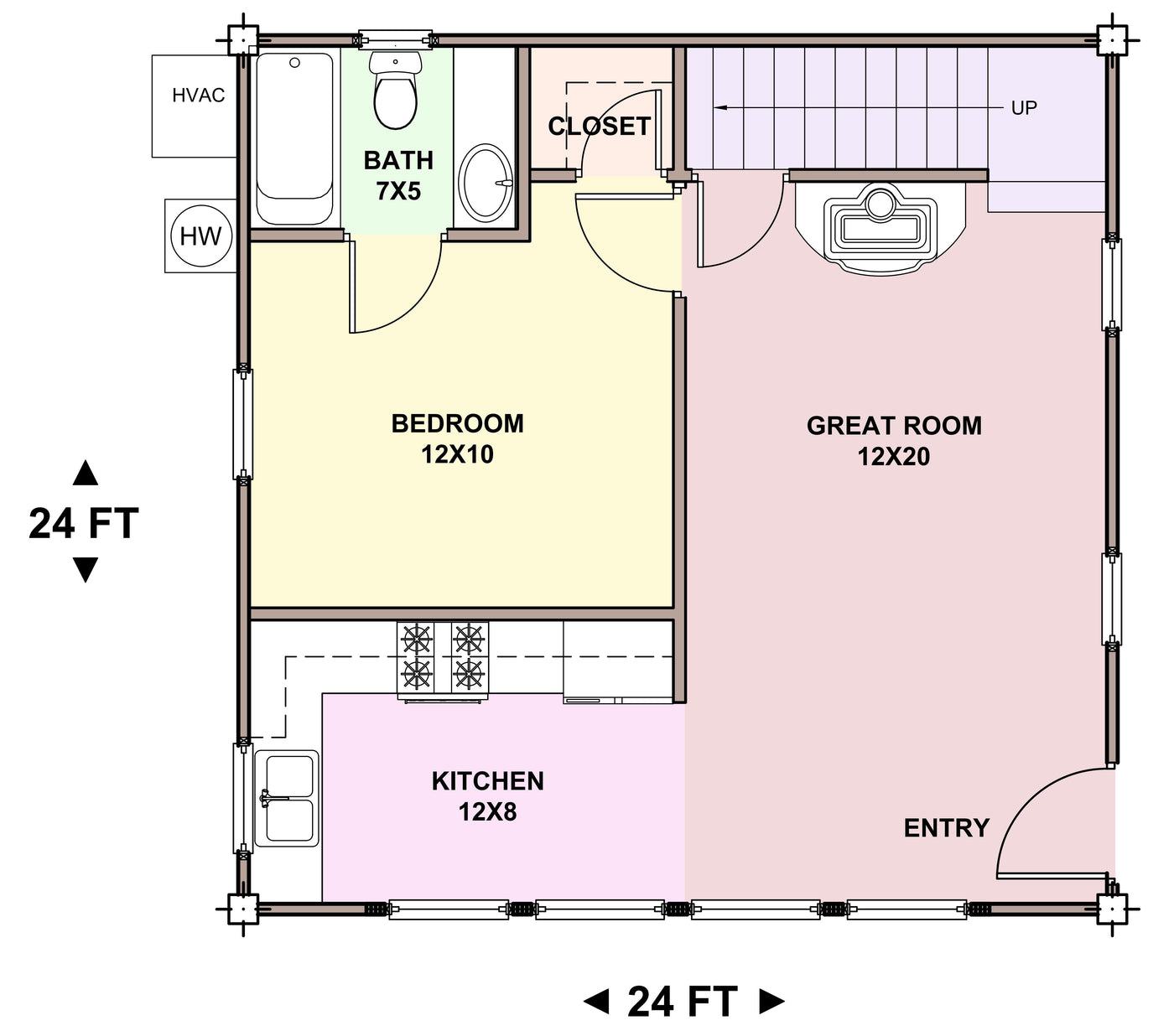

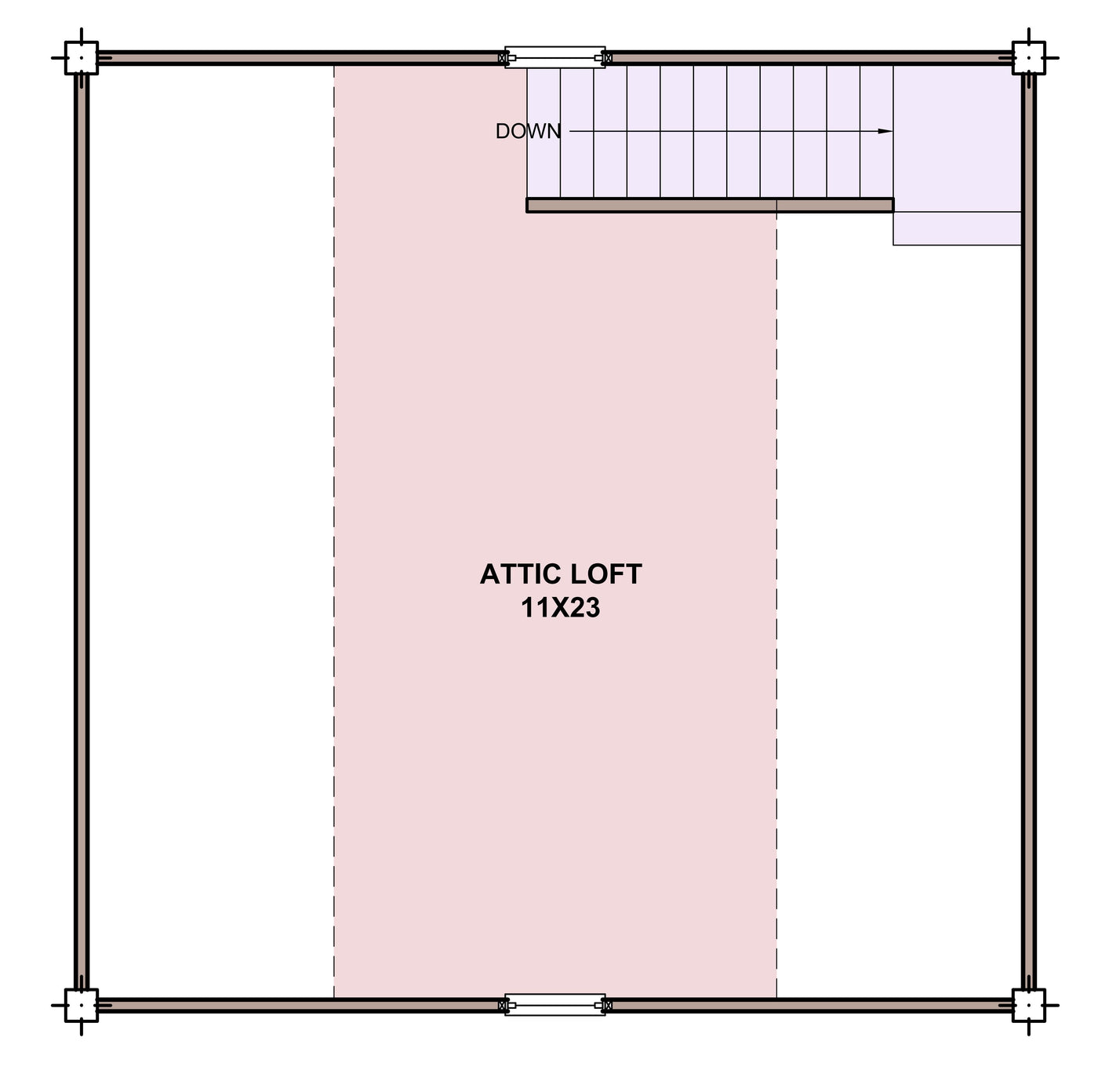

Floor plans

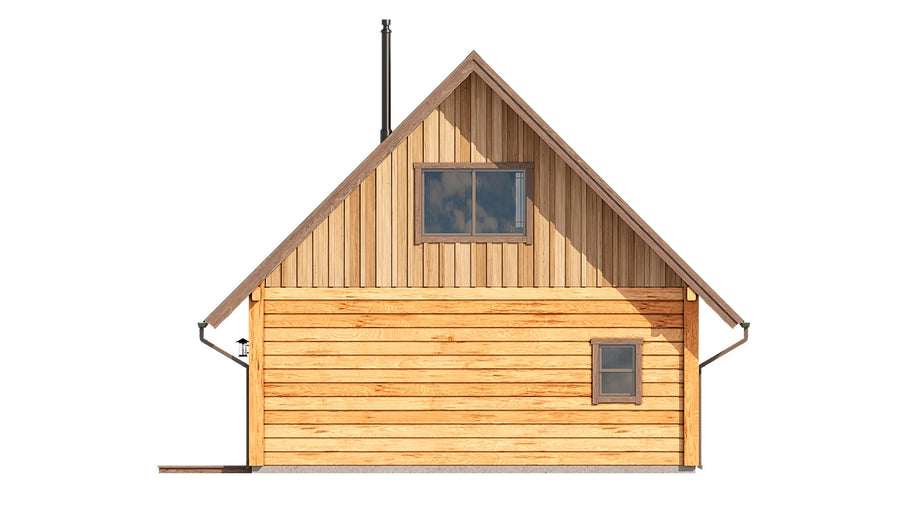

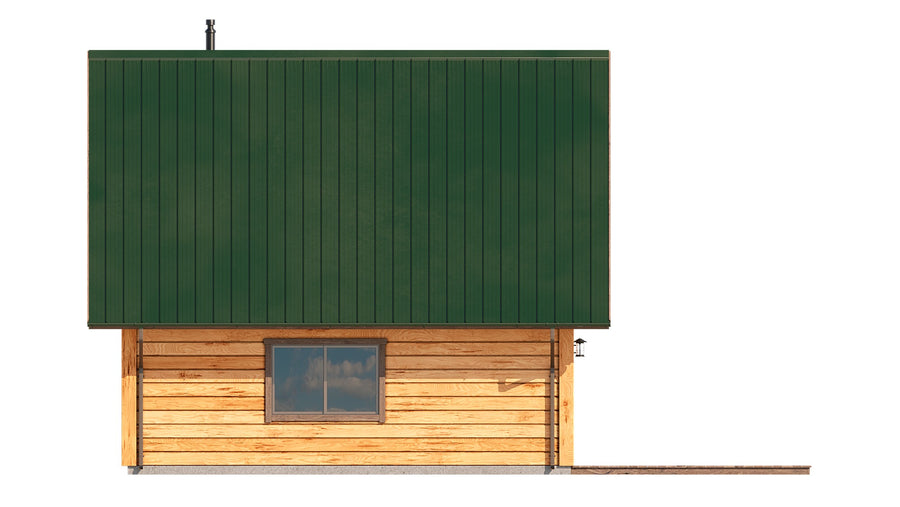

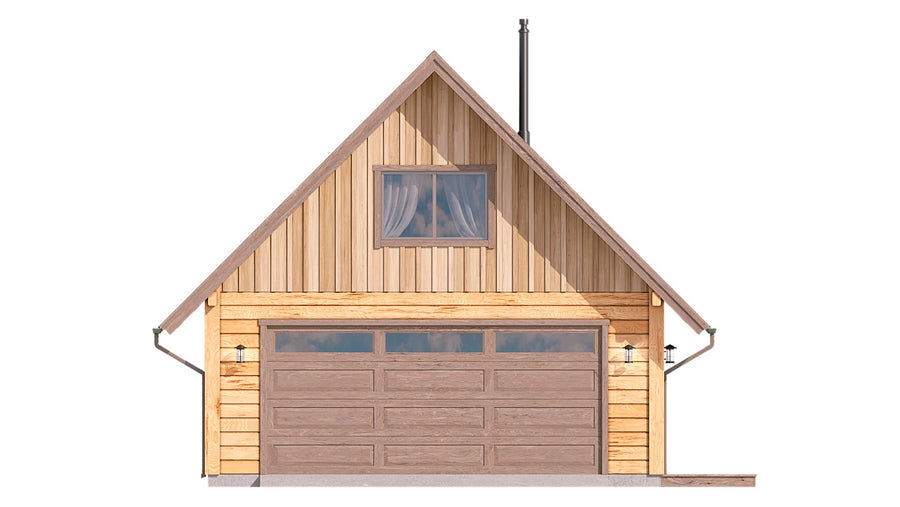

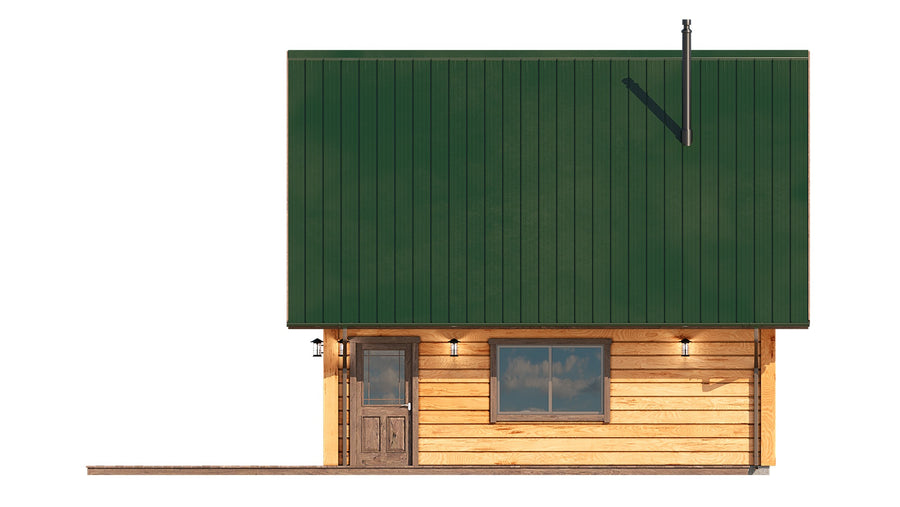

3D

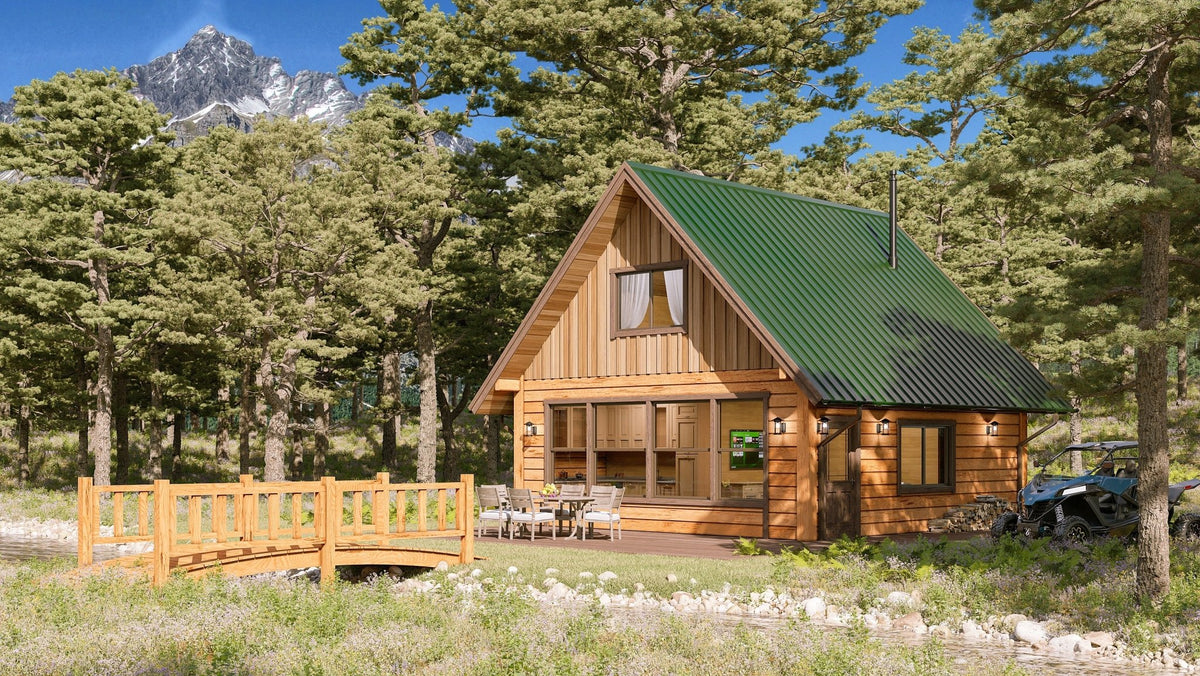

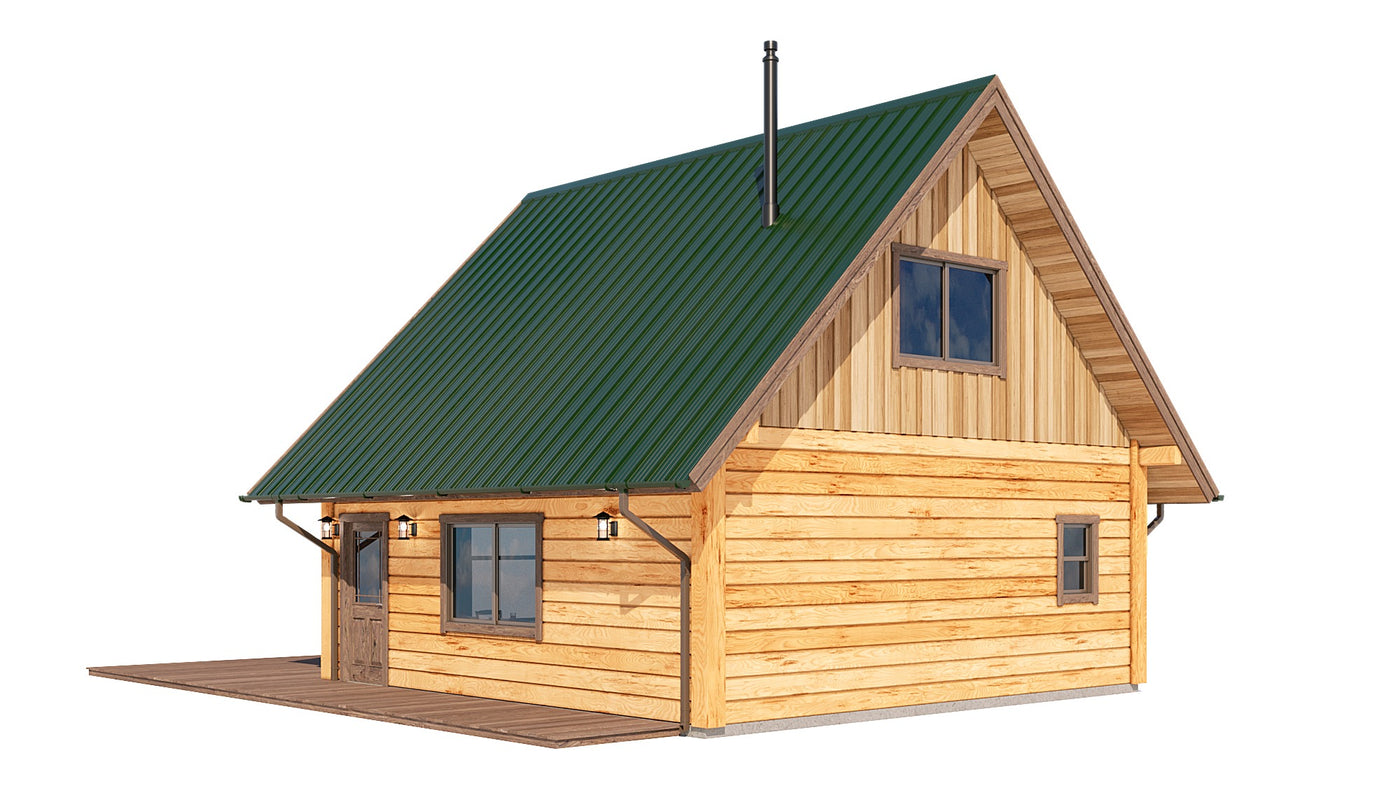

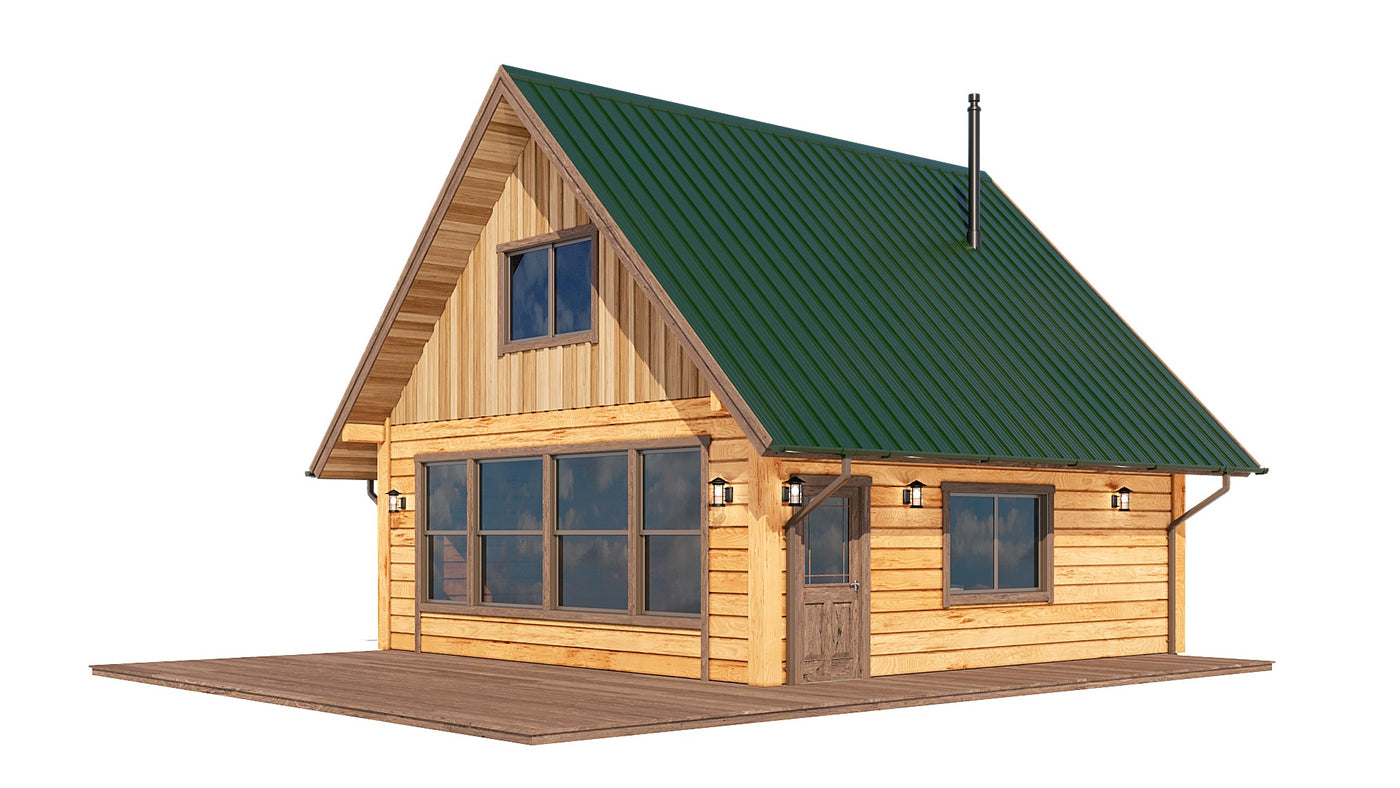

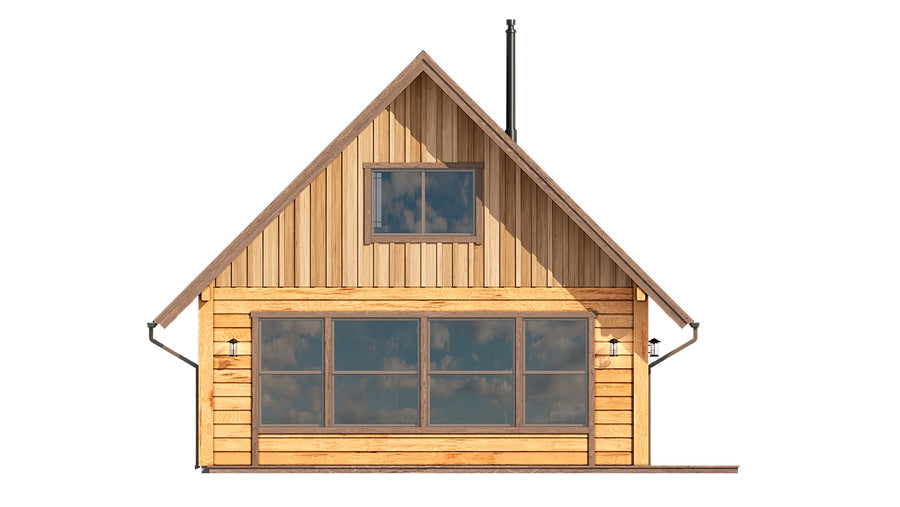

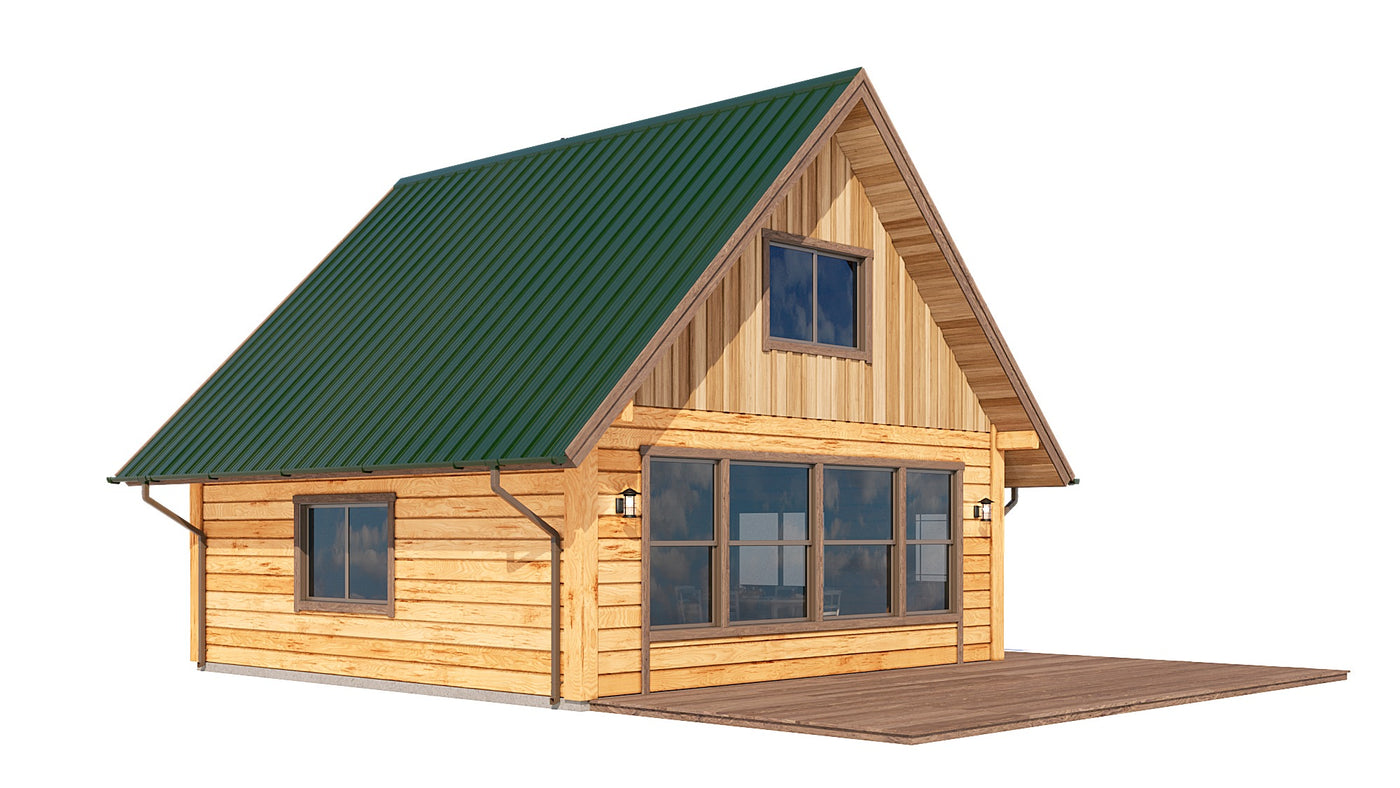

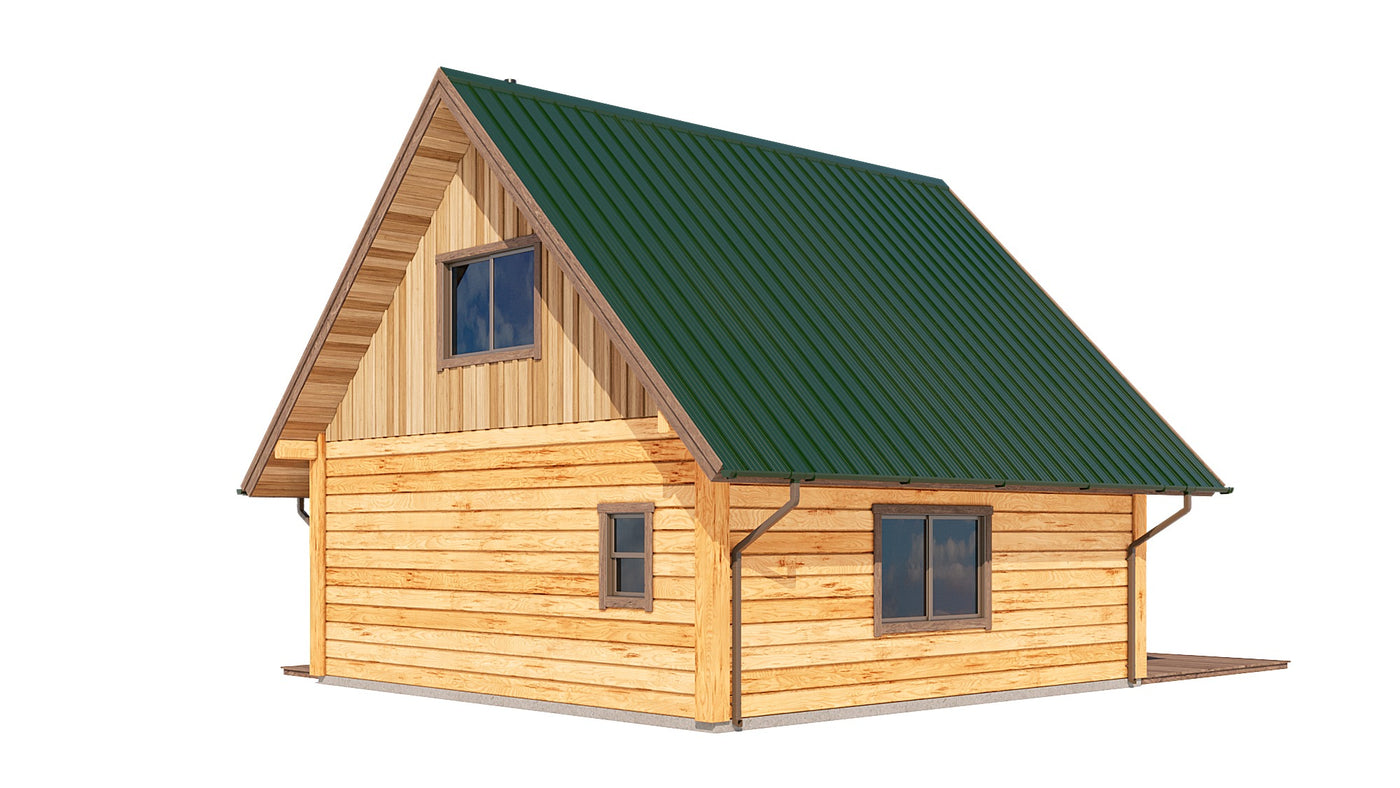

Renders

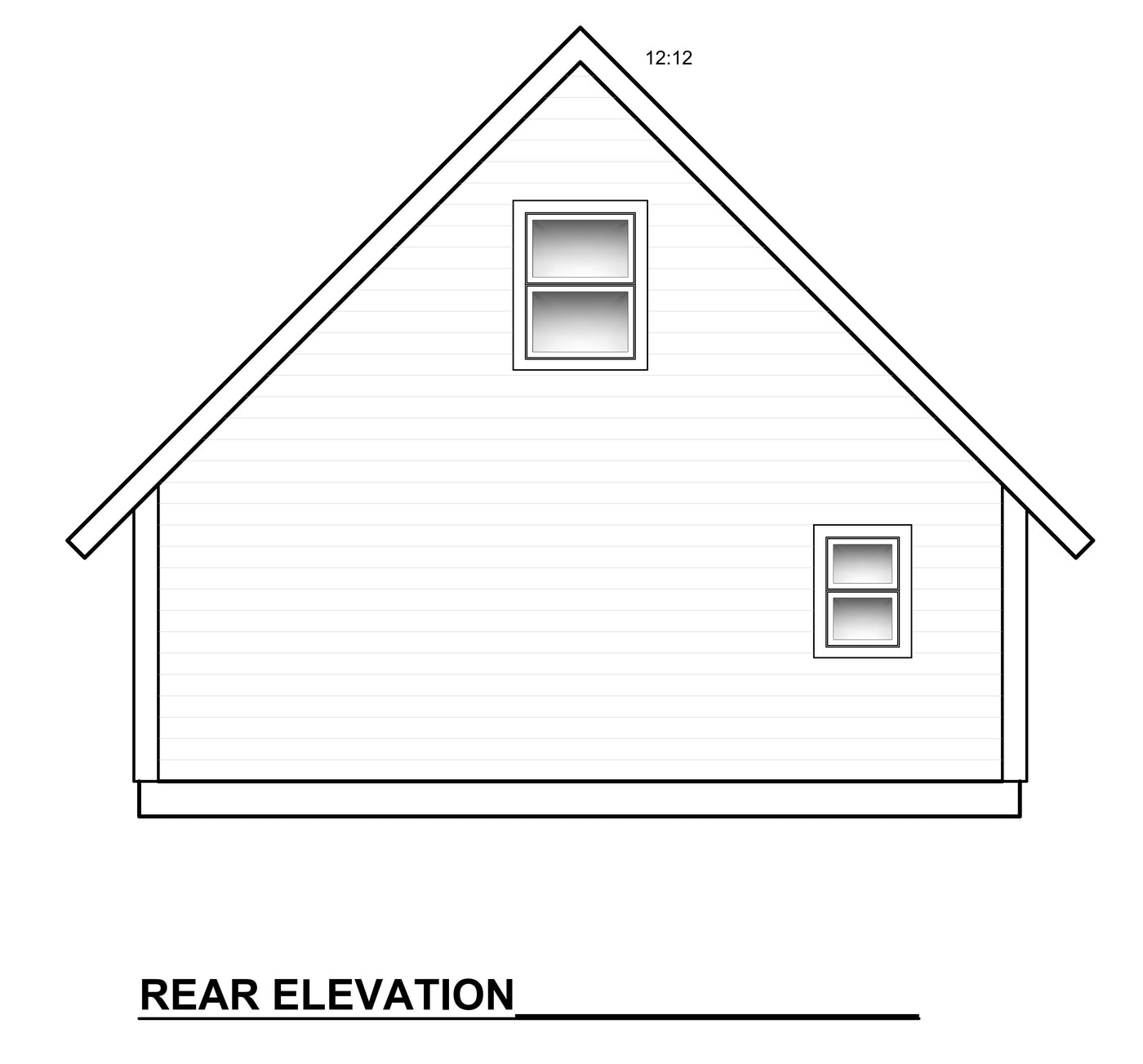

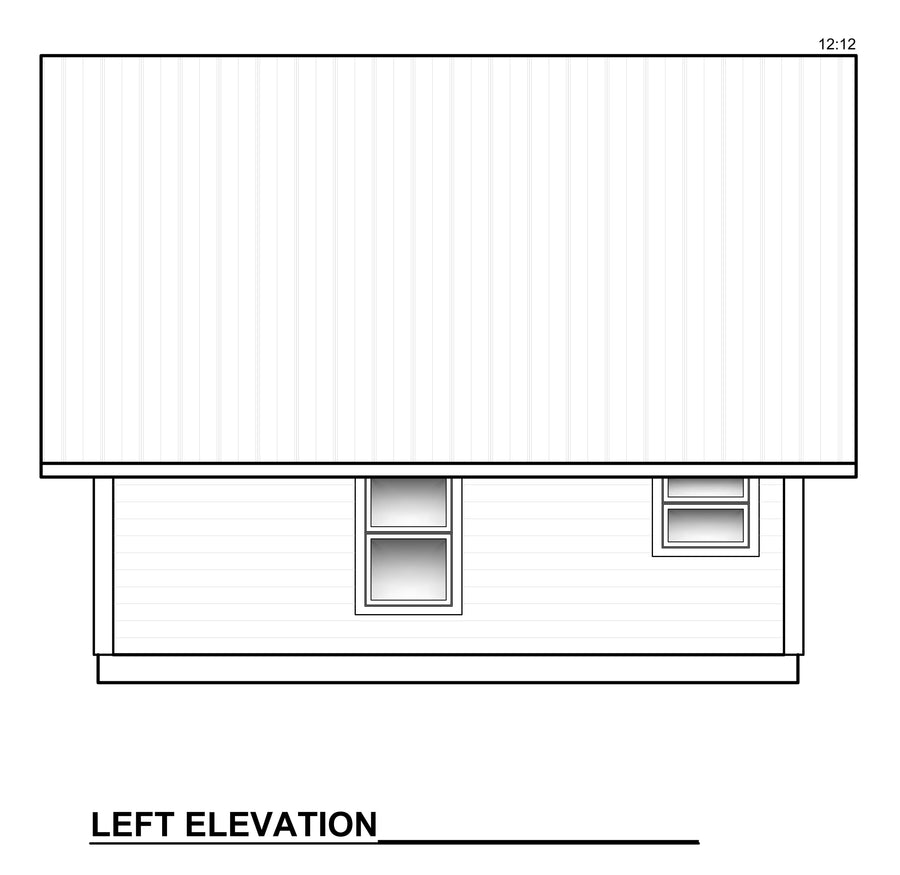

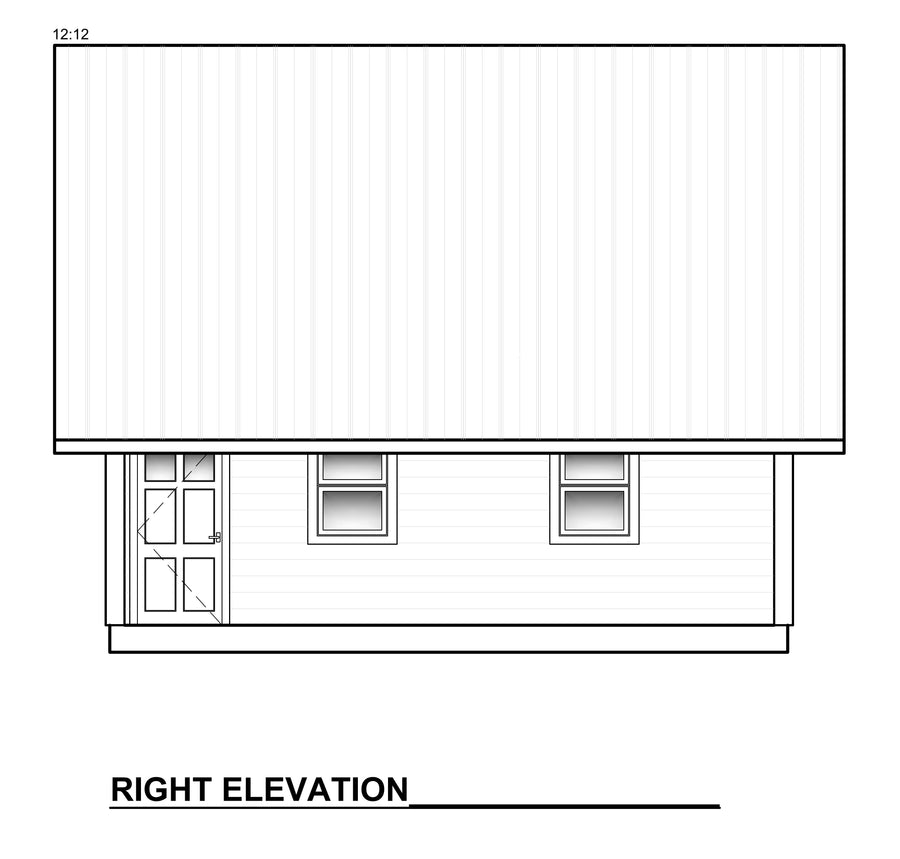

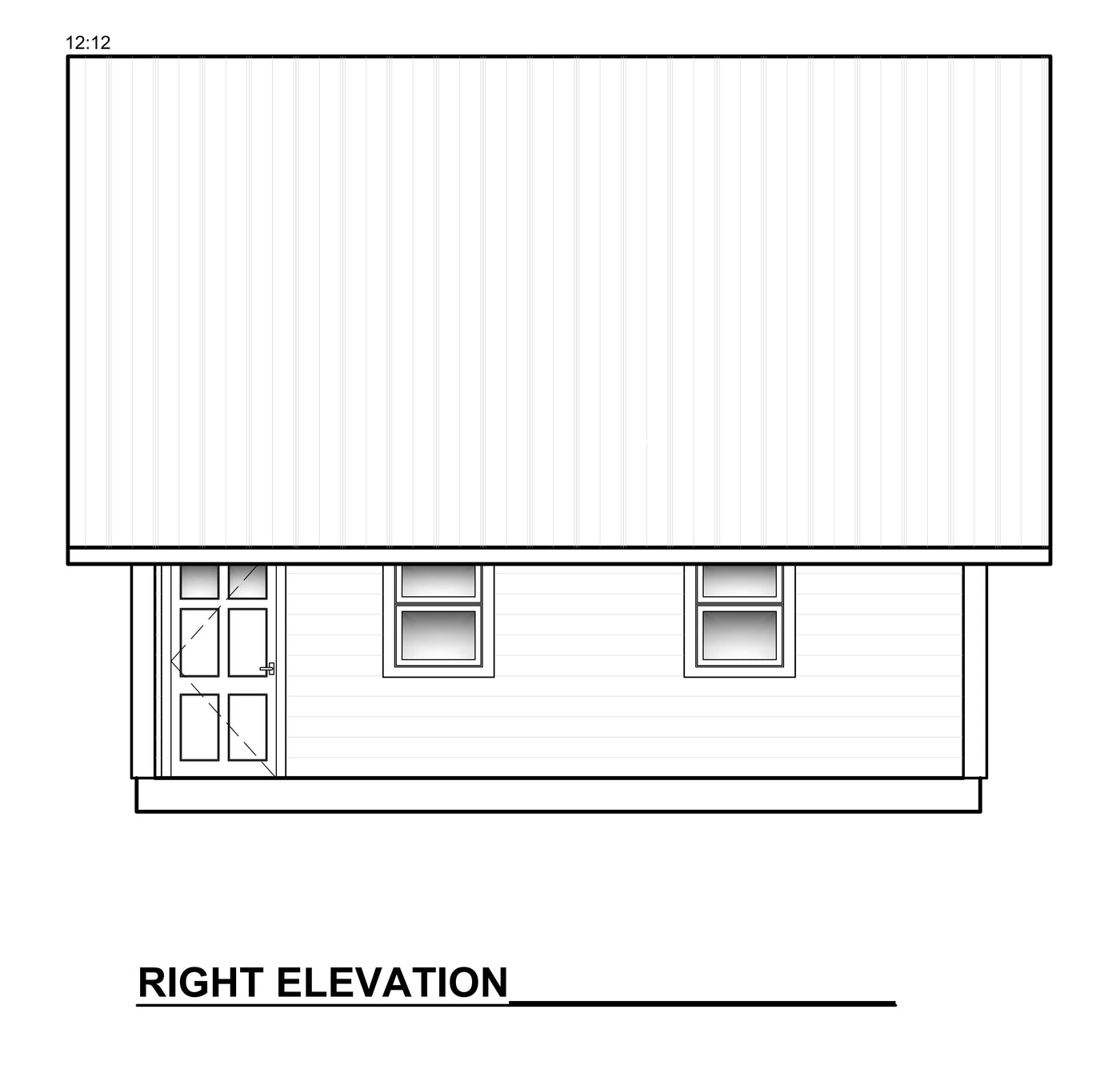

Technical
When you are ready to build
Questions? 530-899-0680 · info@sierralogandtimber.com
Floor Plan Story
How a permitting nightmare inspired The Transformer: an 864 sq ft log cabin that passes as a primary residence, then converts to a garage later.
Read the full story
