Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain |
| Bedrooms | 3 |
| Bathrooms | 2.5 |
| Stories | 1 |
| Main Sq Ft | 2289 |
| Loft Sq Ft | — |
| Basement Sq Ft | — |
| Total Sq Ft | 2289 |
| Garage | Yes |
| Basement | — |
| Reference | Trumble |
About this plan

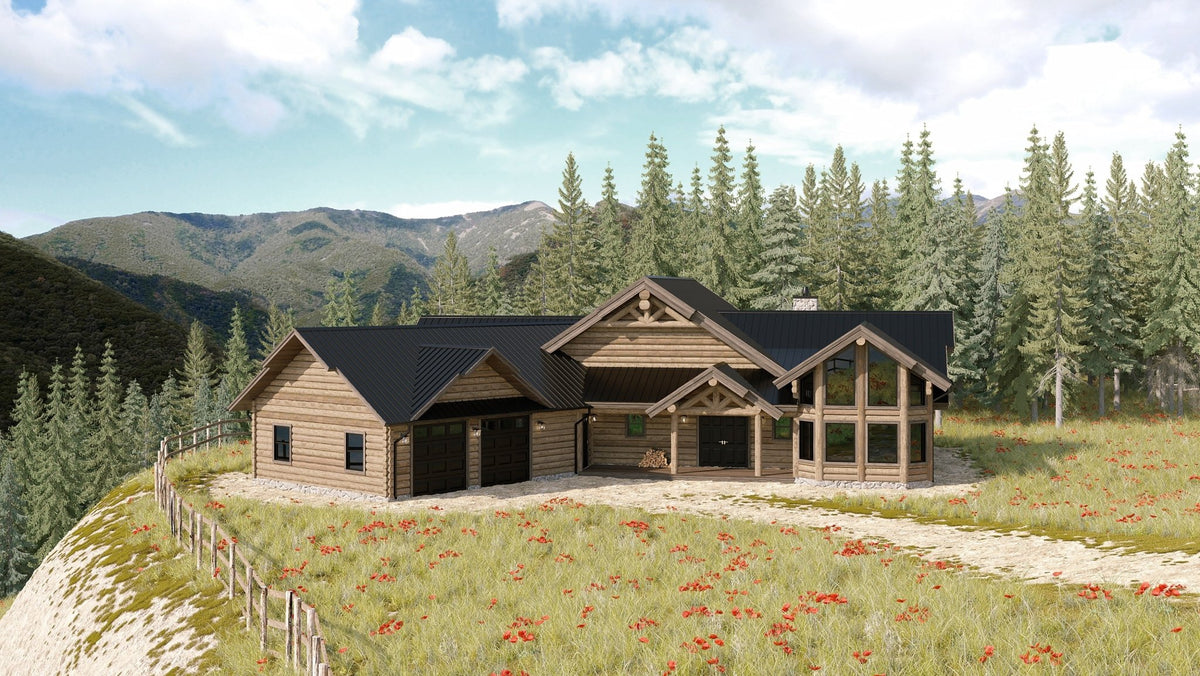

The Hacienda by Sierra Log & Timber is a warm and inviting 2,289 sq ft log home that brings together classic craftsmanship and everyday comfort. Ideal for growing families or anyone dreaming of single-level living with room to spread out, this plan features three bedrooms and two and a half baths, all thoughtfully arranged on one story. The heart of the home is a spacious great room, perfect for gathering around the fire or sharing meals from the open kitchen. The primary bedroom offers a quiet retreat, while two additional bedrooms provide space for kids, guests, or a home office. With an attached garage for convenience, the Hacienda is well-suited for full-time mountain living, a country retreat, or a forever family home. Like all Sierra Log & Timber plans, it can be tailored to fit your vision, blending timeless log style with practical living.

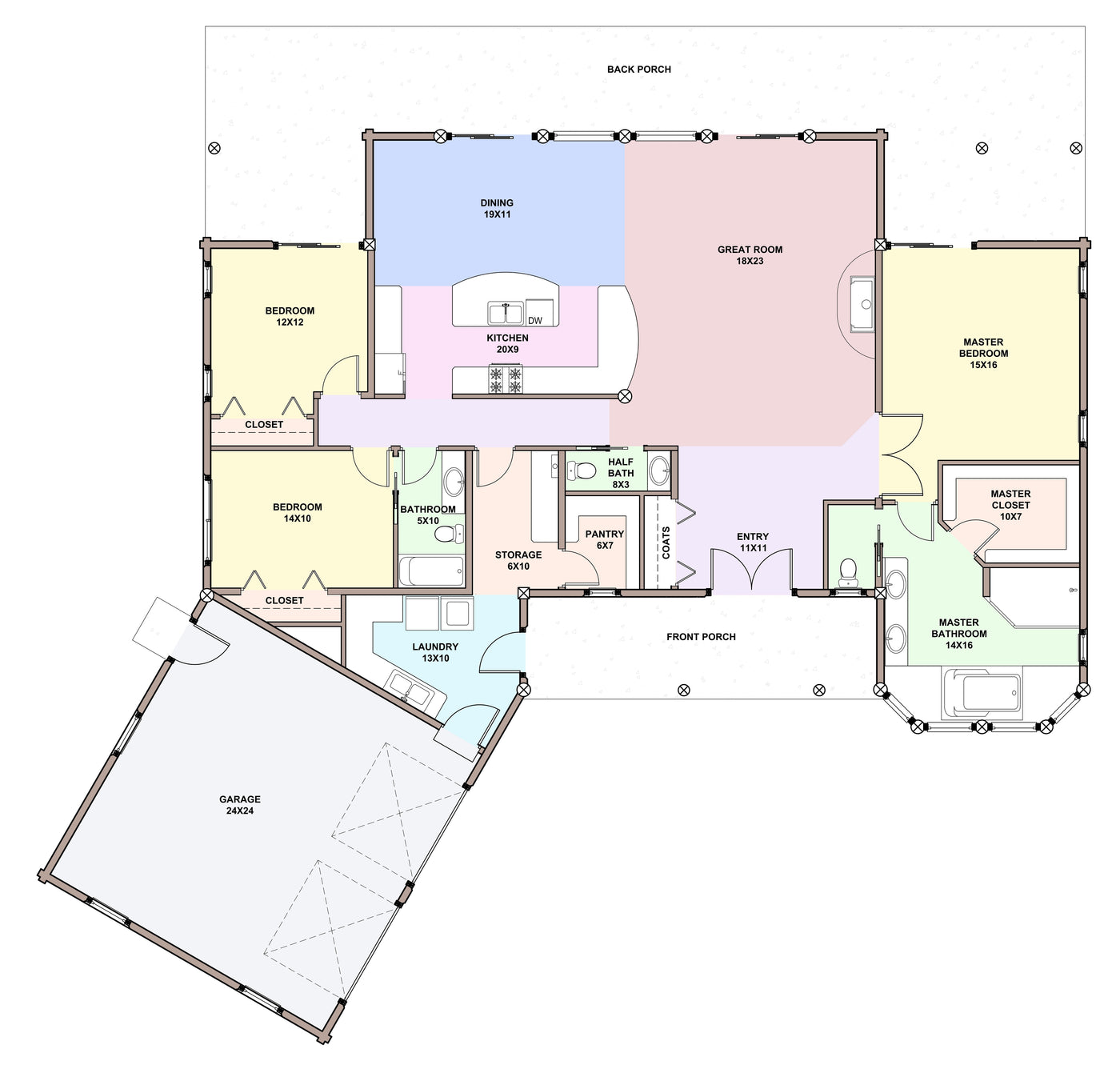

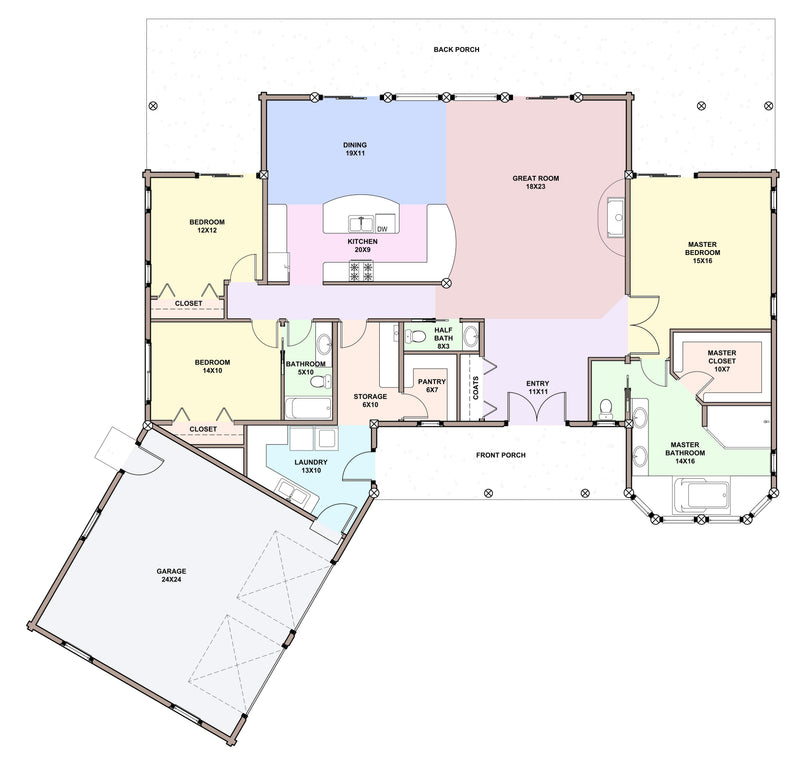

Floor plans
3D

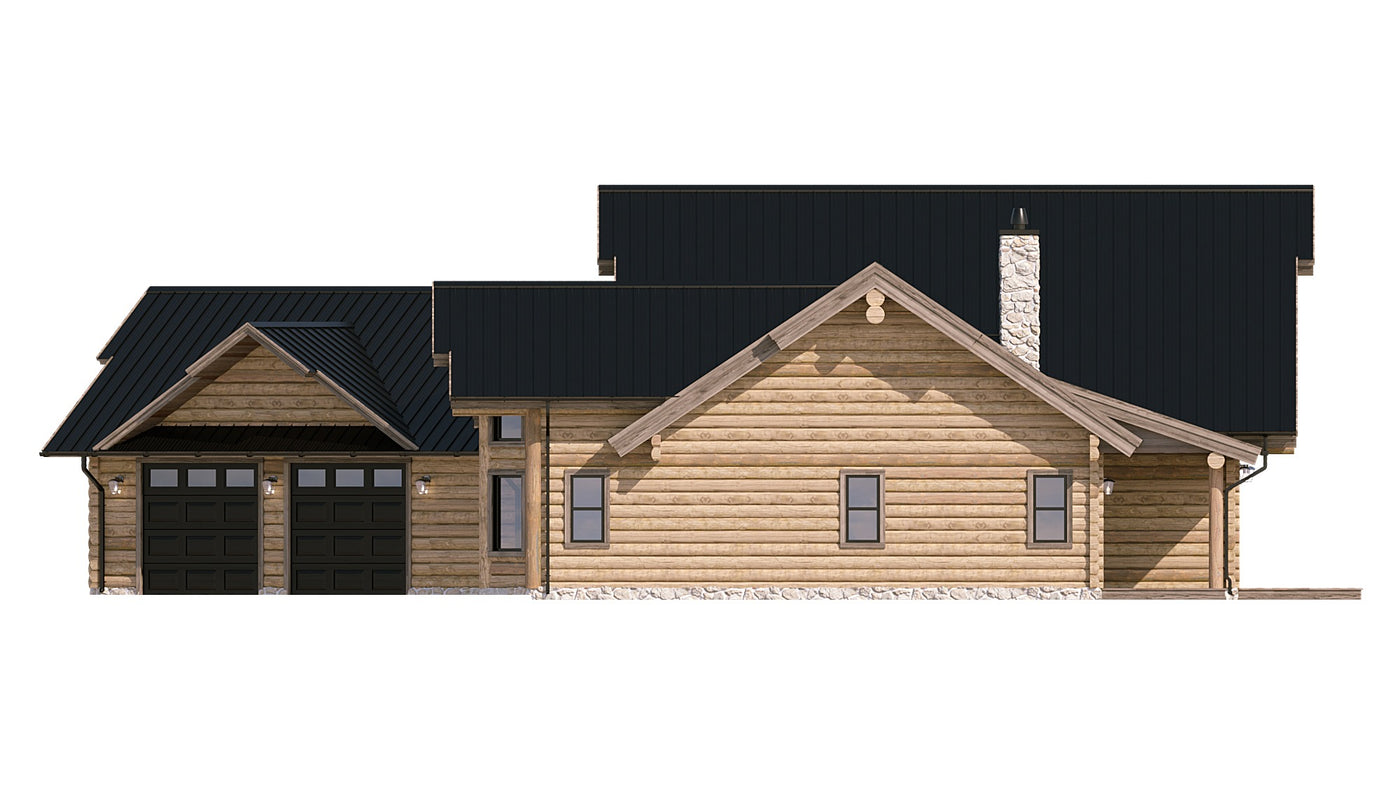

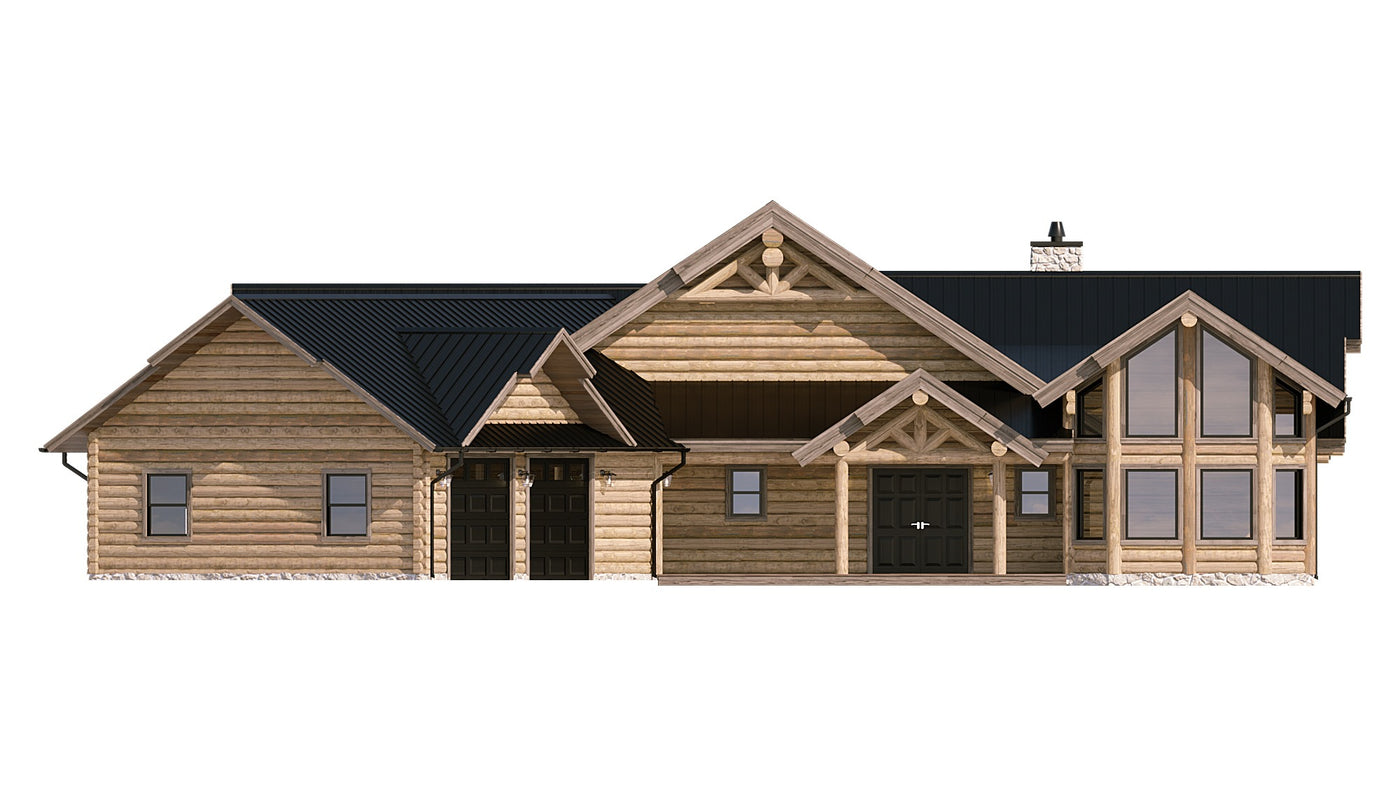

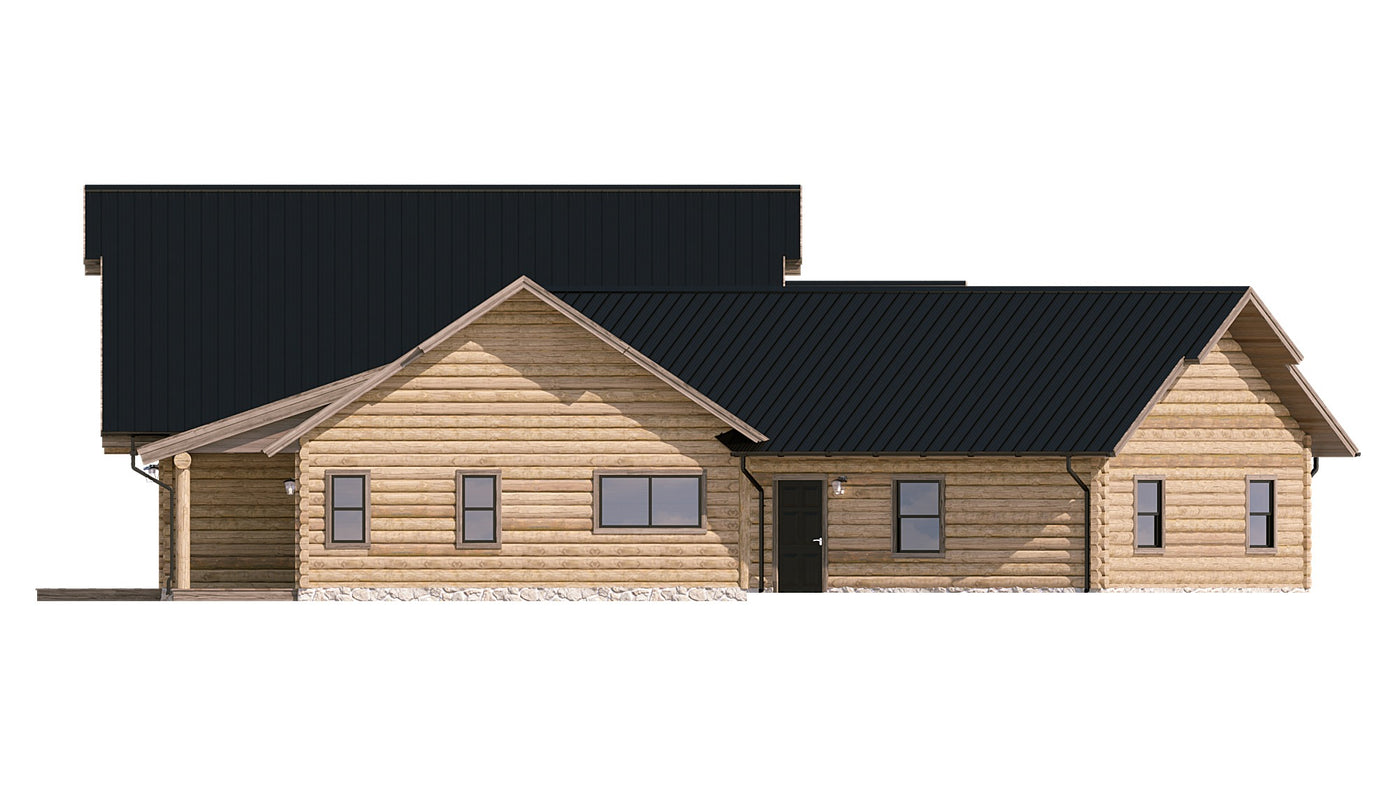

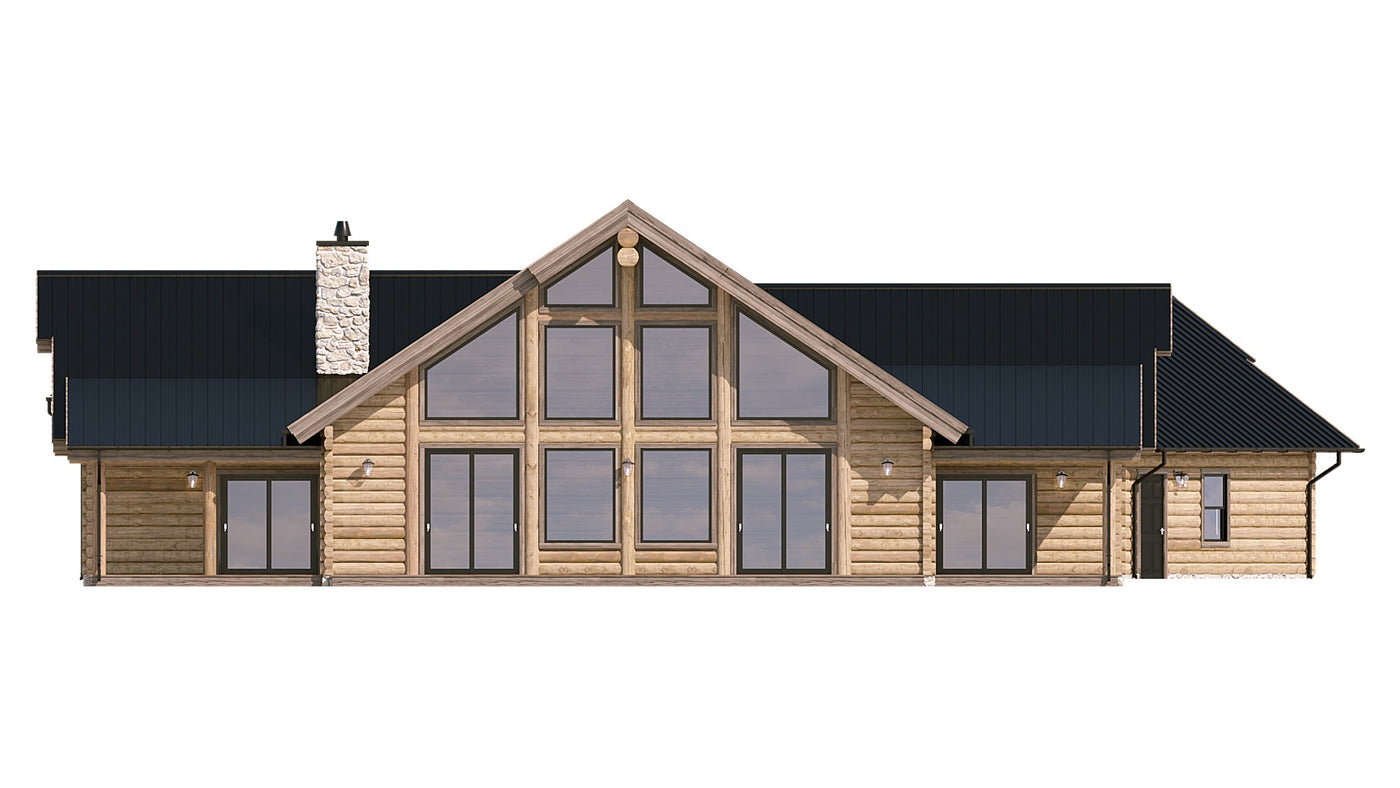

Perspective views
Renders

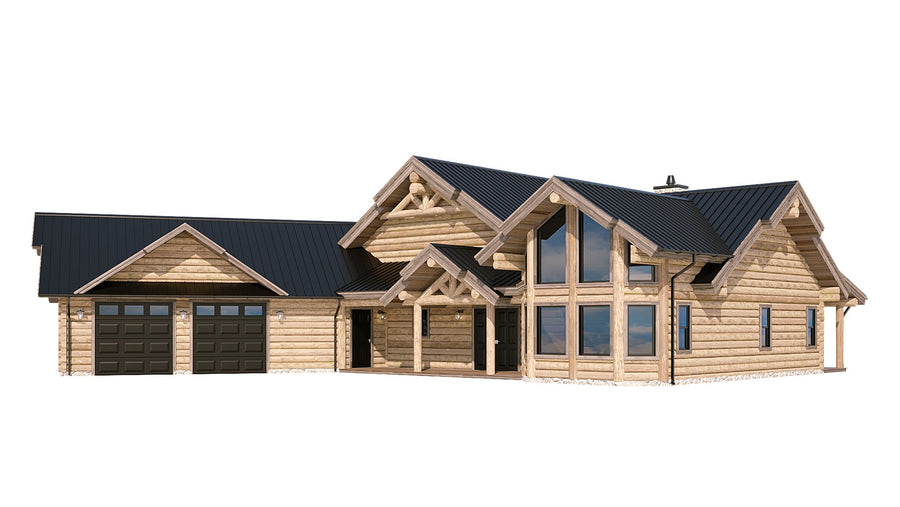

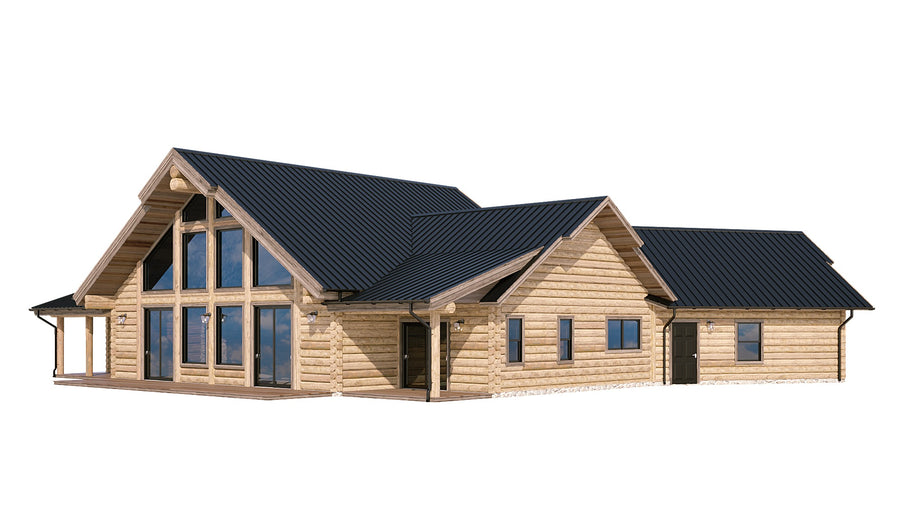

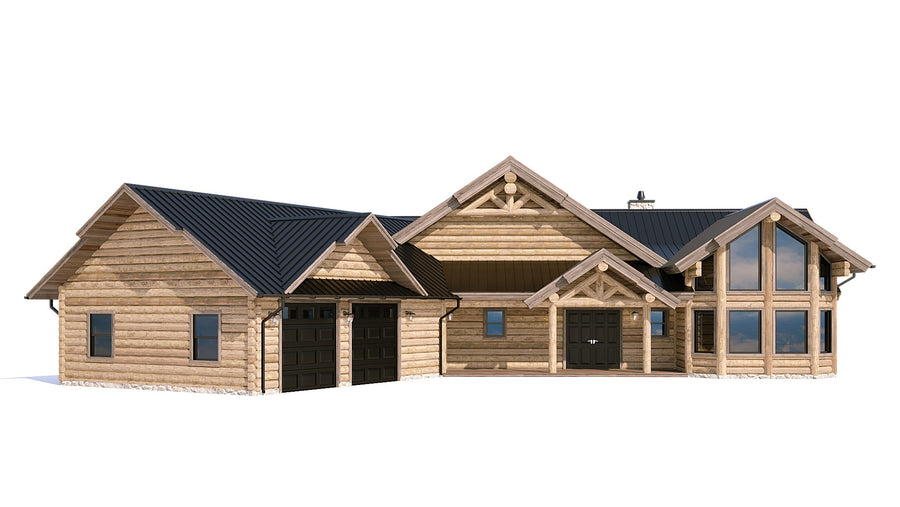

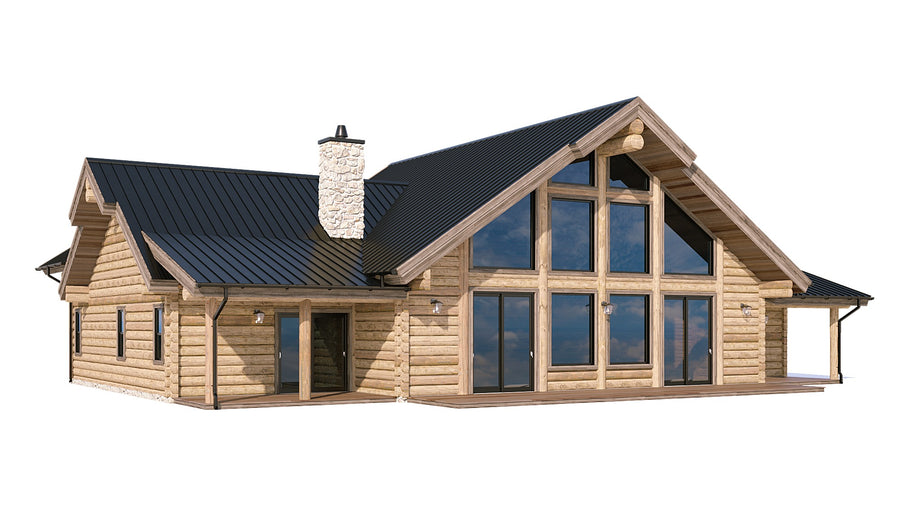

Ortho views
Technical

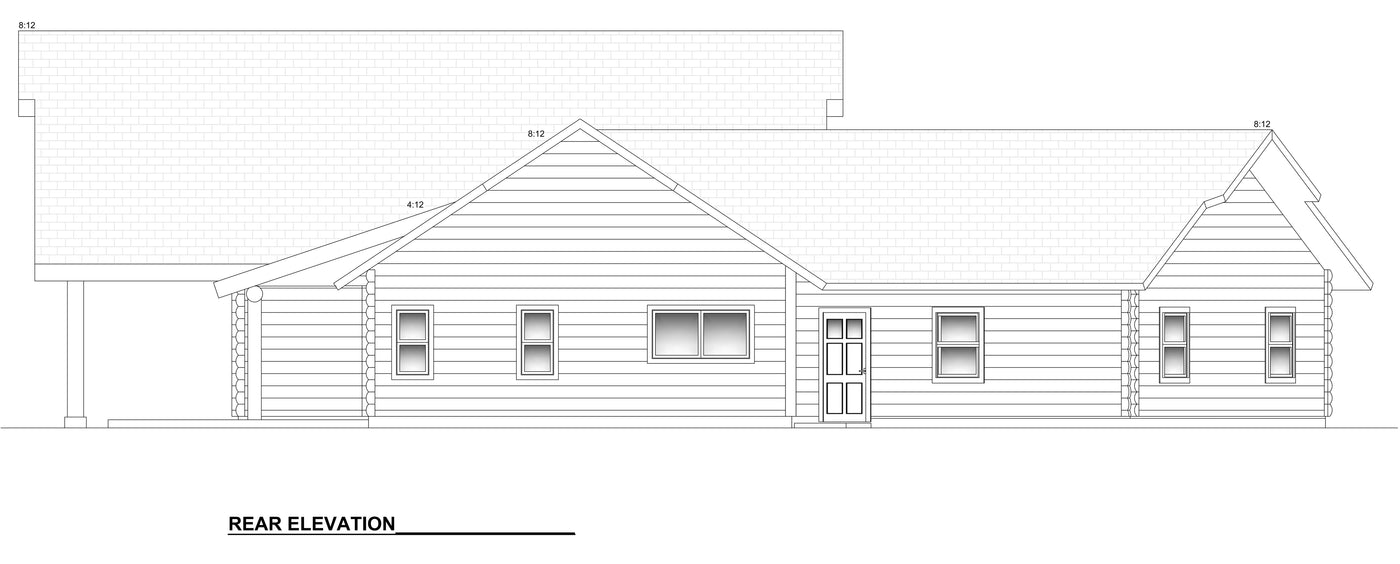

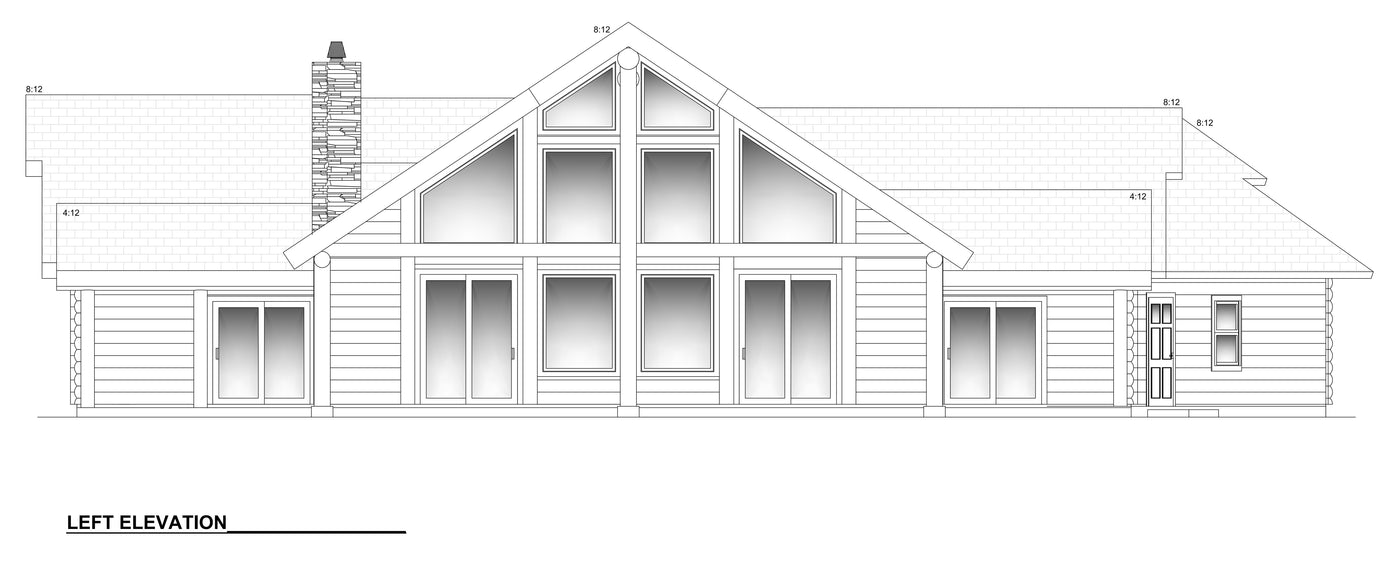

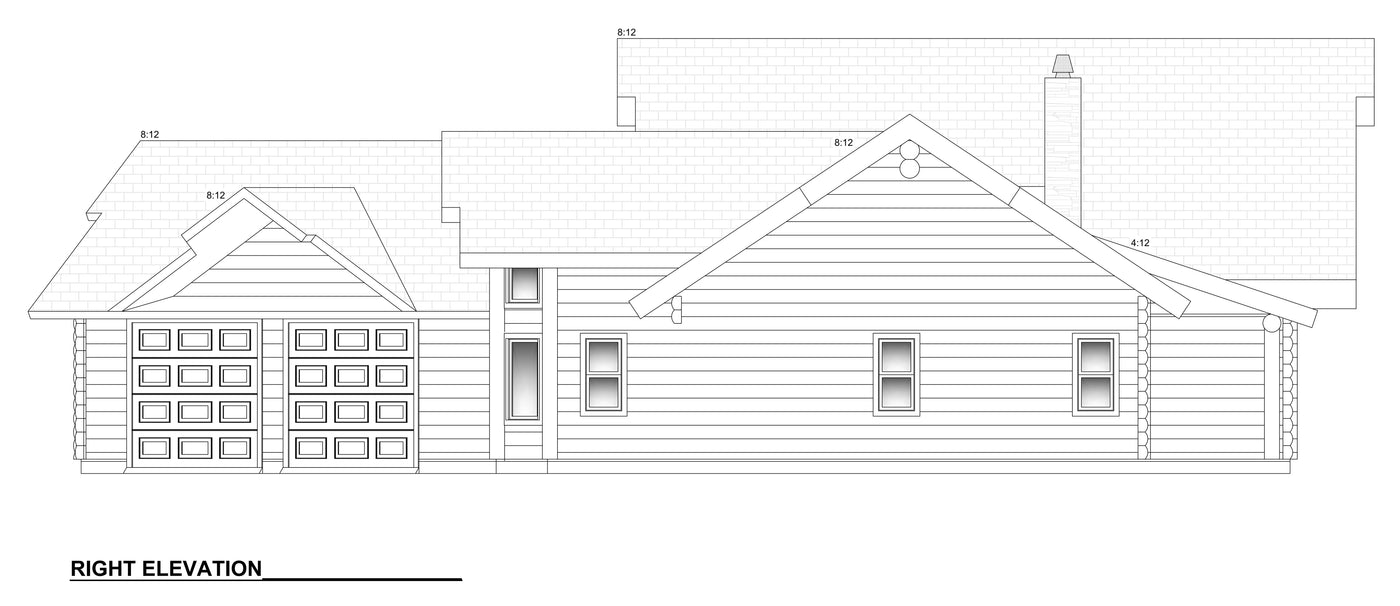

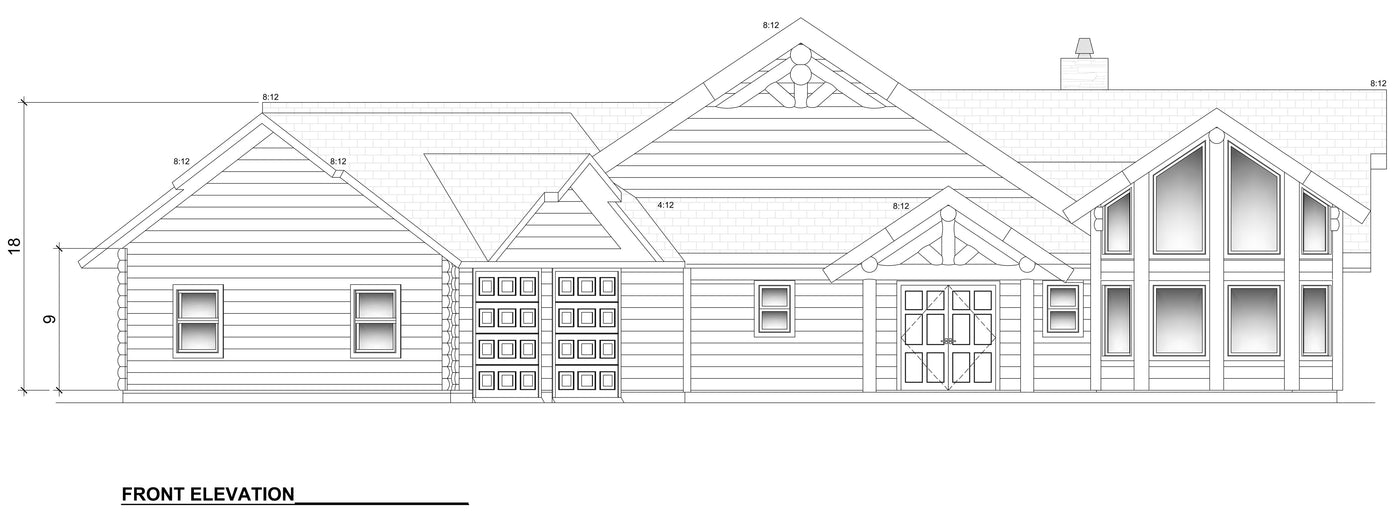

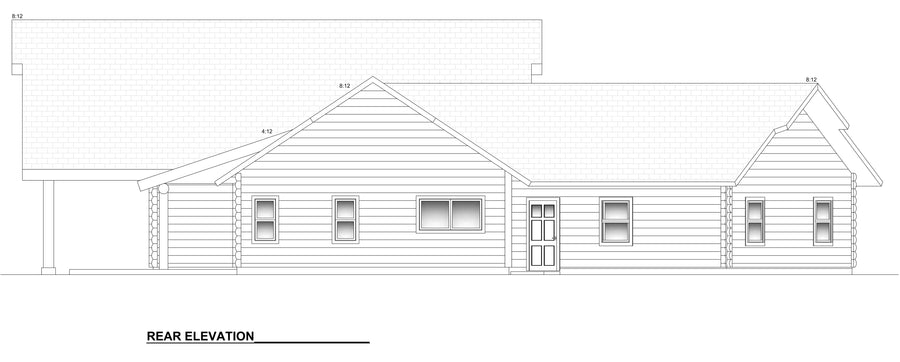

Elevation drawings
When you are ready to build
