Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU / Ranch |
| Bedrooms | 5 |
| Bathrooms | 3 |
| Stories | 2 |
| Main Sq Ft | 1200 |
| Loft Sq Ft | 470 |
| Basement Sq Ft | 0 |
| Total Sq Ft | 1670 |
| Garage | — |
| Basement | — |
| Reference | adu1200 |
About this plan
The ADU 1200/1670 is a compact yet thoughtfully designed accessory dwelling unit at the 1200 sq ft foot print with the second floor as a 470 sq ft storage, if not for used for an ADU then the 1670 can be used to cretae a fantastic 2 story home in a number of ways. This is perfect for guest houses, rental income, or multi-generational living. This efficient floor plan maximizes livable space while maintaining affordability and ease of construction. Ideal for properties seeking to add value and flexibility, it combines smart layouts with the warmth of log home construction. Customize it to suit your needs—whether as a standalone residence, income-producing rental, or family retreat. Built with quality craftsmanship and designed for modern living, the ADU 1200/1670 delivers practical elegance in a smaller footprint.

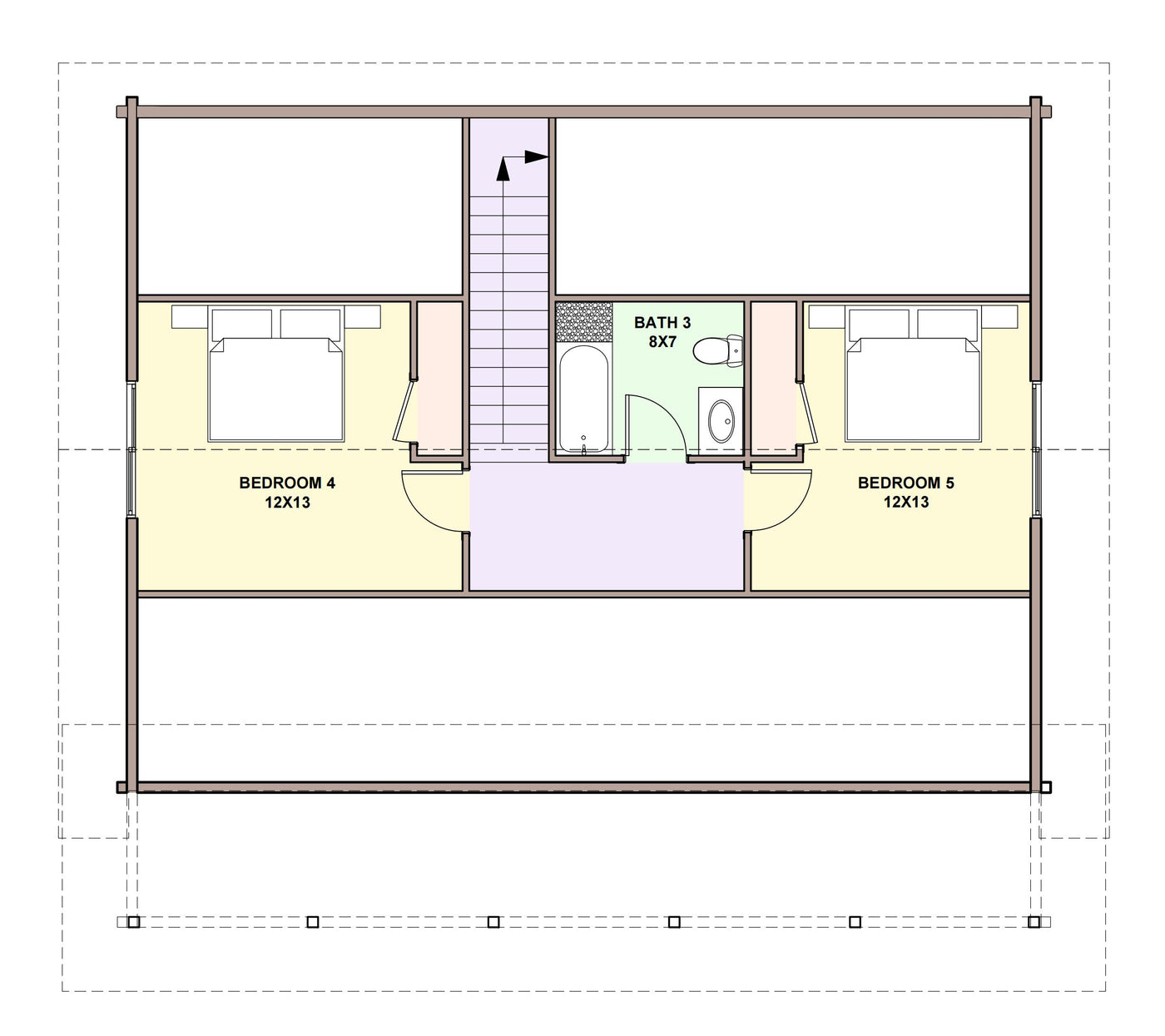

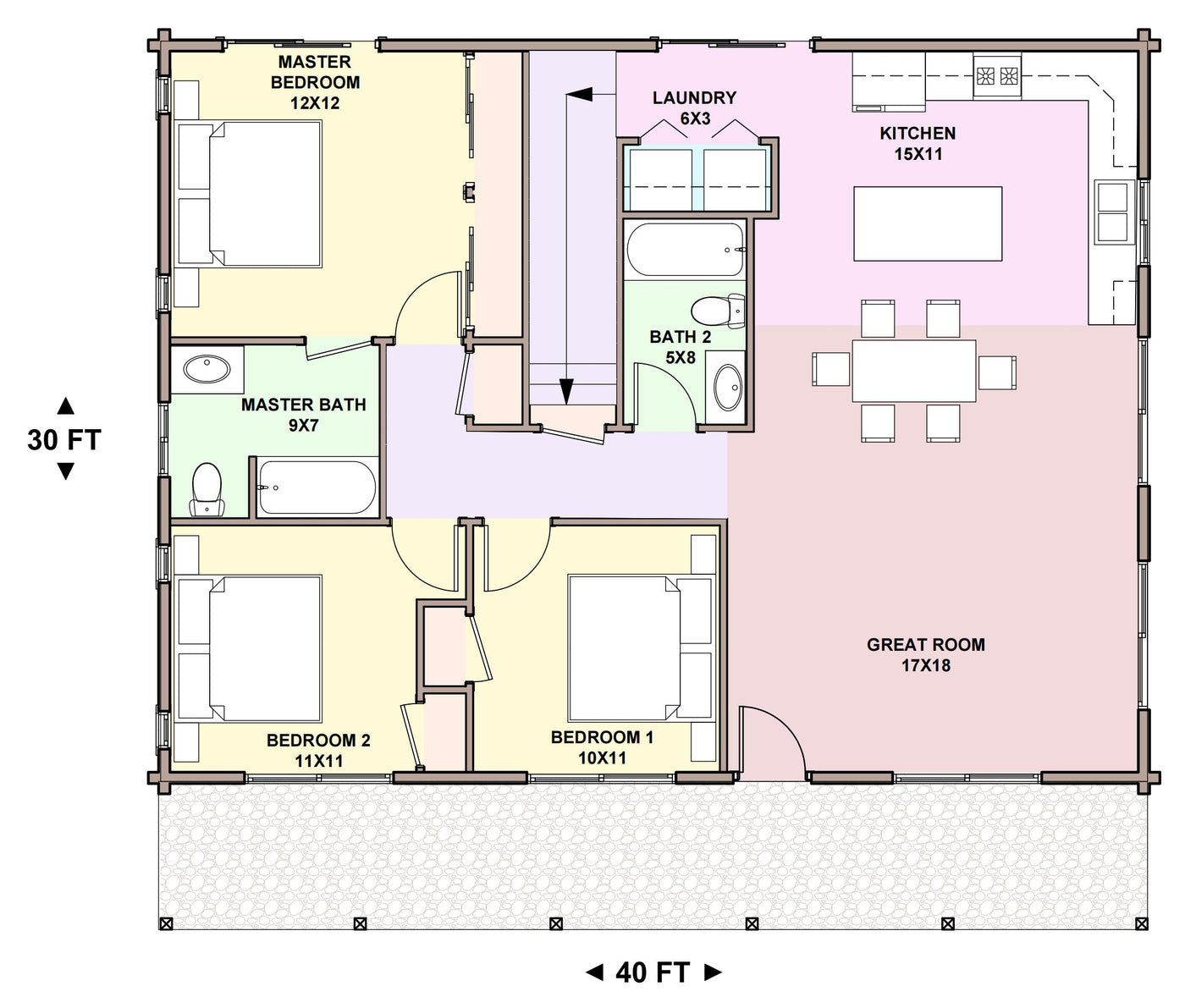

Floor plans
3D

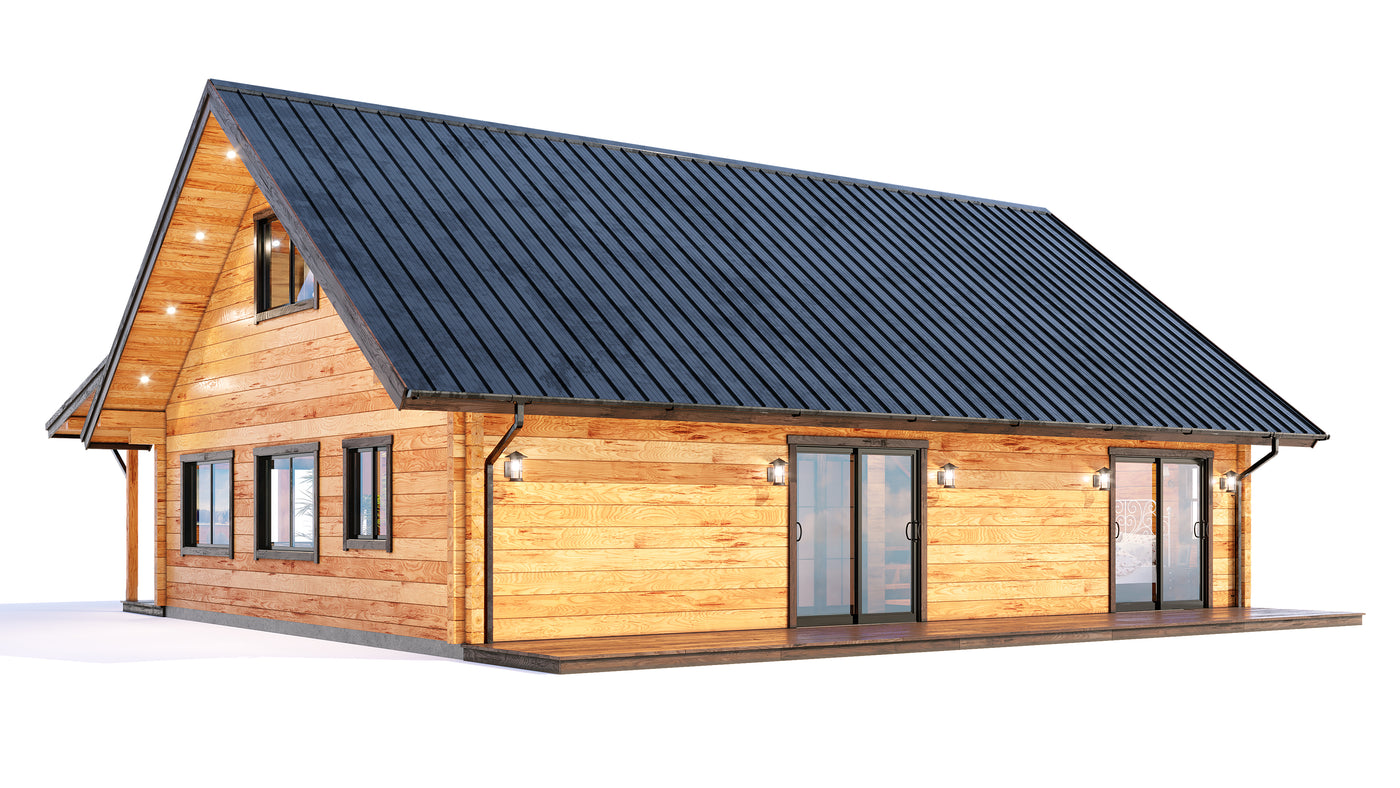

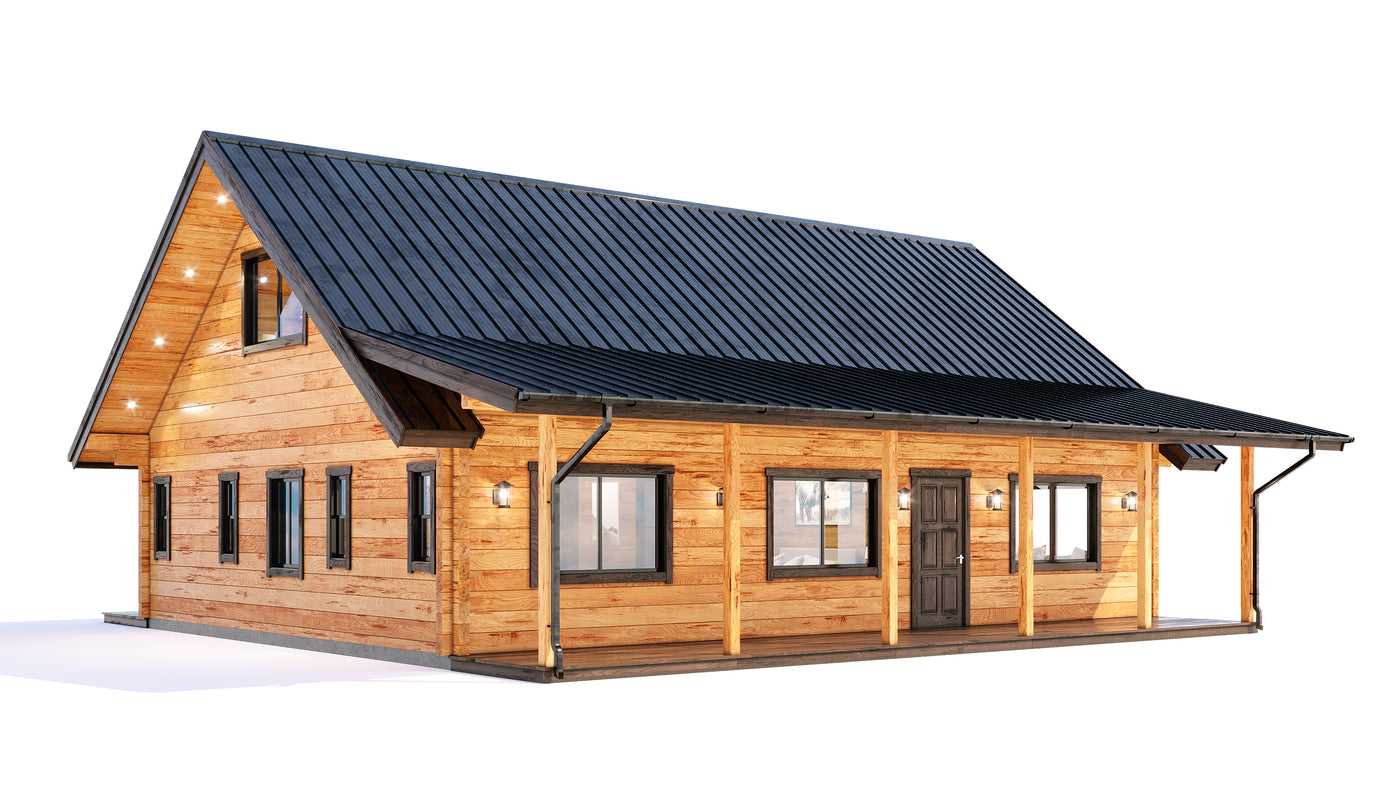

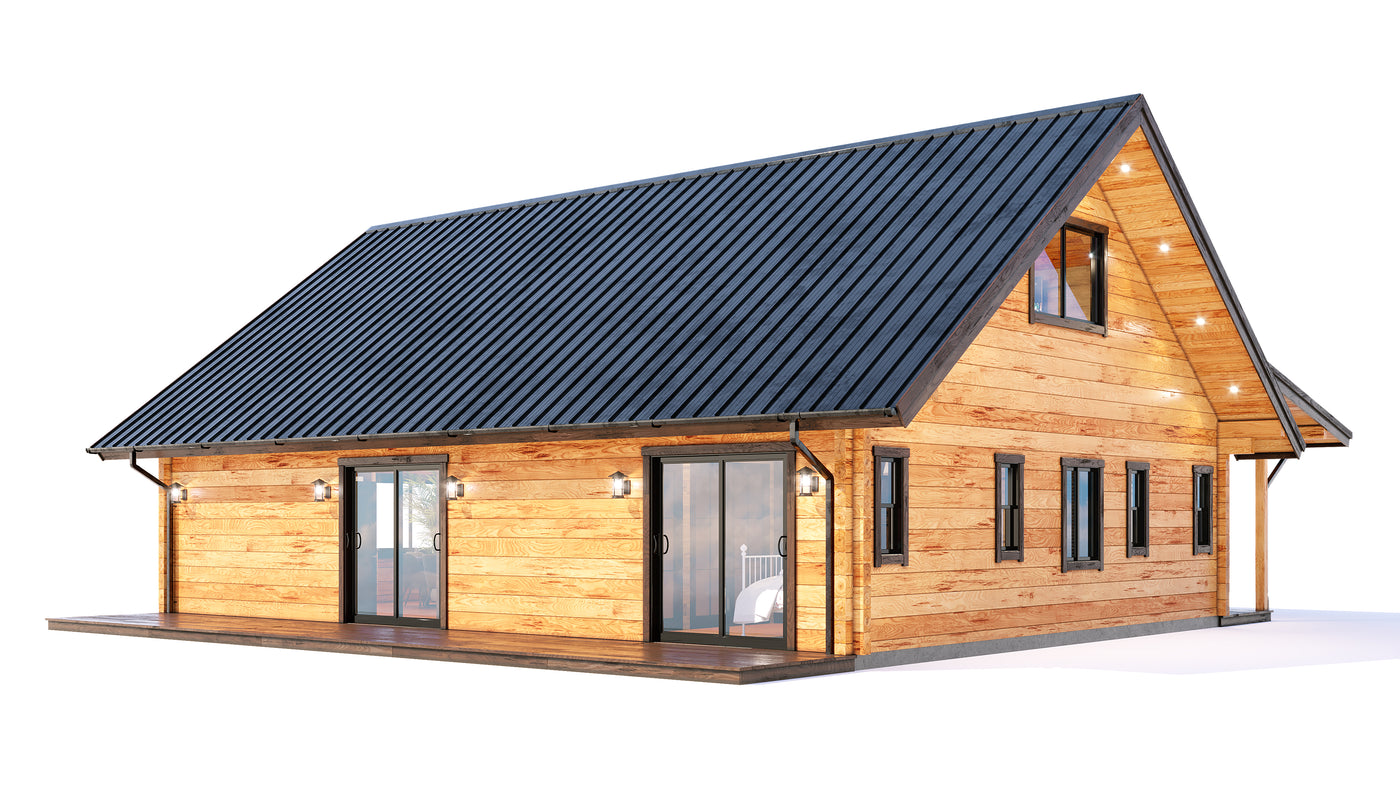

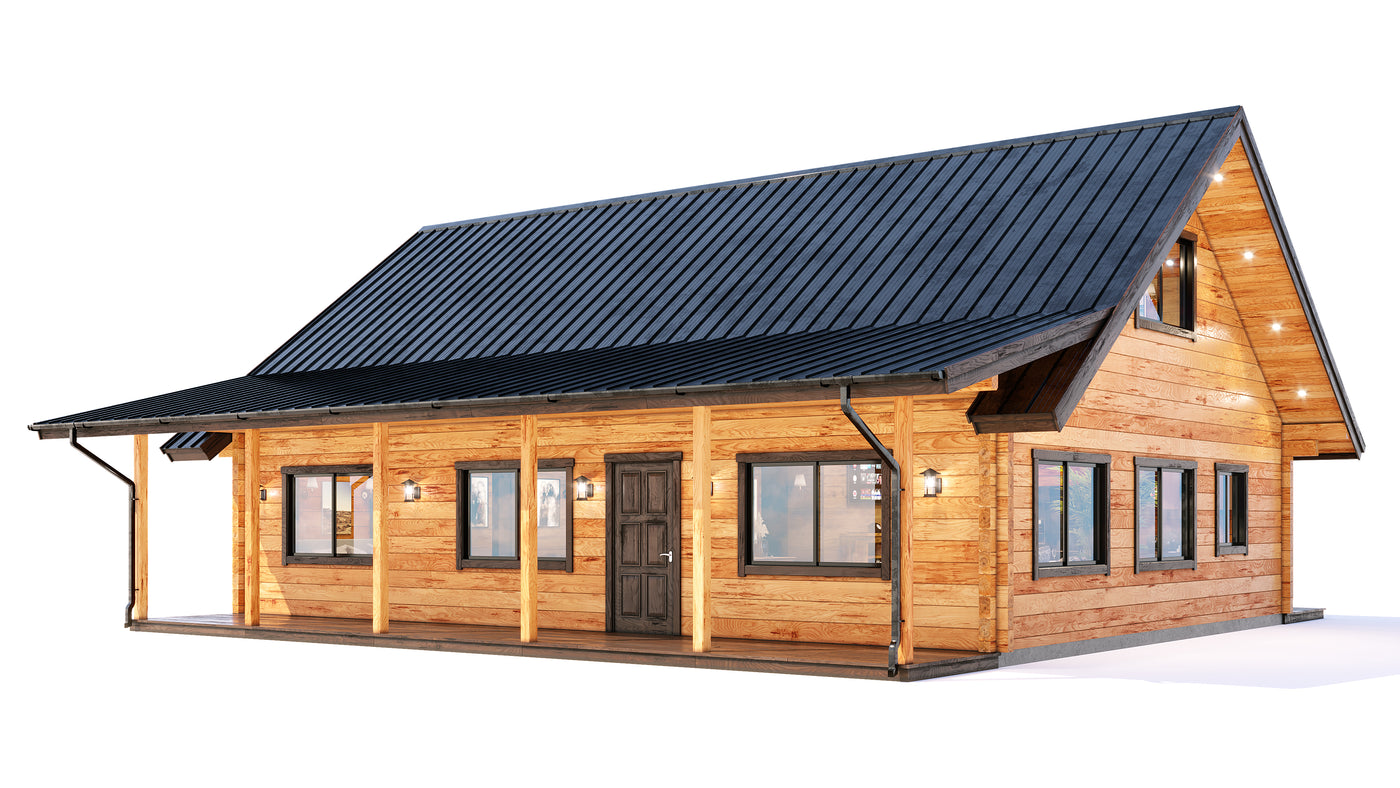

Perspective views

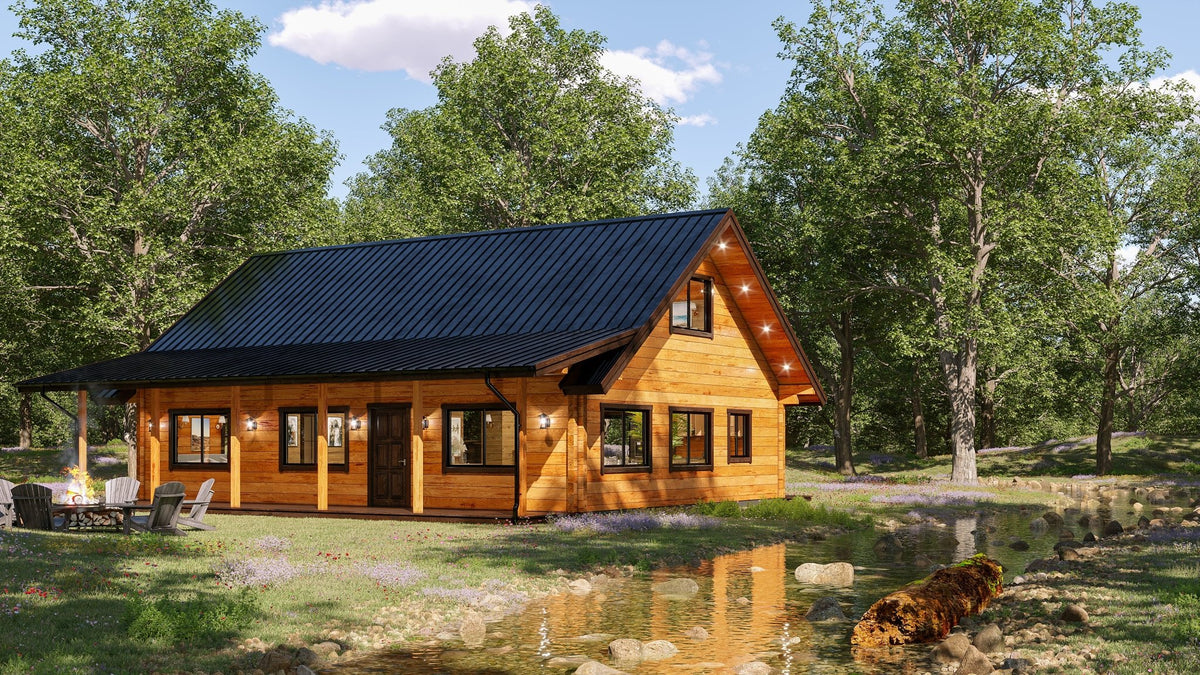

Renders

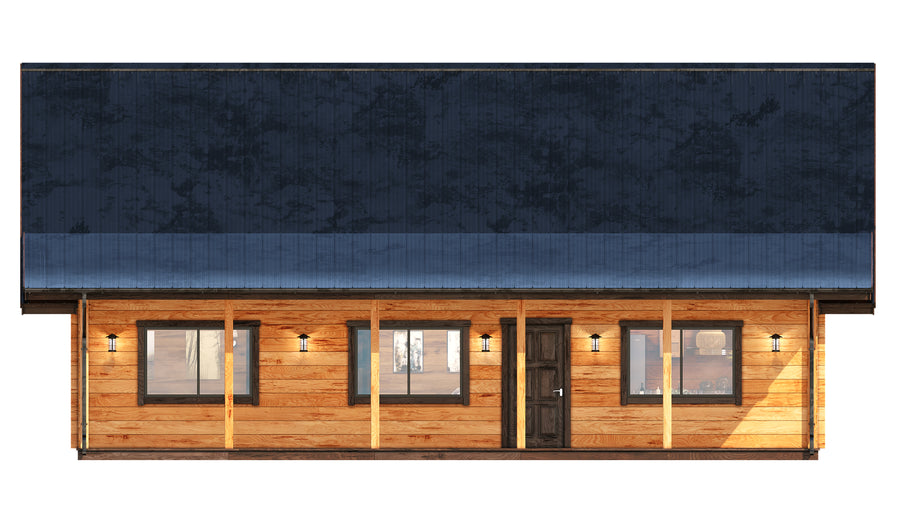

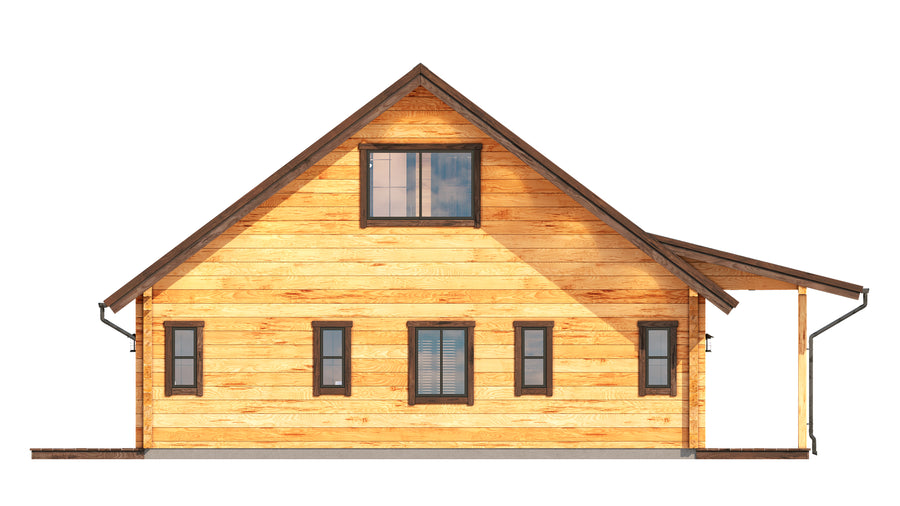

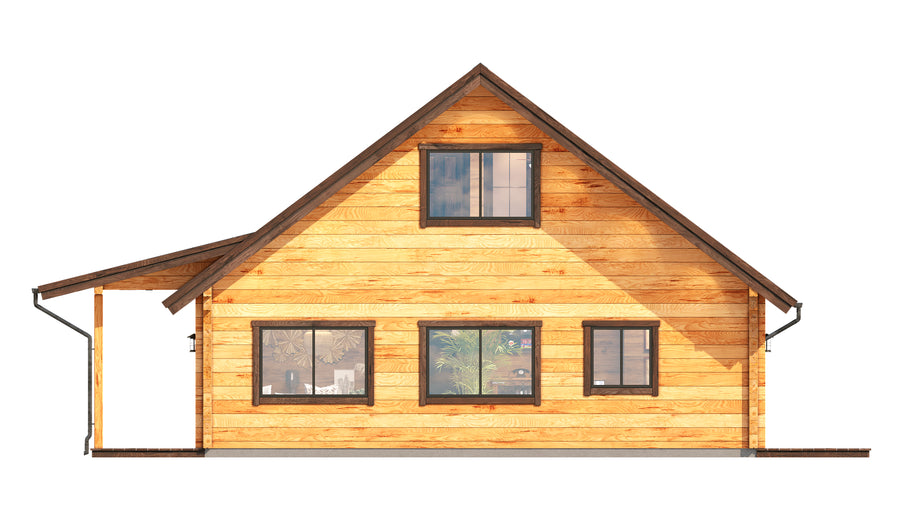

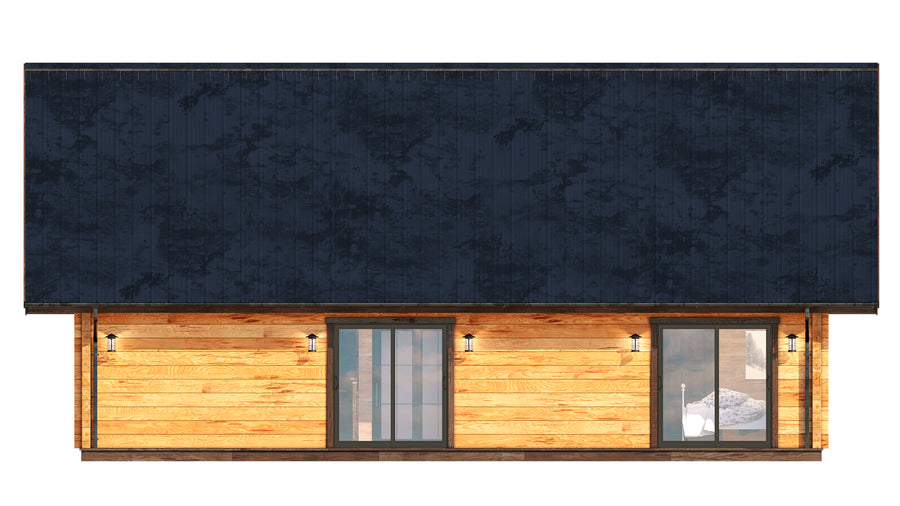

Ortho views
Technical

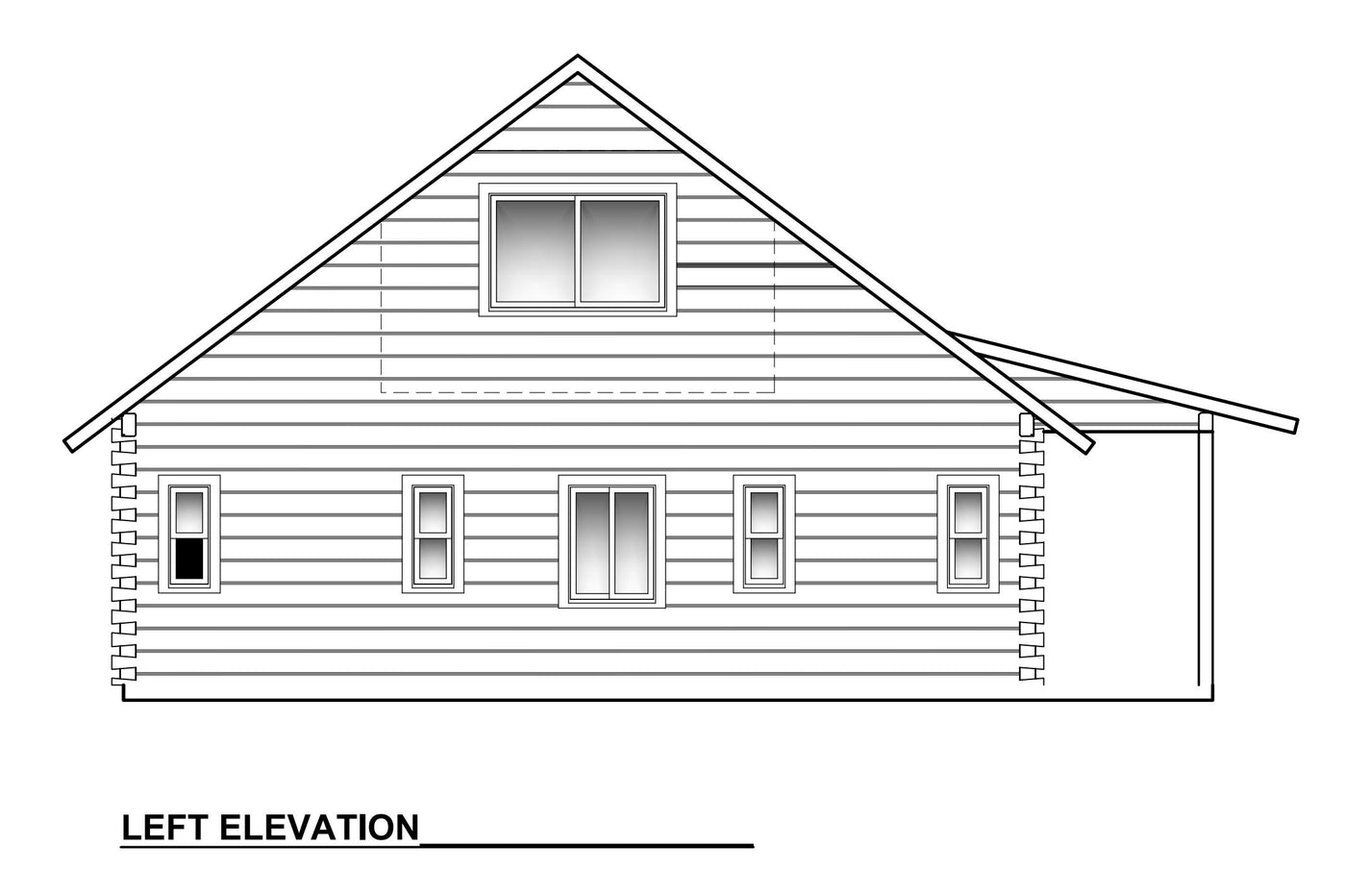

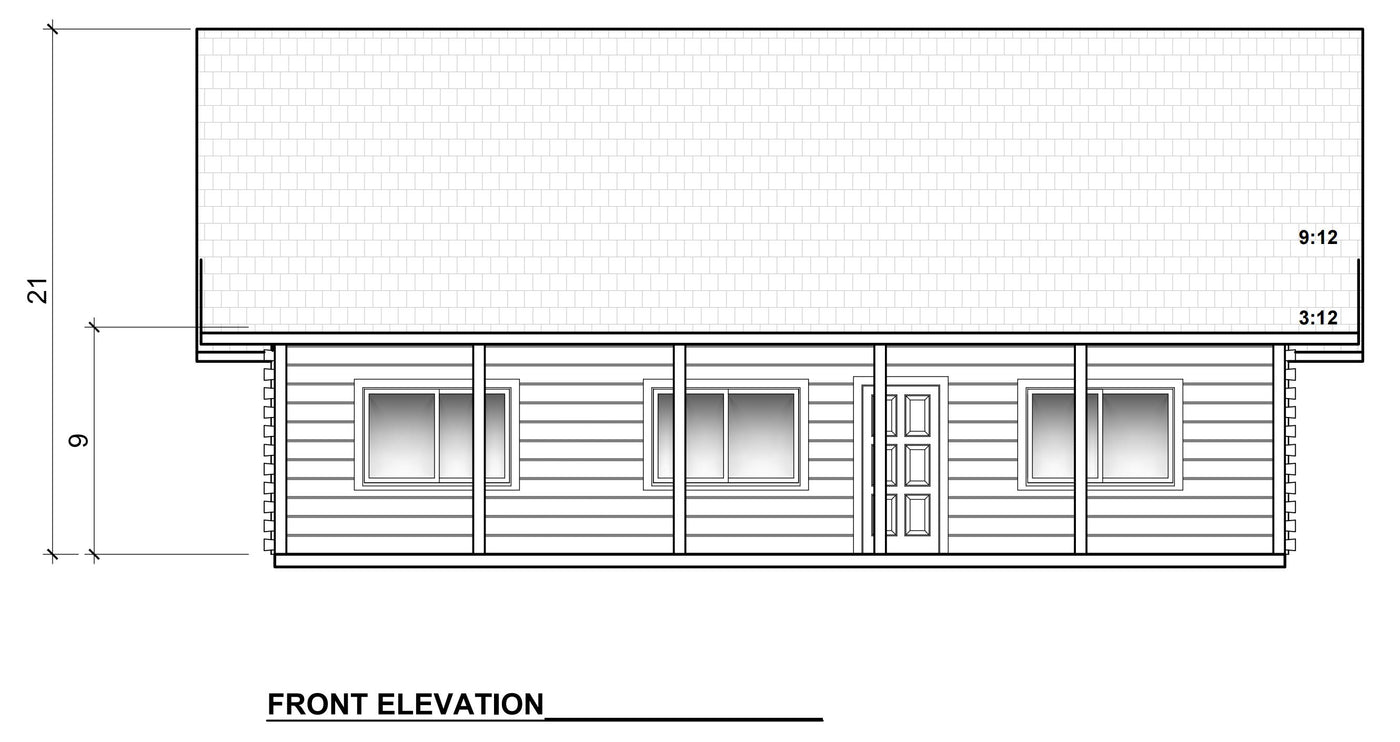

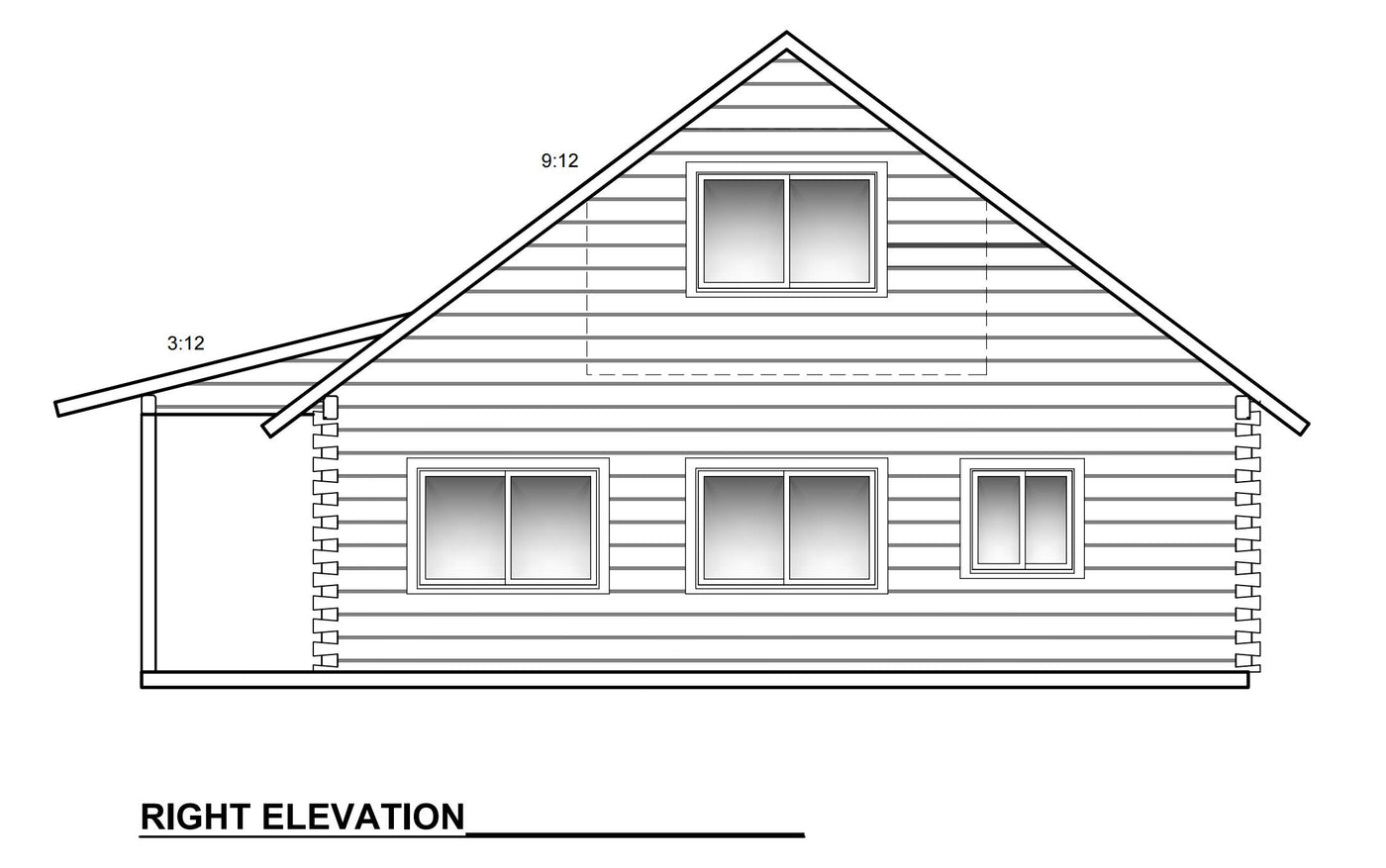

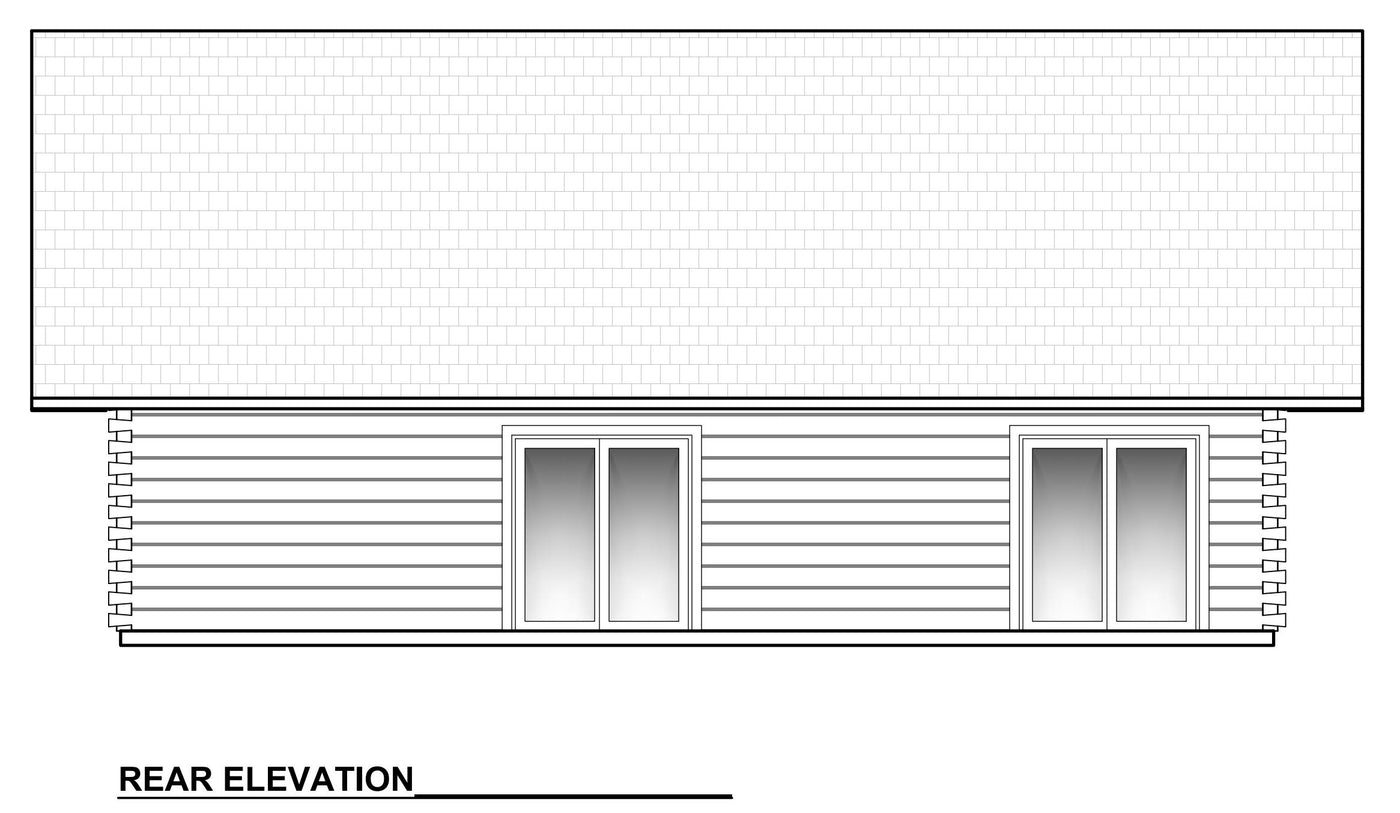

Elevation drawings
