Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU |
| Bedrooms | 1 |
| Bathrooms | 1.5 |
| Stories | 2 |
| Main Sq Ft | 624 |
| Loft Sq Ft | 312 |
| Basement Sq Ft | 0 |
| Total Sq Ft | 936 |
| Garage | Yes |
| Basement | — |
| Reference | Transformer - Quad Cave |
About this plan
The Quad Cave by Sierra Log & Timber is a sturdy 936 sq ft log cabin with a practical spirit and a warm, inviting feel. Ideal for singles or couples looking for a cozy retreat or a full-time downsized home, it offers a comfortable main floor with 624 sq ft that includes a welcoming great room, a straightforward kitchen, and a private bedroom and bath. Upstairs, the 312 sq ft loft is ready for whatever you need most—an extra sleeping spot for guests, a quiet reading nook, or a tucked-away studio. The attached garage adds convenience for year-round living or weekend escapes. Whether as a mountain getaway, a lakeside cabin, or a guest house on your land, the Quad Cave is built for simple living and can be tailored to fit your vision. Read our story on the QUAD CAVE so you know its history.

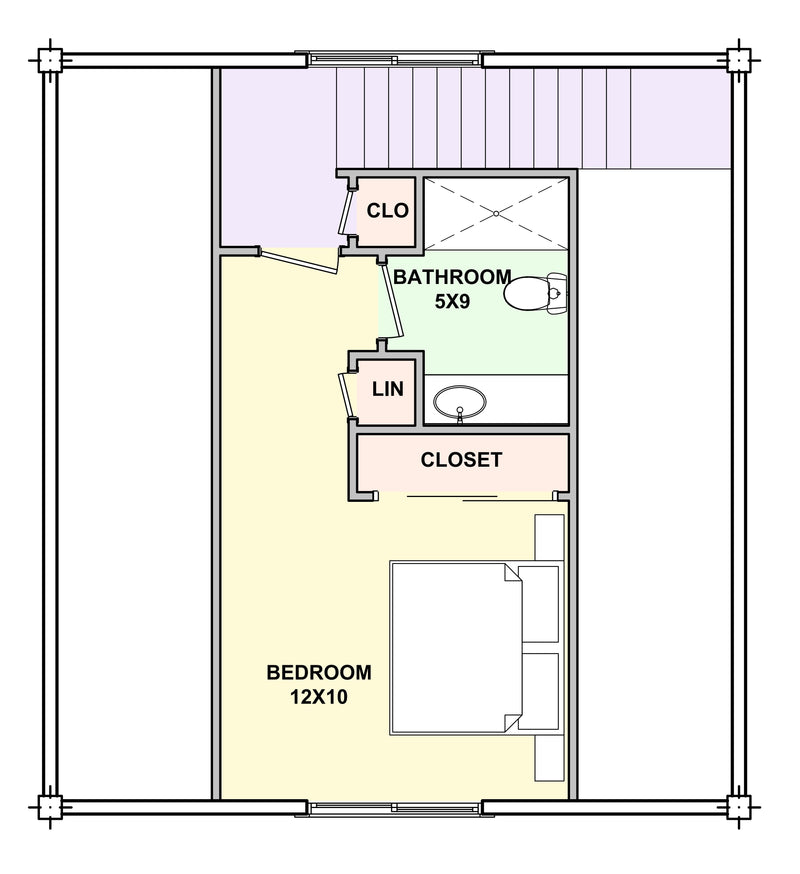

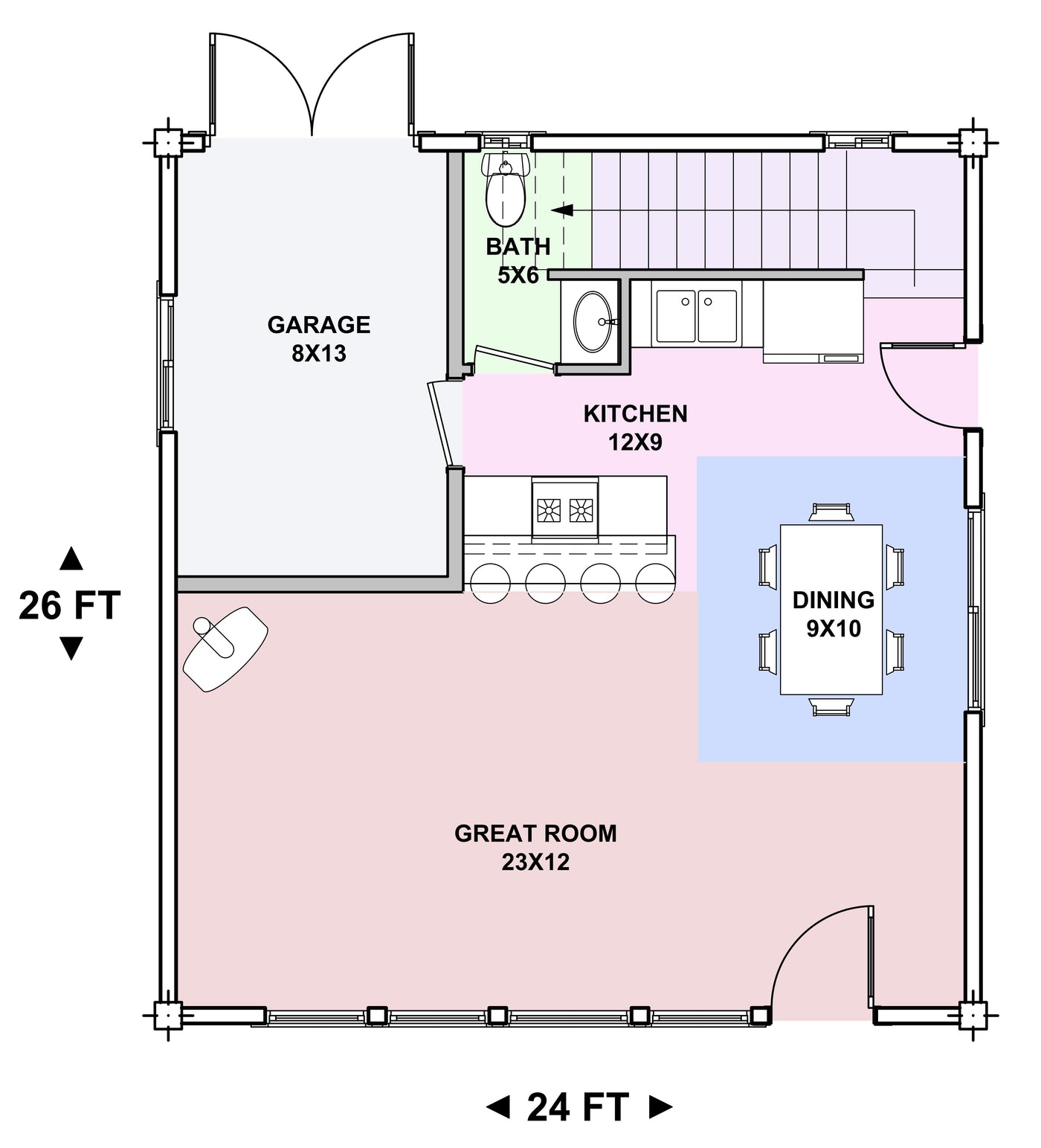

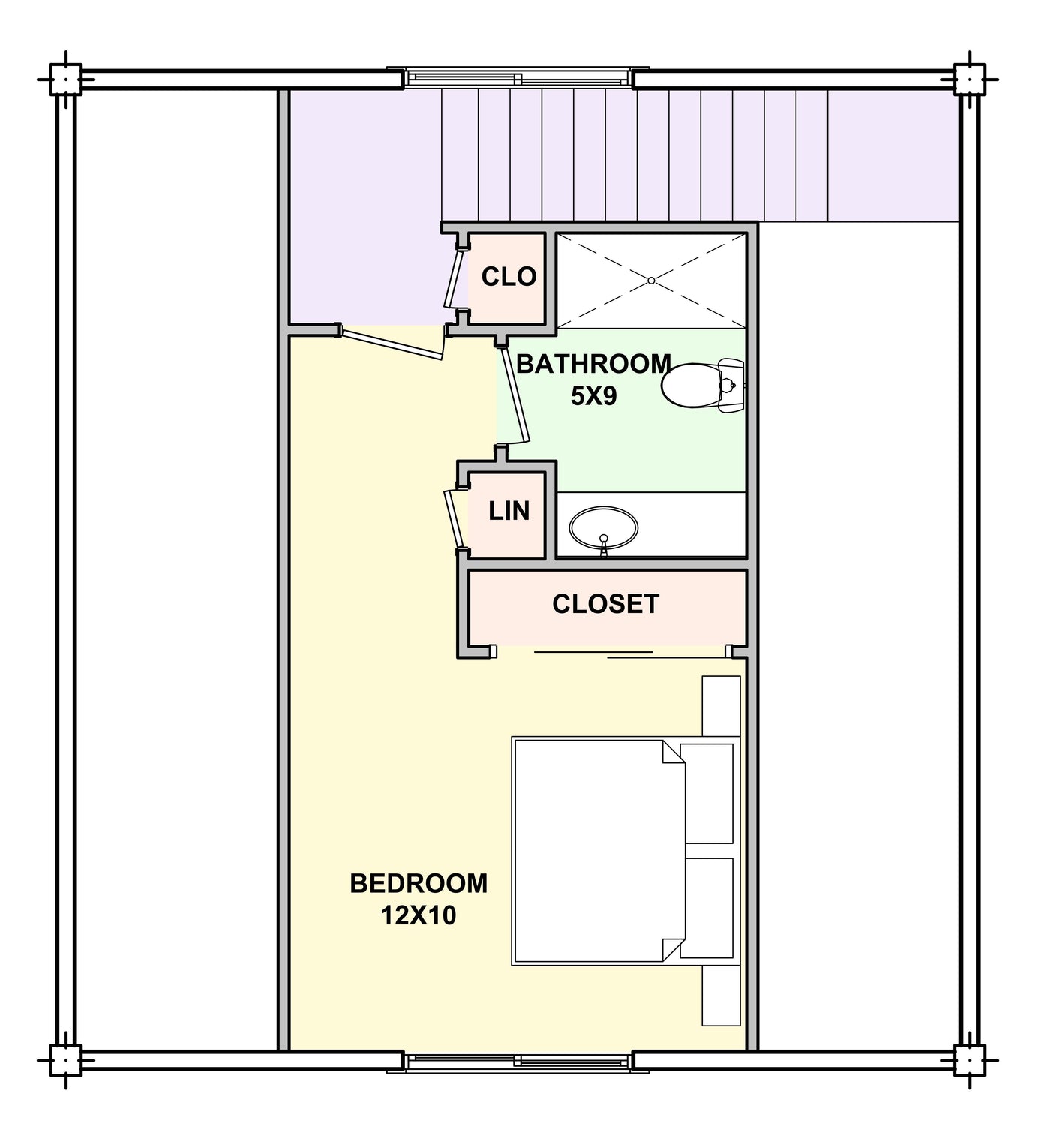

Floor plans
3D

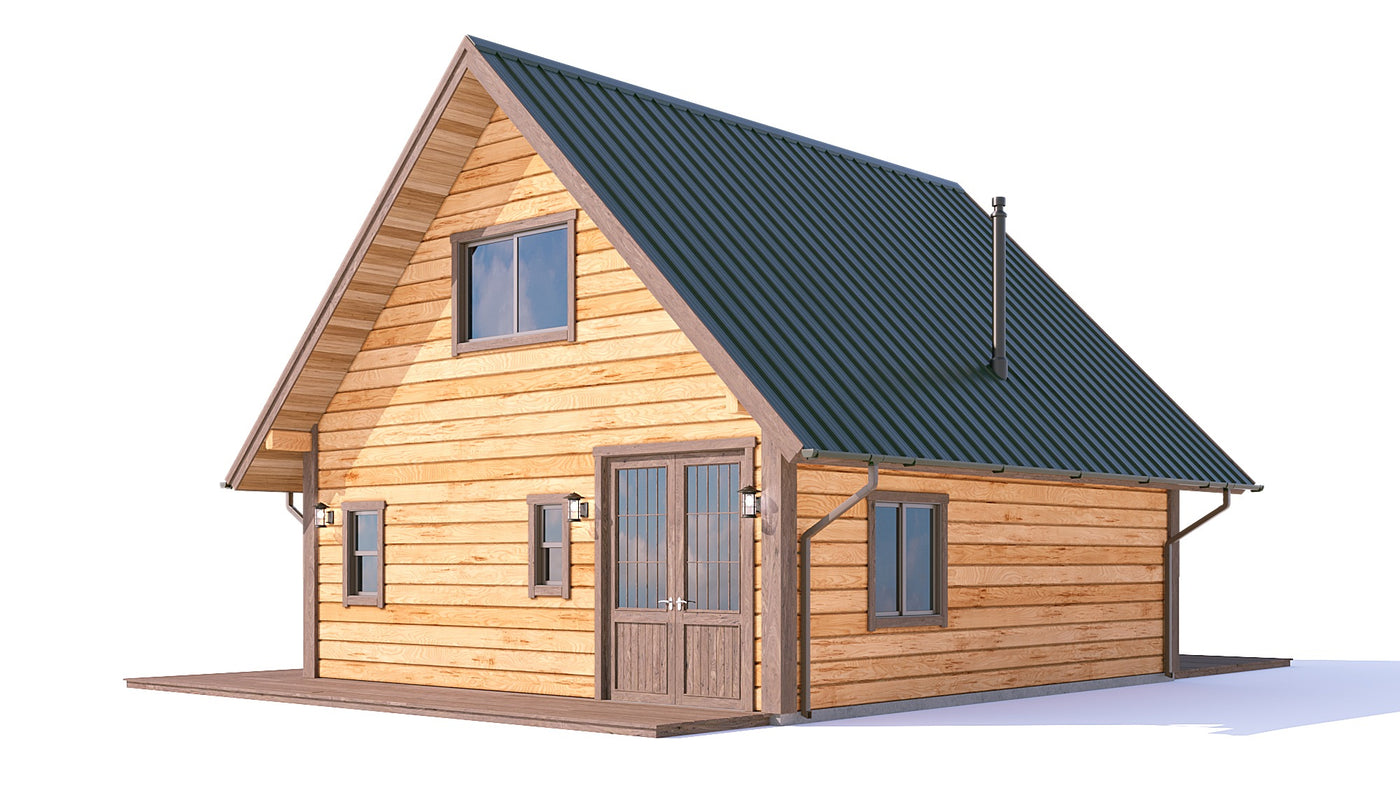

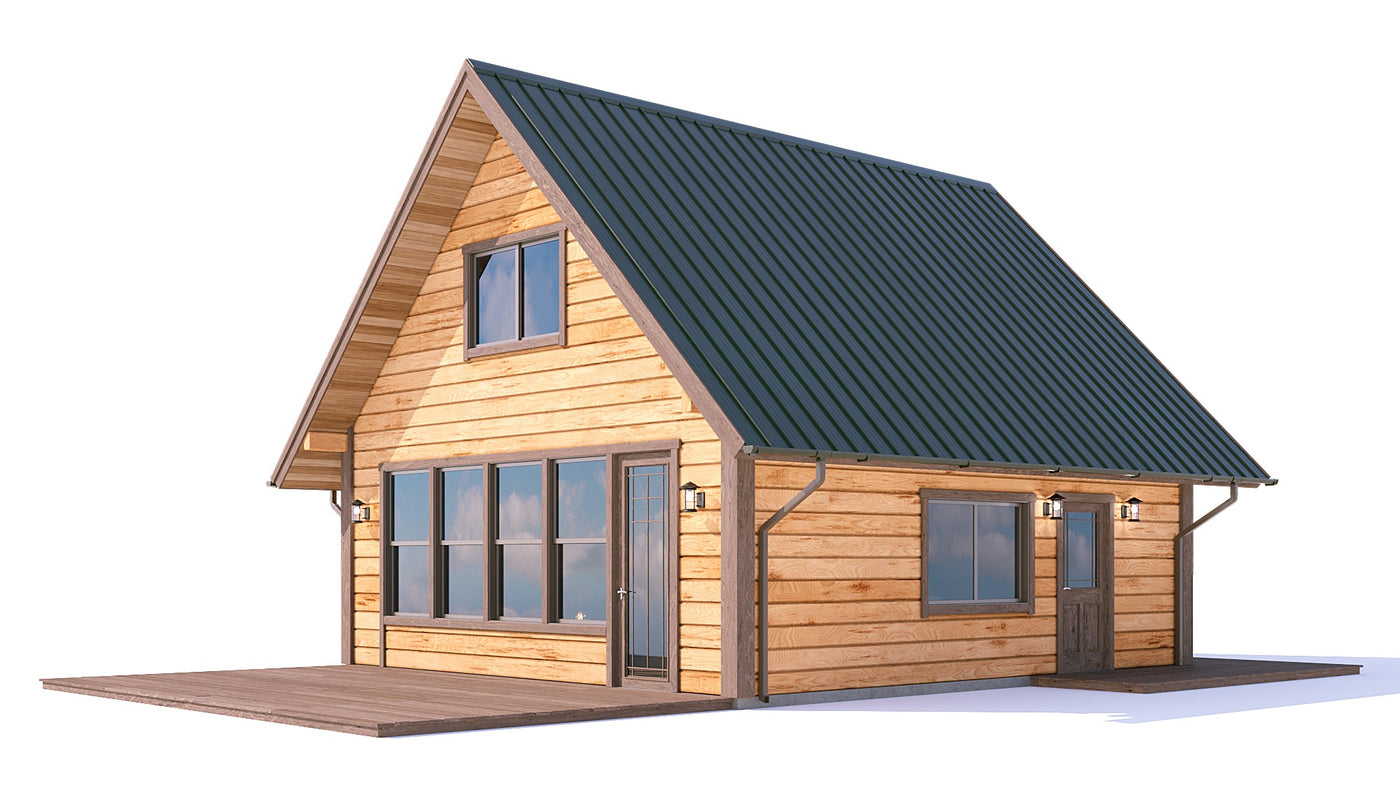

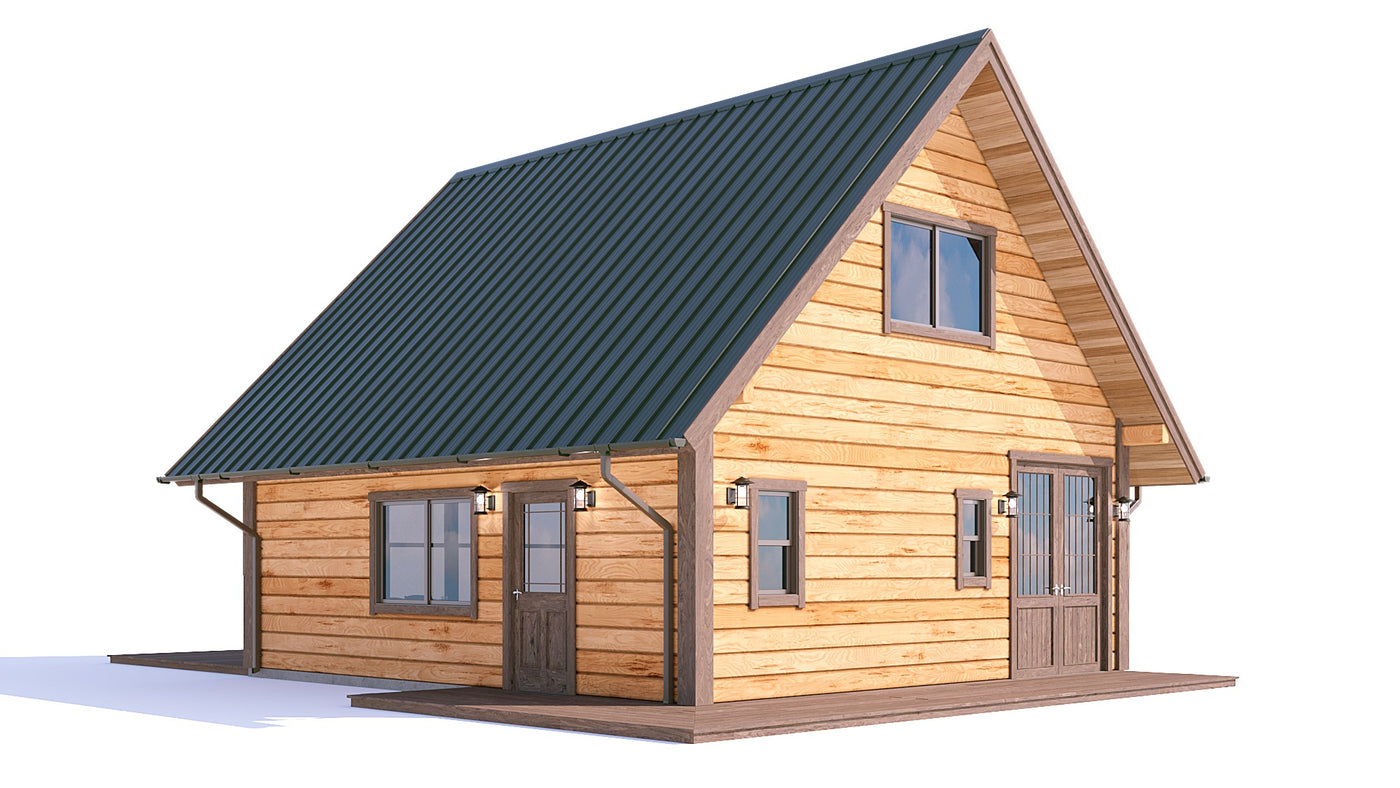

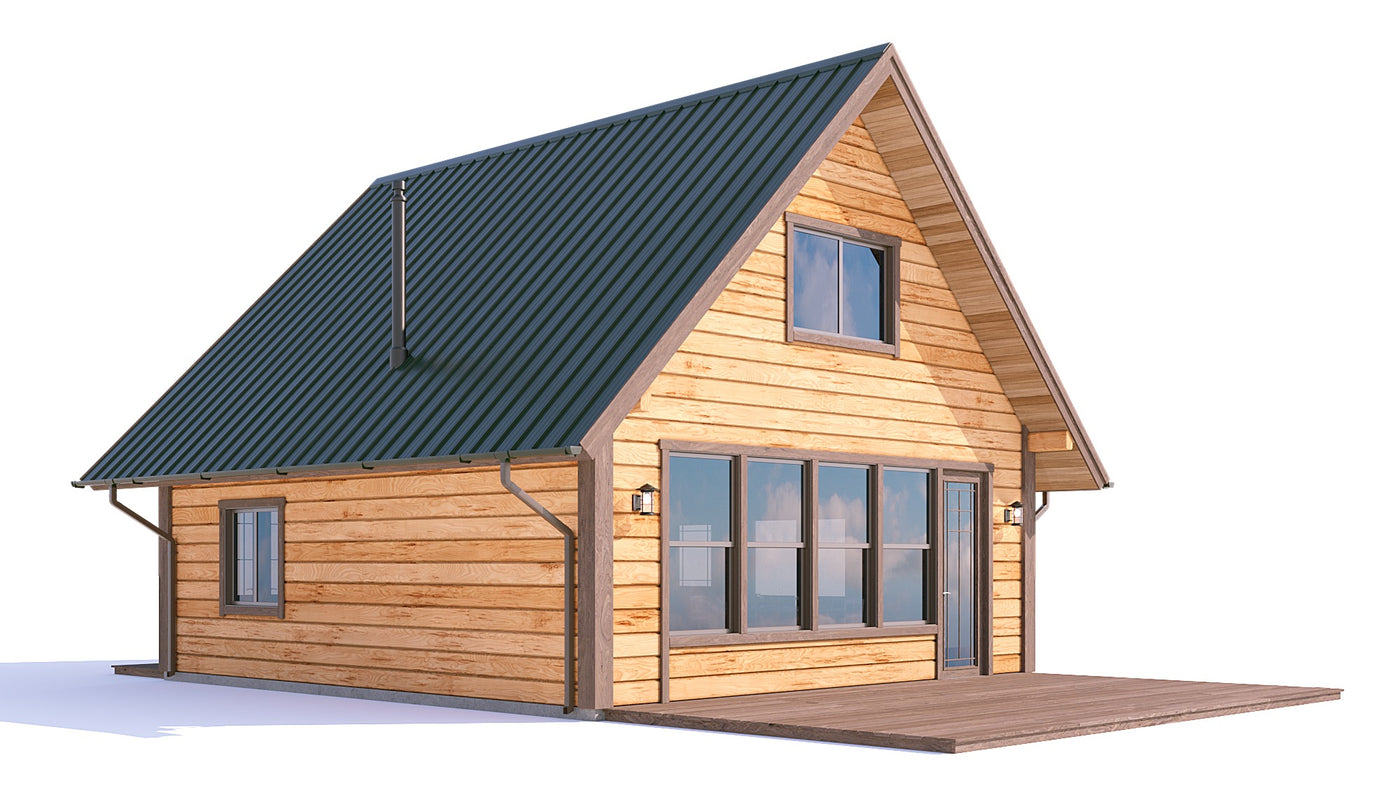

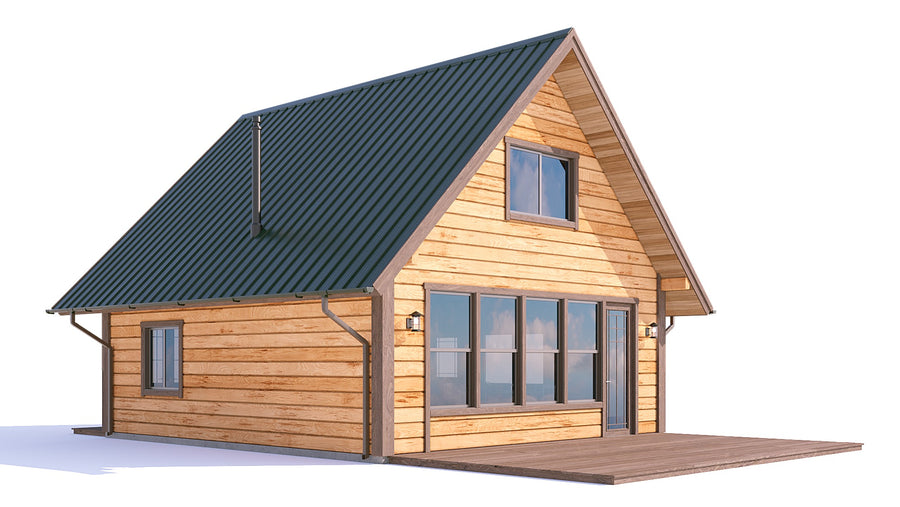

Perspective views

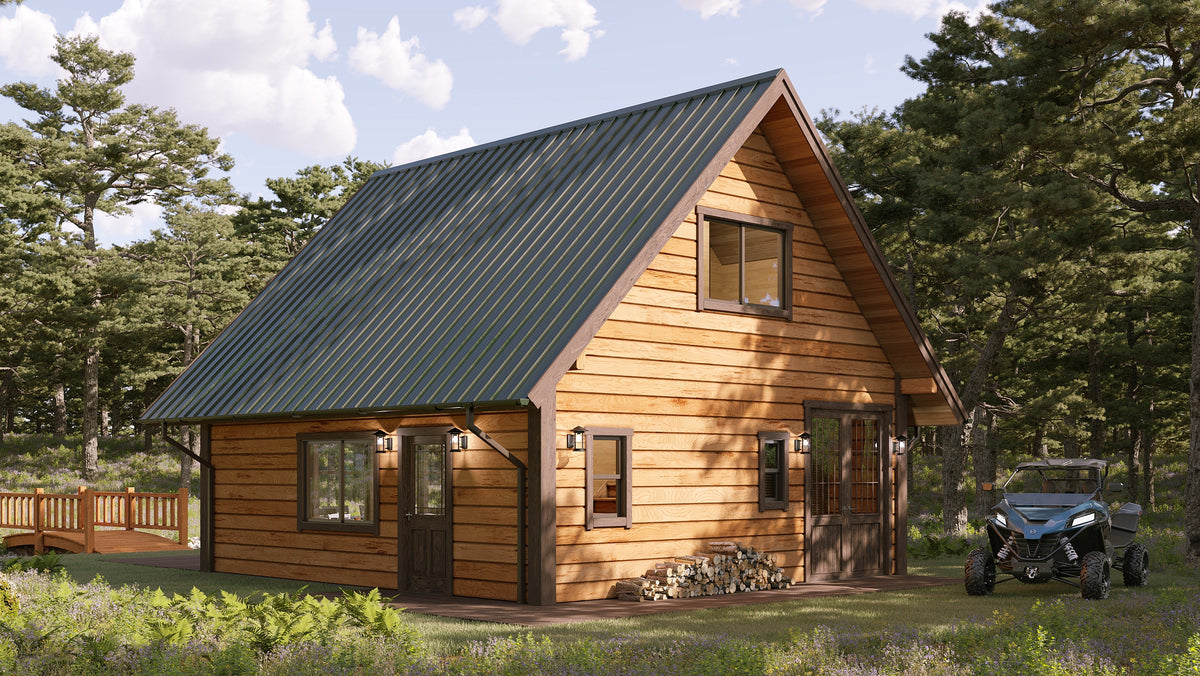

Renders

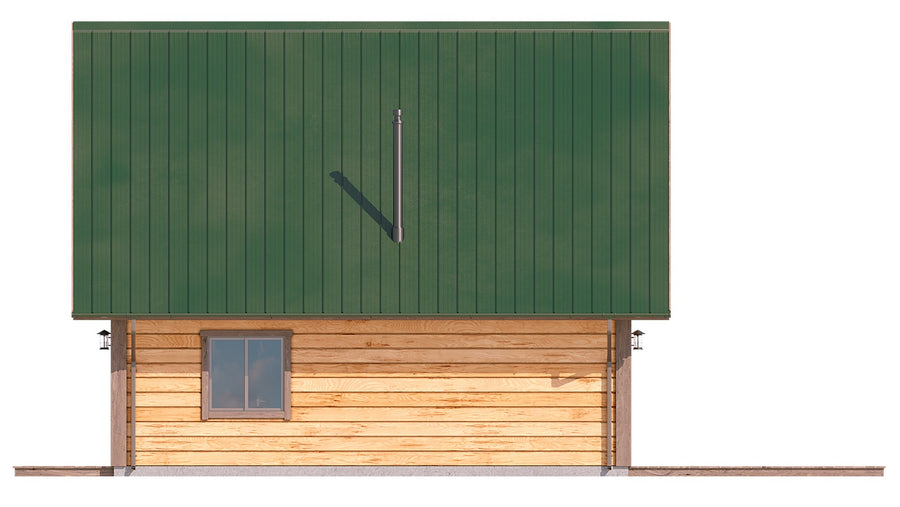

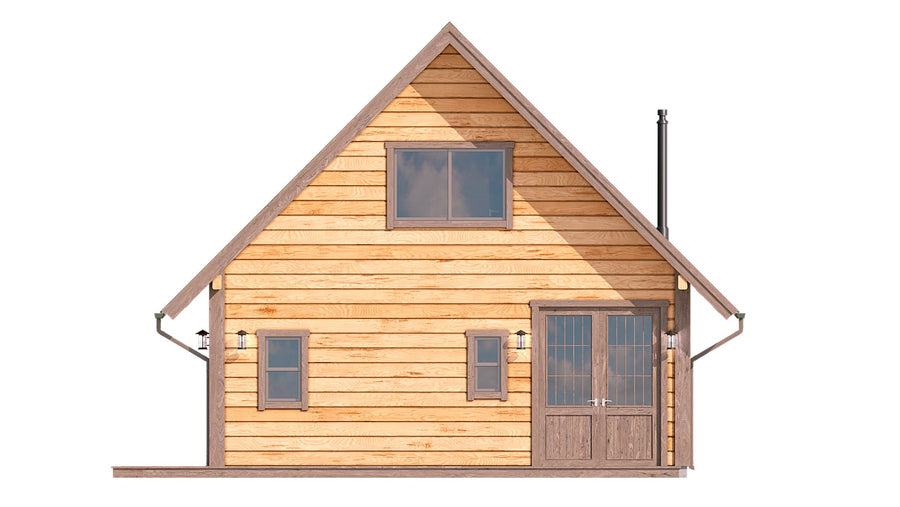

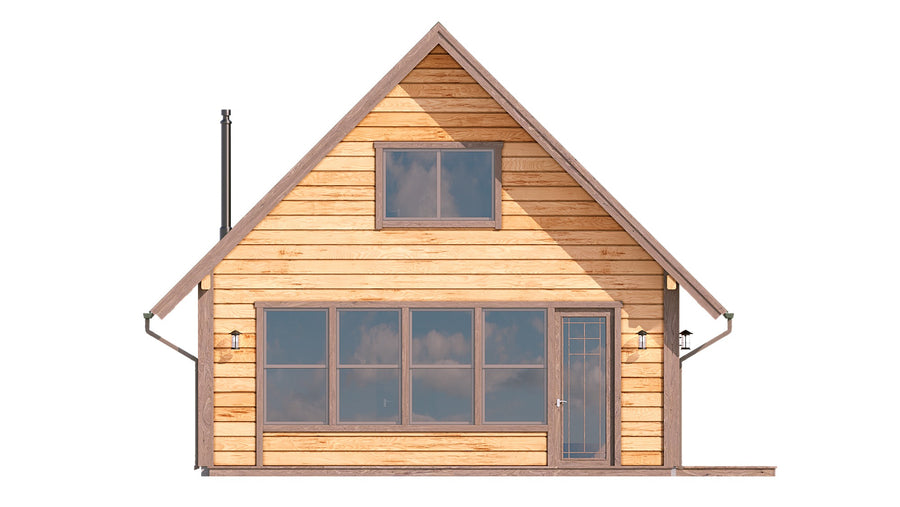

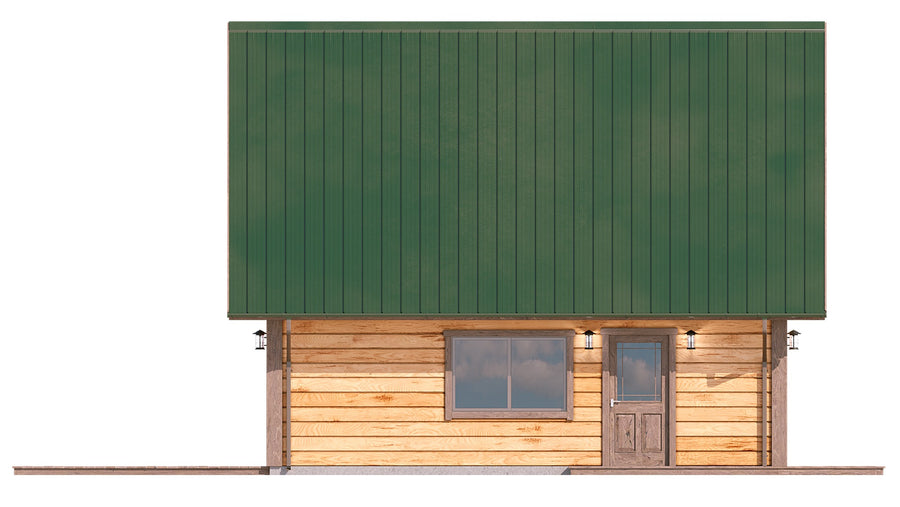

Ortho views
Technical

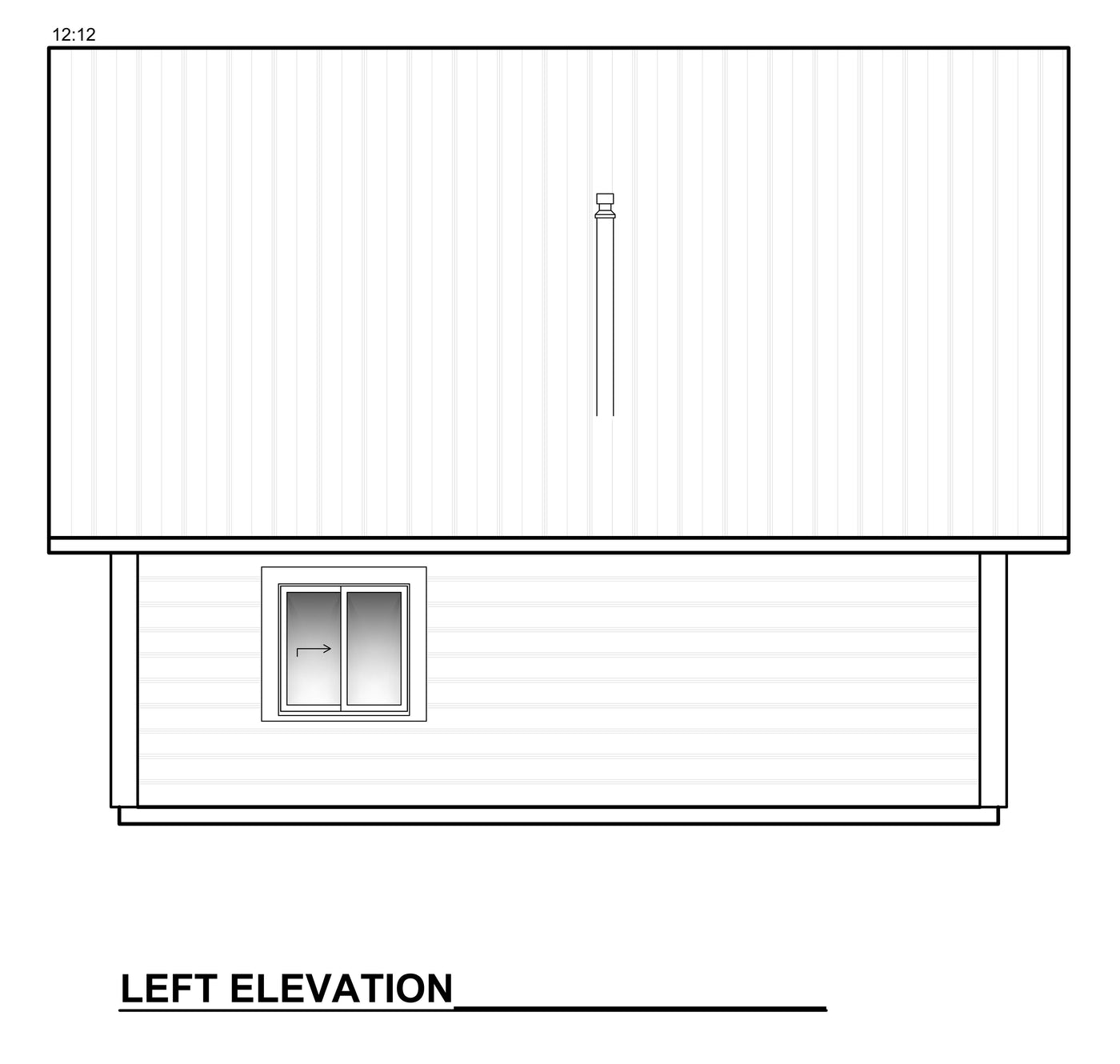

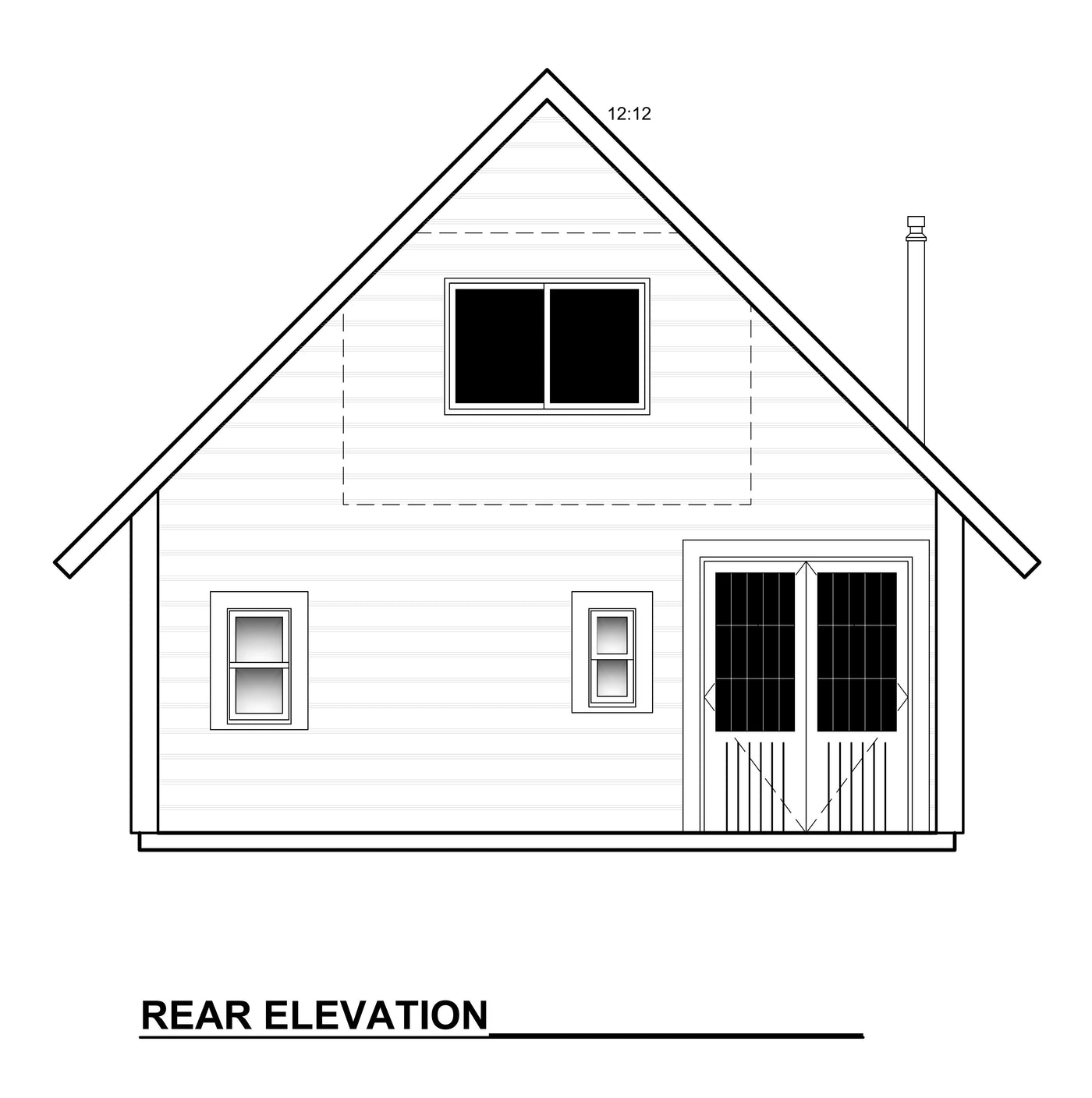

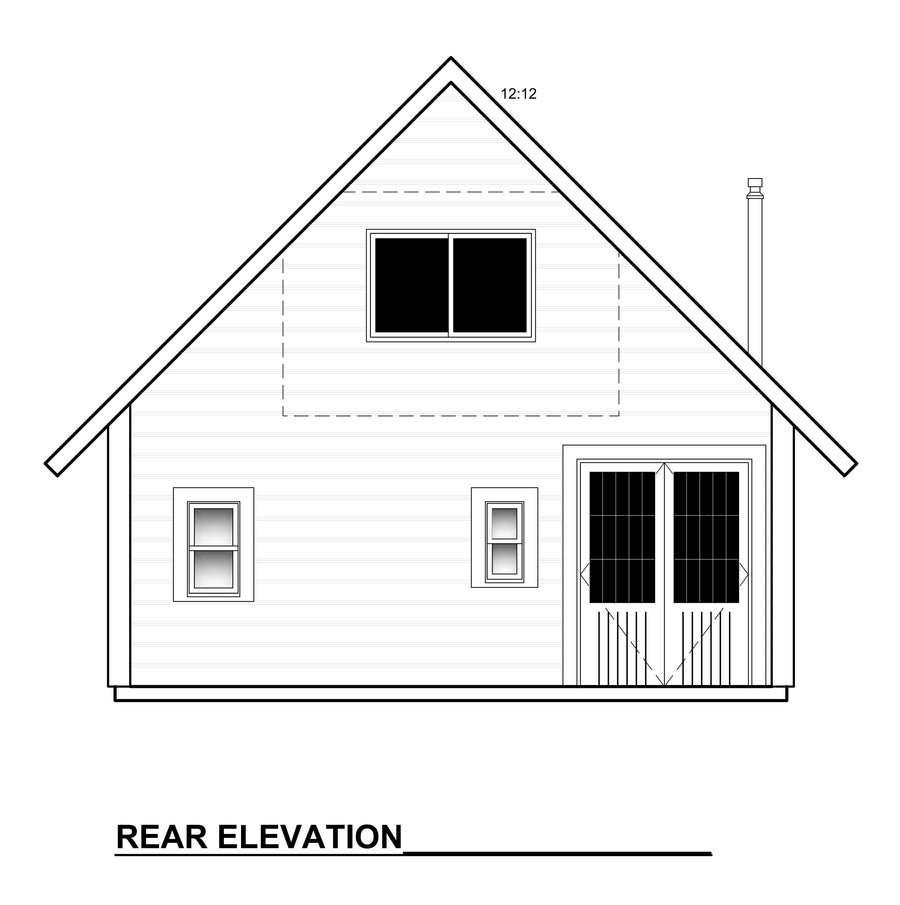

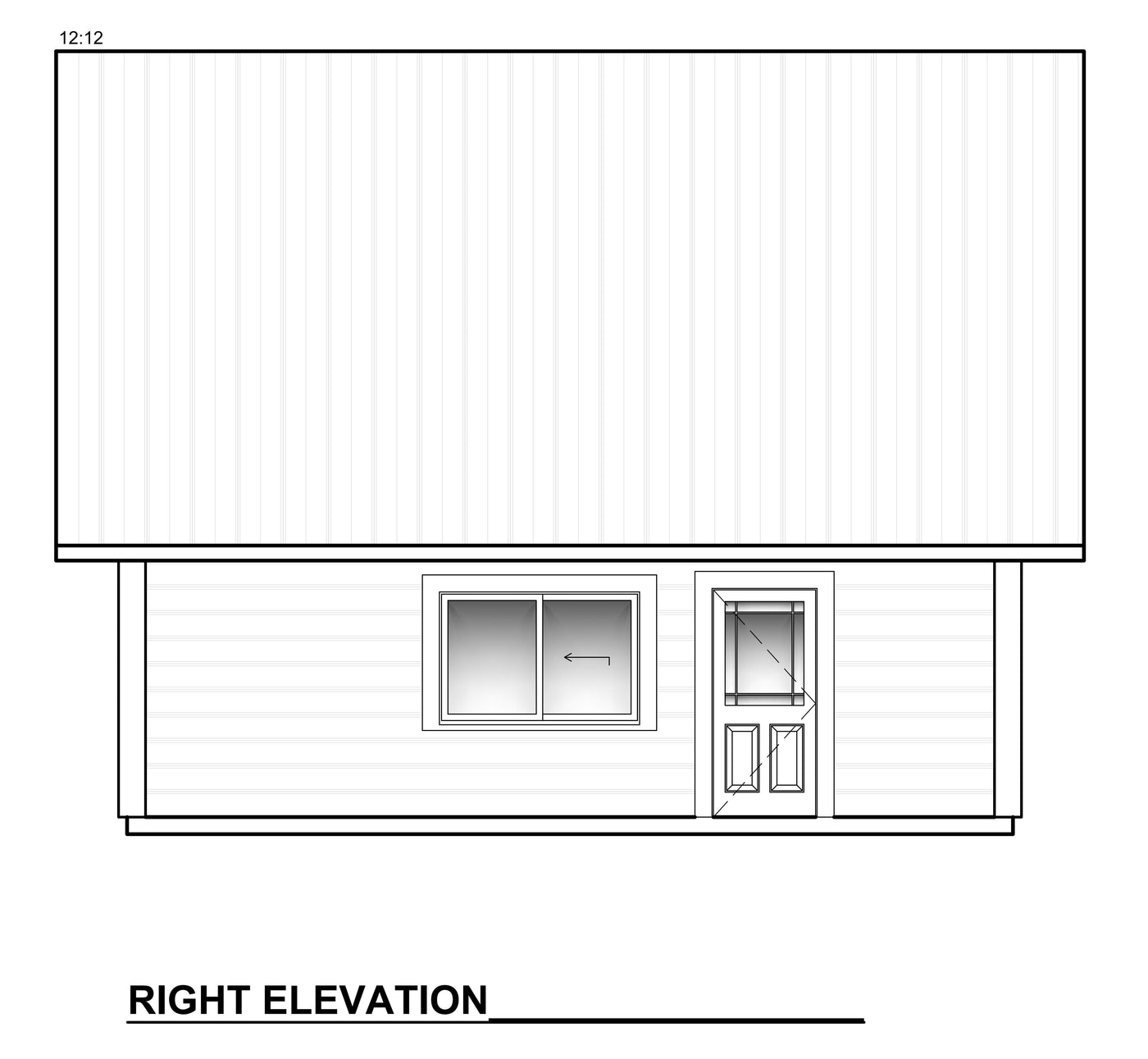

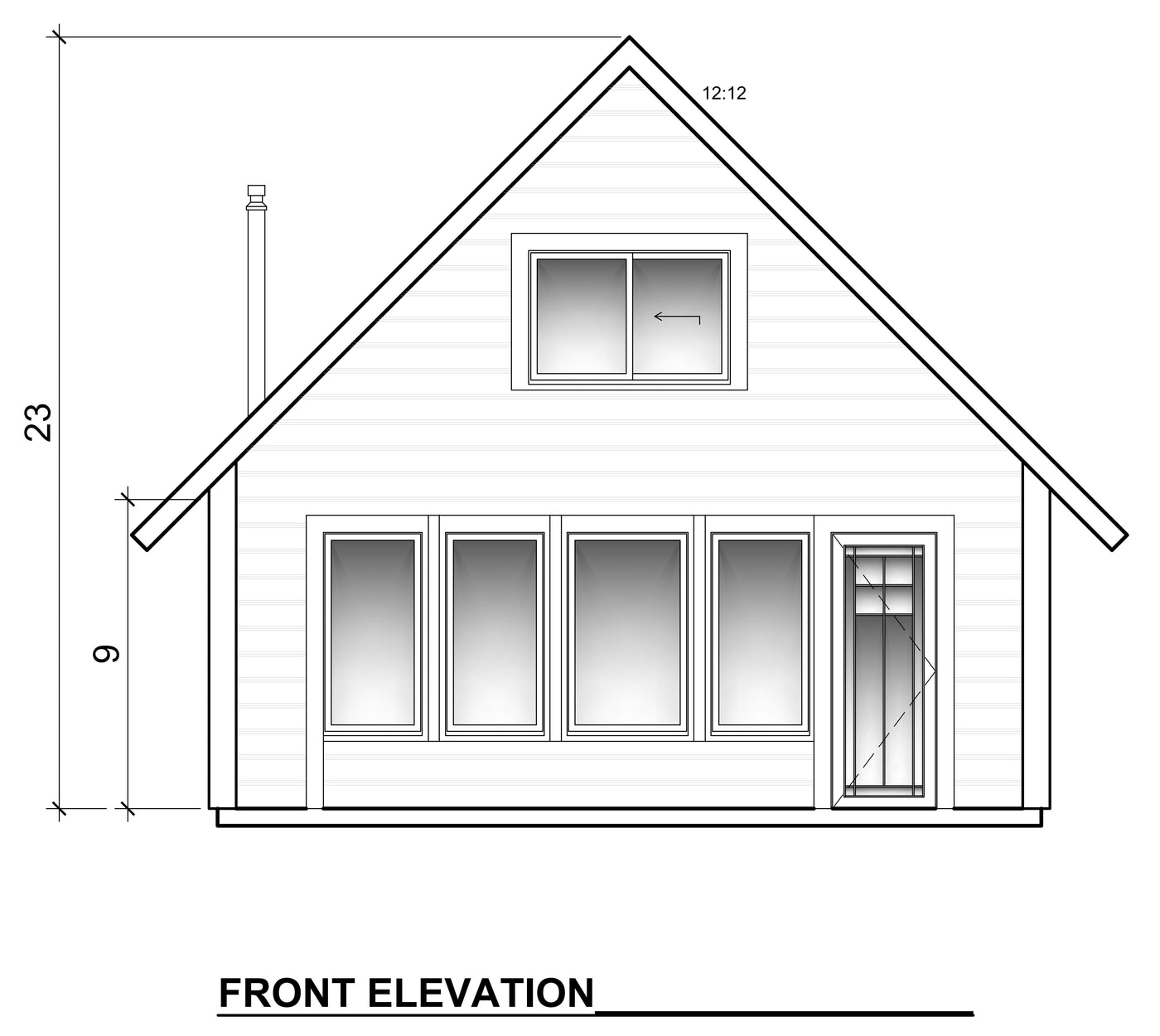

Elevation drawings
When you are ready to build
