Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Framed |
|---|---|
| Home Style | Barndominium |
| Bedrooms | 3 |
| Bathrooms | 2.5 |
| Stories | 1 |
| Main Sq Ft | 2190 |
| Loft Sq Ft | — |
| Basement Sq Ft | — |
| Total Sq Ft | 2190 |
| Garage | — |
| Basement | — |
| Reference | Stewart |
About this plan
The Western by Sierra Log & Timber is a welcoming 2,190 sq ft log home with a relaxed, open feel and a single-story layout that makes everyday living easy. Ideal for growing families or anyone who loves to keep life on one level, the Western centers around a spacious great room that flows naturally into a practical kitchen and dining area, perfect for gathering or quiet evenings in. Three comfortable bedrooms offer plenty of space for rest and privacy, while two and a half baths keep mornings running smoothly. With its straightforward design and warm, craftsman-built character, the Western fits beautifully as a year-round residence, a country retreat, or a place to settle in for retirement. Like all Sierra Log & Timber homes, it can be tailored to fit your vision, blending classic log style with the comforts of modern living.

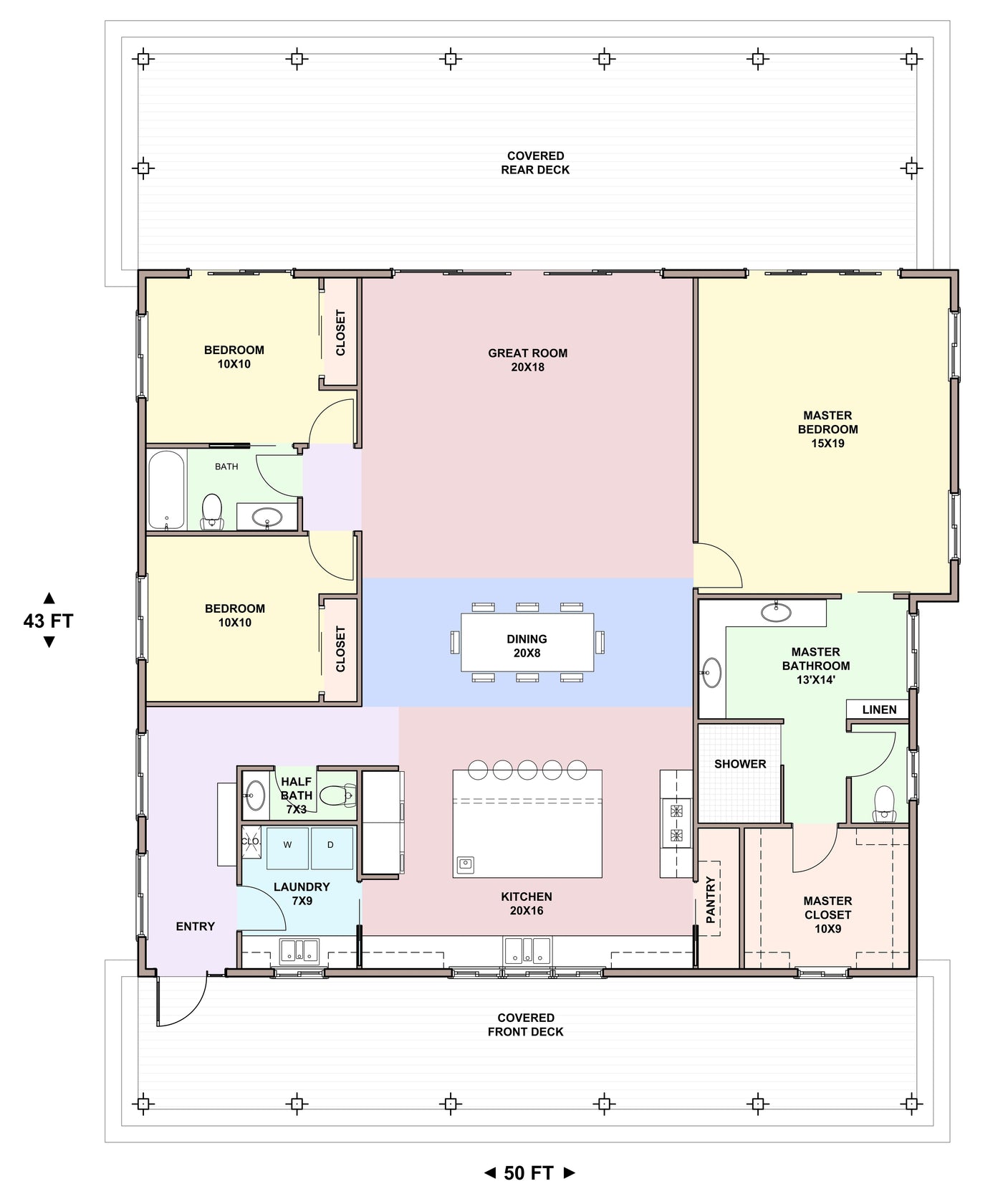

Floor plans
3D

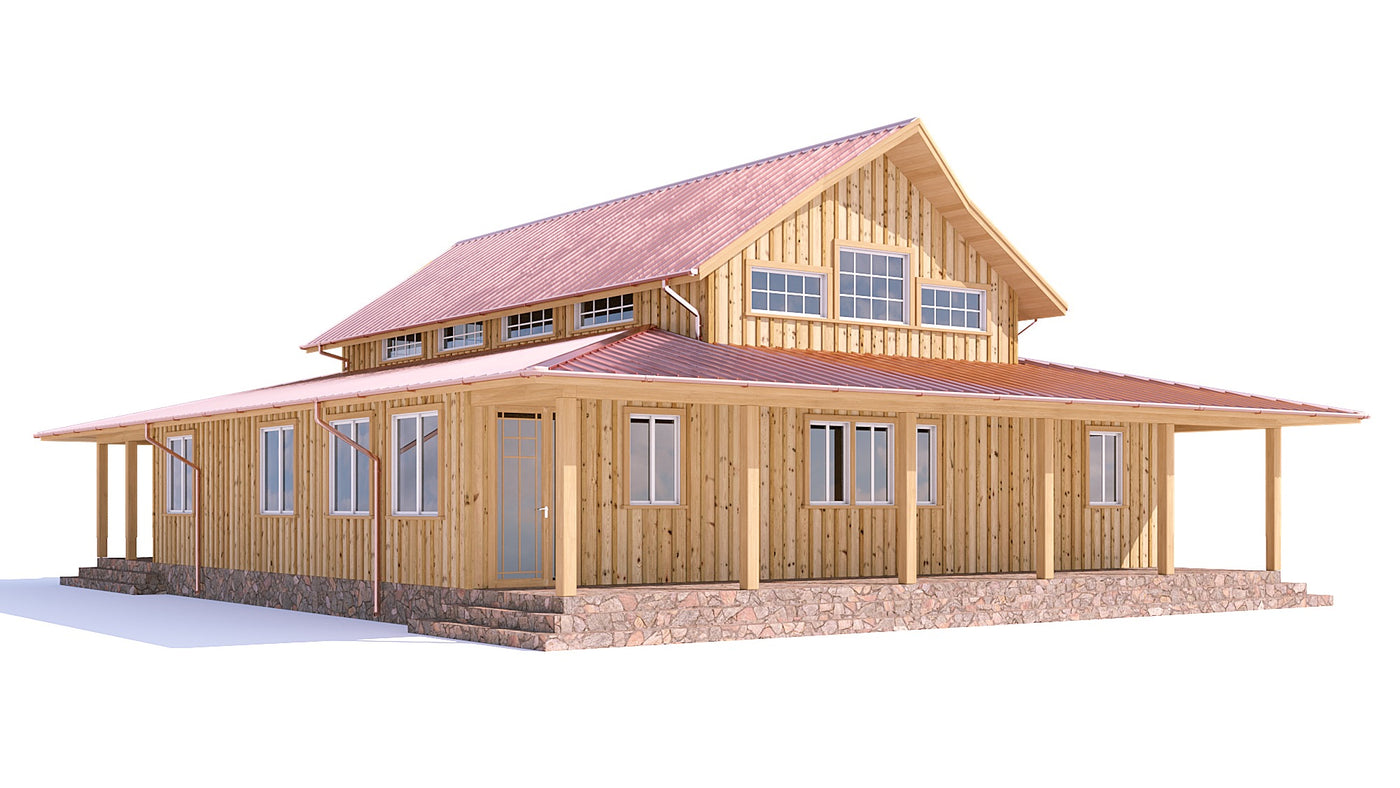

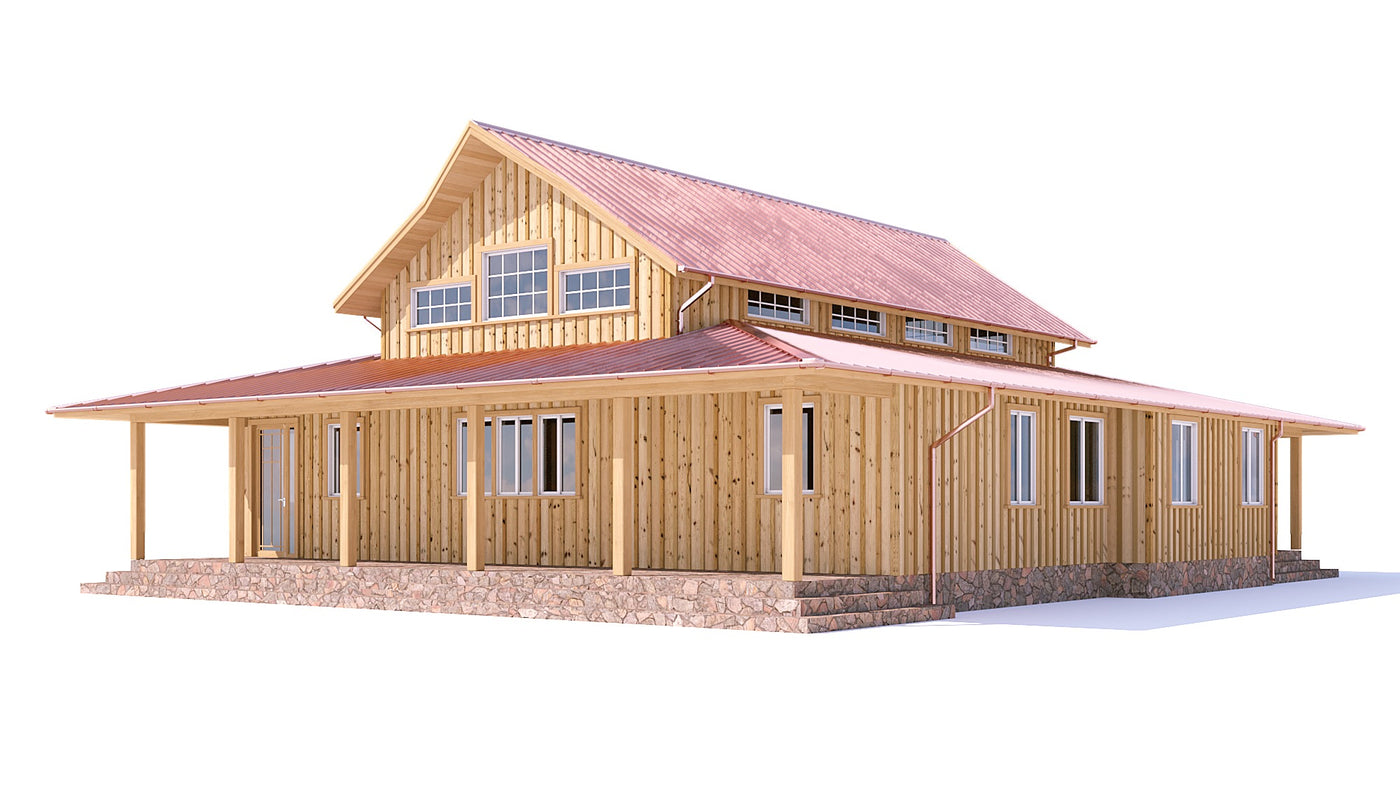

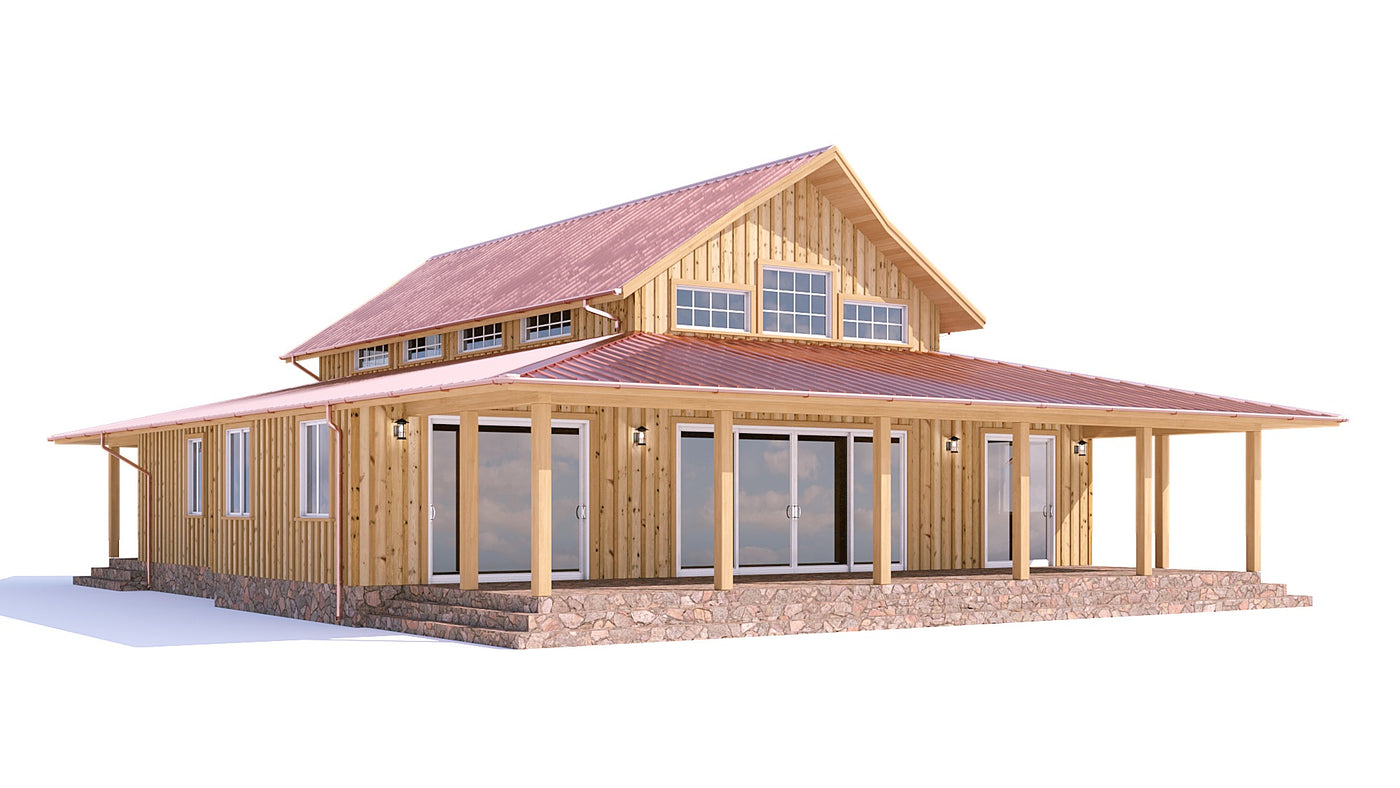

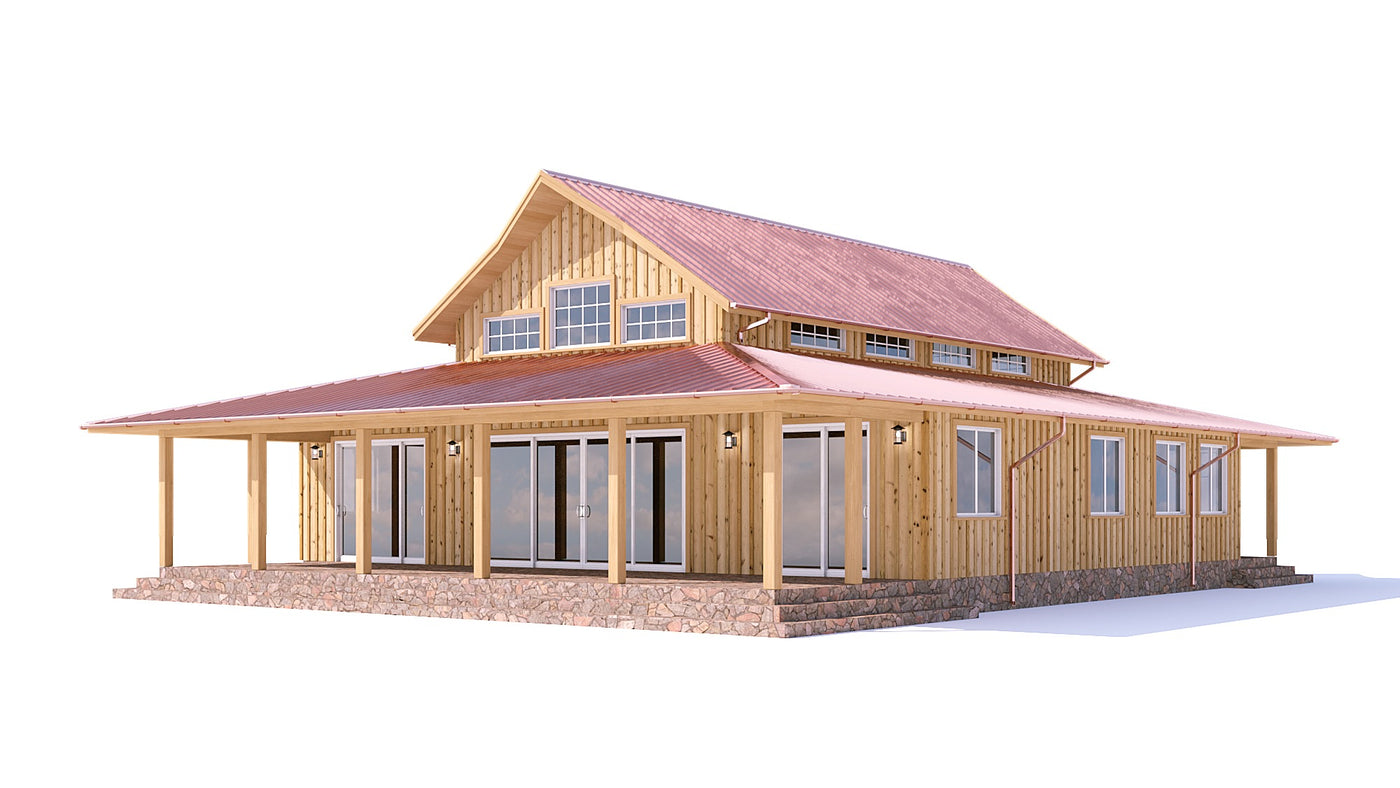

Perspective views

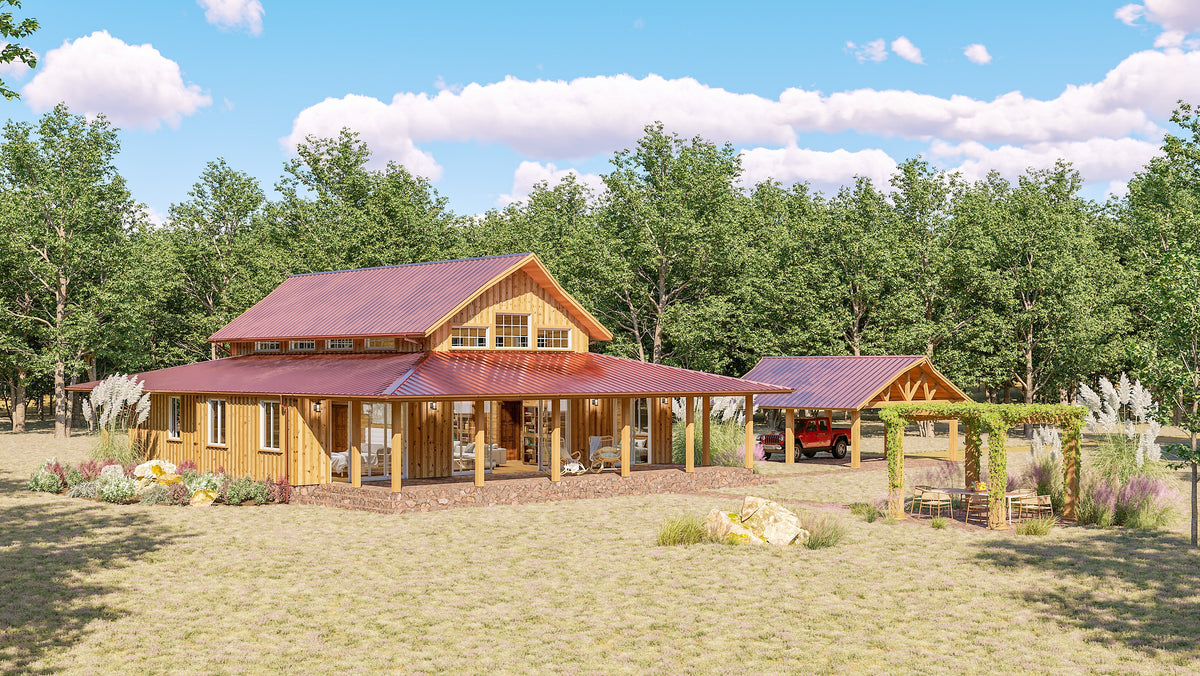

Renders

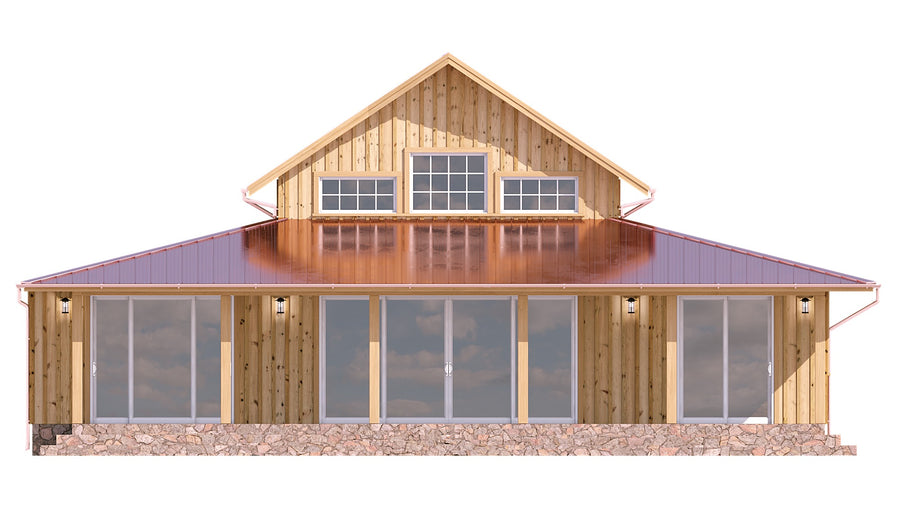

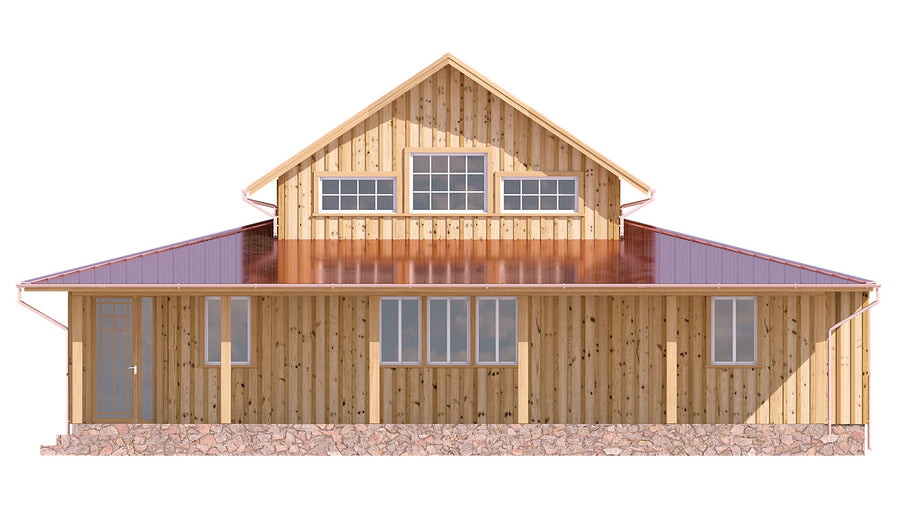

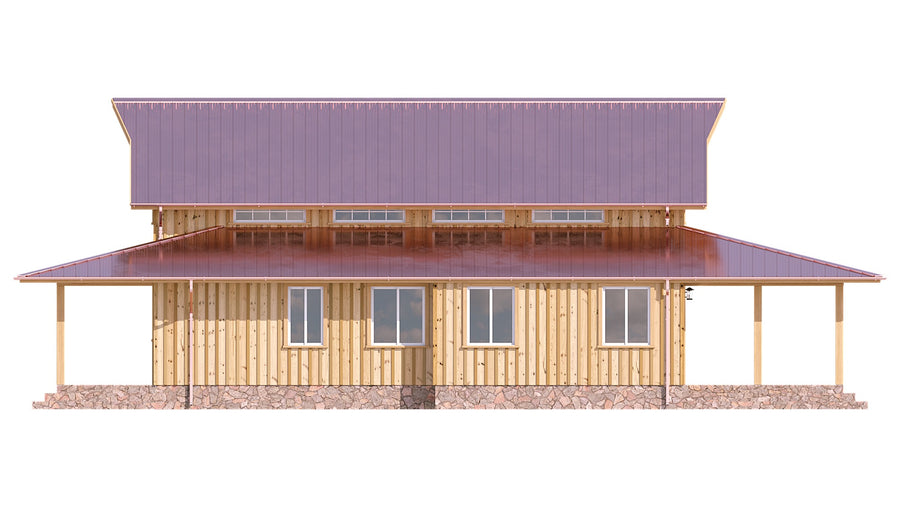

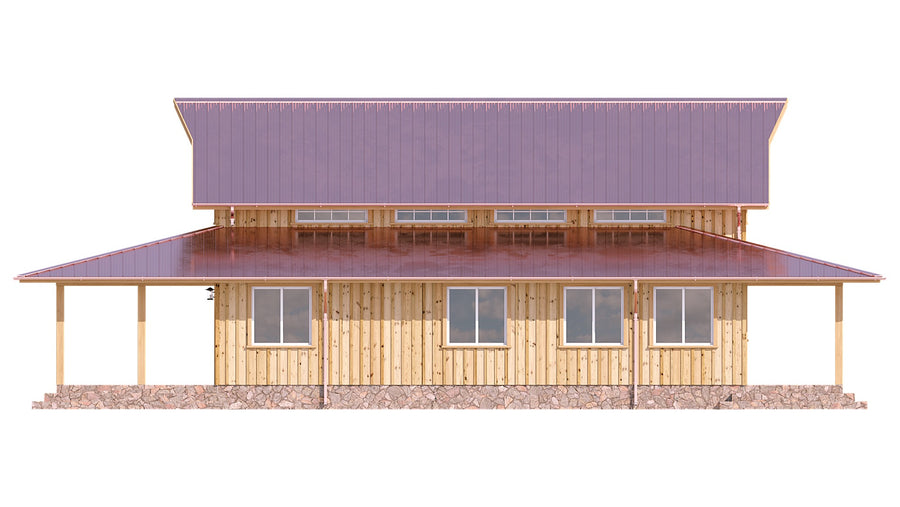

Ortho views
When you are ready to build
