Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU |
| Bedrooms | 1 |
| Bathrooms | 1 |
| Stories | 2 |
| Main Sq Ft | 320 |
| Loft Sq Ft | 160 |
| Basement Sq Ft | 0 |
| Total Sq Ft | 480 |
| Garage | — |
| Basement | — |
| Reference | Trapper |
About this plan
The Trapper by Sierra Log & Timber is a cozy 480 sq ft log cabin that captures the spirit of simple living in the woods. Ideal for solo adventurers or couples seeking a quiet retreat, this compact design features a 320 sq ft main floor with a welcoming living area, a practical kitchen, and a full bathroom. The main bedroom offers a restful spot to end the day, while the 160 sq ft loft above is ready for your imagination—use it as a guest nook, a reading hideaway, or a creative studio. Whether you dream of a weekend getaway, a hunting cabin, or a minimalist full-time home, the Trapper brings warmth and character in a small footprint. Custom options let you shape it to your own vision of rustic comfort. Read our story on the TRAPPER so you know its history.

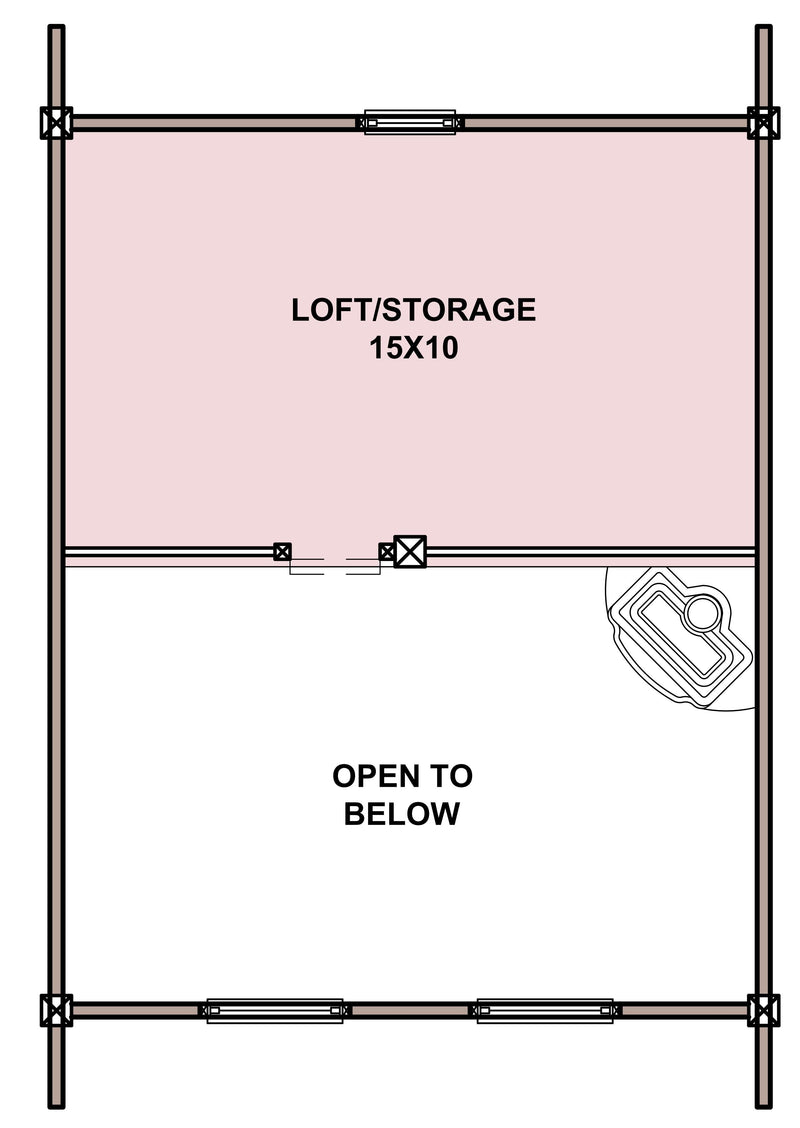

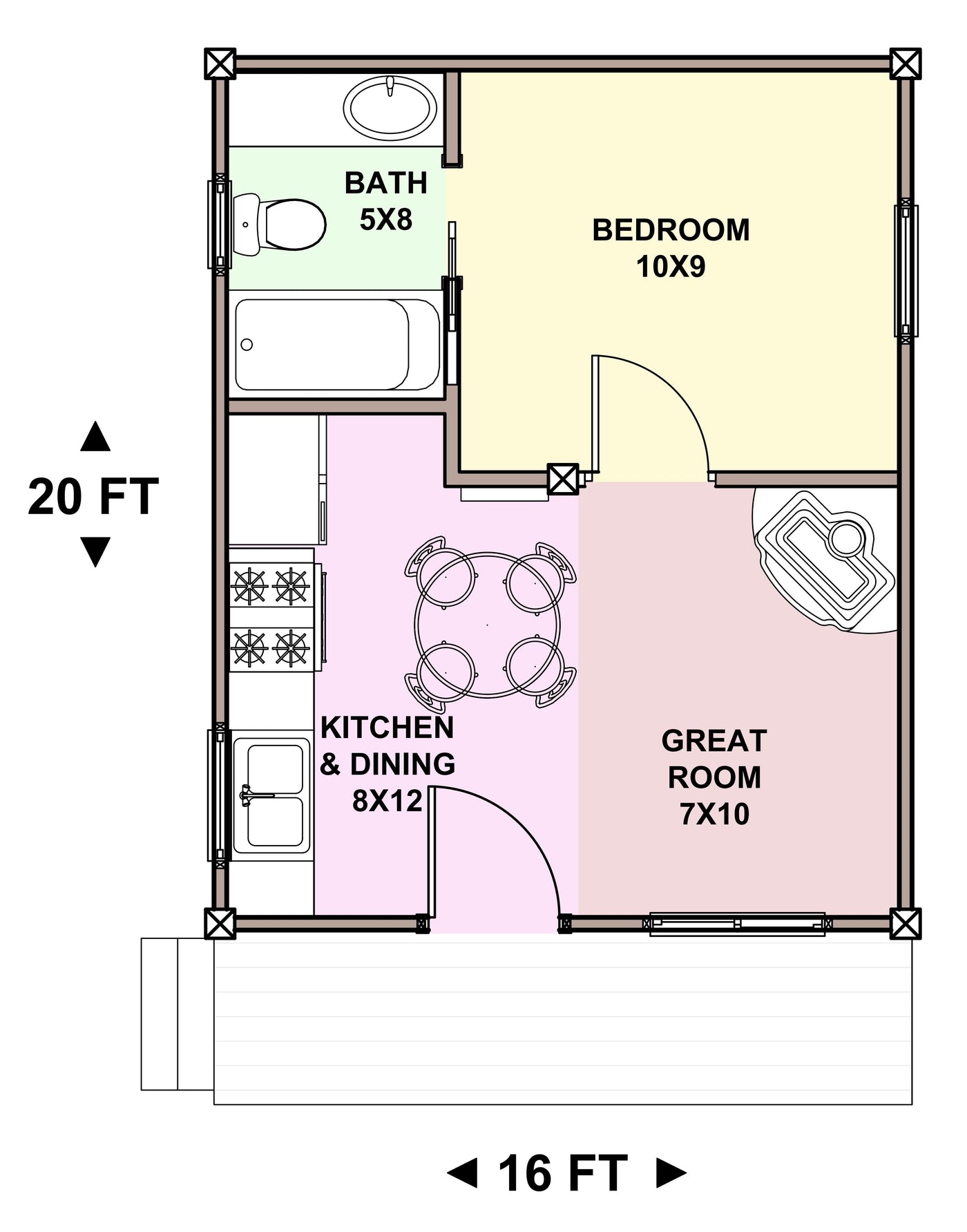

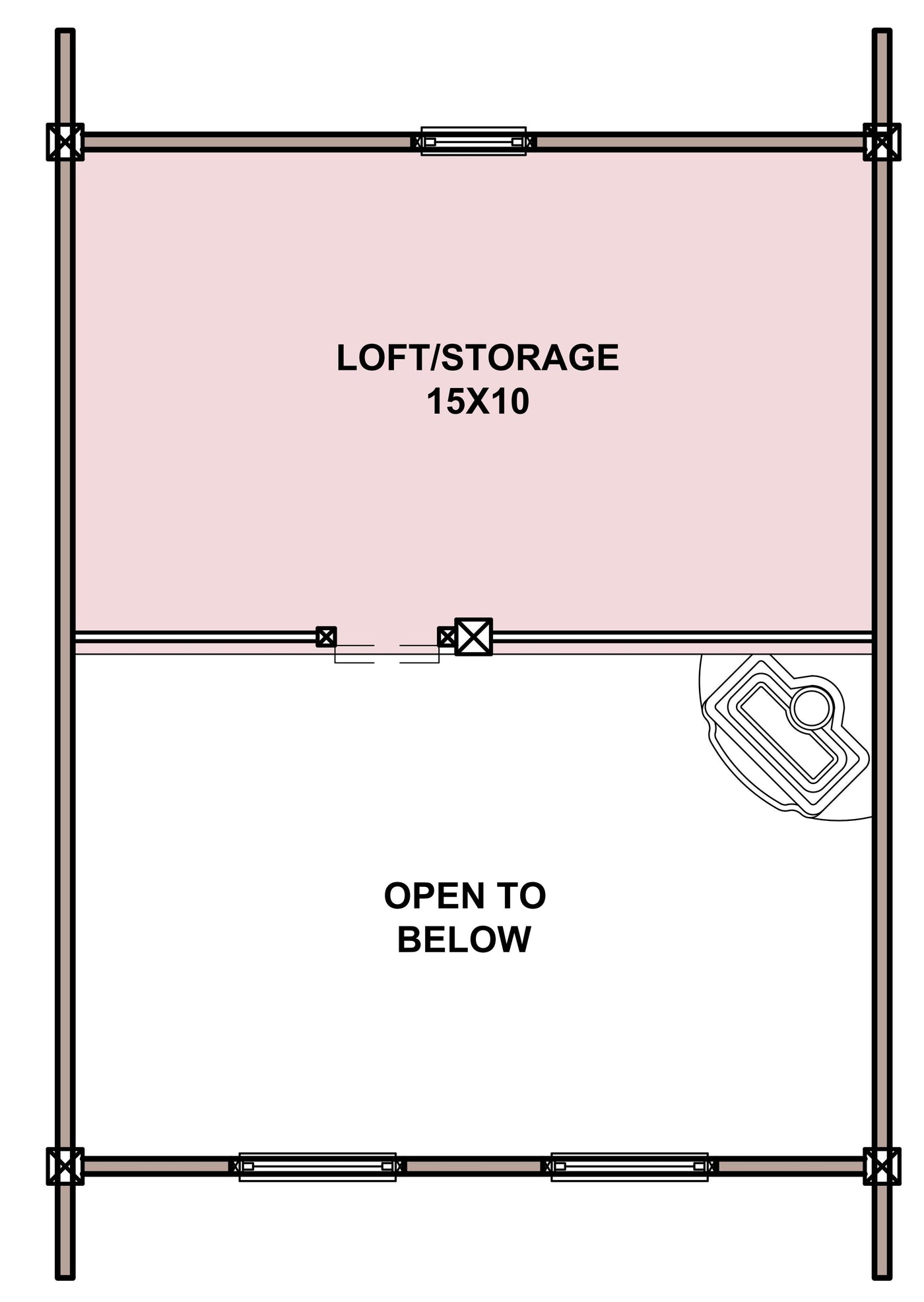

Floor plans
3D

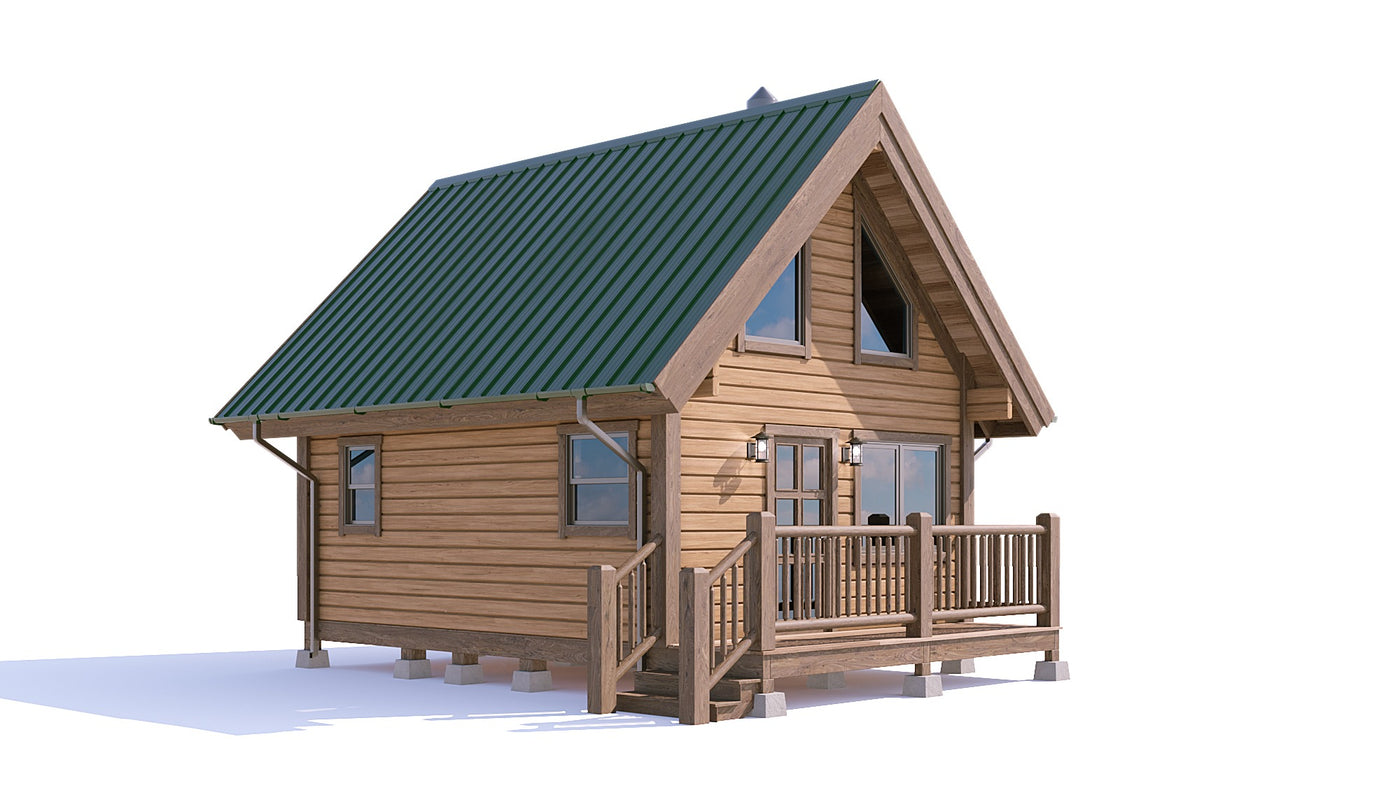

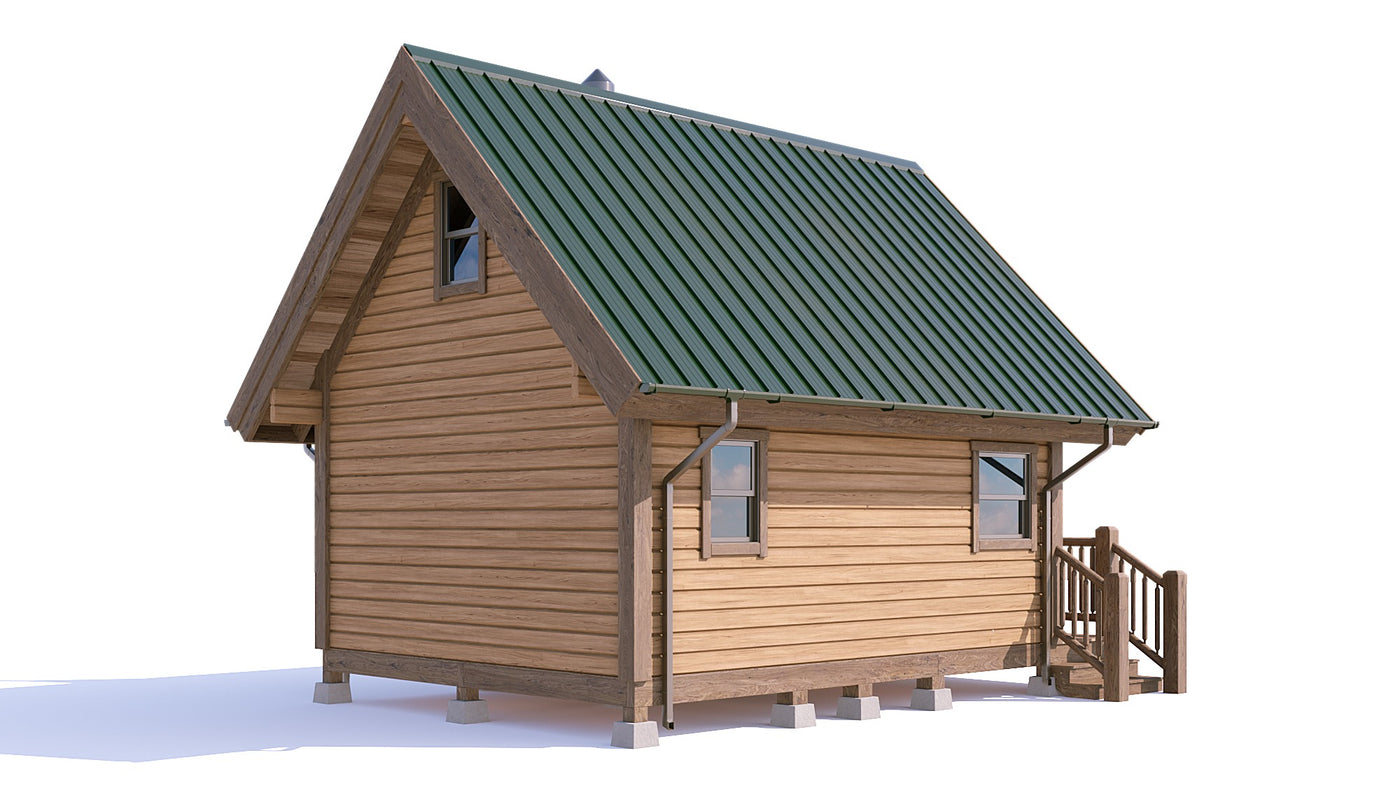

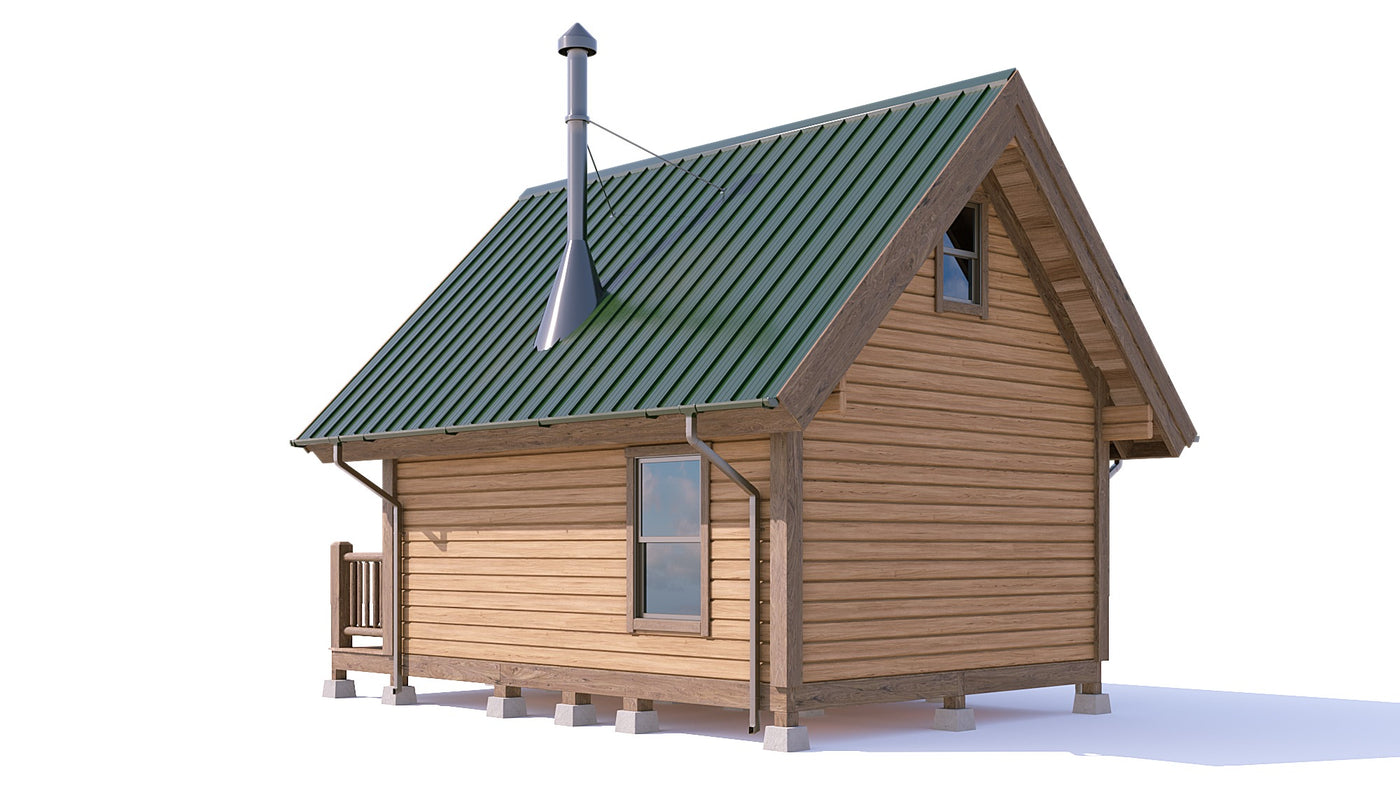

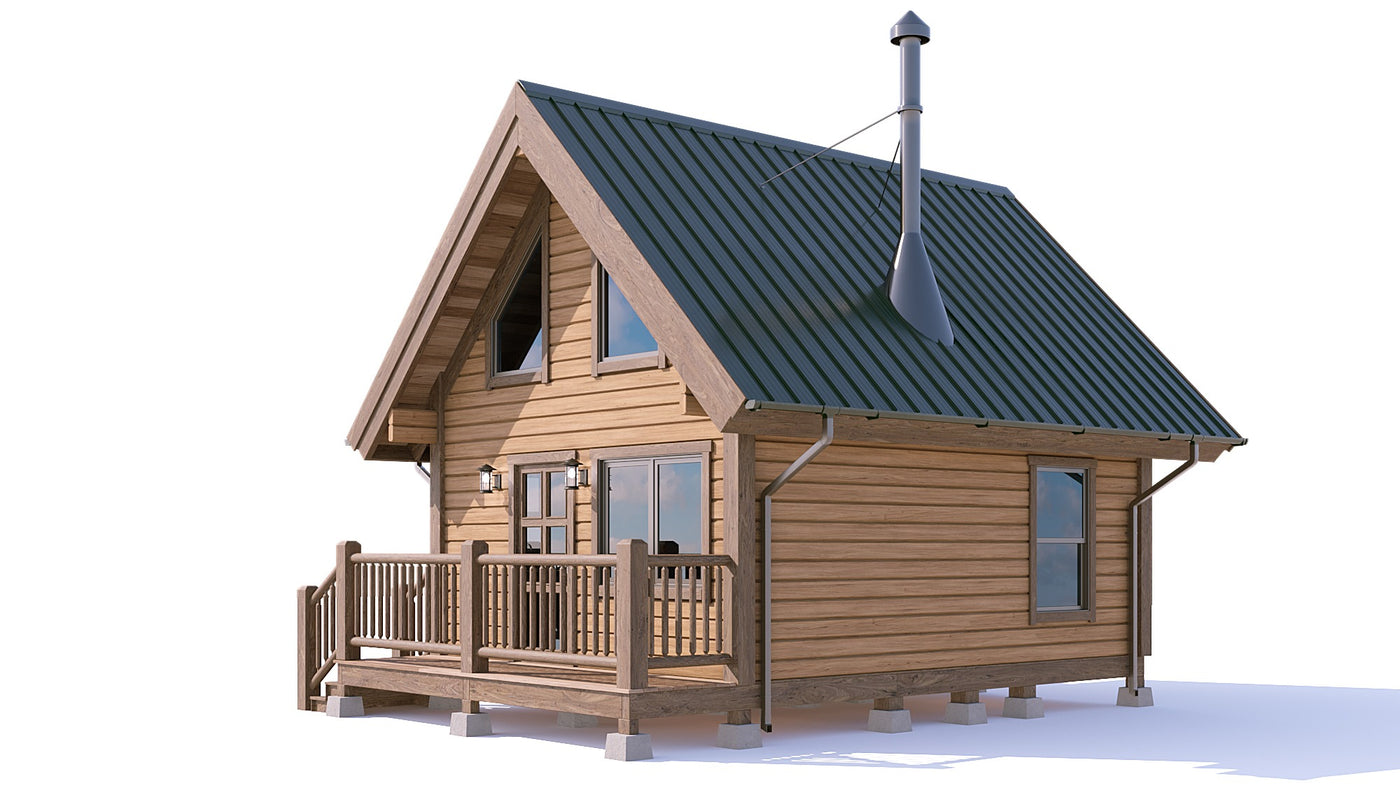

Perspective views

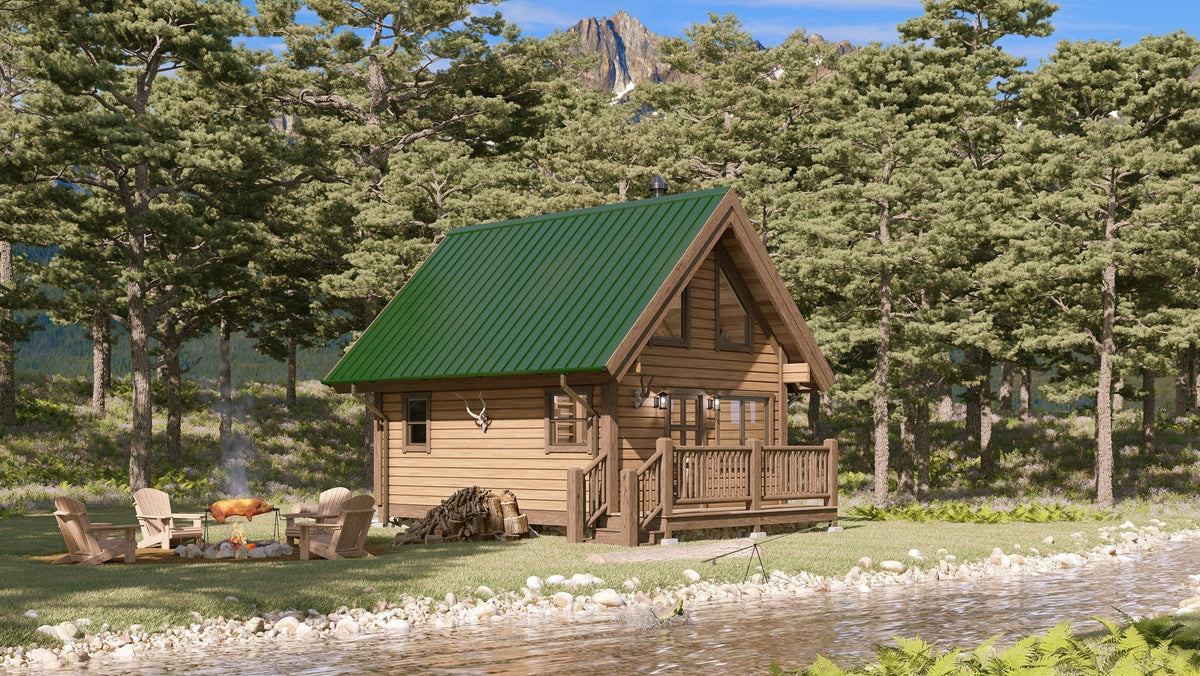

Renders

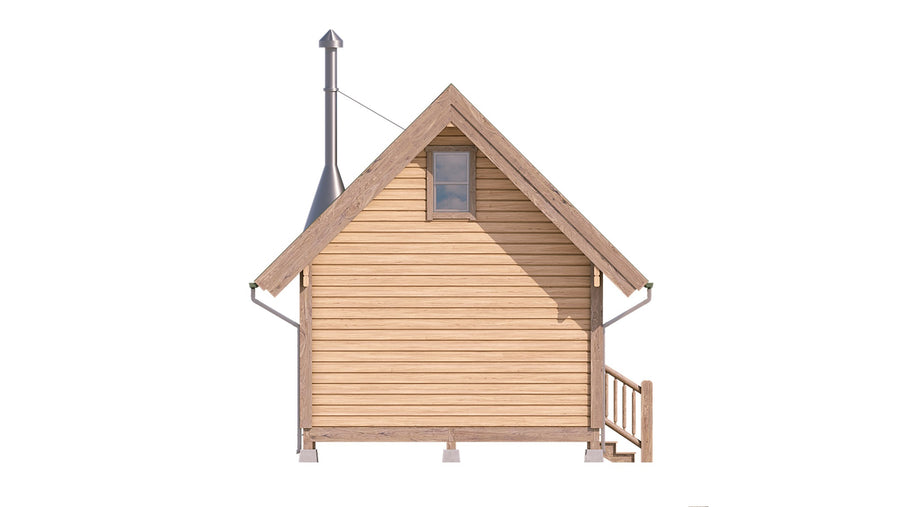

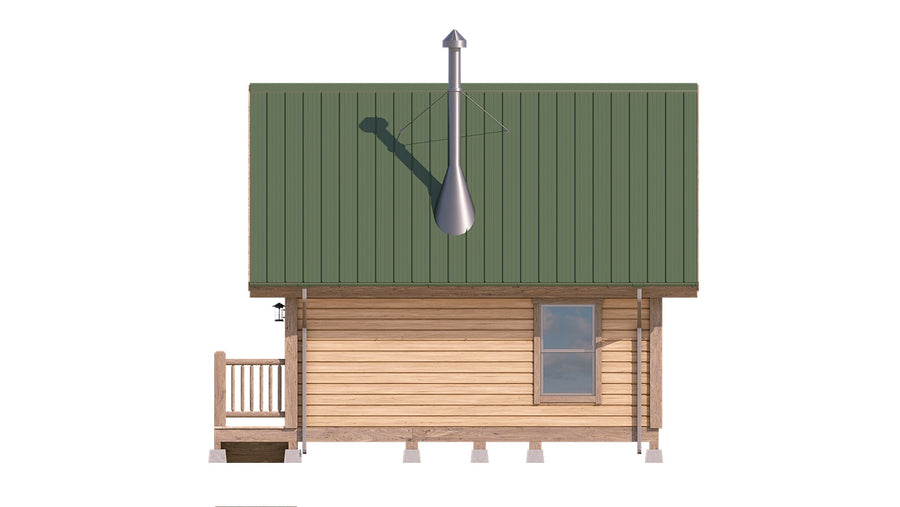

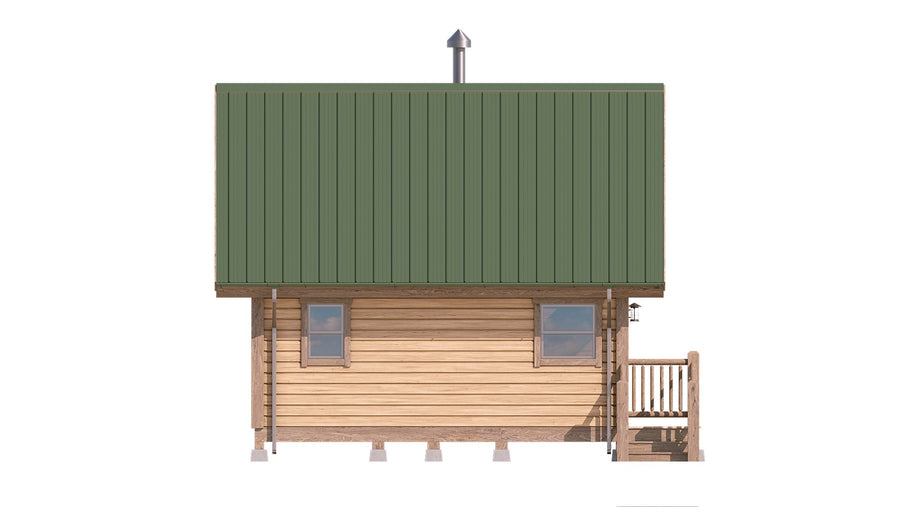

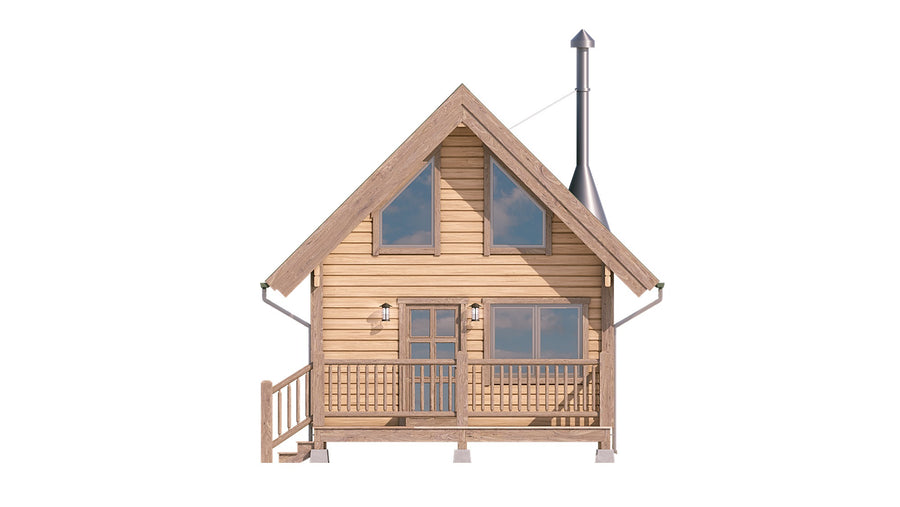

Ortho views
Technical

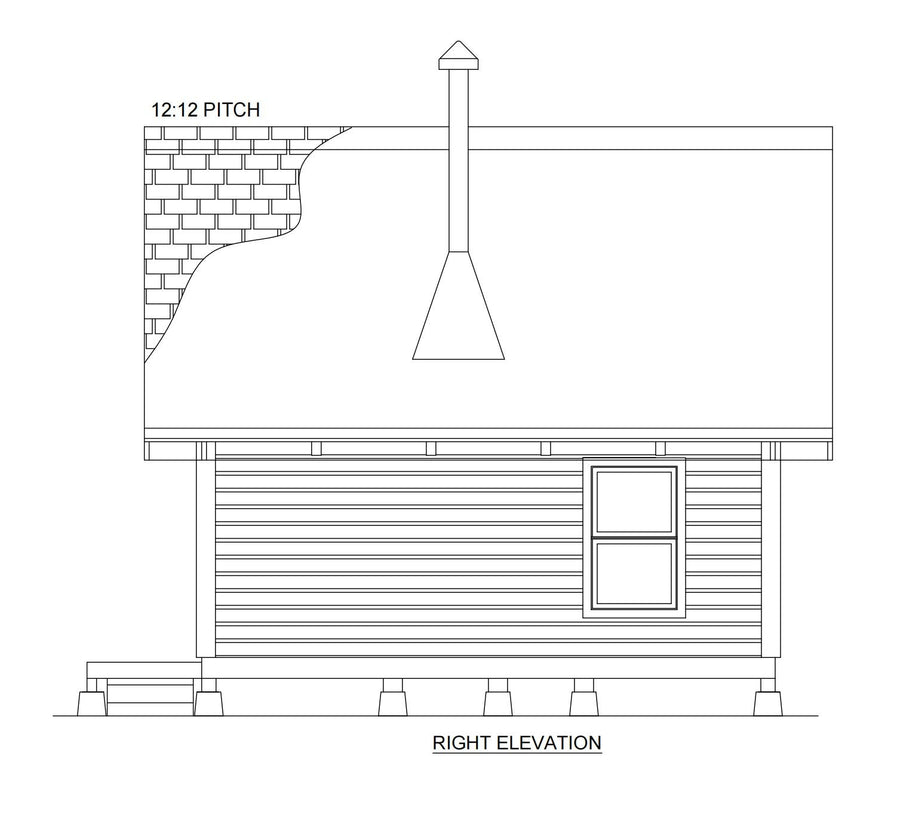

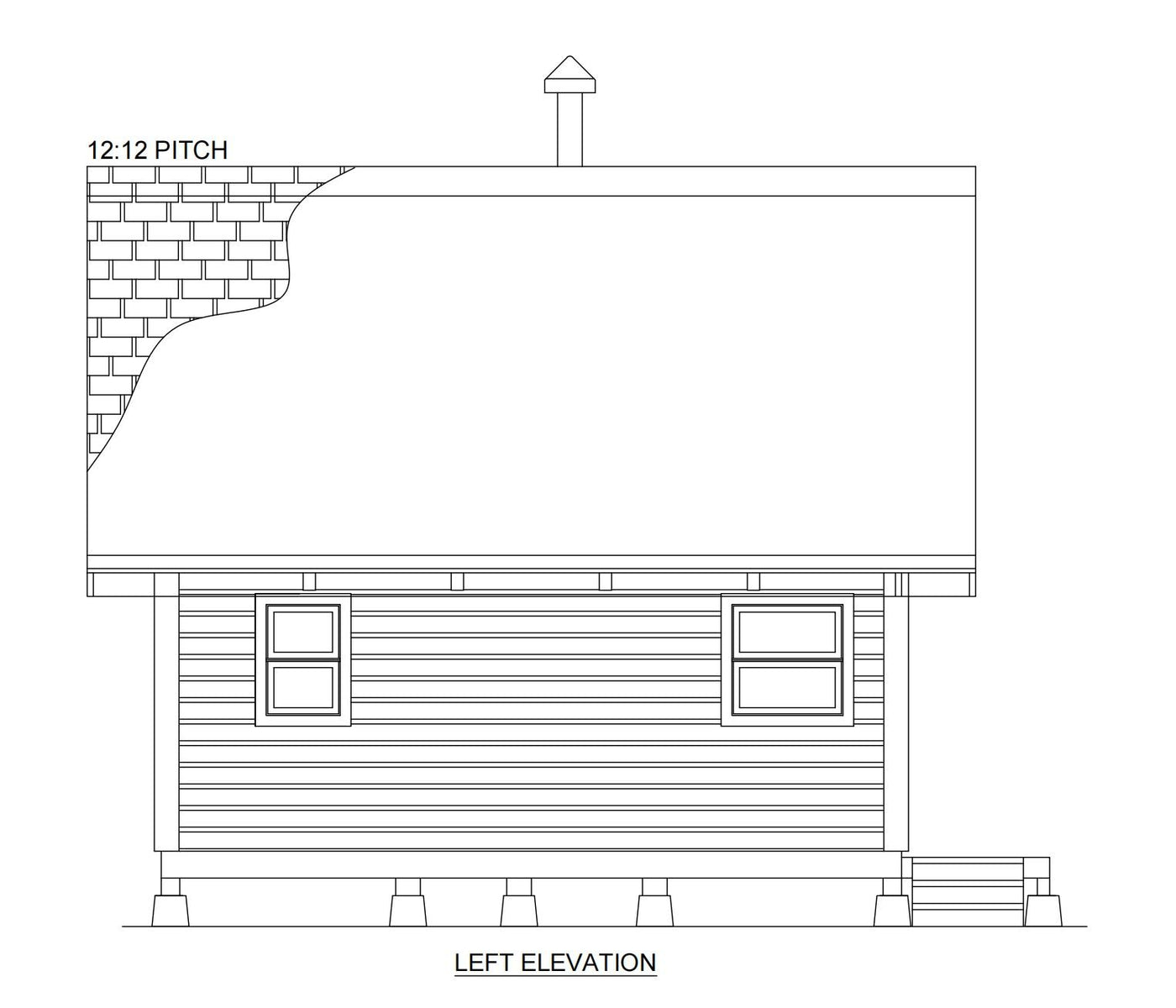

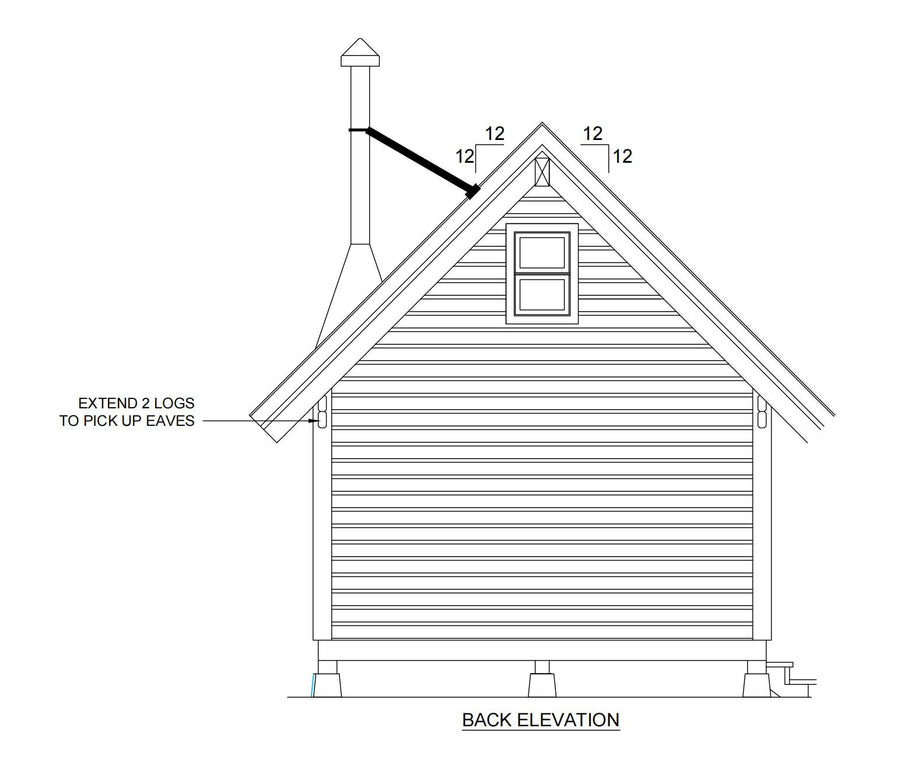

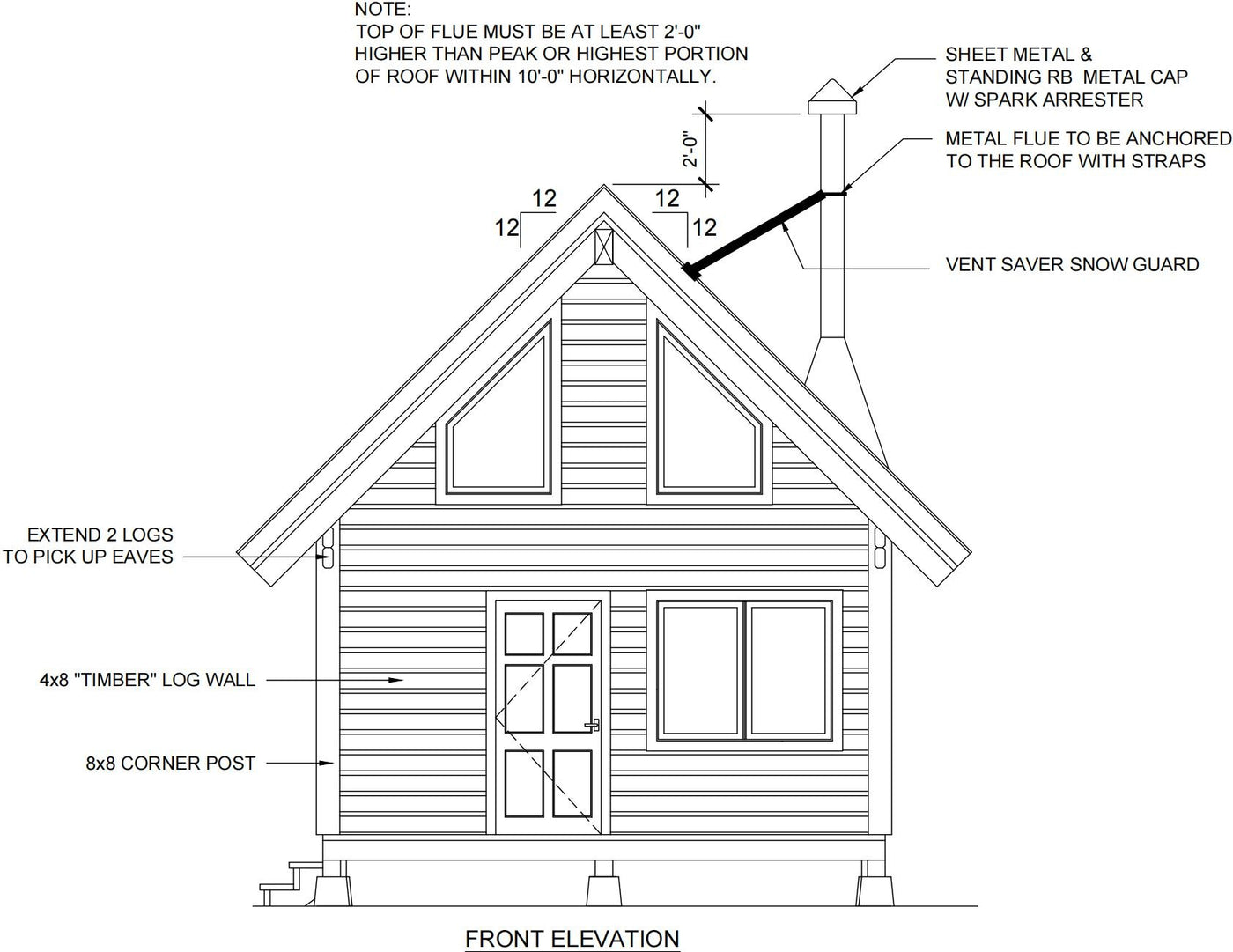

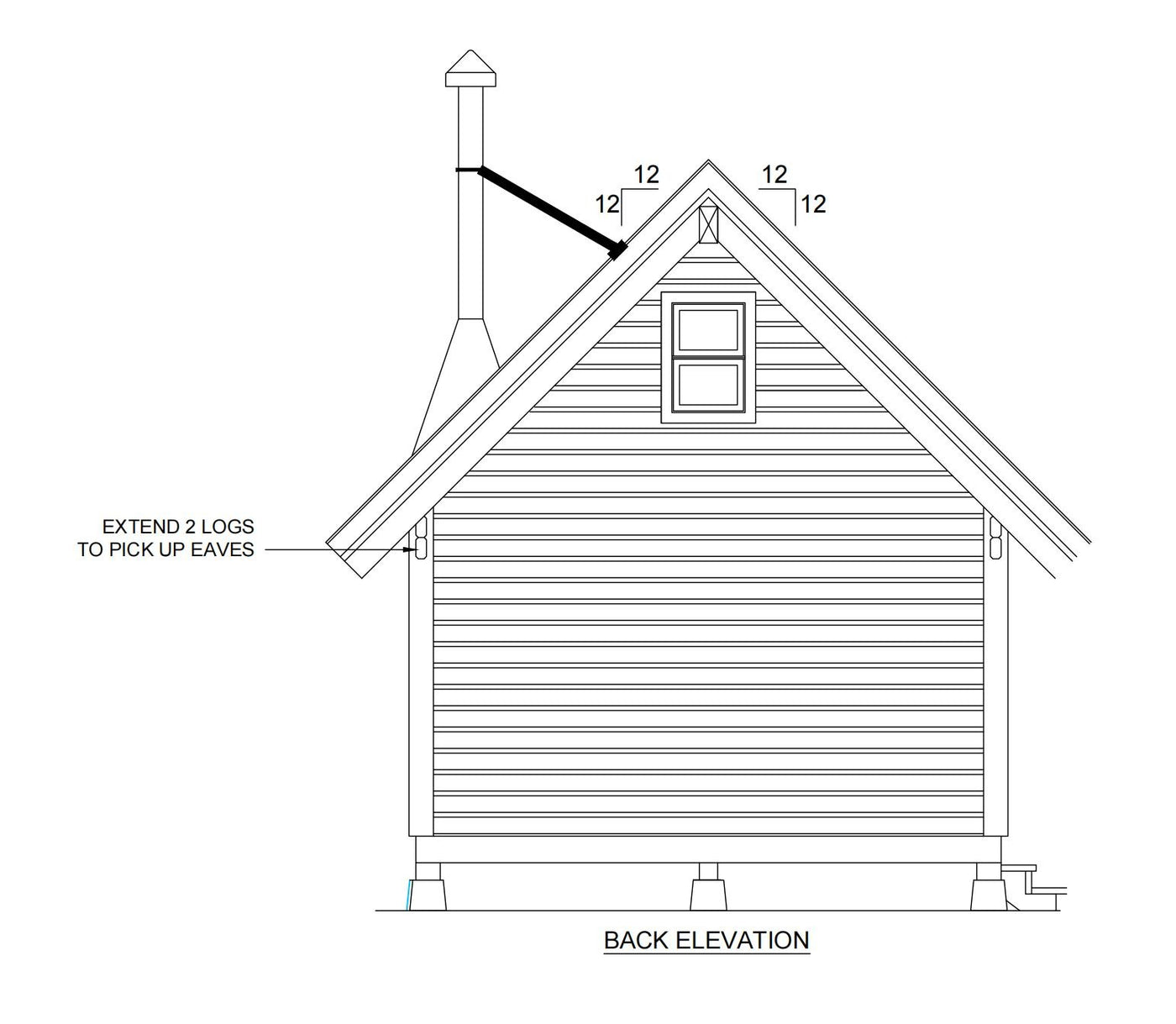

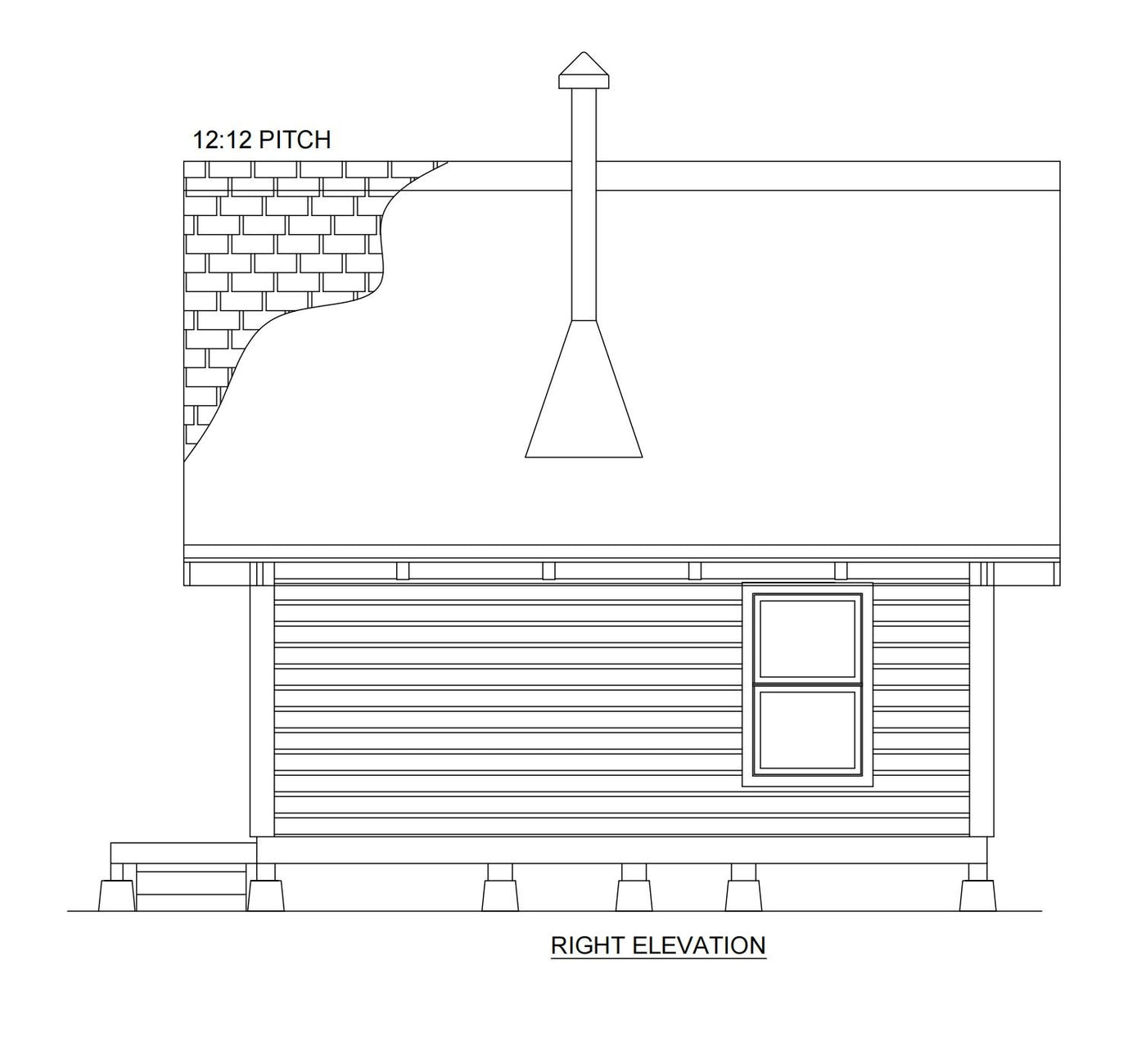

Elevation drawings
When you are ready to build
Questions? 530-899-0680 · info@sierralogandtimber.com
