Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain |
| Bedrooms | 3 |
| Bathrooms | 2.5 |
| Stories | 3 |
| Main Sq Ft | 1792 |
| Loft Sq Ft | 1085 |
| Basement Sq Ft | 1792 |
| Total Sq Ft | 4669 |
| Garage | Yes |
| Basement | Yes |
| Reference | gugg |
About this plan
The Sonora Heights by Sierra Log & Timber is a grand 4,669 sq ft log home with a warm, inviting spirit and room to grow. Ideal for families who want space to gather and spread out, it features a generous main level of 1,792 sq ft with a welcoming great room, a kitchen ready for shared meals, and a comfortable primary bedroom suite. Two additional bedrooms offer privacy for kids or guests, while the 1,085 sq ft loft above is a flexible spot for a home office, studio, or extra sleeping area. Downstairs, the 1,792 sq ft basement opens up possibilities for a rec room, workshop, or future expansion. Whether as a year-round family retreat, a mountain homestead, or a gathering place for generations, Sonora Heights is crafted for those who value lasting quality and the freedom to make it their own.

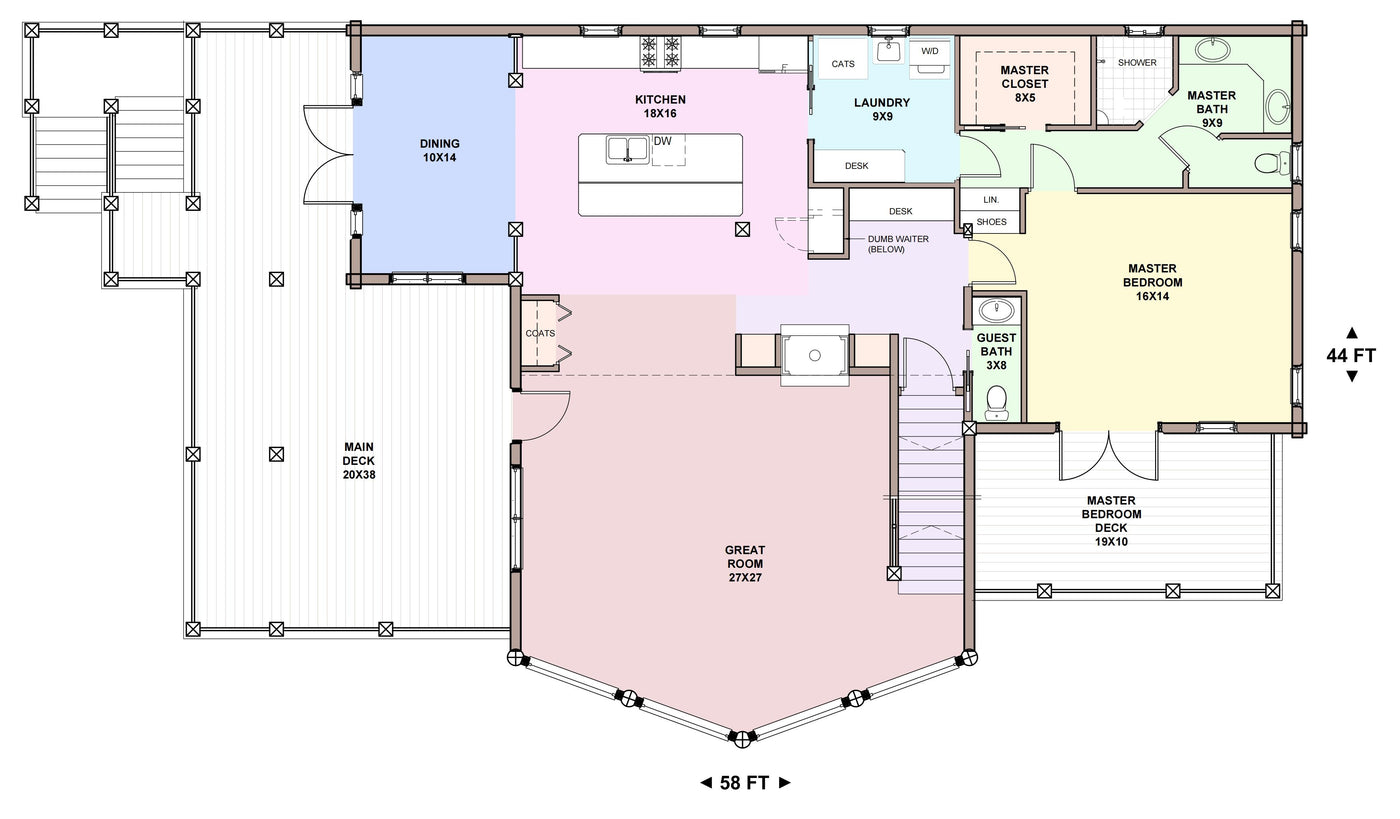

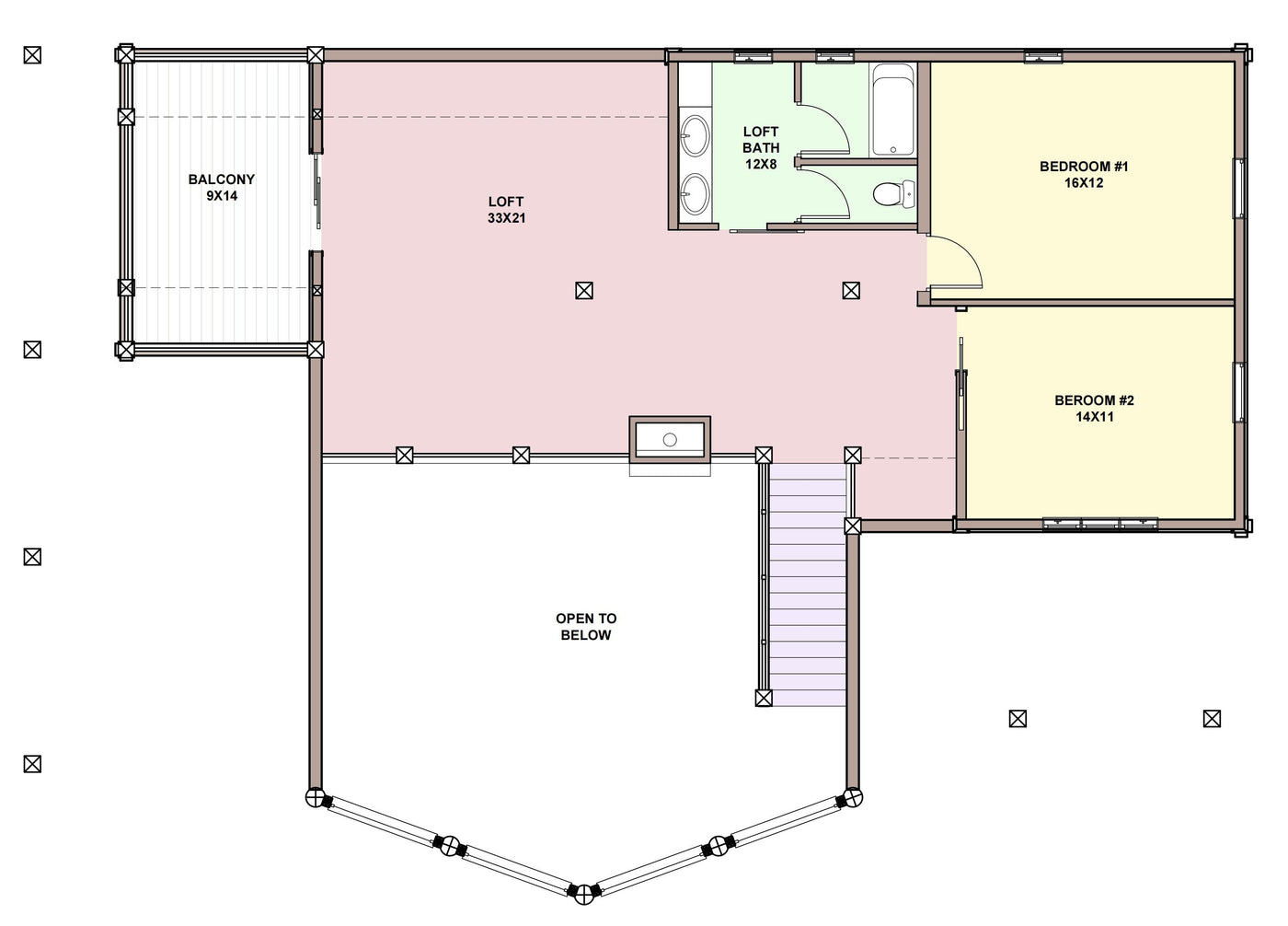

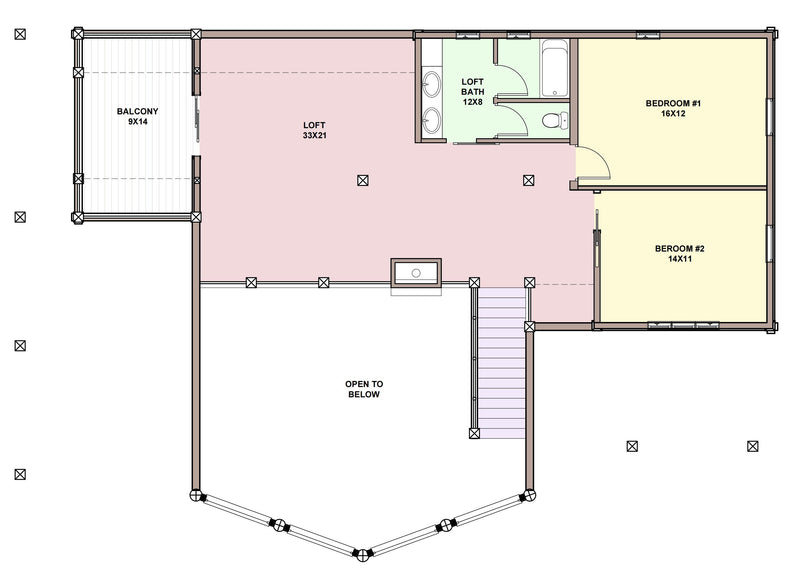

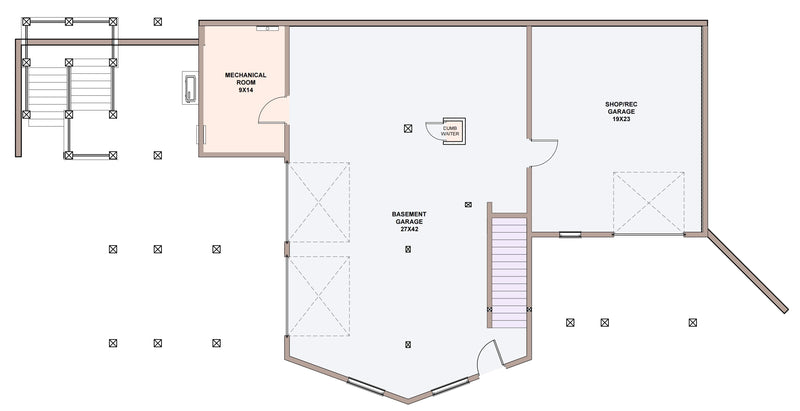

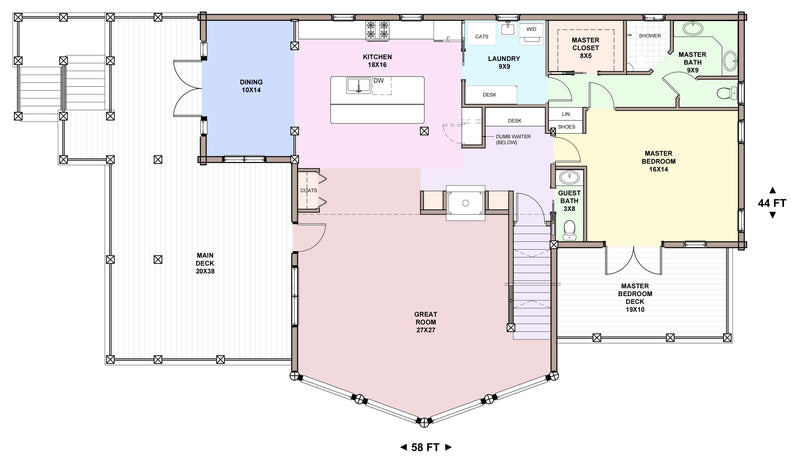

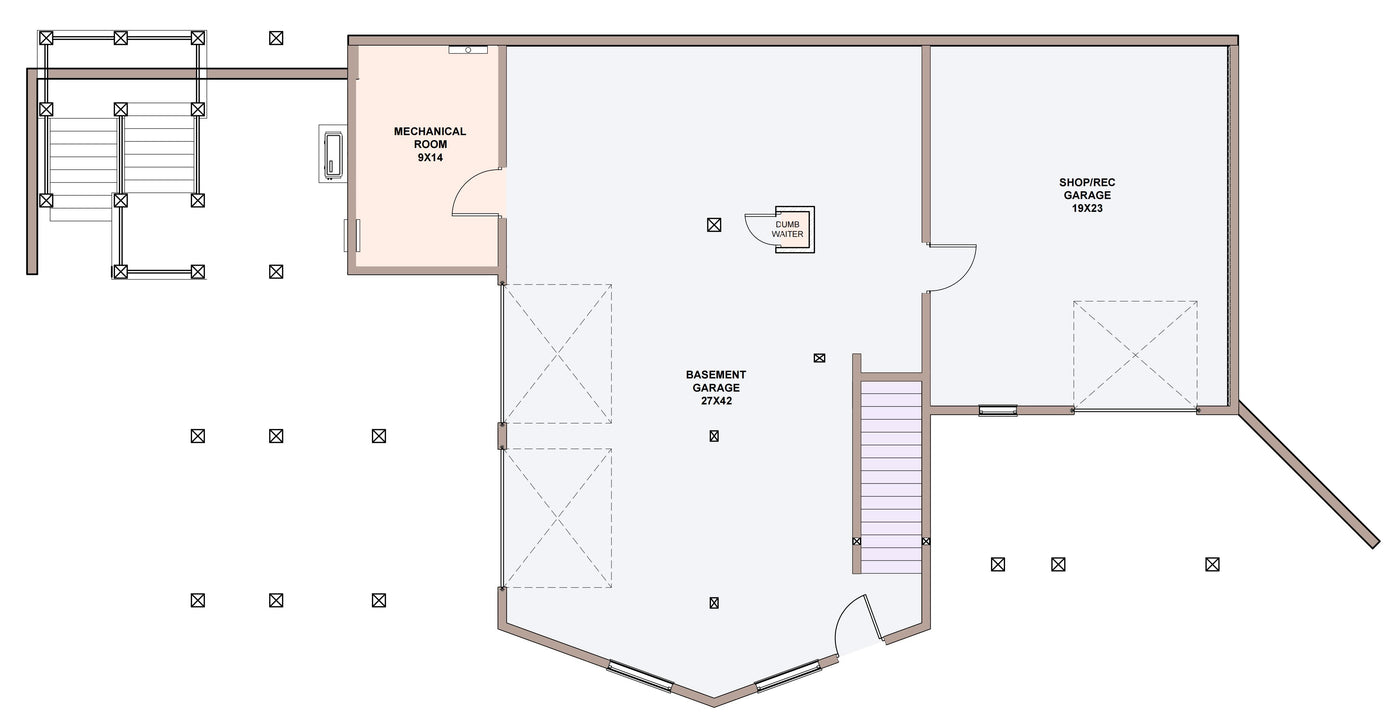

Floor plans
3D

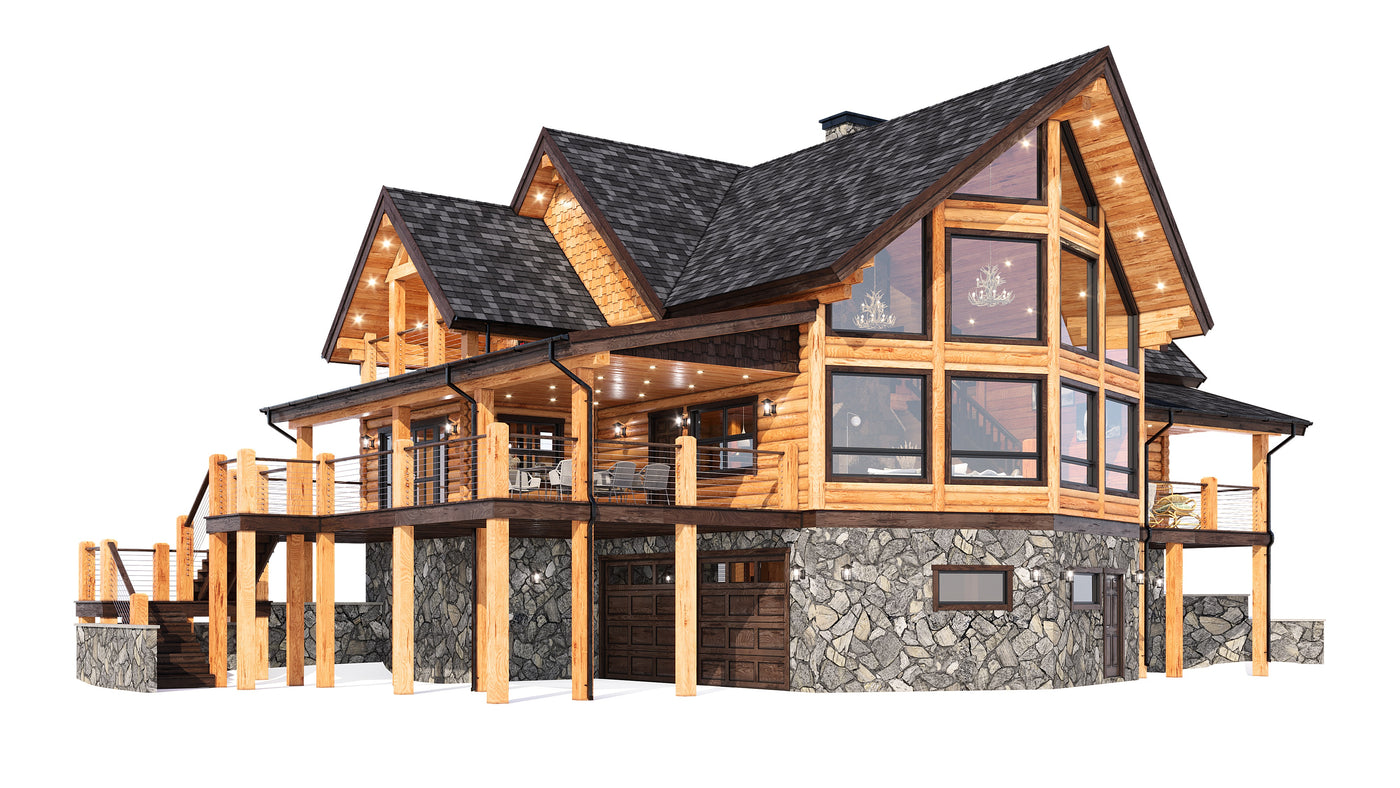

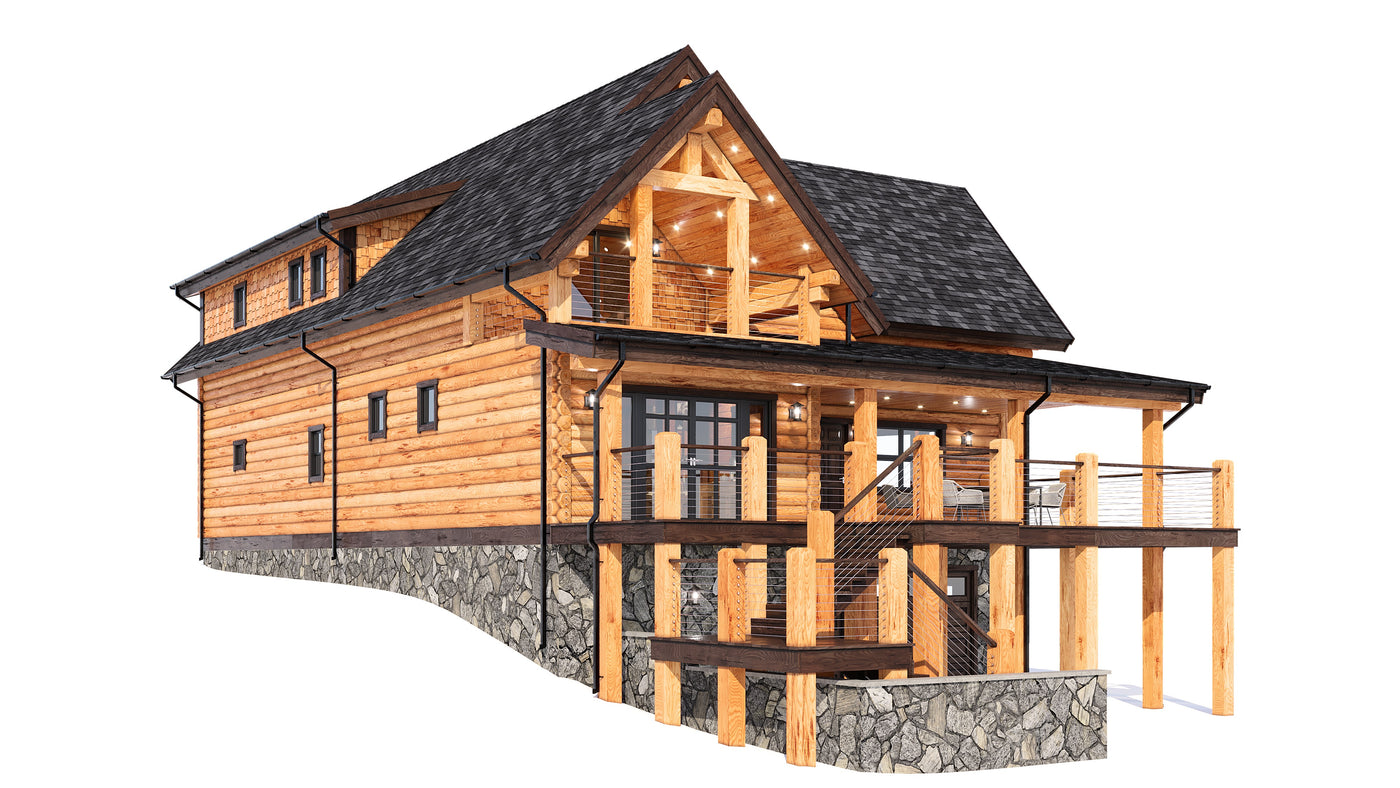

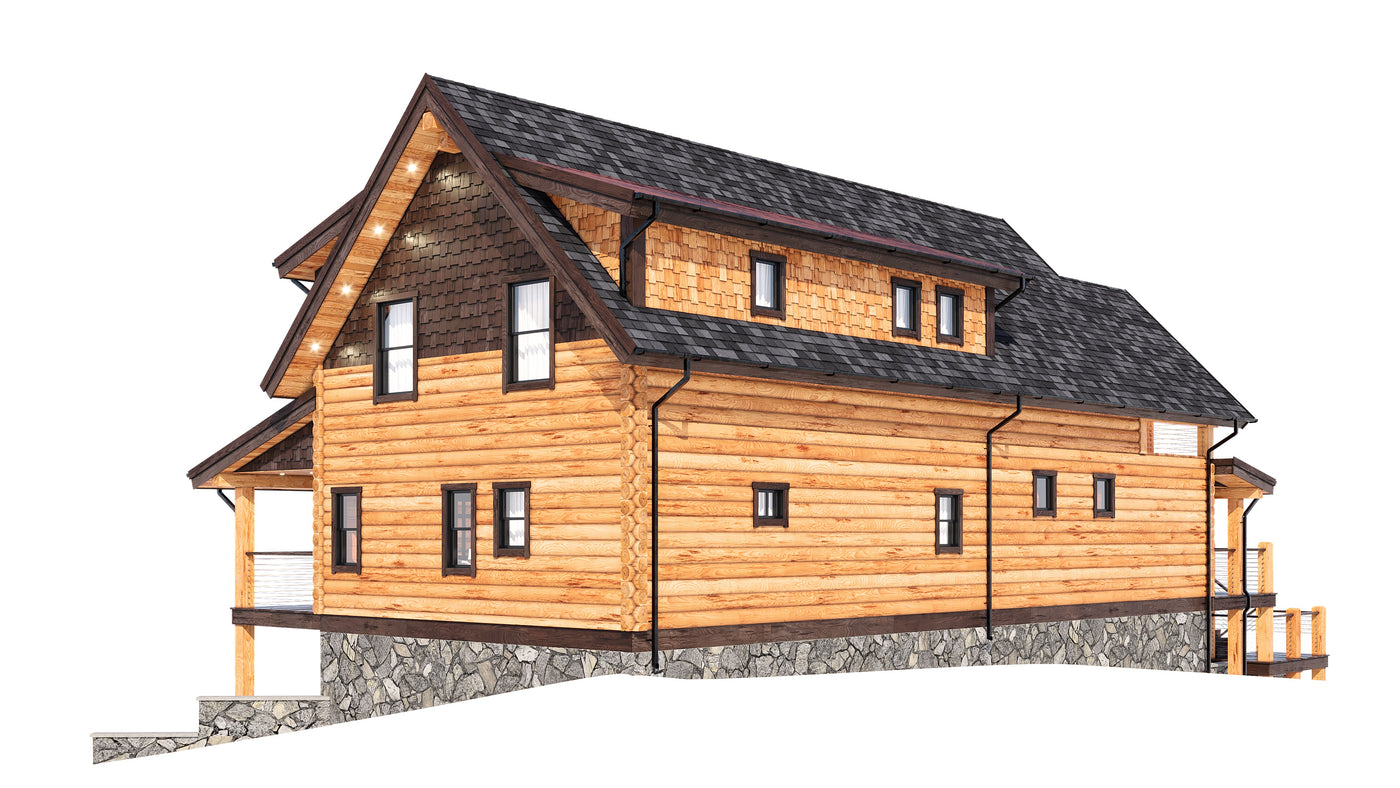

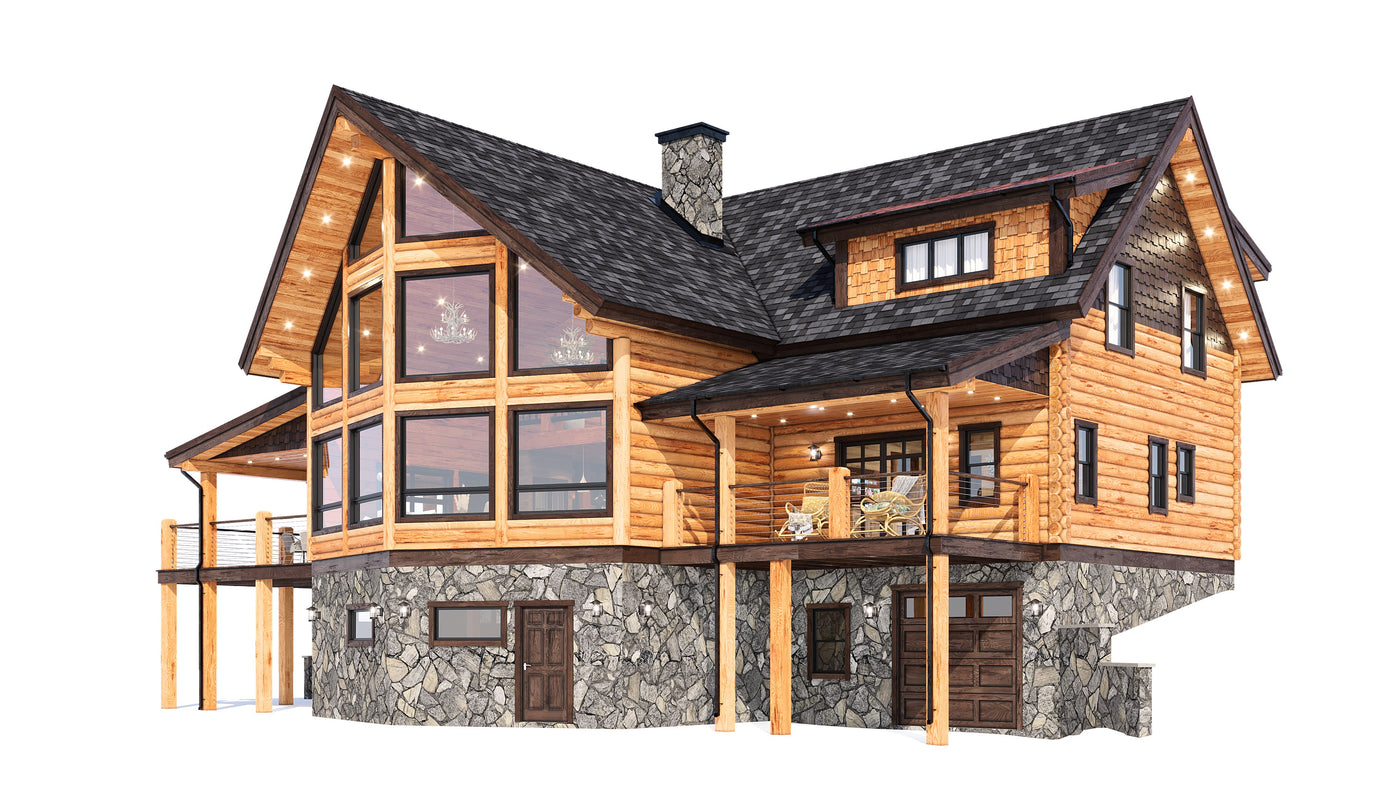

Perspective views
Renders

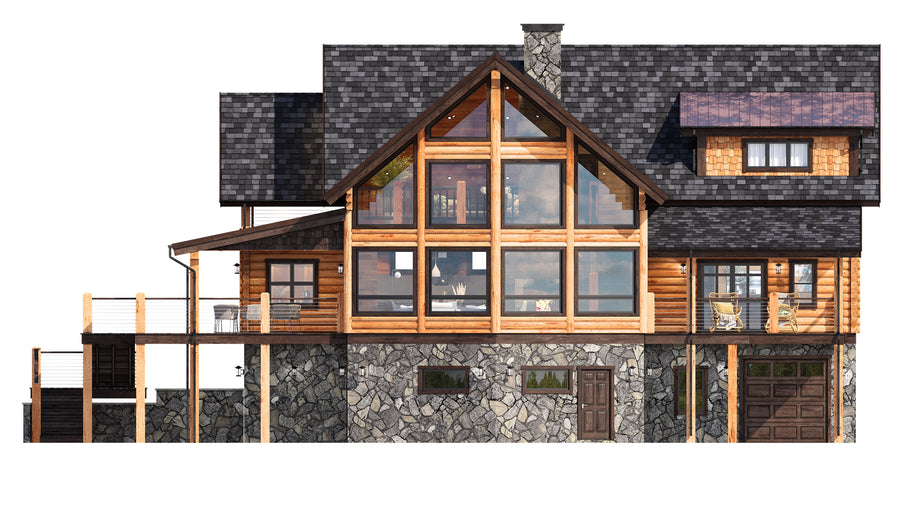

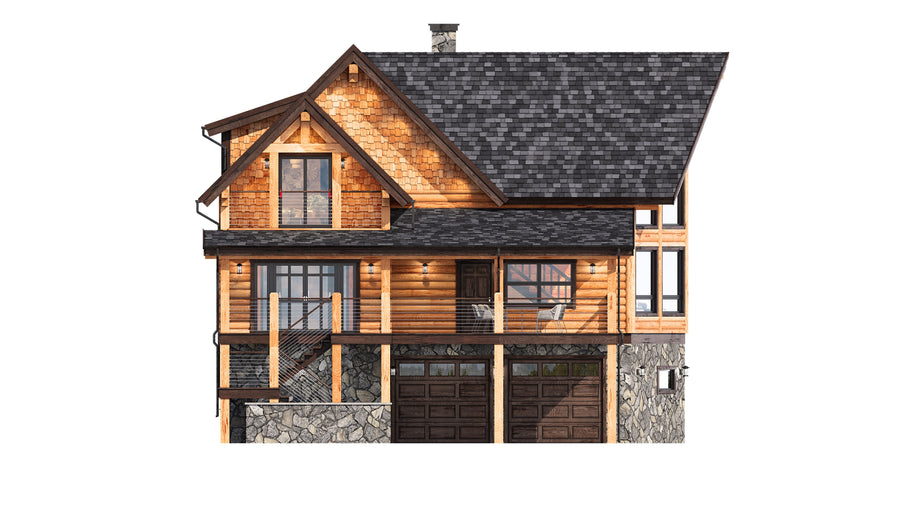

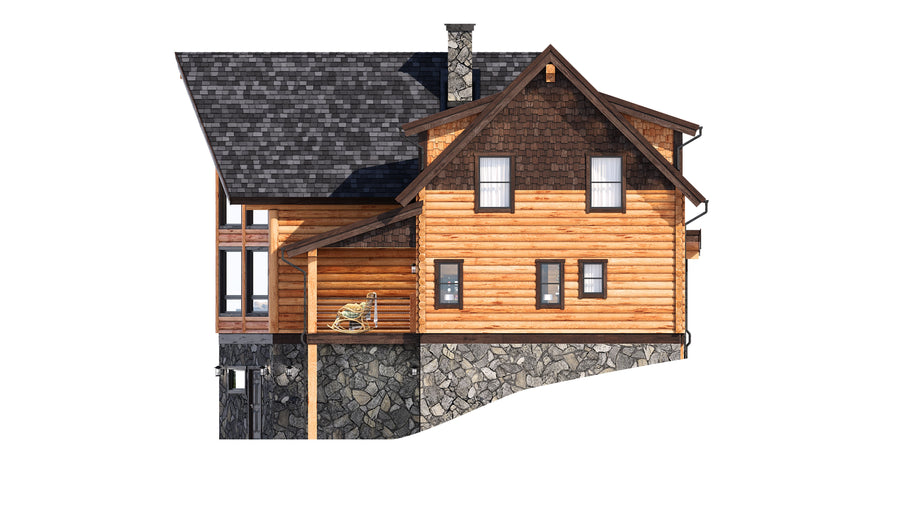

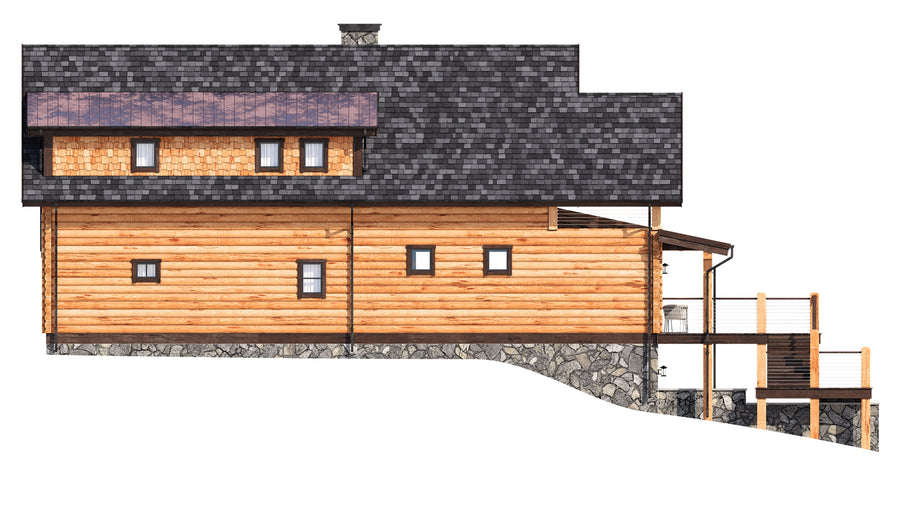

Ortho views
Technical

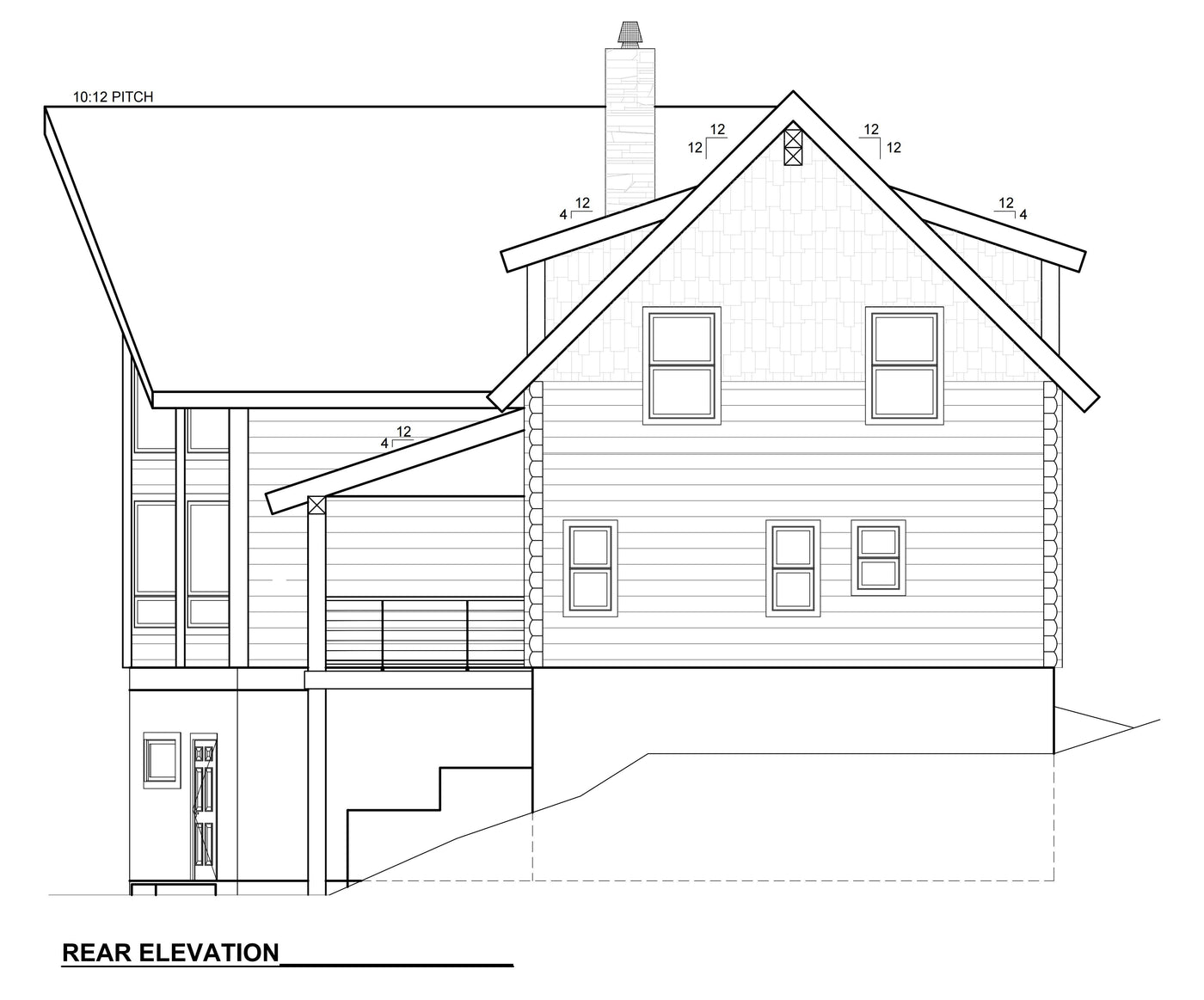

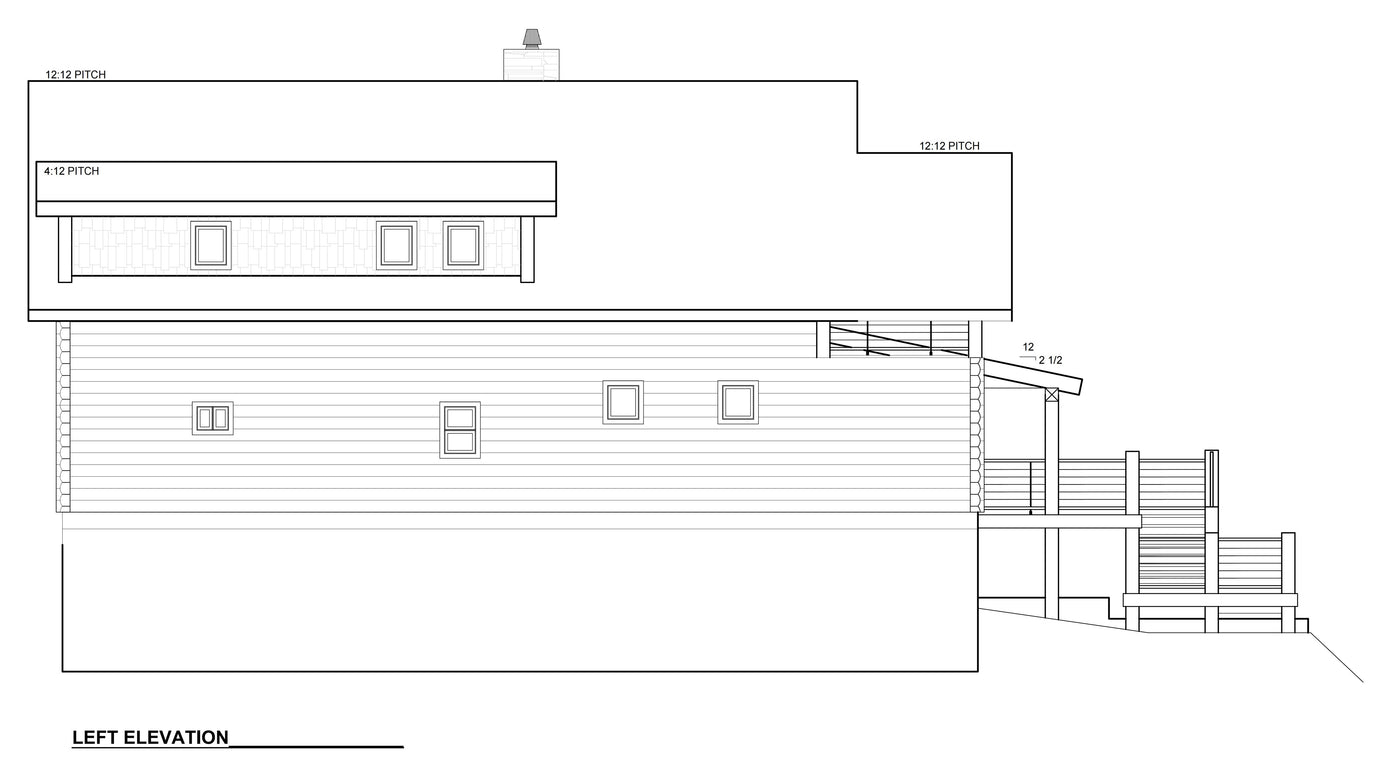

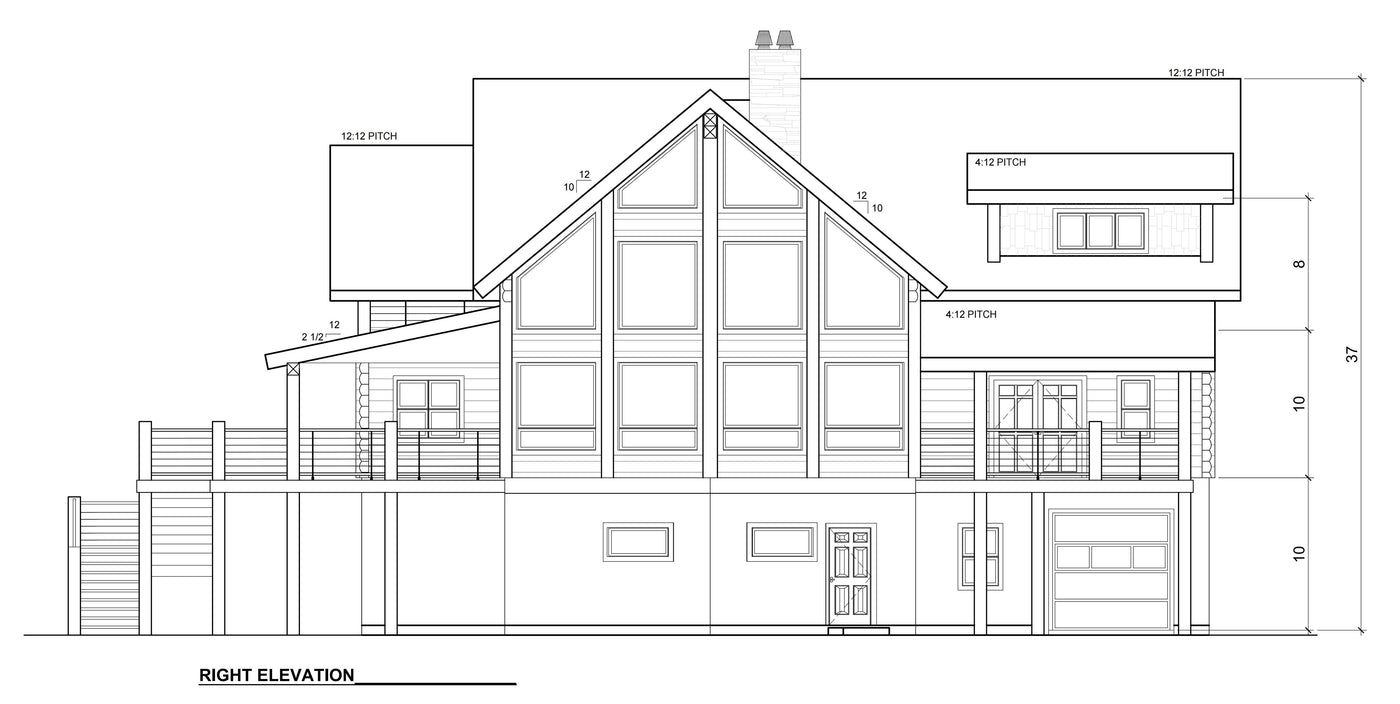

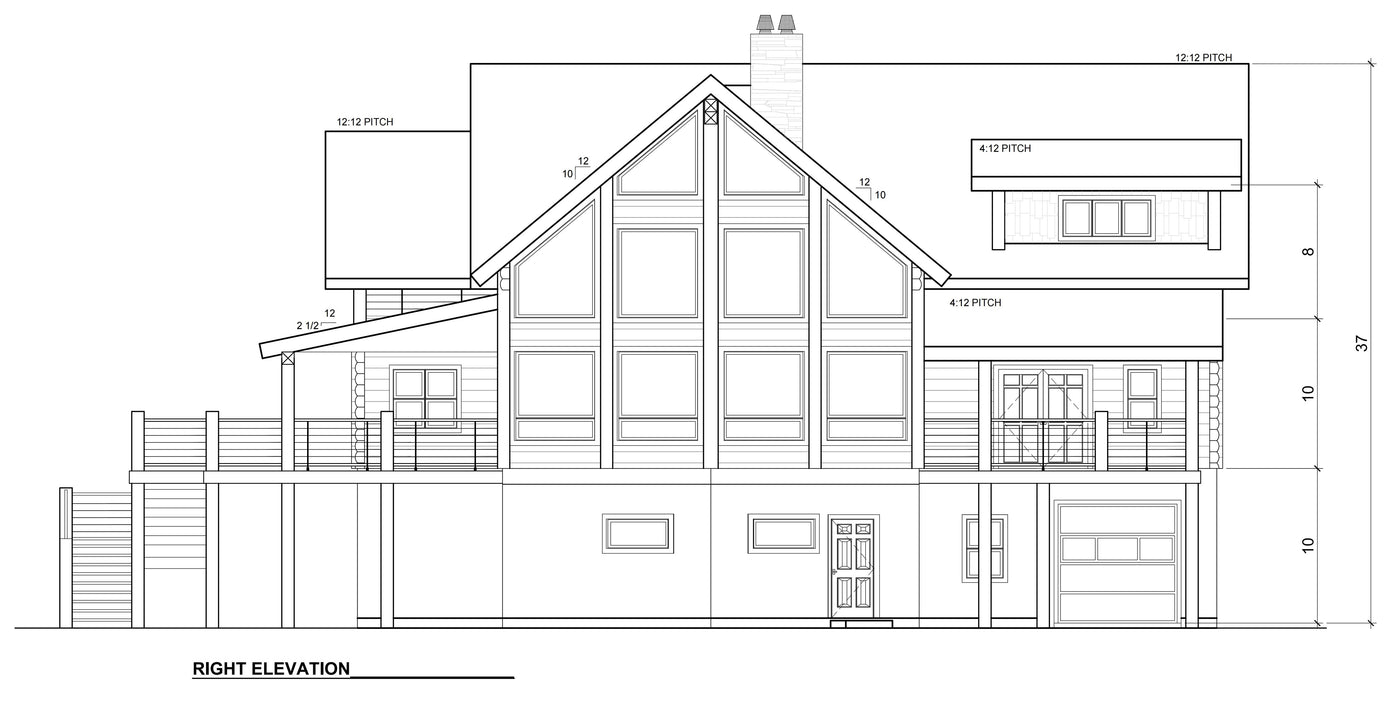

Elevation drawings
When you are ready to build
