Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU / Ranch |
| Bedrooms | 1 |
| Bathrooms | 1 |
| Stories | 2 |
| Main Sq Ft | 660 |
| Loft Sq Ft | 147 |
| Basement Sq Ft | — |
| Total Sq Ft | 807 |
| Garage | — |
| Basement | — |
| Reference | bell |
About this plan
The Shadow Hill by Sierra Log & Timber is a warm and inviting 807 sq ft log cabin that captures the spirit of simple living in a handcrafted shell. Ideal for couples or solo adventurers, this two-story retreat features a cozy great room that flows into a practical kitchen, making it easy to unwind or entertain a friend. The main floor’s bedroom offers a quiet place to rest, while the full bath keeps things comfortable and convenient. Upstairs, a 147 sq ft loft gives you room to dream—a flexible spot for a guest bed, a reading nook, or a tucked-away studio. Whether you are looking for a weekend hideaway, a hunting cabin, or a peaceful spot to call home year-round, Shadow Hill brings together thoughtful design and the enduring beauty of log construction. Custom options let you shape it to your own vision.

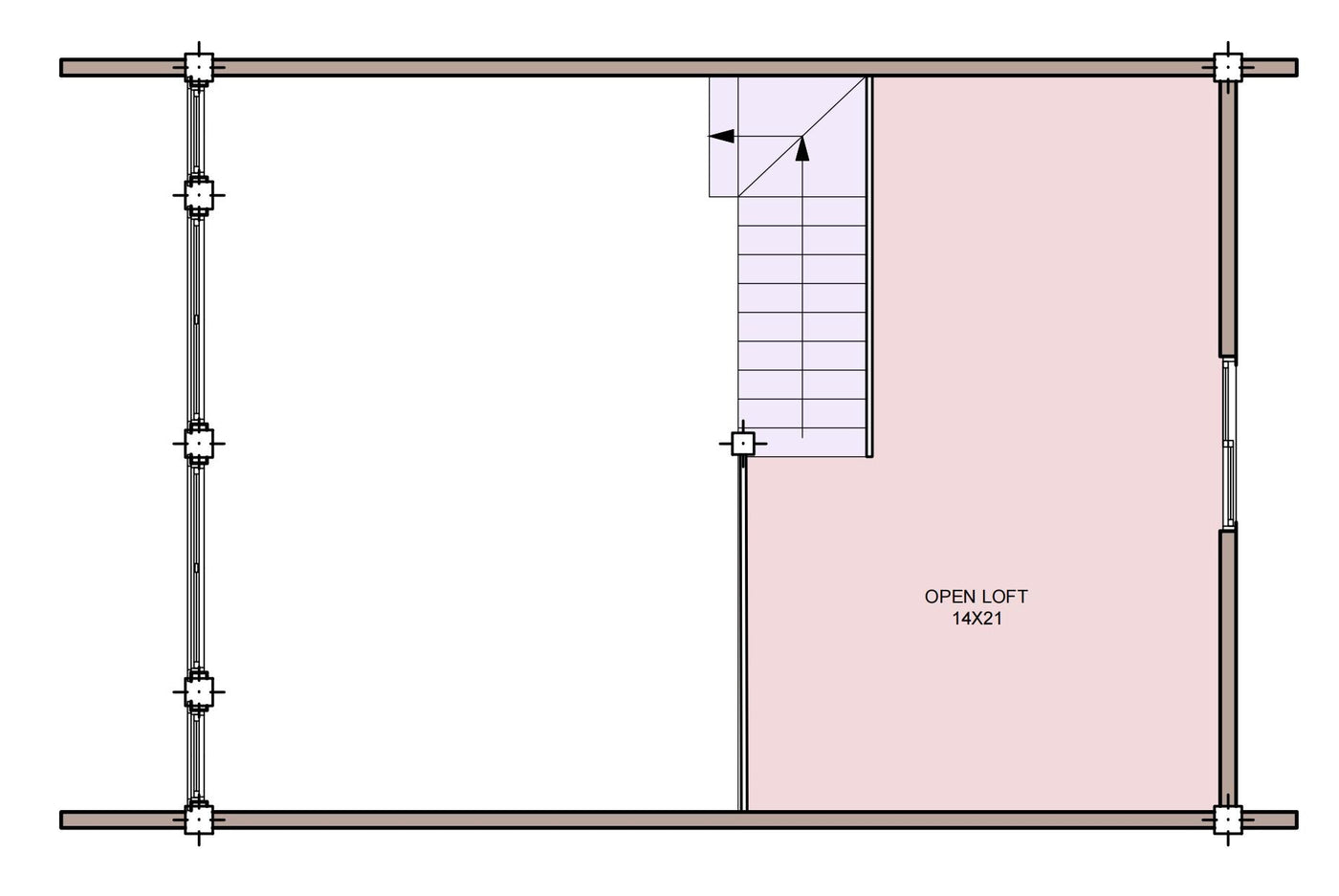

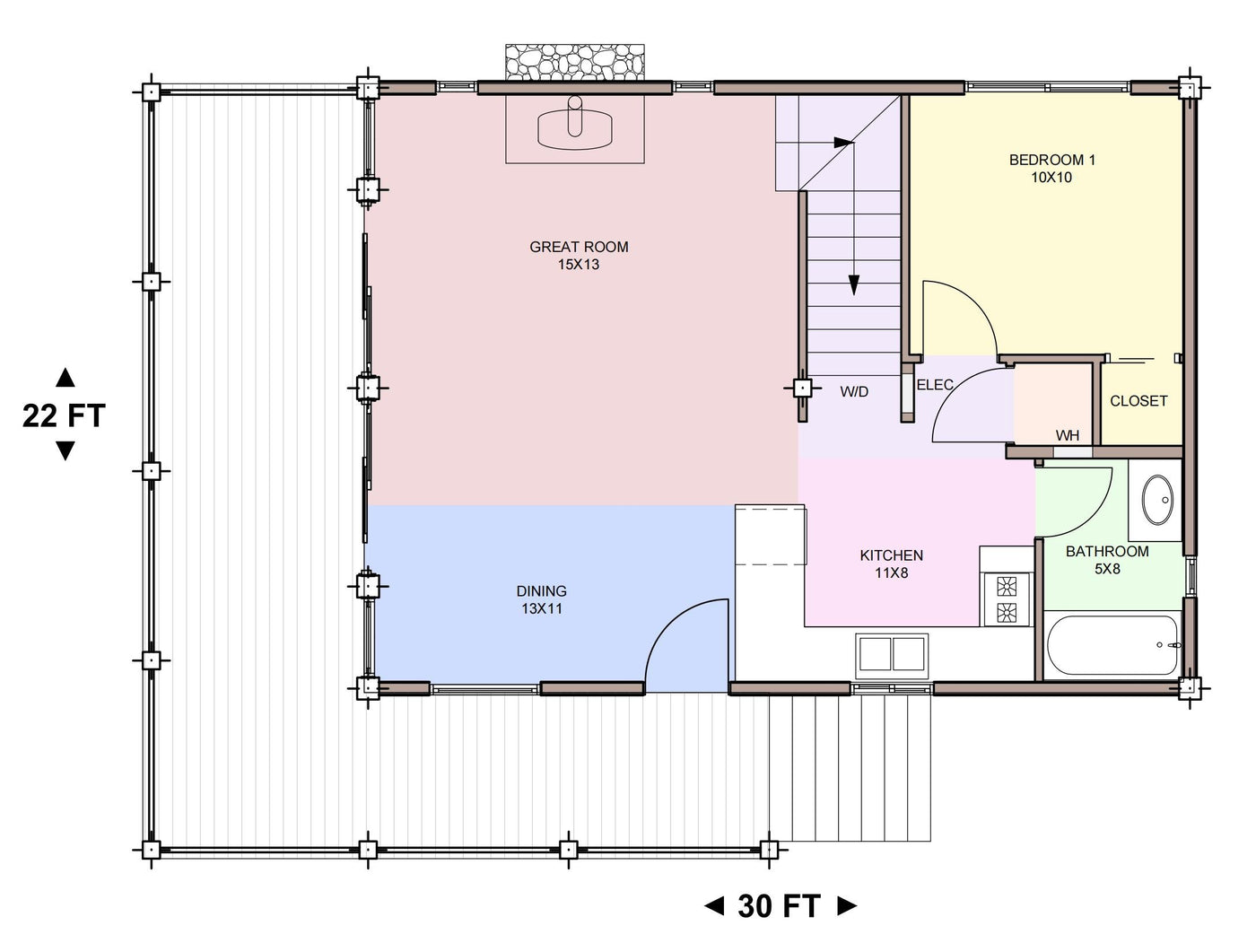

Floor plans
3D

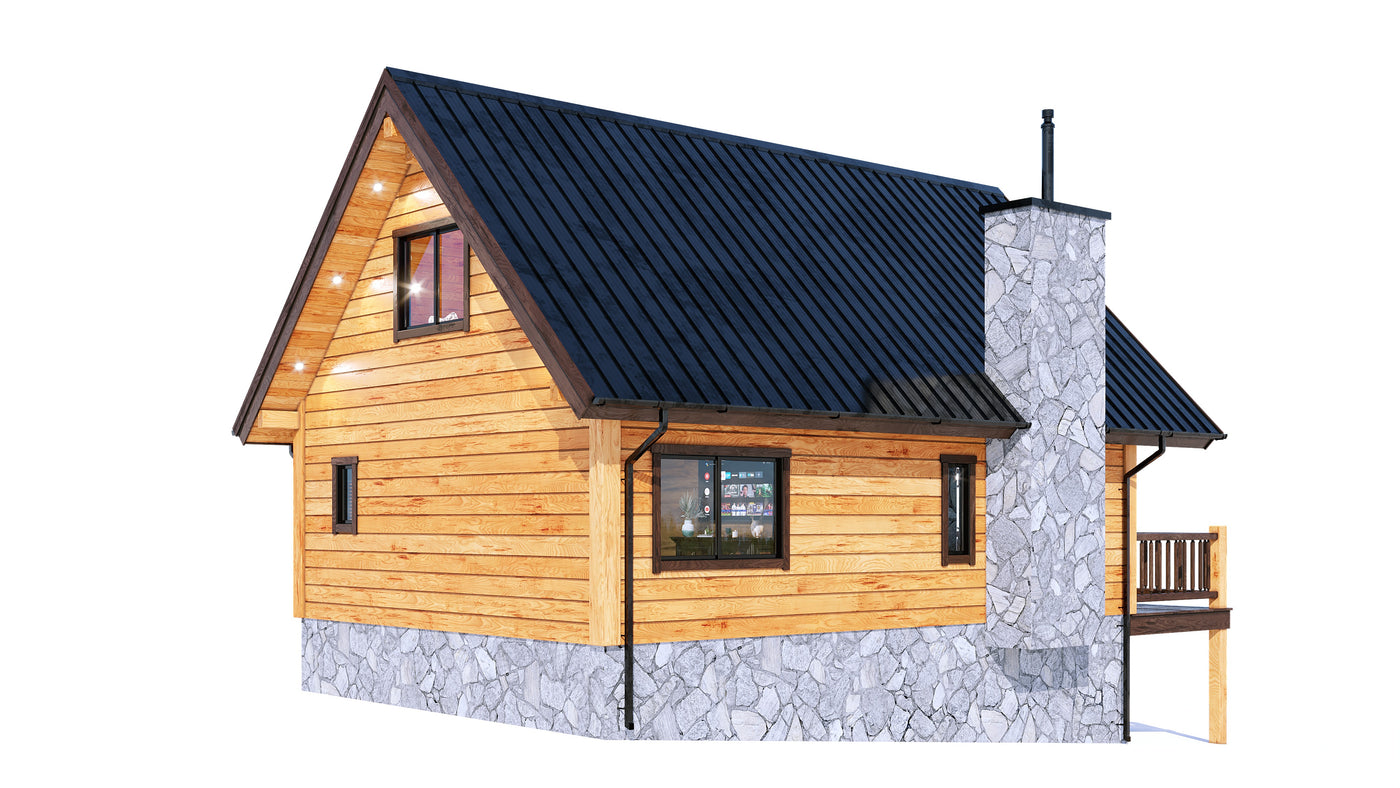

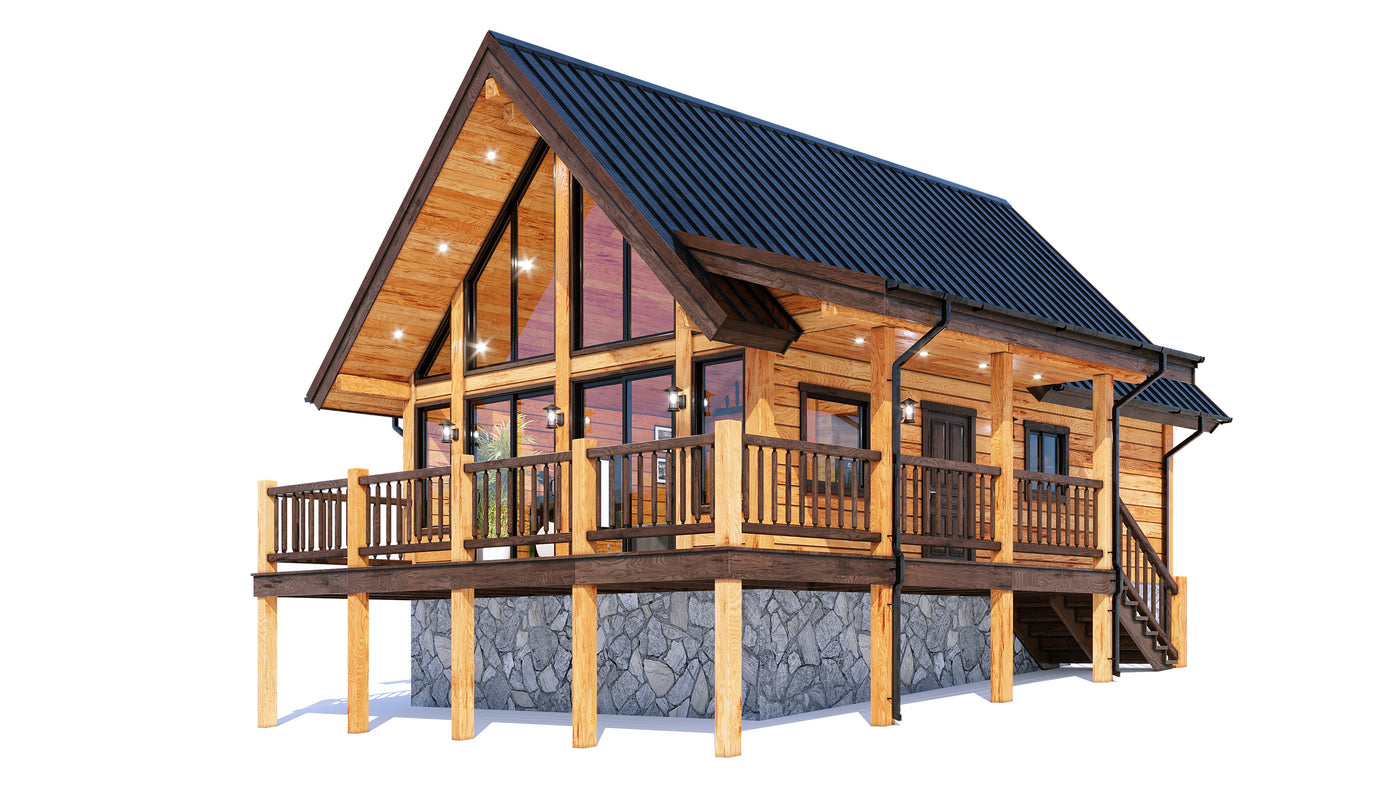

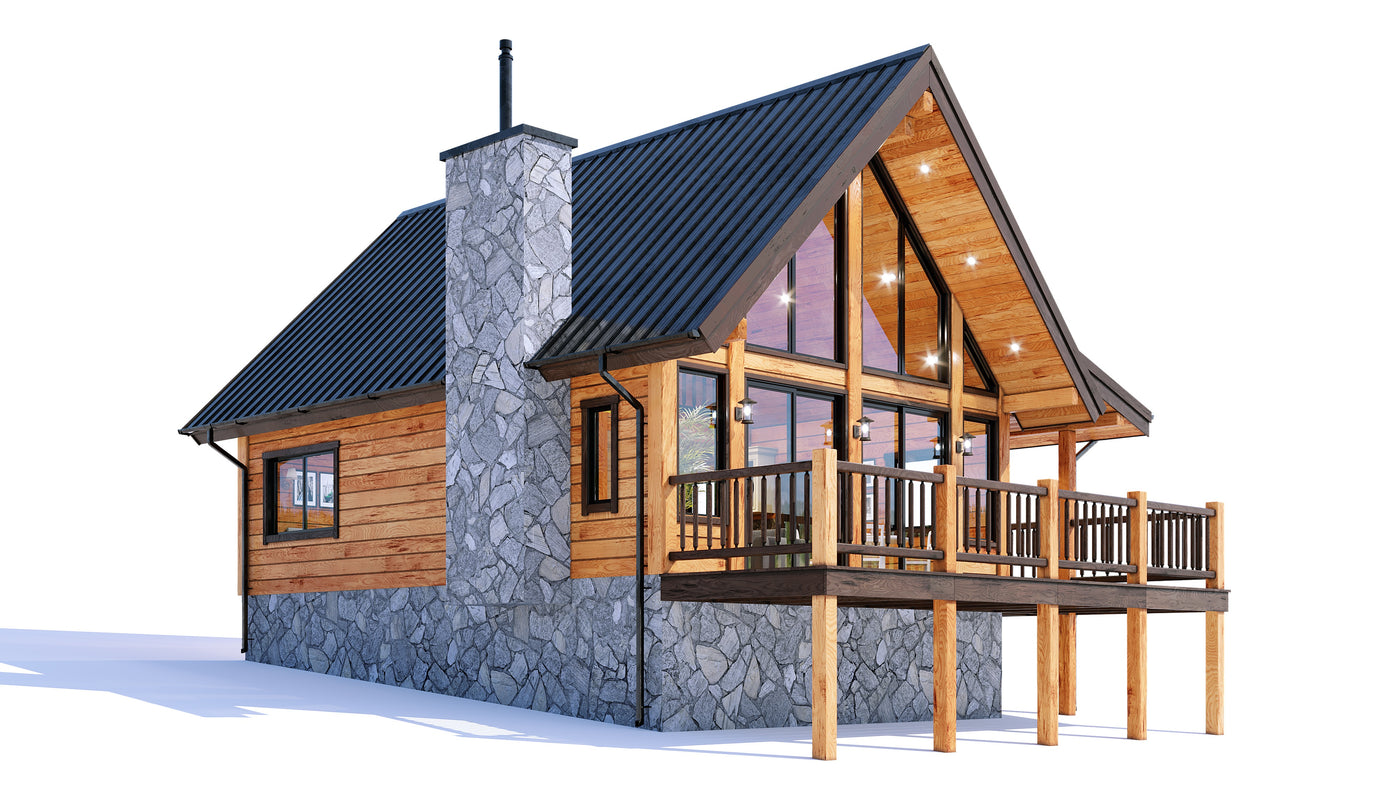

Perspective views
Renders

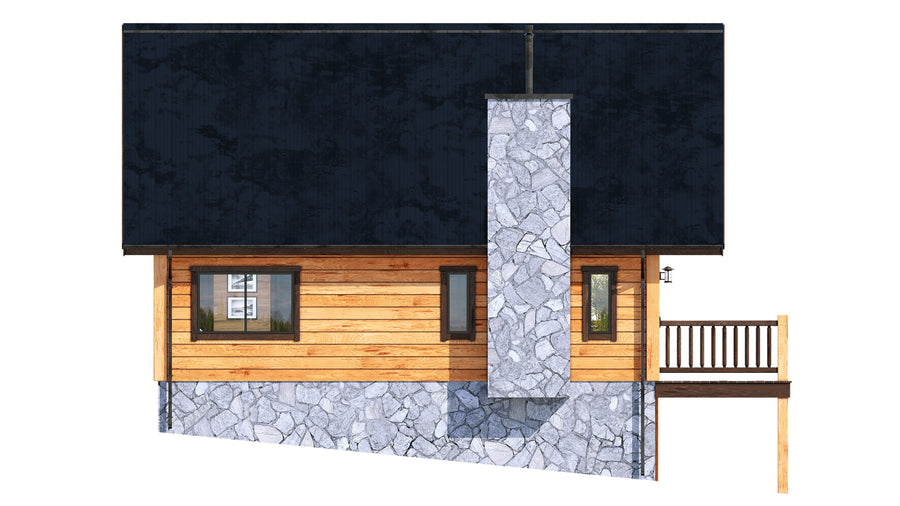

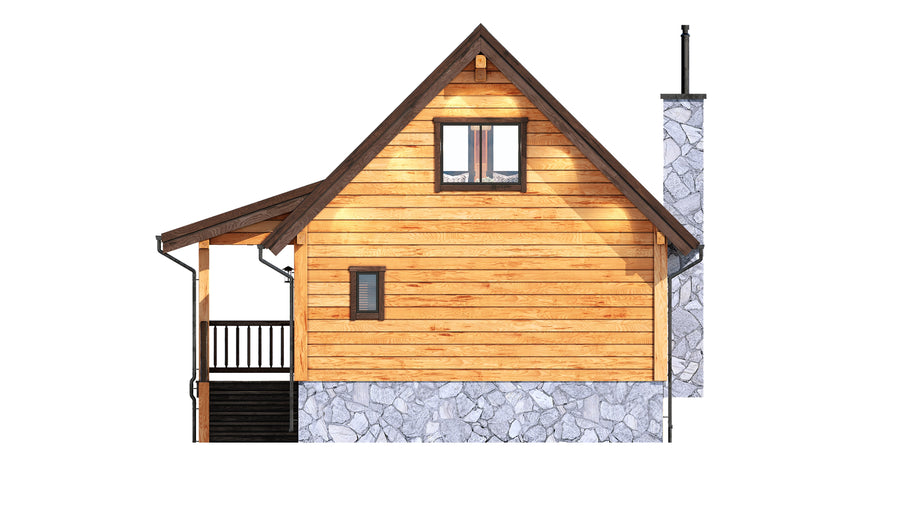

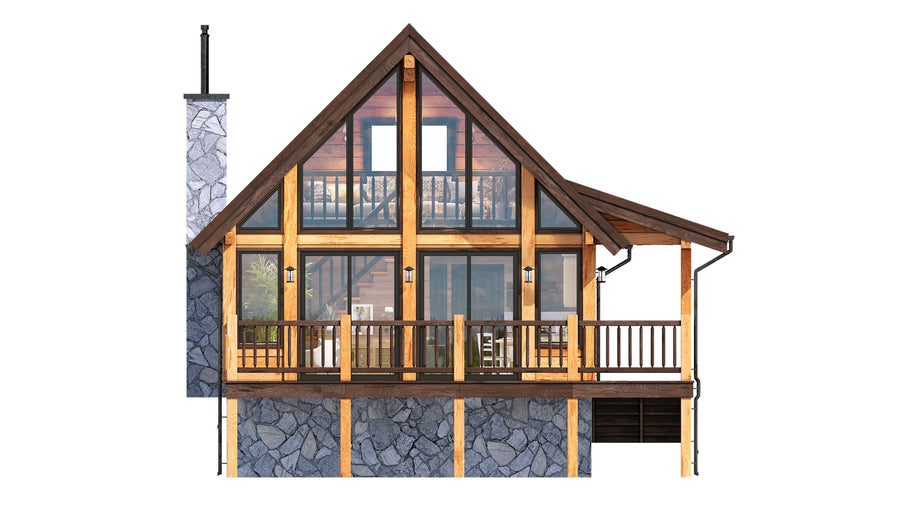

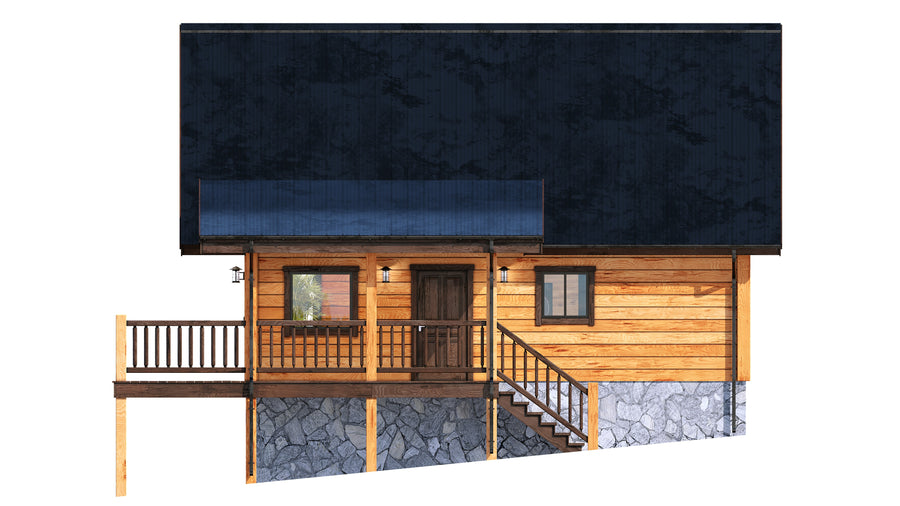

Ortho views
Technical

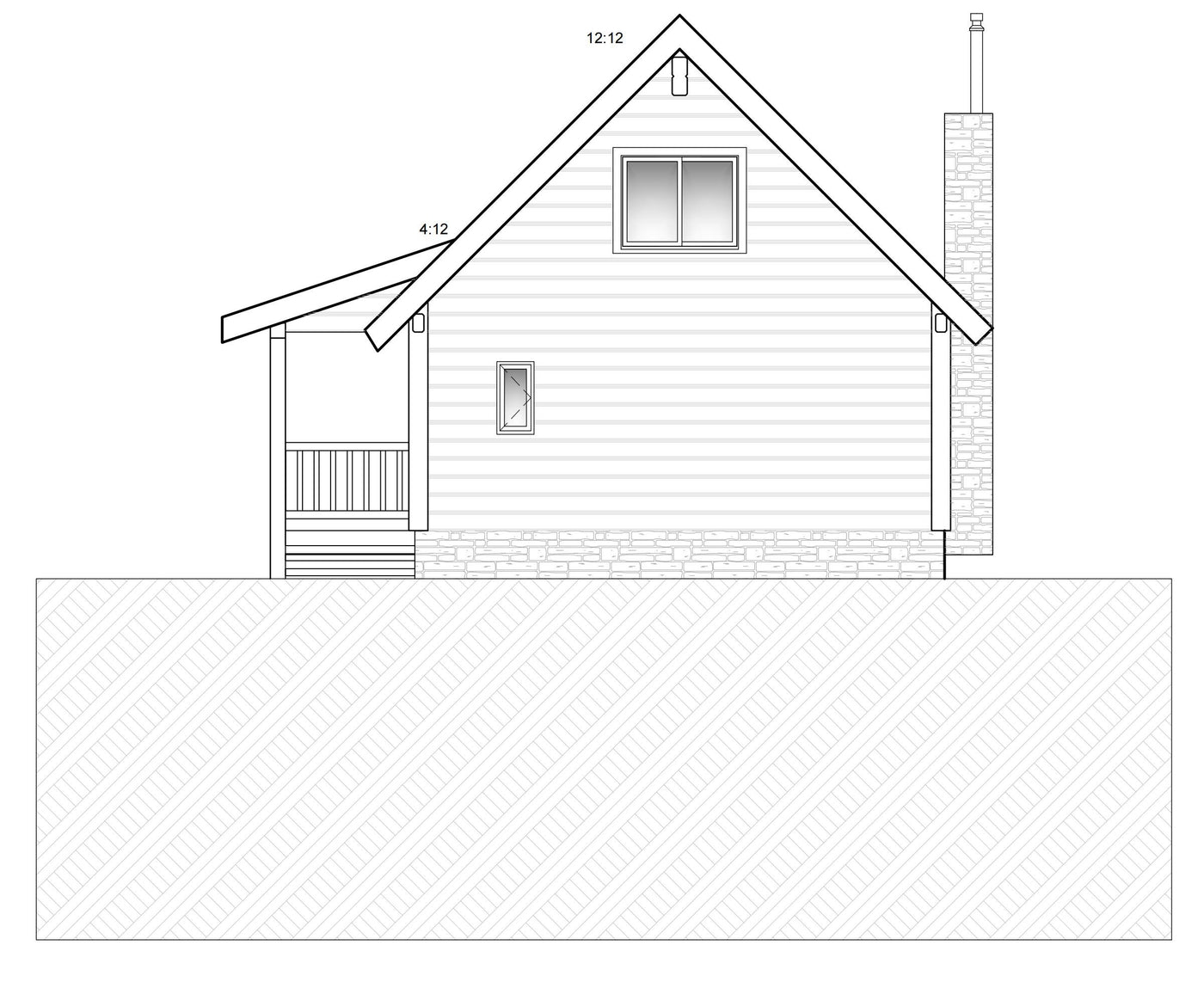

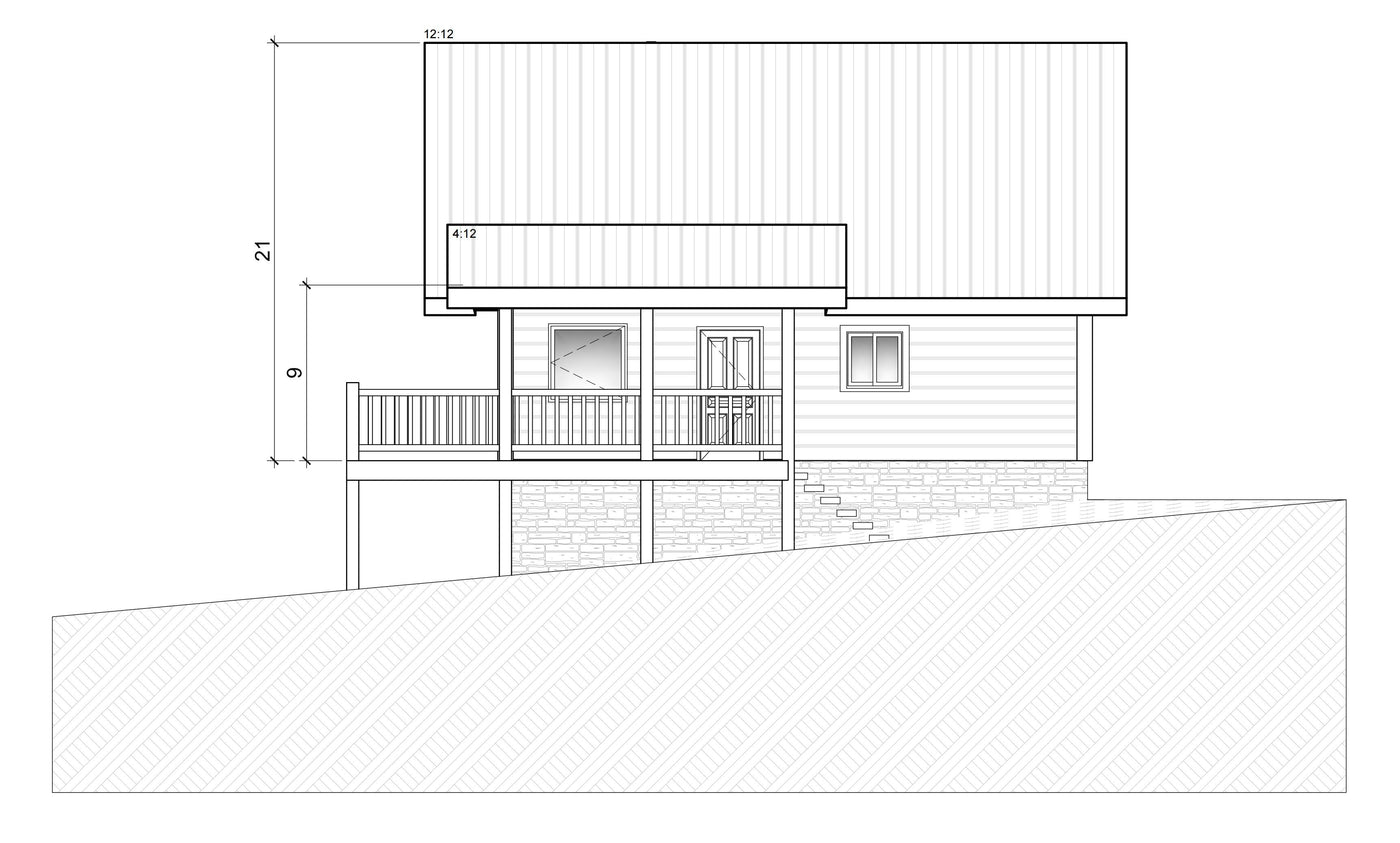

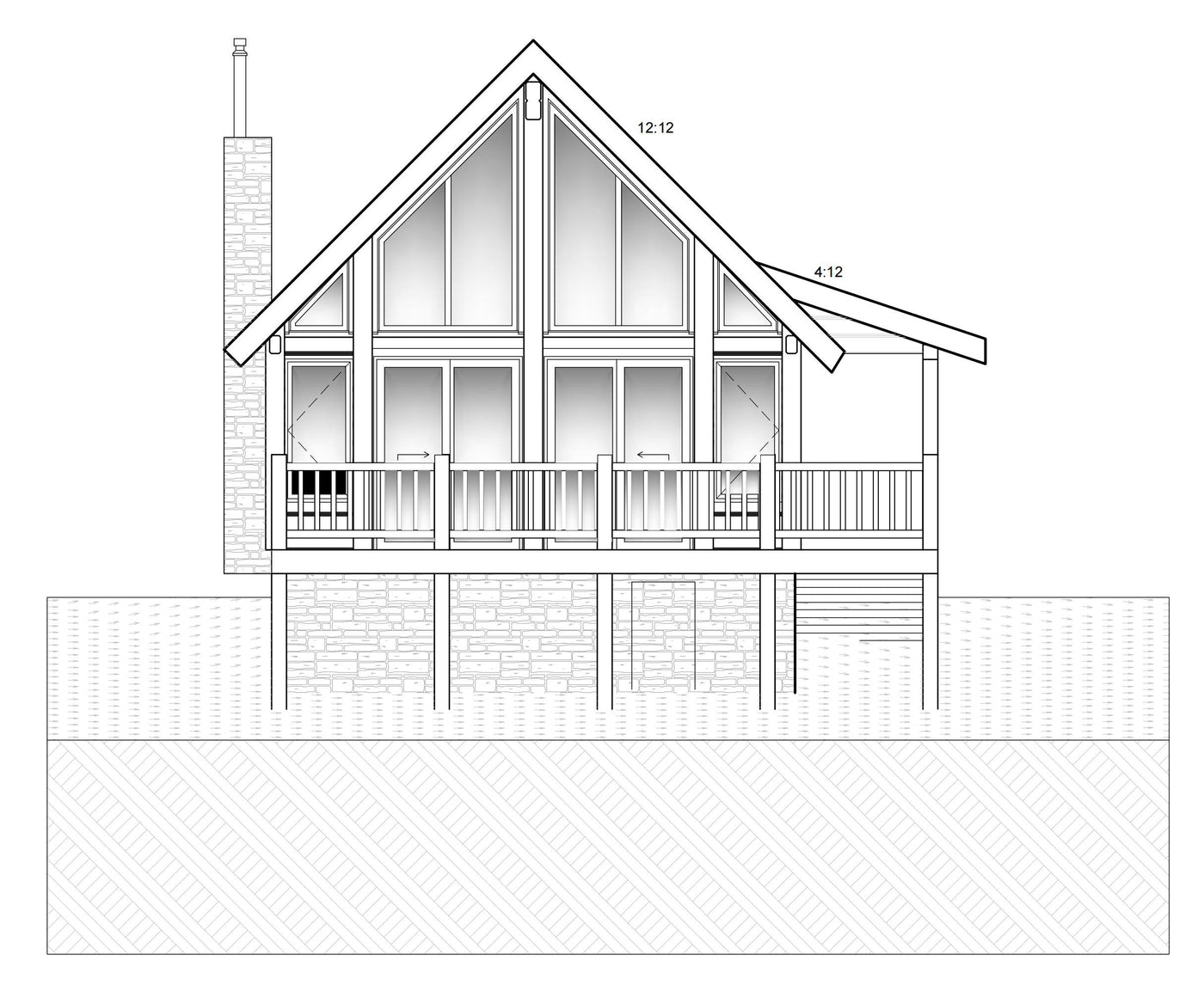

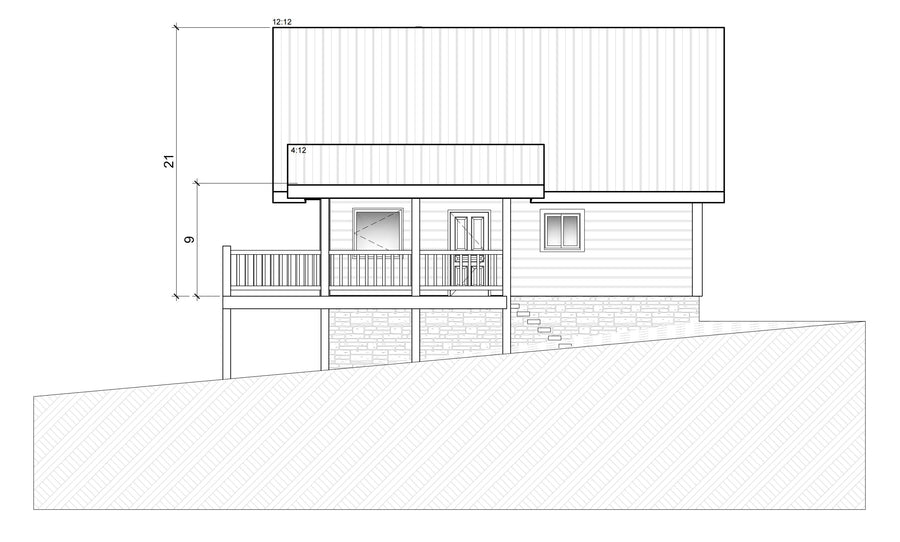

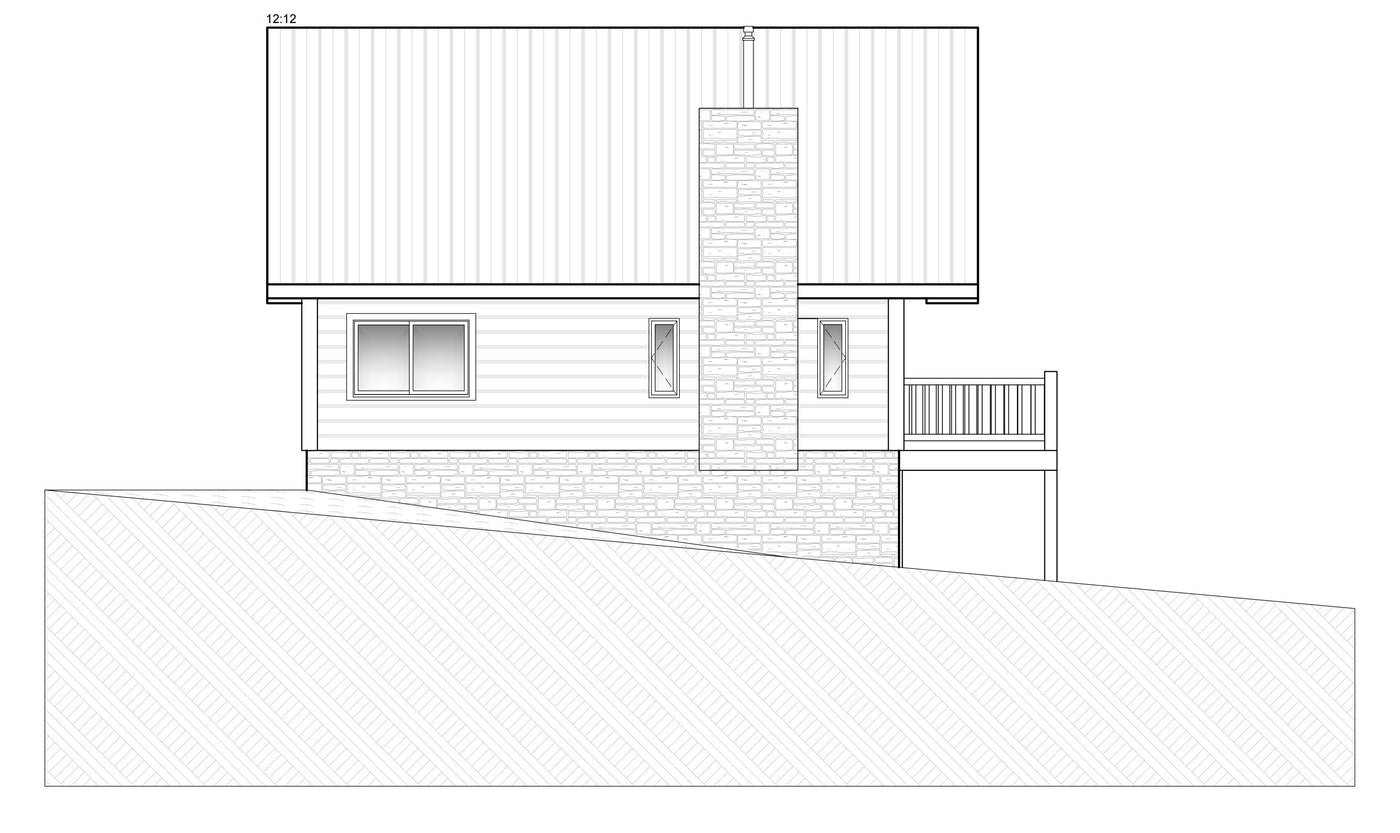

Elevation drawings
When you are ready to build
