Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain |
| Bedrooms | 2 |
| Bathrooms | 2 |
| Stories | 2 |
| Main Sq Ft | 1392 |
| Loft Sq Ft | 902 |
| Basement Sq Ft | — |
| Total Sq Ft | 2294 |
| Garage | — |
| Basement | — |
| Reference | Peterson |
About this plan

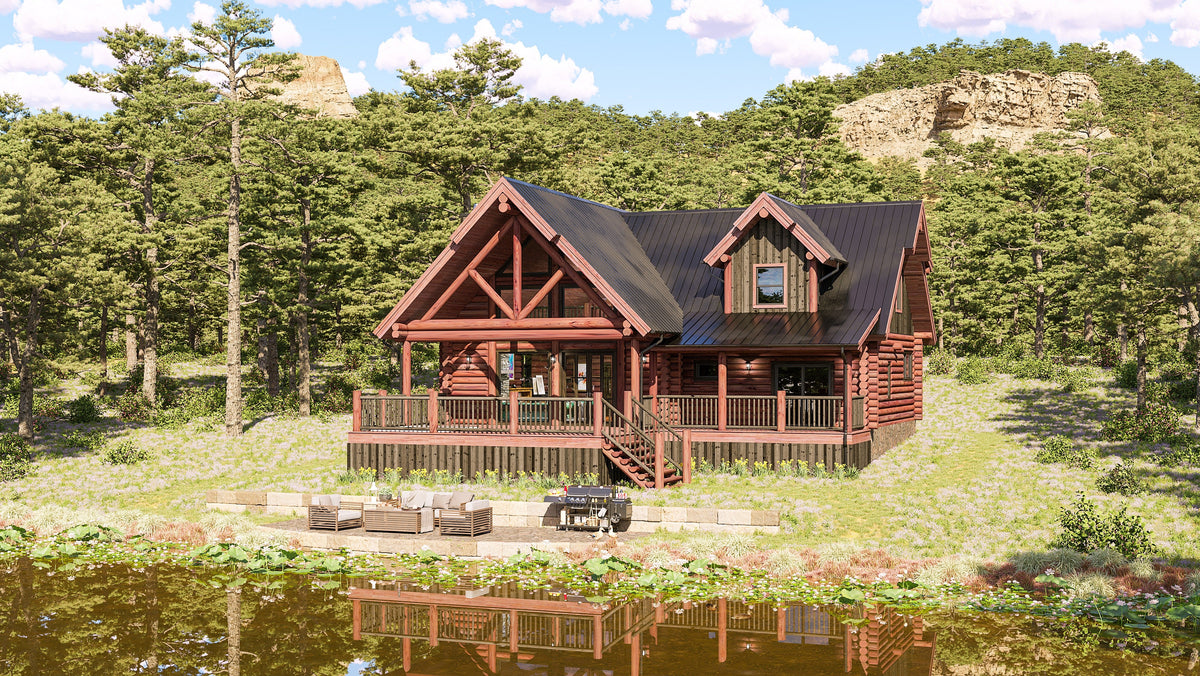

The Rio Bravo by Sierra Log & Timber is a warm and inviting 2,294 sq ft log home that feels both spacious and grounded in tradition. Ideal for couples or small families dreaming of full-time mountain living, it welcomes you with a generous great room that’s perfect for gathering around the fire or sharing meals from the open kitchen. The main floor’s primary bedroom offers comfort and privacy, while a second bedroom gives guests or family their own retreat. Upstairs, the 902 sq ft loft is a flexible space—use it as a second bedroom, a quiet reading nook, or a creative studio with room to spare. Whether as a year-round residence, a peaceful retirement spot, or a family getaway, the Rio Bravo brings handcrafted character and room to grow. Customization is always possible, so your vision can take shape in every detail.

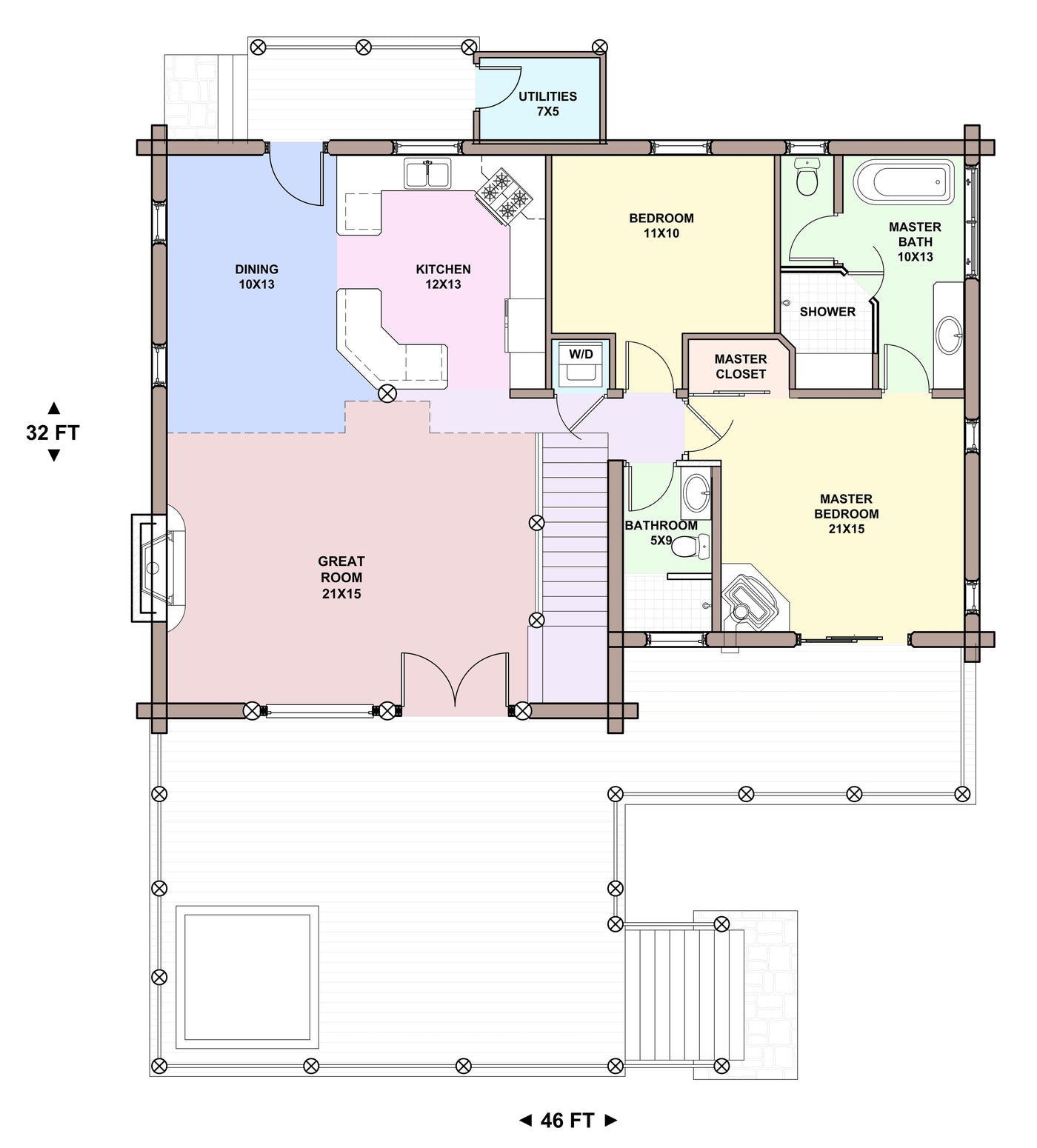

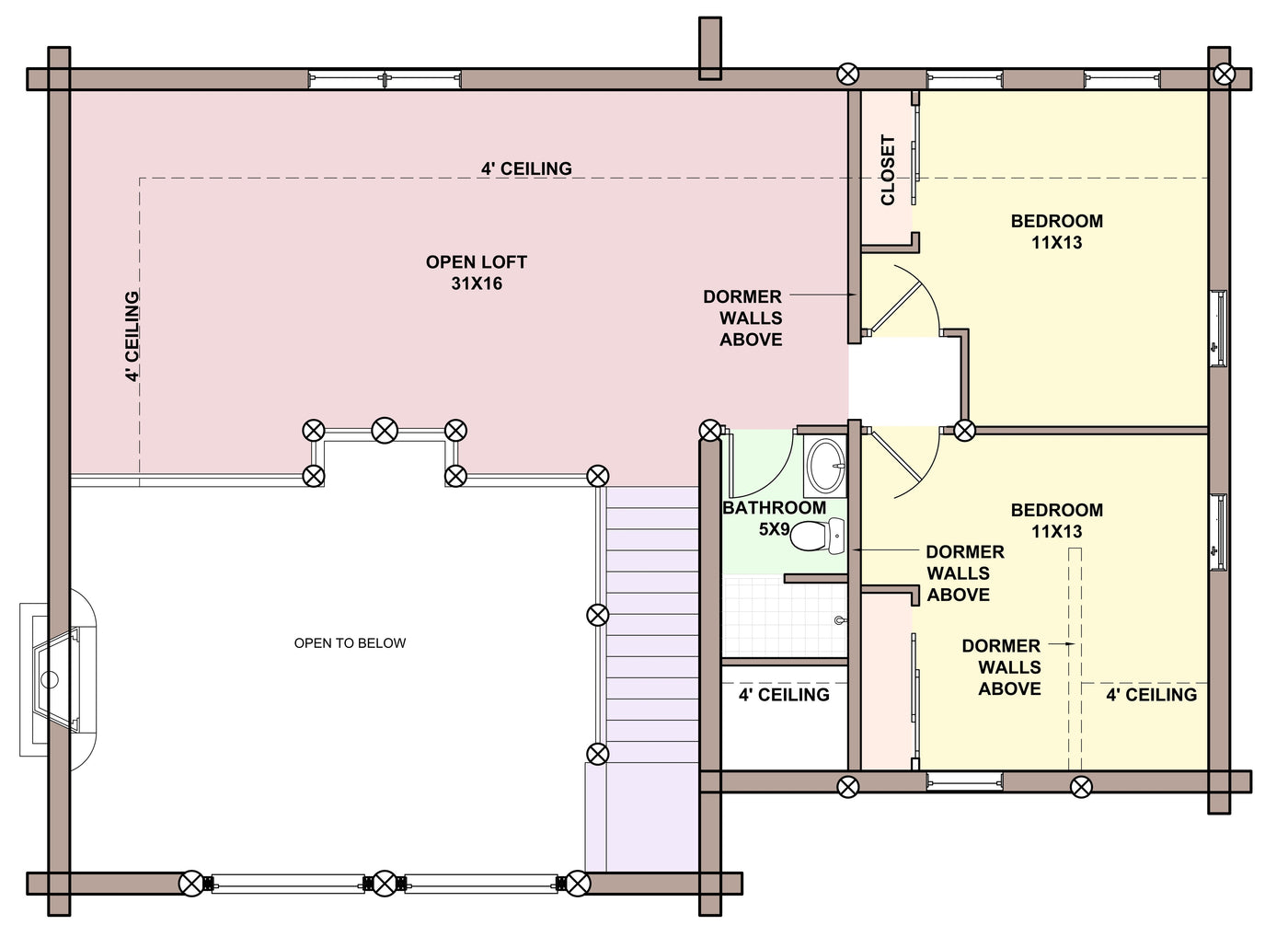

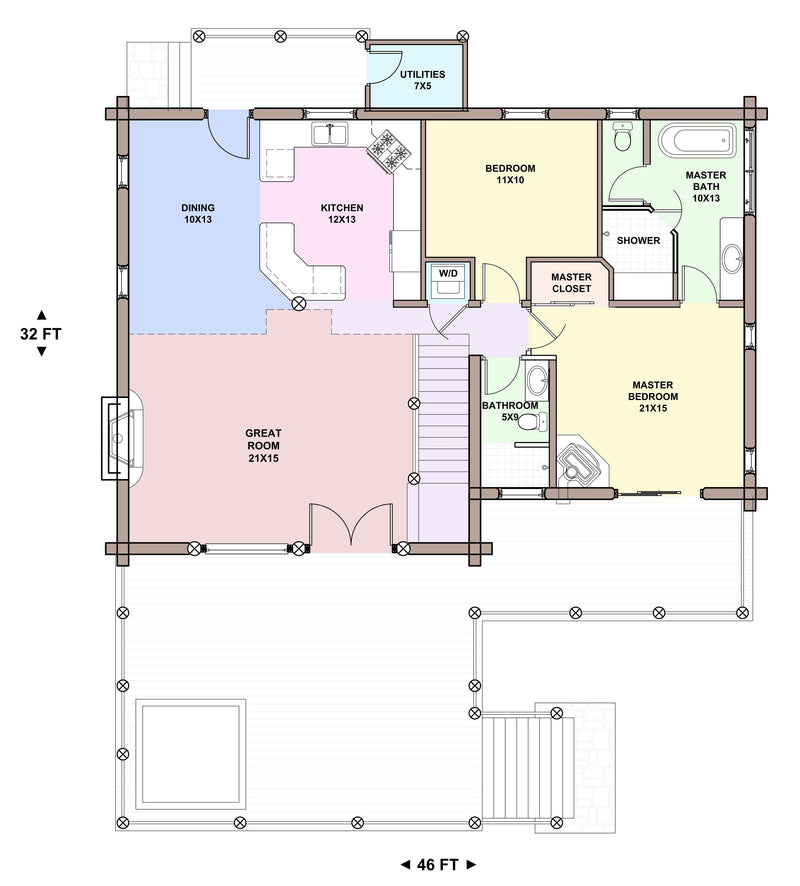

Floor plans
3D

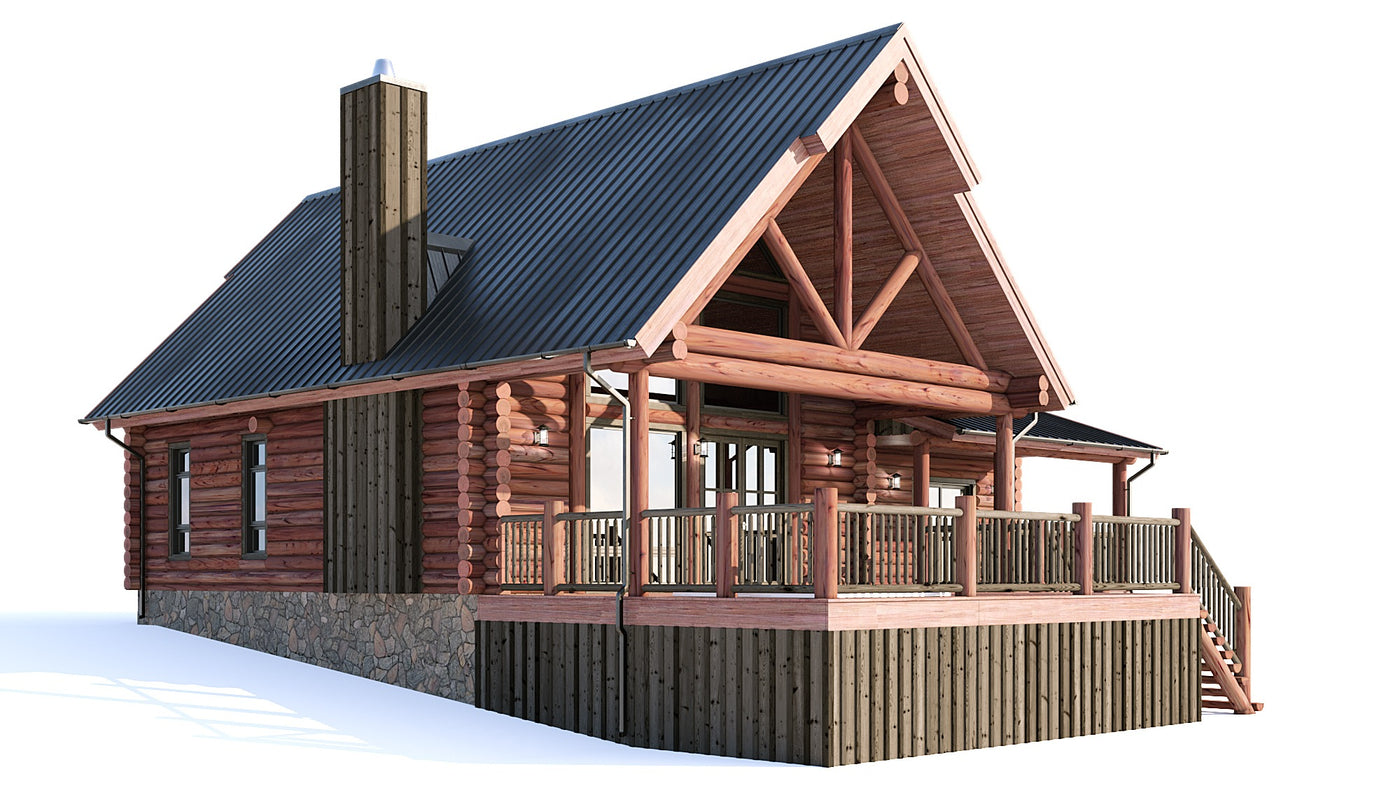

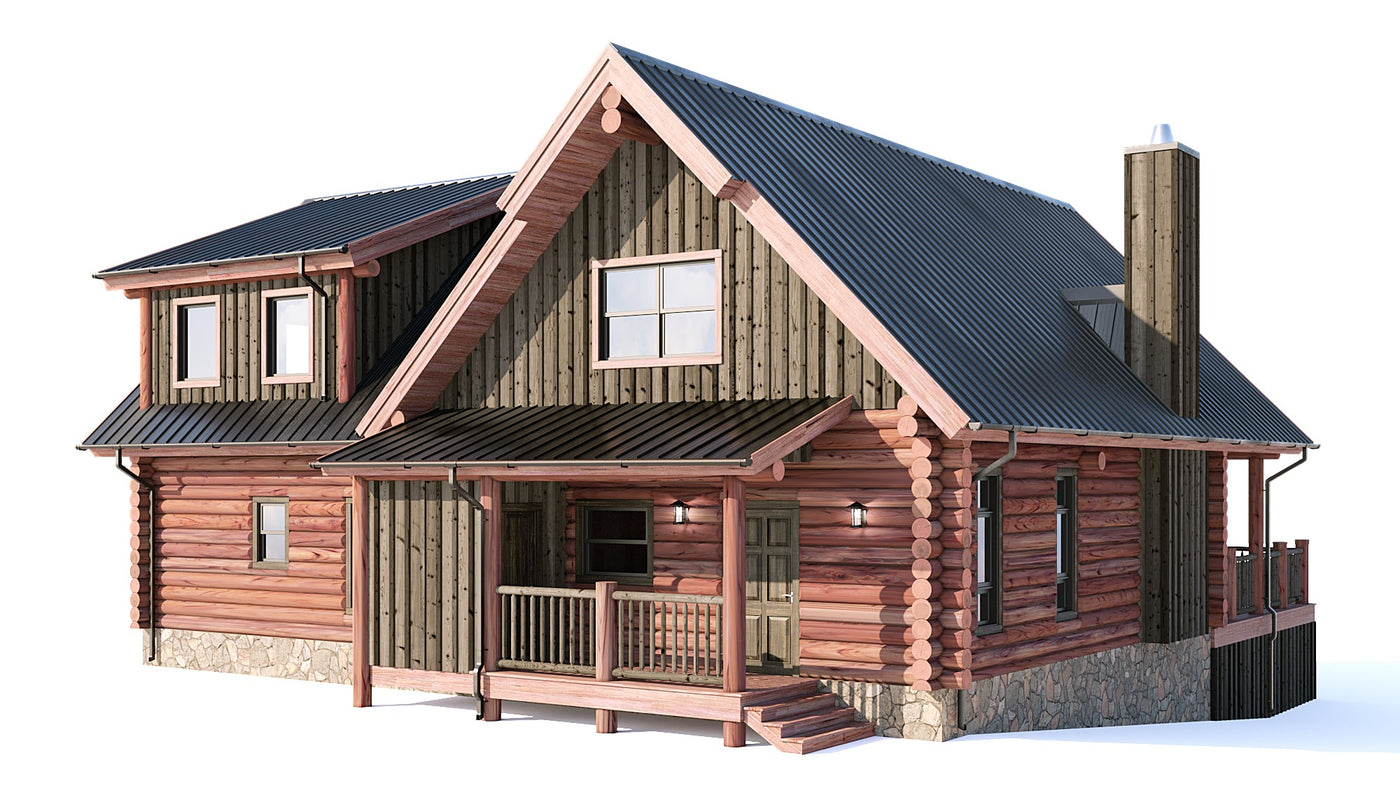

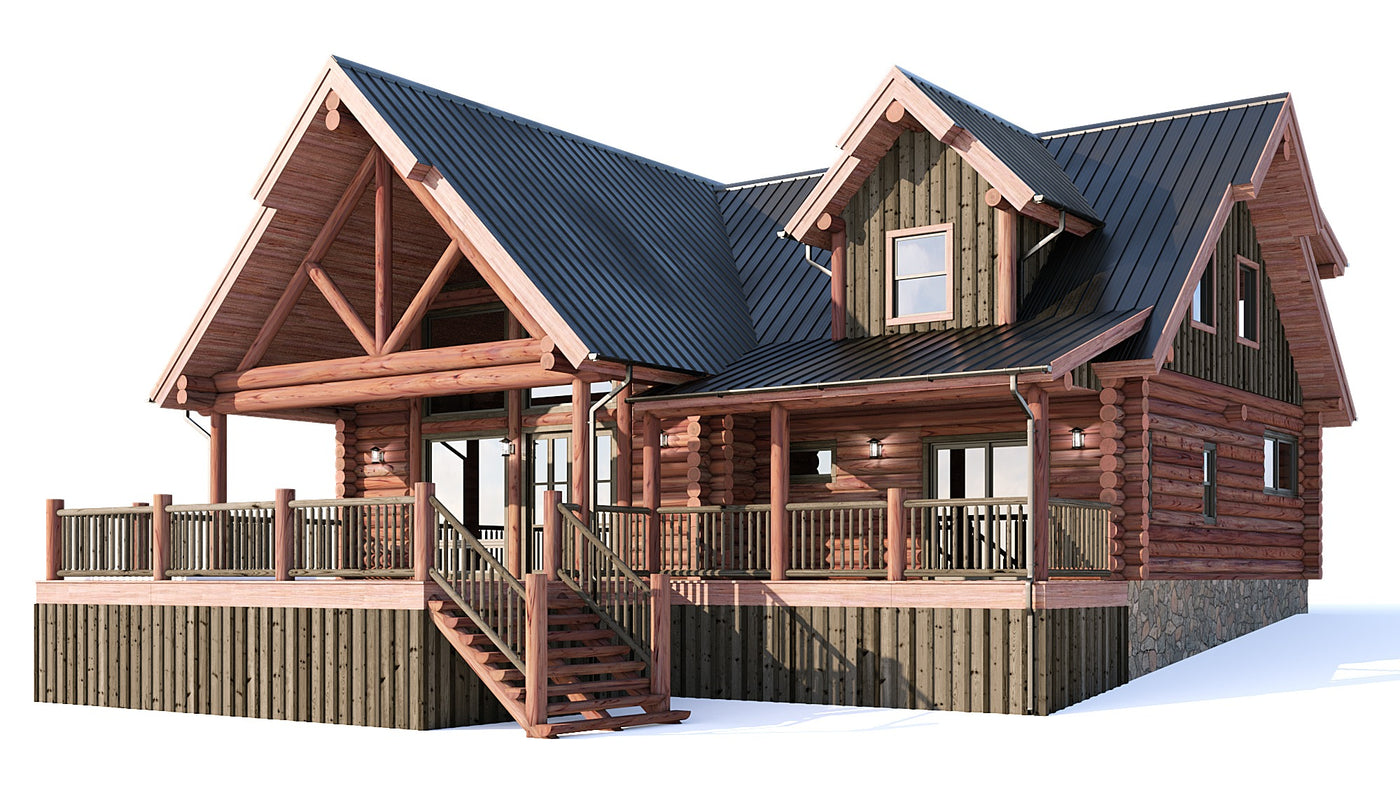

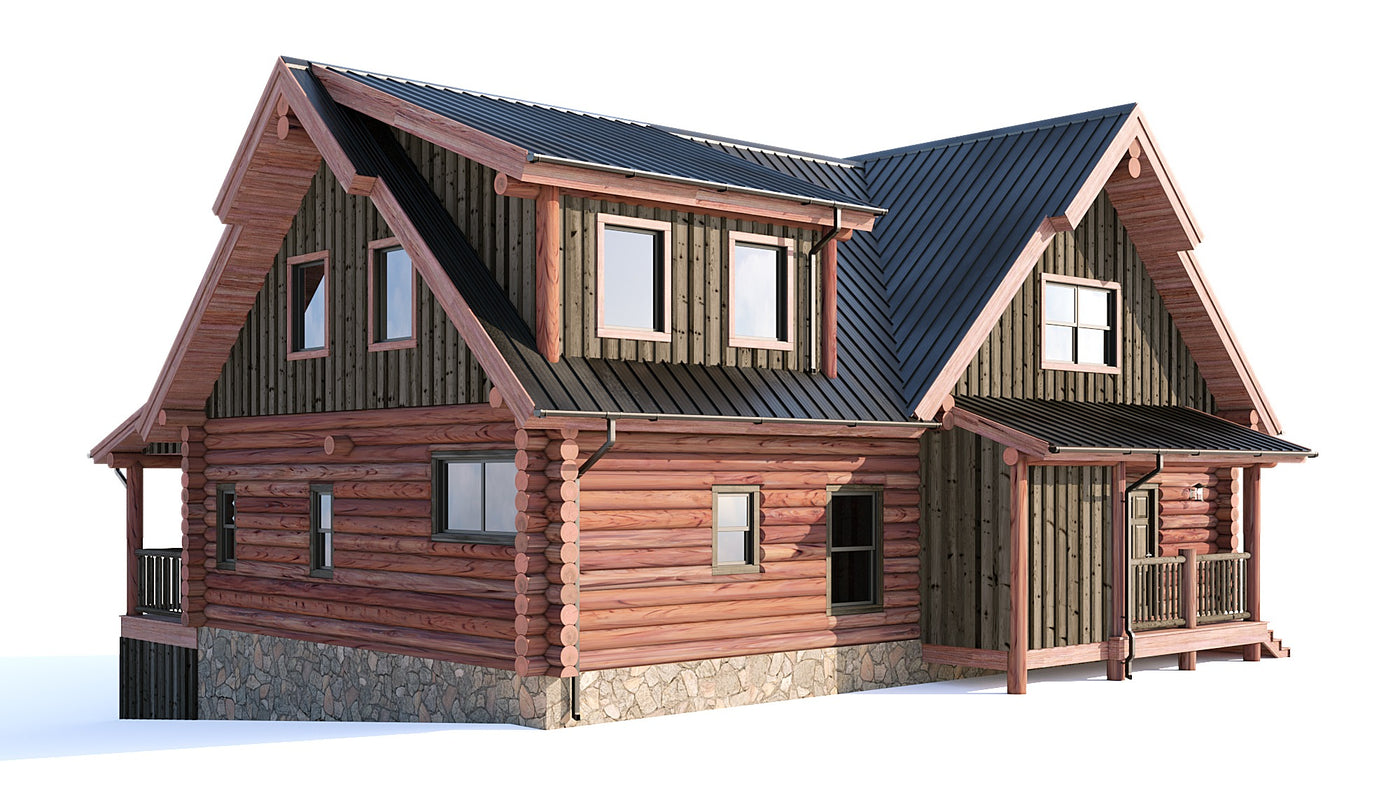

Perspective views
Renders

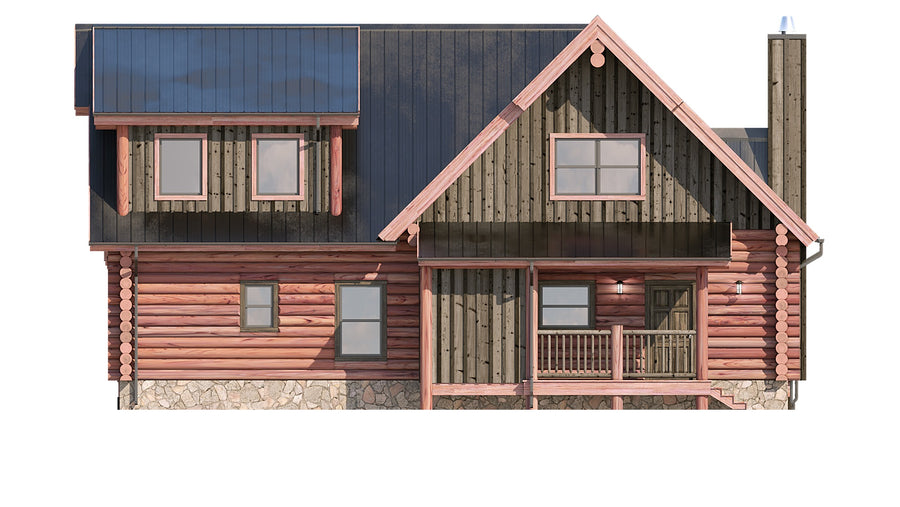

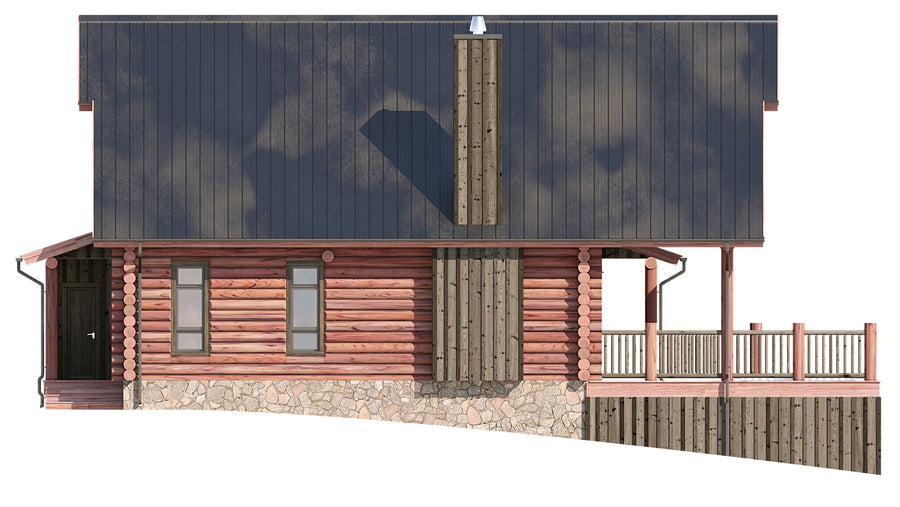

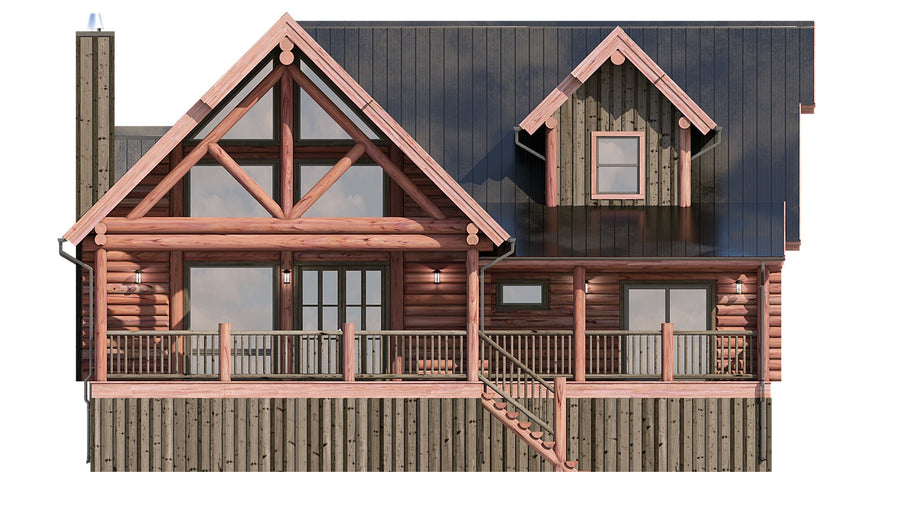

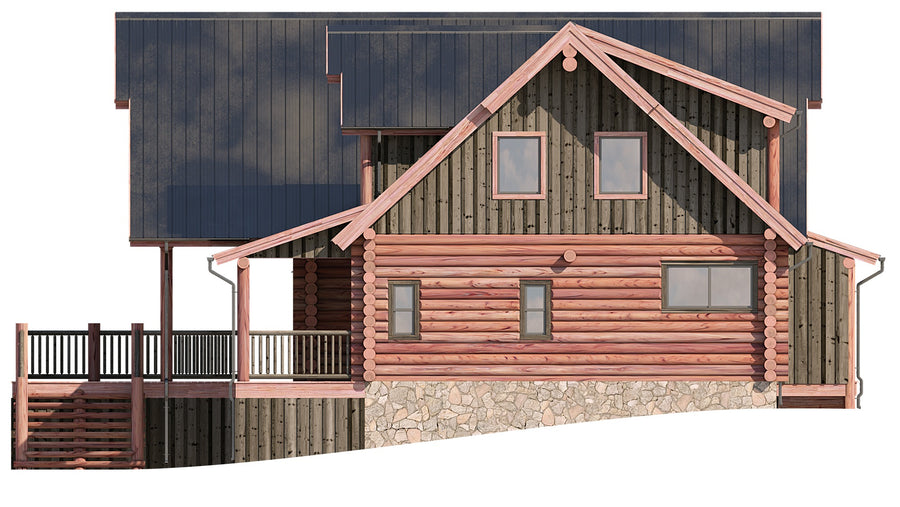

Ortho views
Technical

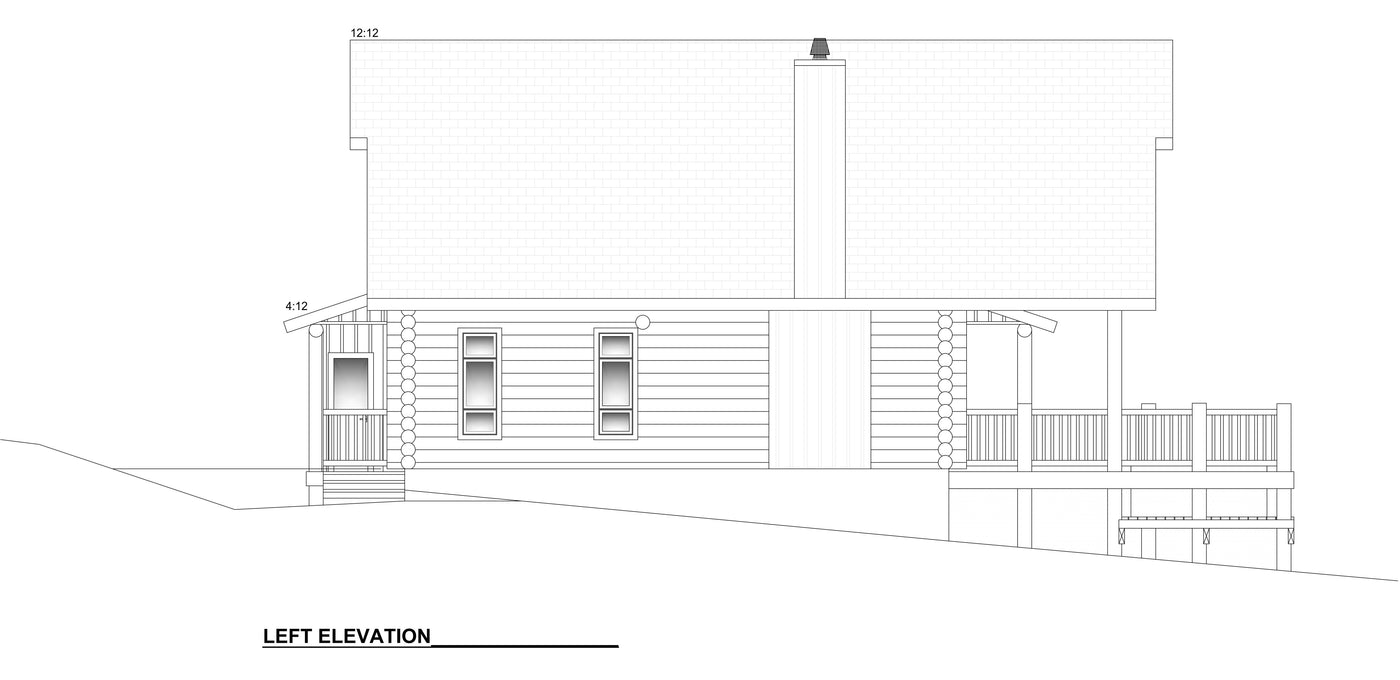

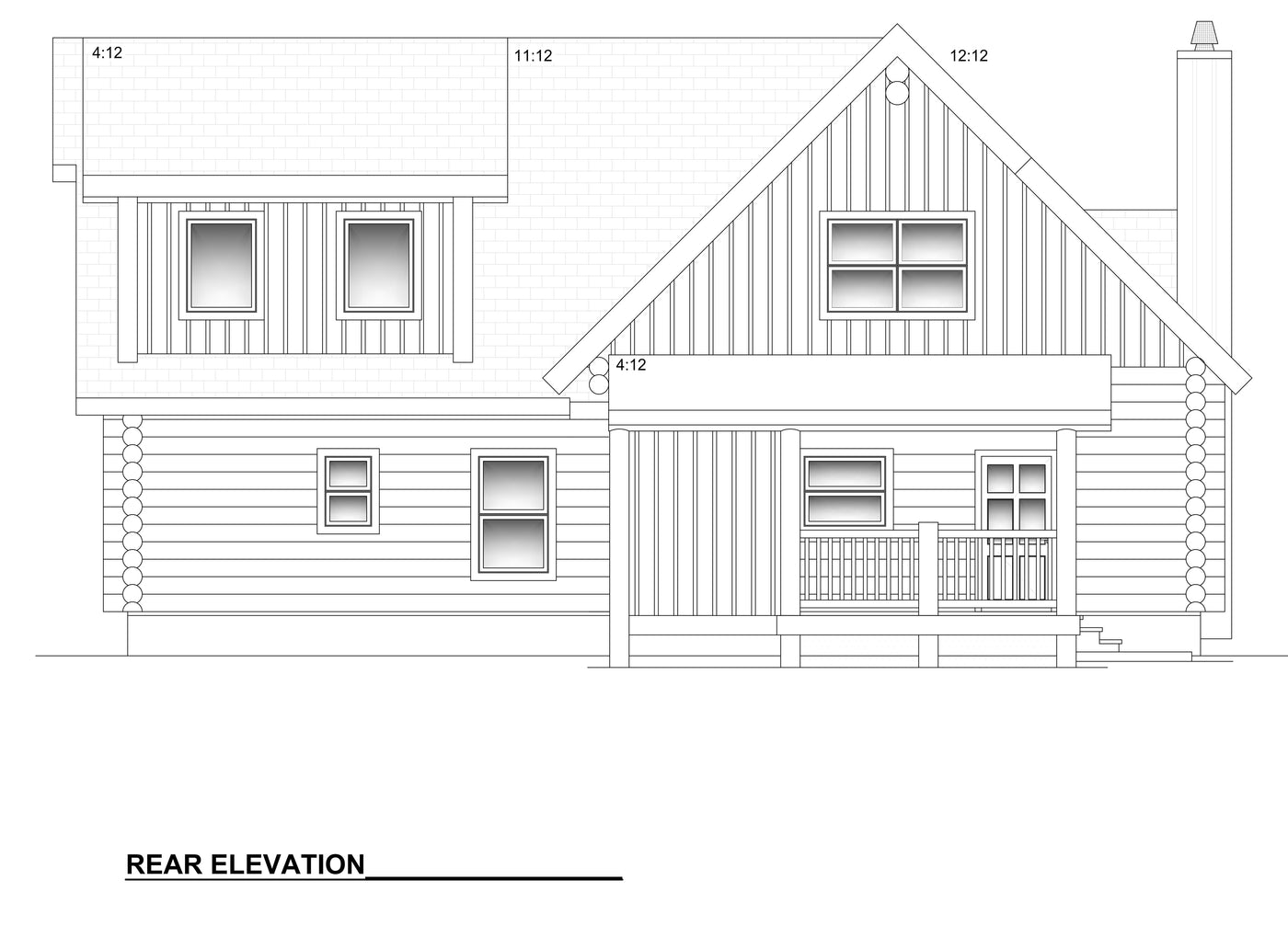

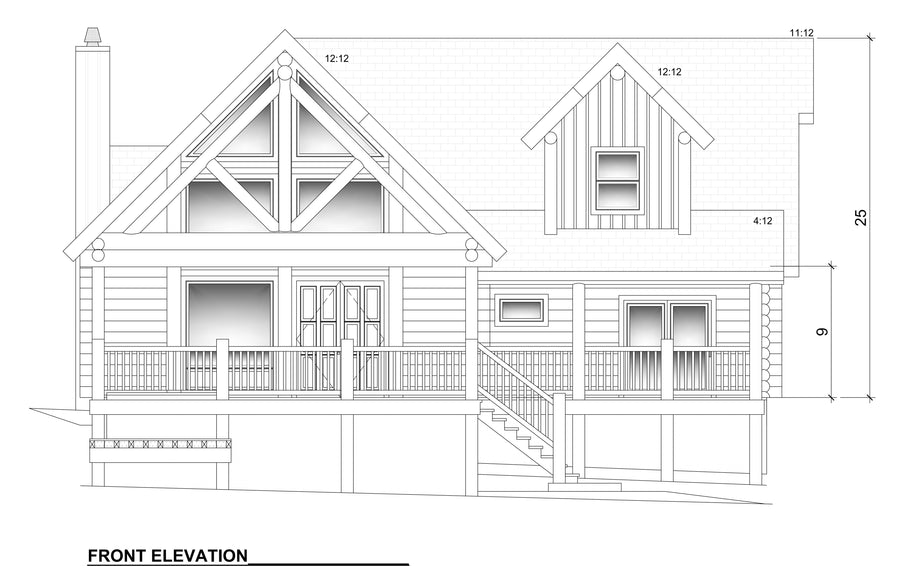

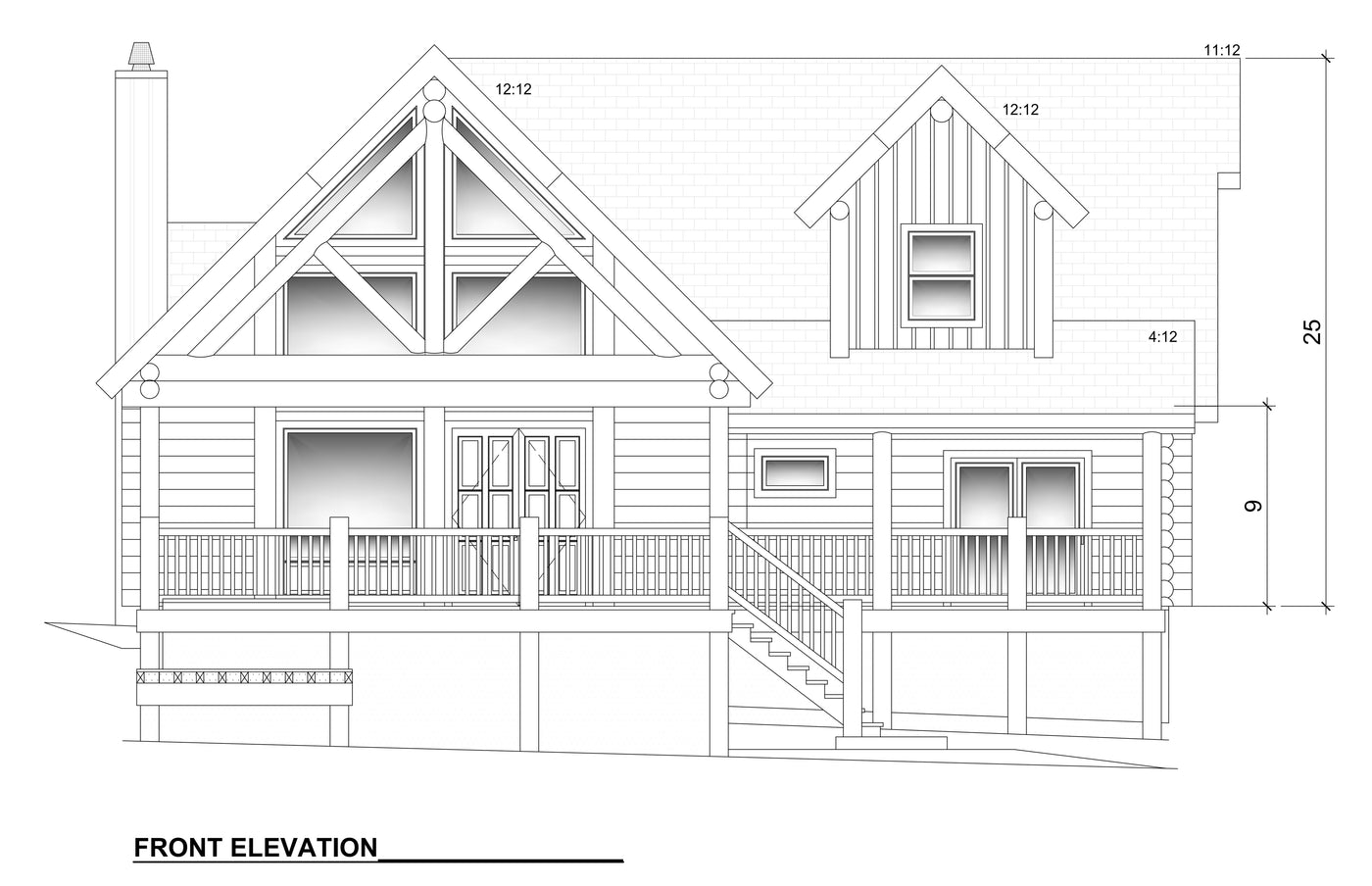

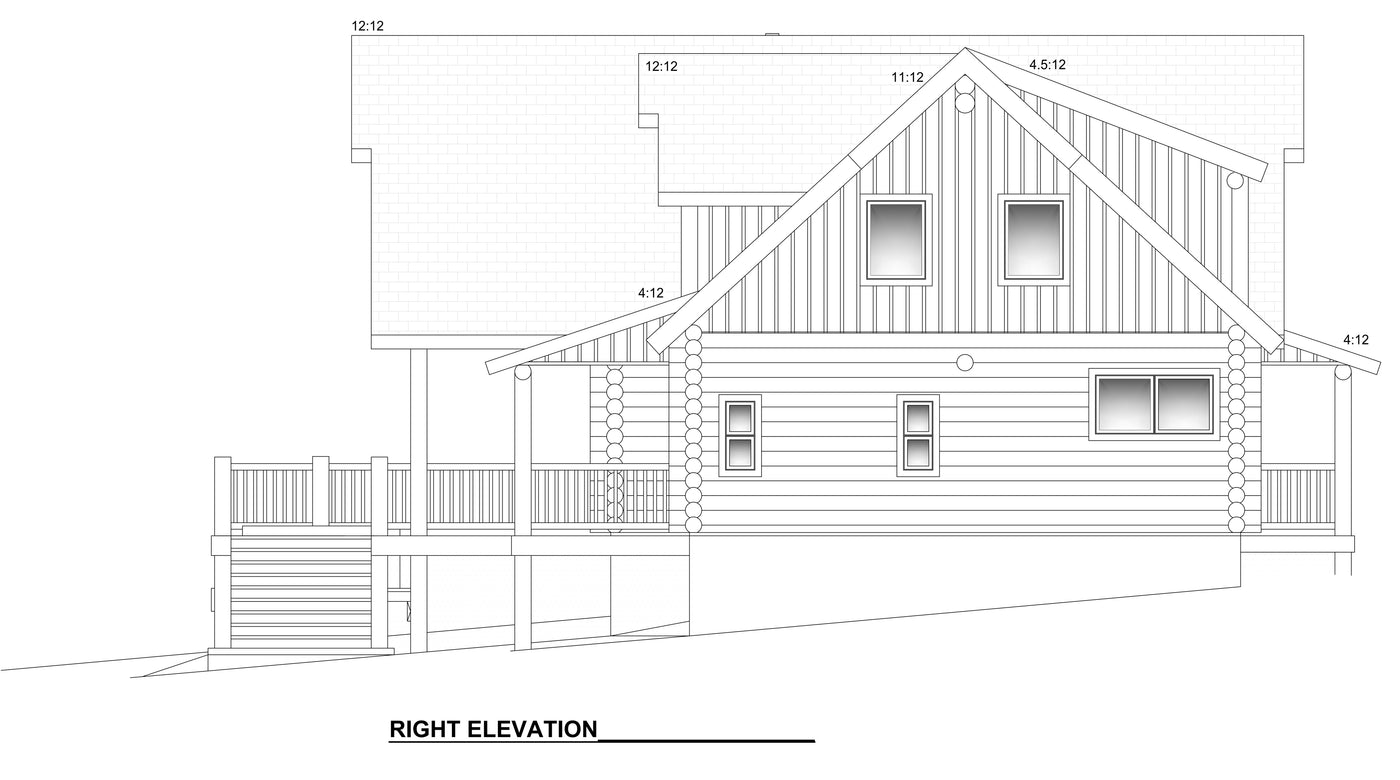

Elevation drawings
When you are ready to build
