Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain |
| Bedrooms | 3 |
| Bathrooms | 2.5 |
| Stories | 2 |
| Main Sq Ft | 1412 |
| Loft Sq Ft | 637 |
| Basement Sq Ft | — |
| Total Sq Ft | 2049 |
| Garage | — |
| Basement | — |
| Reference | Brooke-Edy |
About this plan
The Rattlesnake Ridge by Sierra Log & Timber is a warm and inviting 2,049 sq ft log home that feels both spacious and grounded in tradition. Ideal for growing families or those wanting room for guests, it offers three bedrooms and two and a half baths across two stories. The main level’s 1,412 sq ft layout centers around a generous great room, where tall windows and timber beams set the tone for relaxed gatherings. The kitchen is open and practical, with space for shared meals and everyday living. The primary bedroom sits quietly on the main floor, while two more bedrooms upstairs give everyone their own retreat. A 637 sq ft loft adds flexible space for a home office, studio, or cozy reading nook. Whether as a year-round residence, mountain getaway, or family retreat, Rattlesnake Ridge is crafted for comfort and can be tailored to fit your vision.

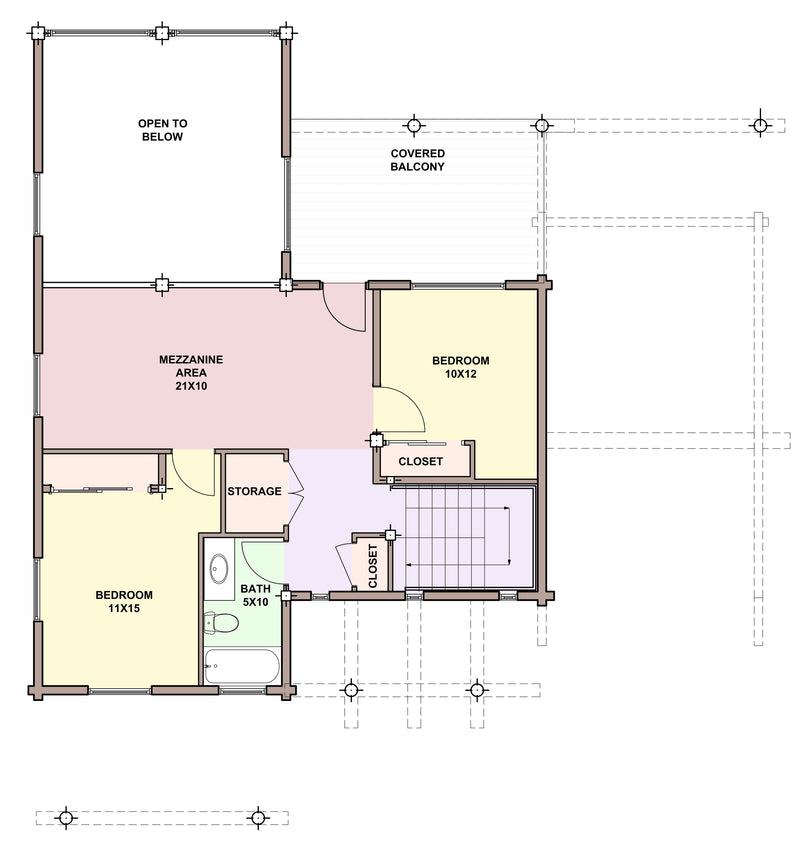

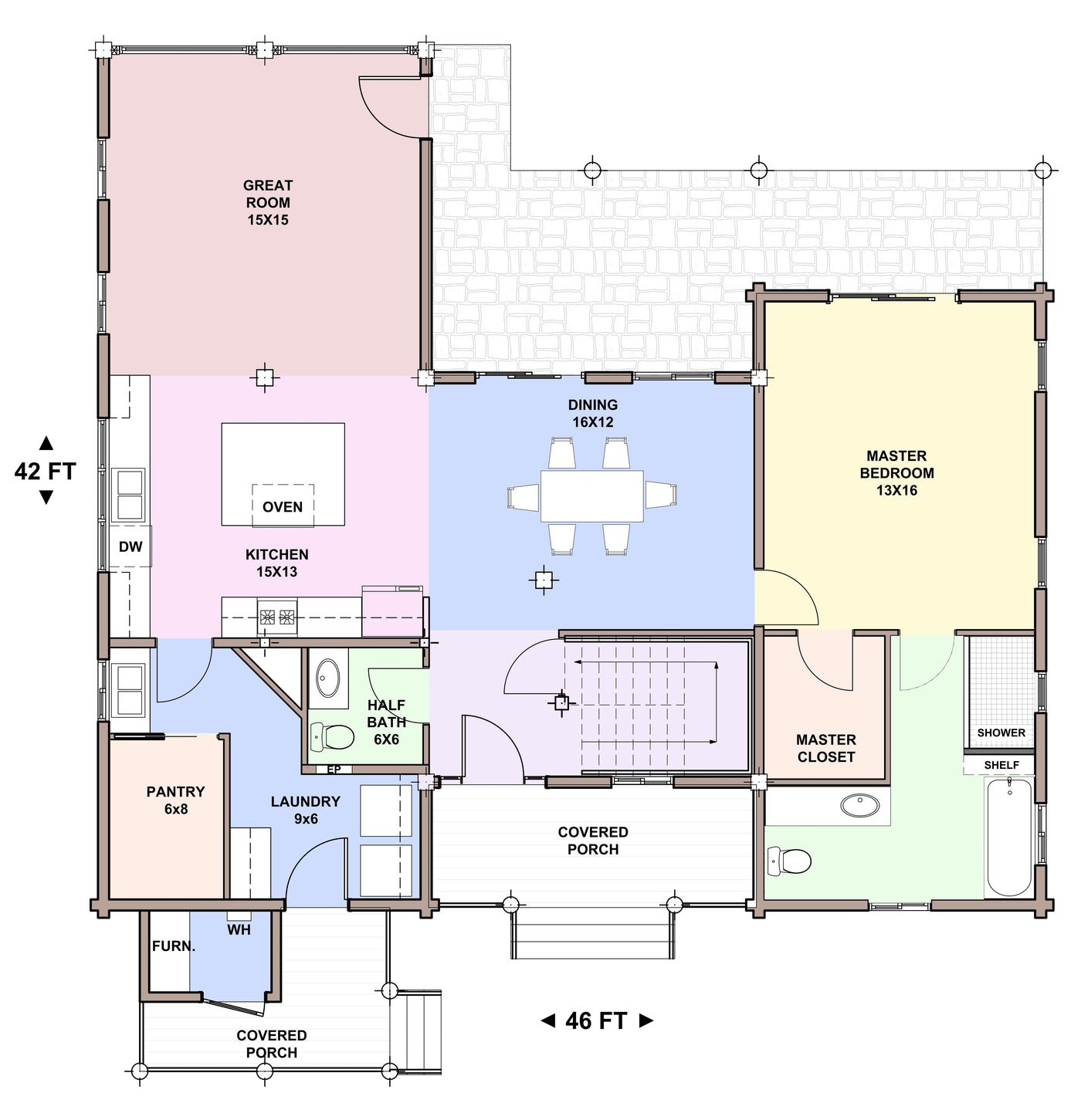

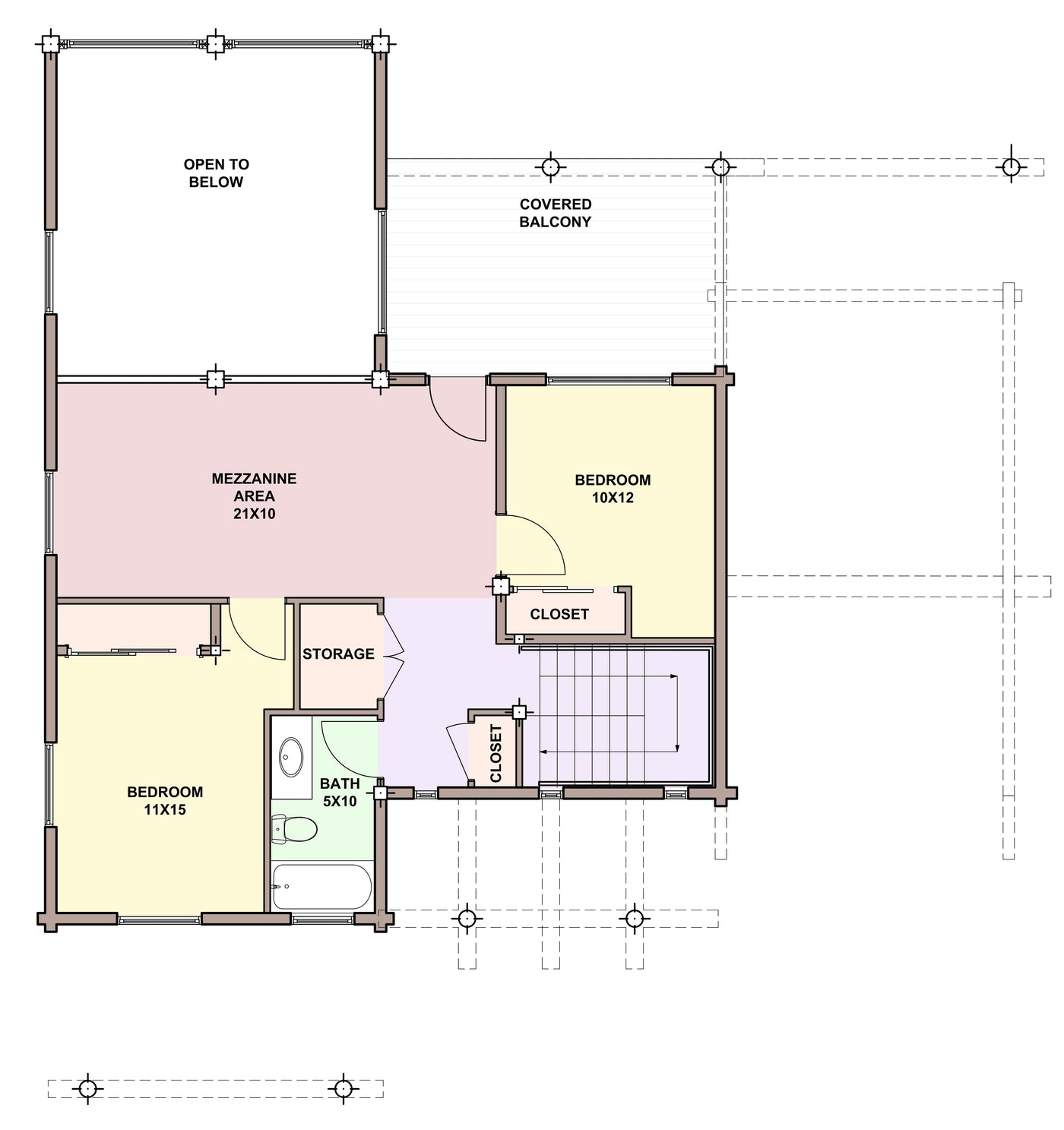

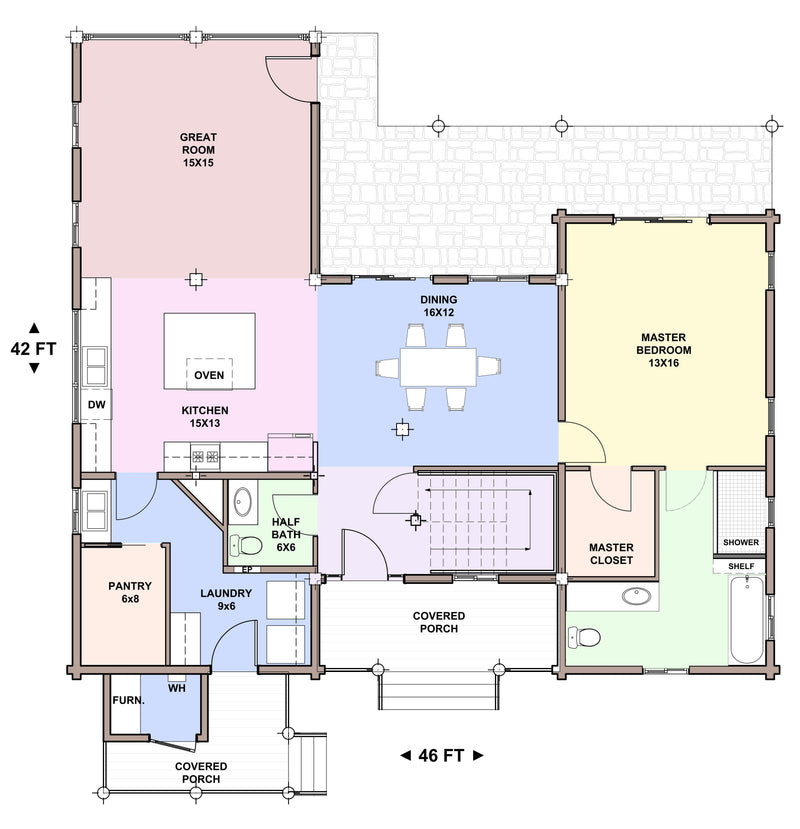

Floor plans
3D

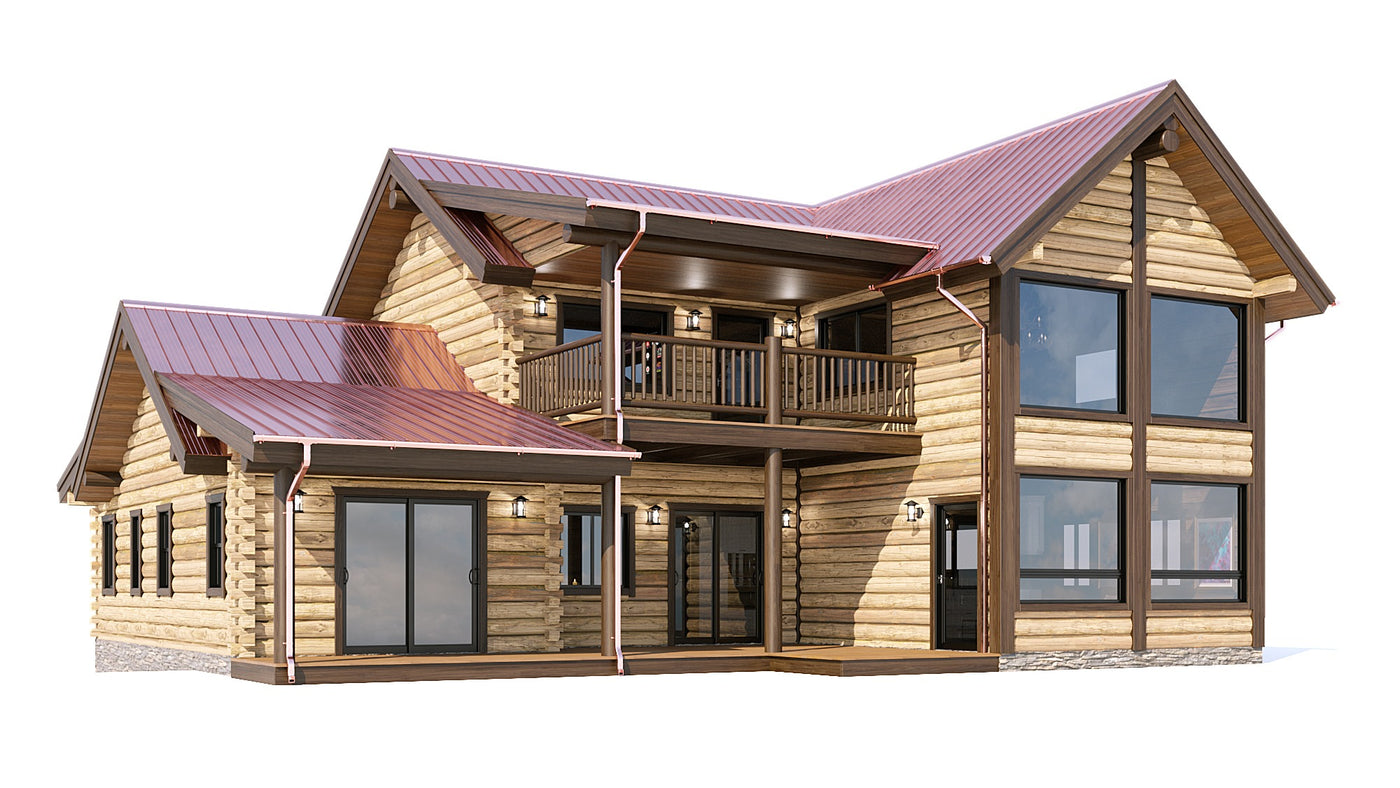

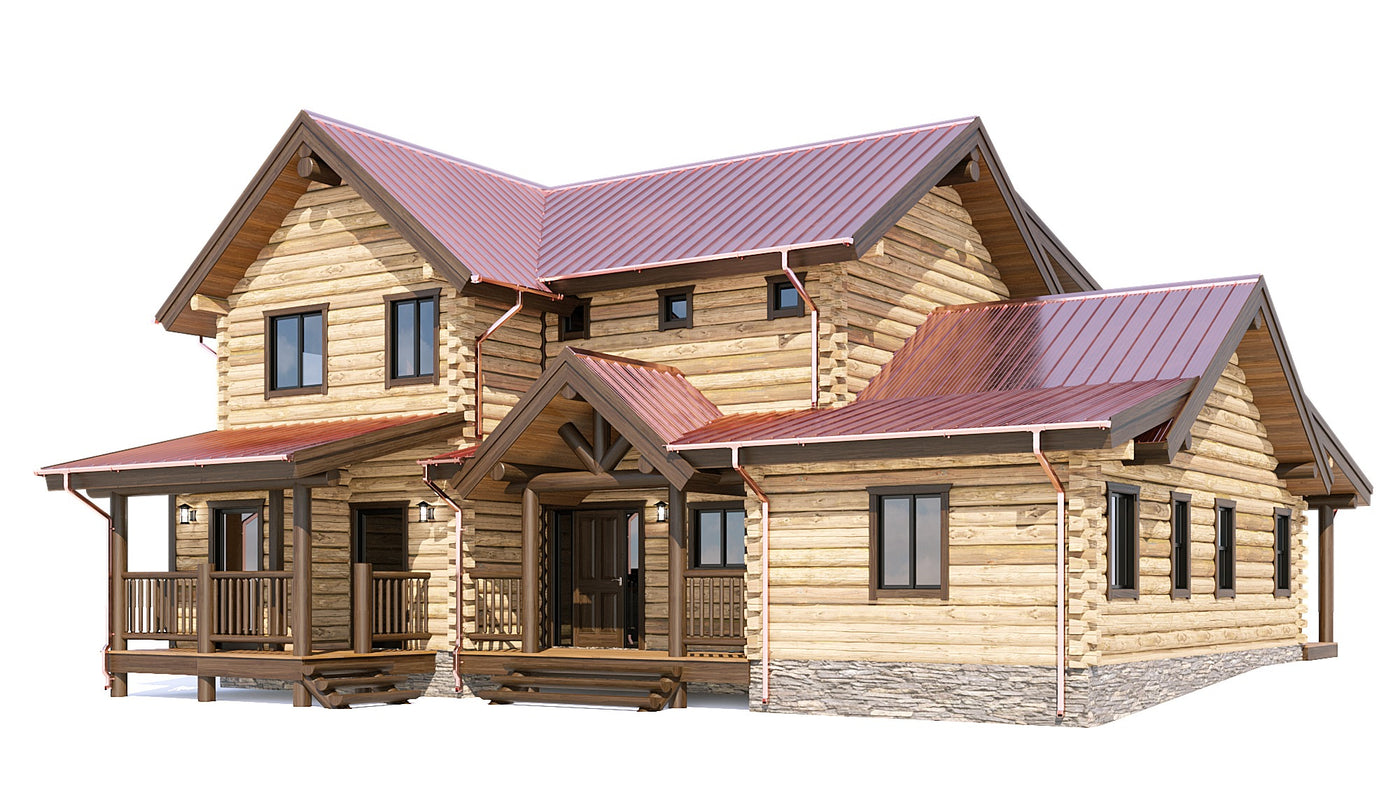

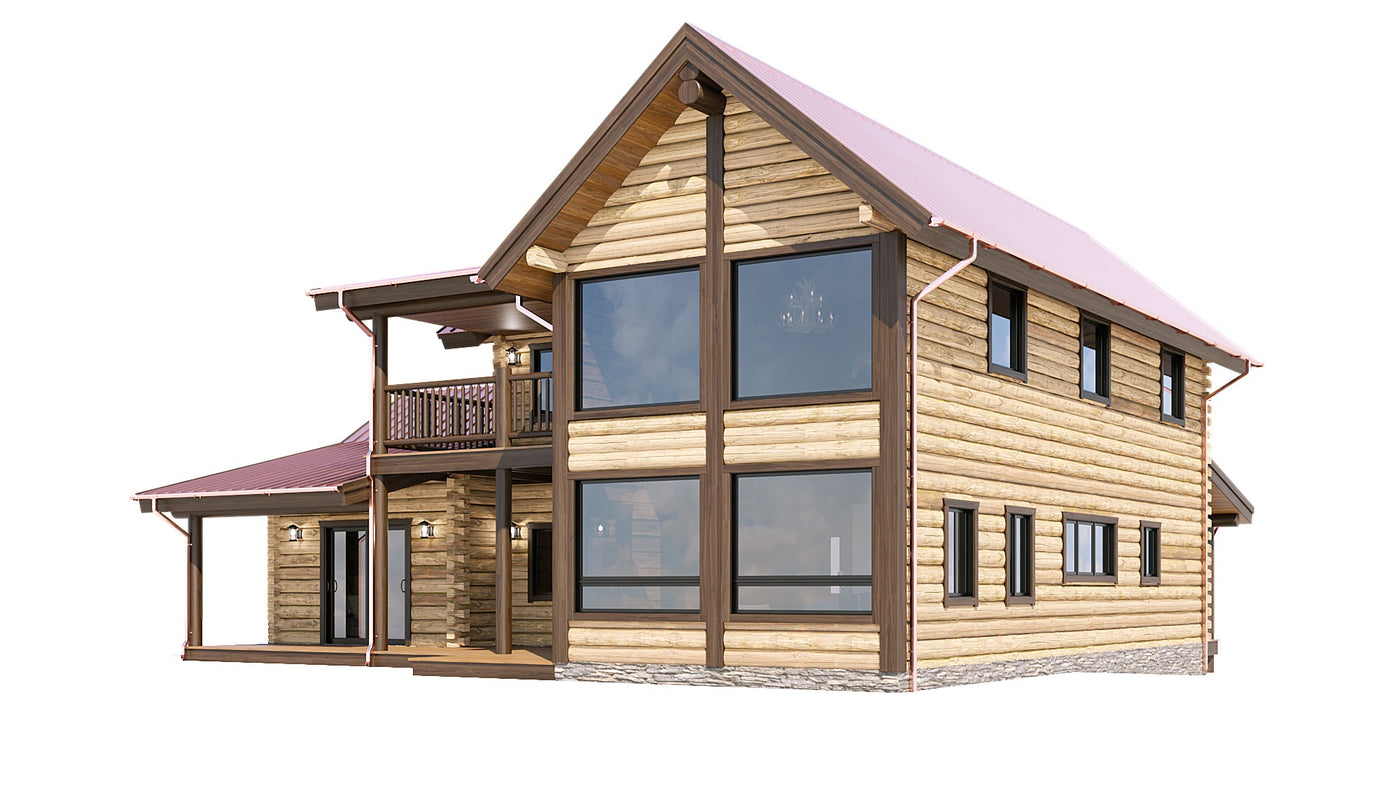

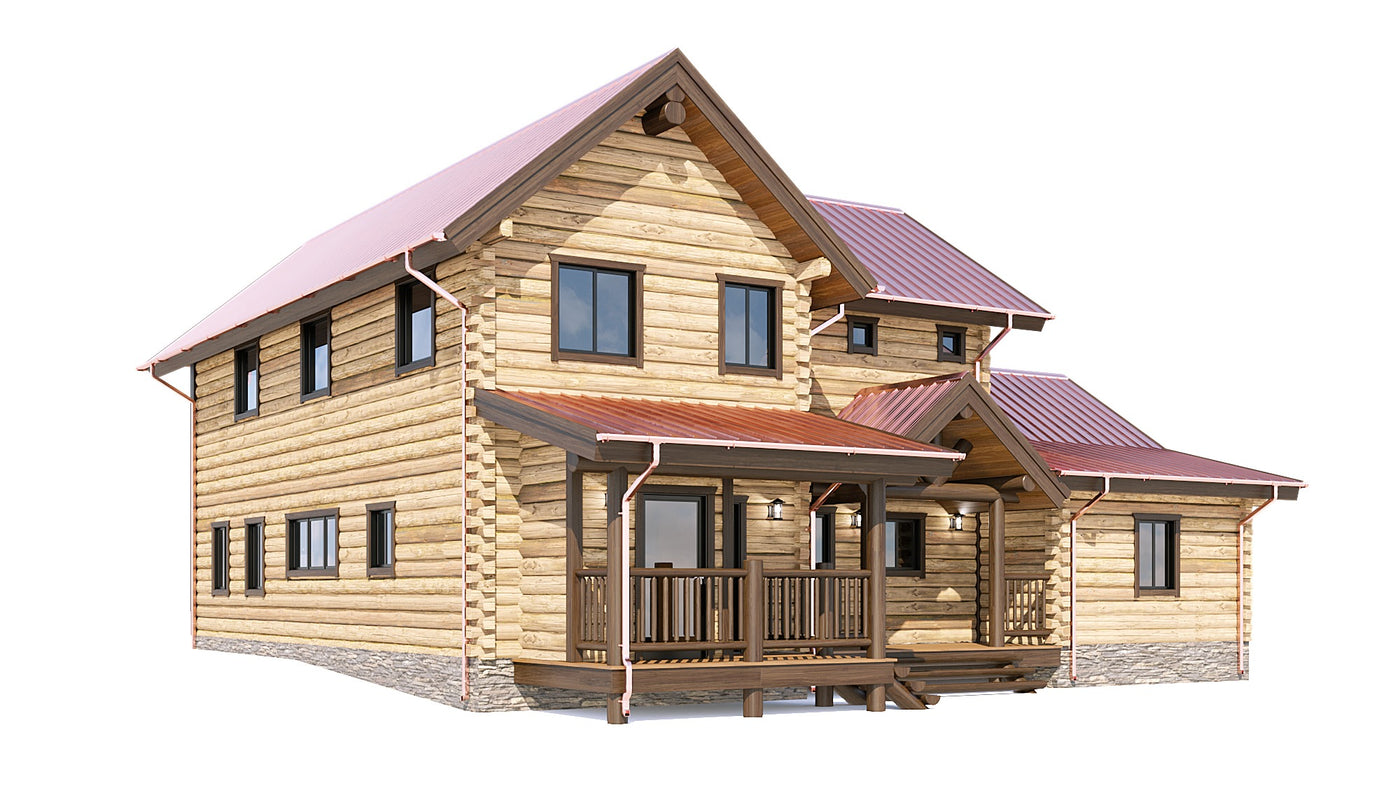

Perspective views

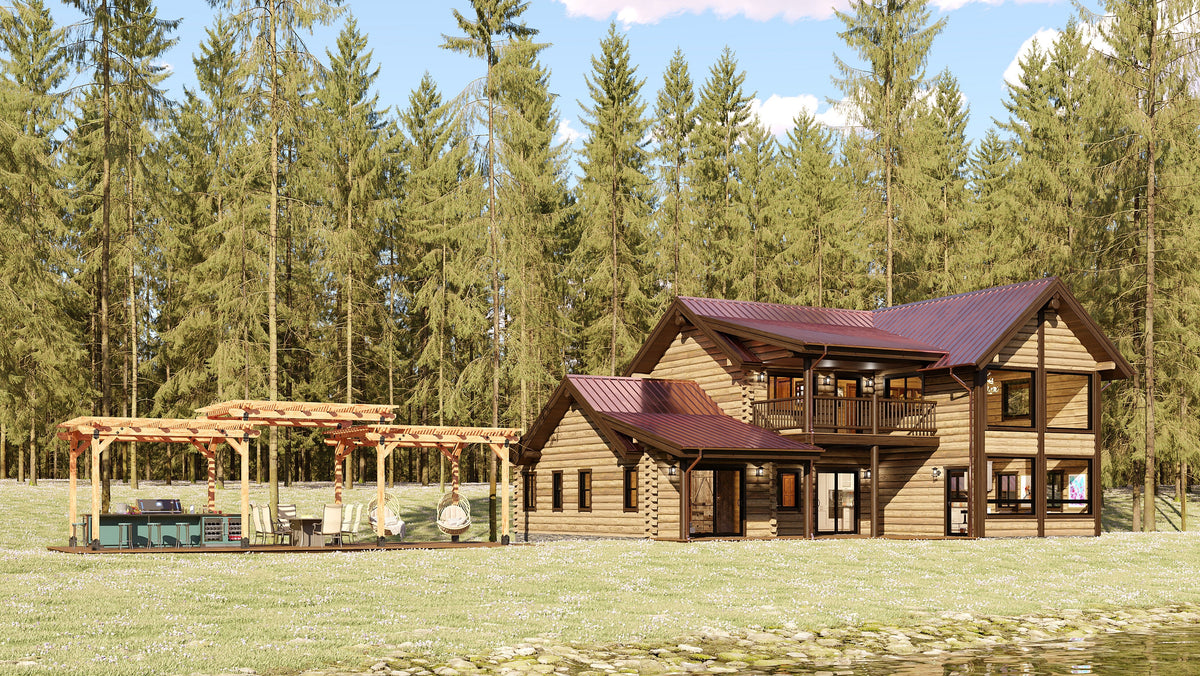

Renders

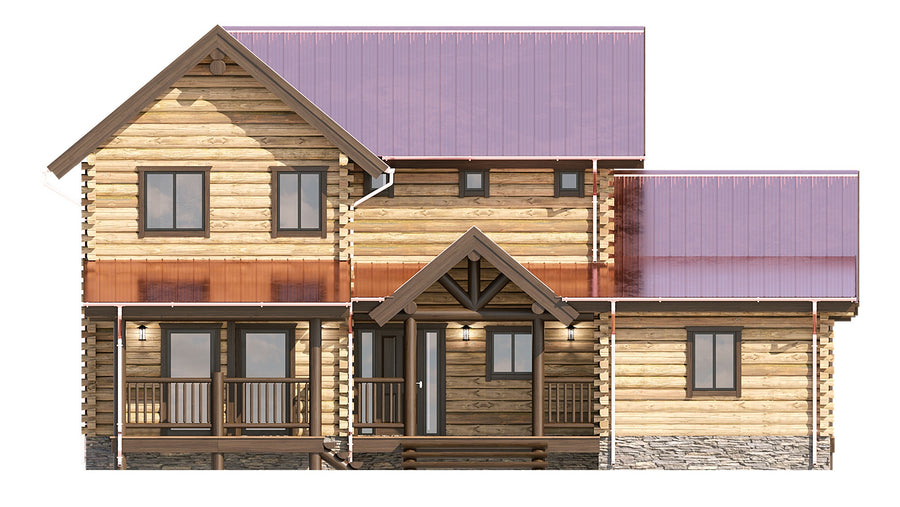

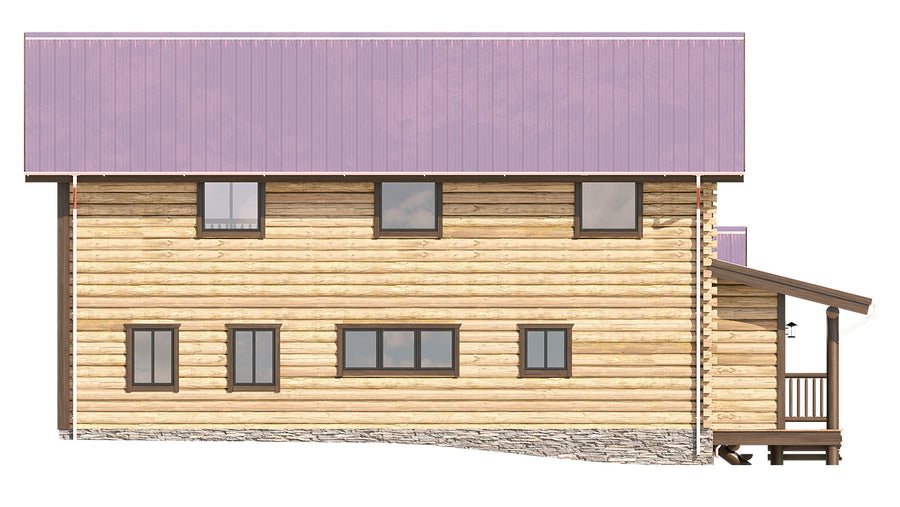

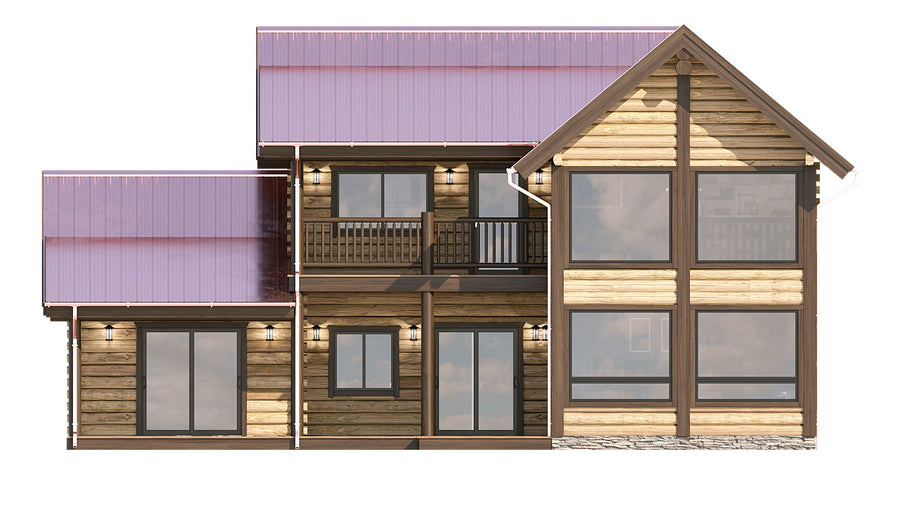

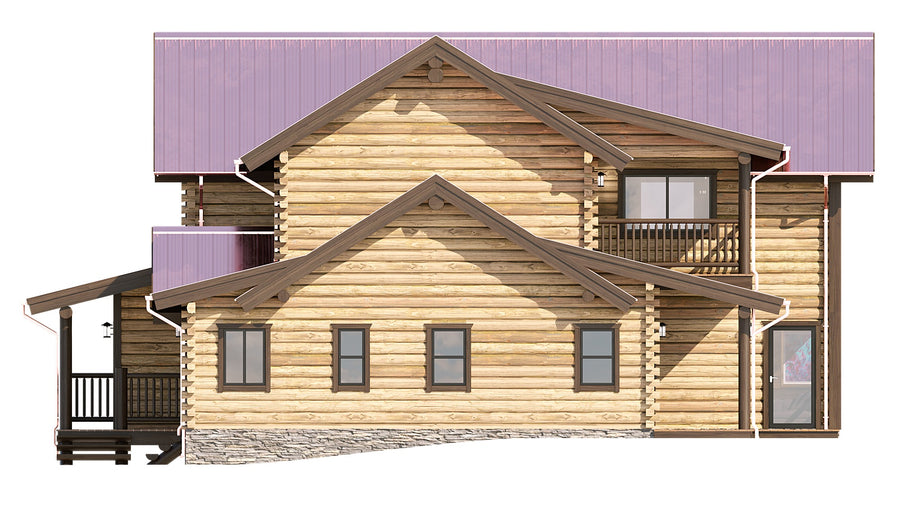

Ortho views
Technical

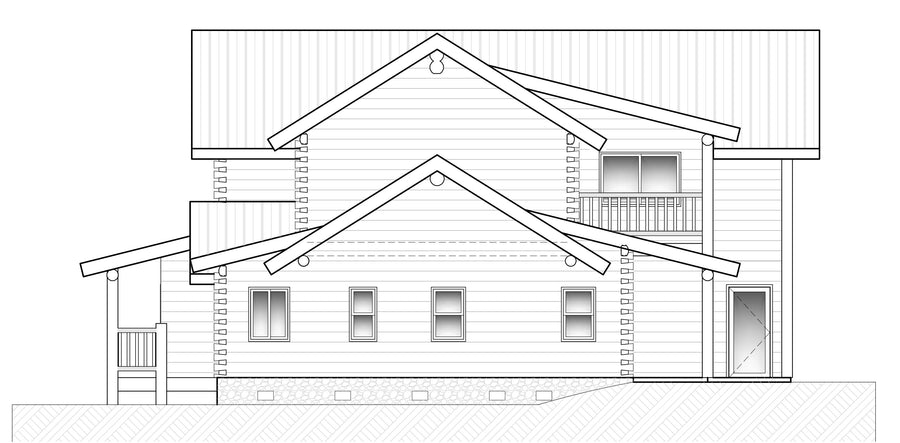

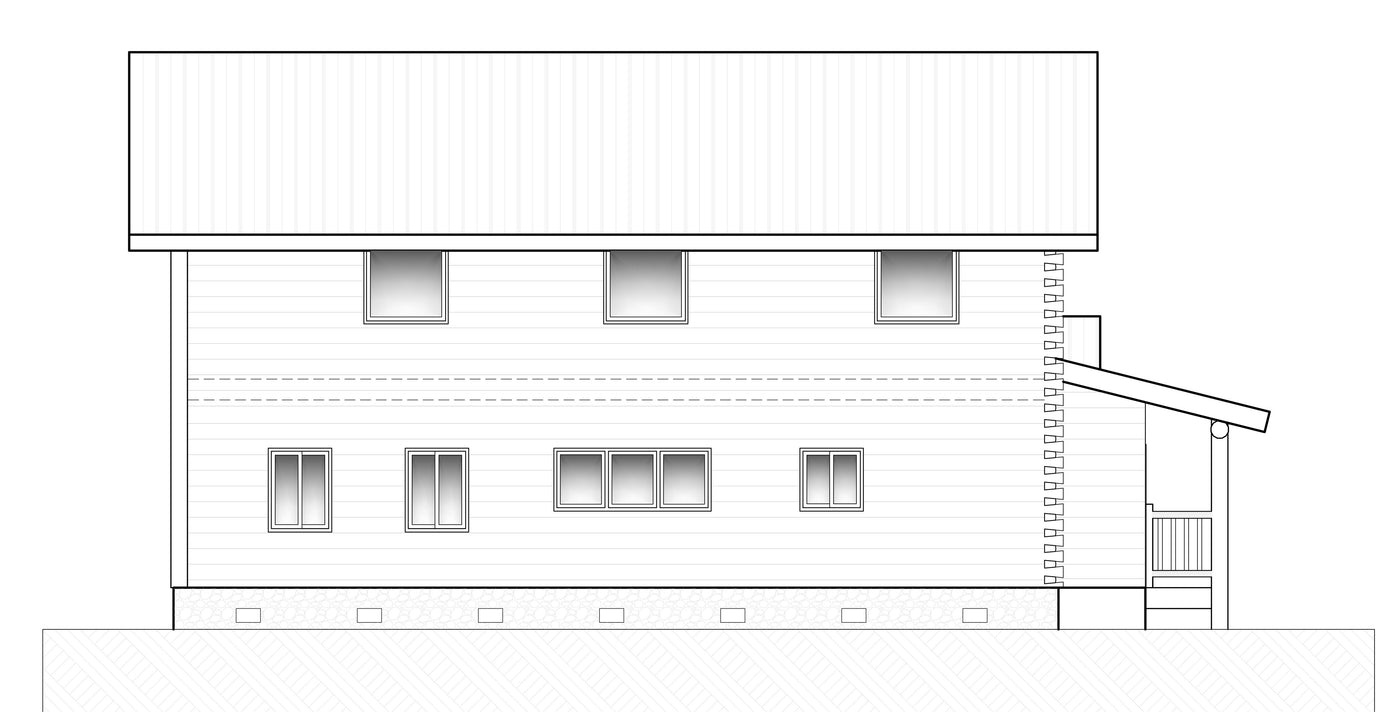

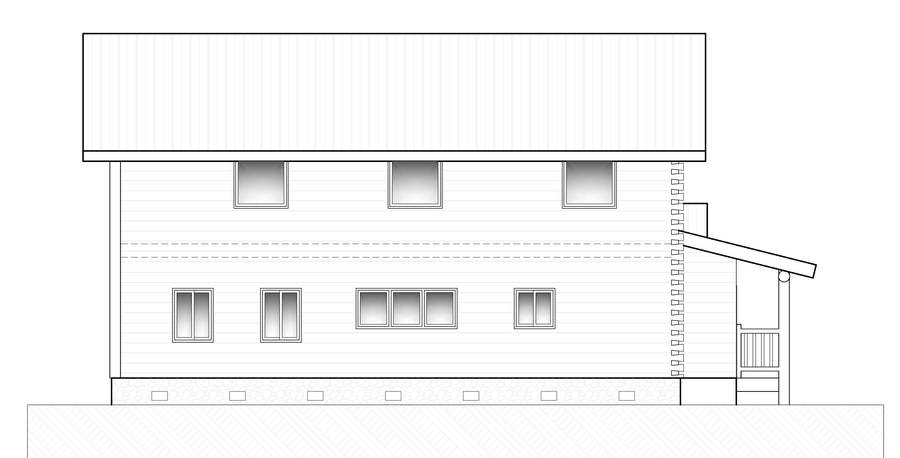

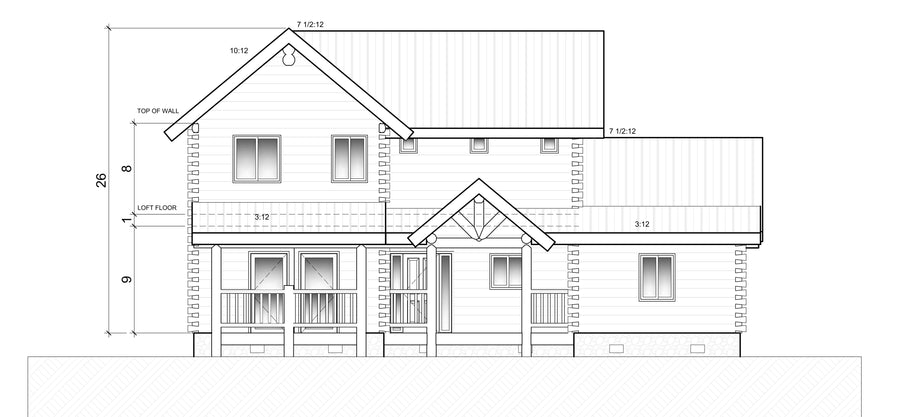

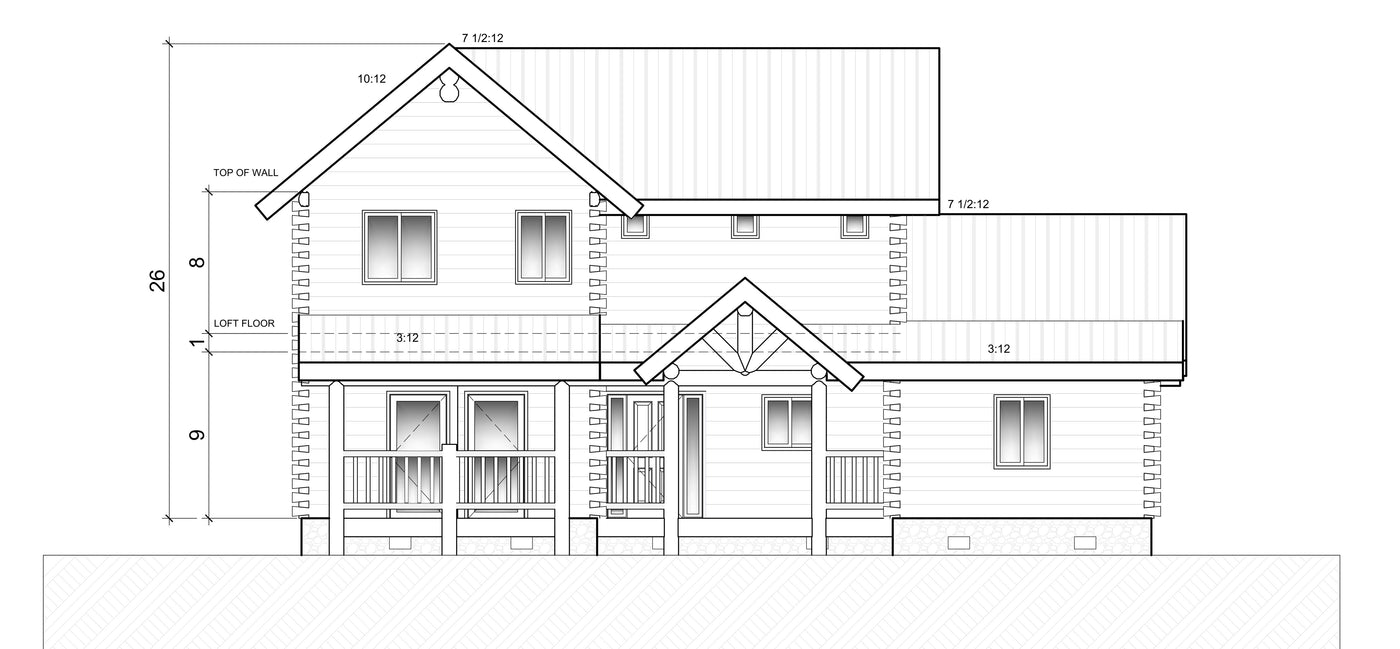

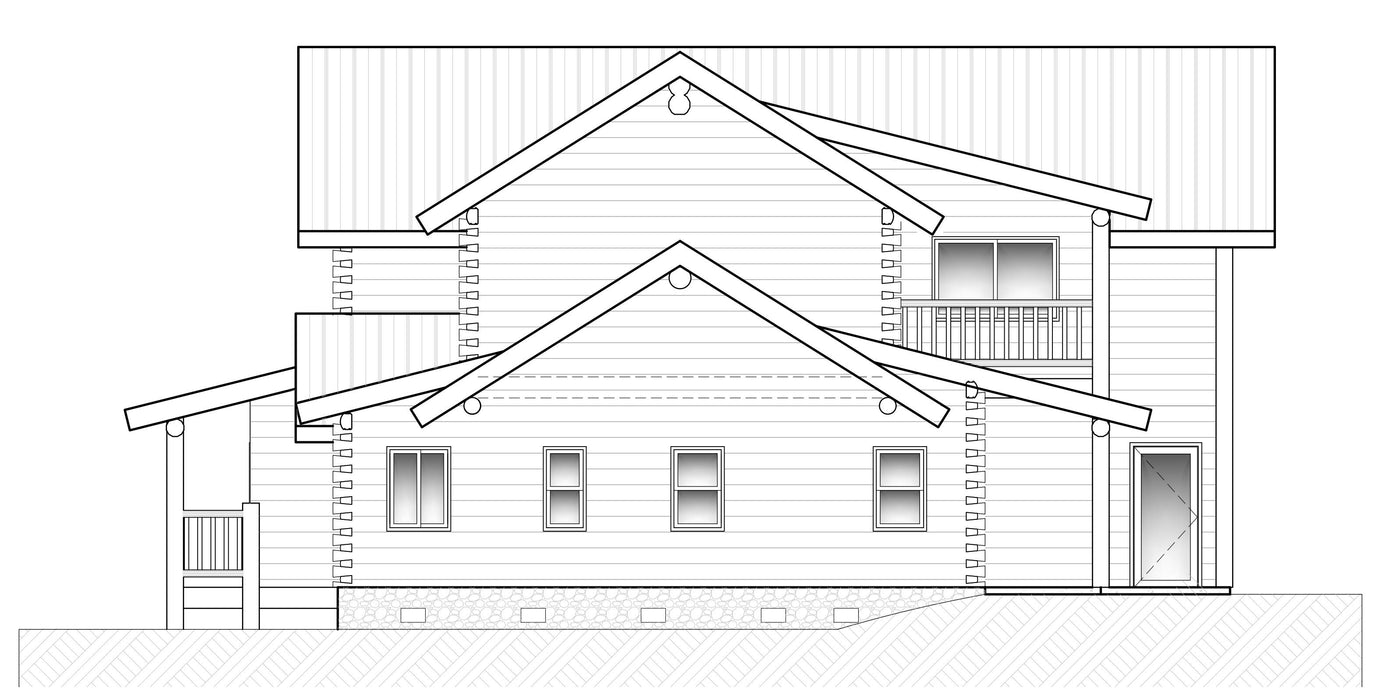

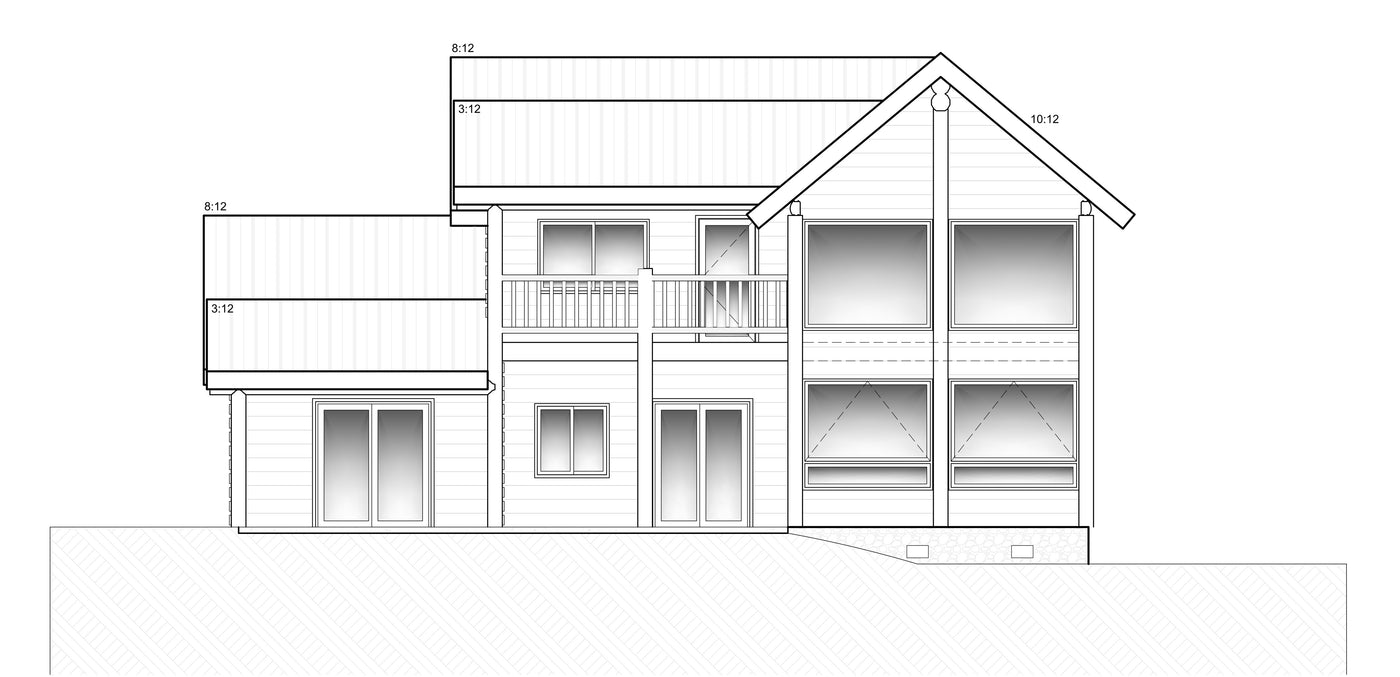

Elevation drawings
When you are ready to build
