Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / Ranch |
| Bedrooms | 2 |
| Bathrooms | 2 |
| Stories | 2 |
| Main Sq Ft | 1080 |
| Loft Sq Ft | 776 |
| Basement Sq Ft | — |
| Total Sq Ft | 1856 |
| Garage | — |
| Basement | — |
| Reference | Irwin |
About this plan

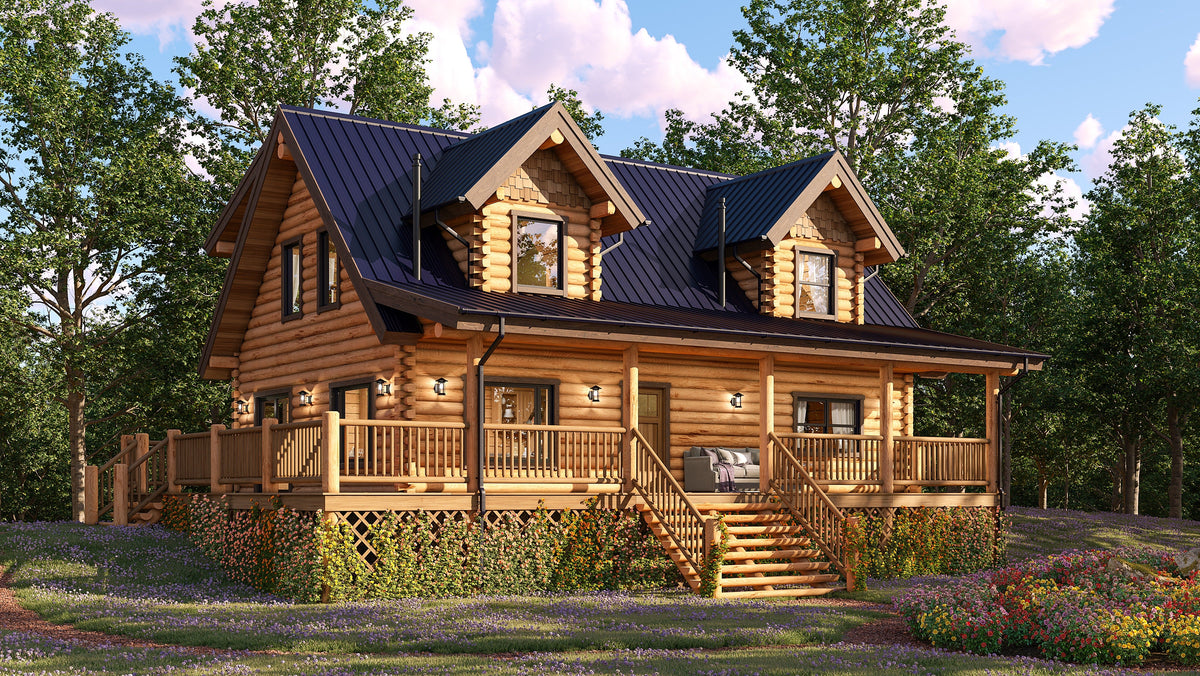

The Penn View by Sierra Log & Timber is a warm and inviting 1,856 sq ft log home that feels both spacious and grounded in tradition. Ideal for couples or small families dreaming of full-time mountain living, it offers a generous main floor with 1,080 sq ft for gathering, cooking, and unwinding. The heart of the home is a welcoming great room that flows into a practical kitchen, while the primary bedroom and a full bath provide comfort and privacy on the main level. Upstairs, a 776 sq ft loft opens up possibilities for a second bedroom, a quiet reading nook, or a creative studio, along with an additional bath for convenience. Whether as a year-round residence, a peaceful retreat, or a family getaway, the Penn View is crafted for those who value timeless log home character and the freedom to make it their own.

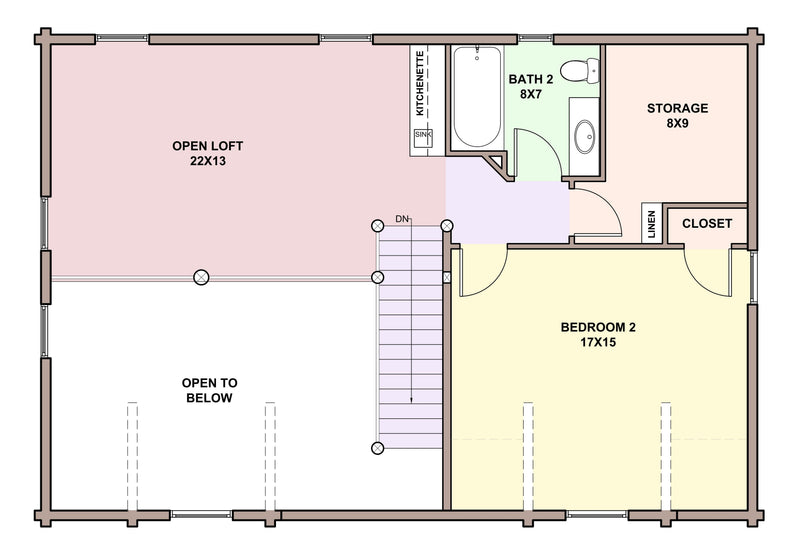

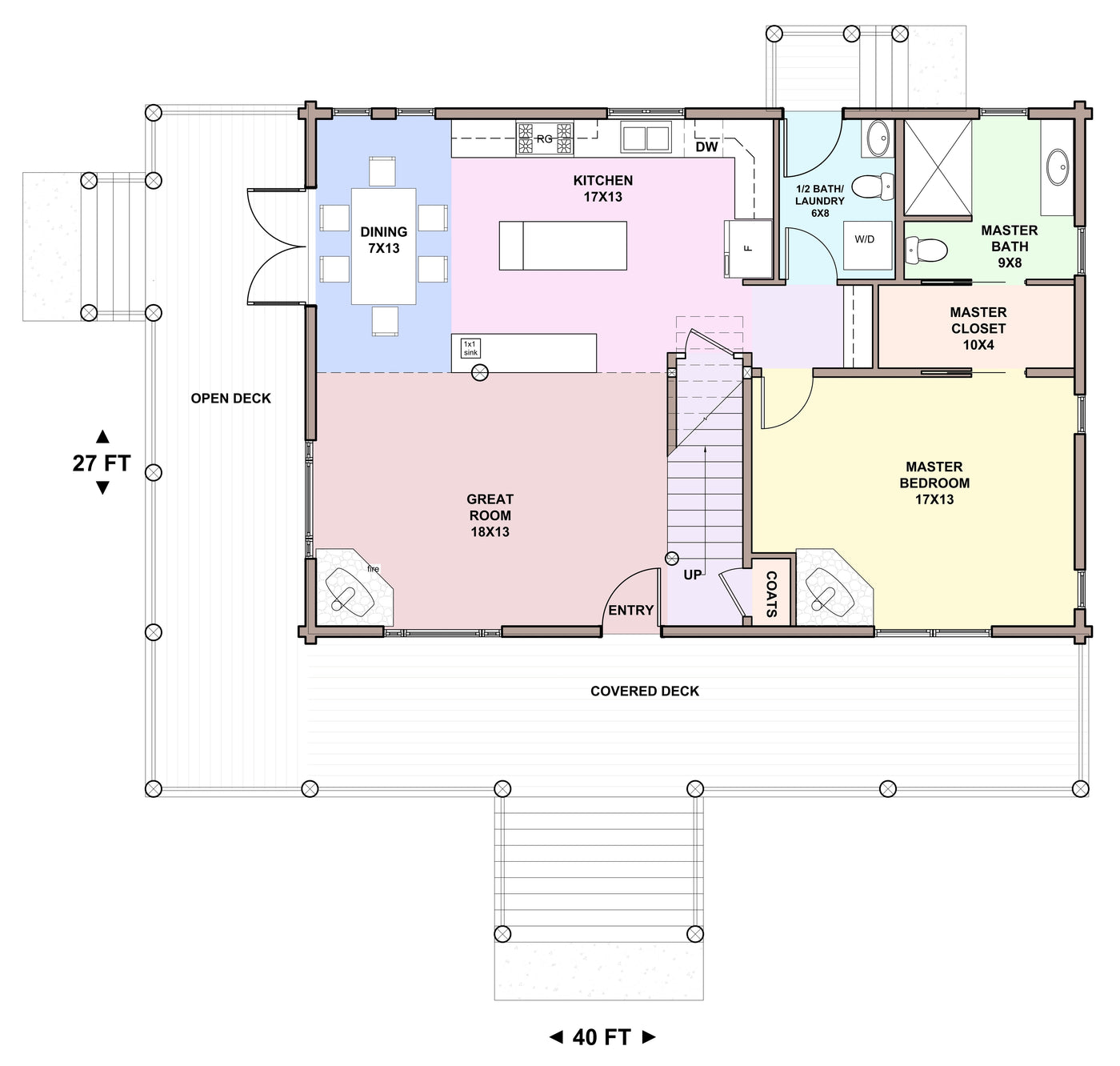

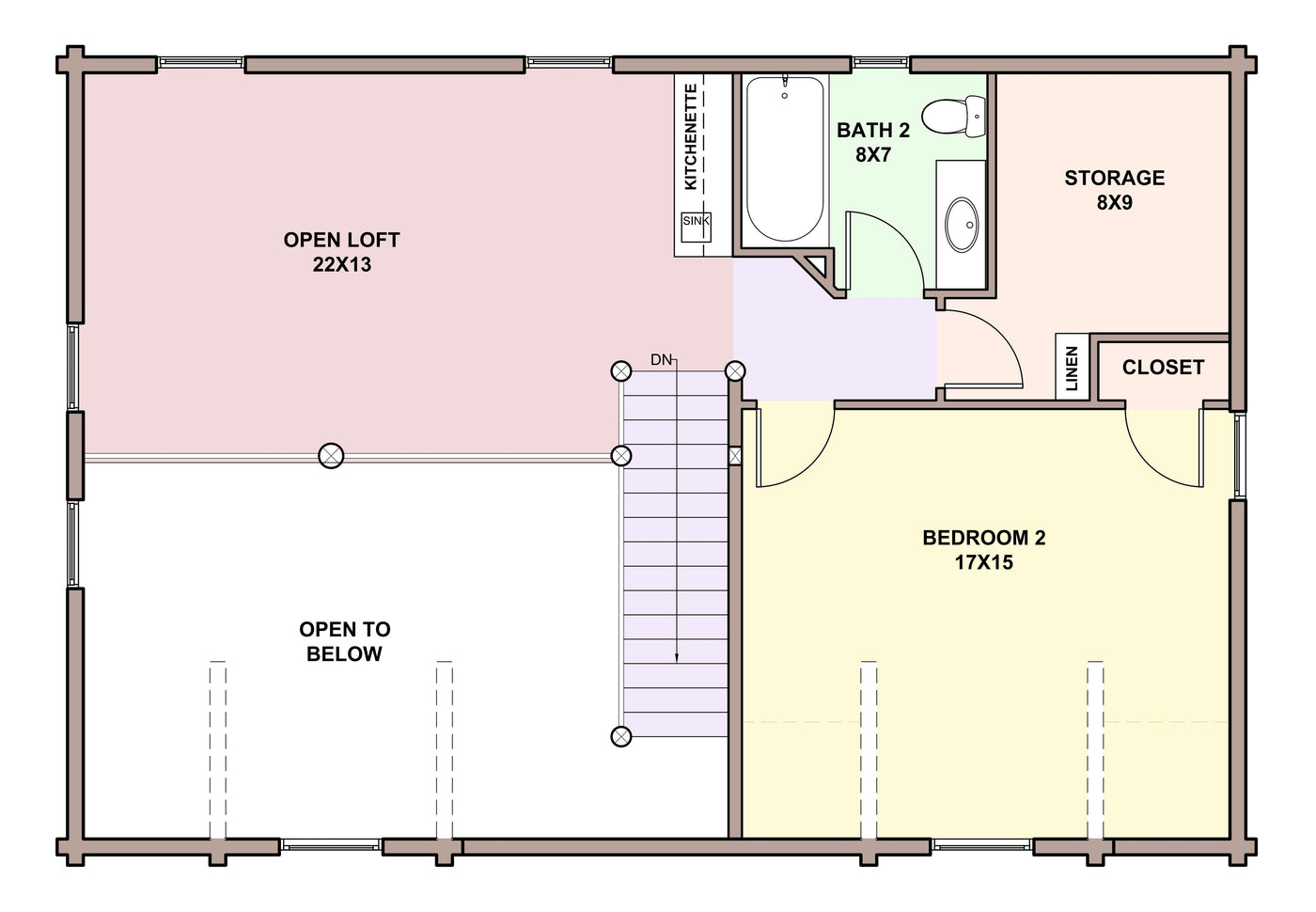

Floor plans
3D

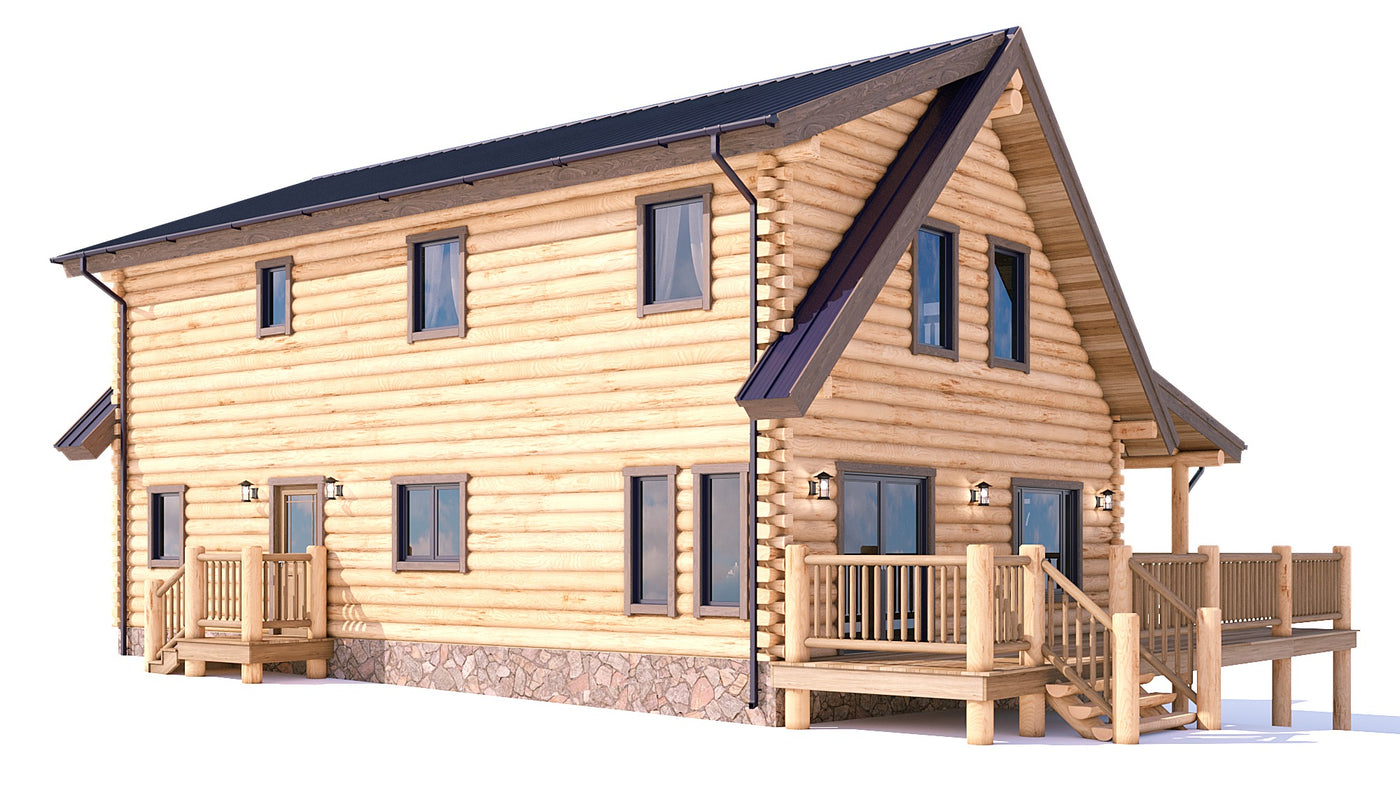

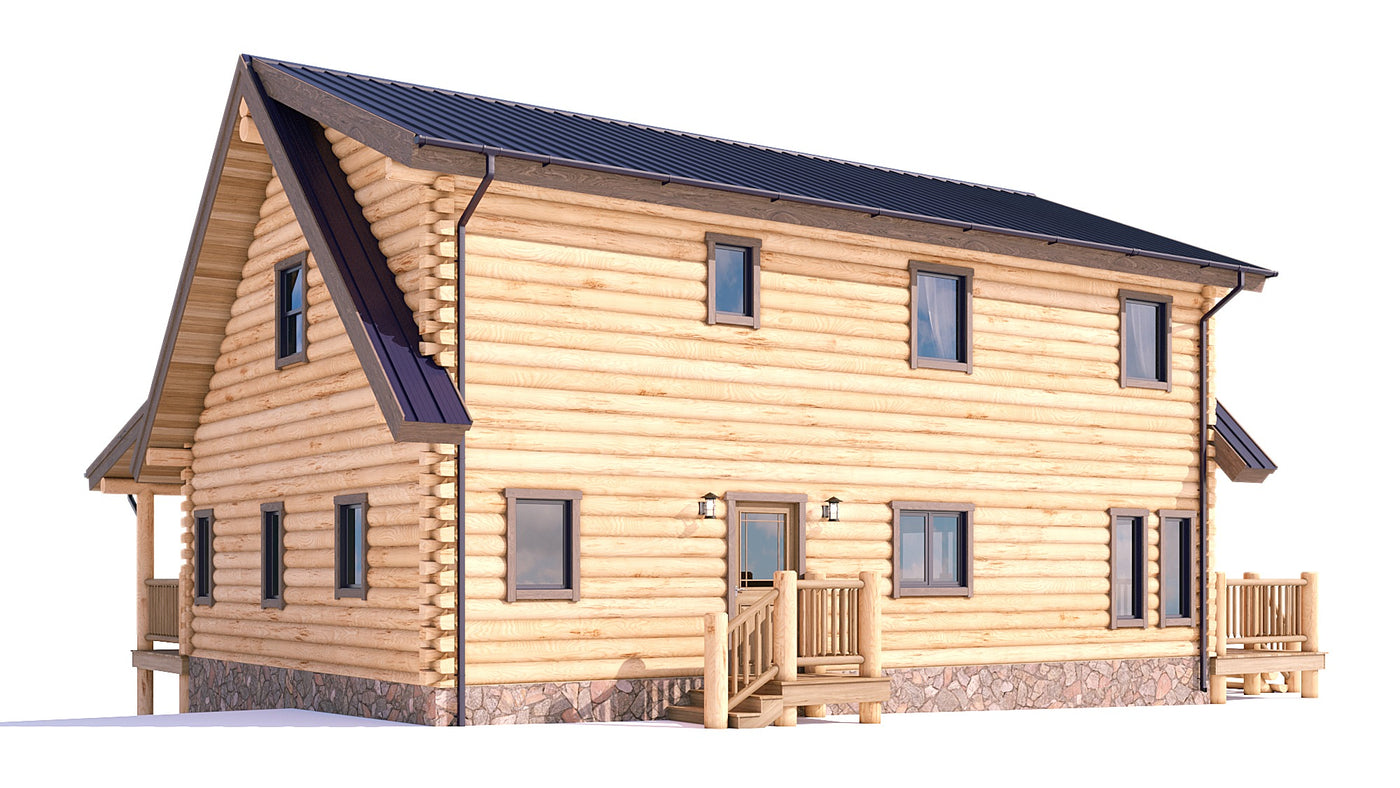

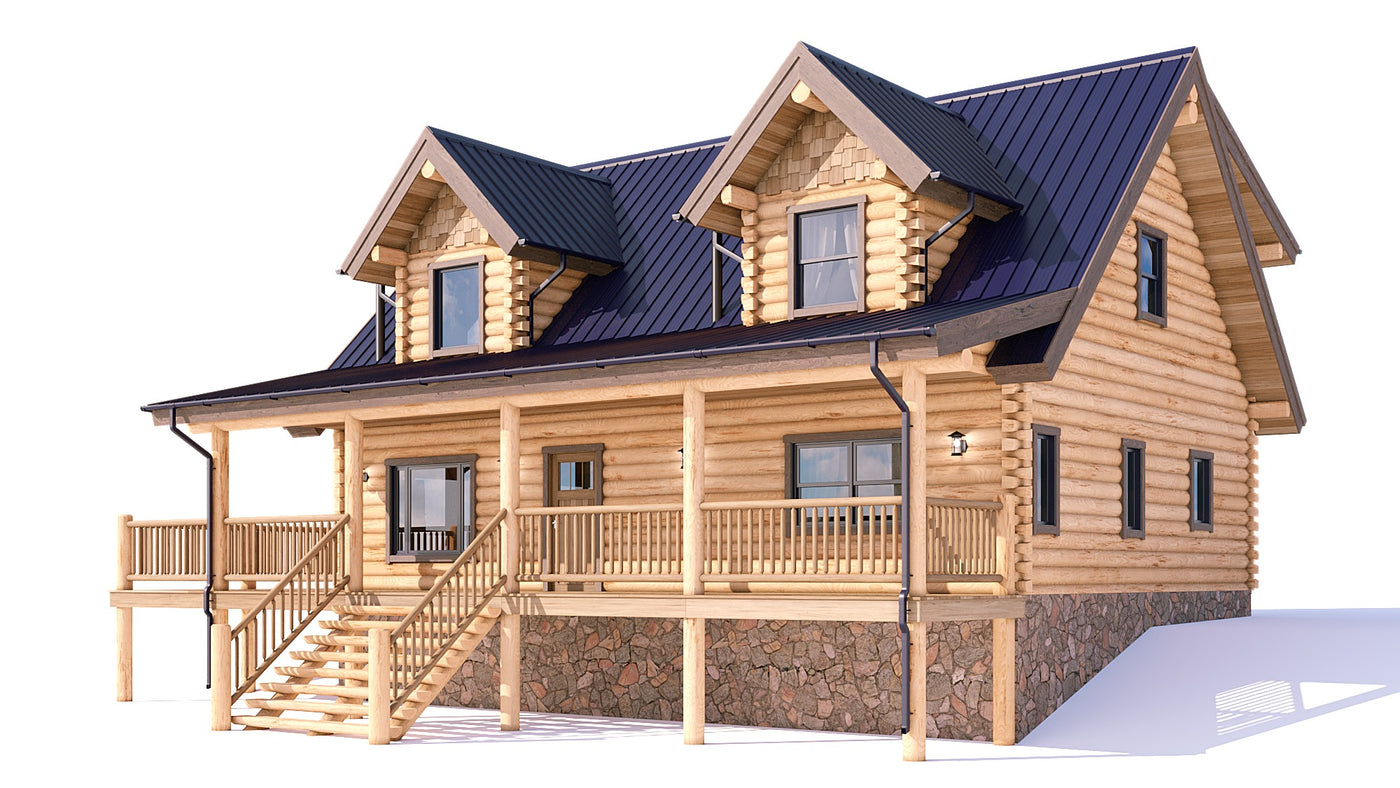

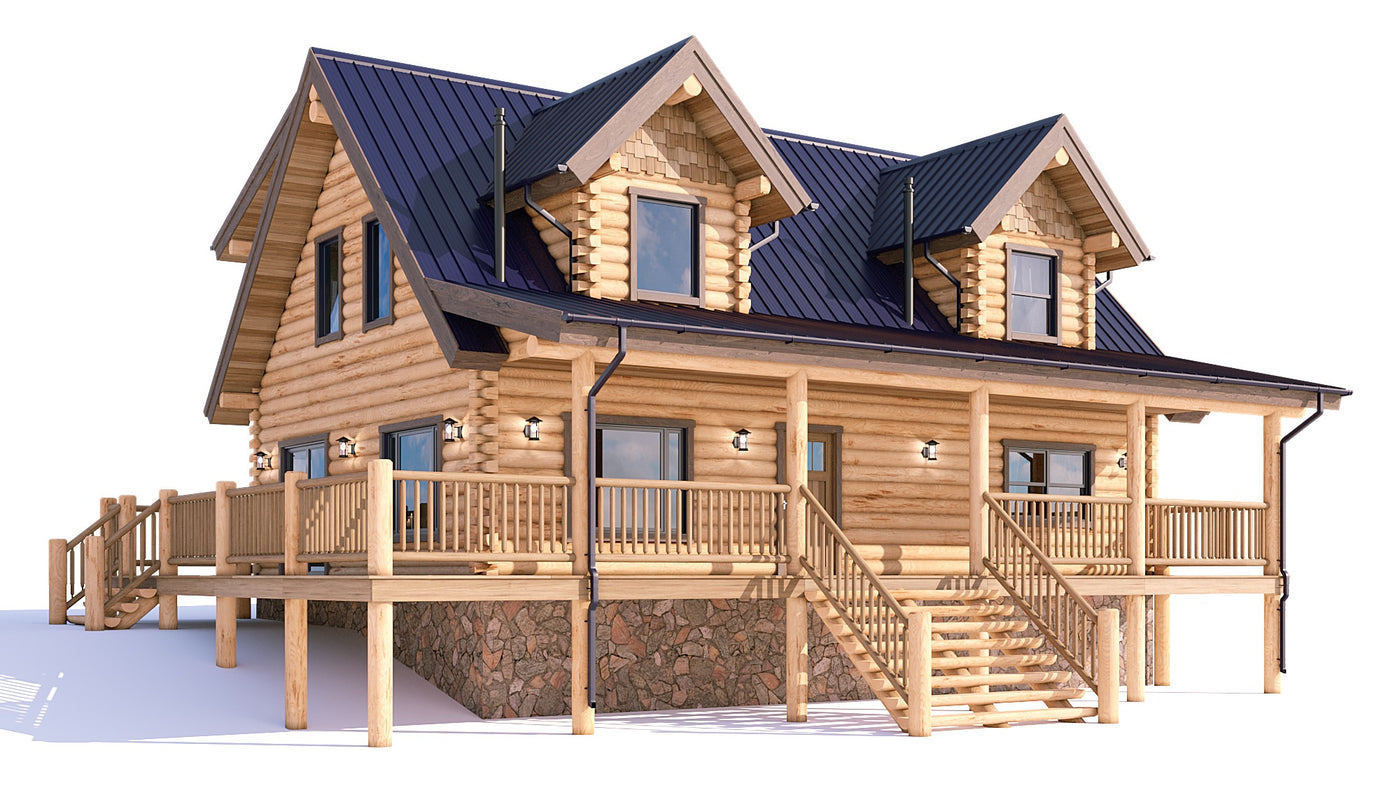

Perspective views
Renders

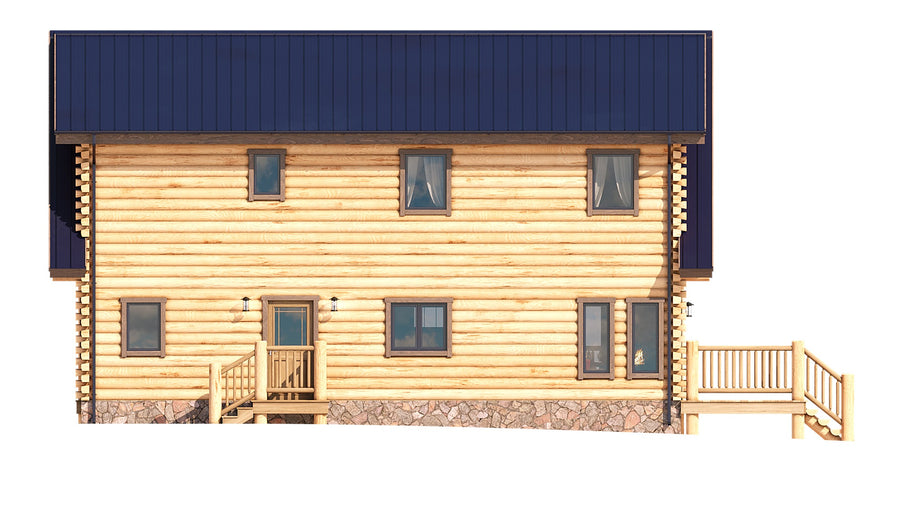

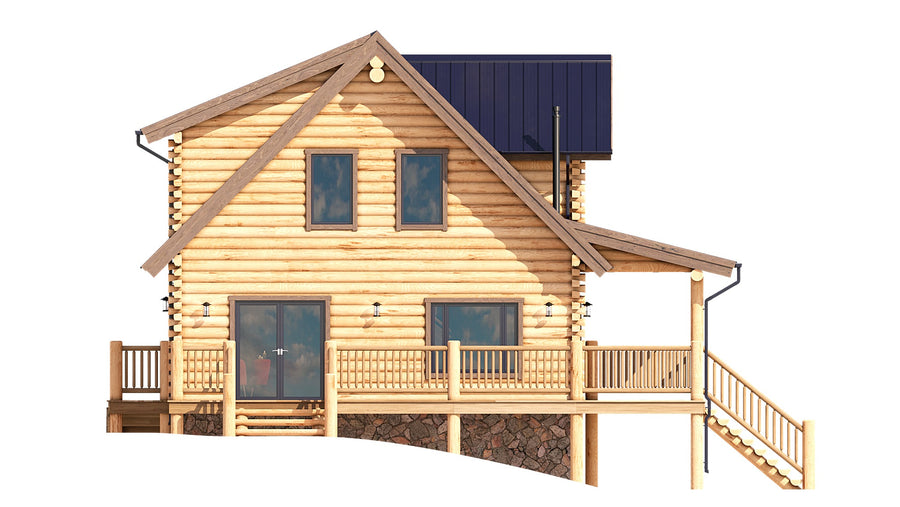

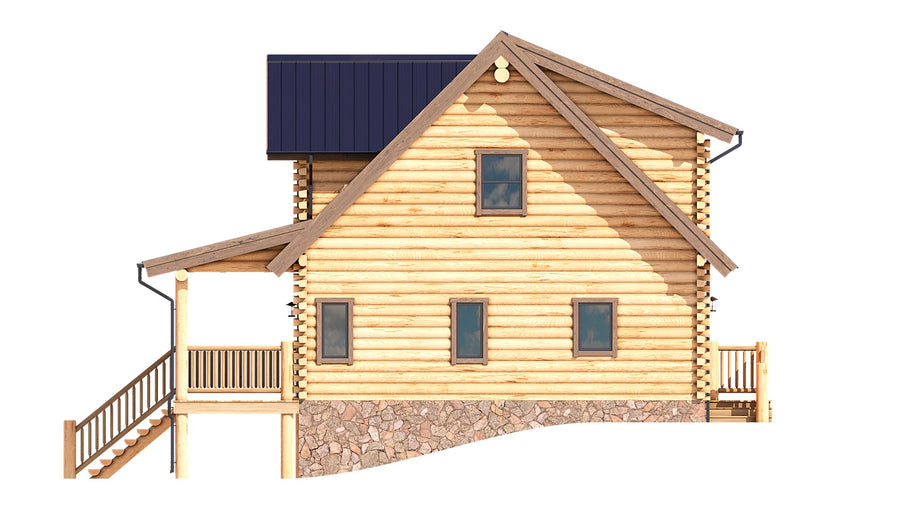

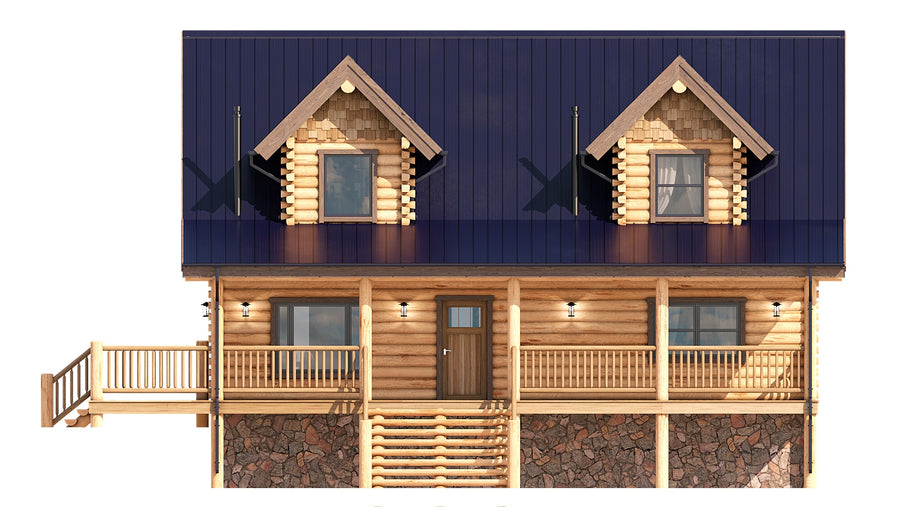

Ortho views
Technical

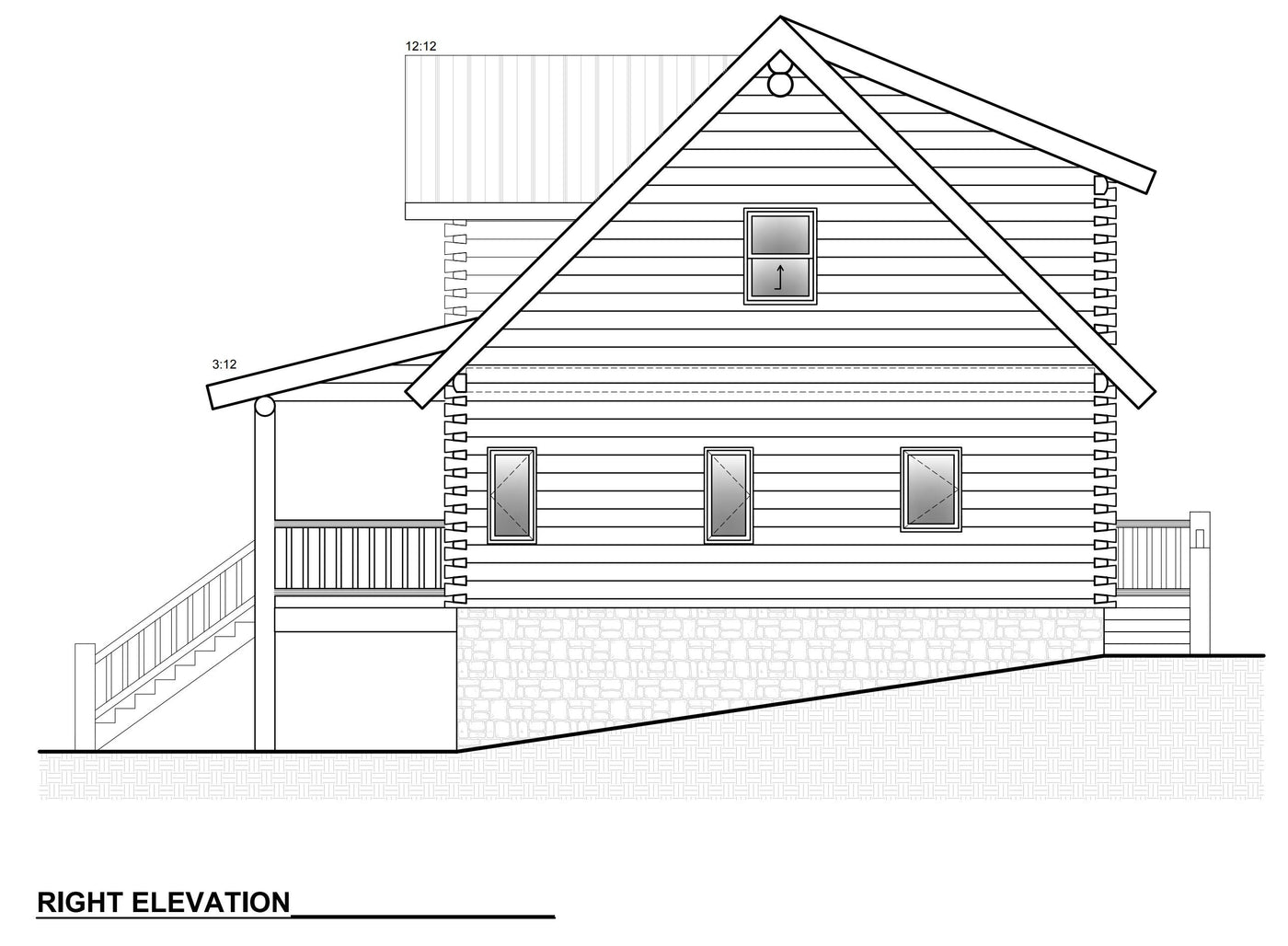

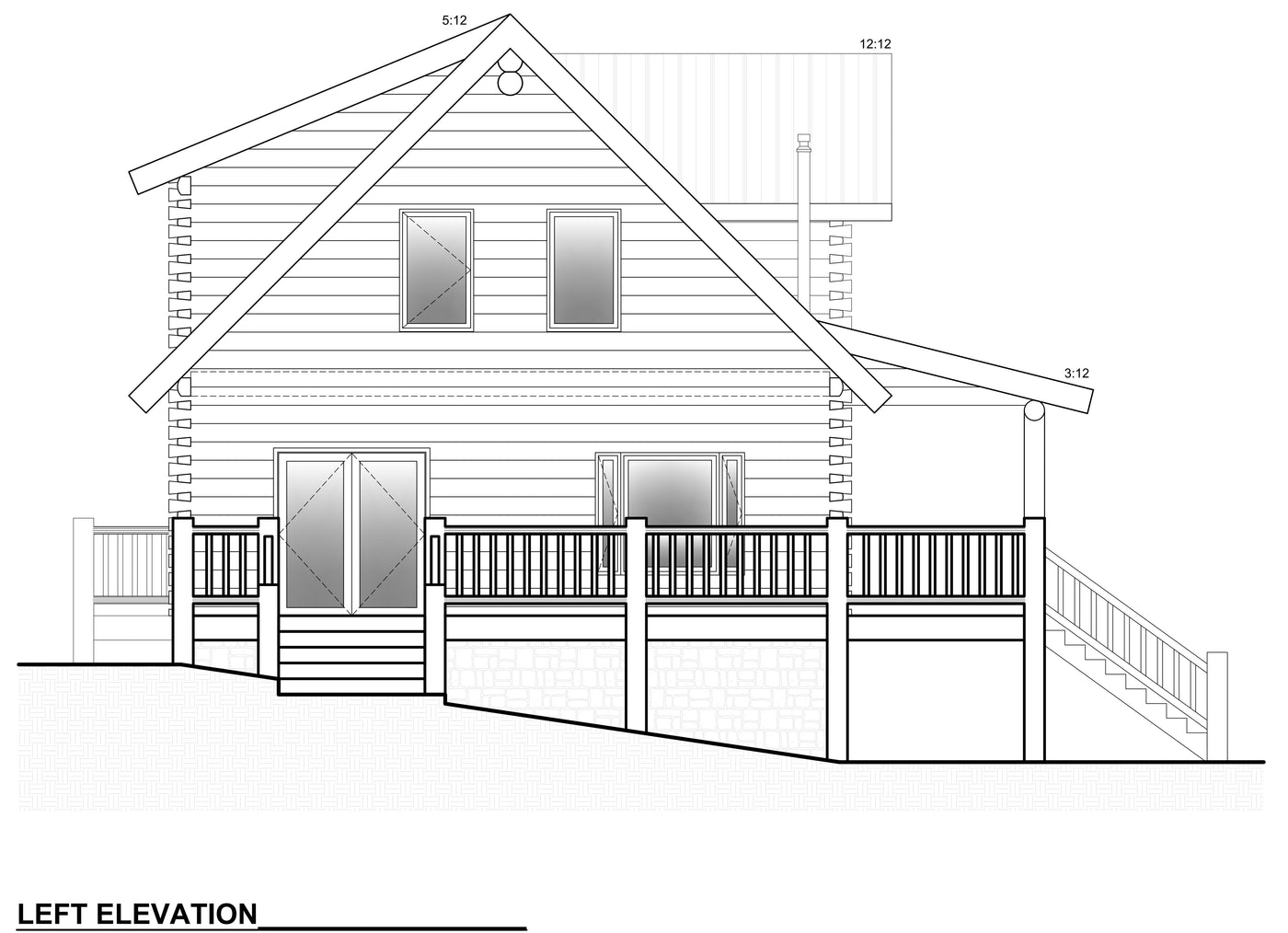

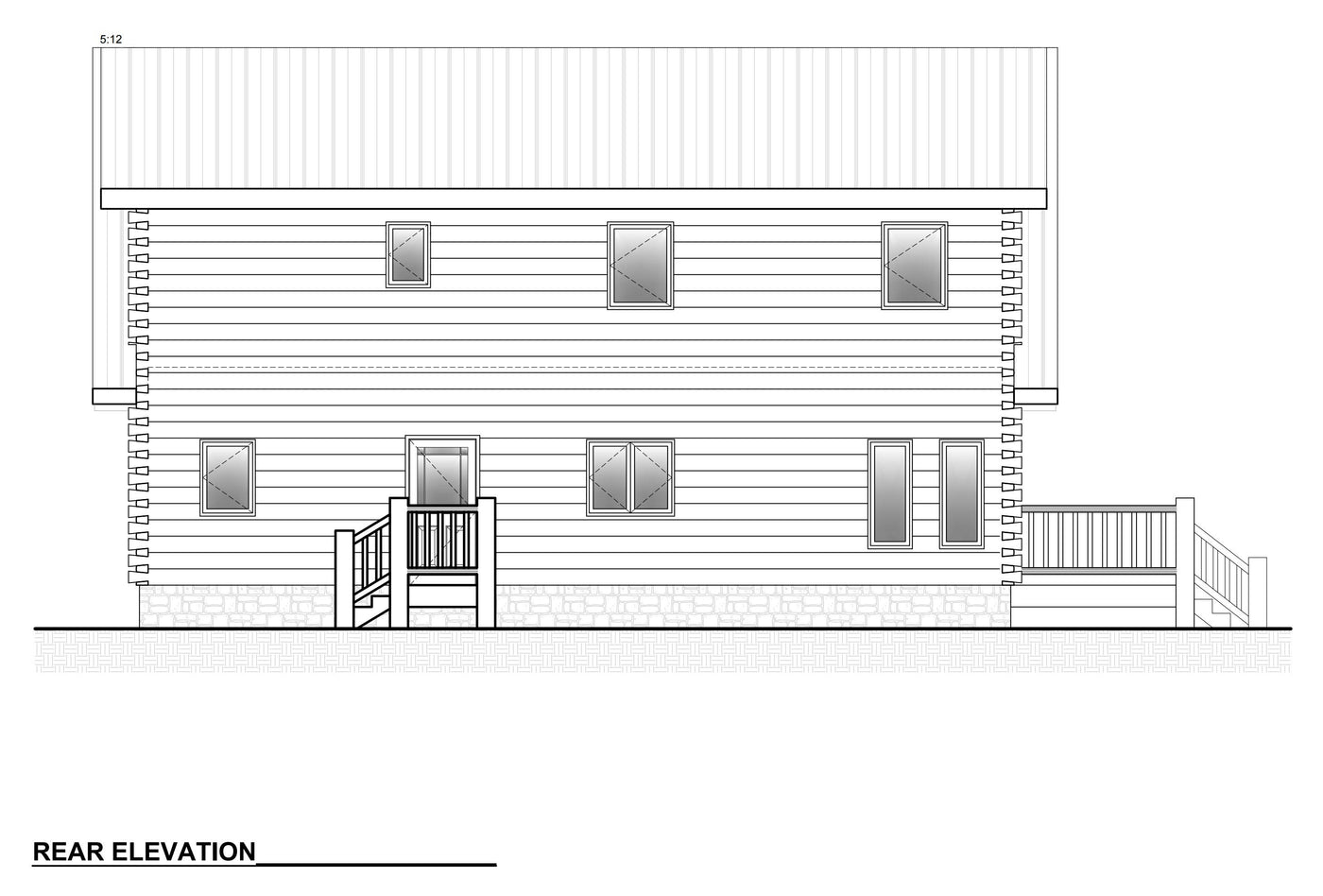

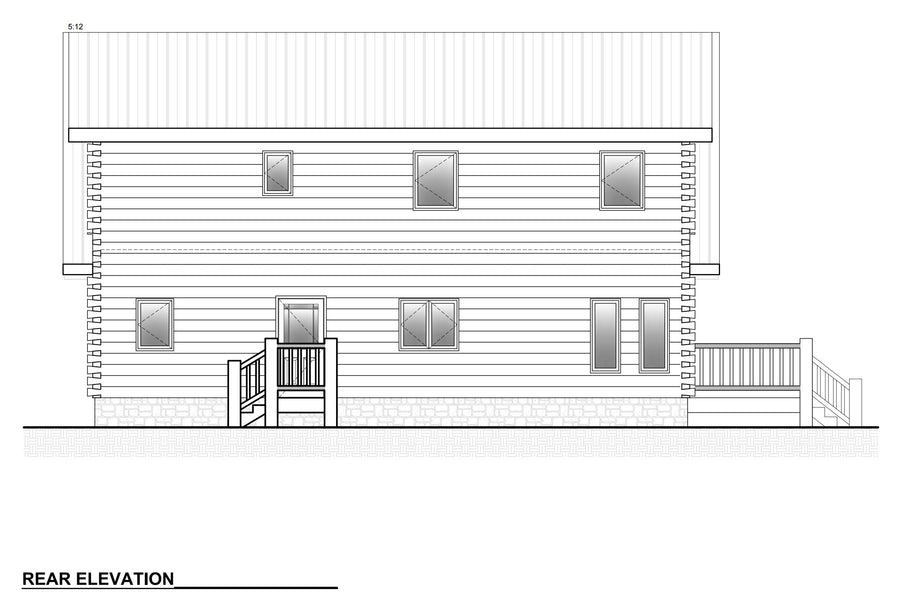

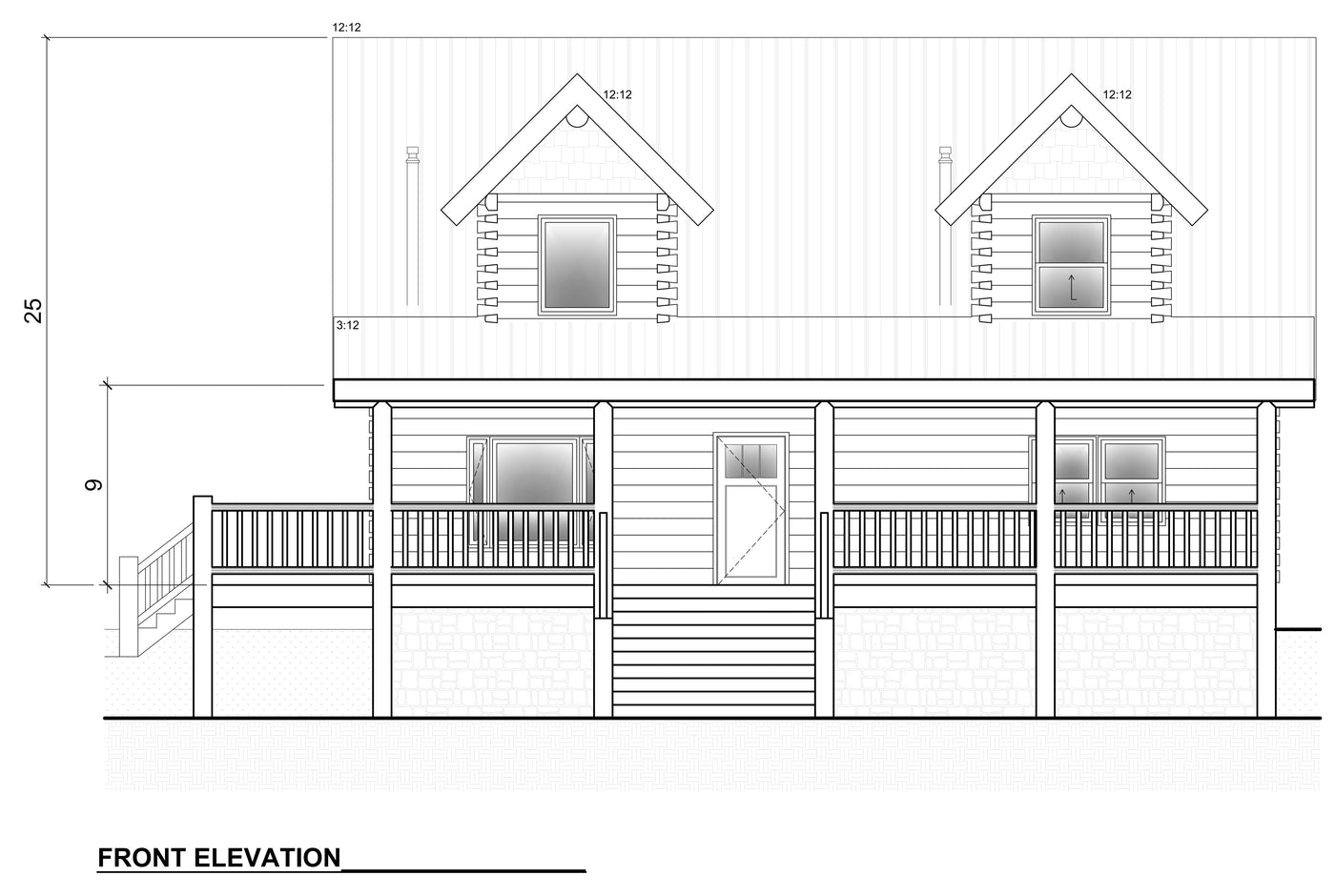

Elevation drawings
