Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU |
| Bedrooms | 4 |
| Bathrooms | 2.5 |
| Stories | 2 |
| Main Sq Ft | 1000 |
| Loft Sq Ft | 0 |
| Basement Sq Ft | 820 |
| Total Sq Ft | 1820 |
| Garage | Yes |
| Basement | Yes |
| Reference | Dalldorf |
About this plan

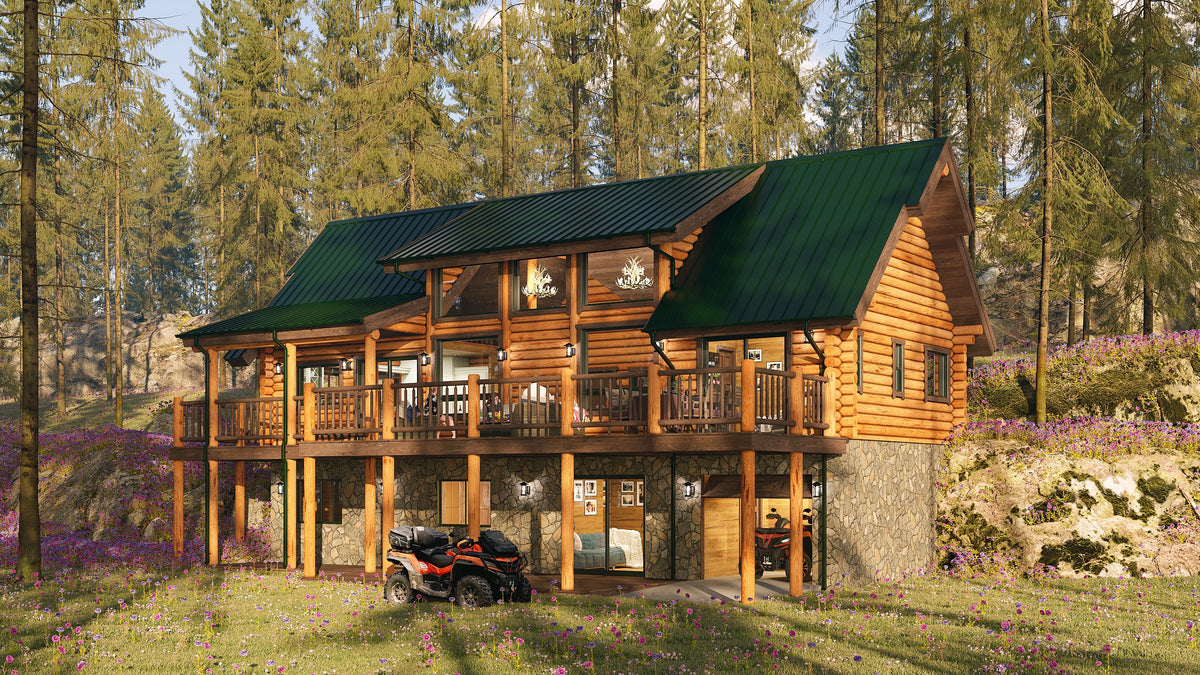

The Orchid by Sierra Log & Timber is a warm and inviting 1,820 sq ft log home that welcomes gatherings and quiet moments alike. Ideal for growing families or those who love to host, it offers four bedrooms and two and a half baths across two stories, giving everyone their own space to unwind. The main level’s 1,000 sq ft layout centers around a comfortable great room and a practical kitchen, making daily living and entertaining easy. Downstairs, the 820 sq ft basement opens up possibilities for a family room, workshop, or extra storage, ready to adapt as your needs change. Whether as a year-round residence, a mountain retreat, or a place to bring generations together, the Orchid’s thoughtful design and handcrafted log style invite you to make it your own. Custom options are always welcome to fit your vision.

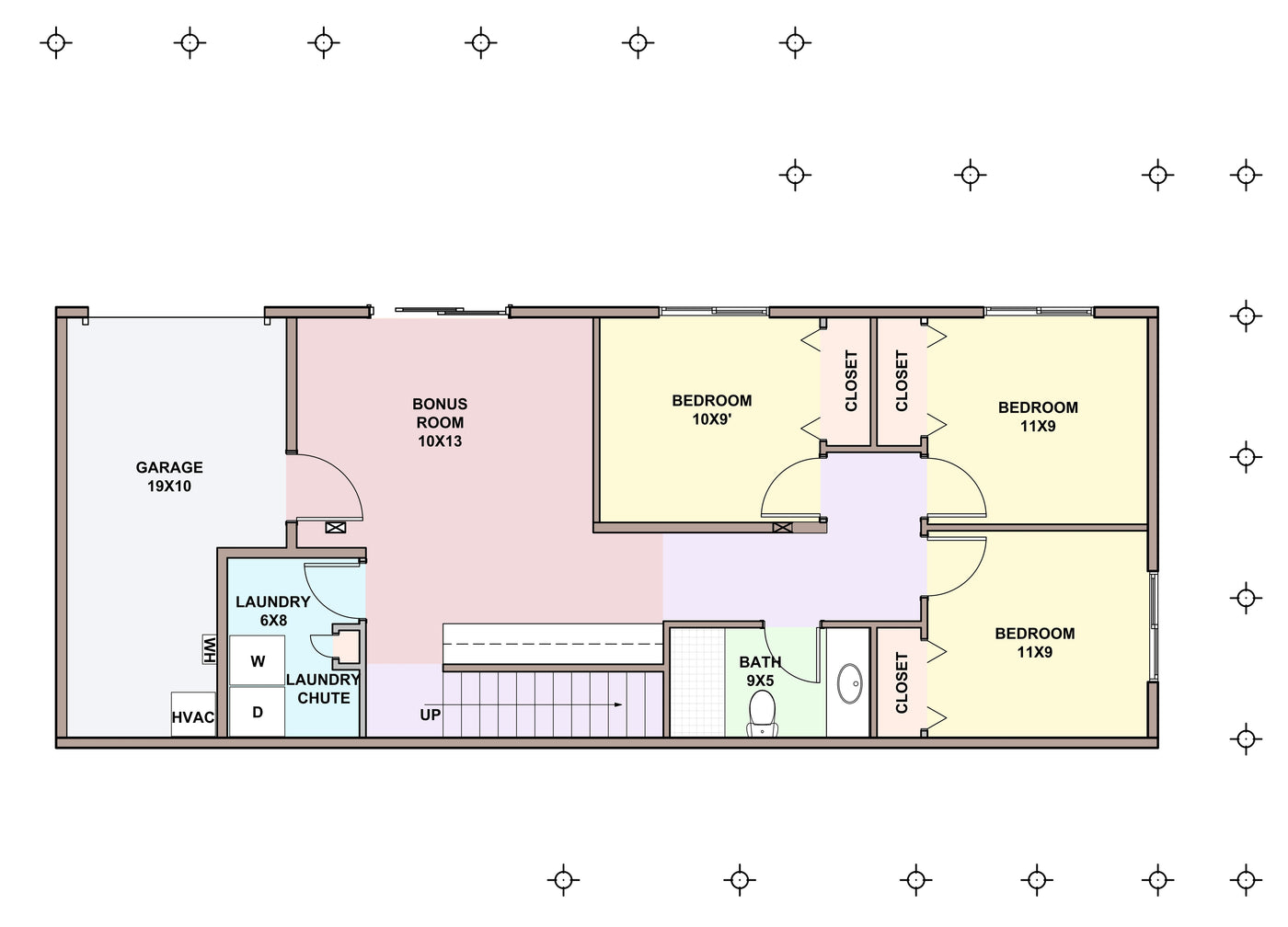

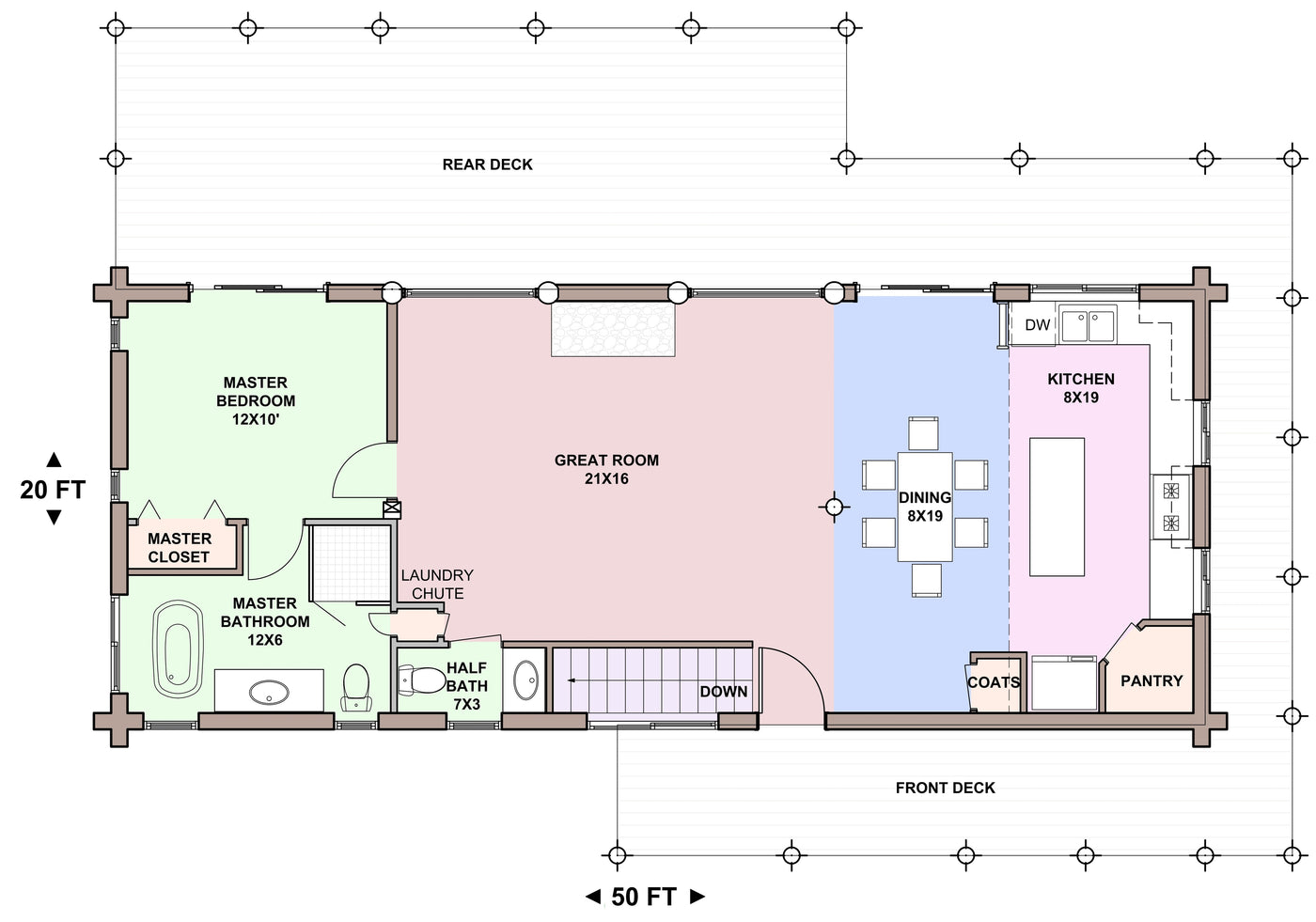

Floor plans
3D

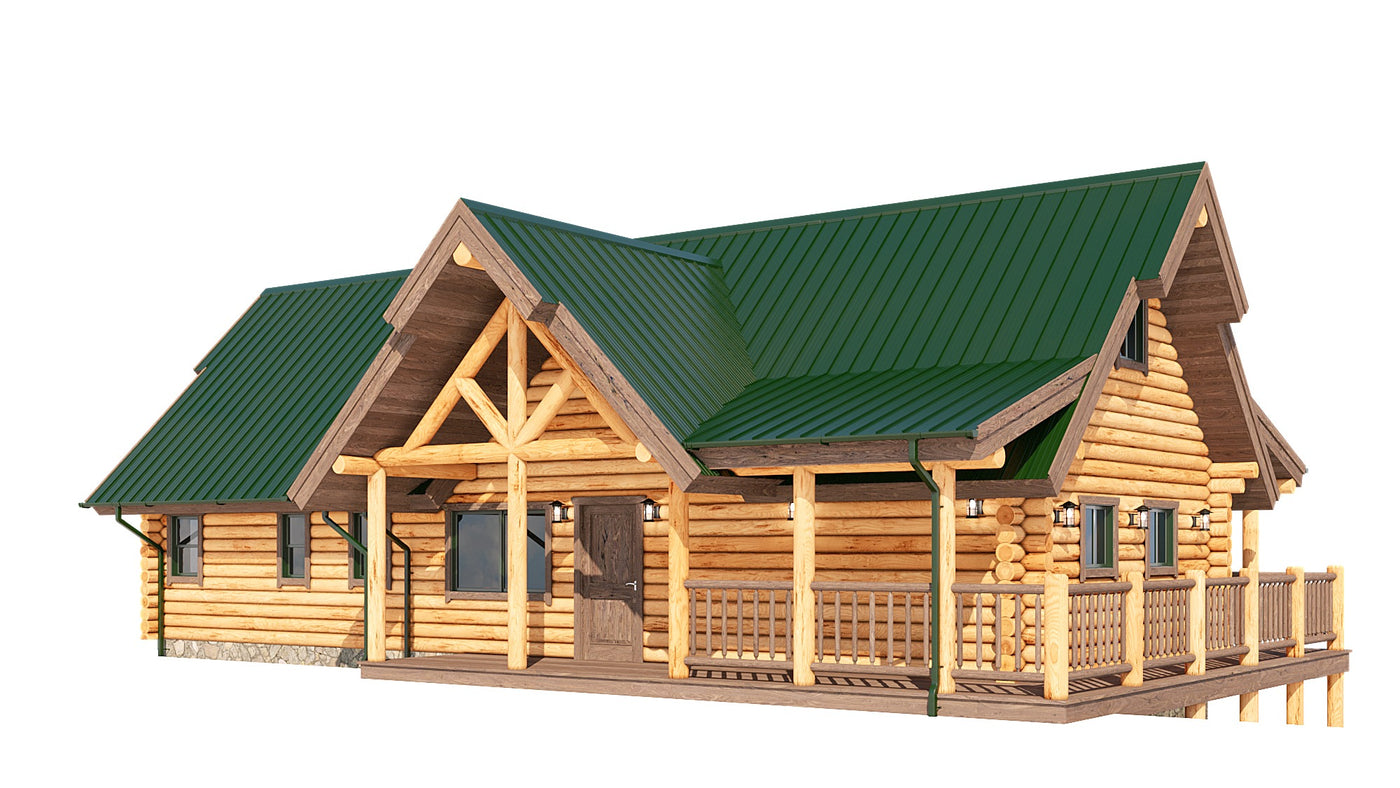

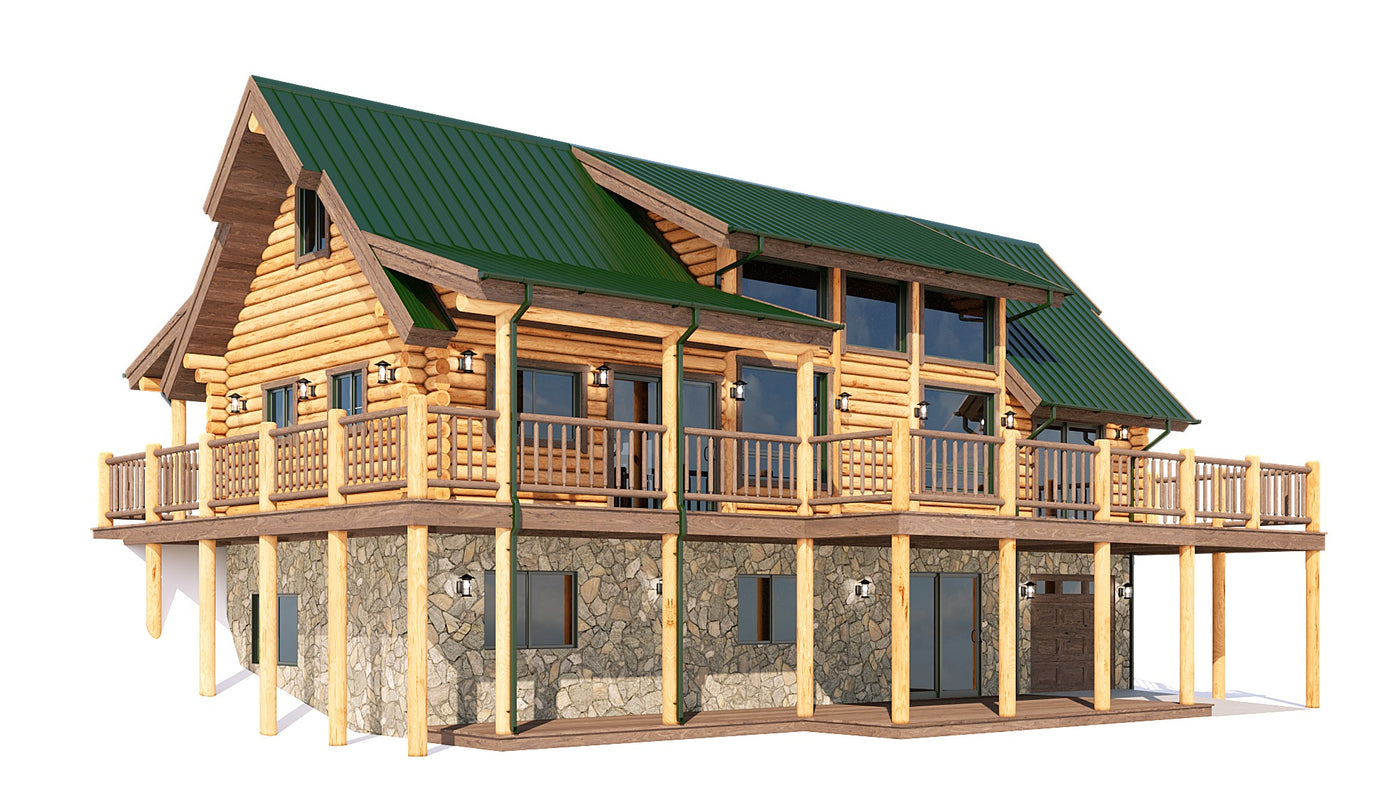

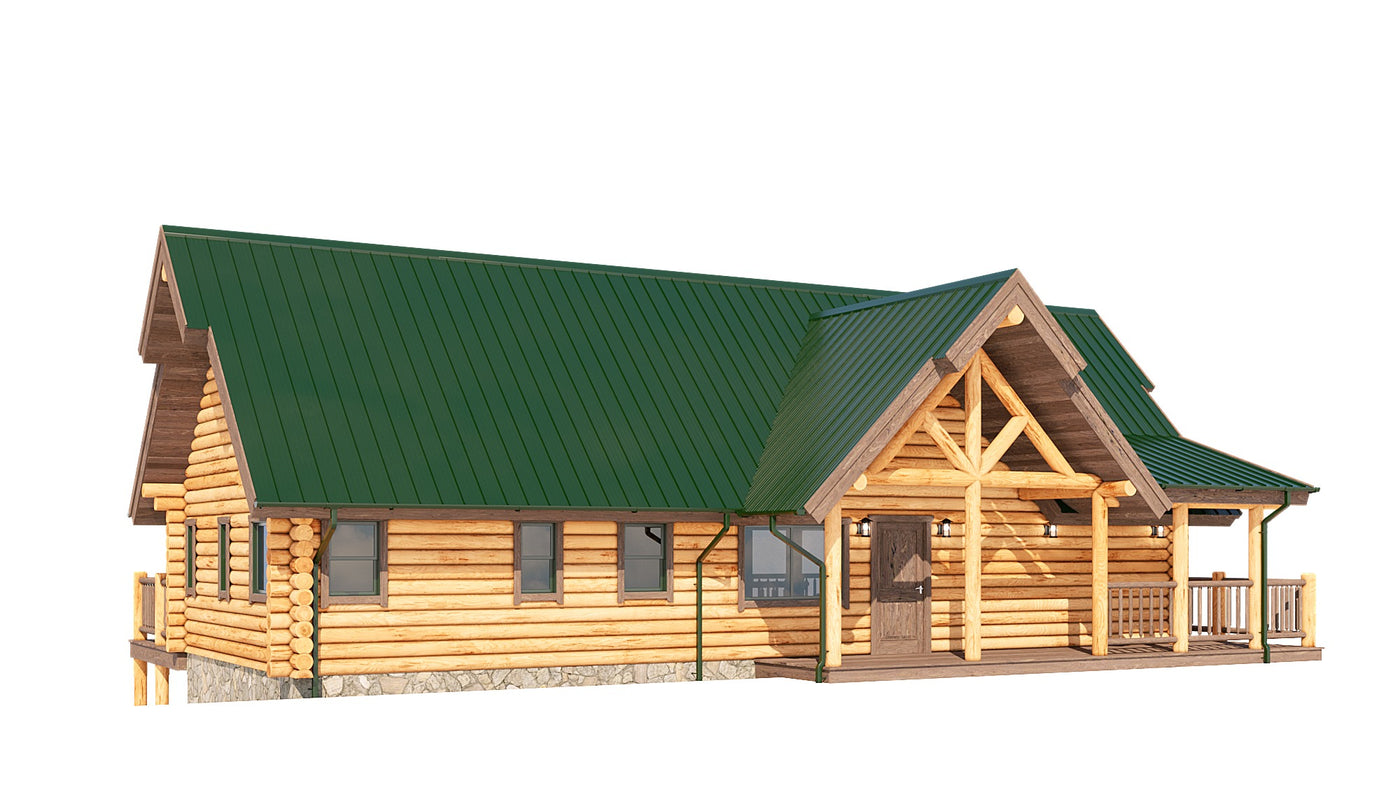

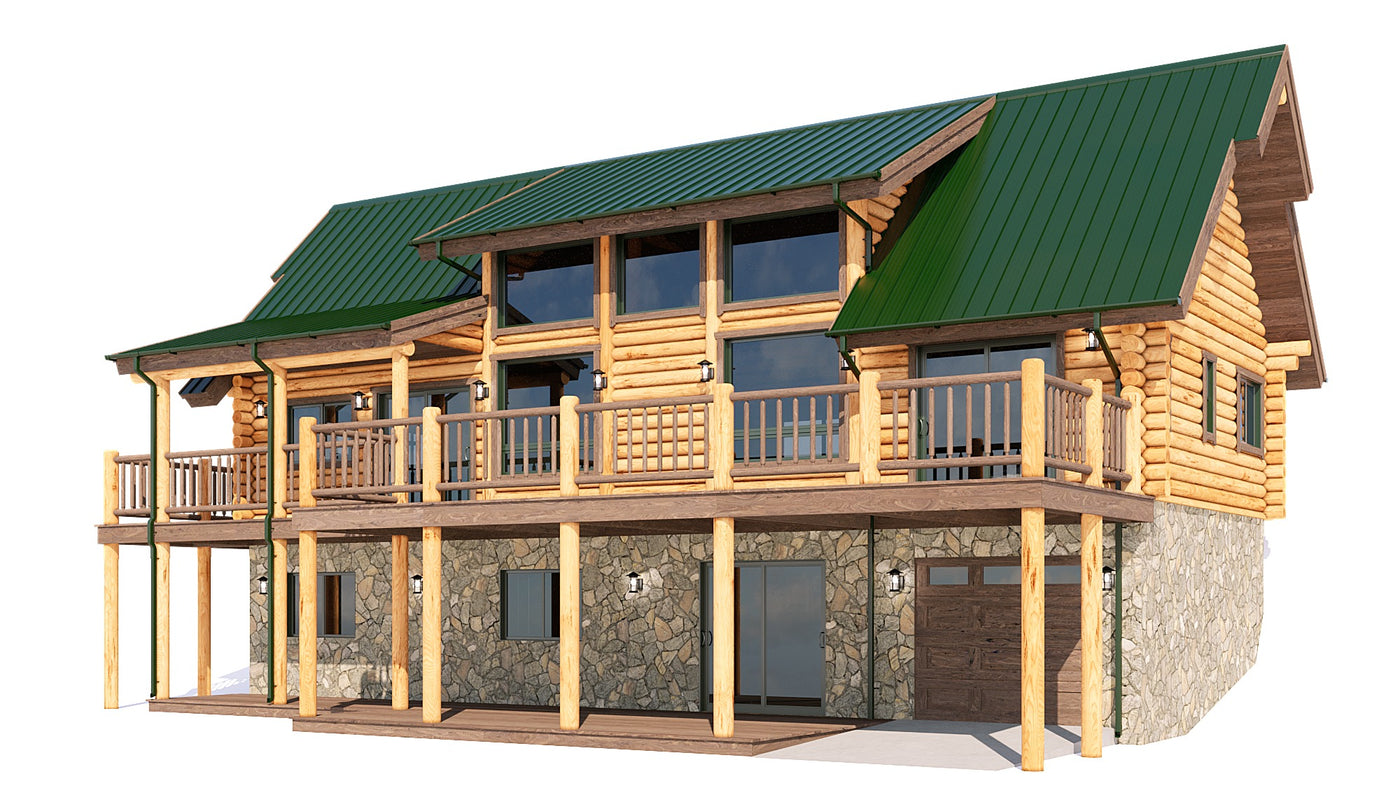

Perspective views
Renders

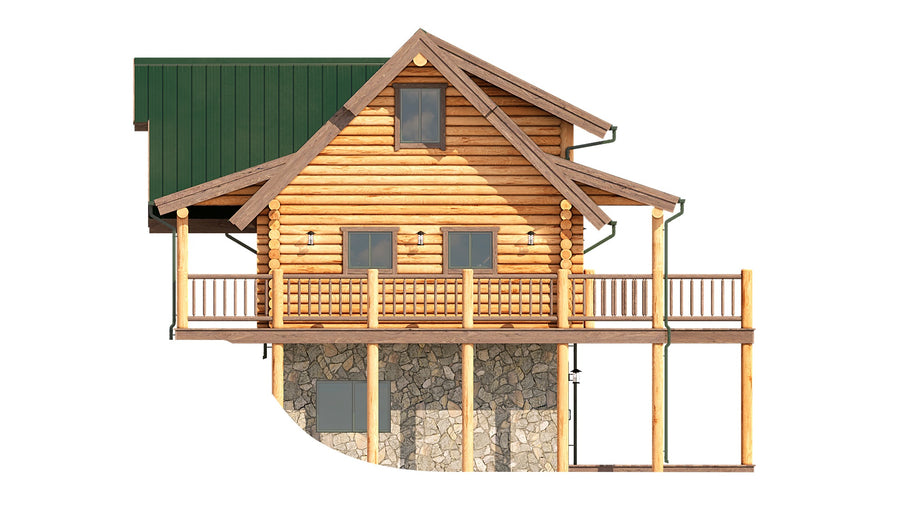

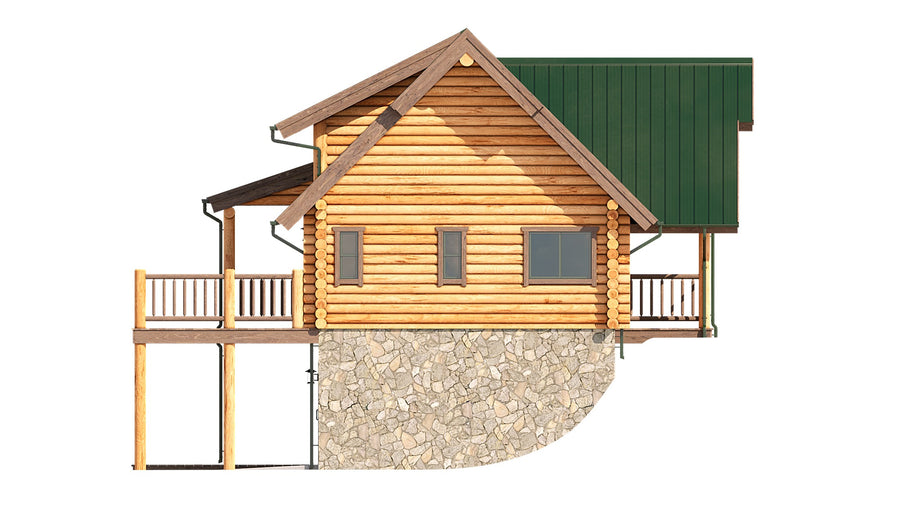

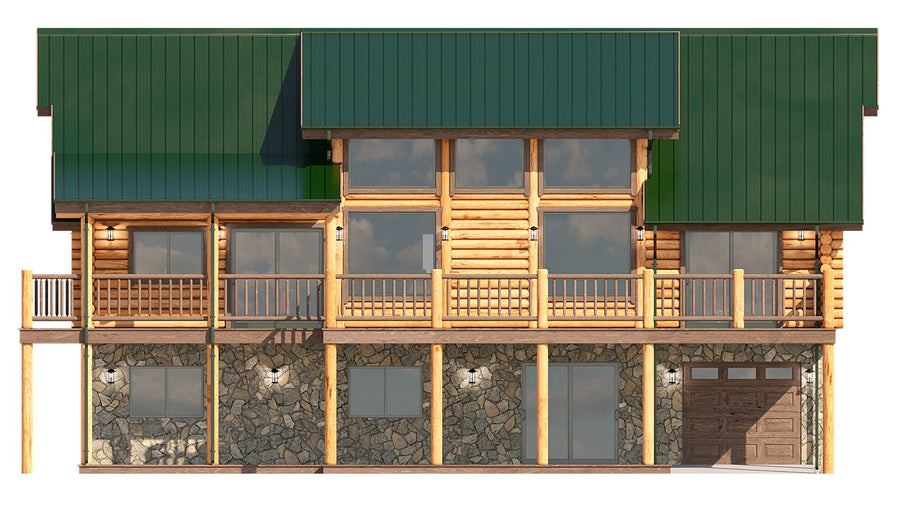

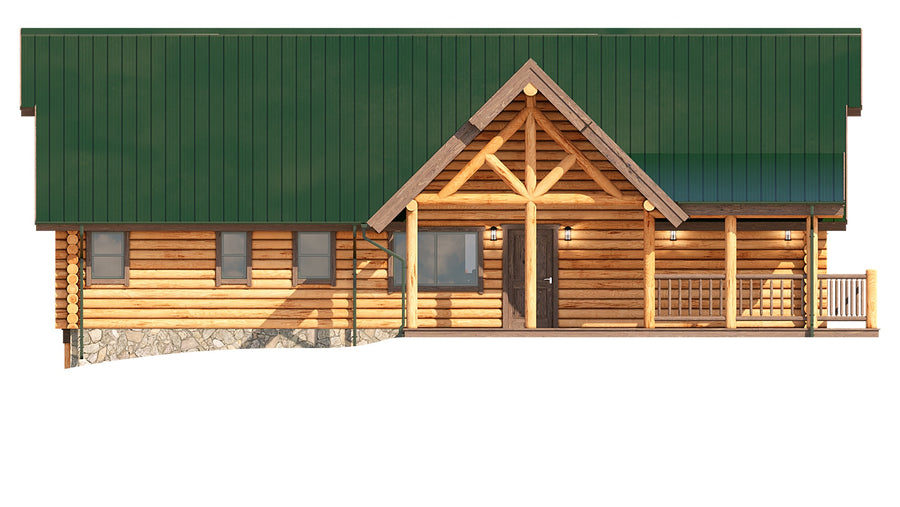

Ortho views
Technical

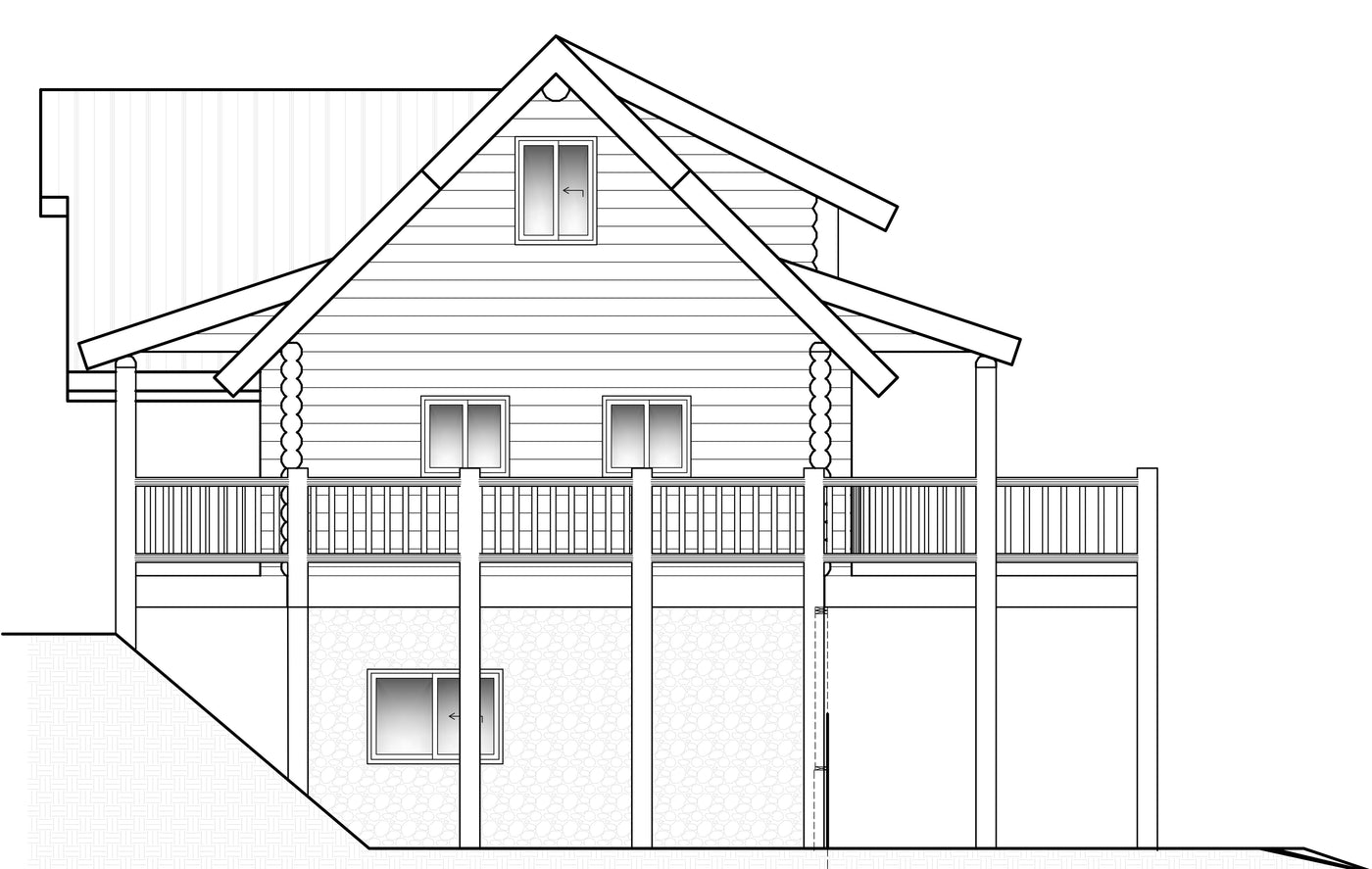

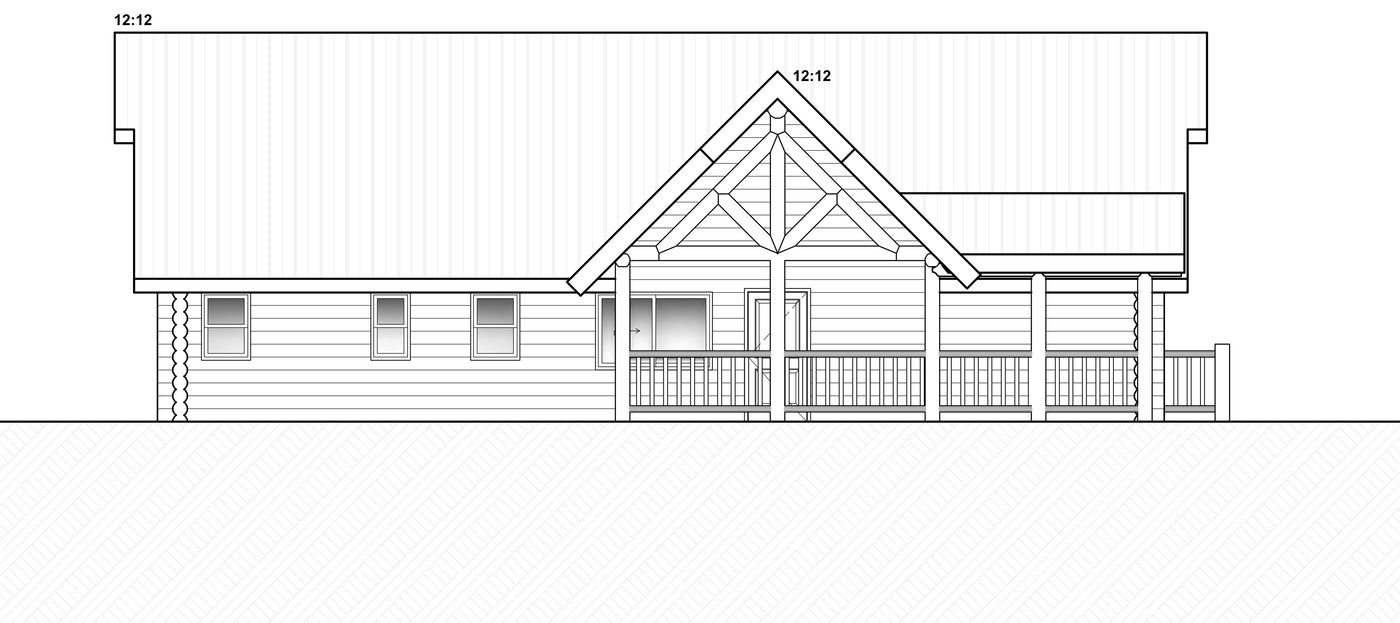

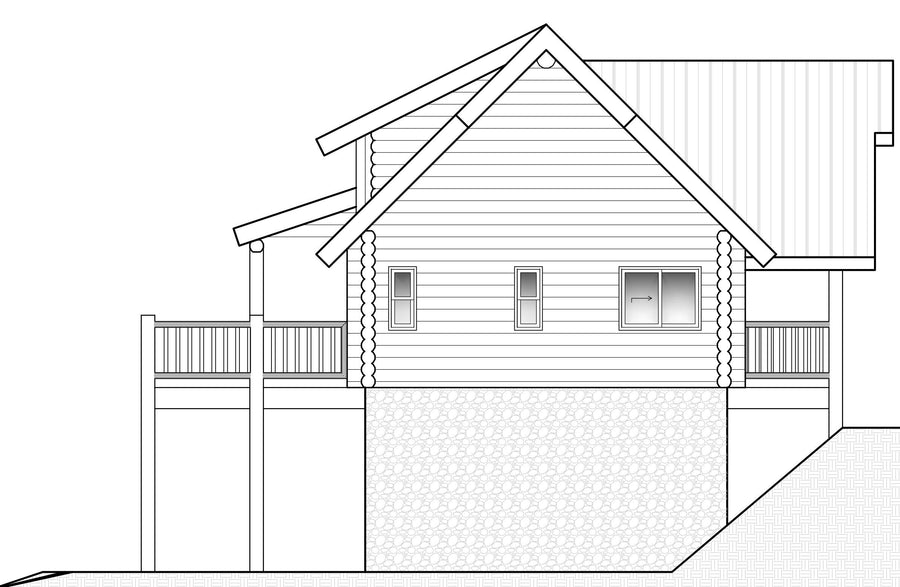

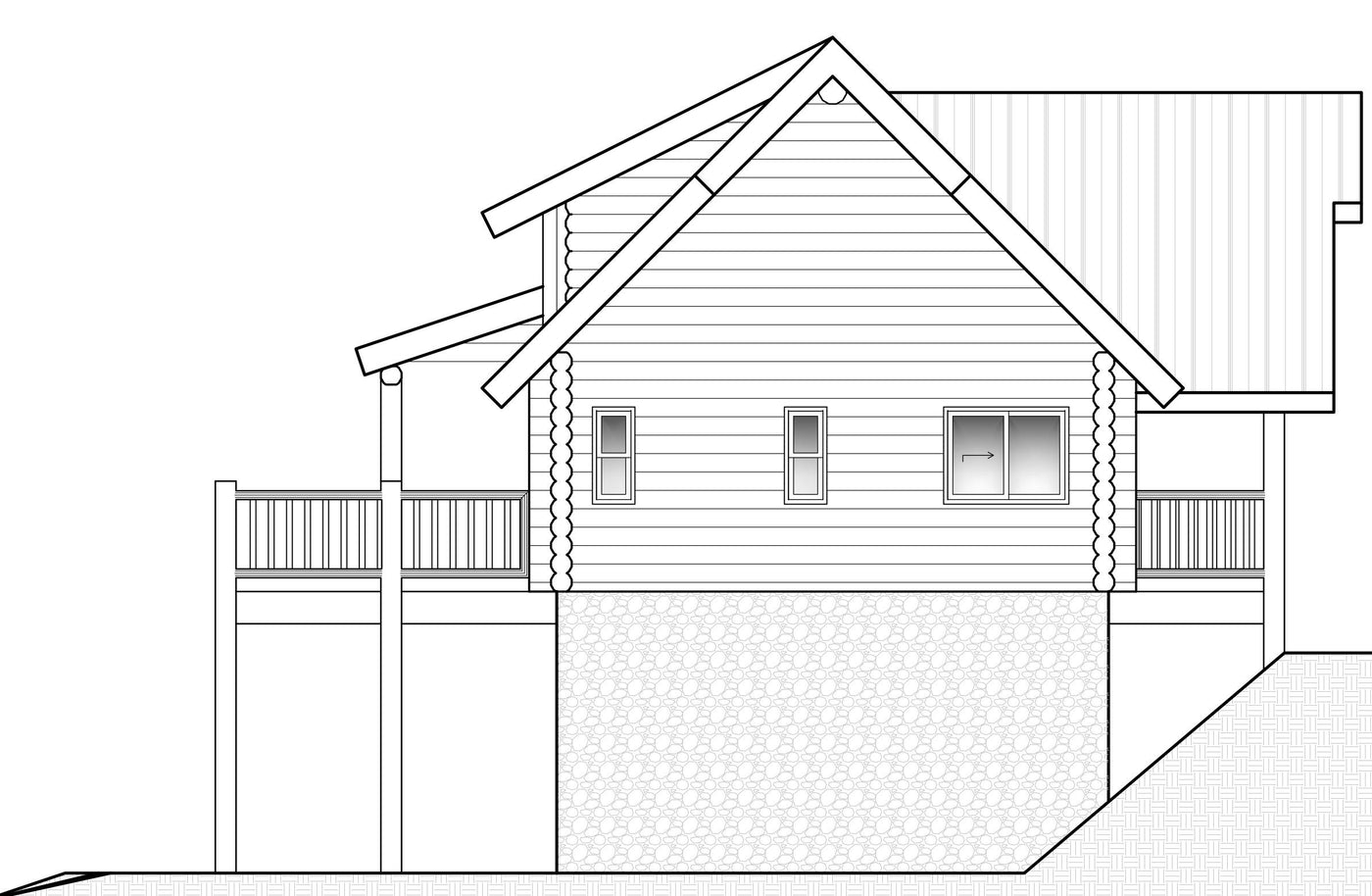

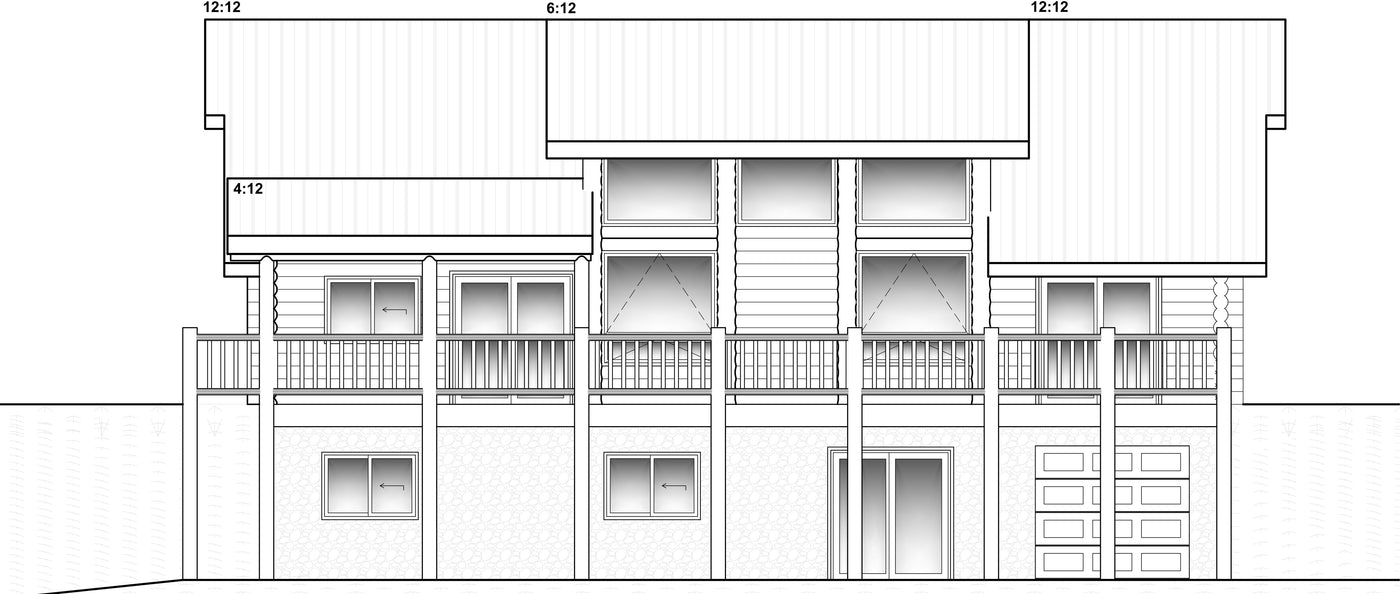

Elevation drawings
