Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / Ranch |
| Bedrooms | 3 |
| Bathrooms | 2 |
| Stories | 3 |
| Main Sq Ft | 980 |
| Loft Sq Ft | 672 |
| Basement Sq Ft | 980 |
| Total Sq Ft | 2632 |
| Garage | — |
| Basement | Yes |
| Reference | winemiller |
About this plan
The Oak Ridge by Sierra Log & Timber is a warm and inviting 2,632 sq ft log home that feels both spacious and grounded in tradition. Ideal for growing families or those wanting room to host, it features a generous main level with 980 sq ft for gathering in the great room, sharing meals in the kitchen, and unwinding in the primary bedroom. Two additional bedrooms offer privacy for kids or guests, while the 672 sq ft loft above is ready for a home office, creative studio, or extra sleeping space. Downstairs, the 980 sq ft basement opens up possibilities for a rec room, workshop, or future expansion as your needs change. Whether as a year-round residence, mountain retreat, or multi-generational getaway, Oak Ridge brings together classic log craftsmanship and flexible living. Custom options are always welcome to make it truly yours.

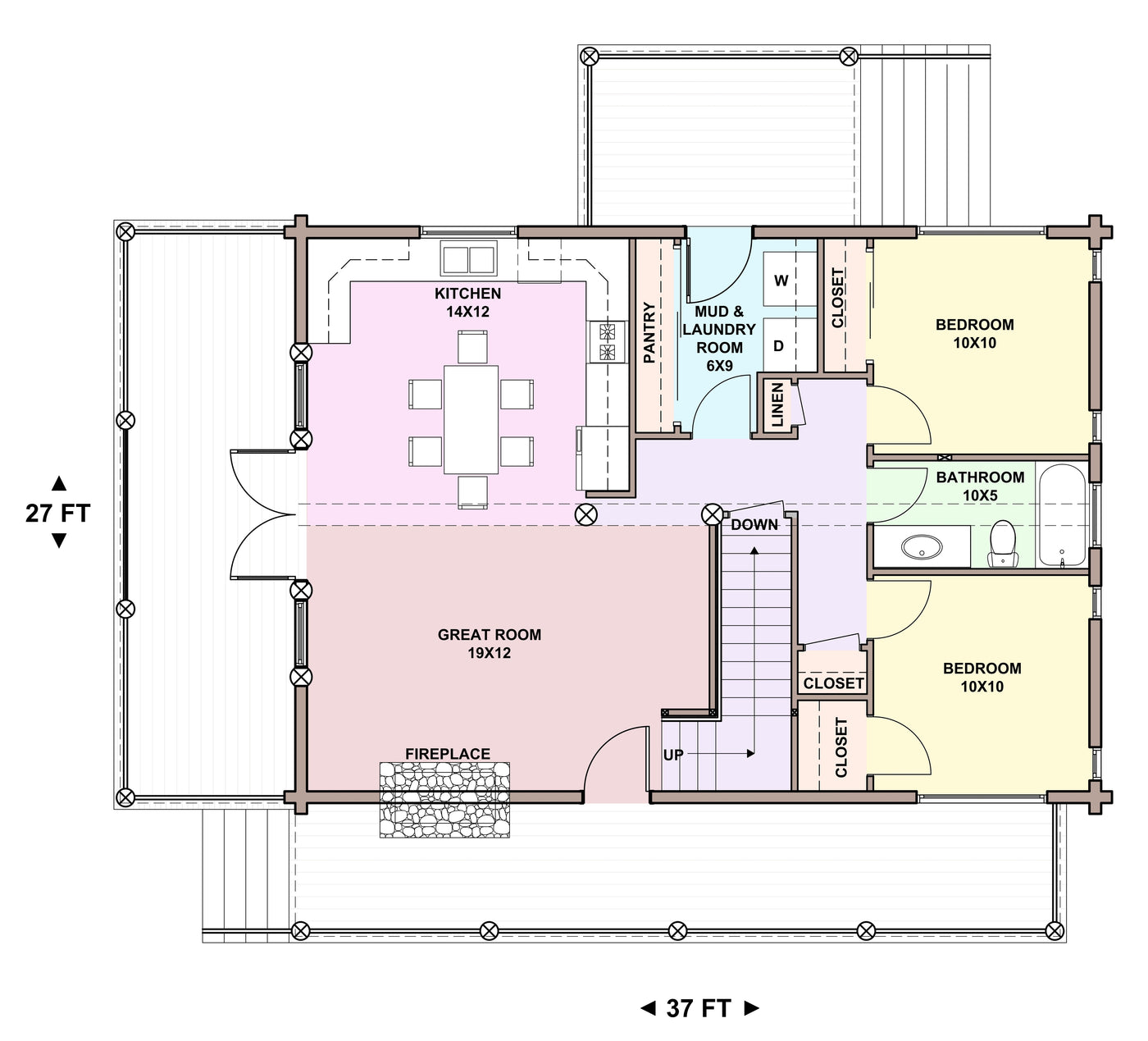

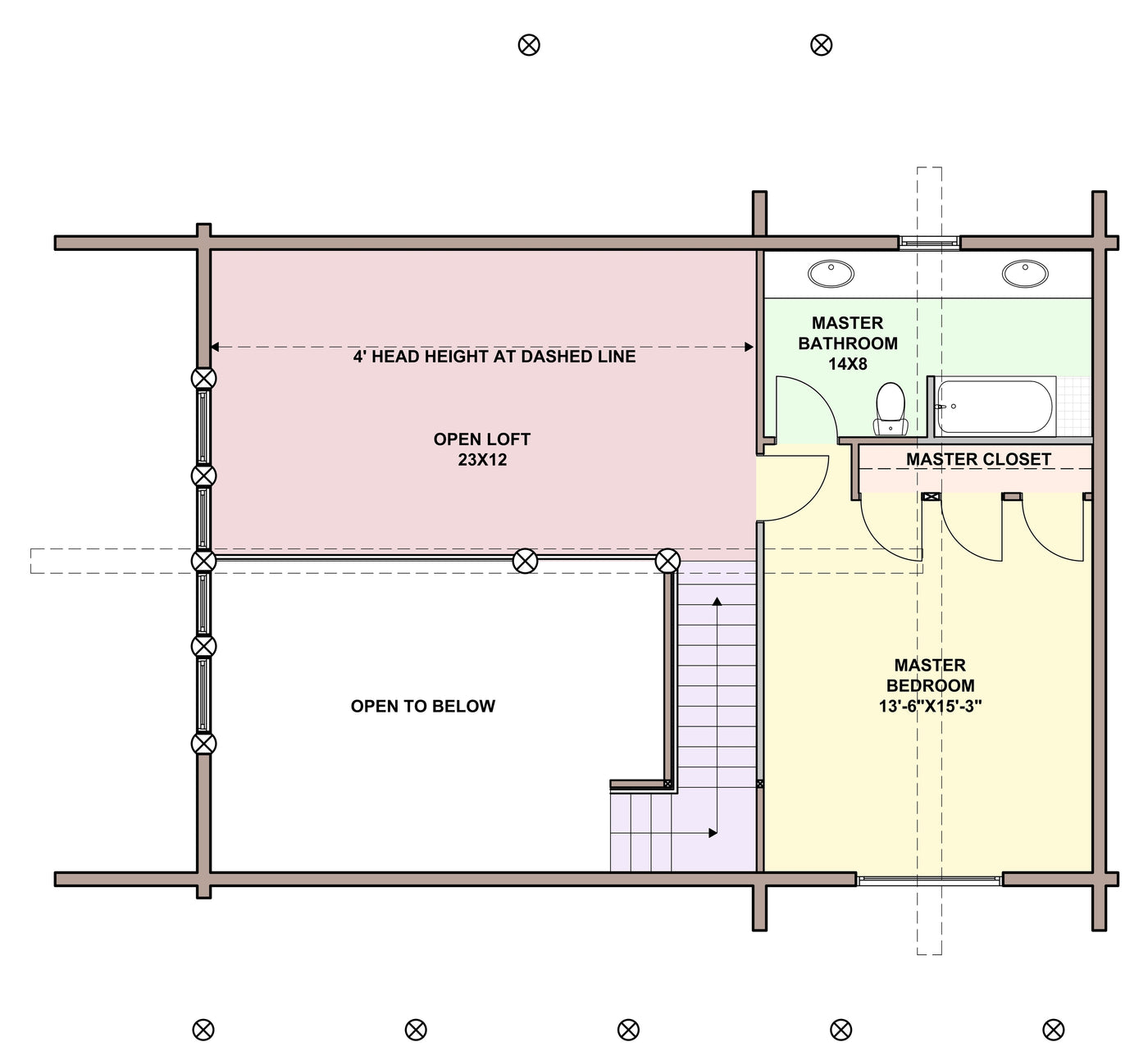

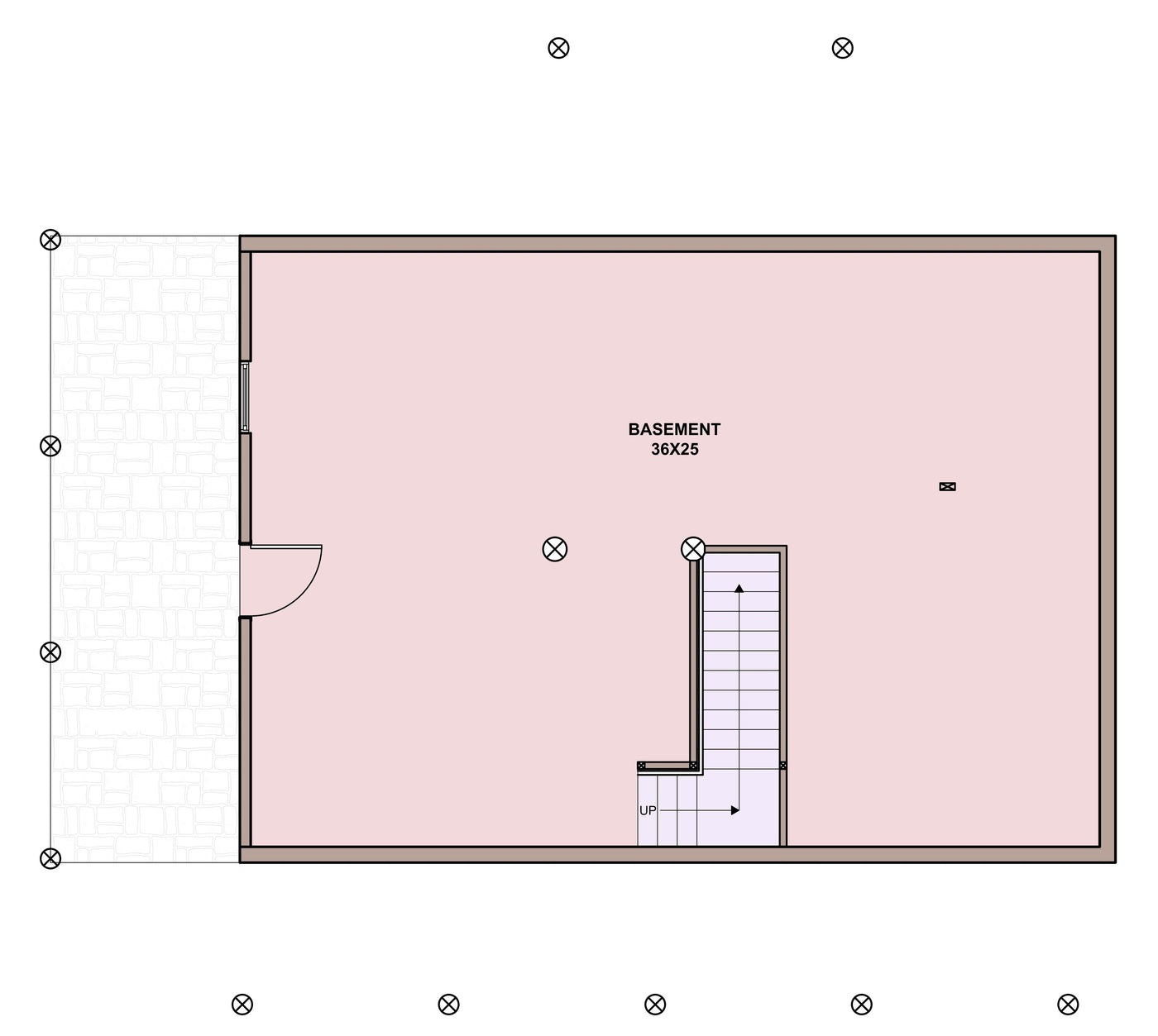

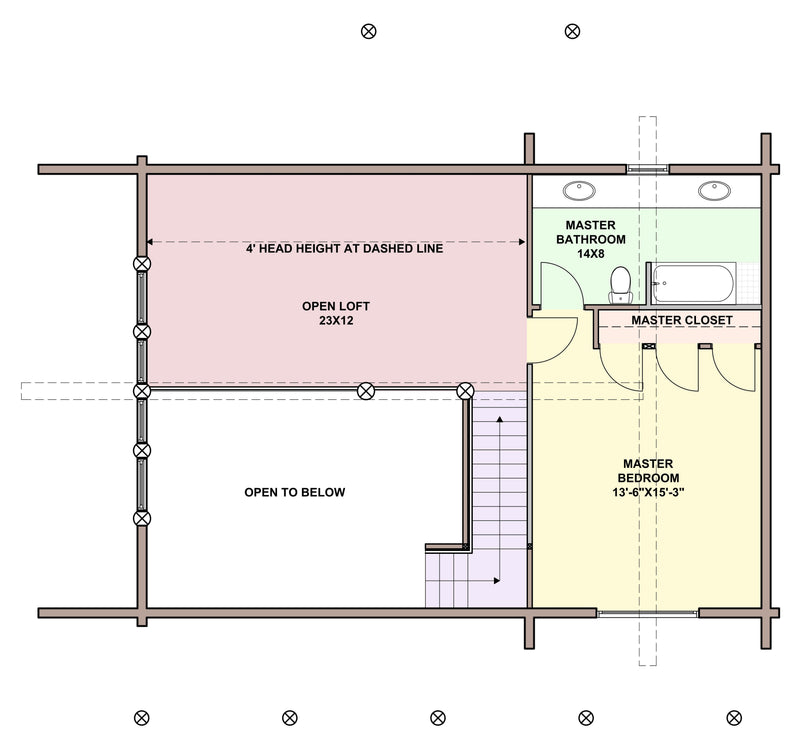

Floor plans
3D

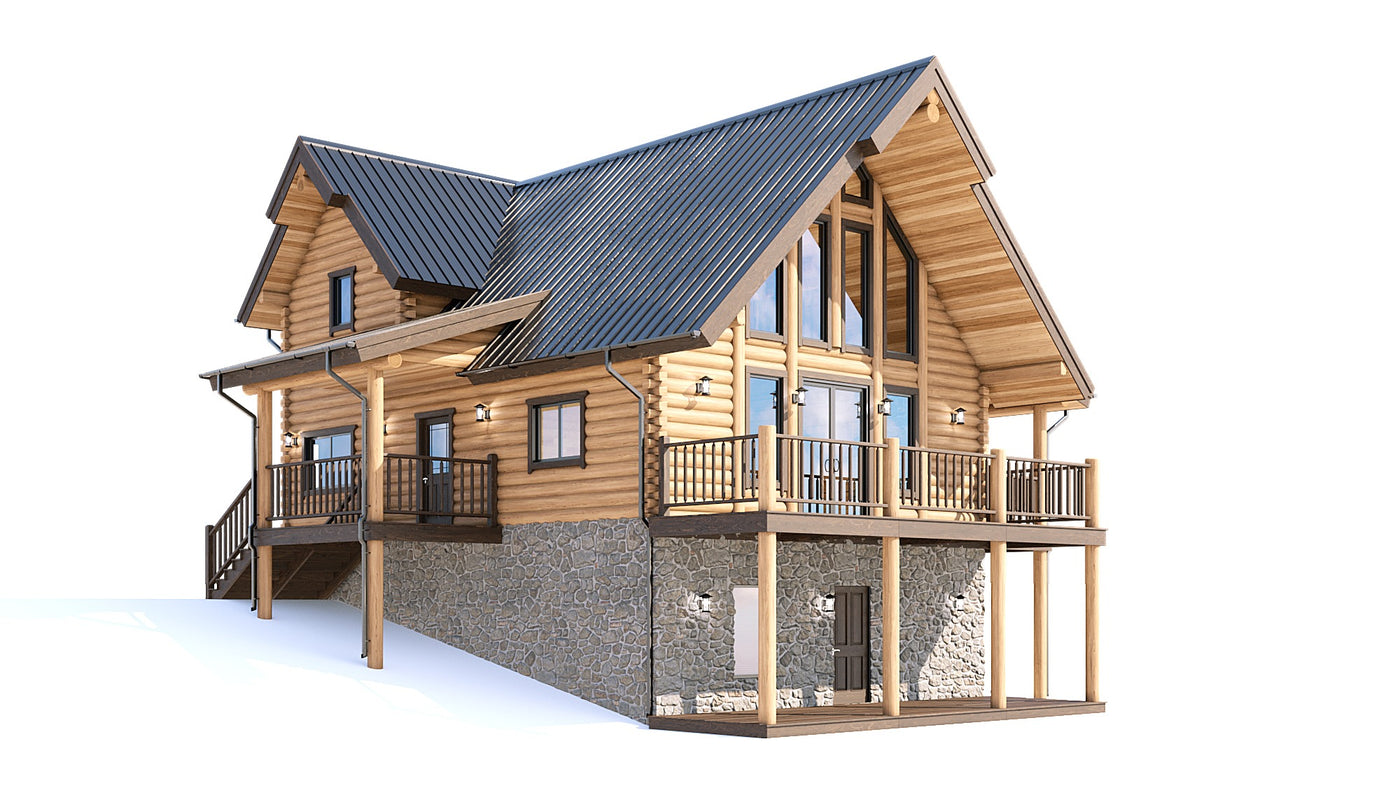

Perspective views
Renders

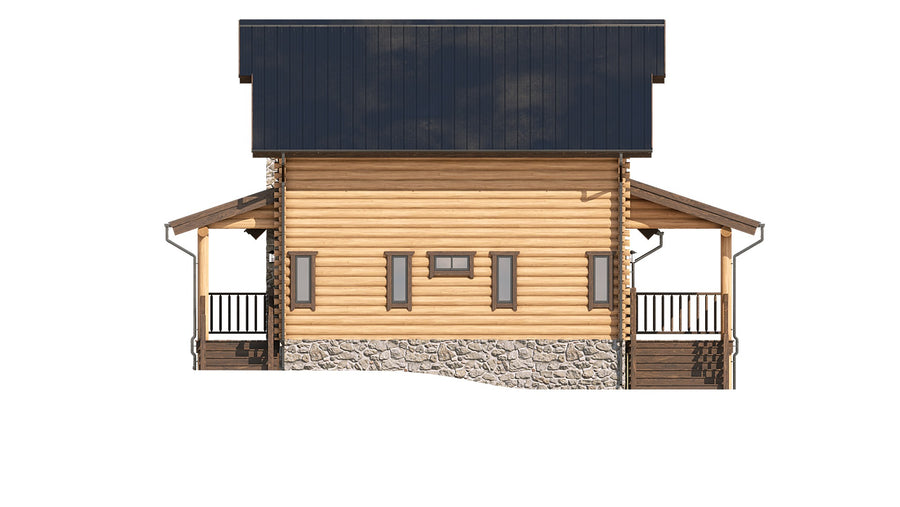

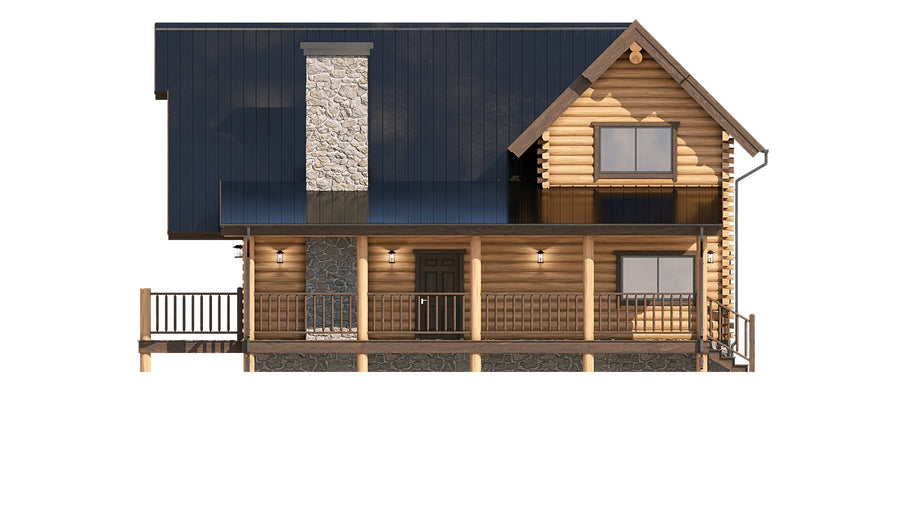

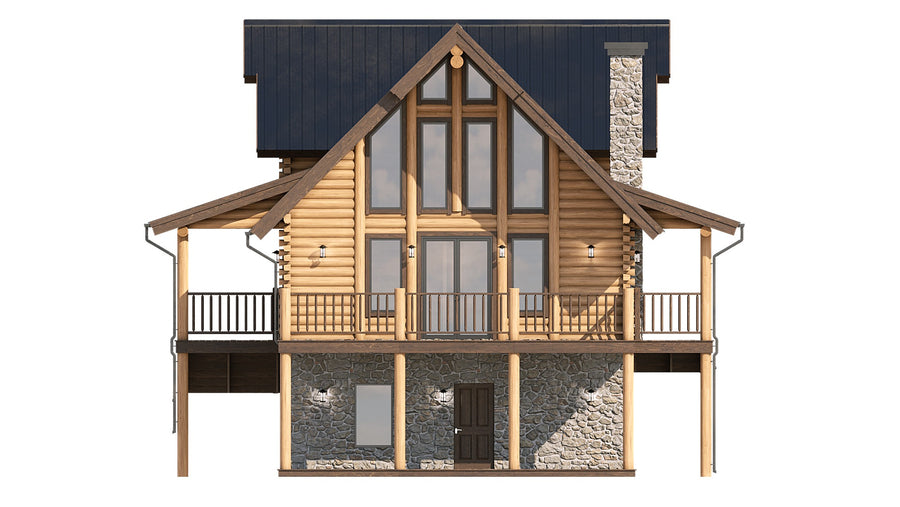

Ortho views
Technical

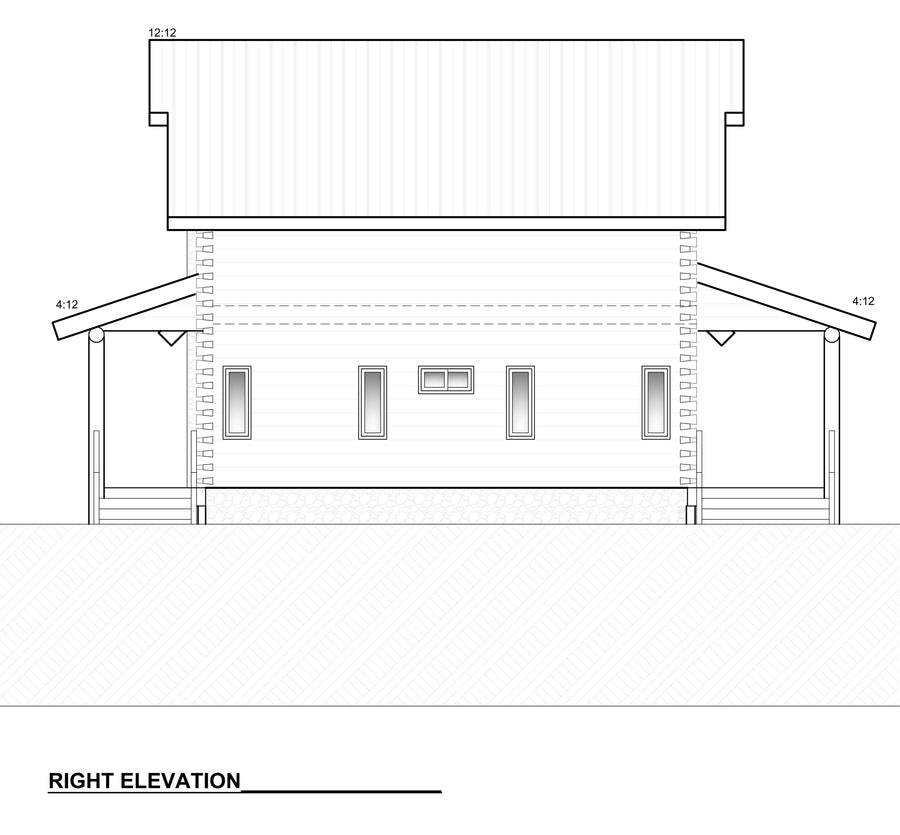

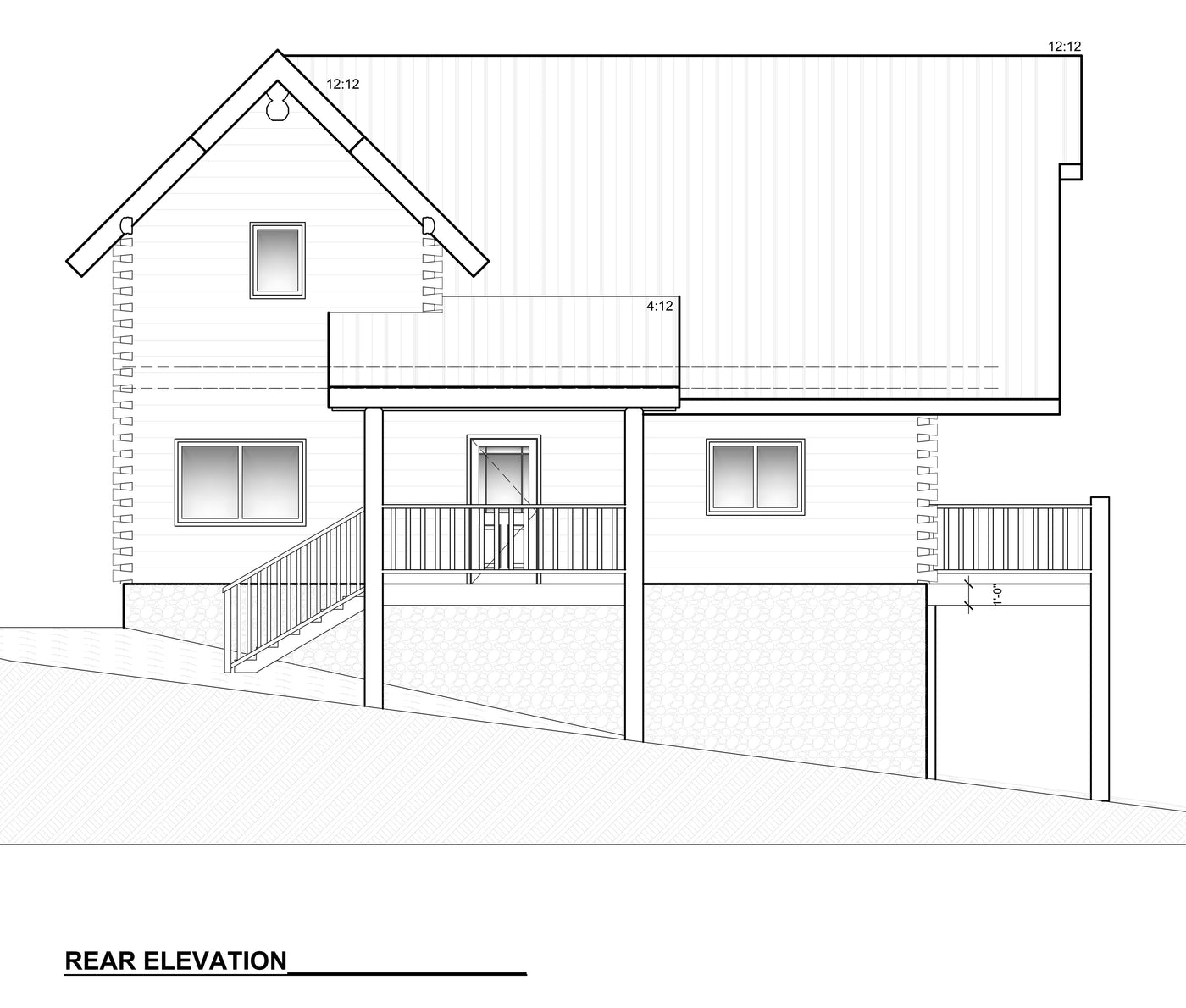

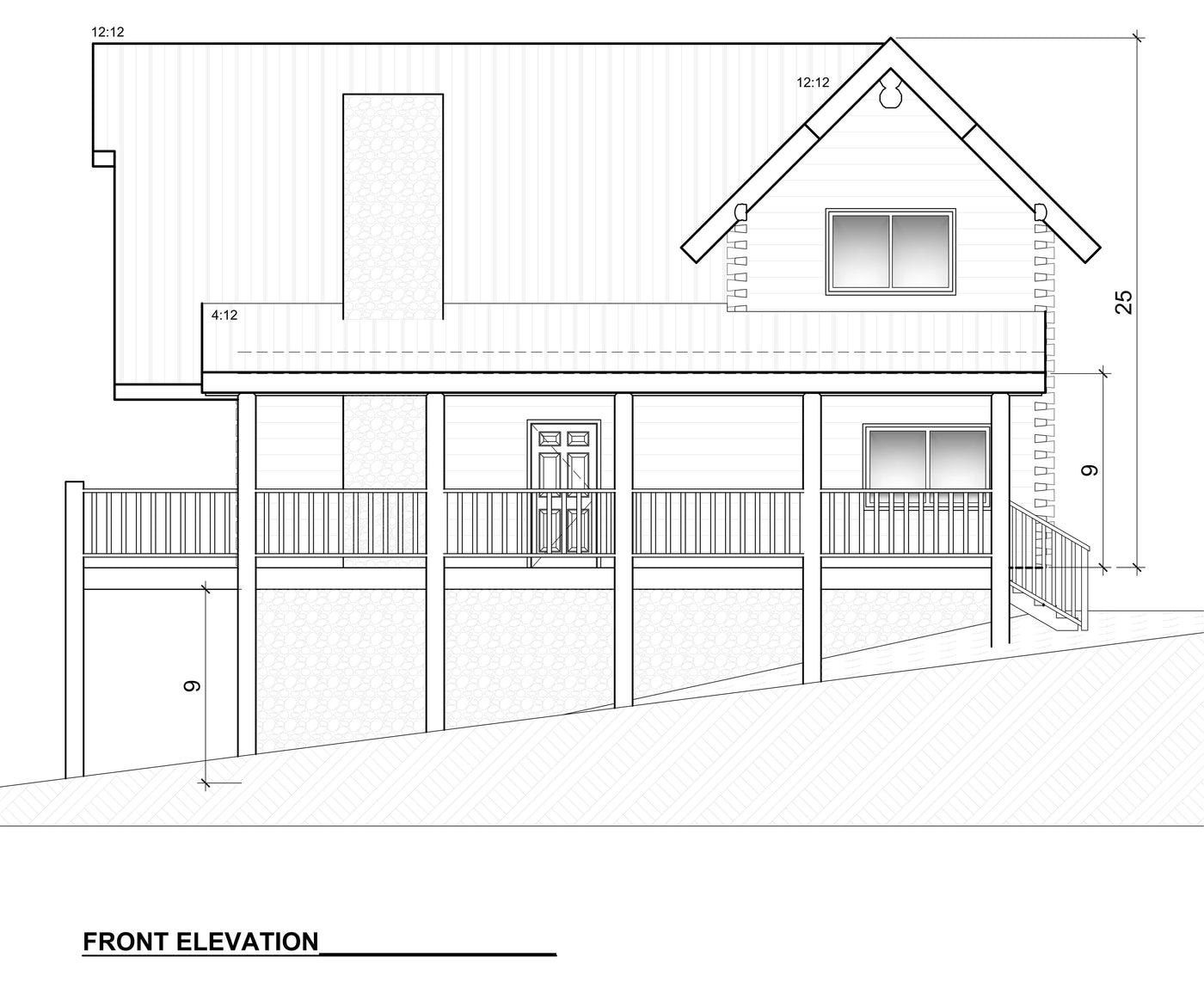

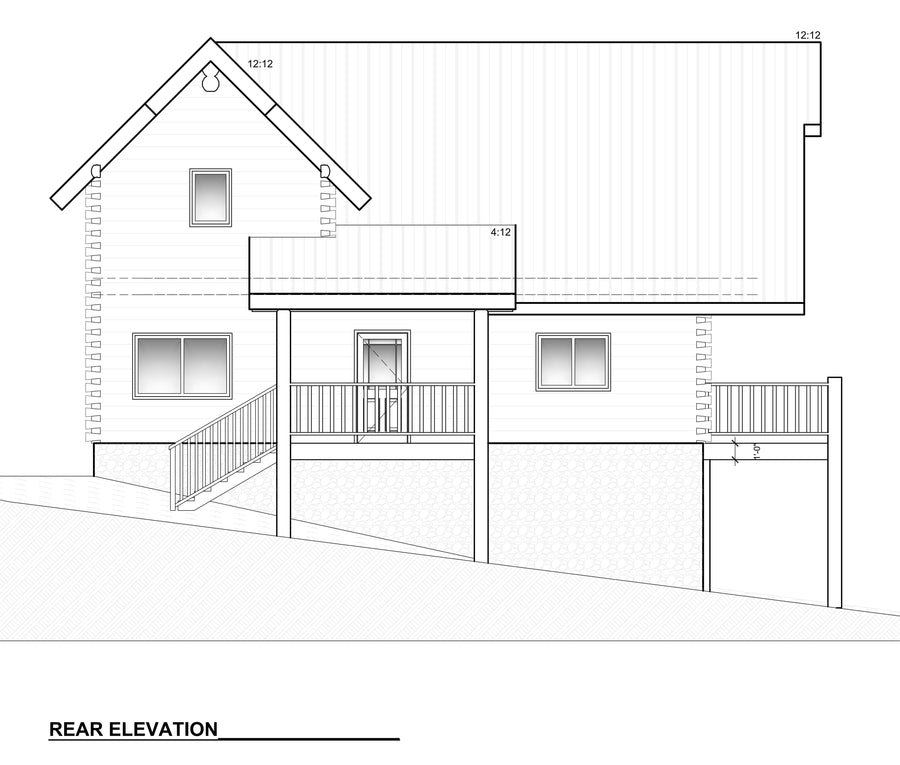

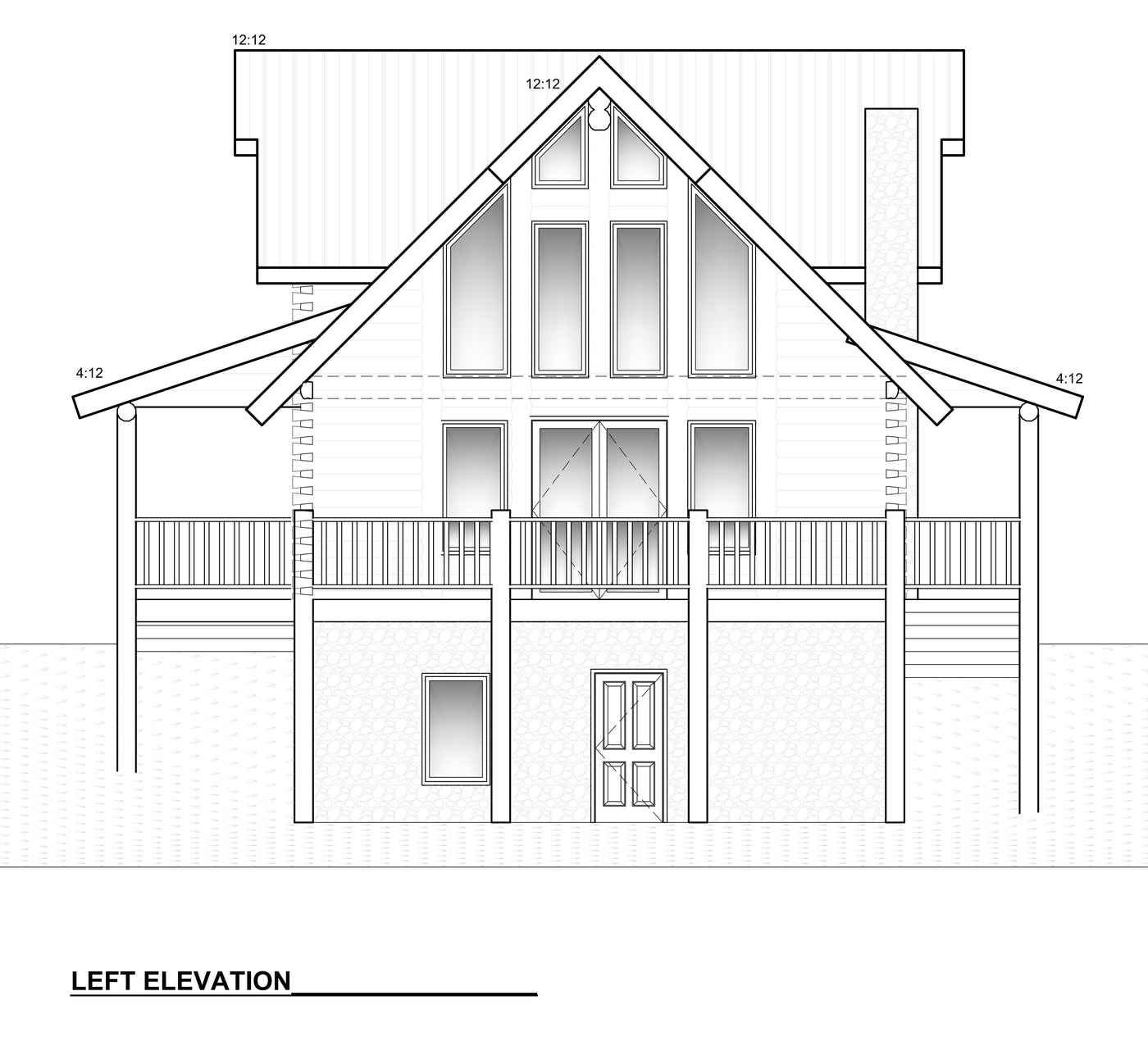

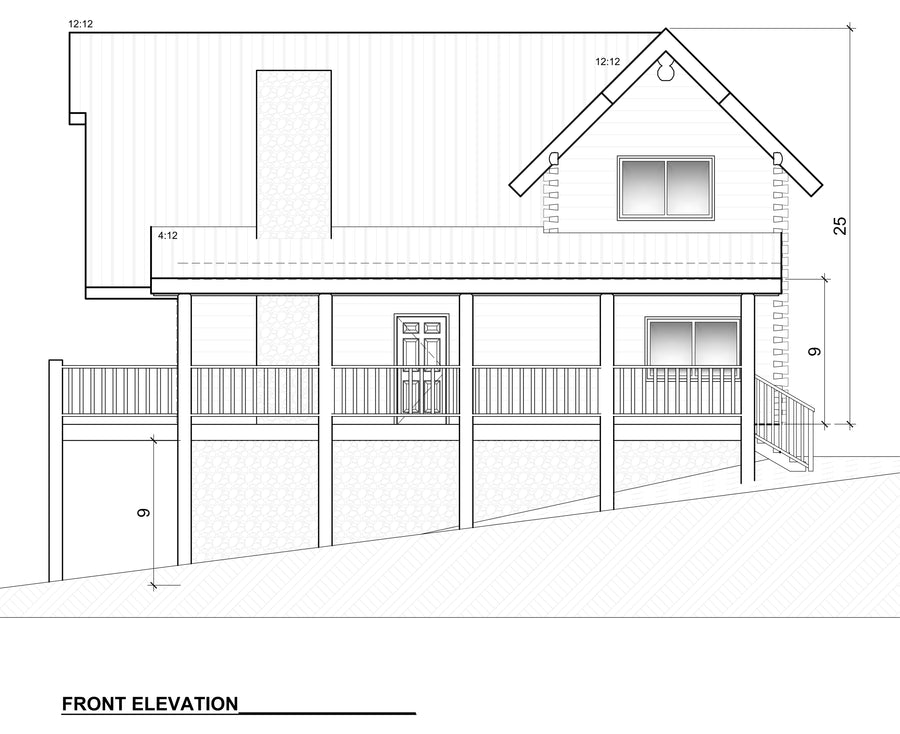

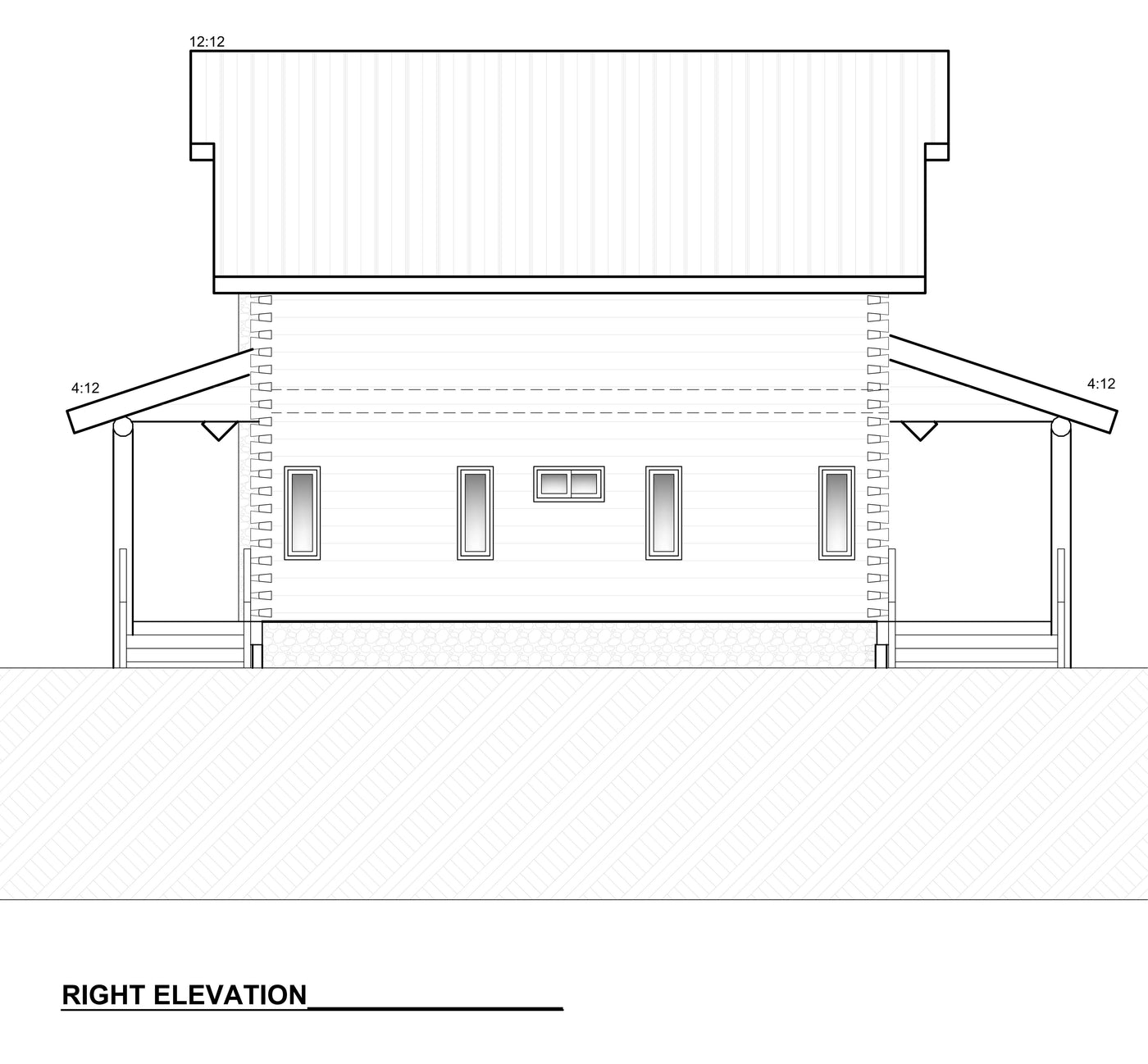

Elevation drawings
When you are ready to build
