Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Framed |
|---|---|
| Home Style | Barn / Garage / ADU |
| Bedrooms | 0 |
| Bathrooms | 0 |
| Stories | 2 |
| Main Sq Ft | 864 |
| Loft Sq Ft | 288 |
| Basement Sq Ft | — |
| Total Sq Ft | 1152 |
| Garage | Yes |
| Basement | — |
| Reference | Monitor Garage 3624 |
About this plan
The Monitor Garage by Sierra Log & Timber is a practical 1,152 sq ft framed cabin with a straightforward spirit and room to grow. The loft could be built out thus creating an ADU style of home. Ideal for hobbyists, car enthusiasts, or anyone dreaming of a flexible workshop and retreat, this two-story plan centers around an 864 sq ft main level that’s ready for tools, gear, or creative projects. Upstairs, a 288 sq ft loft offers adaptable space for a studio, office, or even a cozy bunk area for weekend stays. With its generous garage and open layout, the Monitor Garage is well-suited as a Adu, workshop, guest quarters, or a basecamp for outdoor adventures. Like all our plans, it can be tailored to fit your vision, blending utility with the warmth of handcrafted timber style.

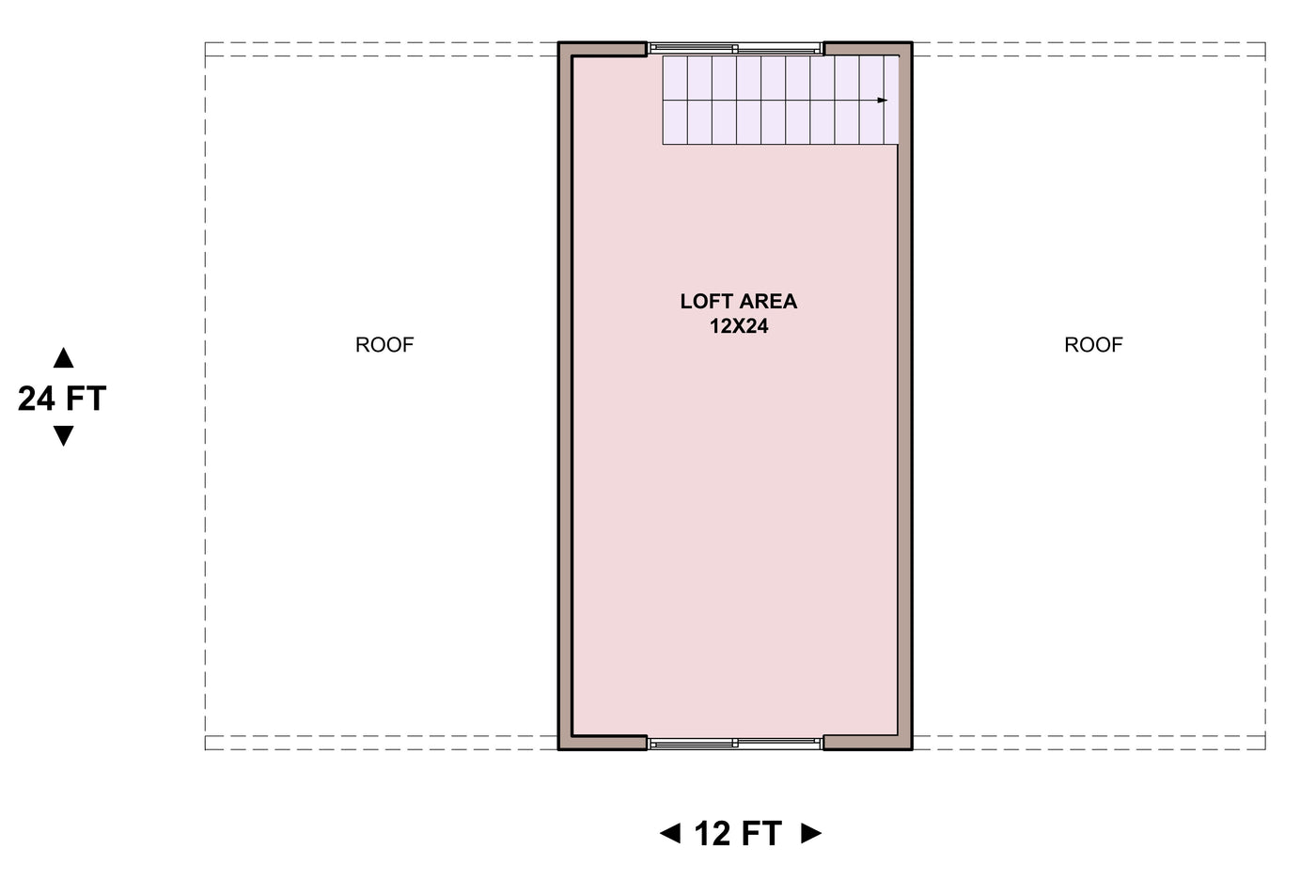

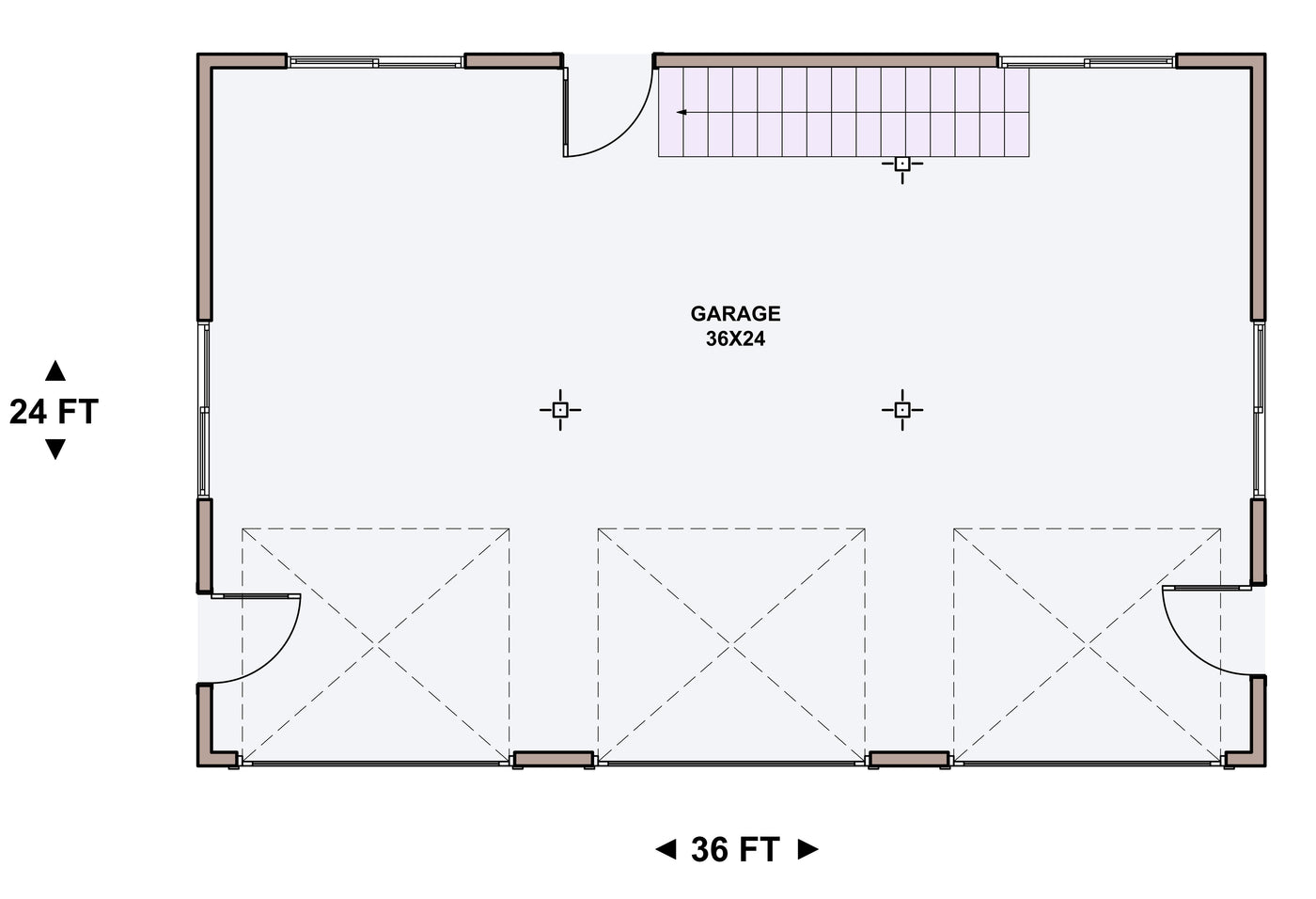

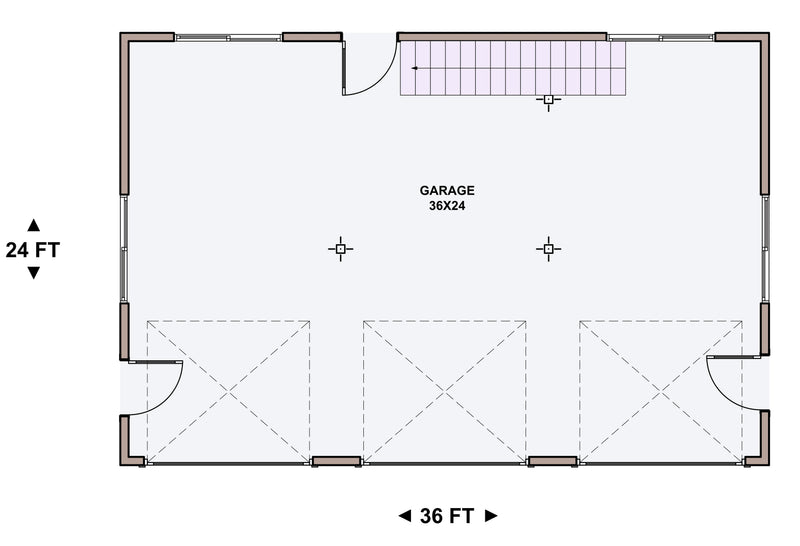

Floor plans
3D

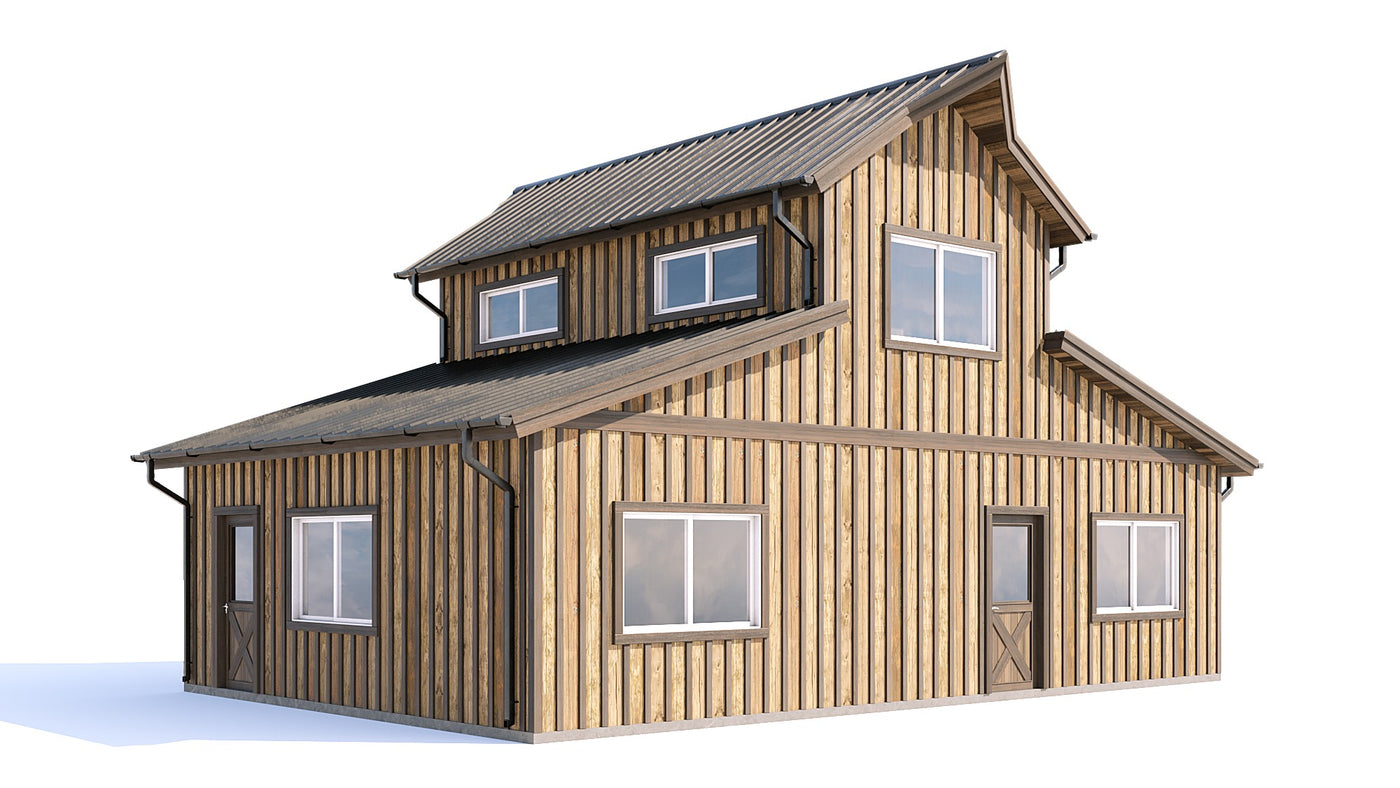

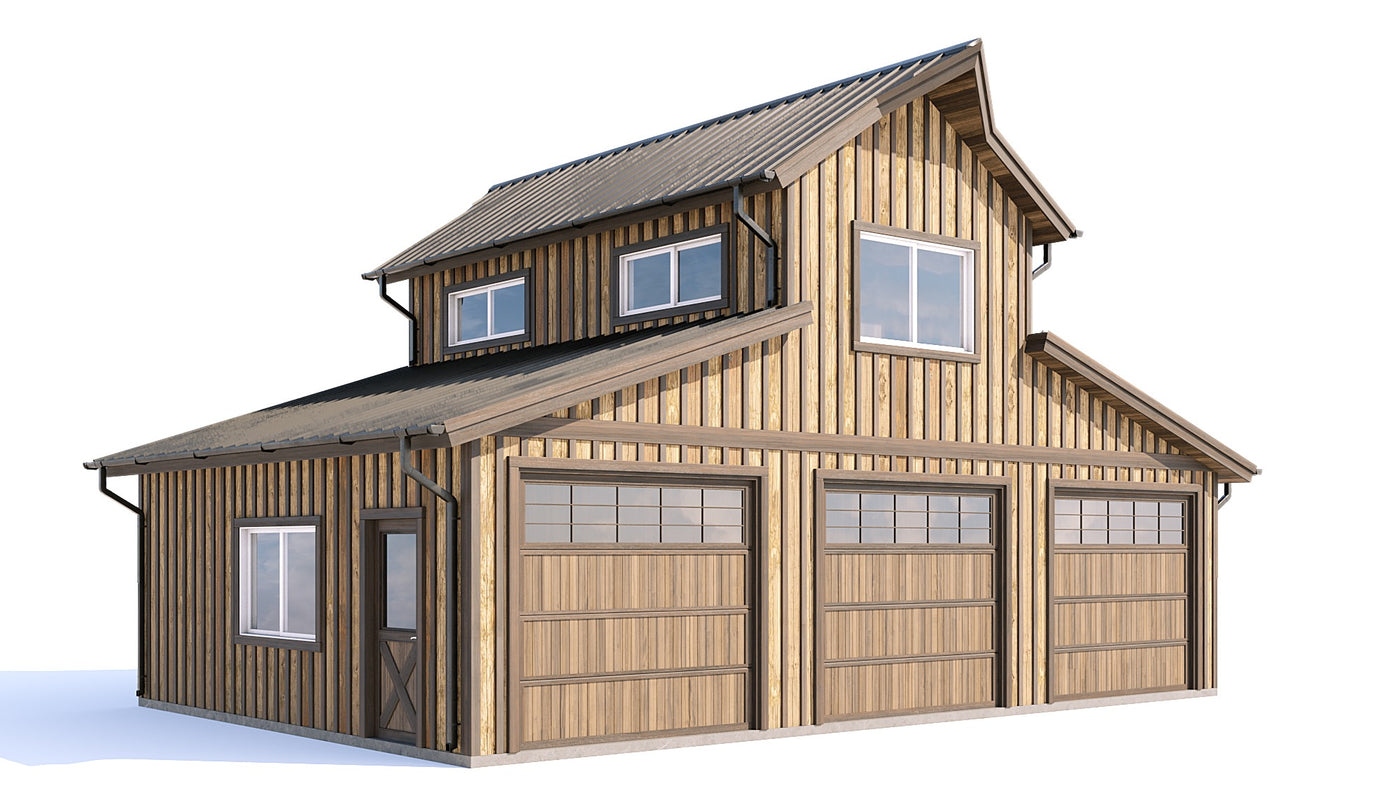

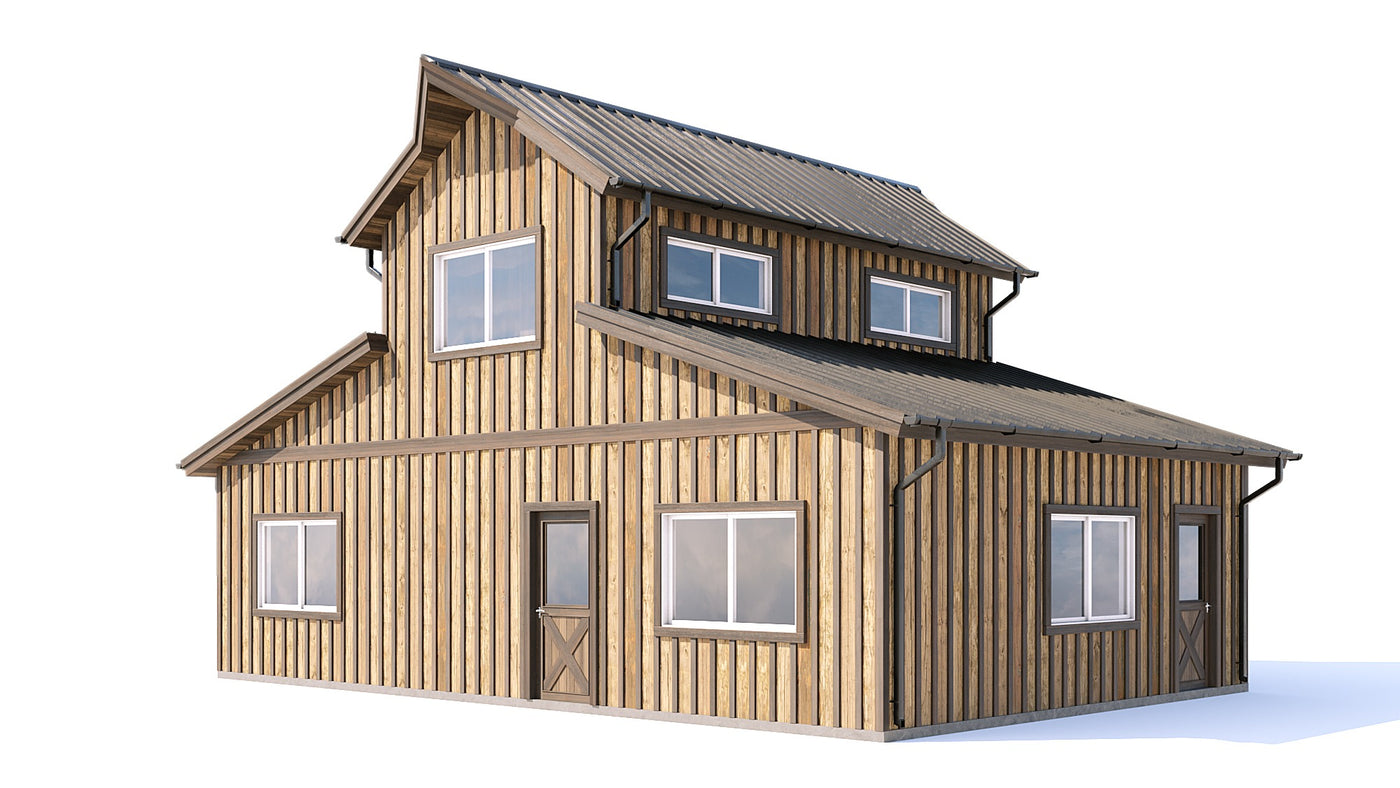

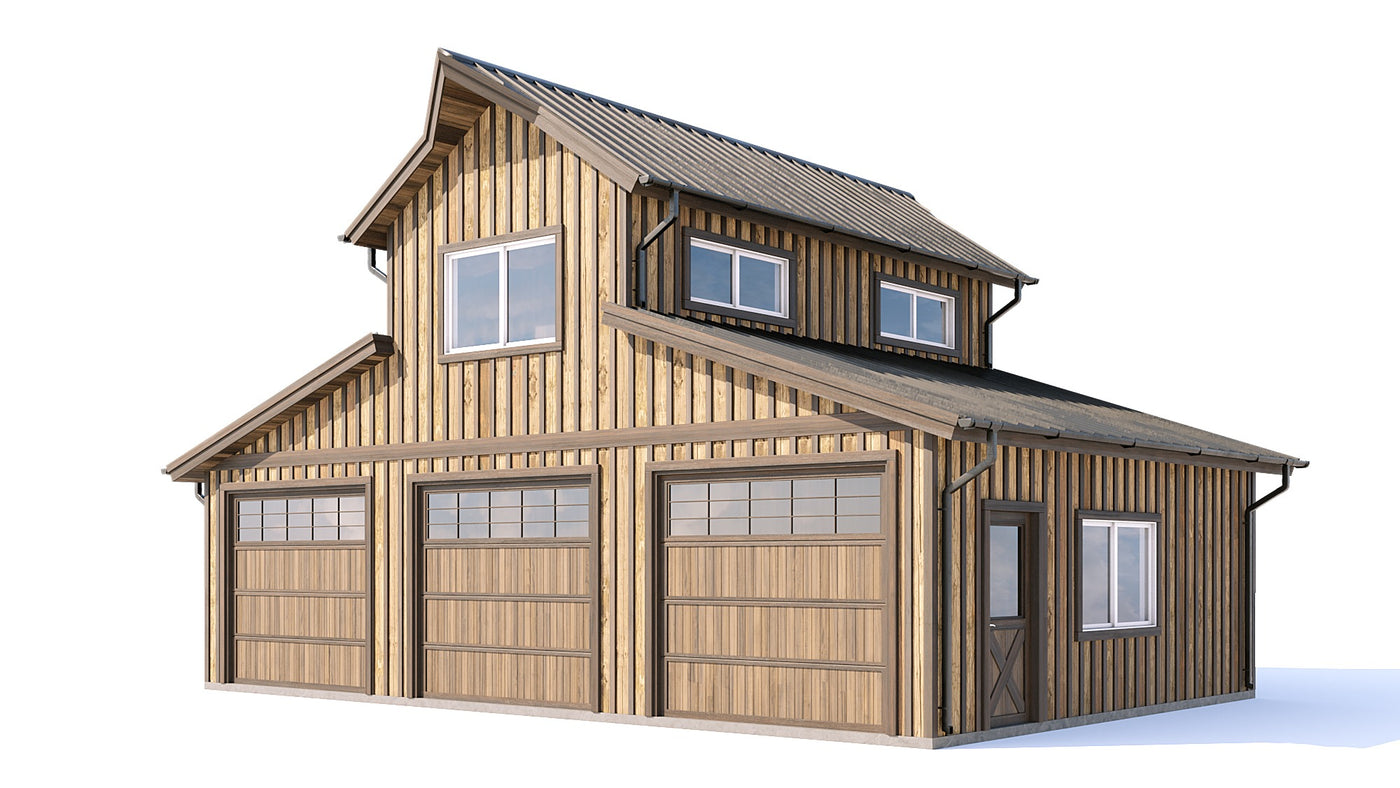

Perspective views

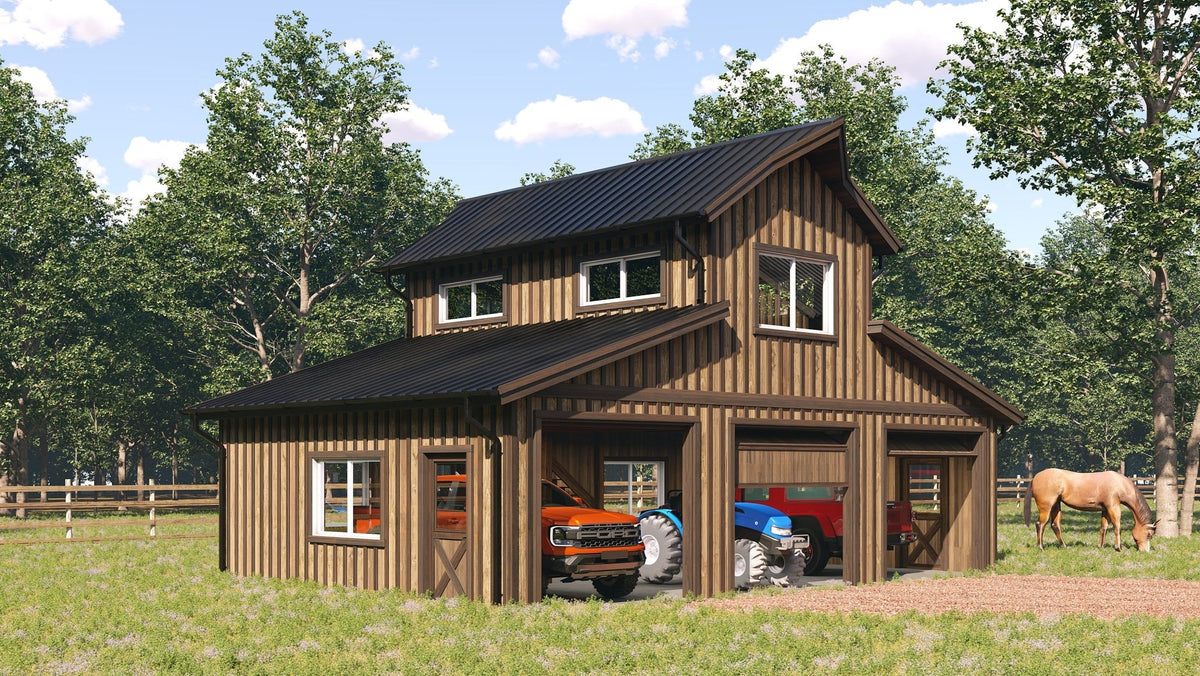

Renders

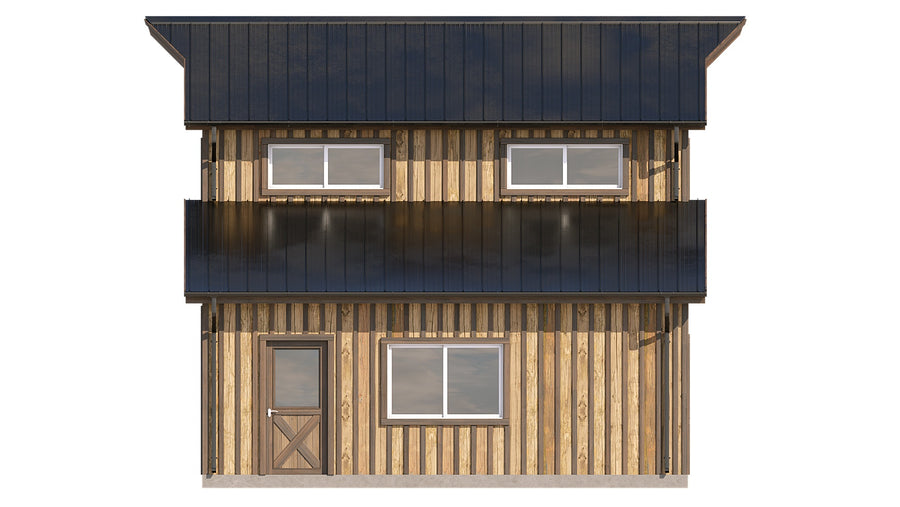

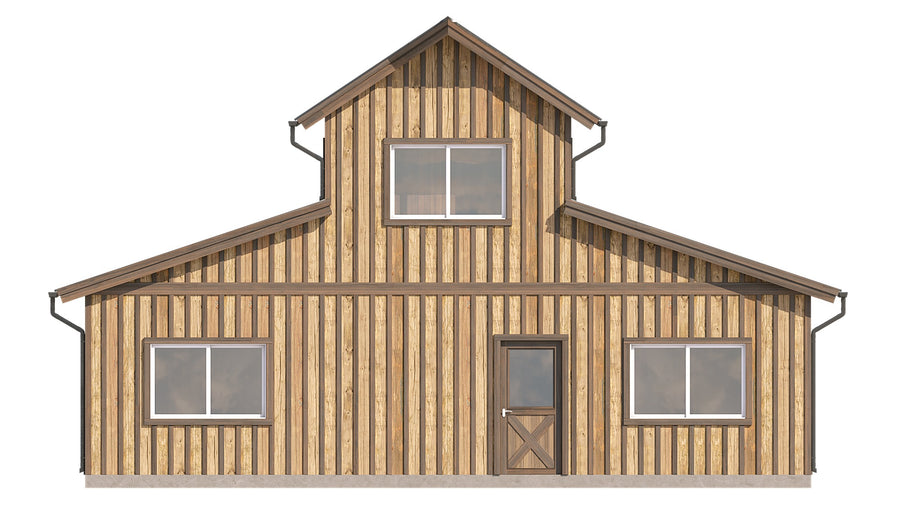

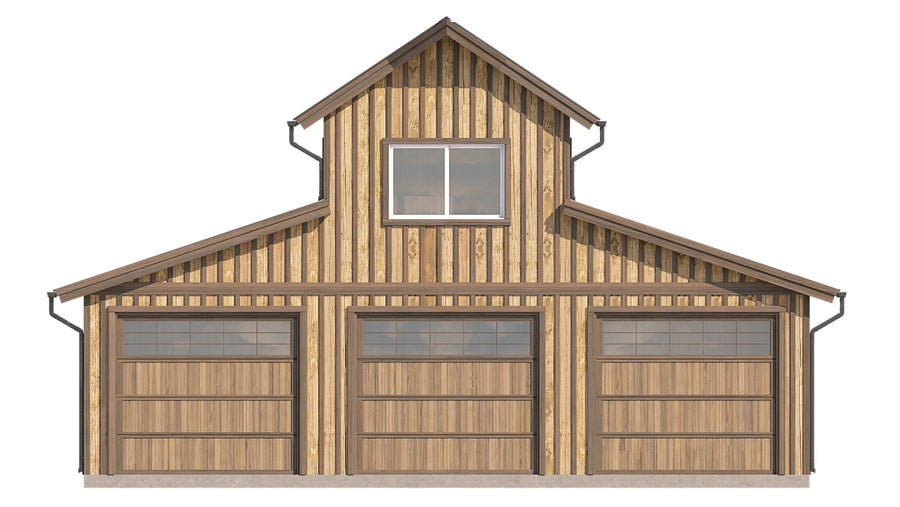

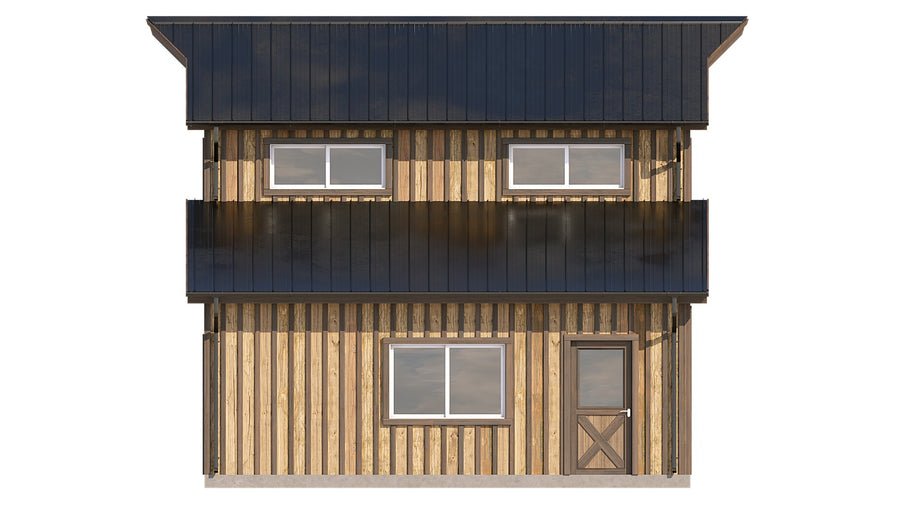

Ortho views
When you are ready to build
