Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / ADU |
| Bedrooms | 1 |
| Bathrooms | 1 |
| Stories | 2 |
| Main Sq Ft | 560 |
| Loft Sq Ft | 280 |
| Basement Sq Ft | — |
| Total Sq Ft | 840 |
| Garage | — |
| Basement | — |
| Reference | Magnani |
About this plan
The Lookout by Sierra Log & Timber is a warm and inviting 840 sq ft log cabin that captures the spirit of simple living with thoughtful design. Ideal for couples or solo adventurers, this two-story retreat features a cozy main level with 560 sq ft dedicated to a welcoming great room, a practical kitchen, a full bathroom, and a comfortable primary bedroom. Upstairs, the 280 sq ft loft offers flexible space for a guest bed, reading nook, or creative studio, letting you shape it to your needs. Whether you dream of a quiet mountain escape, a lakeside hideaway, or a guest cabin for family and friends, the Lookout brings together efficient use of space and classic log craftsmanship. Custom options are available to make it truly yours.

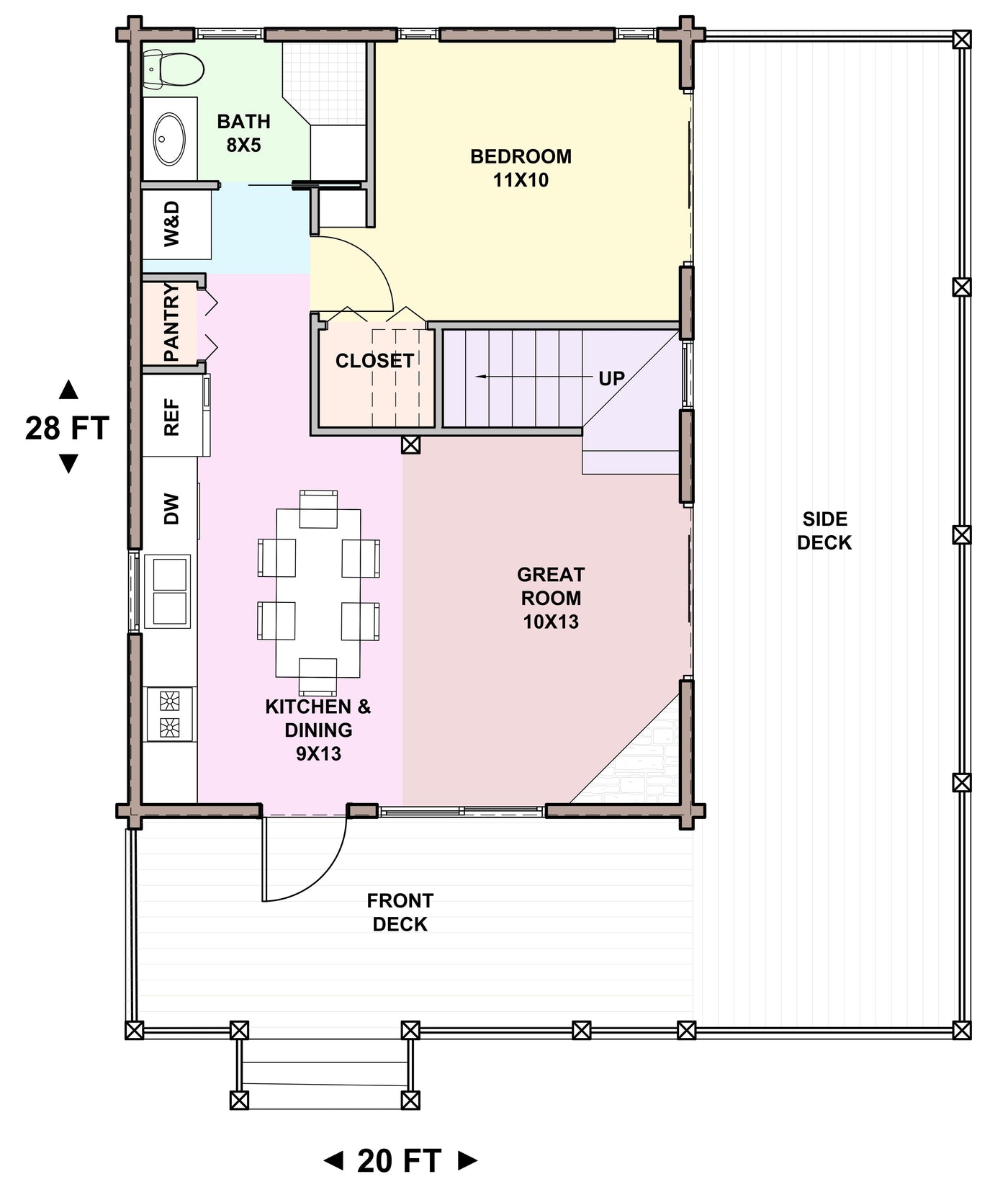

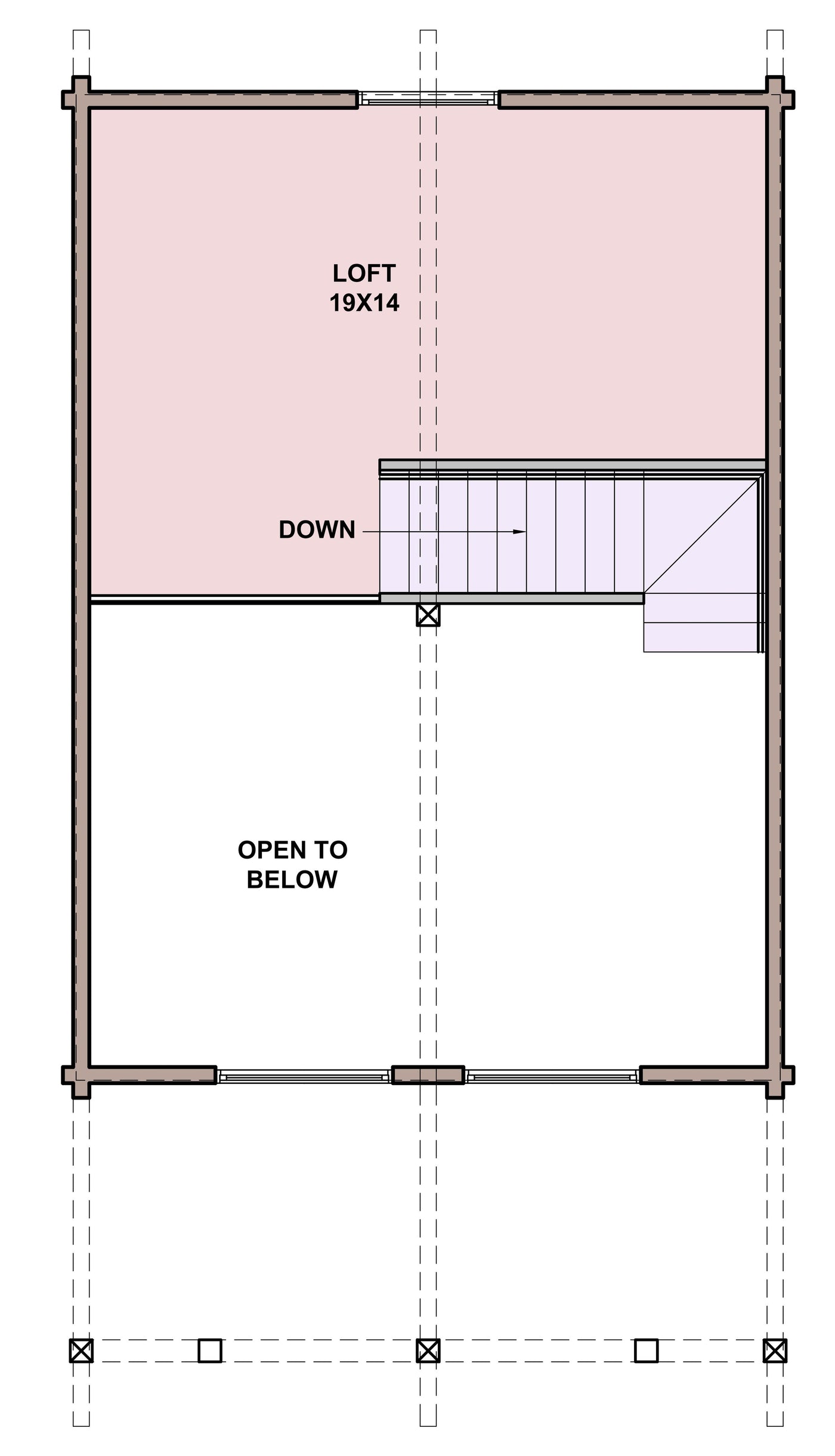

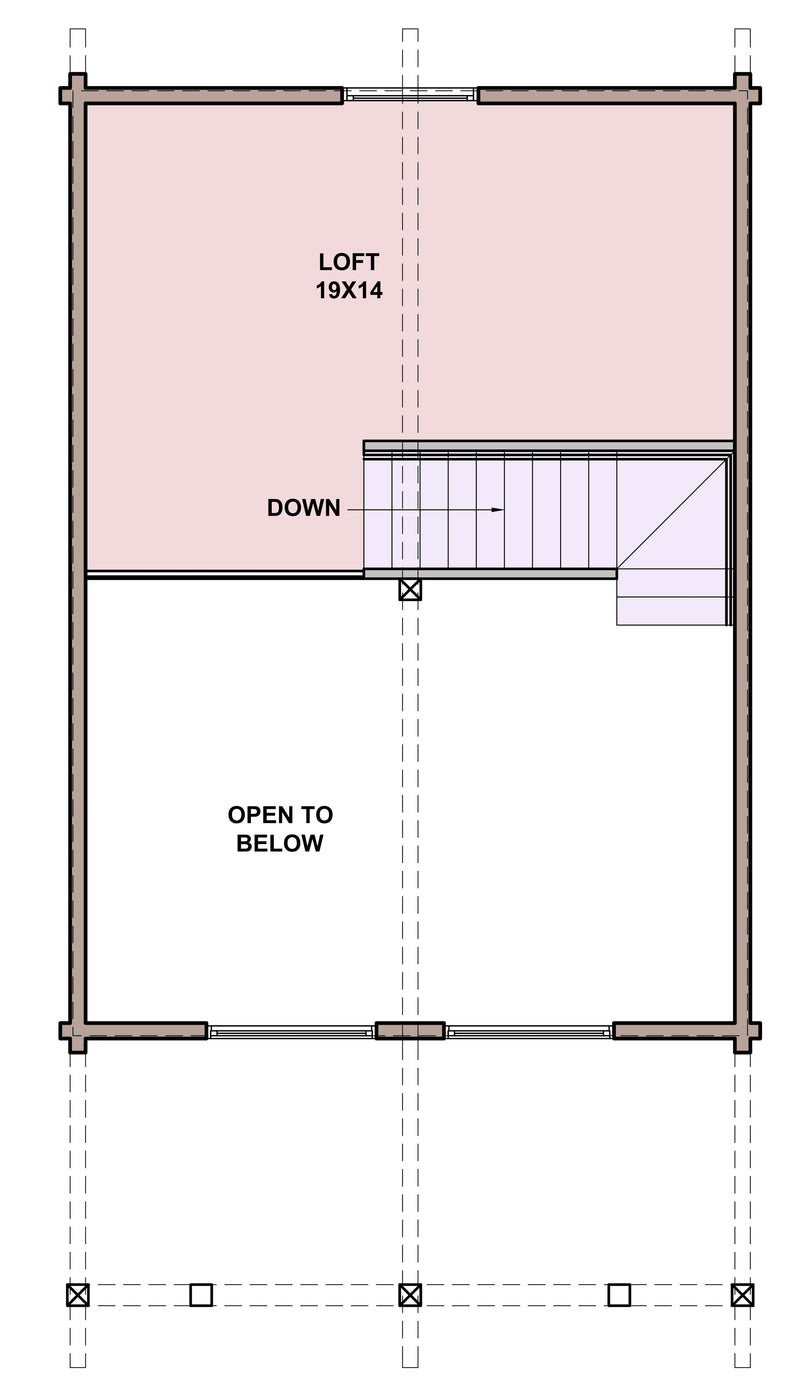

Floor plans
3D

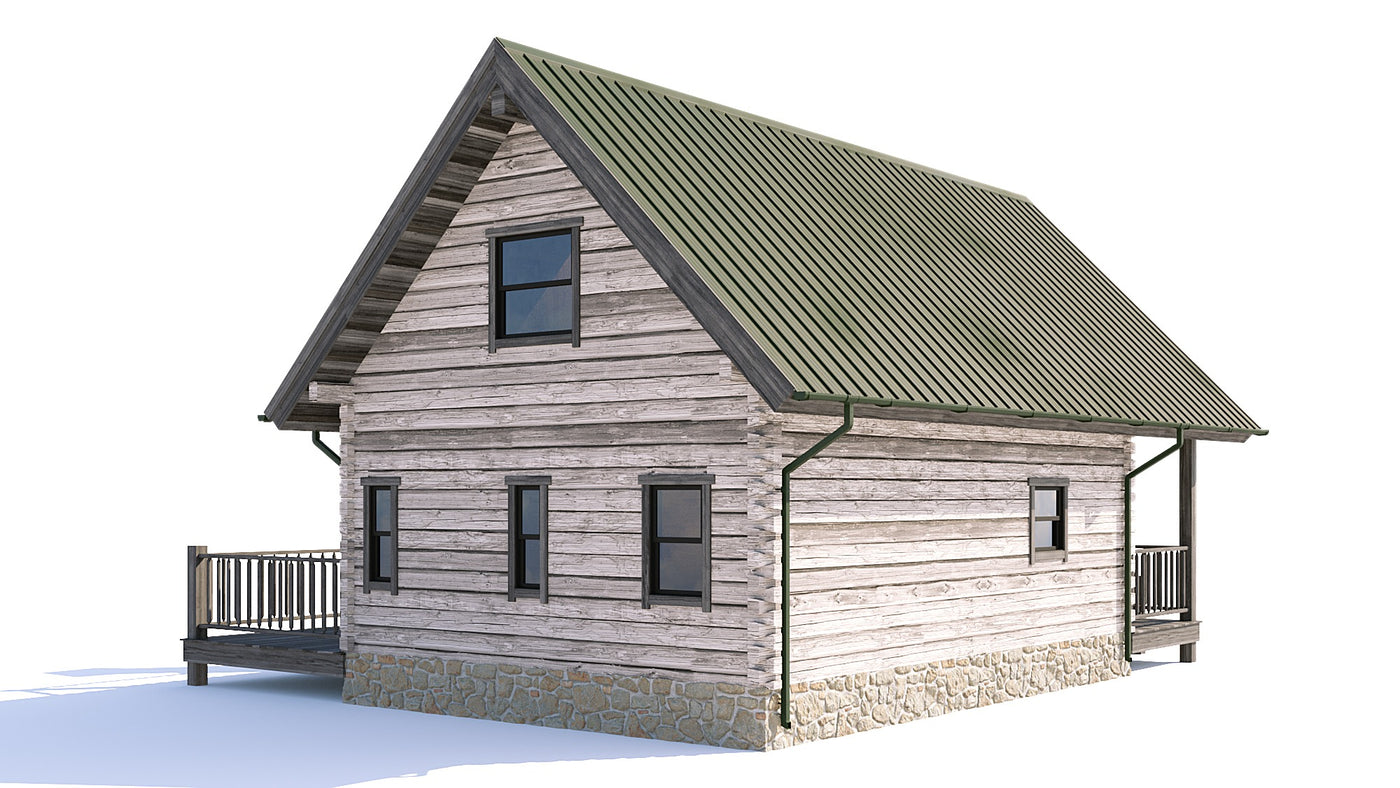

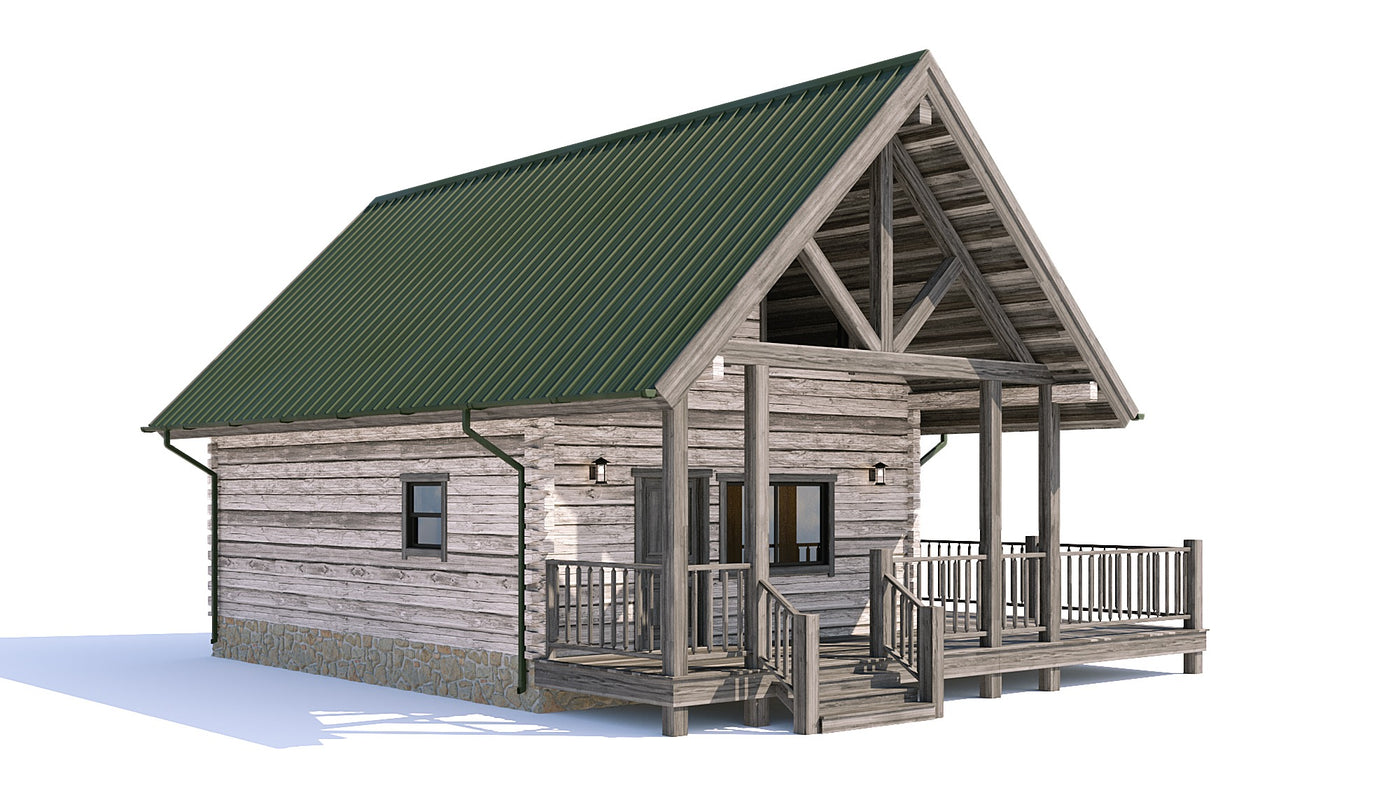

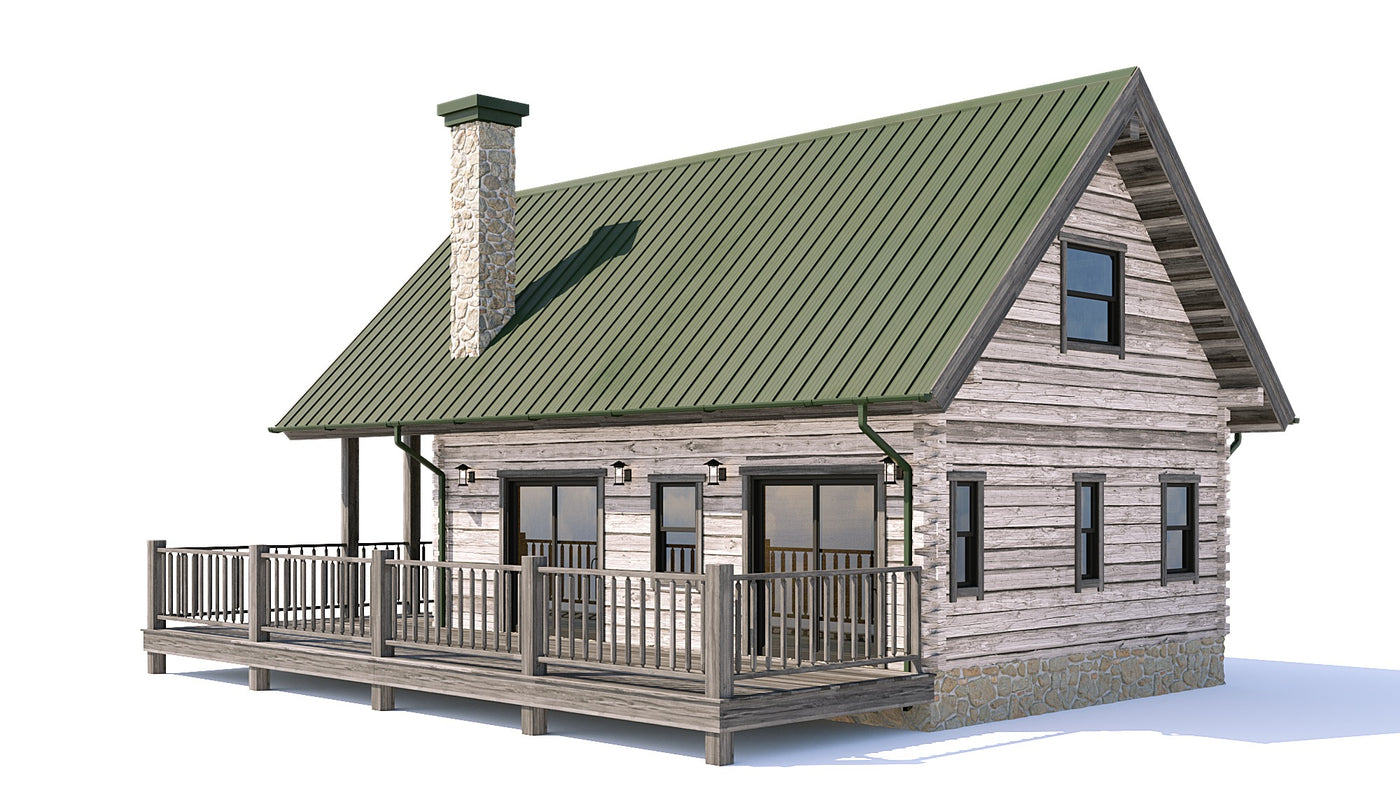

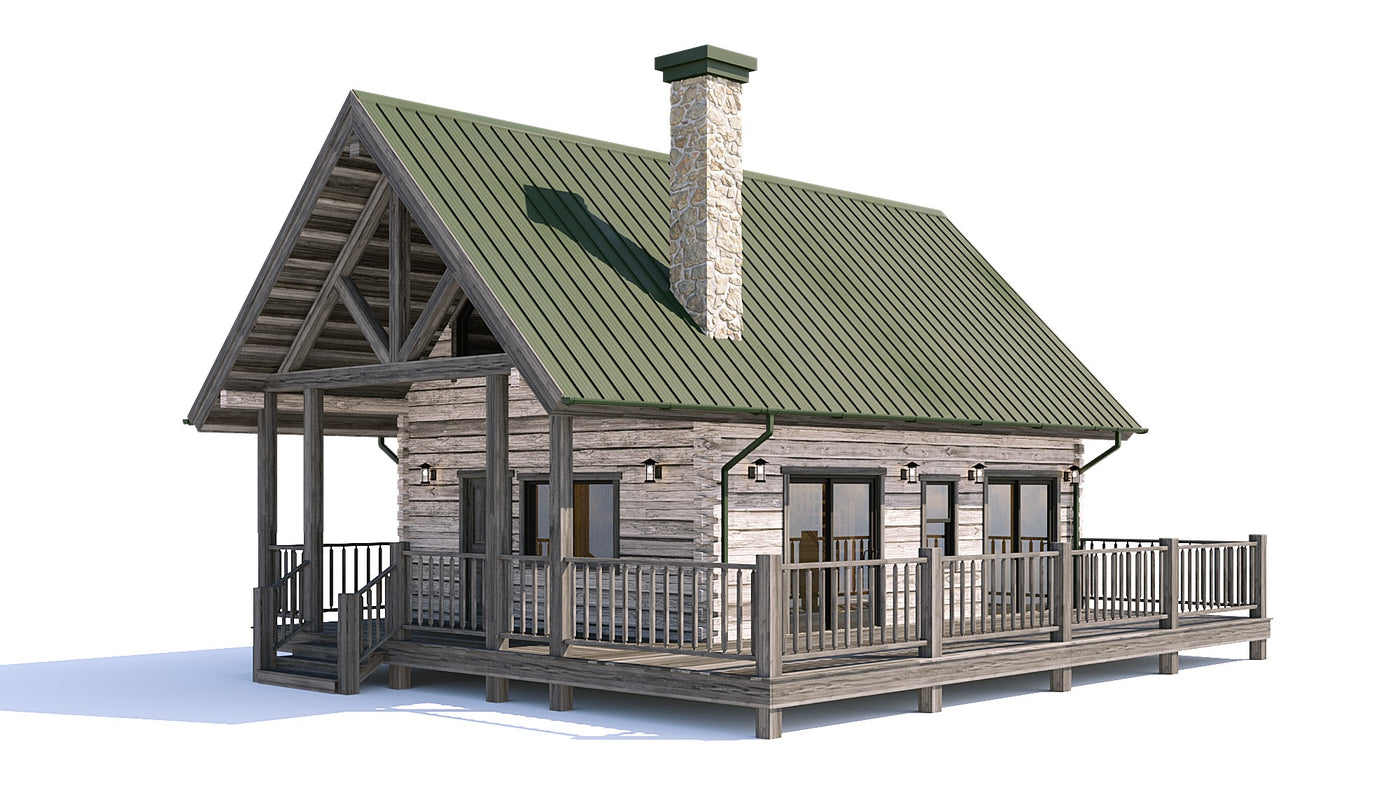

Perspective views
Renders

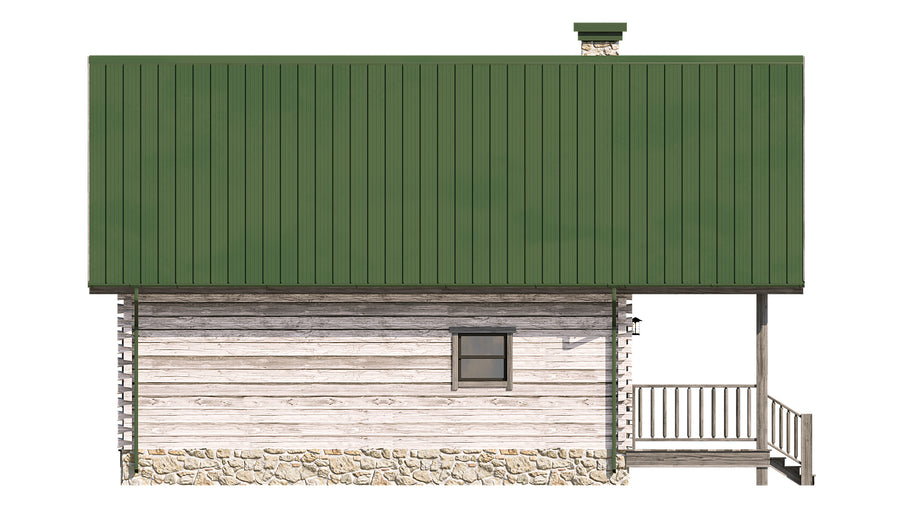

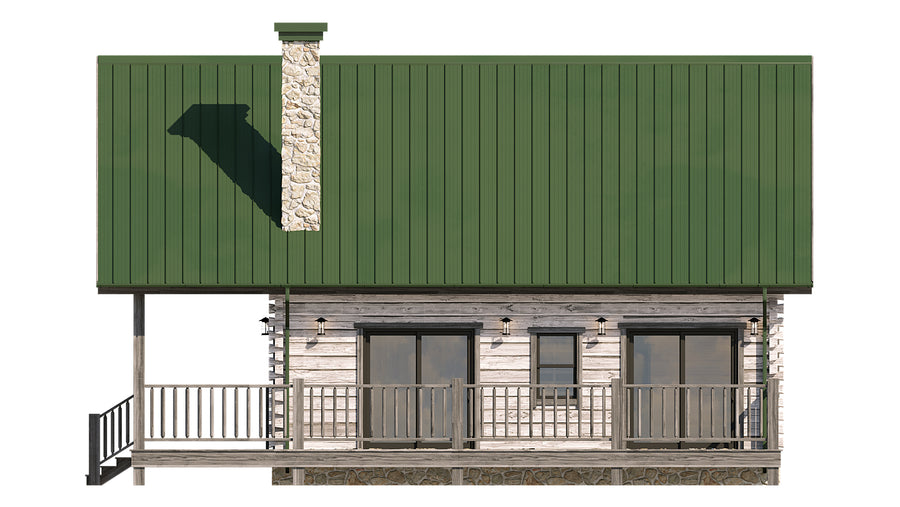

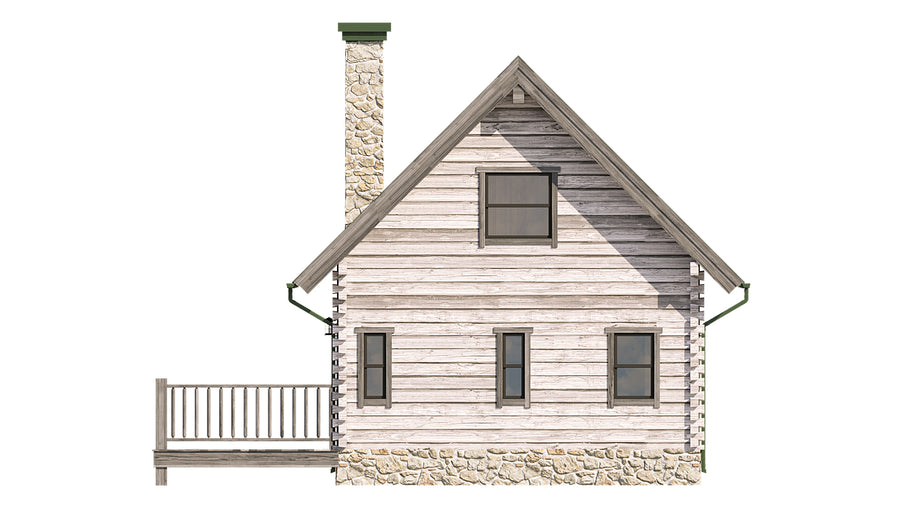

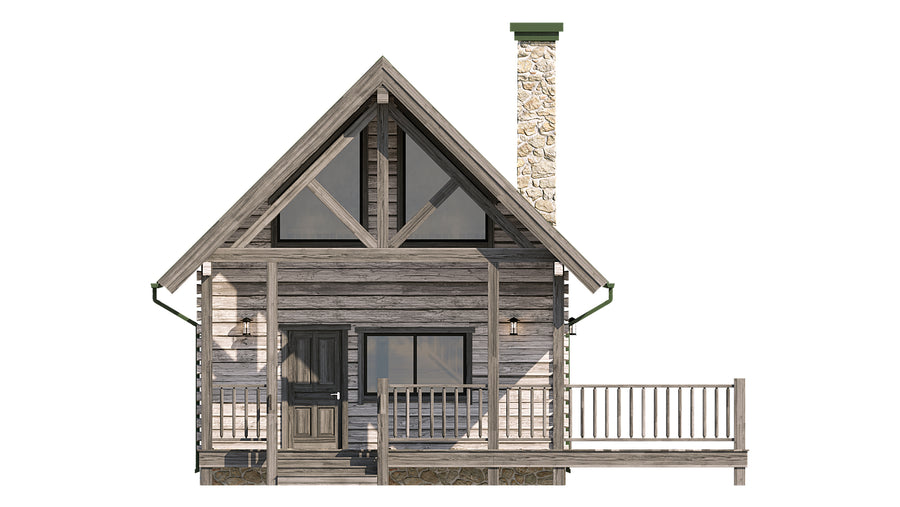

Ortho views
Technical

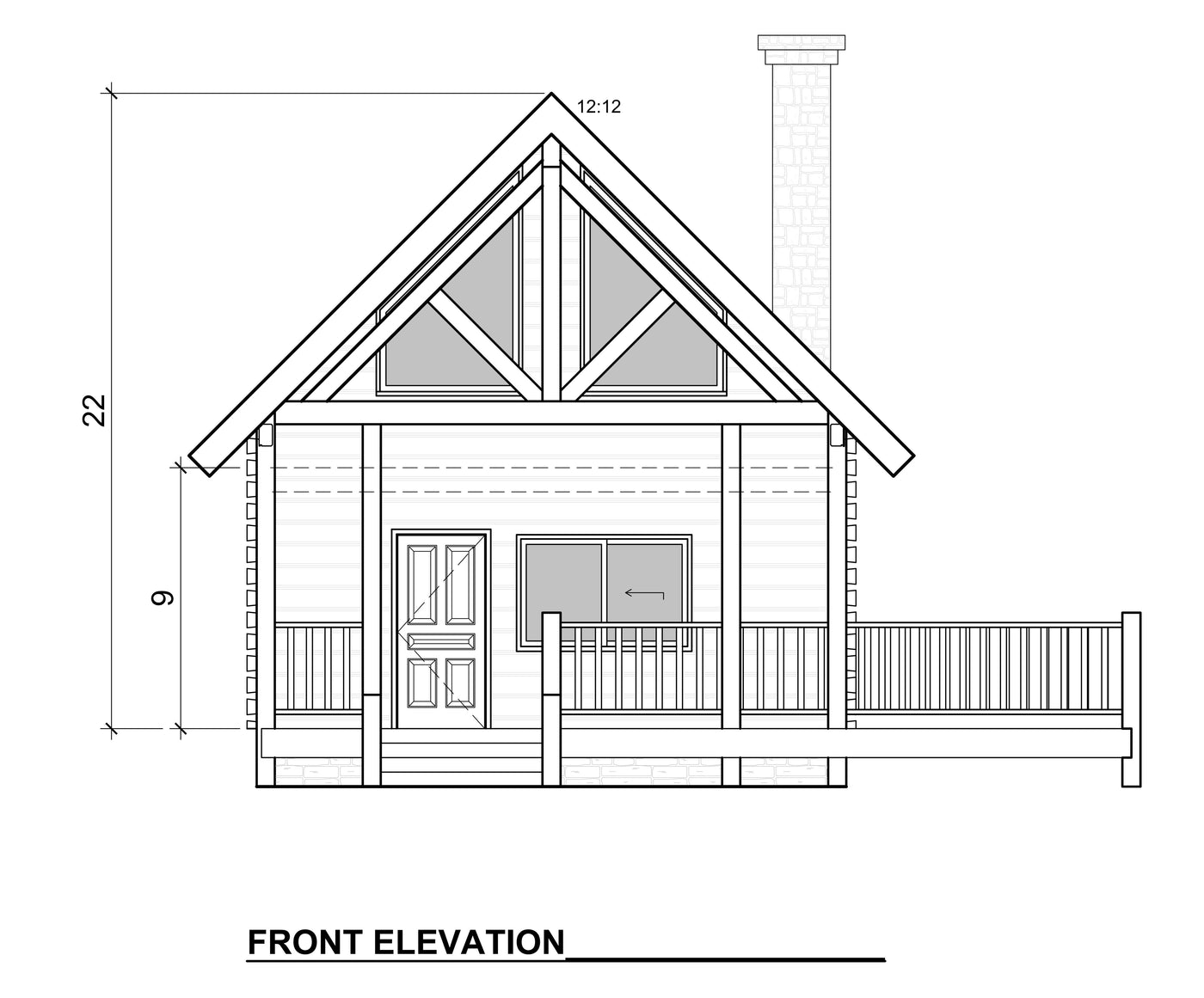

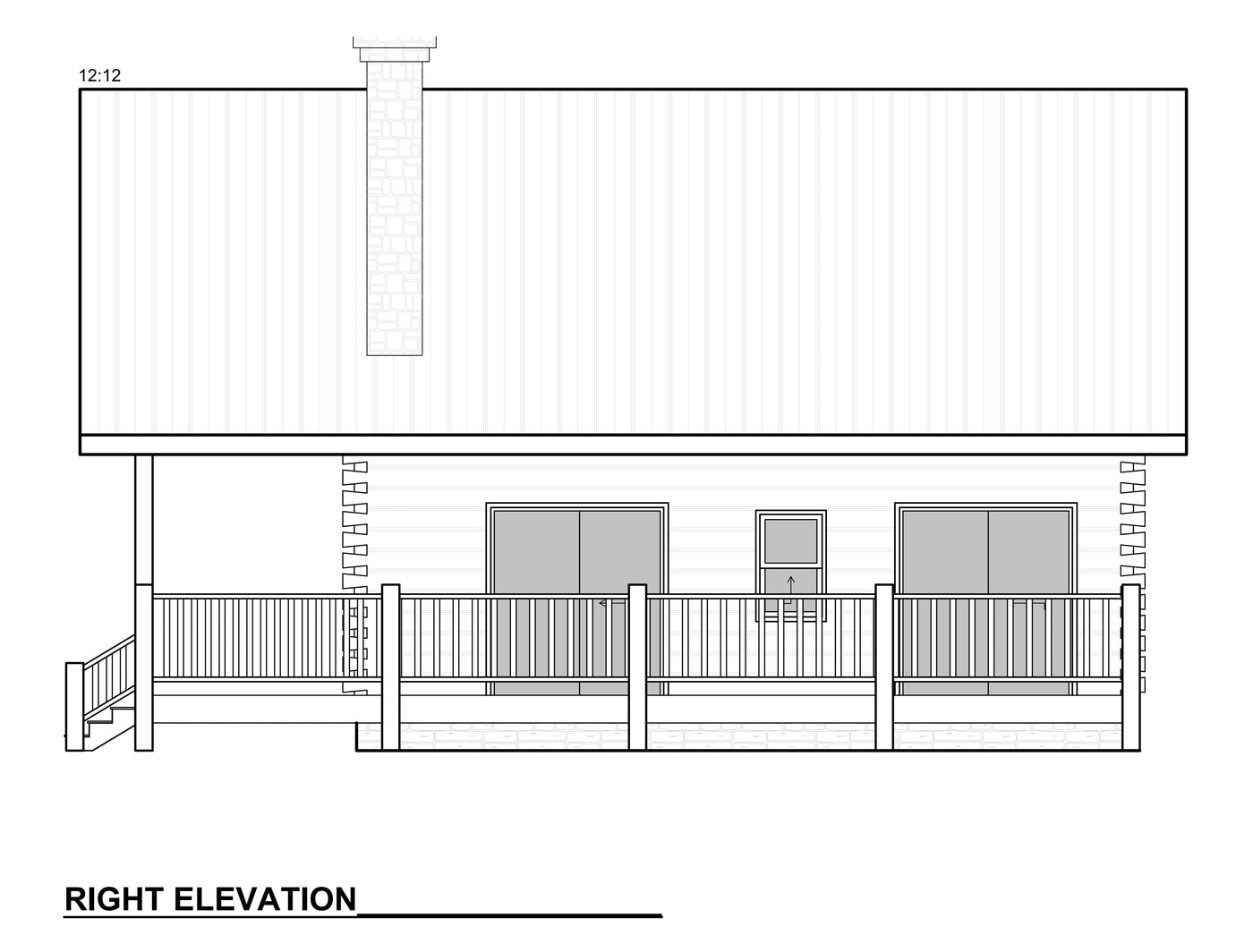

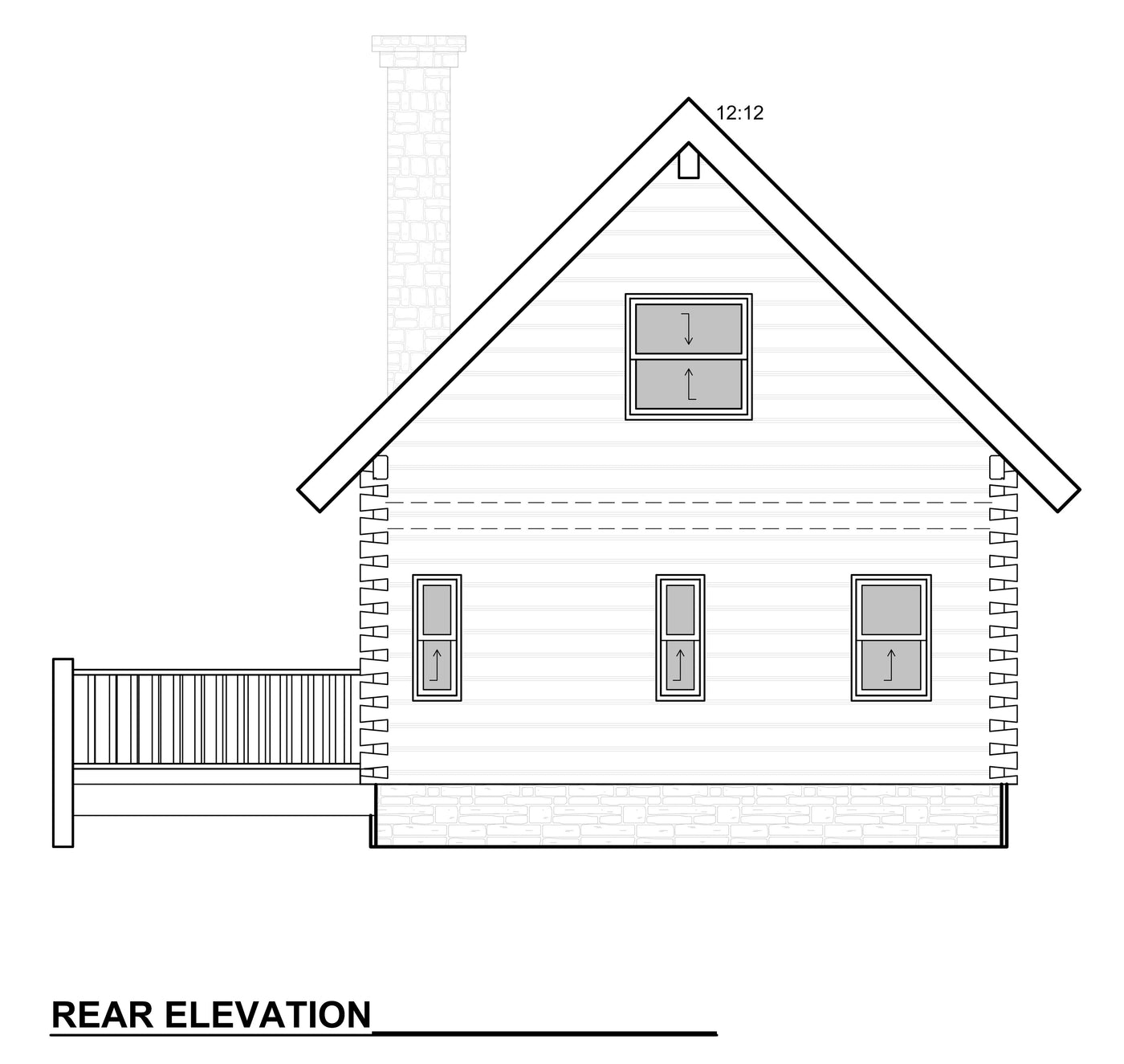

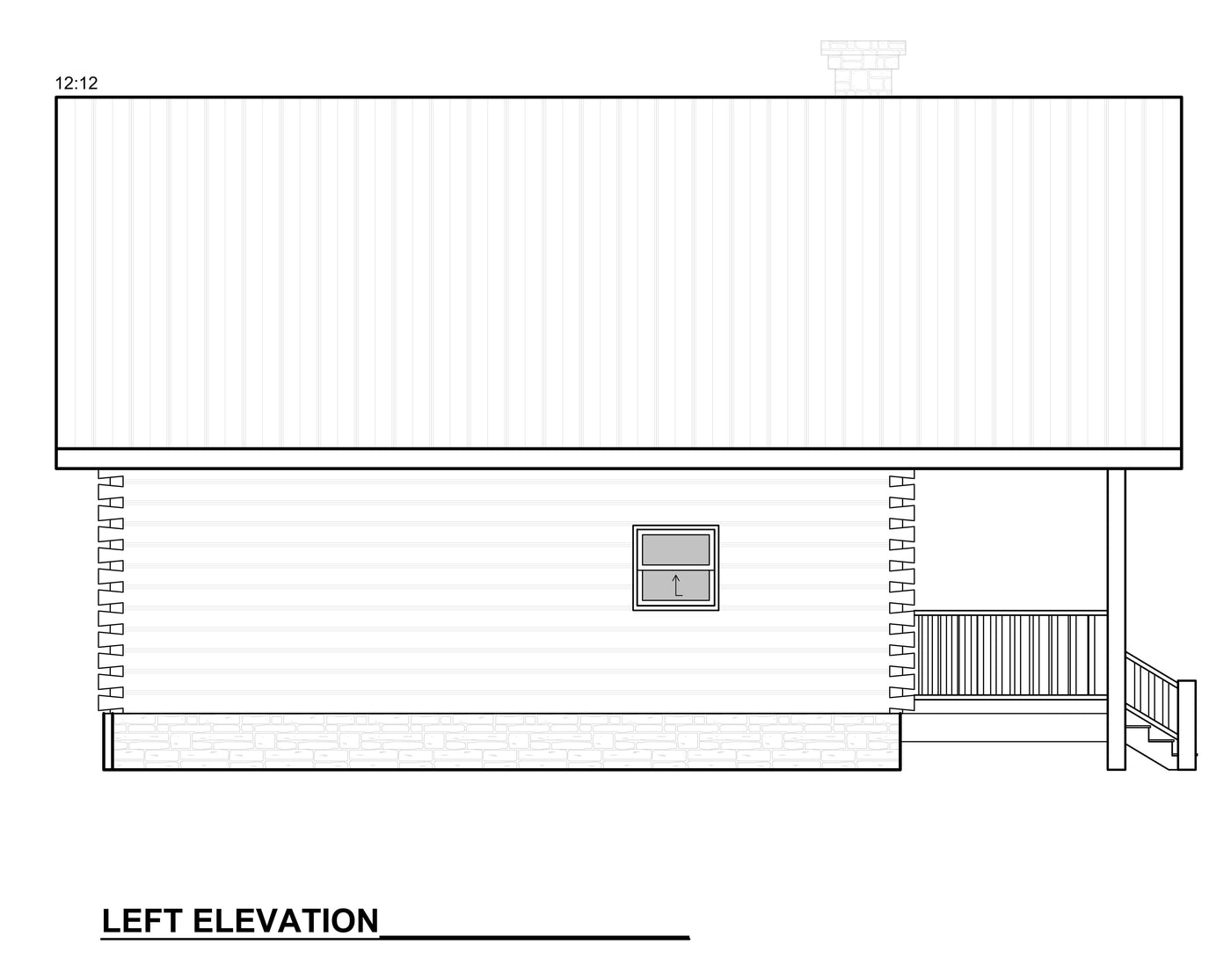

Elevation drawings
