Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain |
| Bedrooms | 3 |
| Bathrooms | 2 |
| Stories | 2 |
| Main Sq Ft | 1085 |
| Loft Sq Ft | 705 |
| Basement Sq Ft | — |
| Total Sq Ft | 1790 |
| Garage | — |
| Basement | — |
| Reference | Haines |
About this plan
The Knox by Sierra Log & Timber is a warm and inviting 1,790 sq ft log home that feels both spacious and grounded, with a classic two-story profile. Ideal for growing families or anyone dreaming of a full-time mountain retreat, it offers three bedrooms and two bathrooms, all thoughtfully arranged for comfort and privacy. The main level’s 1,085 sq ft centers around a welcoming great room and a practical kitchen, making it easy to gather for meals or quiet evenings by the fire. Upstairs, a 705 sq ft loft opens up possibilities for a home office, creative studio, or extra sleeping space for guests. Whether as a year-round residence, a family getaway, or a place to host friends, the Knox brings together craftsmanship and flexibility. Custom options are always available to make it truly yours.

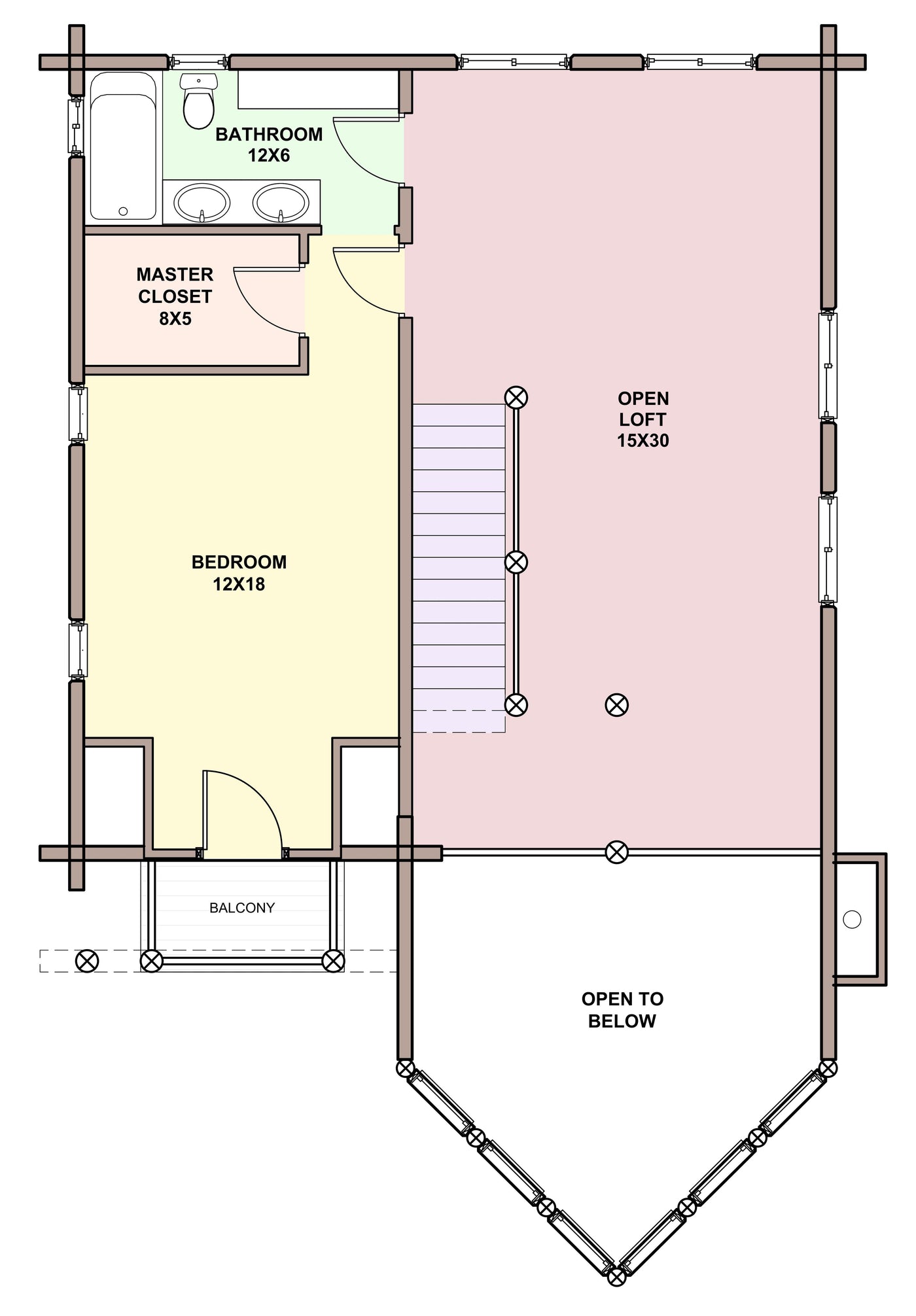

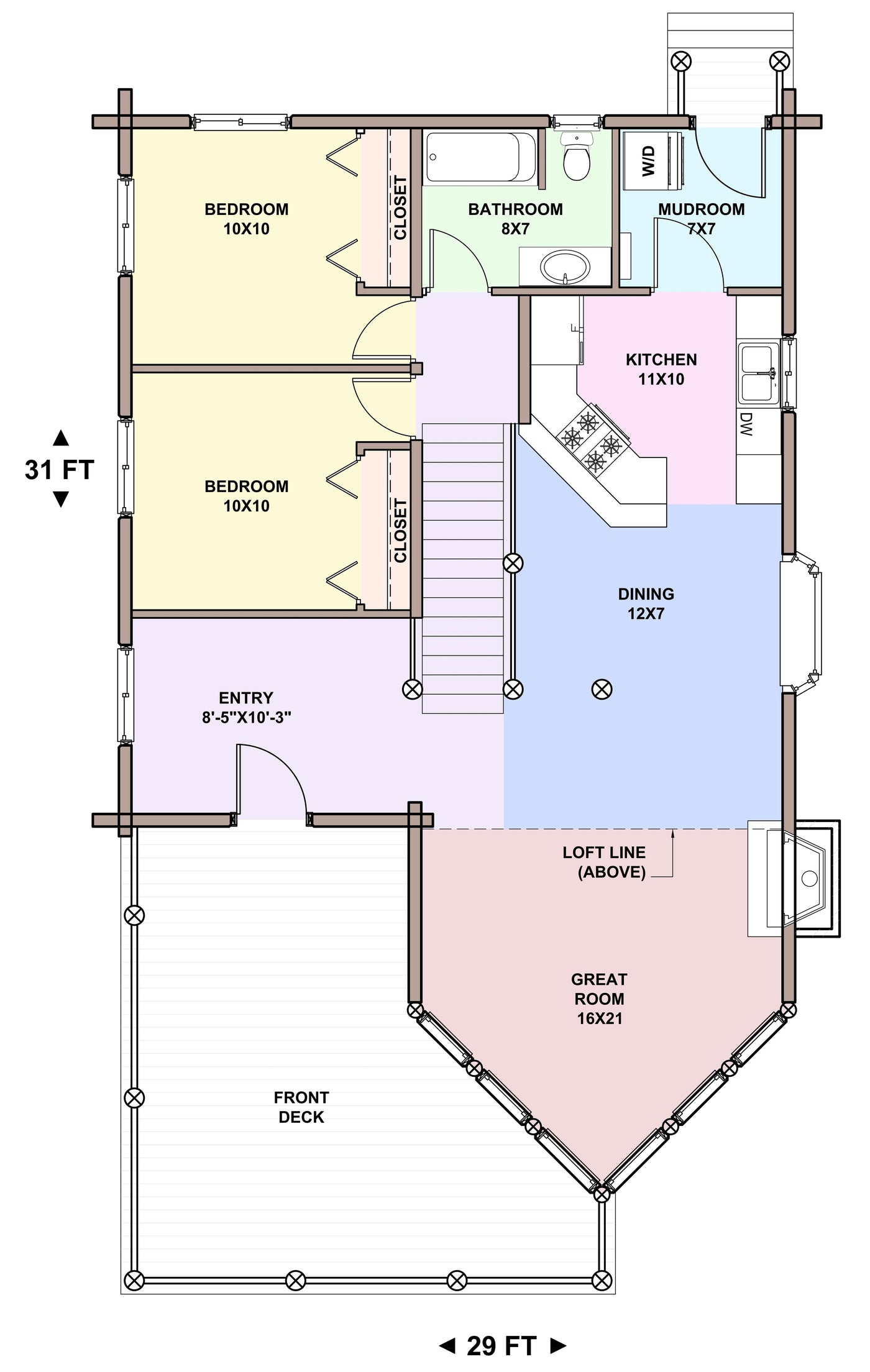

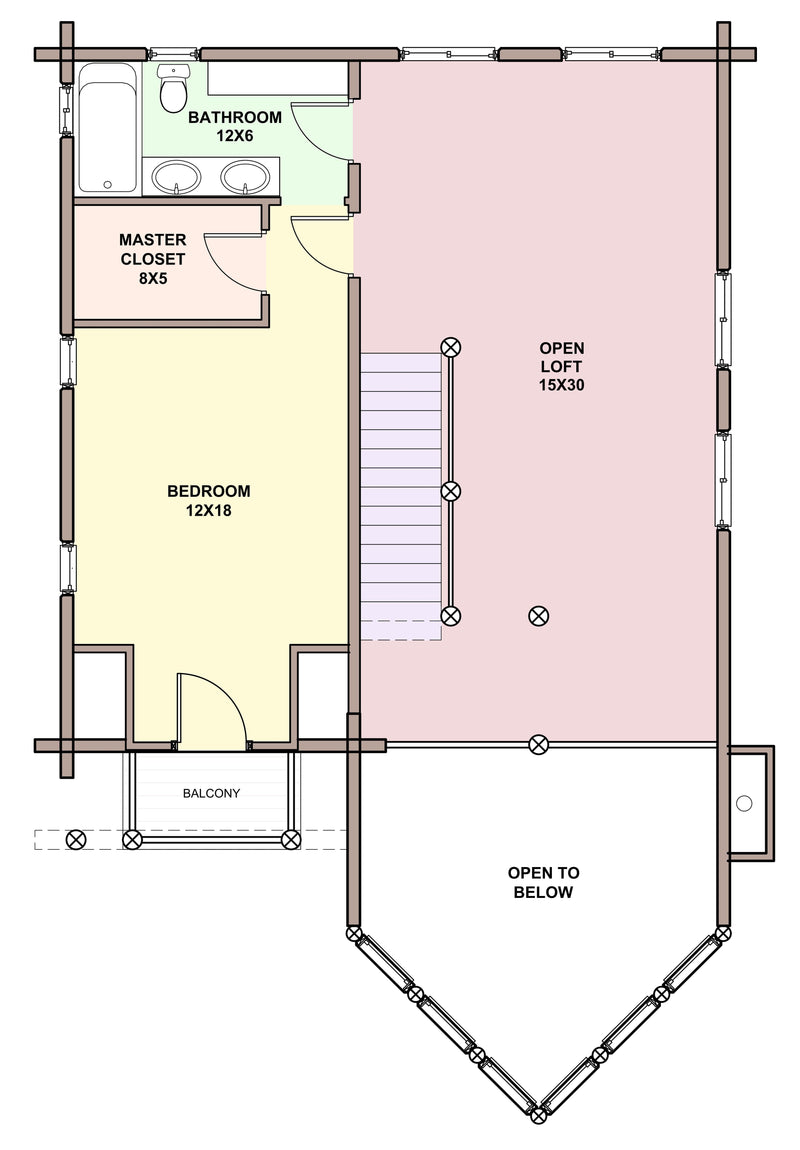

Floor plans
3D

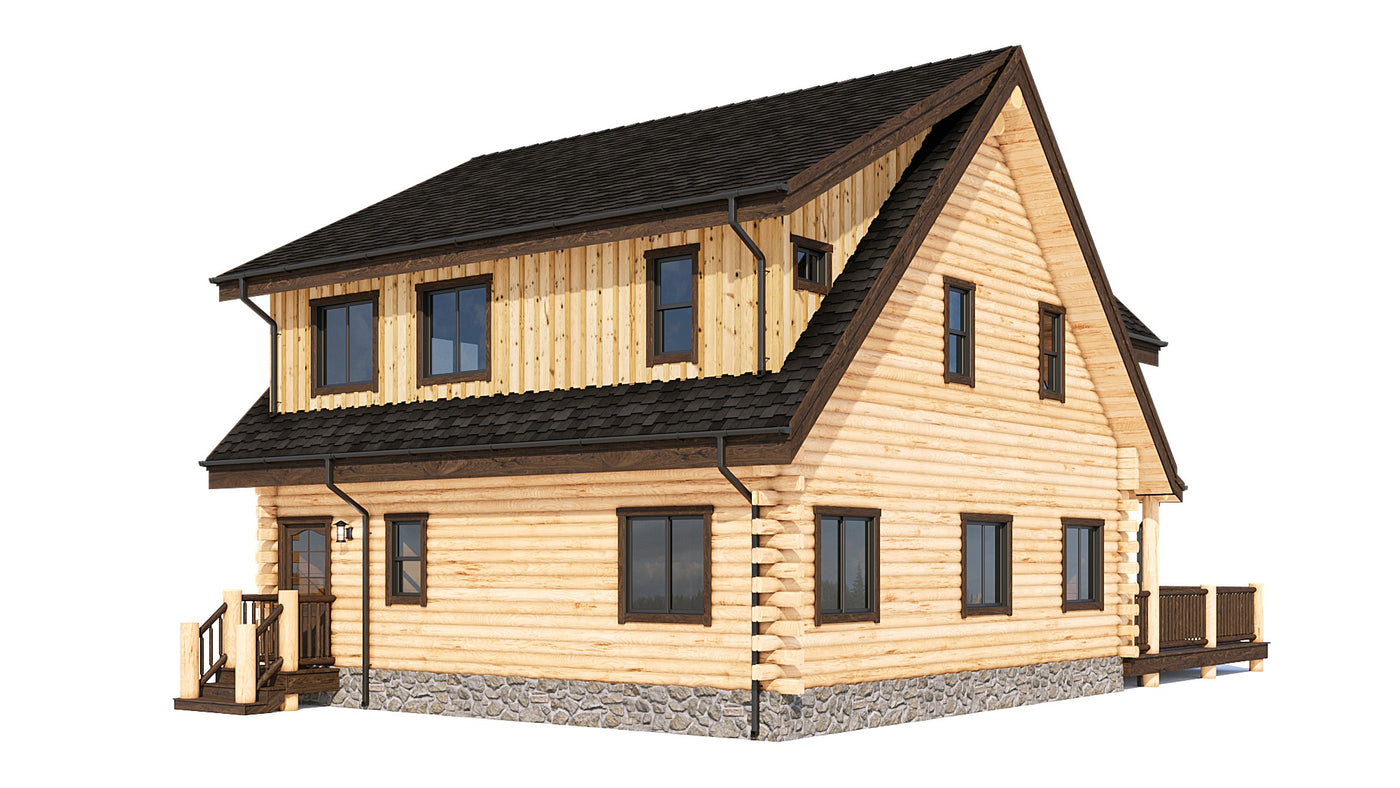

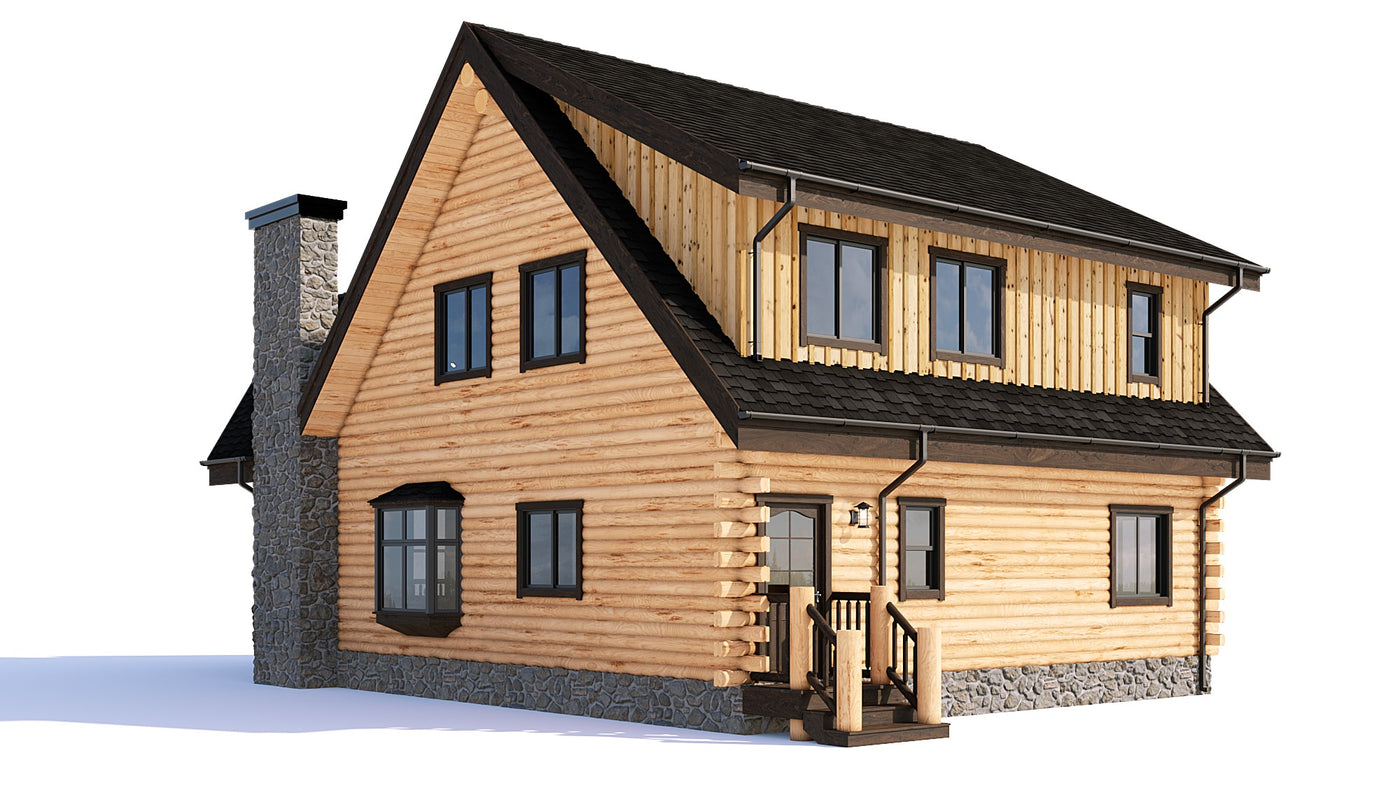

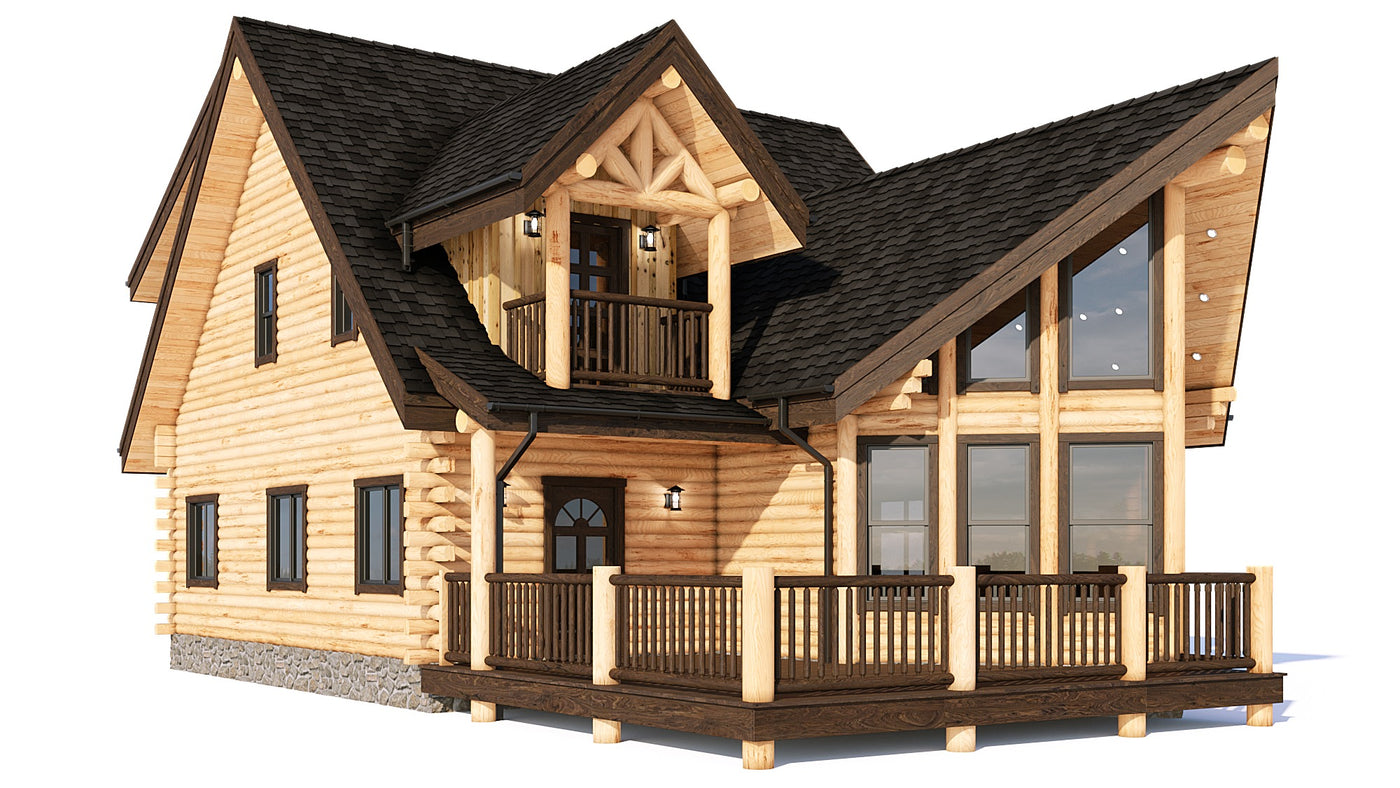

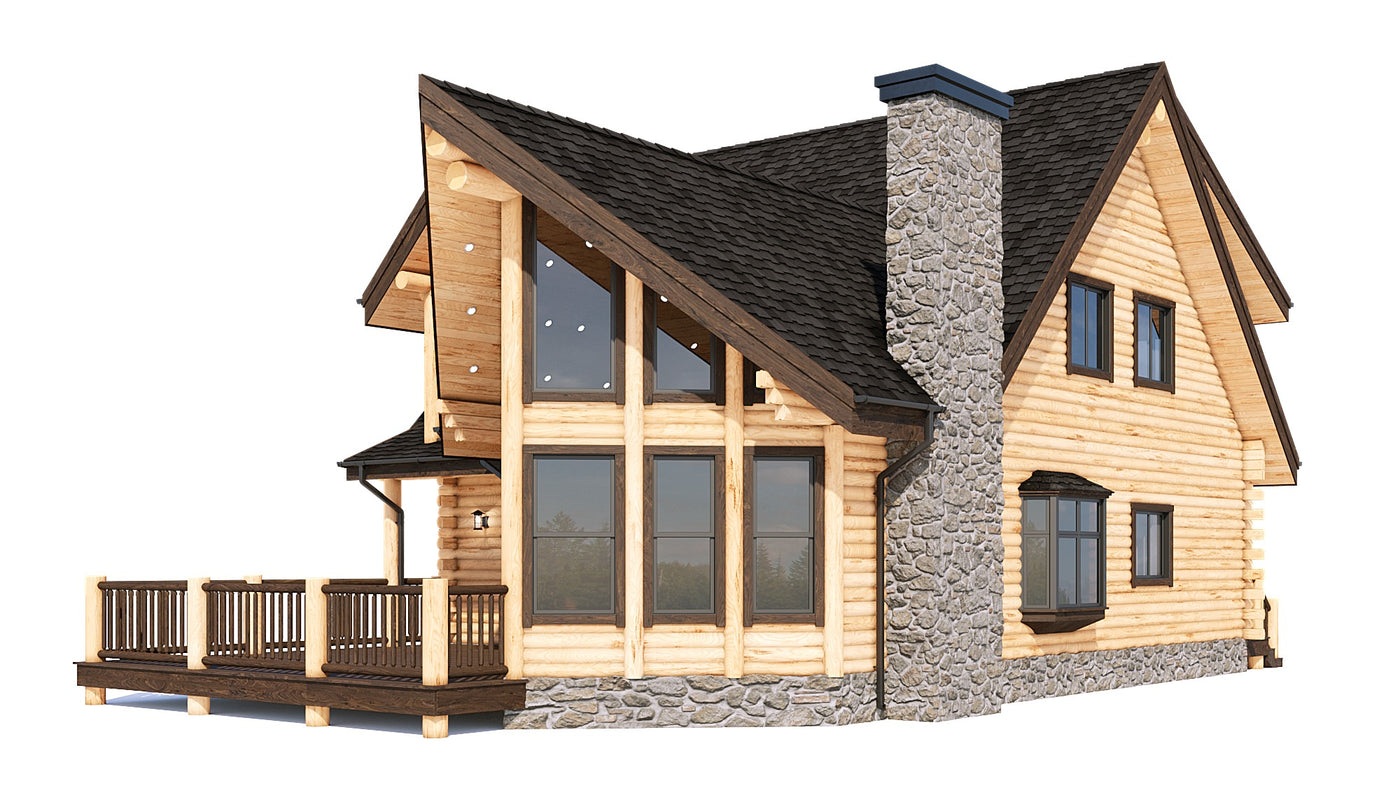

Perspective views

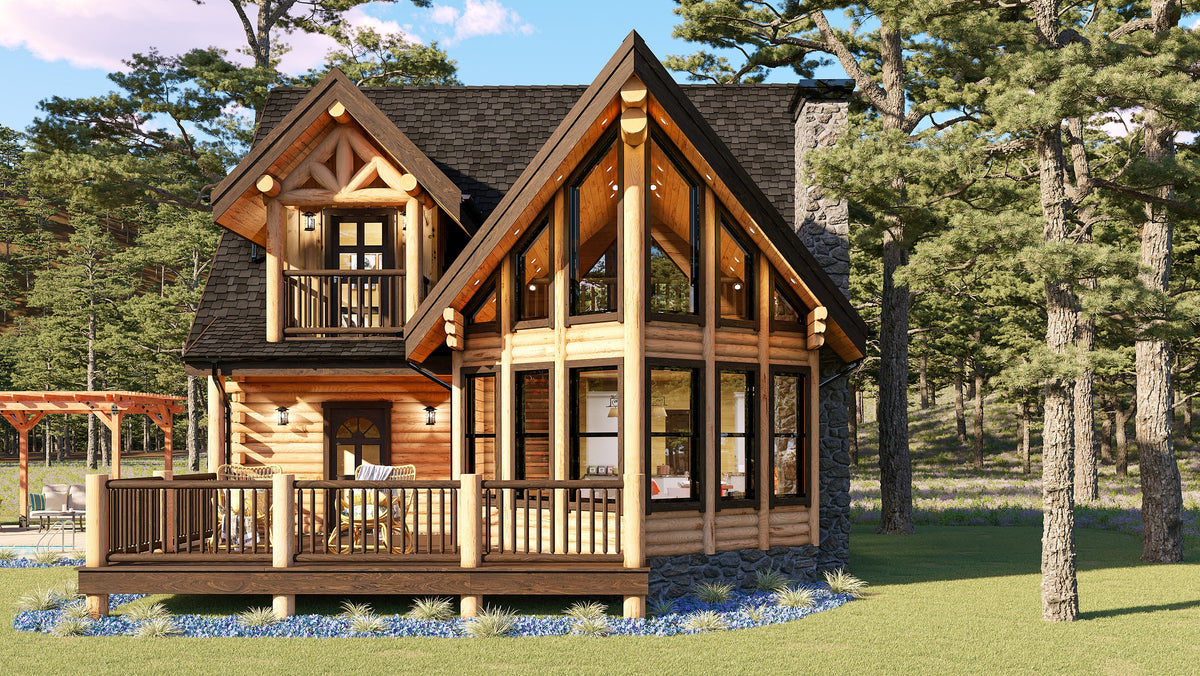

Renders

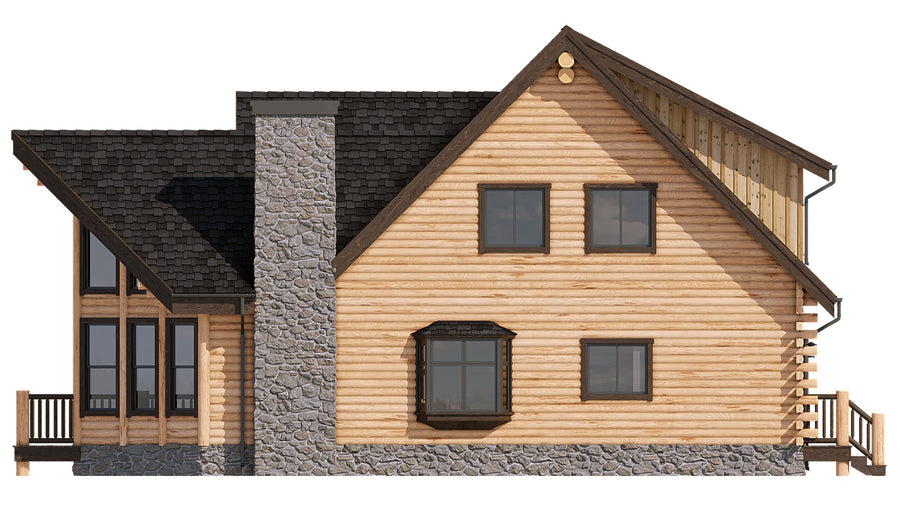

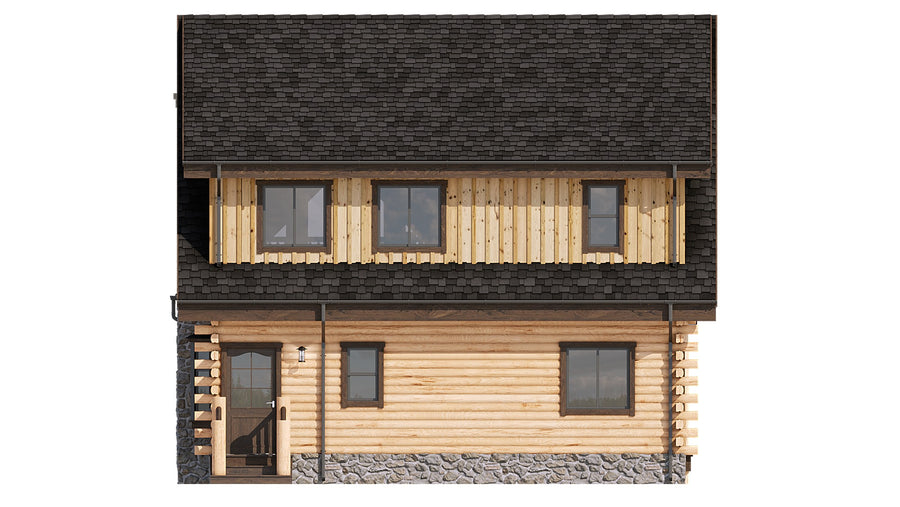

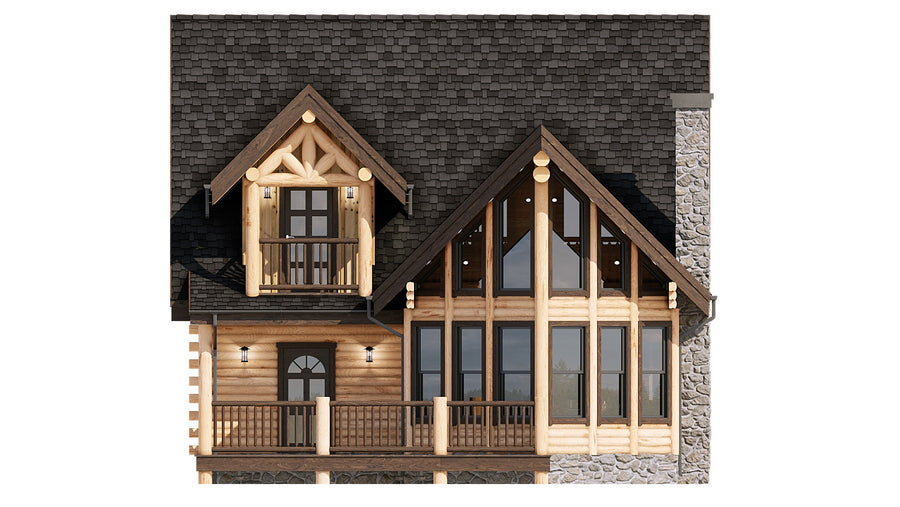

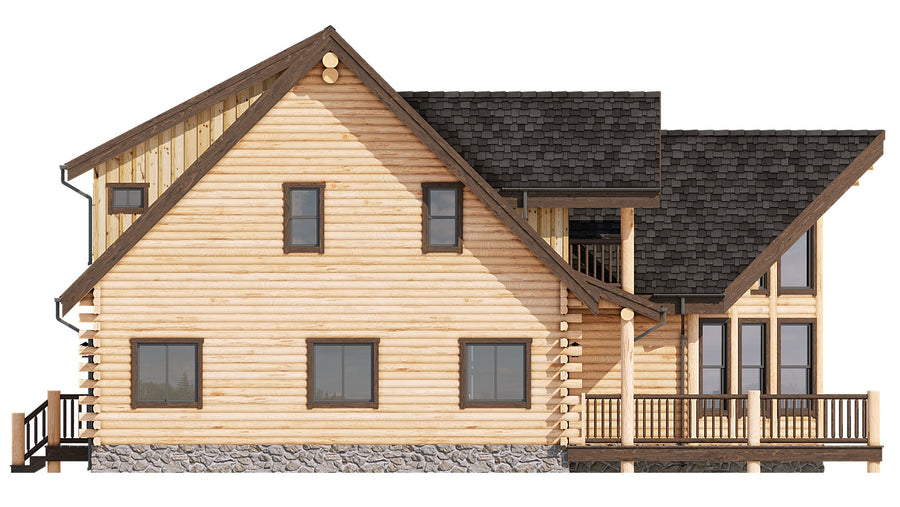

Ortho views
Technical

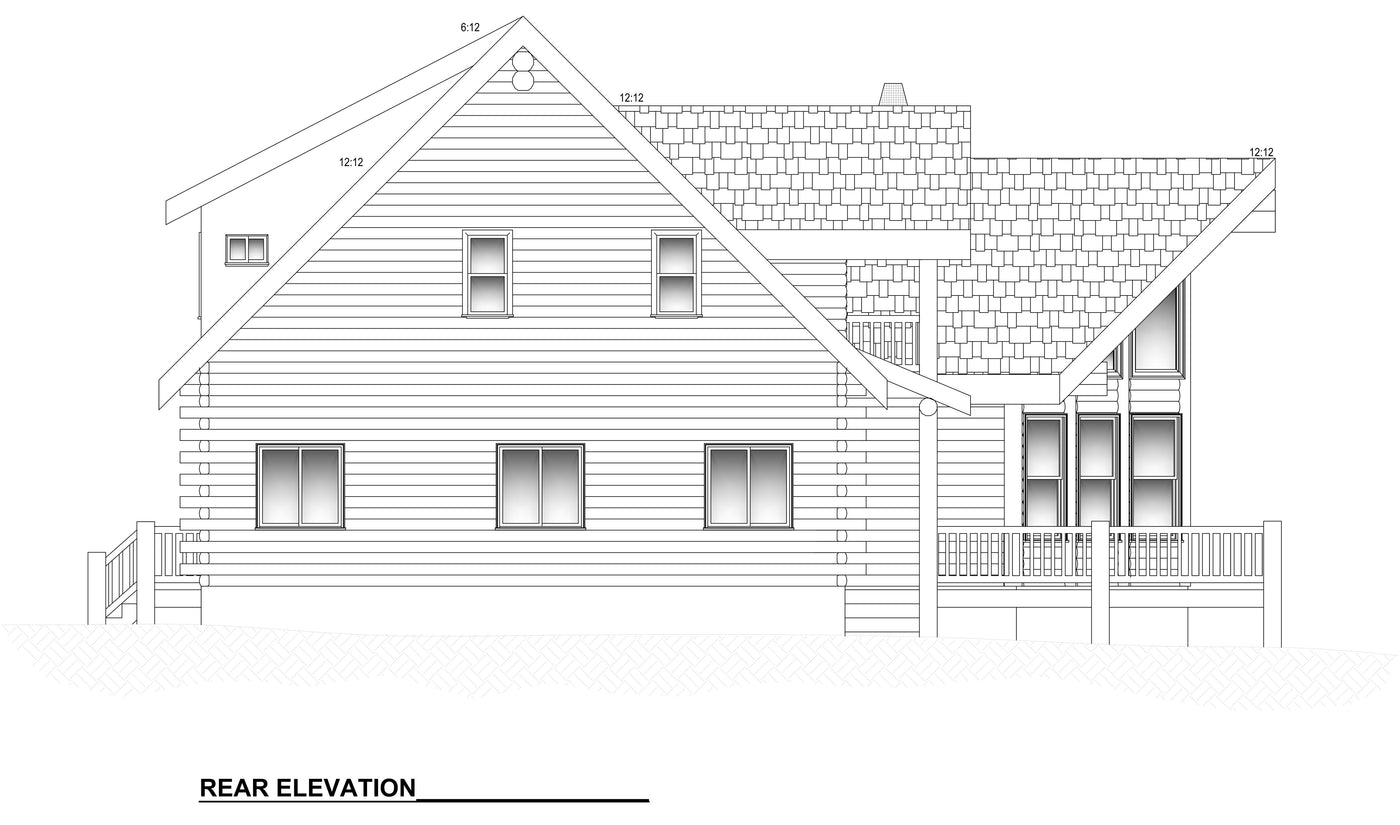

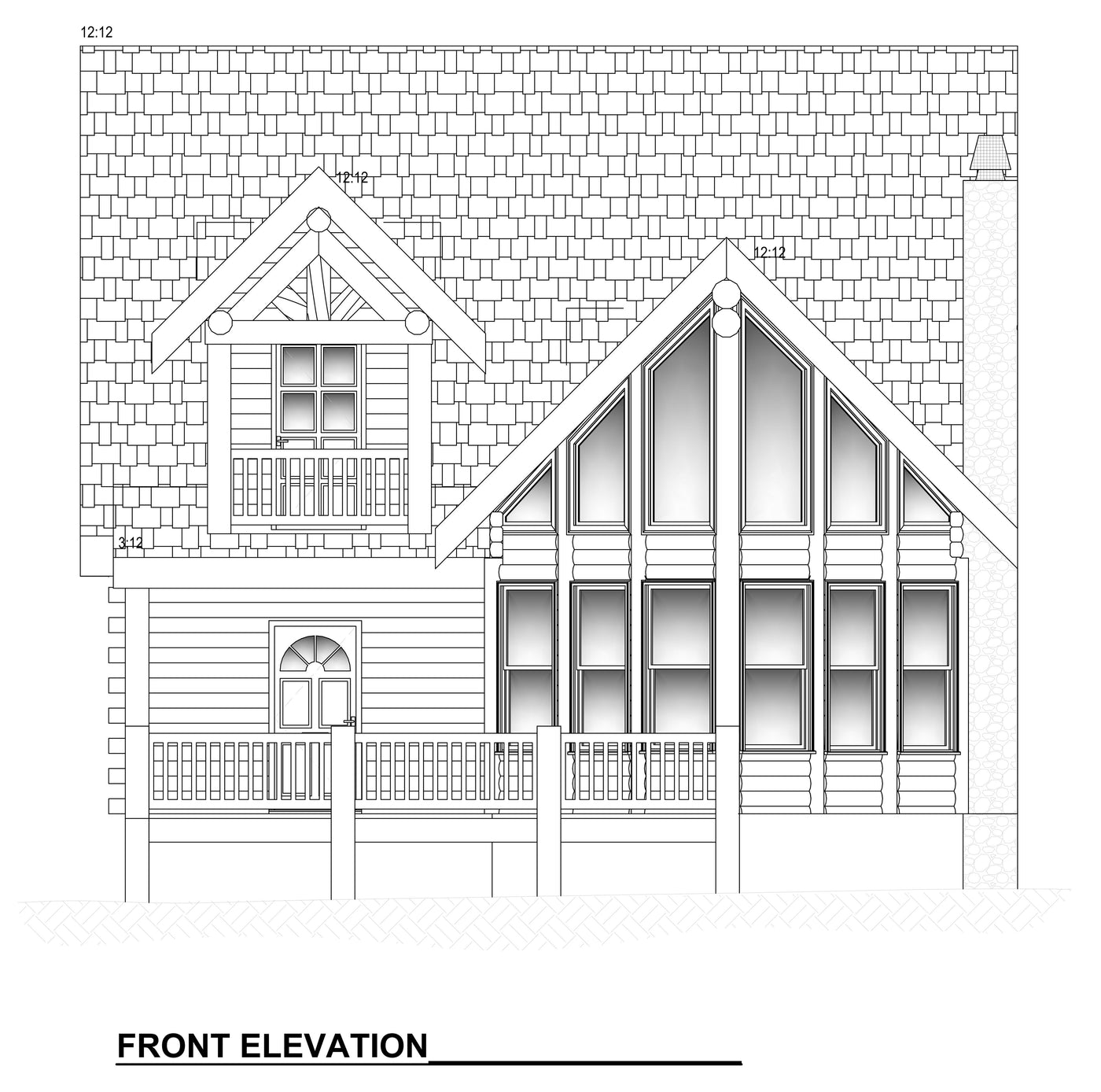

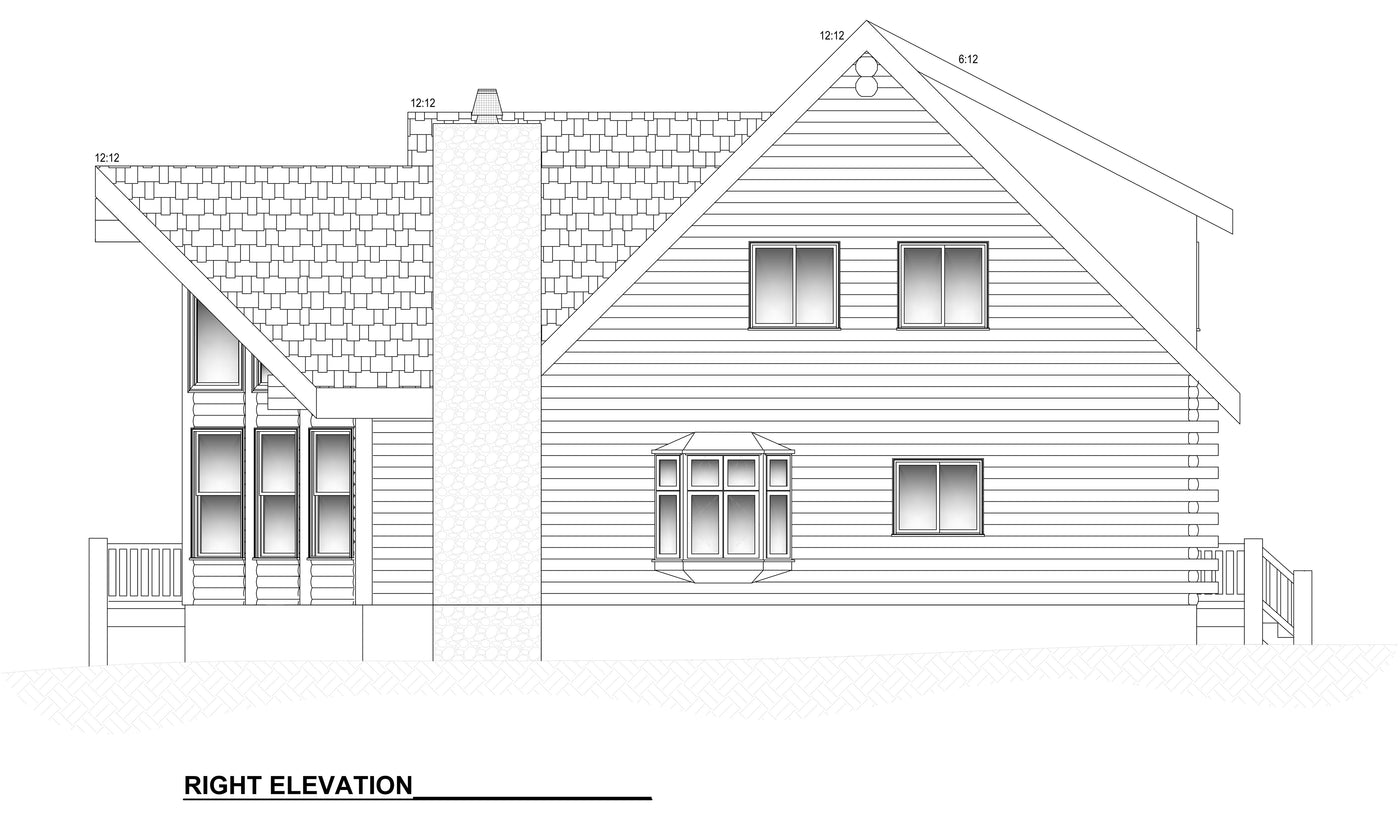

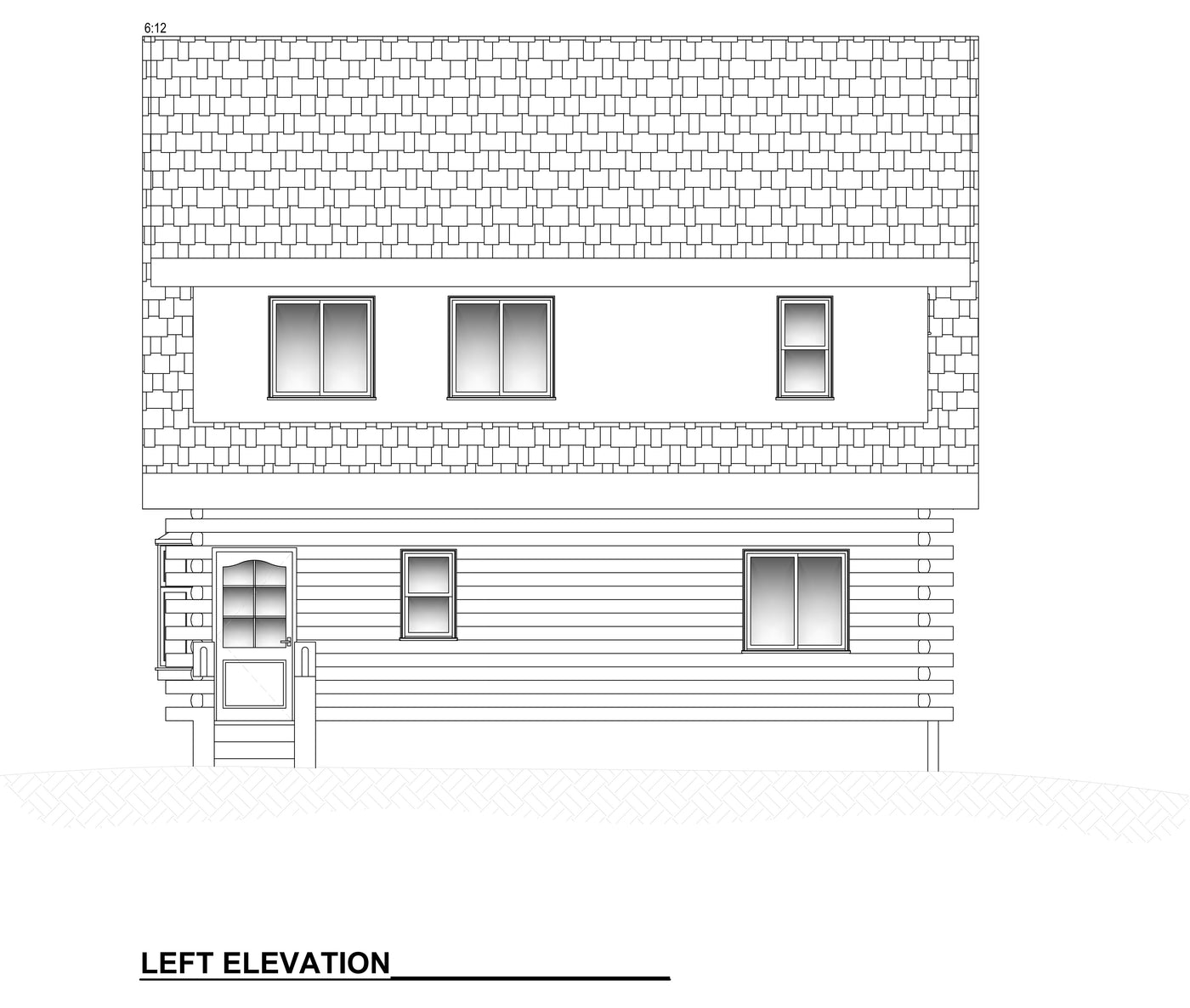

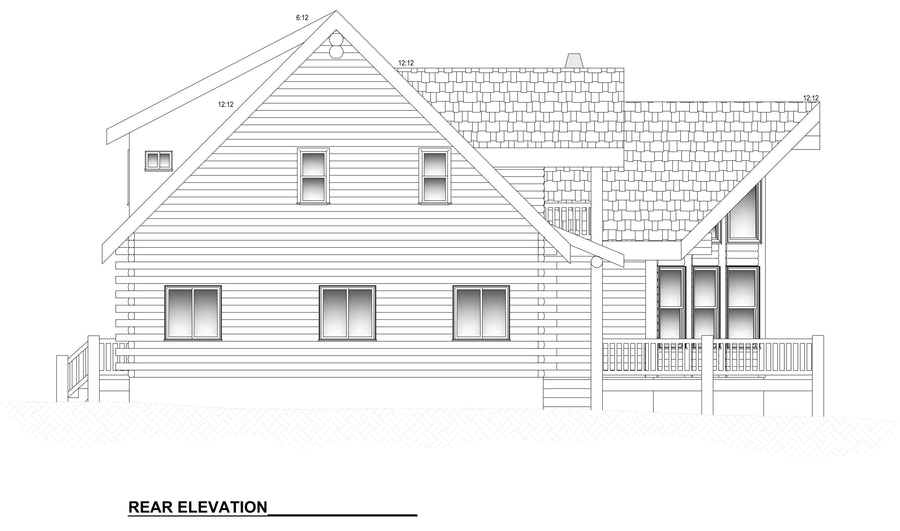

Elevation drawings
