Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed.
Plan details
| Project Type | Framed |
|---|---|
| Home Style | shade structures |
| Bedrooms | 0 |
| Bathrooms | 0 |
| Stories | 0 |
| Main Sq Ft | 180 |
| Loft Sq Ft | 0 |
| Basement Sq Ft | 0 |
| Total Sq Ft | 0 |
| Garage | — |
| Basement | — |
About this plan

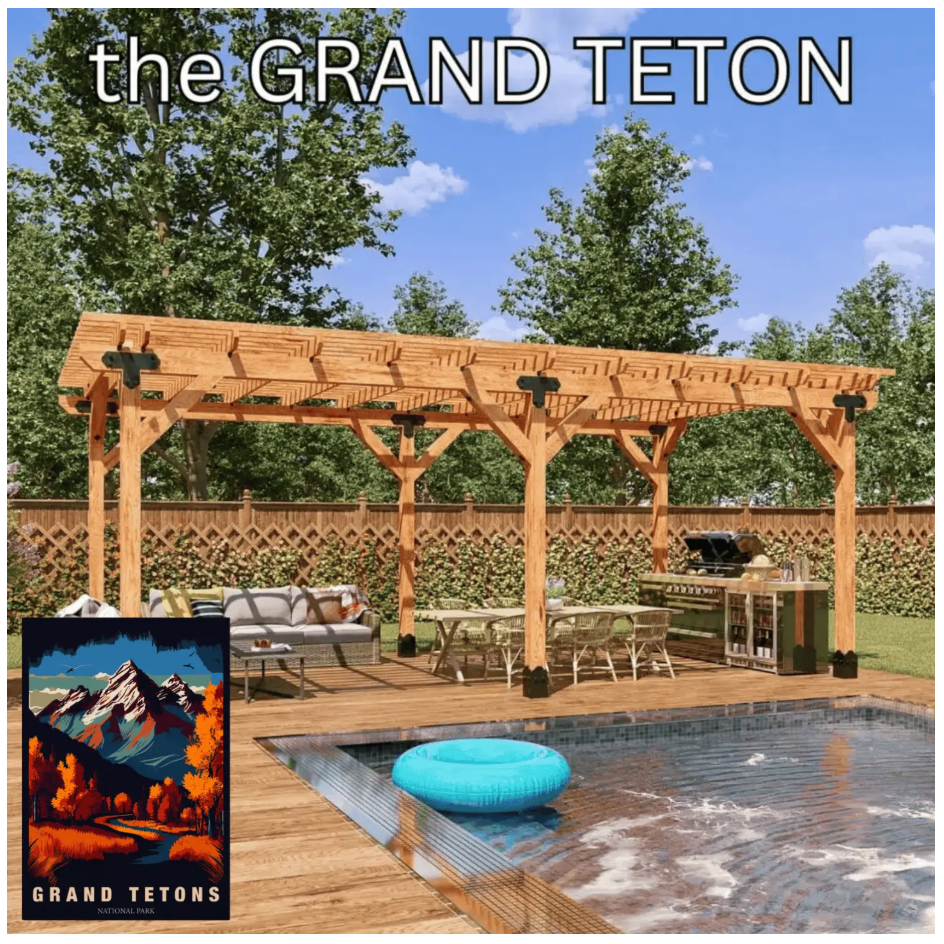

The "Grand Teton" pergola model is very popular. This model uses a timber for the main headers. You can completely configure the size (180 sq ft to 512 sq ft), parts, color & PRICE by going to our shade configurator for the Grand Teton: https://sierralogandtimber.com/grand-tenton/
The configurator will enable you to view and manipulate in 3D, configure the size from 10x18 to 16x32, with multiple size parts and frequency to choose from, it will display in realtime the price, and provides augmented reality so you can actually place in your yard with the color of your choice...its amazing!
If the configurator cann't create what you want, call us and we will design what you want for FREE!
The Red Cedar parts package includes: (create price by using the configurator)
- all the Red Cedar wood parts
- all the Simpson "Outdoor Hardware"
- all the fasteners
- pre-stained with the Ready Seal color of your choice
If you need any help or if you create a price, call the office for the current discount.
Below is a screenshot of the configurator

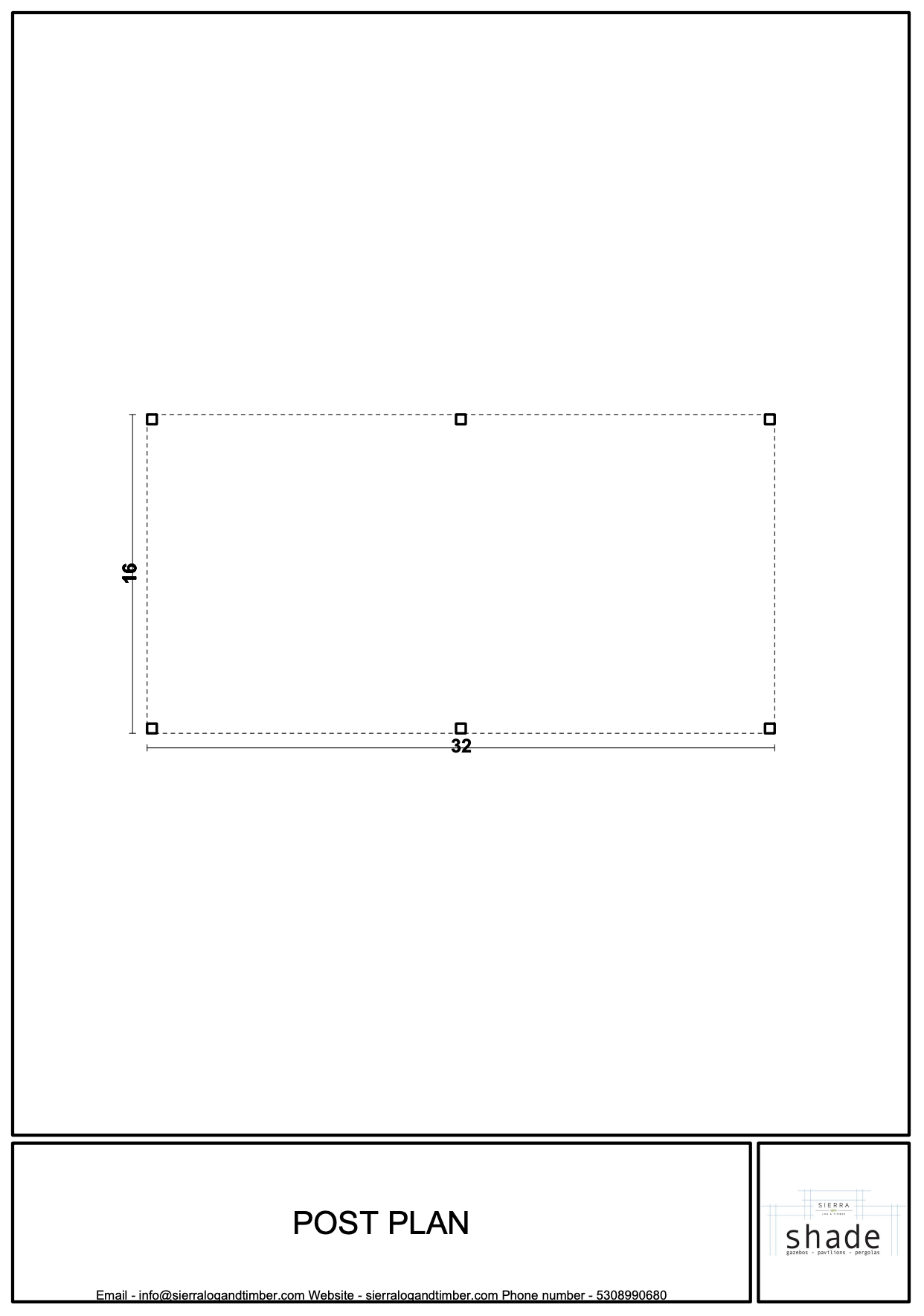

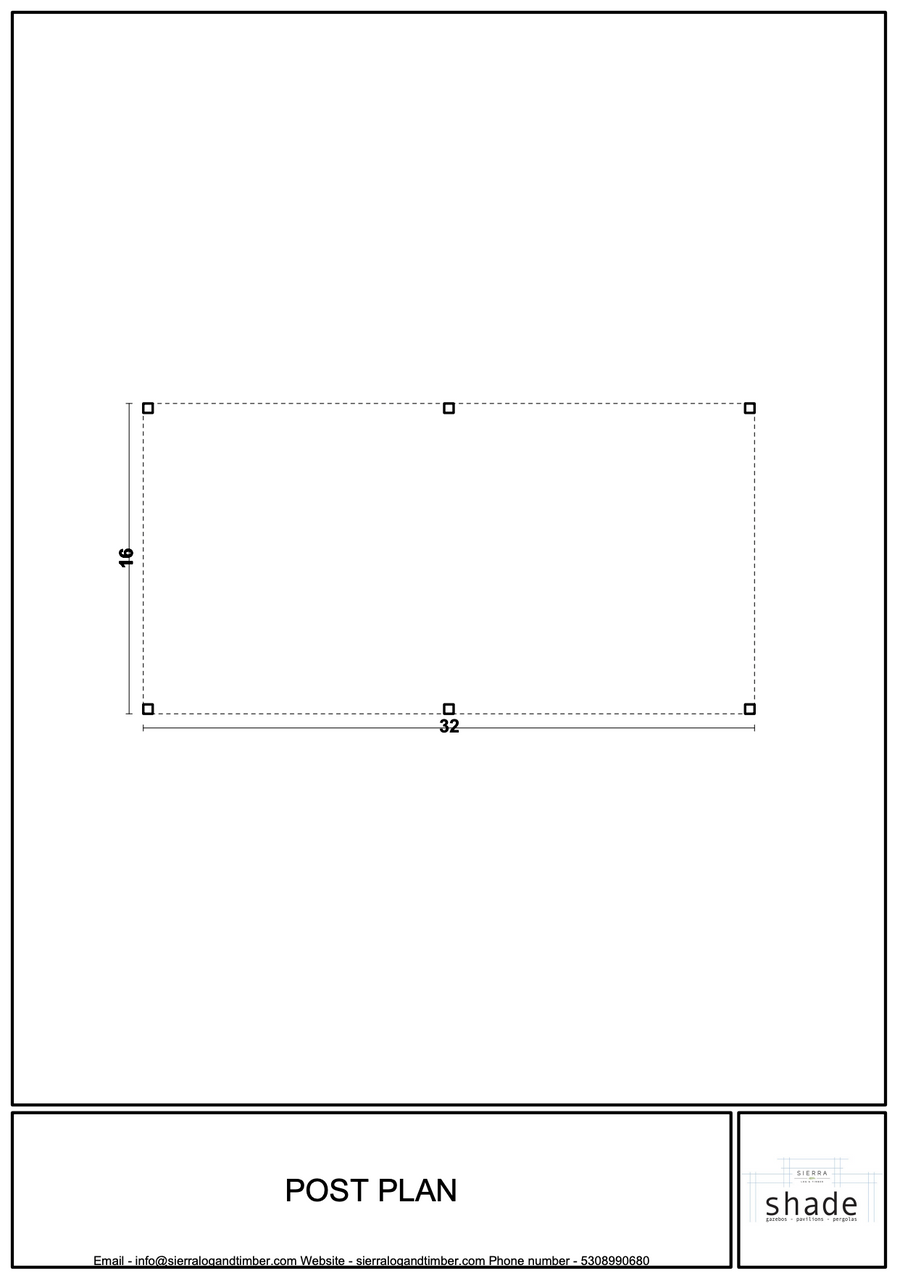

Floor plans
Technical

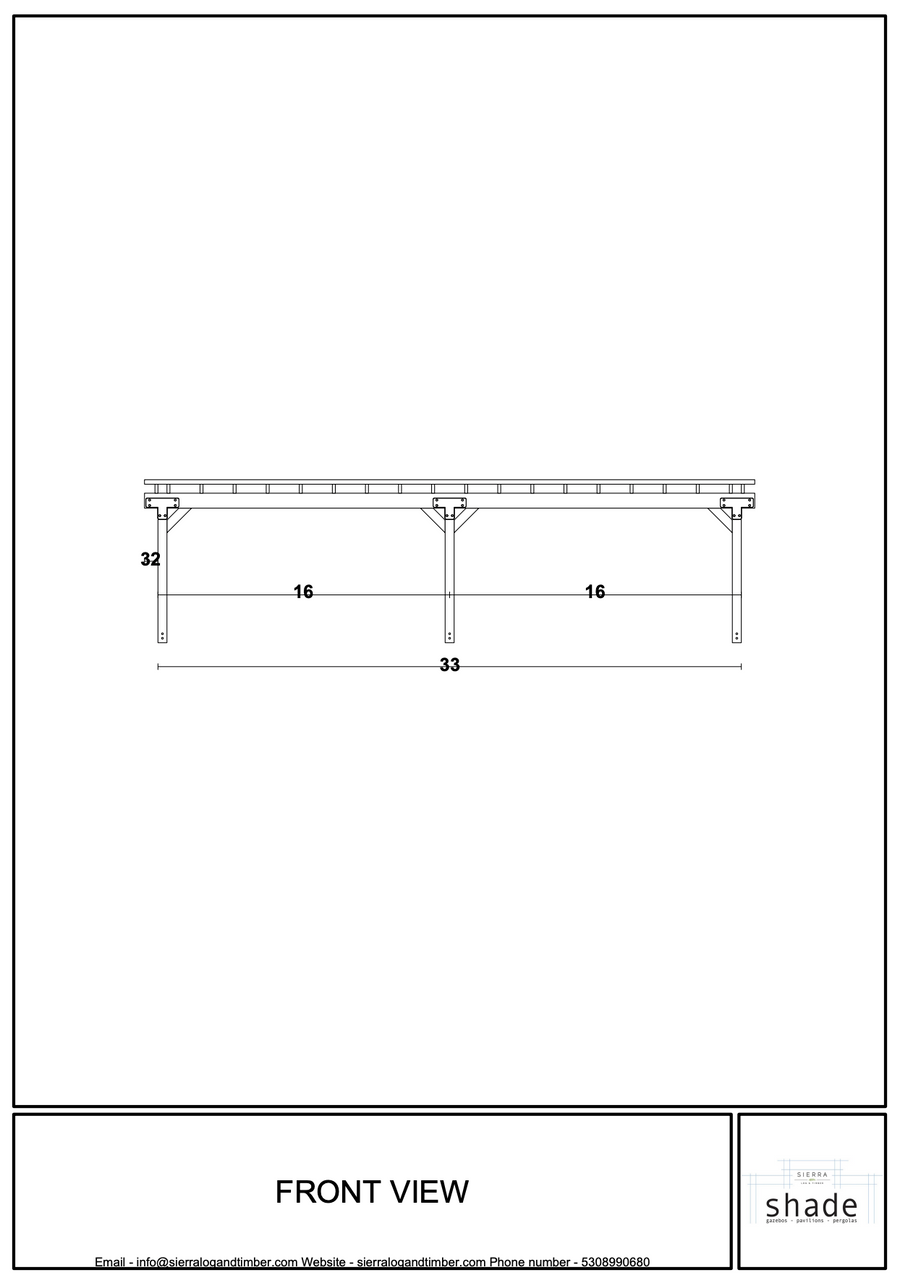

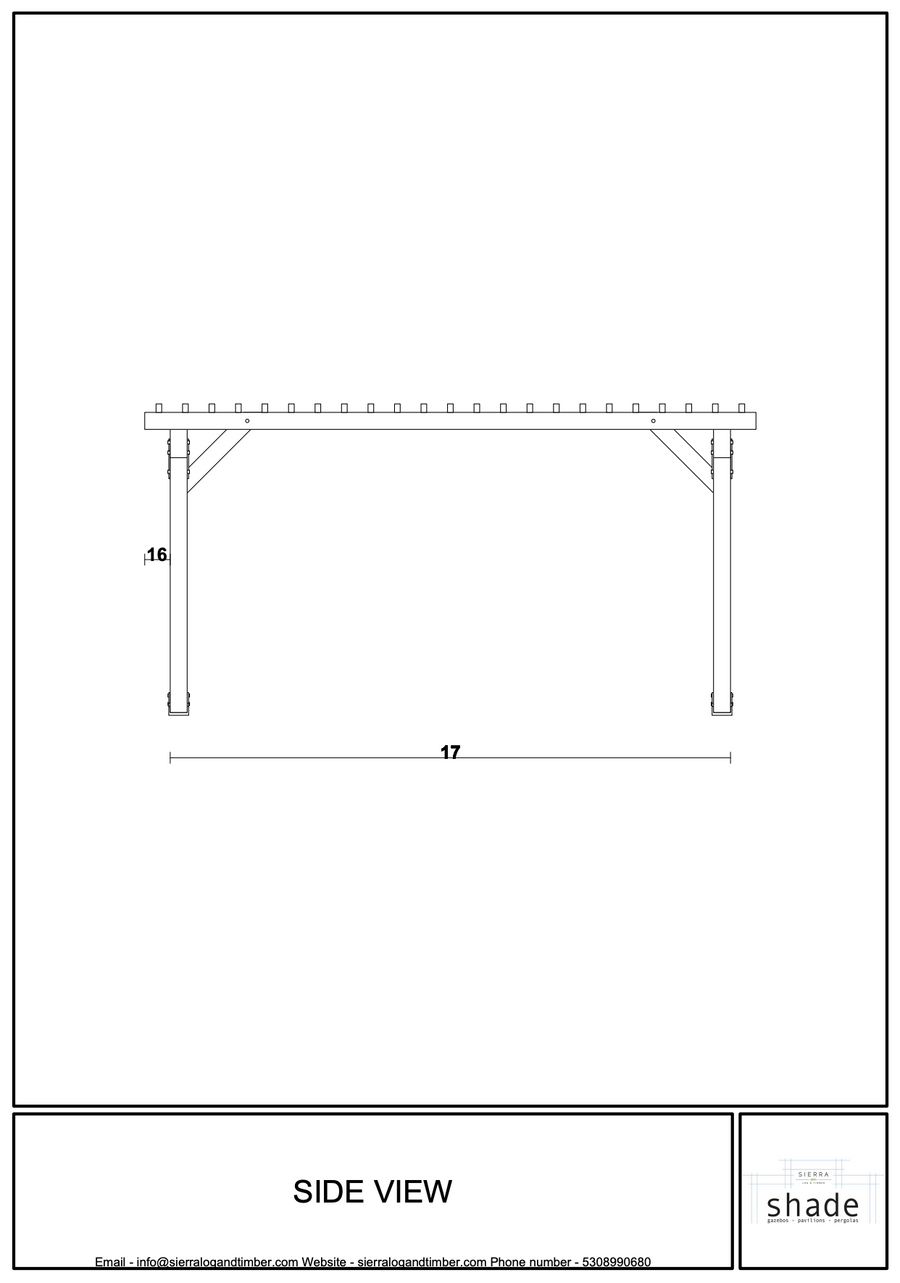

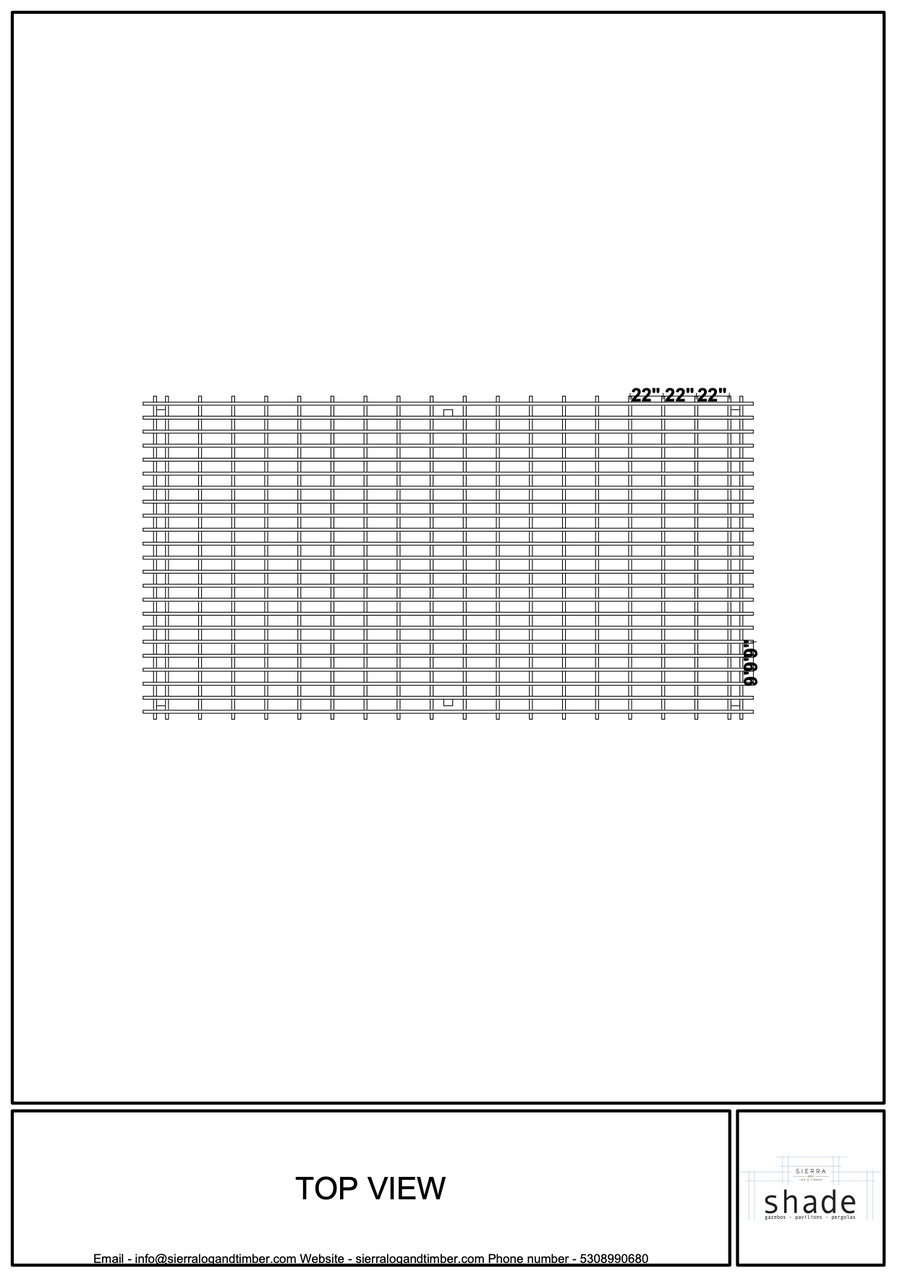

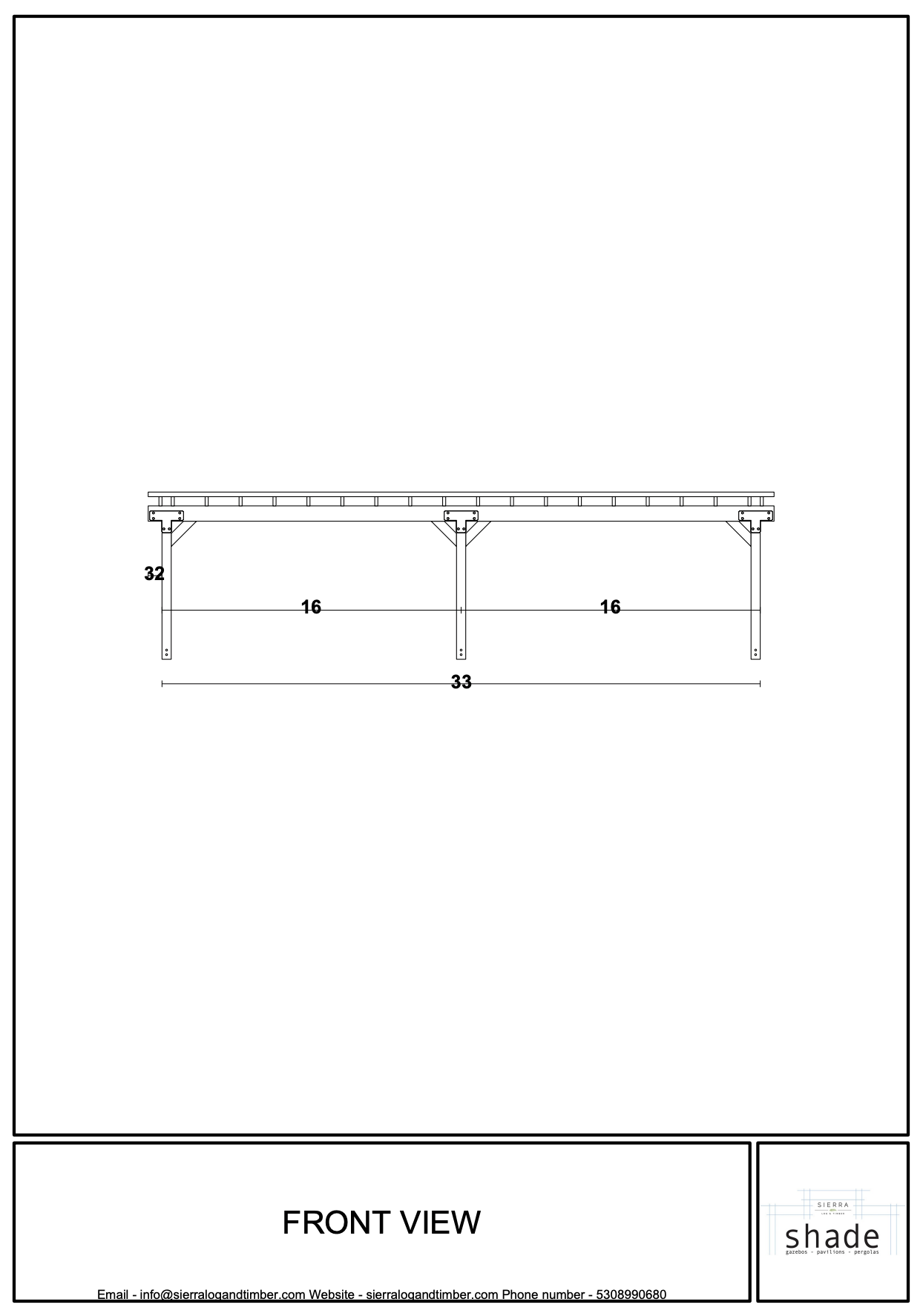

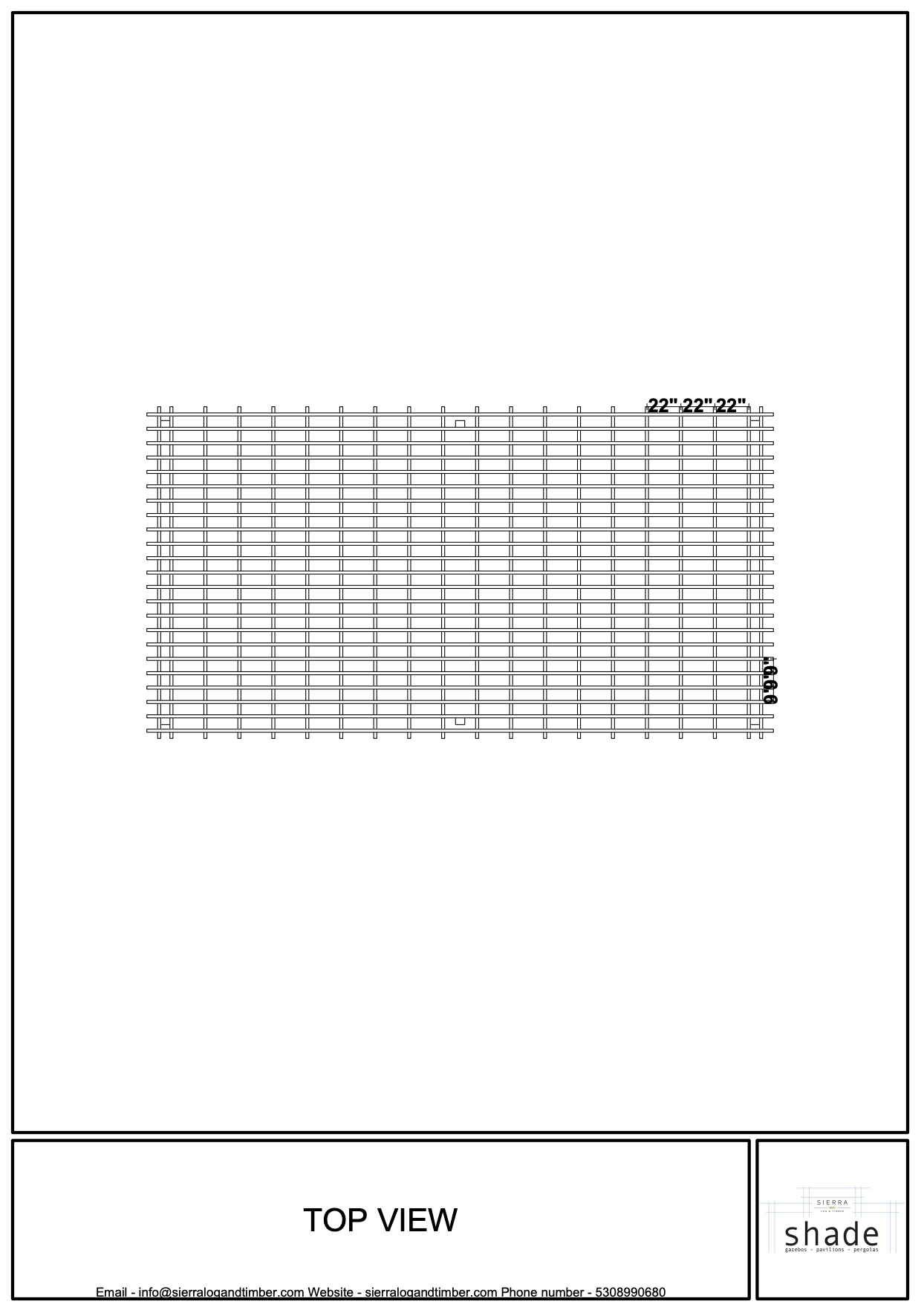

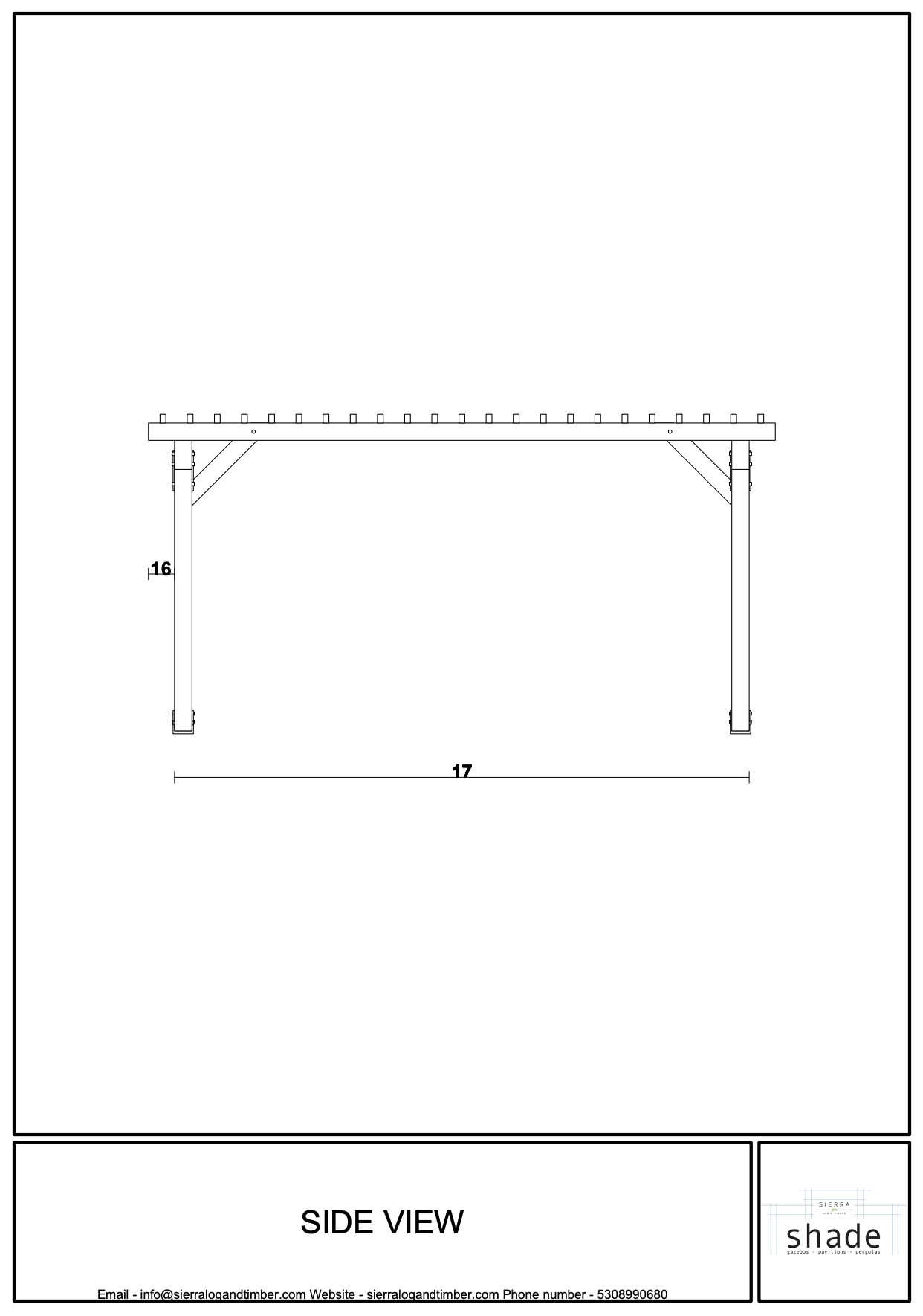

Elevation drawings
When you are ready to build
Questions? 530-899-0680 · info@sierralogandtimber.com
