Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Log Home |
|---|---|
| Home Style | Mountain / Ranch |
| Bedrooms | 2 |
| Bathrooms | 2 |
| Stories | 3 |
| Main Sq Ft | 1500 |
| Loft Sq Ft | 542 |
| Basement Sq Ft | 1500 |
| Total Sq Ft | 3542 |
| Garage | — |
| Basement | Yes |
| Reference | Barr |
About this plan
The Chalet by Sierra Log & Timber is a welcoming 3,542 sq ft log home with a classic spirit and room to grow. Ideal for couples or small families dreaming of full-time mountain living, it offers a spacious 1,500 sq ft main level with an open great room for gathering around the fire, a practical kitchen for everyday meals, and a comfortable primary bedroom. The second bedroom is perfect for guests or a child’s room. Upstairs, a 542 sq ft loft gives you flexible space for a home office, studio, or cozy reading nook. Downstairs, the 1,500 sq ft basement is a blank canvas for a workshop, rec room, or extra storage. Whether as a year-round residence, a retreat for family getaways, or a base for outdoor adventures, the Chalet’s handcrafted details and adaptable layout make it easy to imagine your own story here. Customization is always welcome.

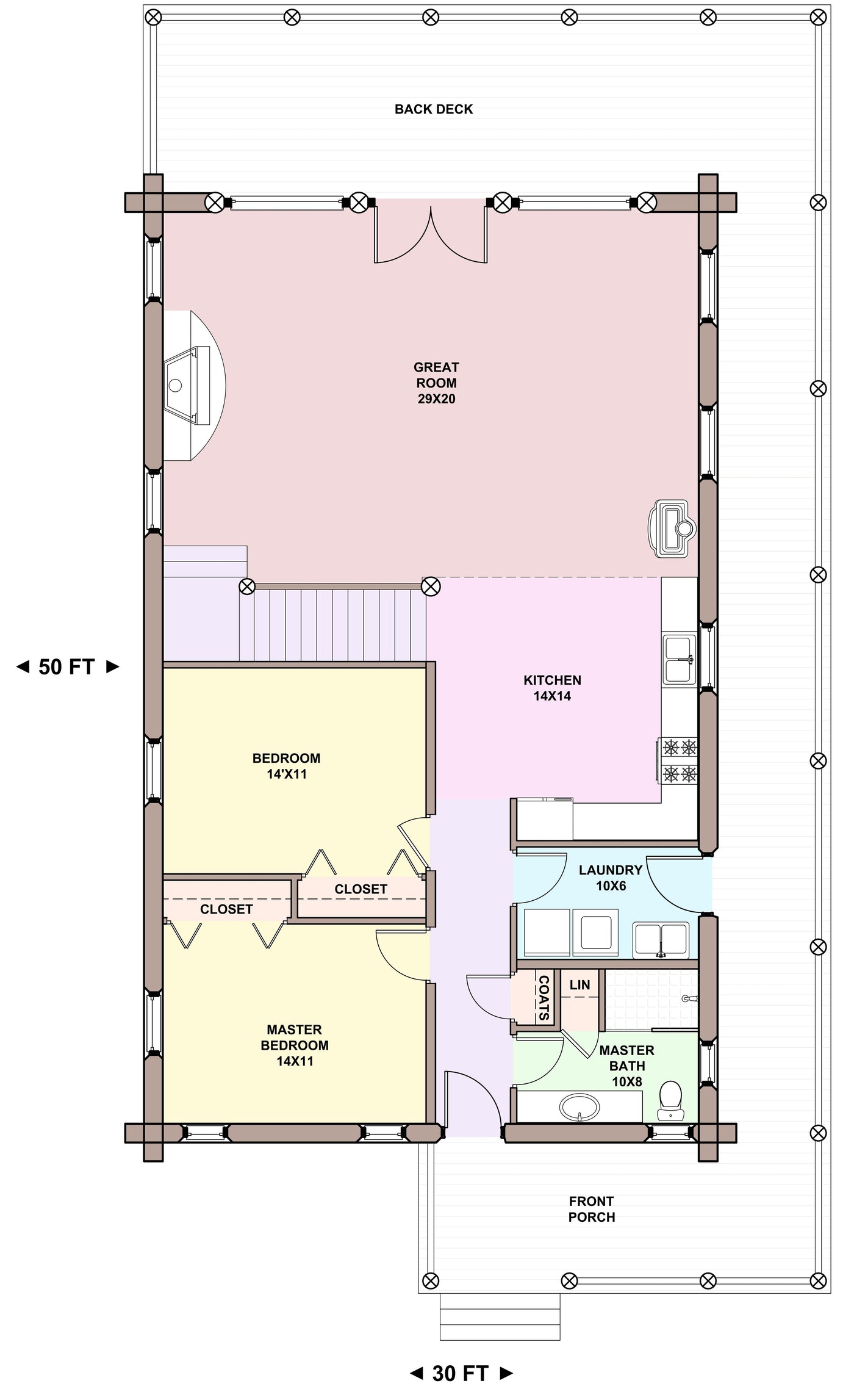

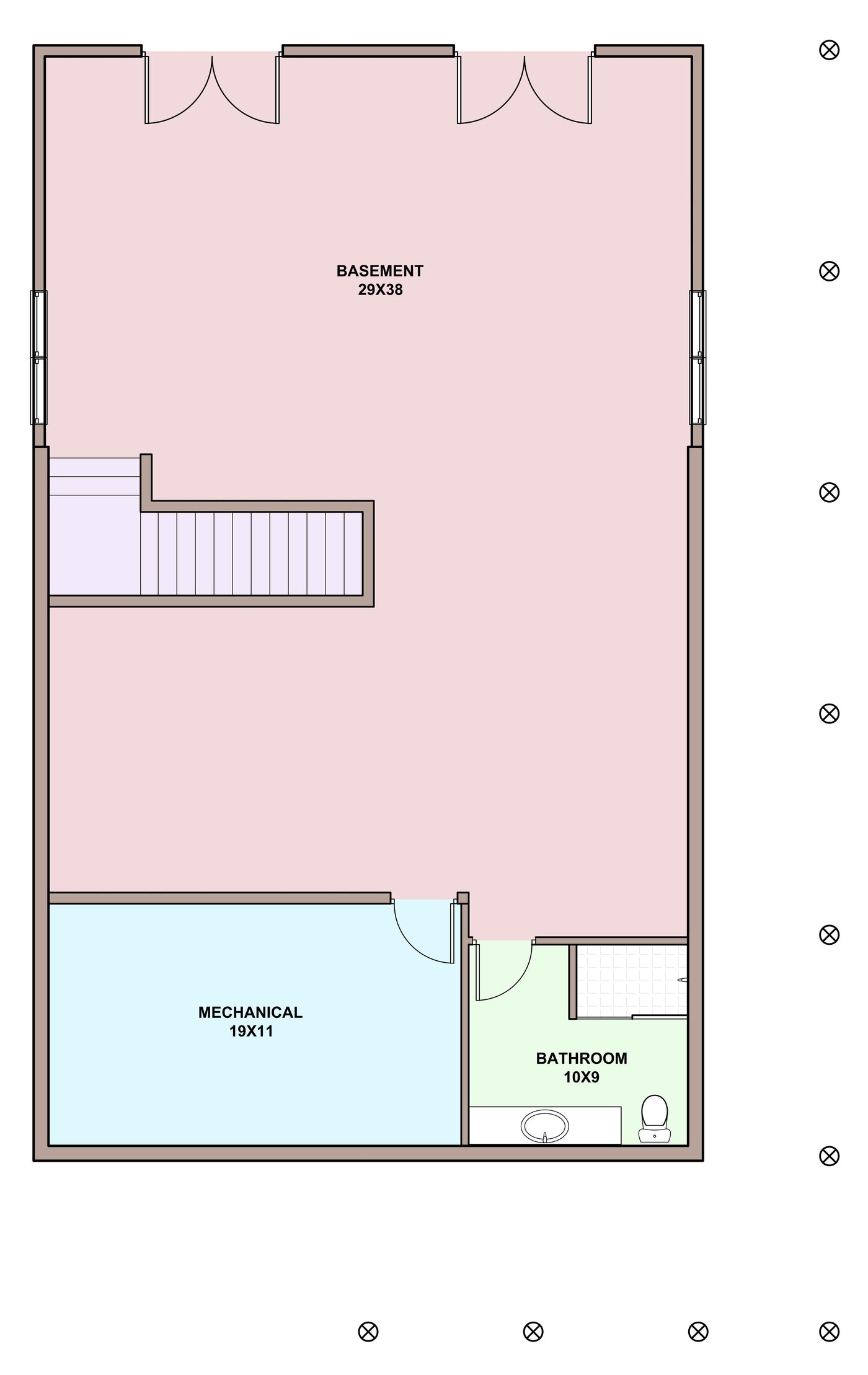

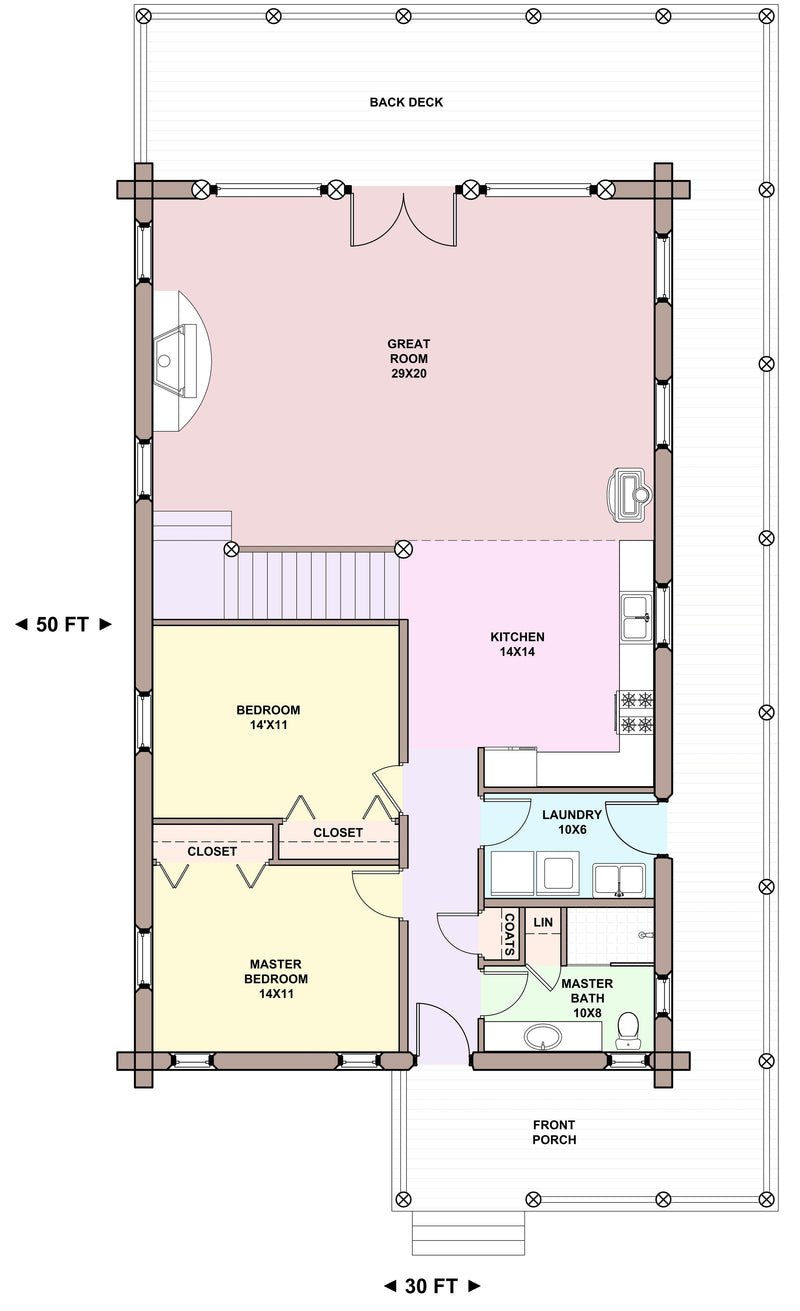

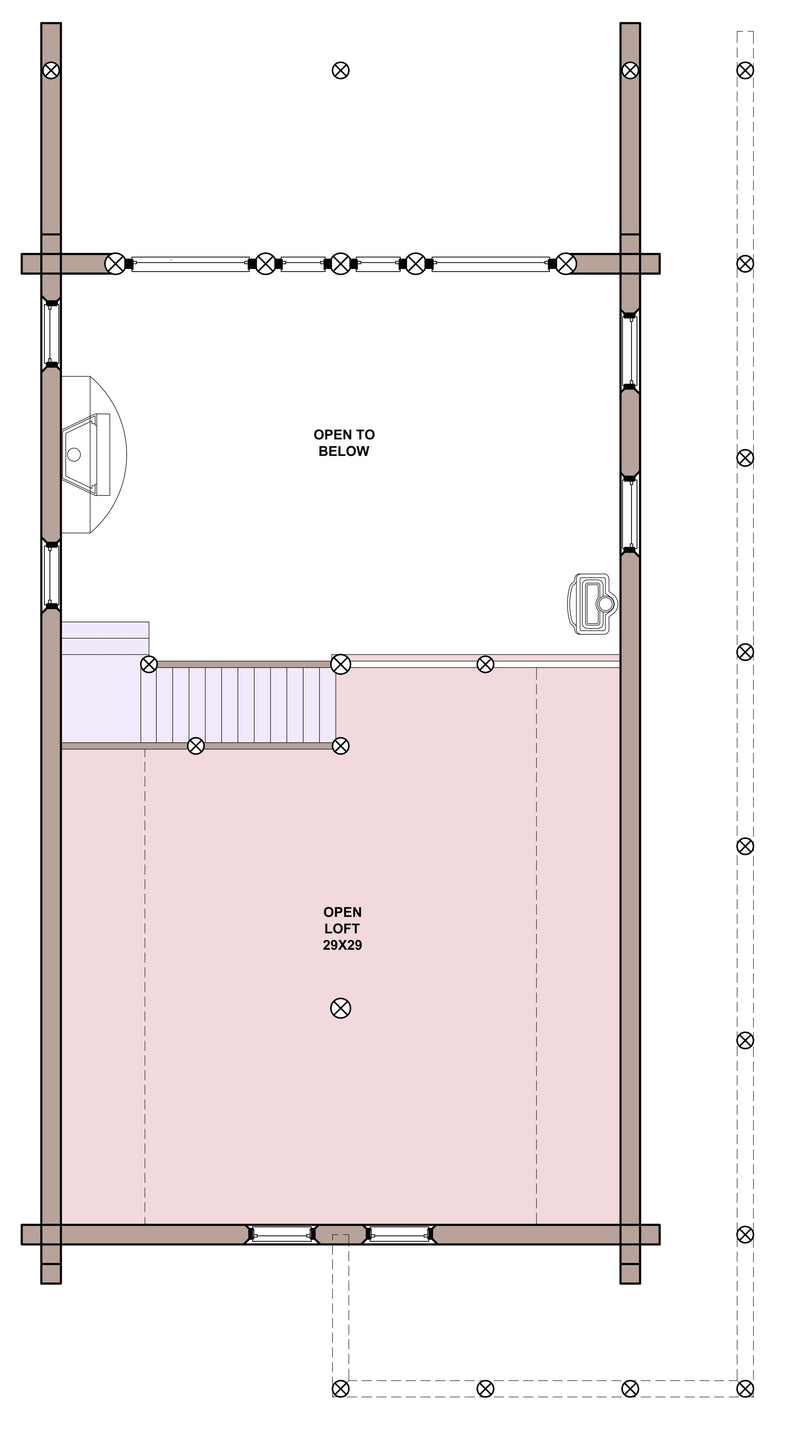

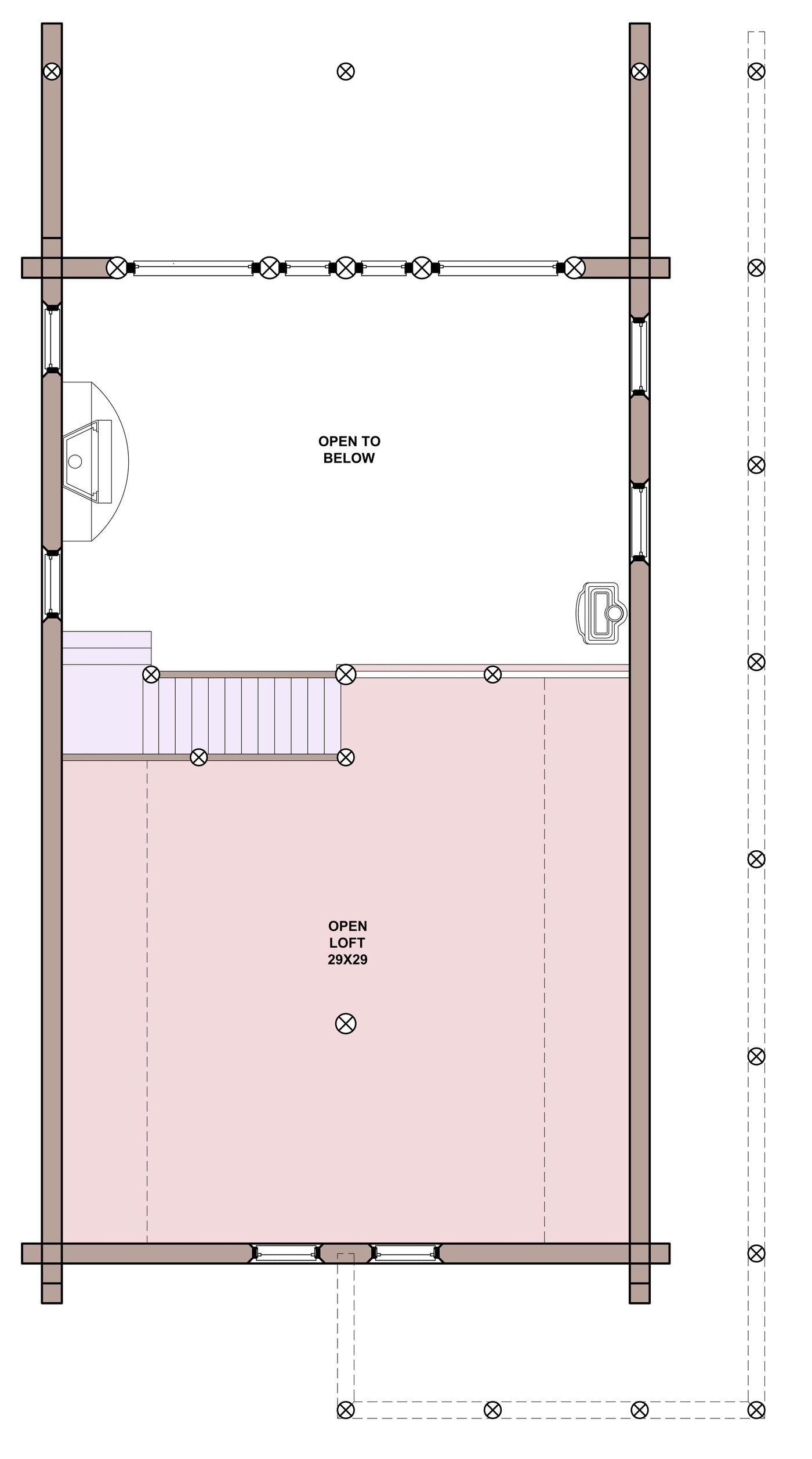

Floor plans
3D

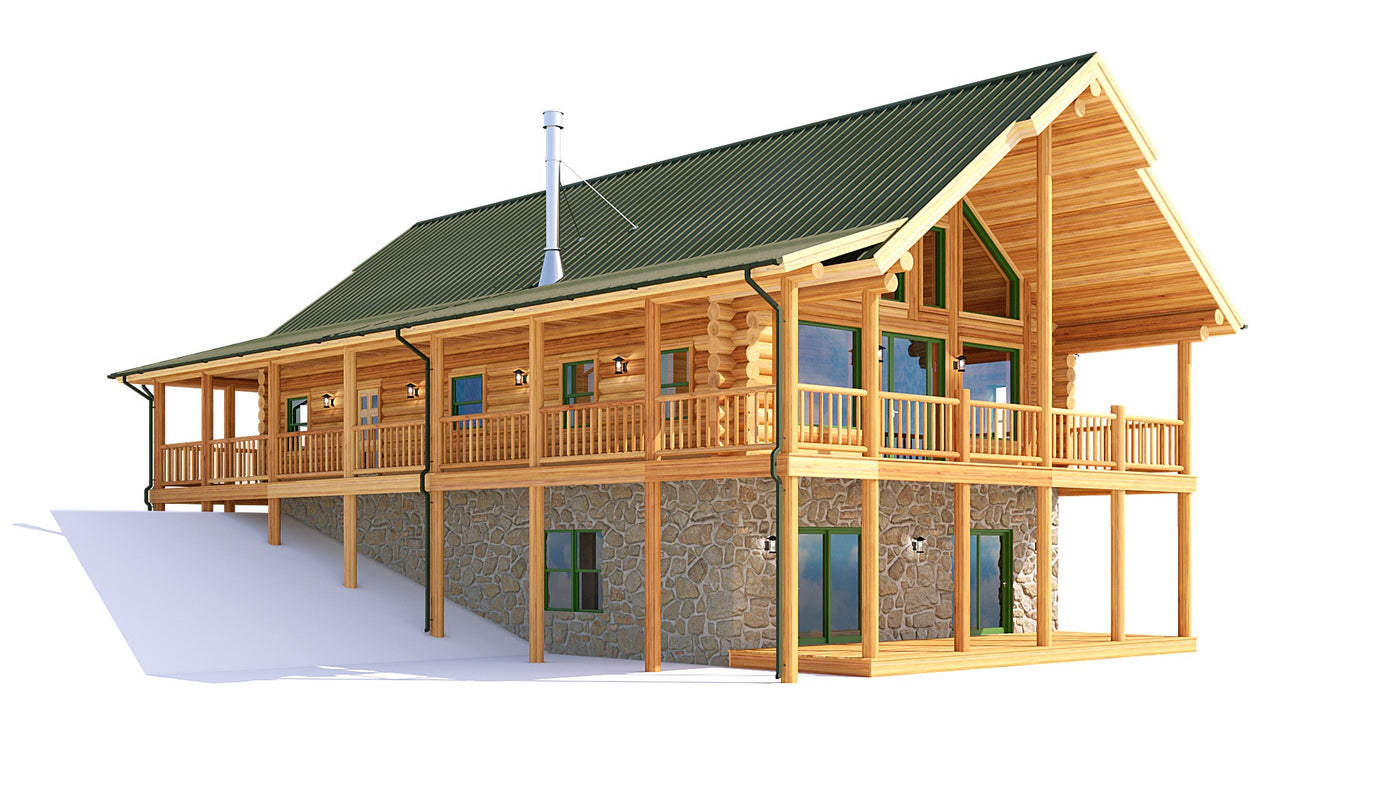

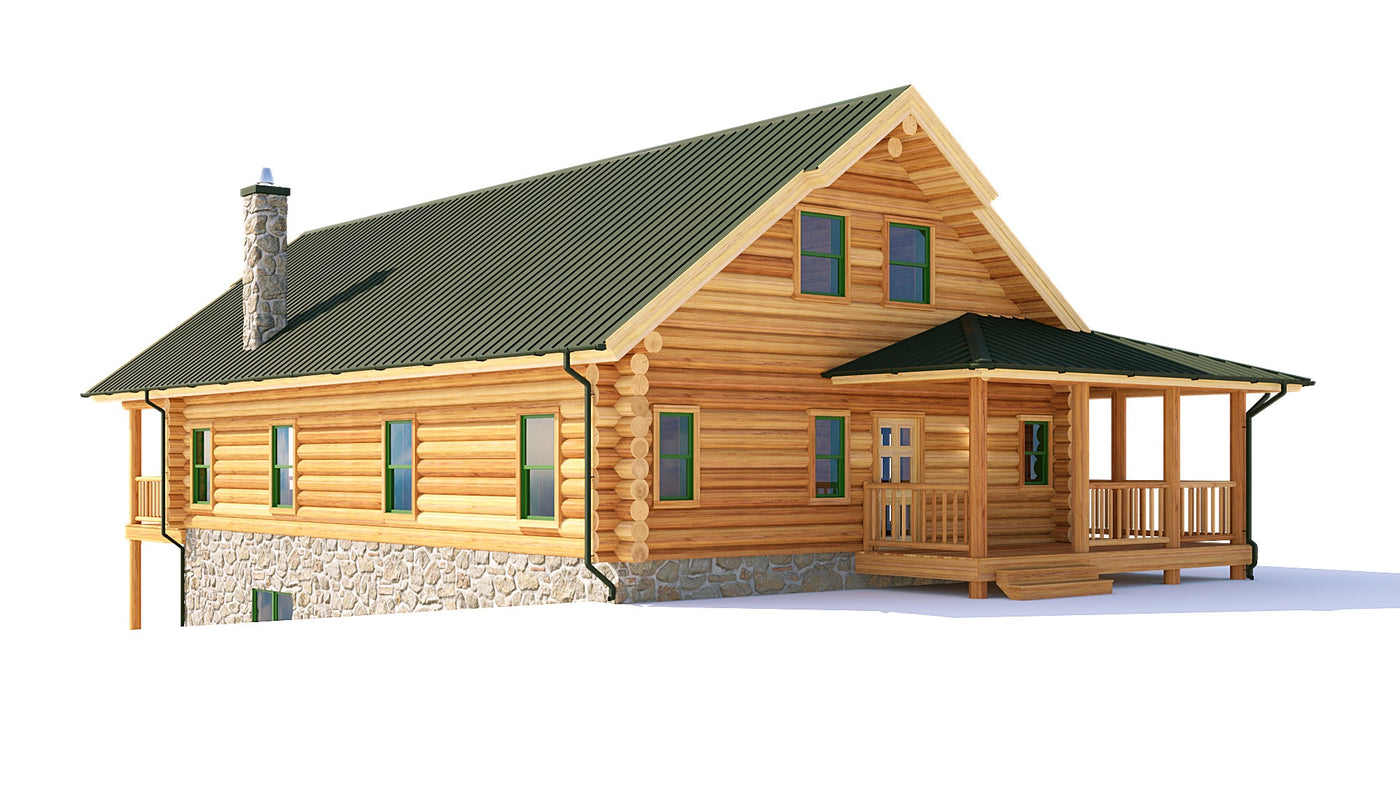

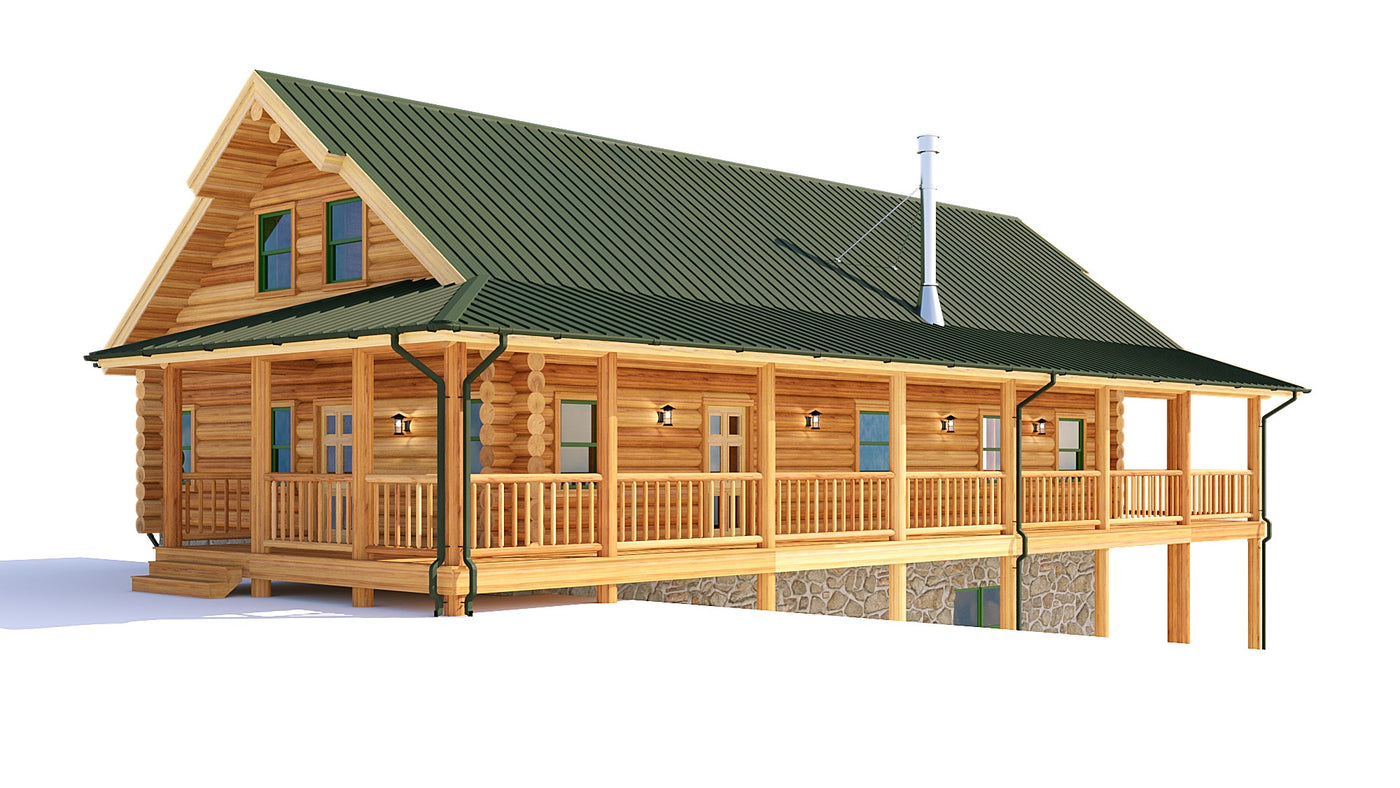

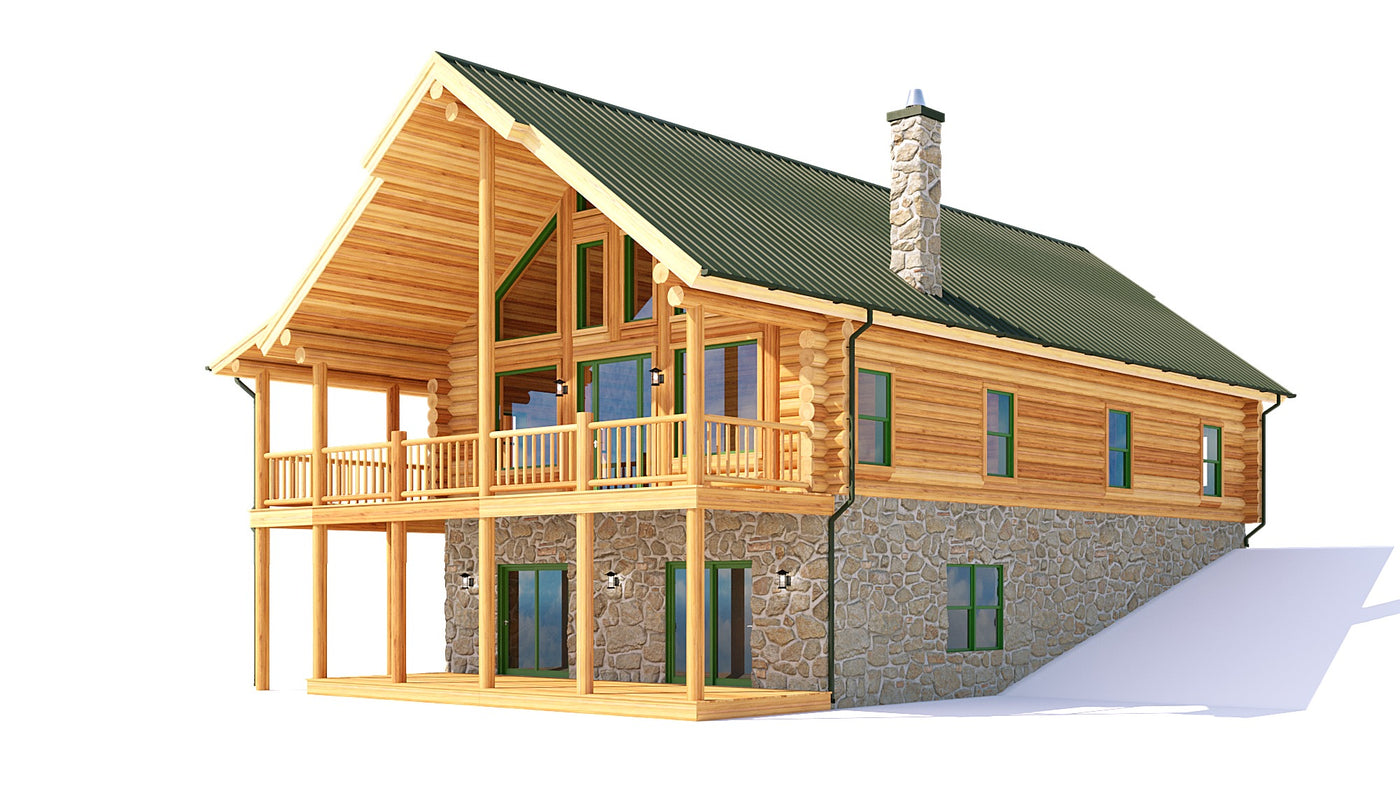

Perspective views

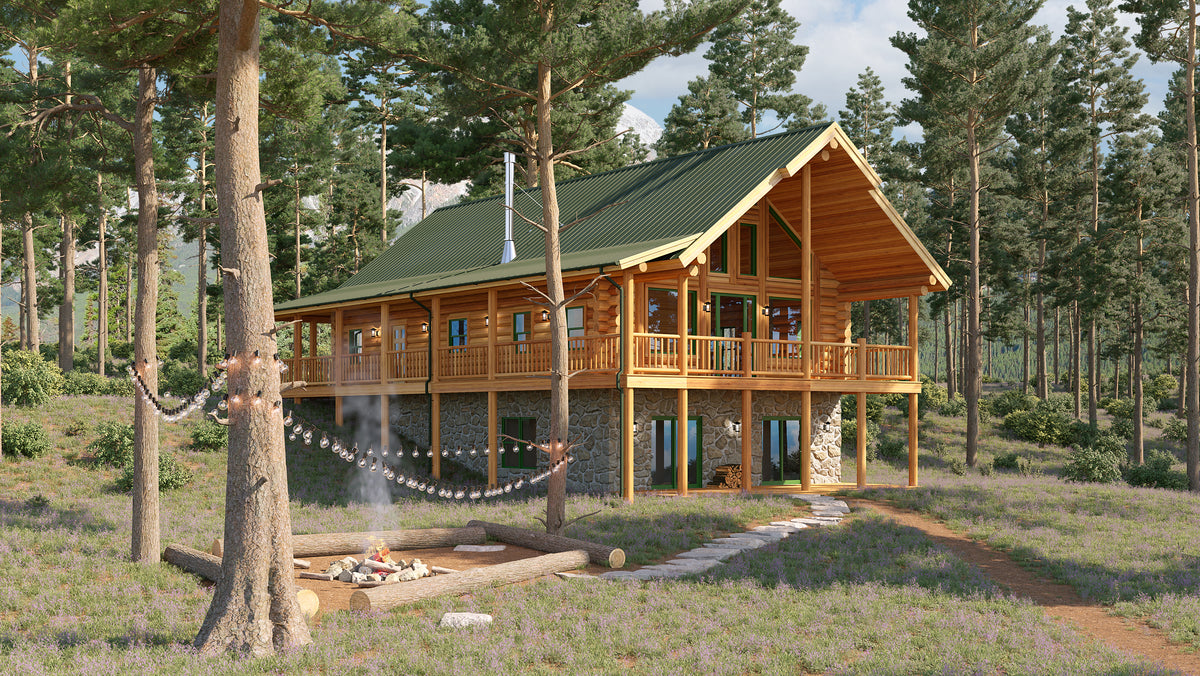

Renders

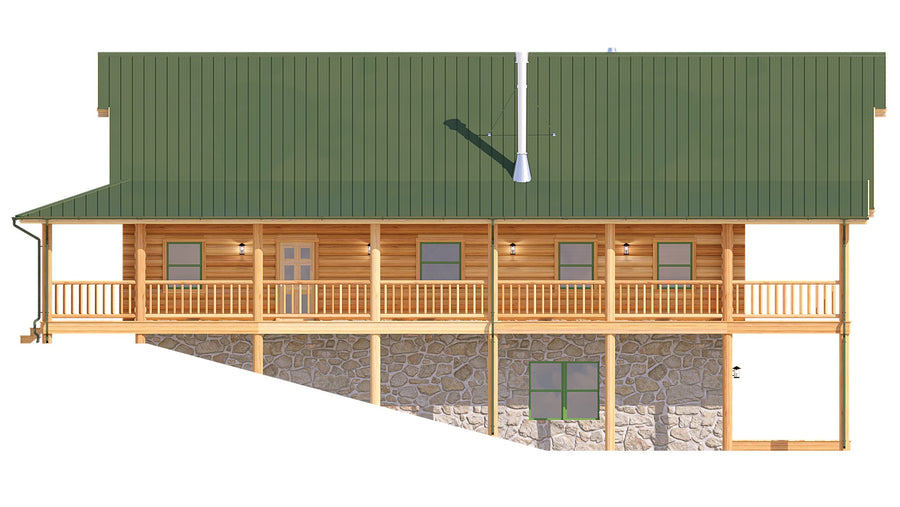

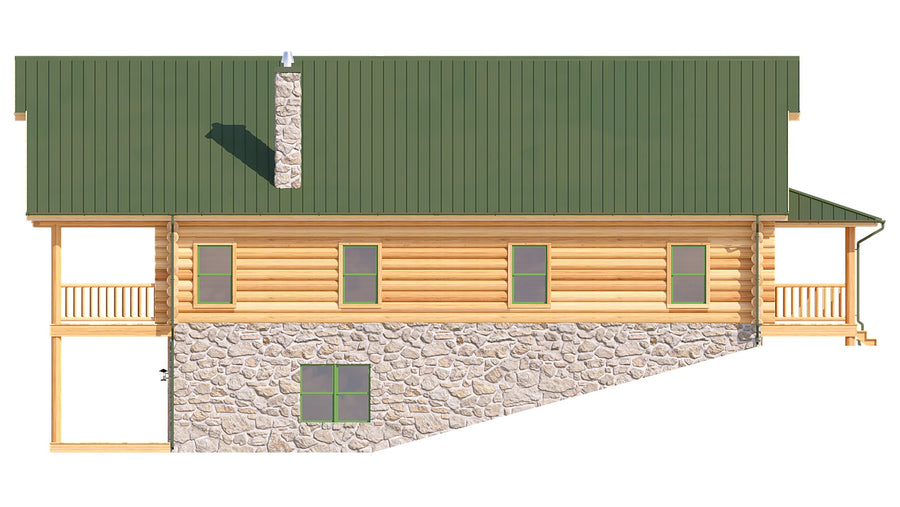

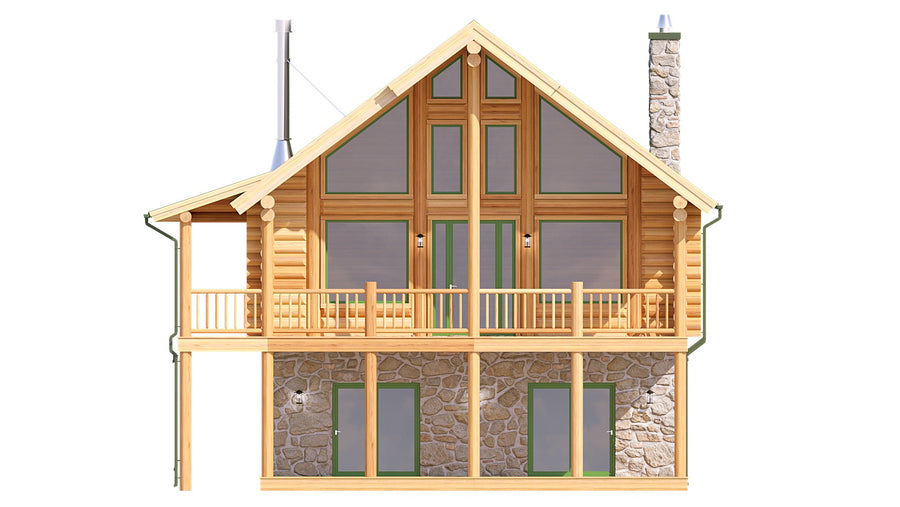

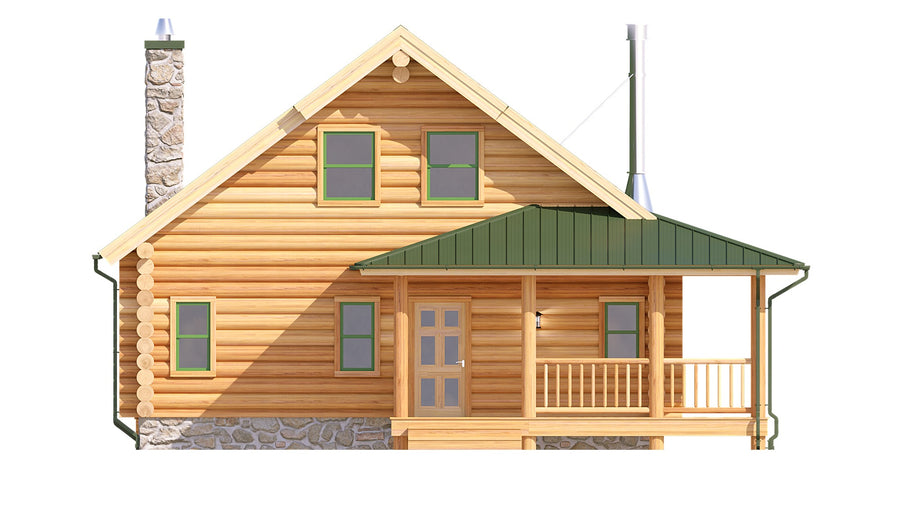

Ortho views
Technical

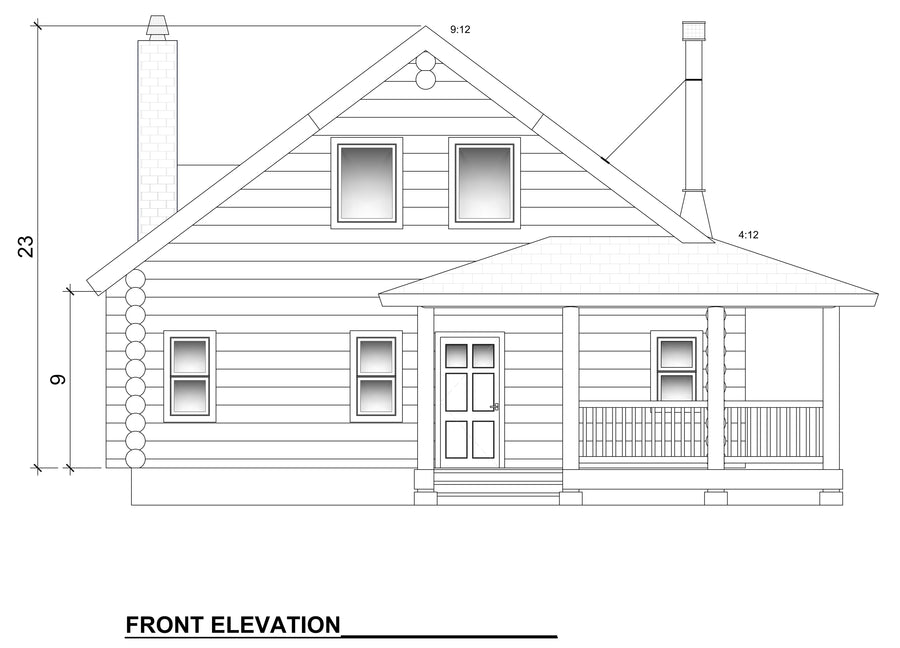

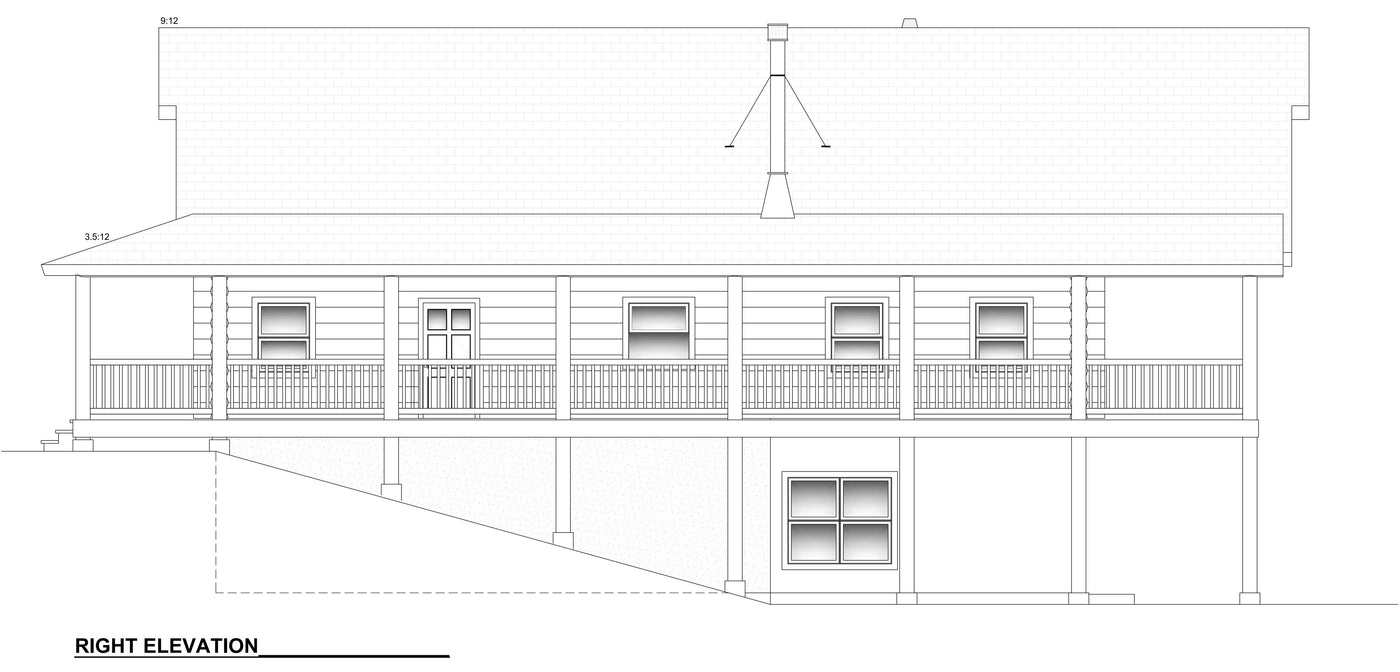

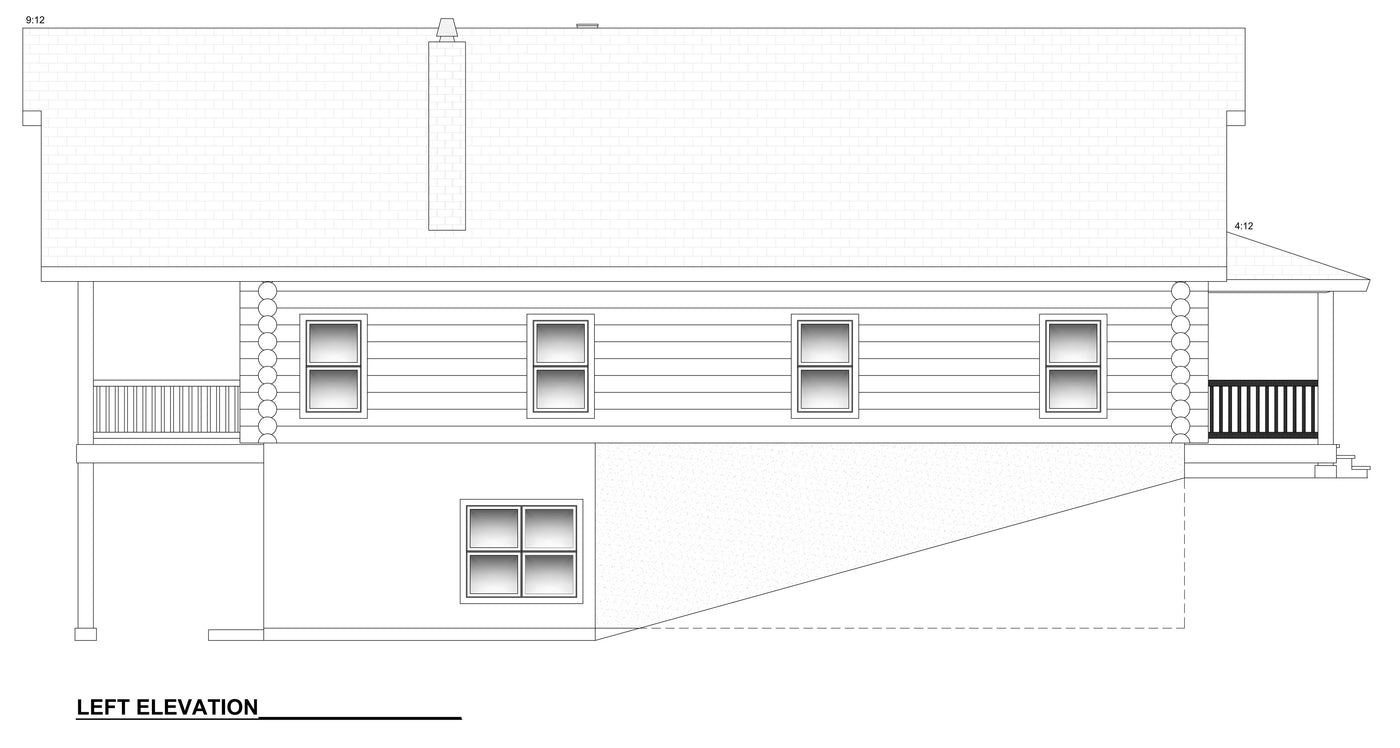

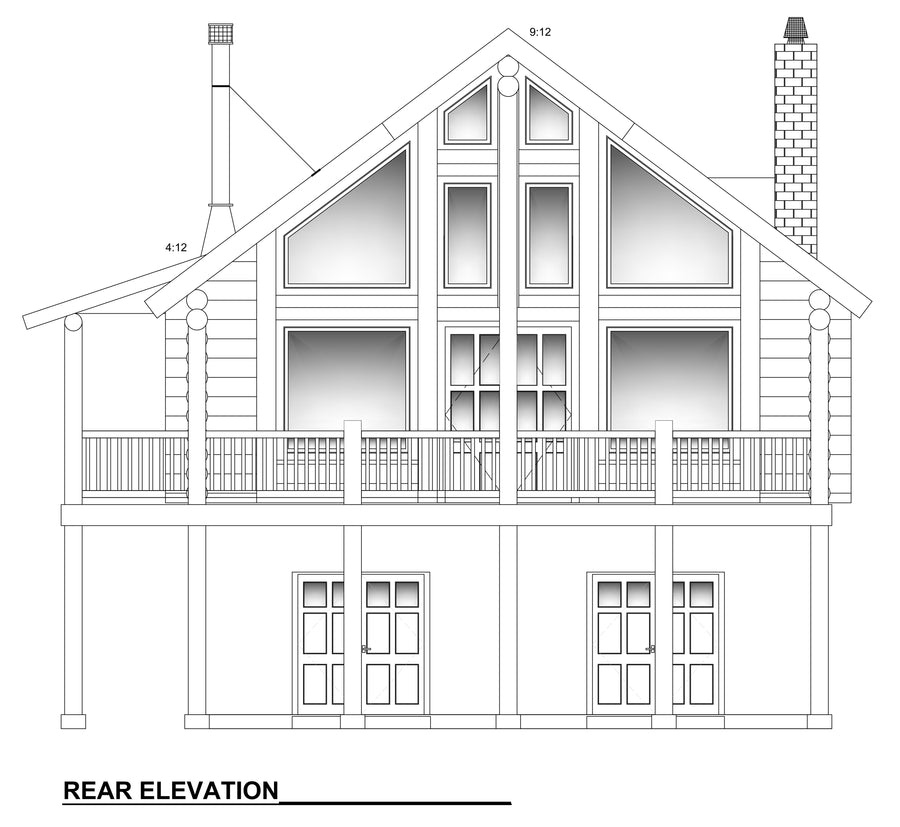

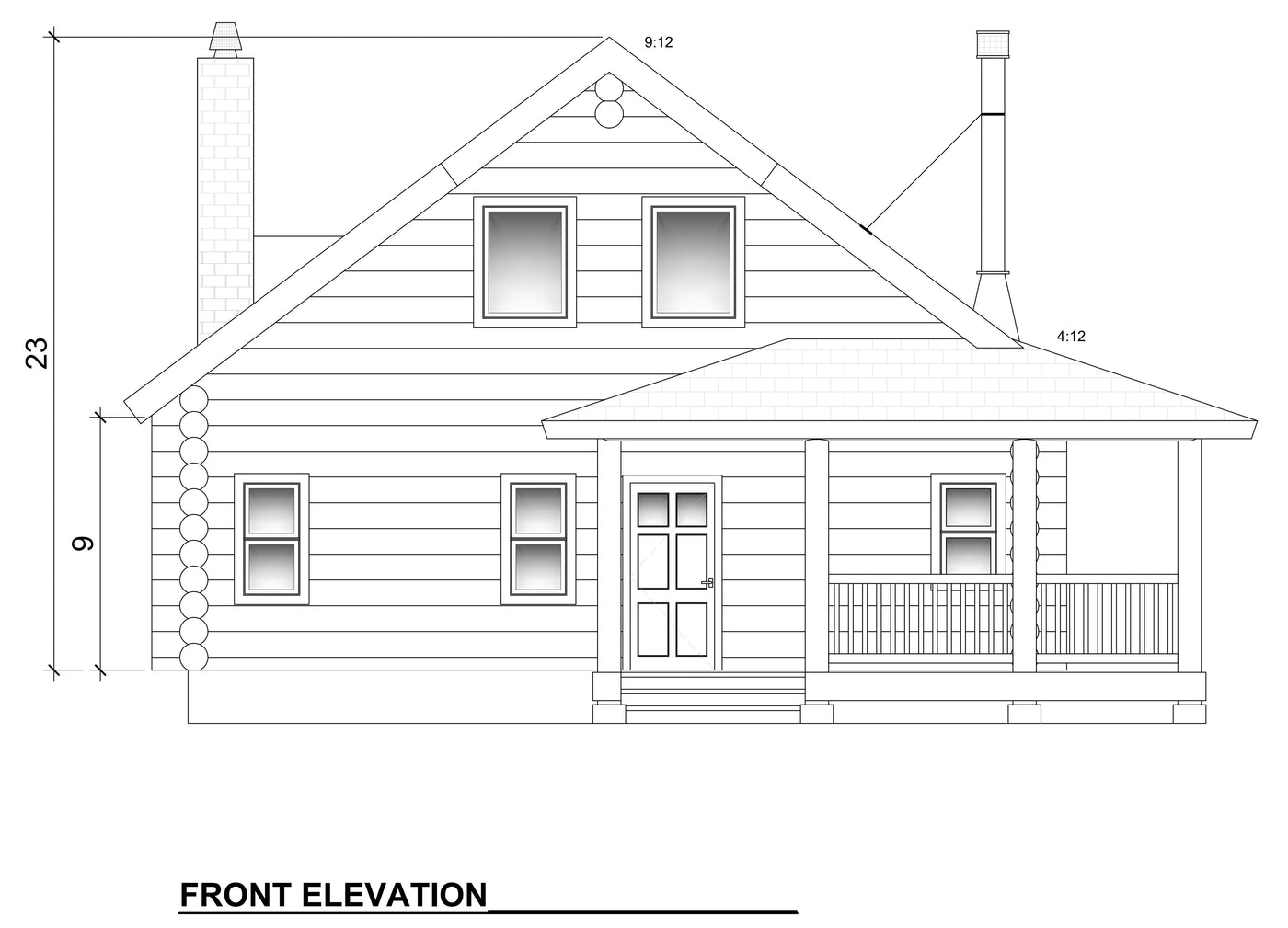

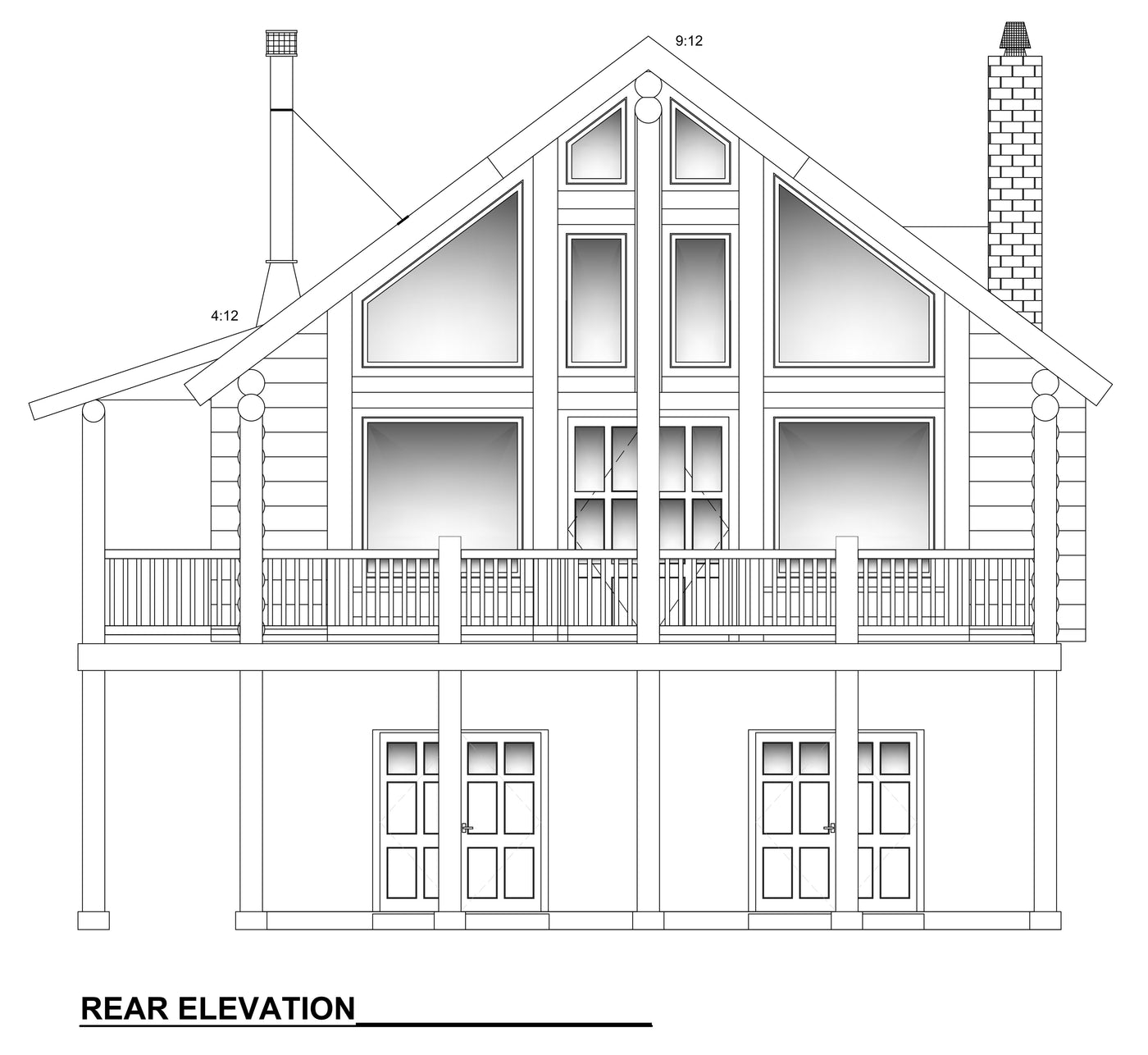

Elevation drawings
