Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Framed |
|---|---|
| Home Style | Barndominium / ADU |
| Bedrooms | 2 |
| Bathrooms | 1 |
| Stories | 2 |
| Main Sq Ft | 1080 |
| Loft Sq Ft | 1080 |
| Basement Sq Ft | — |
| Total Sq Ft | 2160 |
| Garage | Yes |
| Basement | — |
| Reference | Lowell |
About this plan
The Cedar Crest by Sierra Log & Timber is a warm and inviting 2,160 sq ft log home that feels both open and intimate, with a craftsman’s touch in every detail. Ideal for couples or small families dreaming of a place to settle in and spread out, it offers a main floor with 1,080 sq ft for daily living, including a comfortable great room, practical kitchen, and a restful primary bedroom. Upstairs, the 1,080 sq ft loft gives you room to grow—a second bedroom, a quiet office, or a creative studio, all under one roof. The attached garage keeps things tidy and convenient, especially through the seasons. Whether as a year-round residence, a mountain retreat, or a place to gather with loved ones, Cedar Crest is ready to be shaped to your vision, blending classic log home character with the flexibility to make it your own.

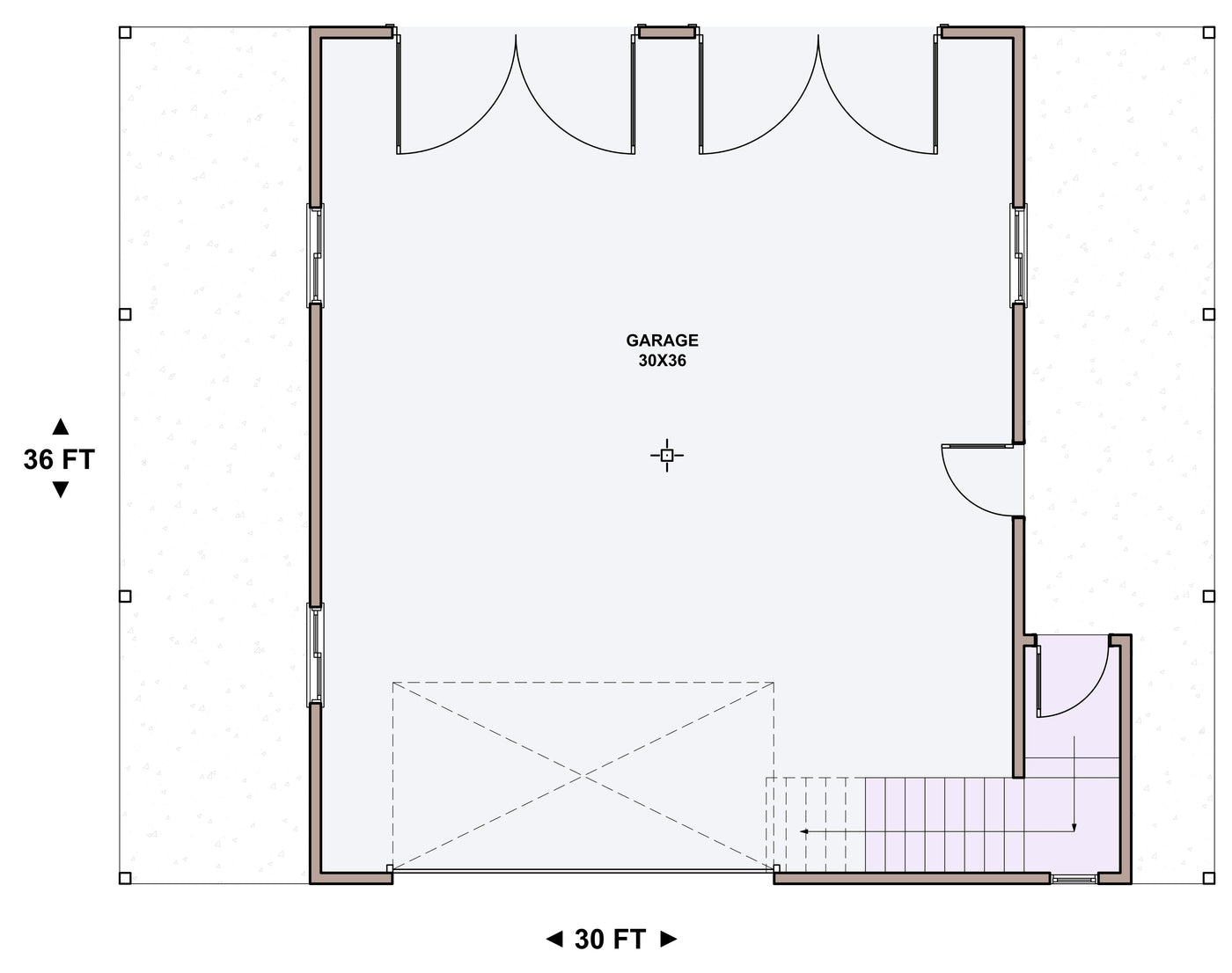

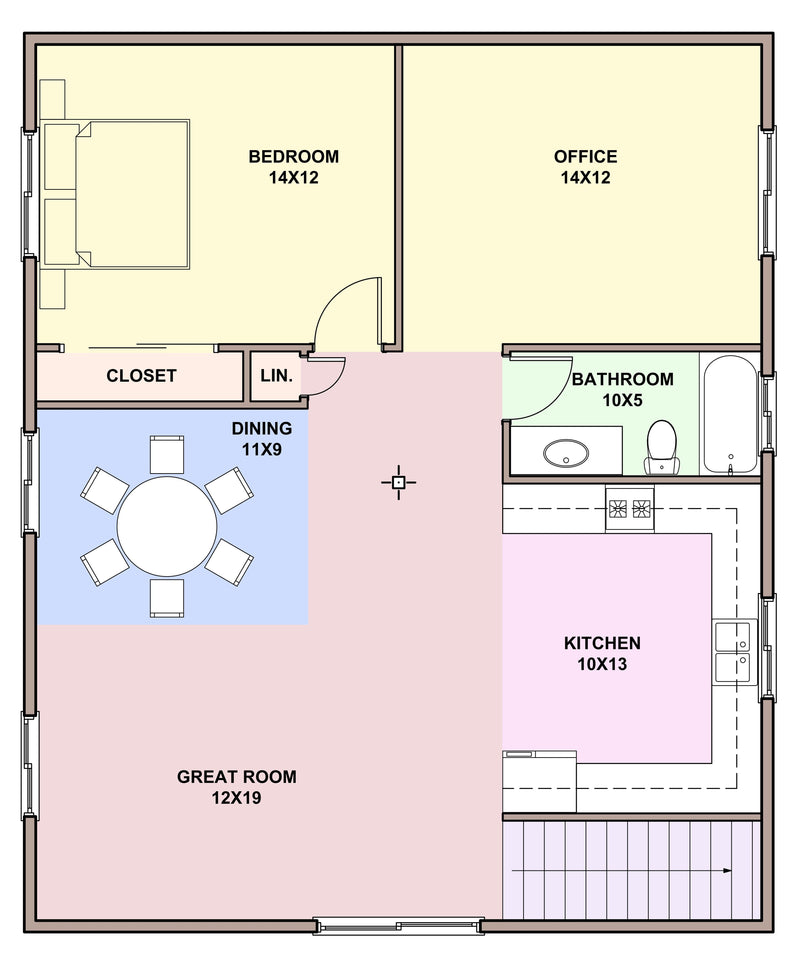

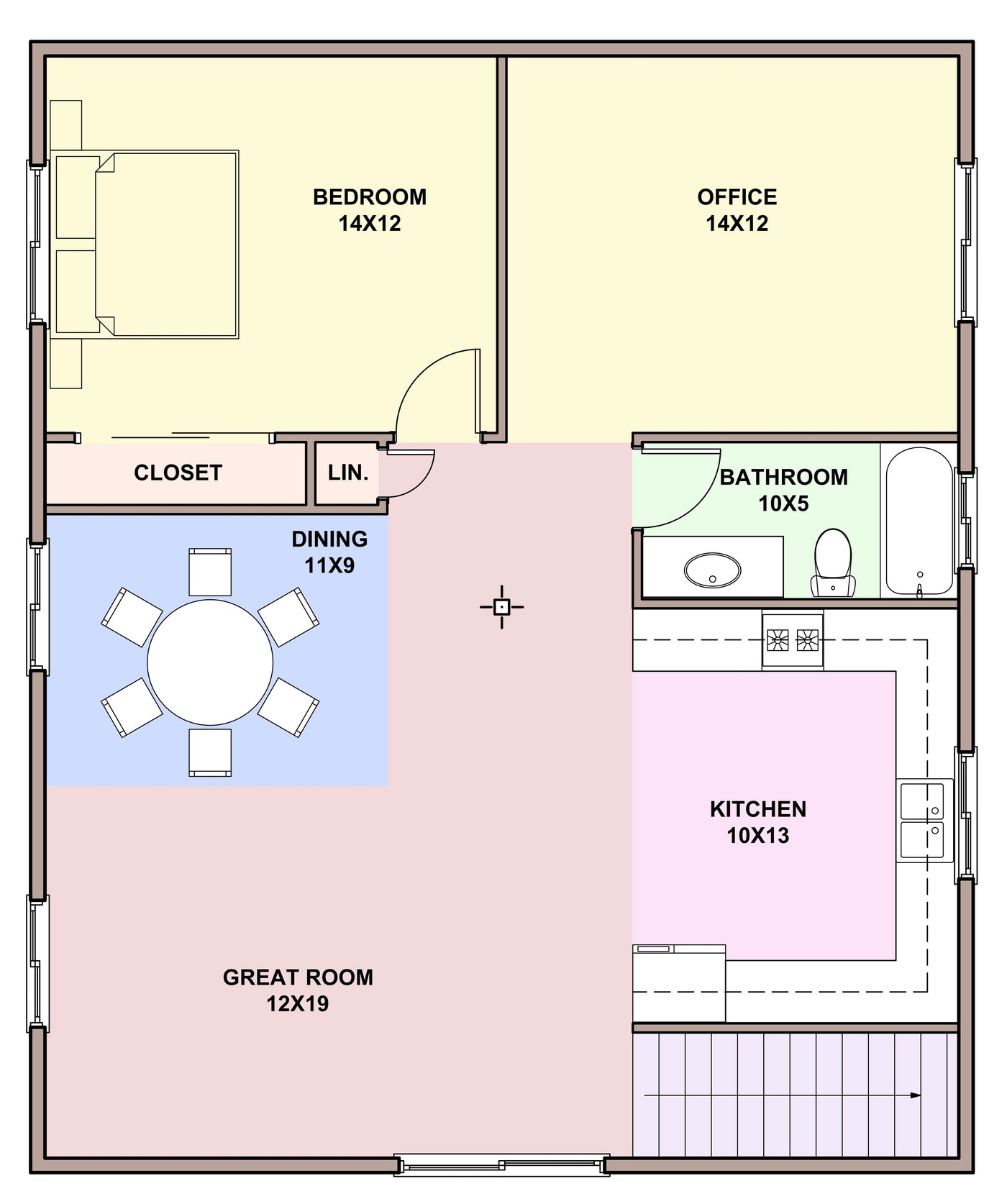

Floor plans
3D

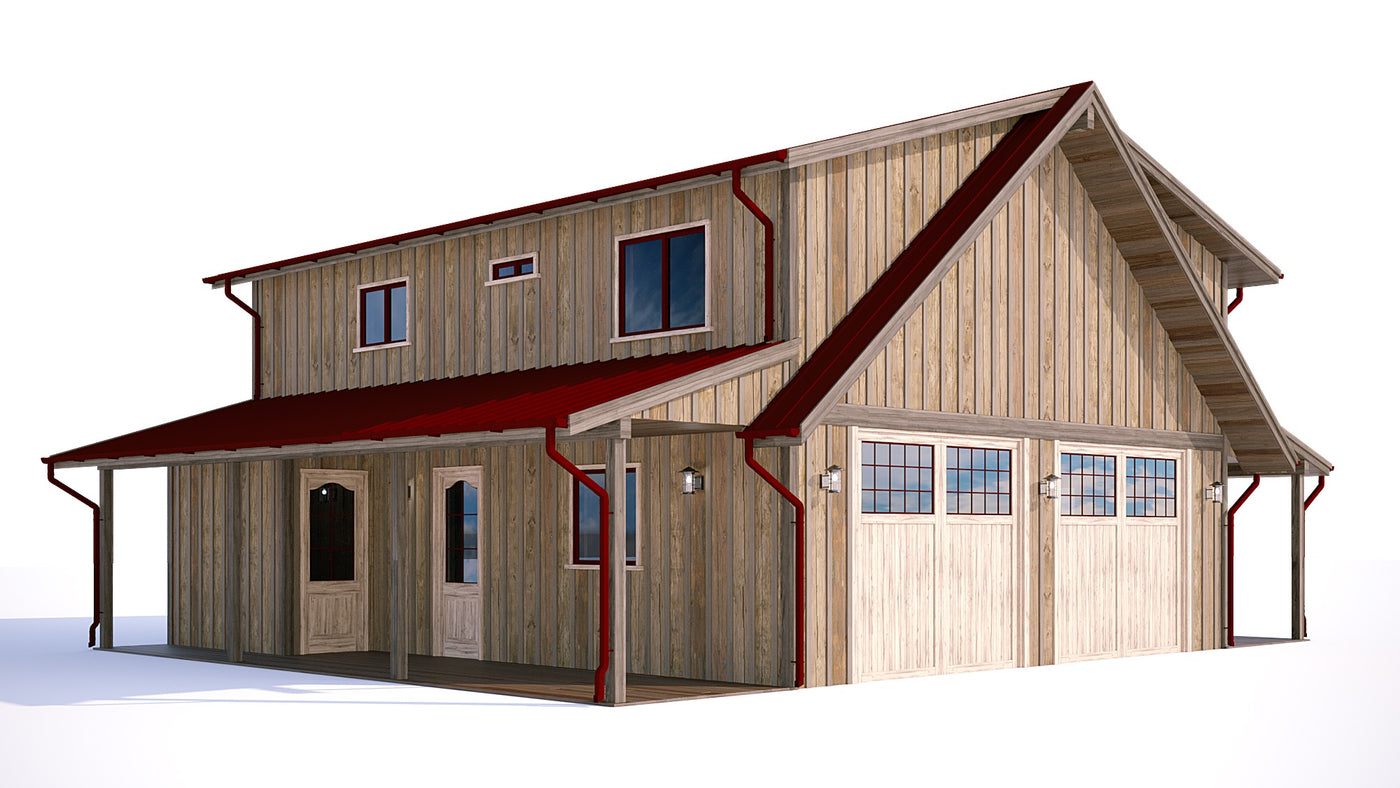

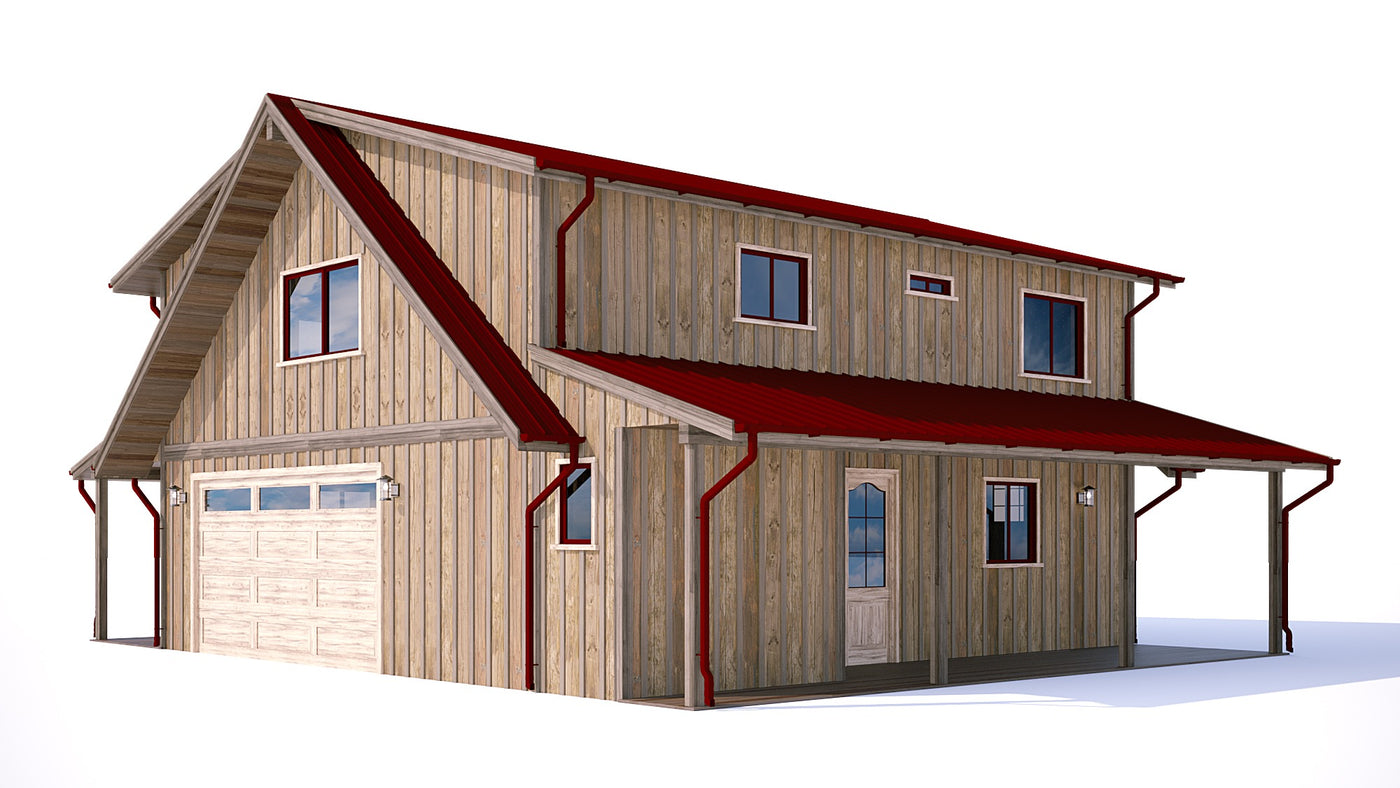

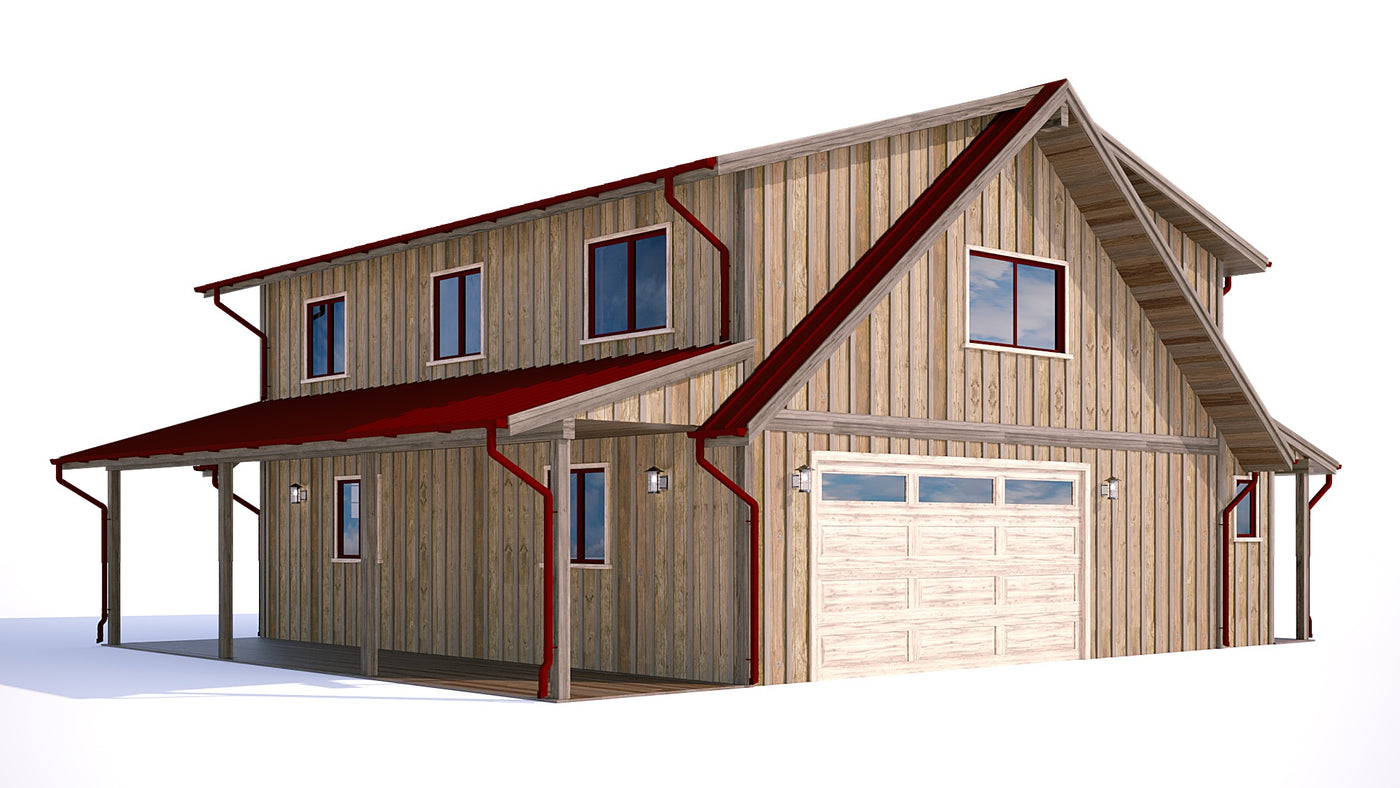

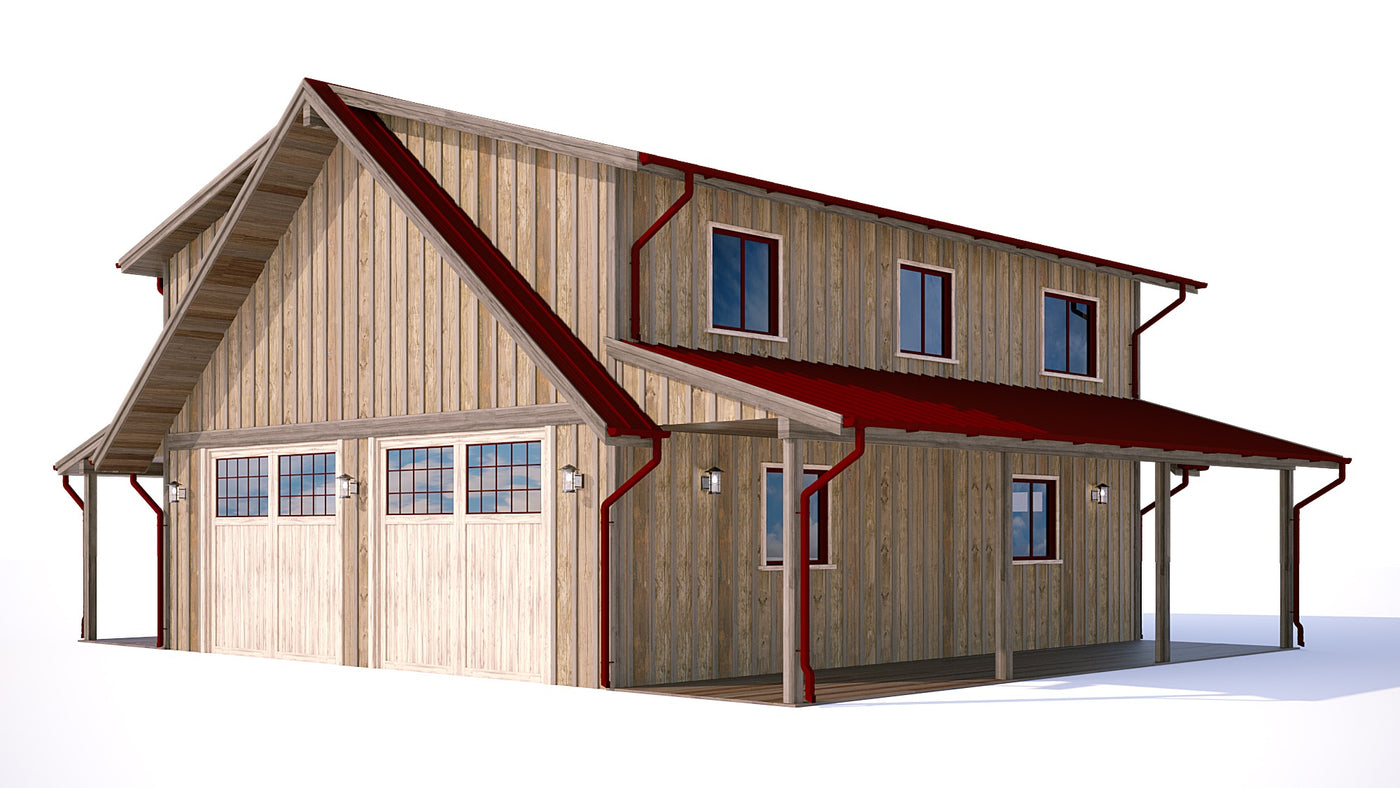

Perspective views

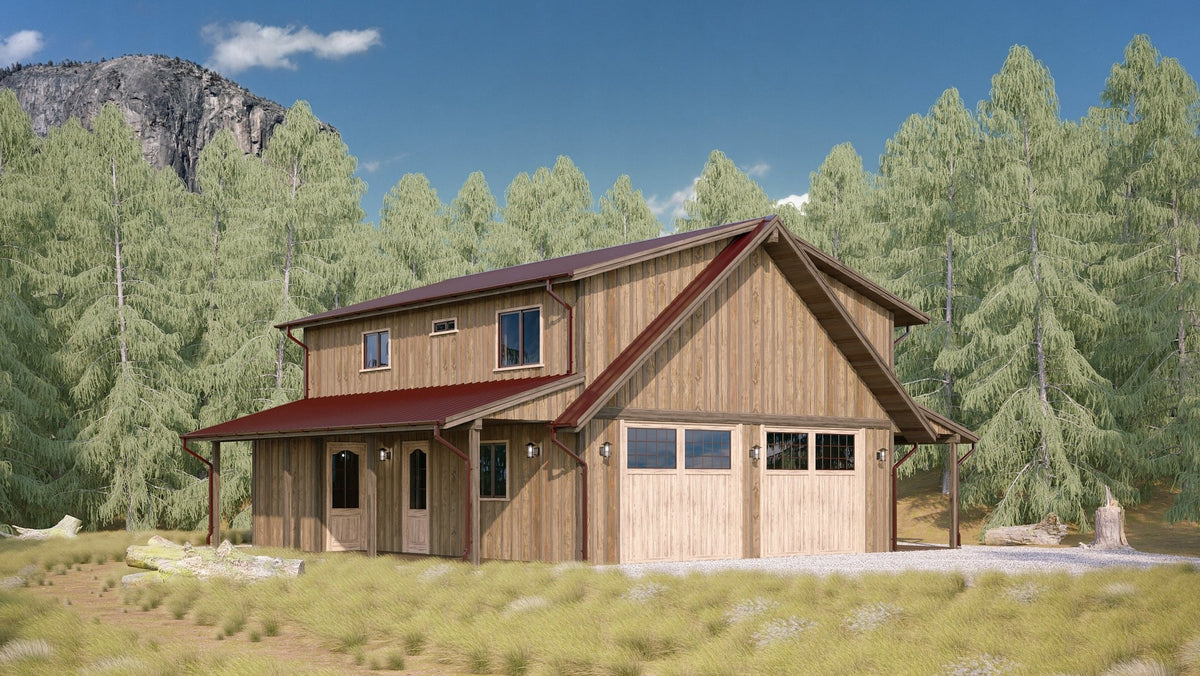

Renders

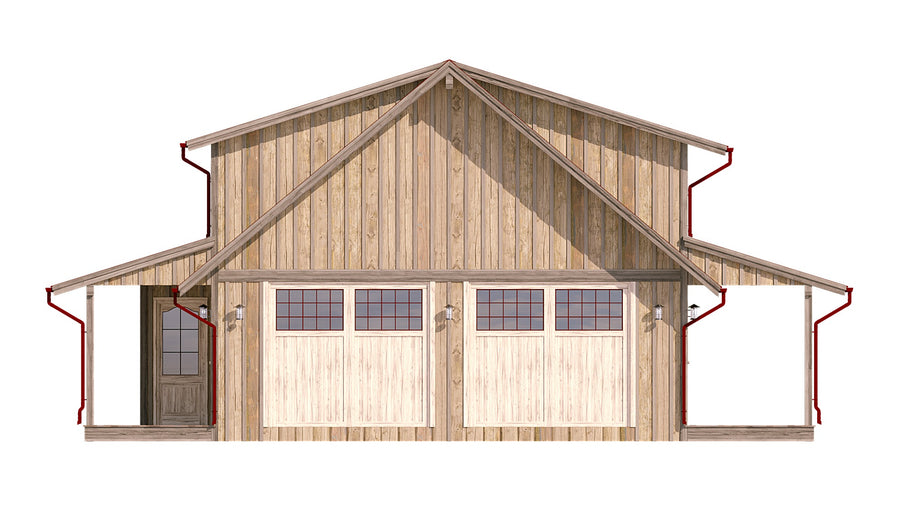

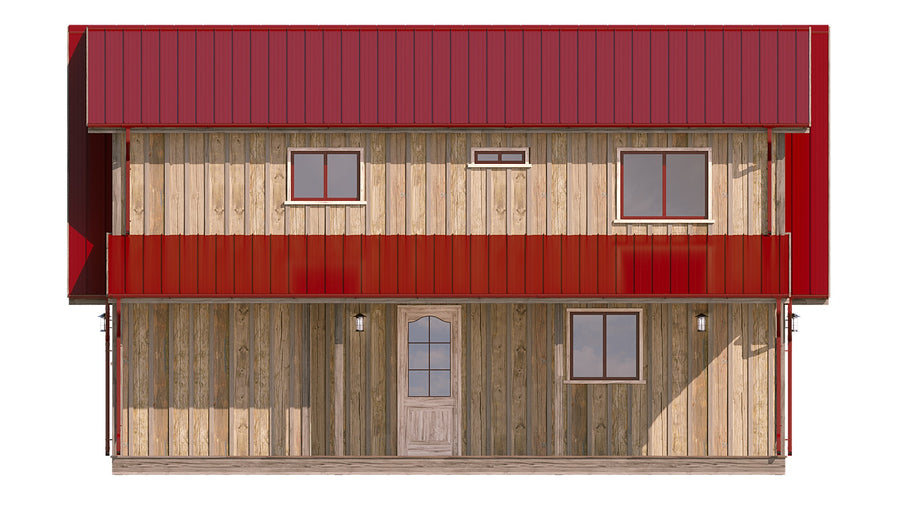

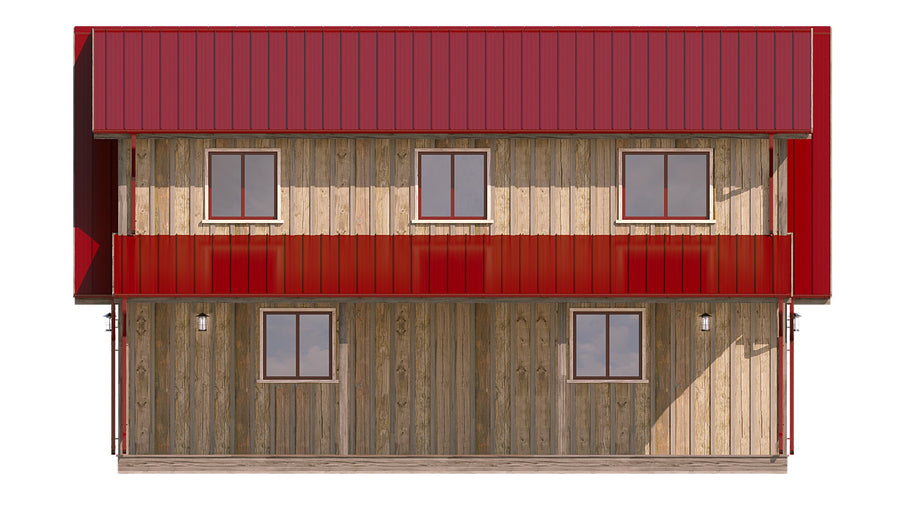

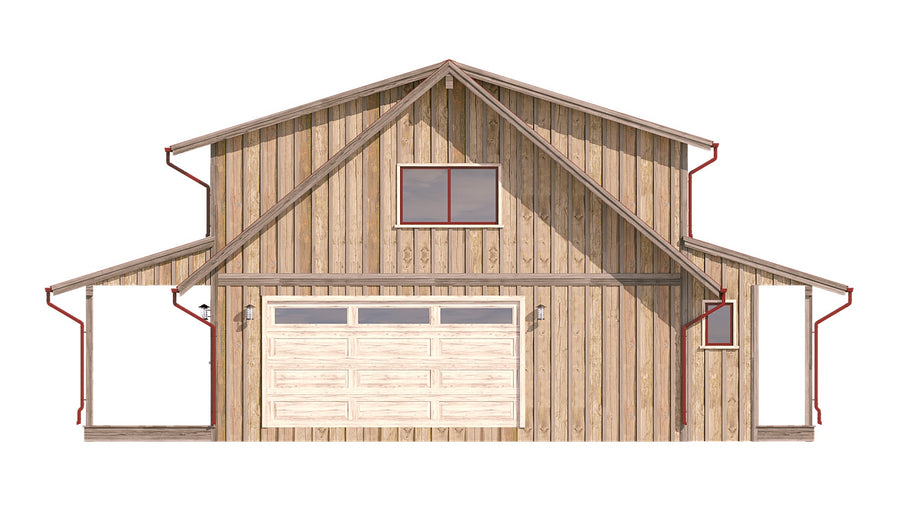

Ortho views
Technical

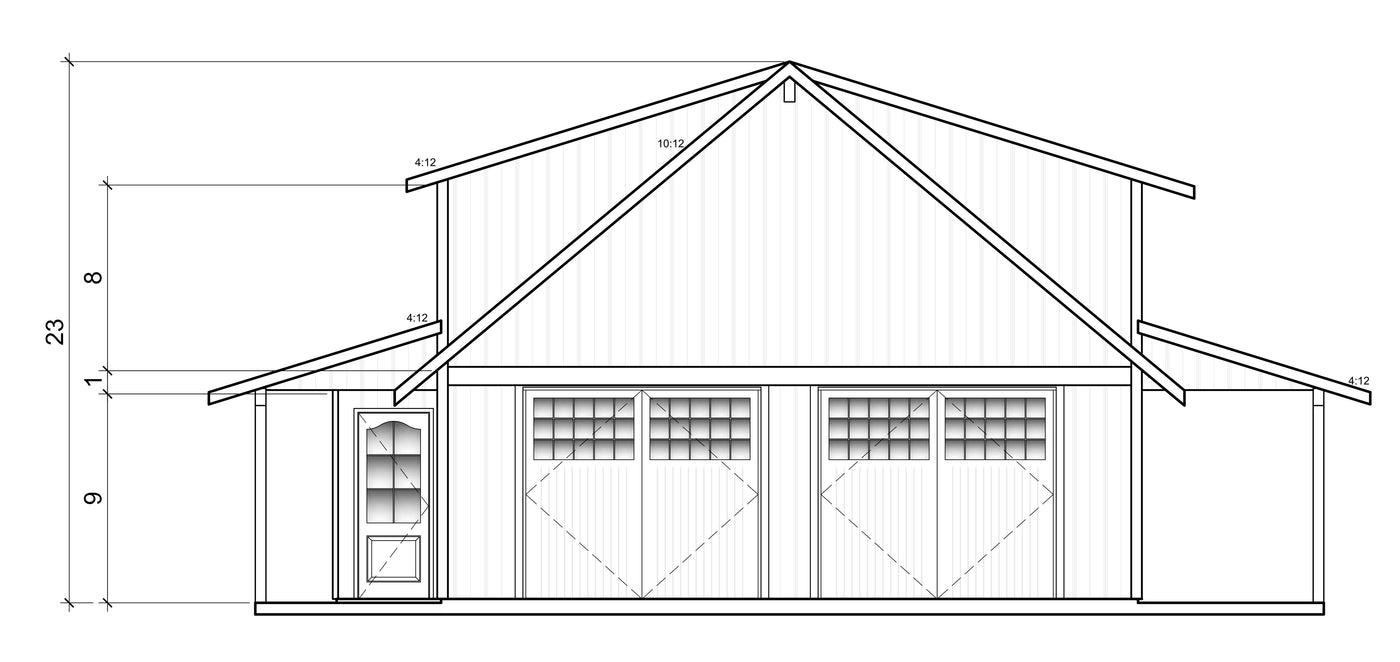

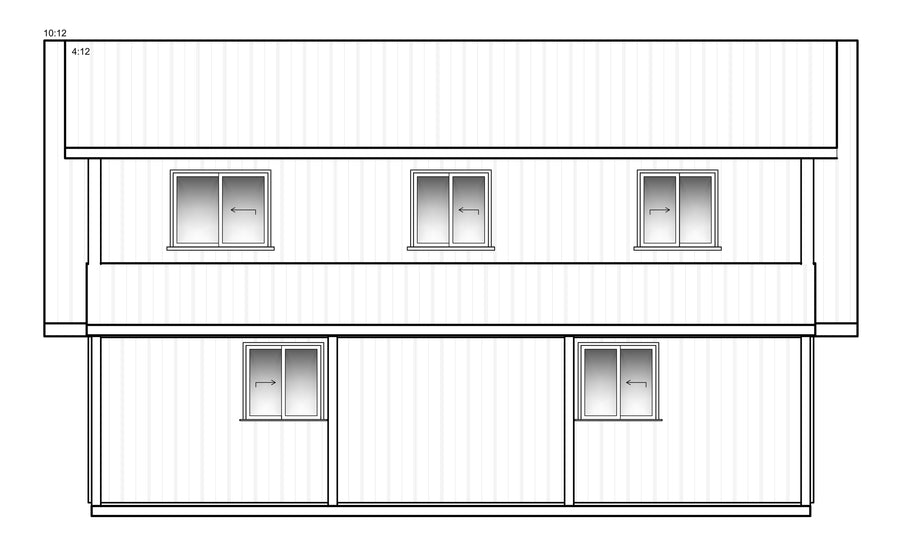

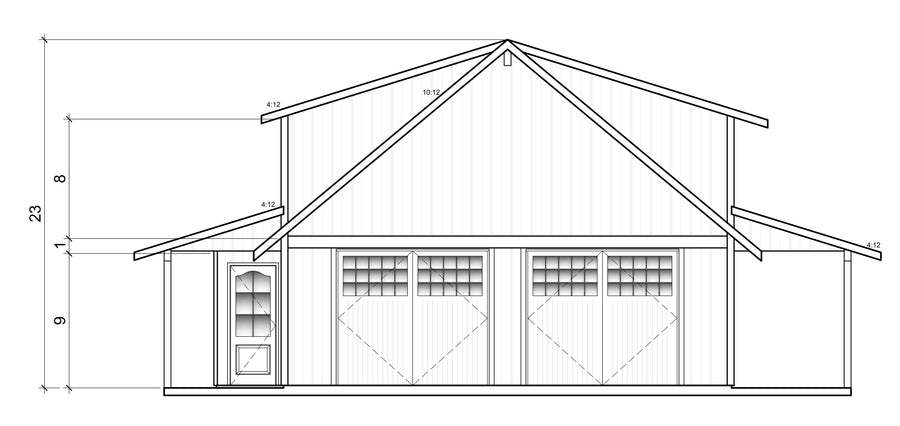

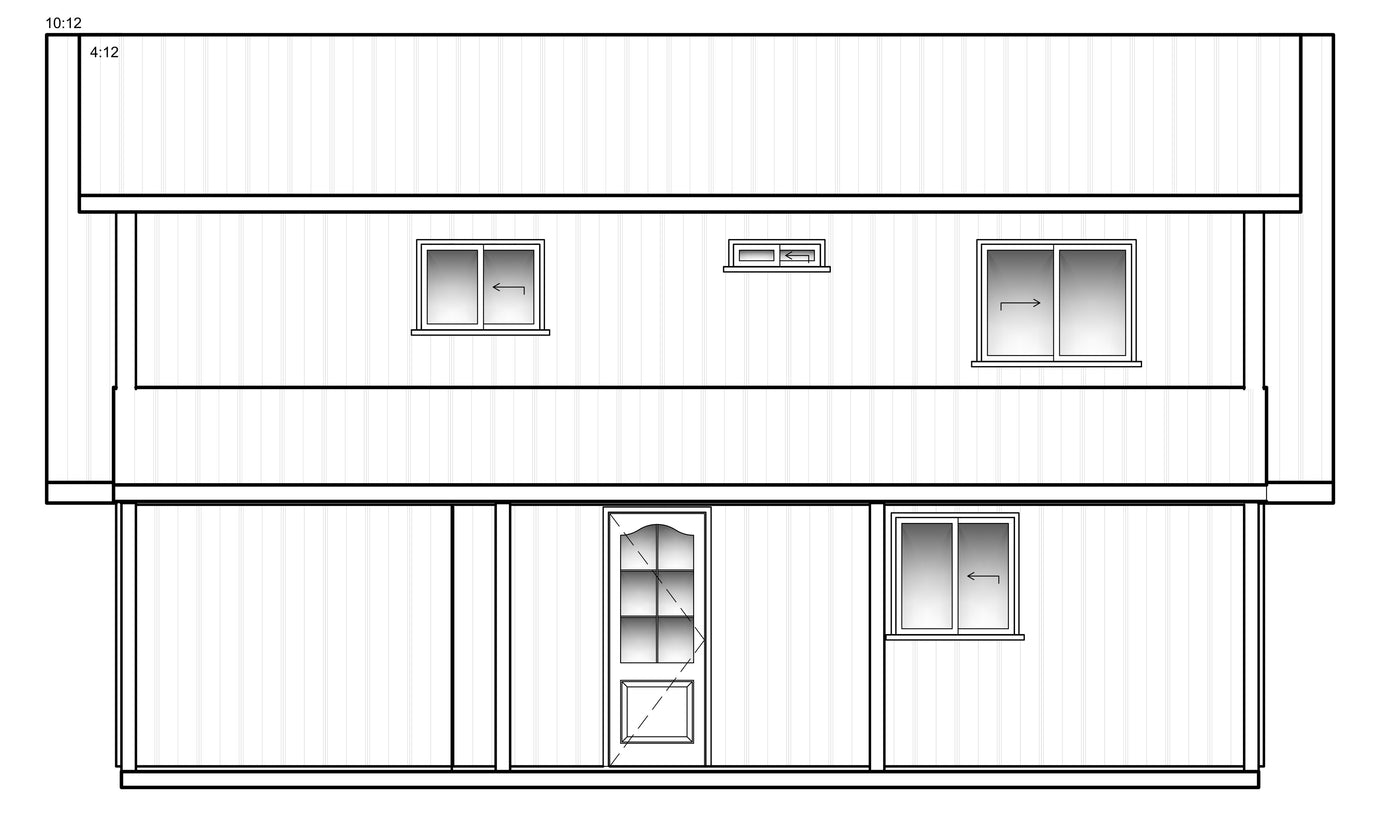

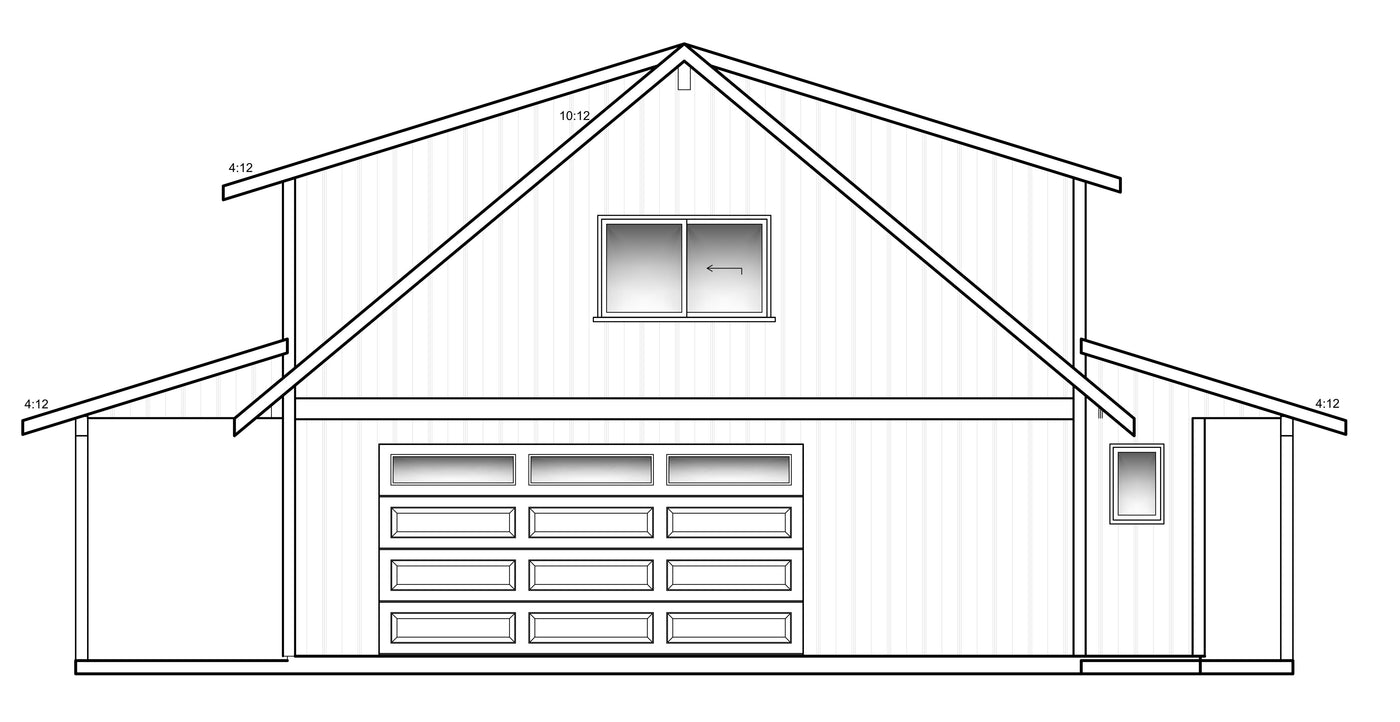

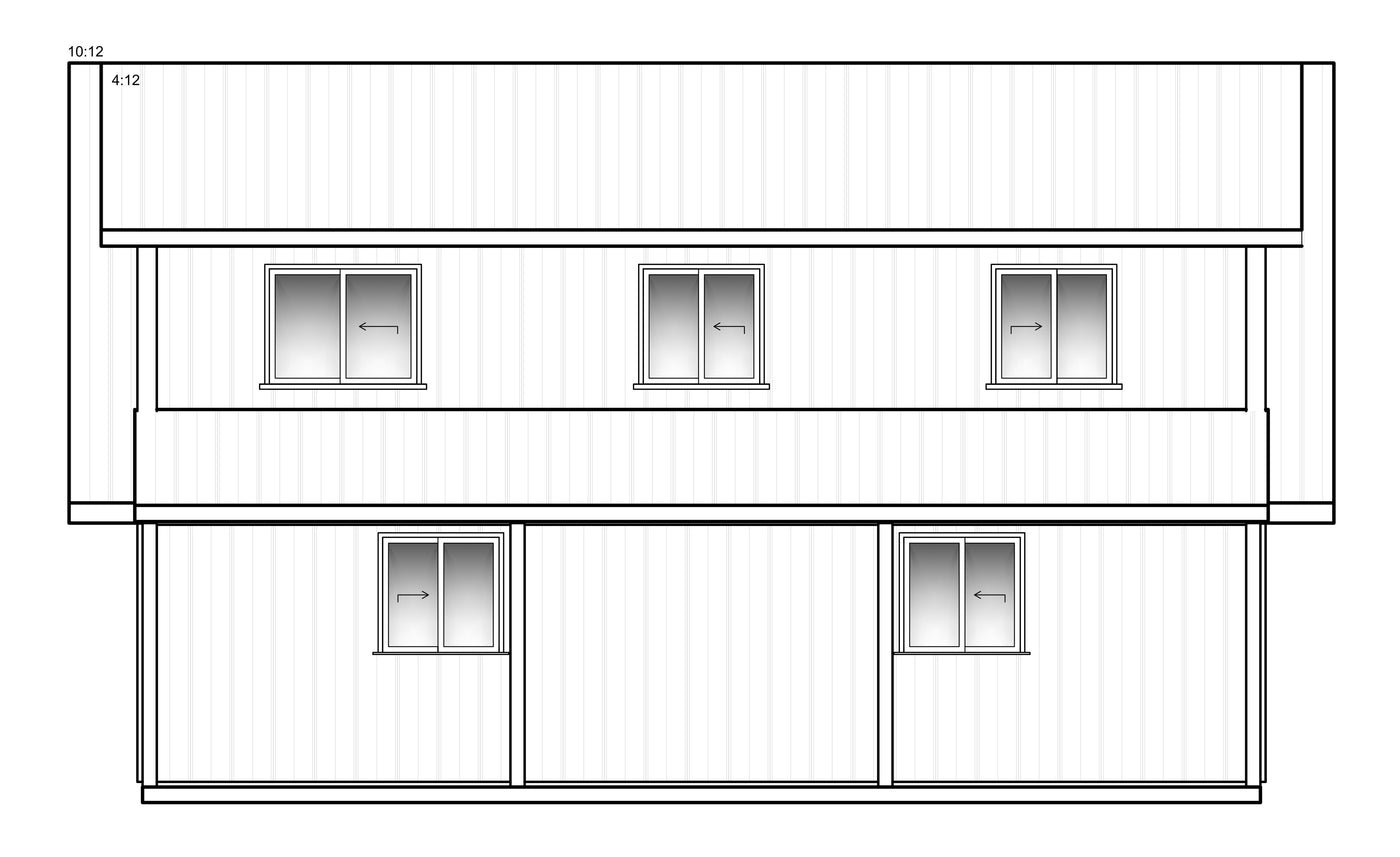

Elevation drawings
When you are ready to build
Questions? 530-899-0680 · info@sierralogandtimber.com
Sierra Log & Timber · Model Plans
These homes ship from our West Coast mill.
