Study Plan
A fully quarter scaled plan set of the elevations and floor plan fully dimensioned as it was designed. Below are the 4 top uses of the Scaled Study Plan Set:
-
Funding & Underwriting Optimization
Instantly supplies commercial loan officers and appraisers with the exact dimensional baselines required to initiate construction loan financing.
-
Absolute Site & Land Compatibility
Allows you and your excavator to physically map the home’s real footprint against your property lines, grading, acreage characteristics, and topography.
-
HOA & Community Acceptance
Provides the architectural review board of your local community or subdivision with the authentic configuration layout they require for early phase structural approval.
-
Local Building Code & Regulatory Validation
Equips you to review zoning, setbacks, and high-load regional environmental constraints directly with county building departments before investing in blueprints.
Plan details
| Project Type | Framed |
|---|---|
| Home Style | Barndominium / Mountain |
| Bedrooms | 4 |
| Bathrooms | 2.5 |
| Stories | 2 |
| Main Sq Ft | 1504 |
| Loft Sq Ft | 759 |
| Basement Sq Ft | — |
| Total Sq Ft | 2263 |
| Garage | — |
| Basement | — |
| Reference | Schmidt |
About this plan
The Barn Palace by Sierra Log & Timber is a welcoming 2,263 sq ft log home with a warm, farmhouse-inspired spirit. Ideal for growing families or anyone who loves to host, it offers four bedrooms and two and a half baths across two stories. The main floor’s 1,504 sq ft centers around a spacious great room and a practical kitchen, making it easy to gather for meals or unwind by the fire. The primary bedroom sits conveniently on the main level, while three more bedrooms upstairs give everyone their own space. A 759 sq ft loft adds flexibility for a playroom, home office, or creative studio, letting you shape the home to your needs. Whether as a year-round residence, a country retreat, or a place to bring generations together, the Barn Palace is crafted for comfort and ready for your personal touch.

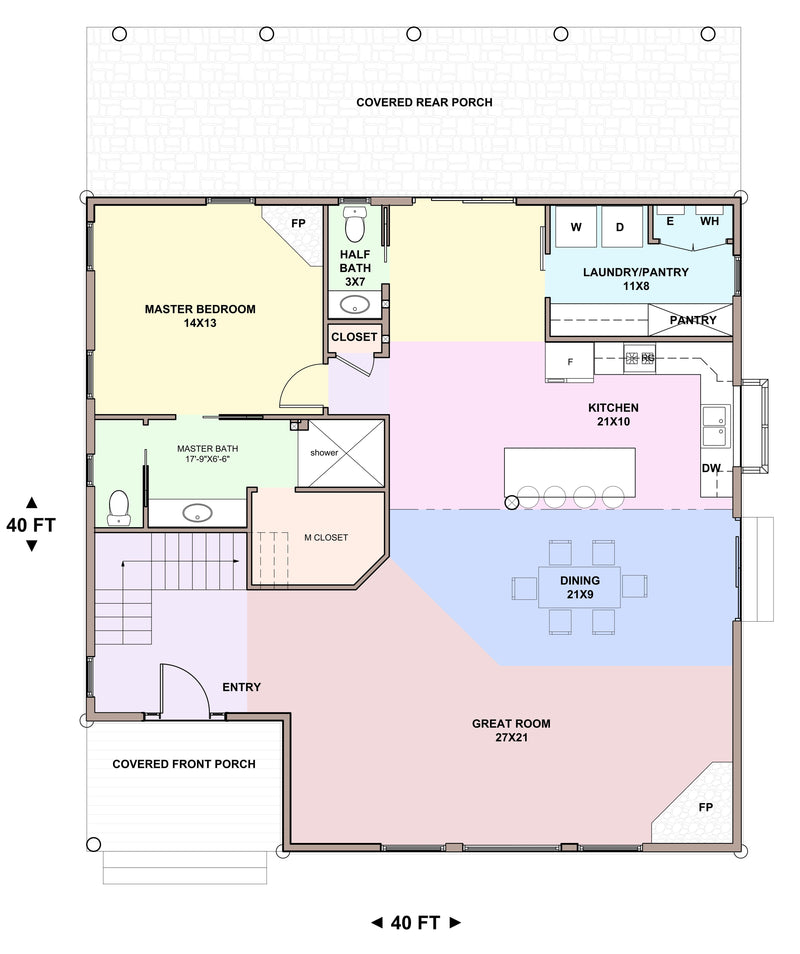

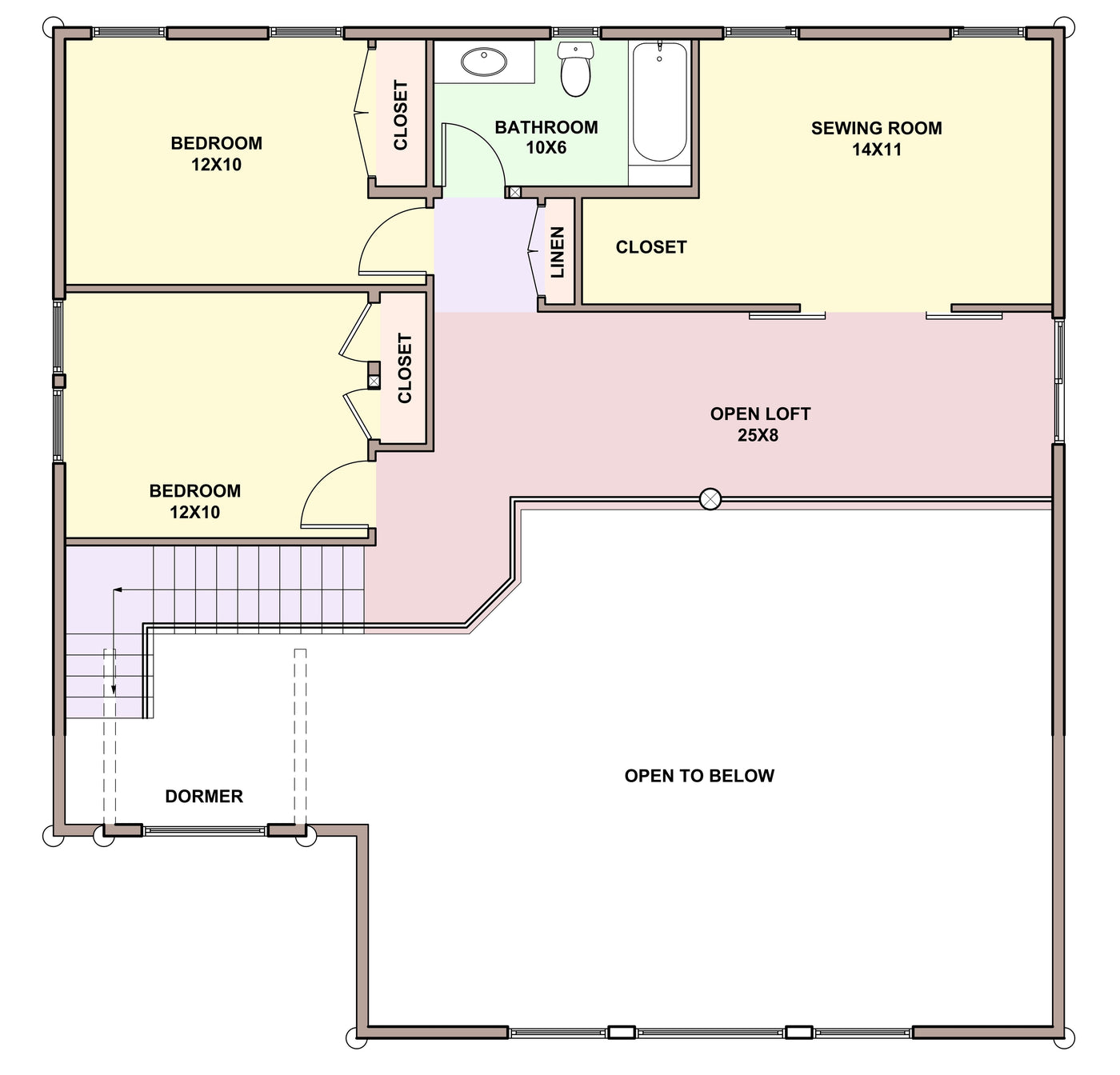

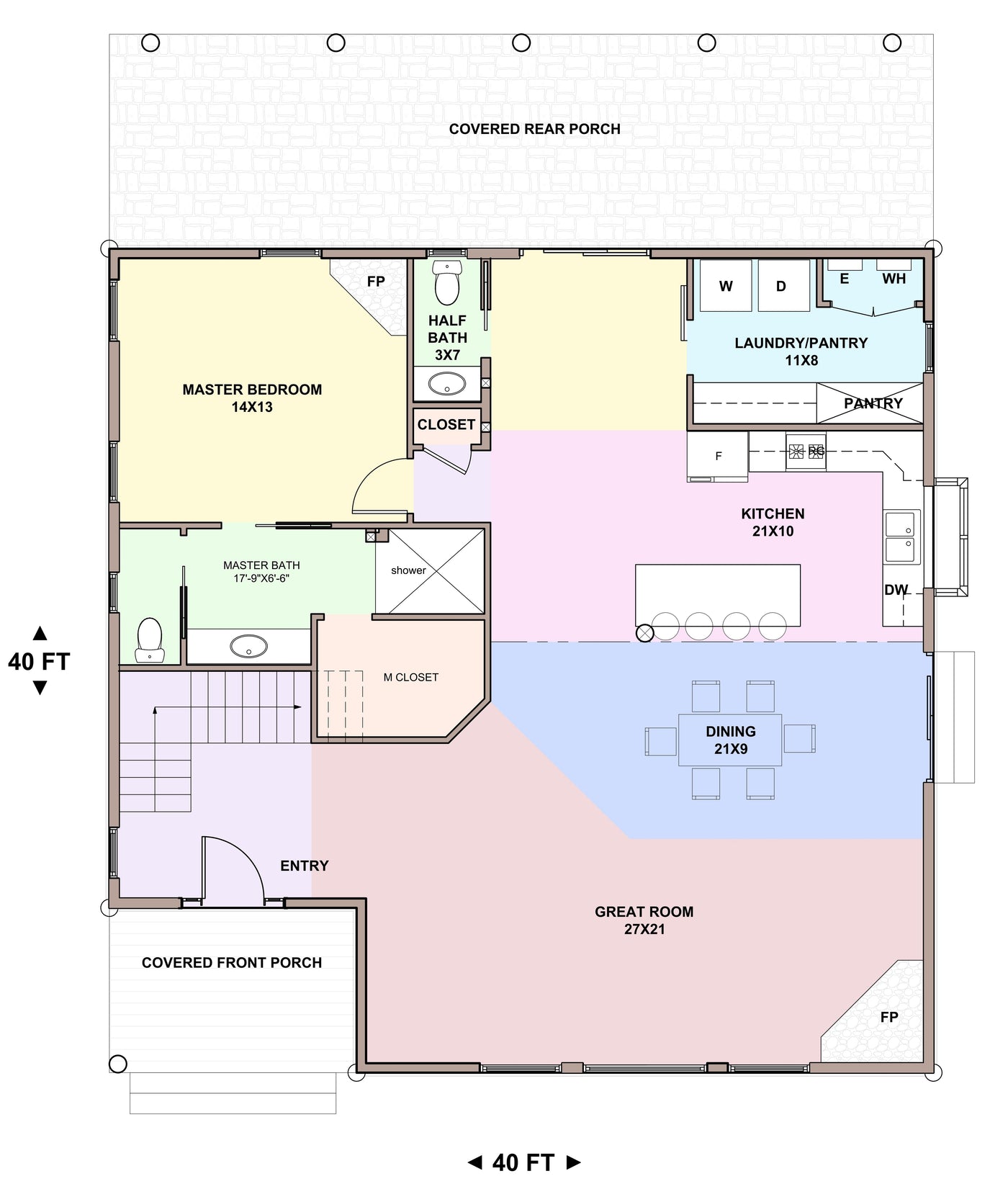

Floor plans
3D

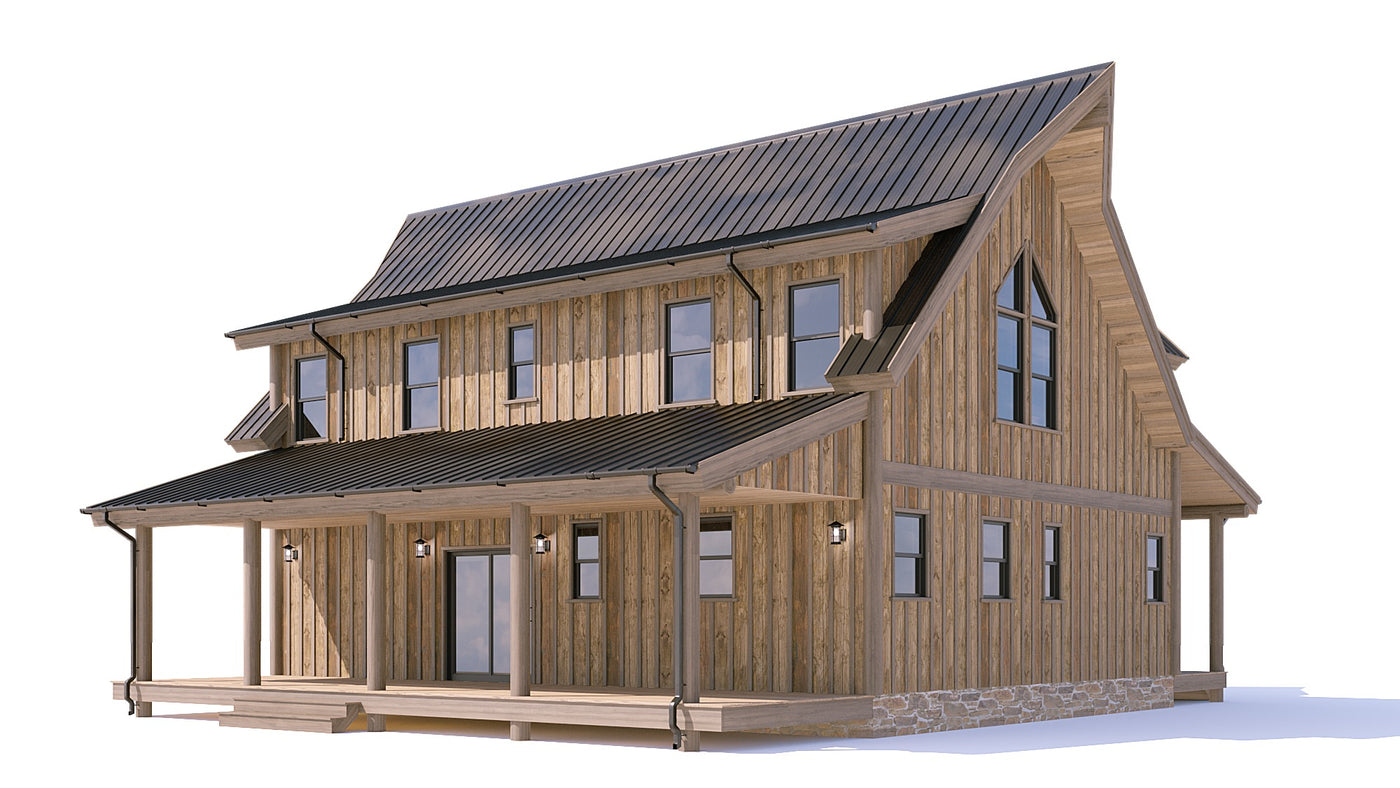

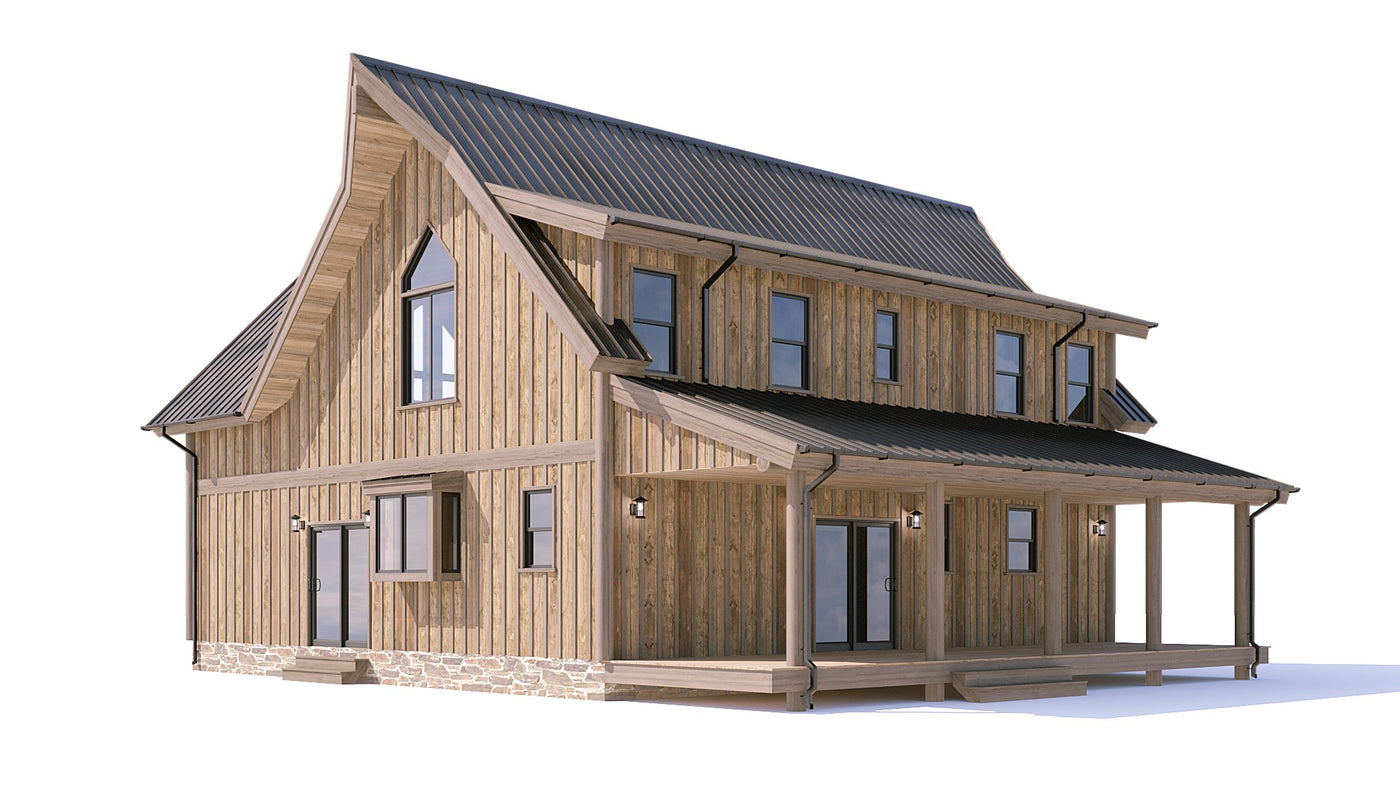

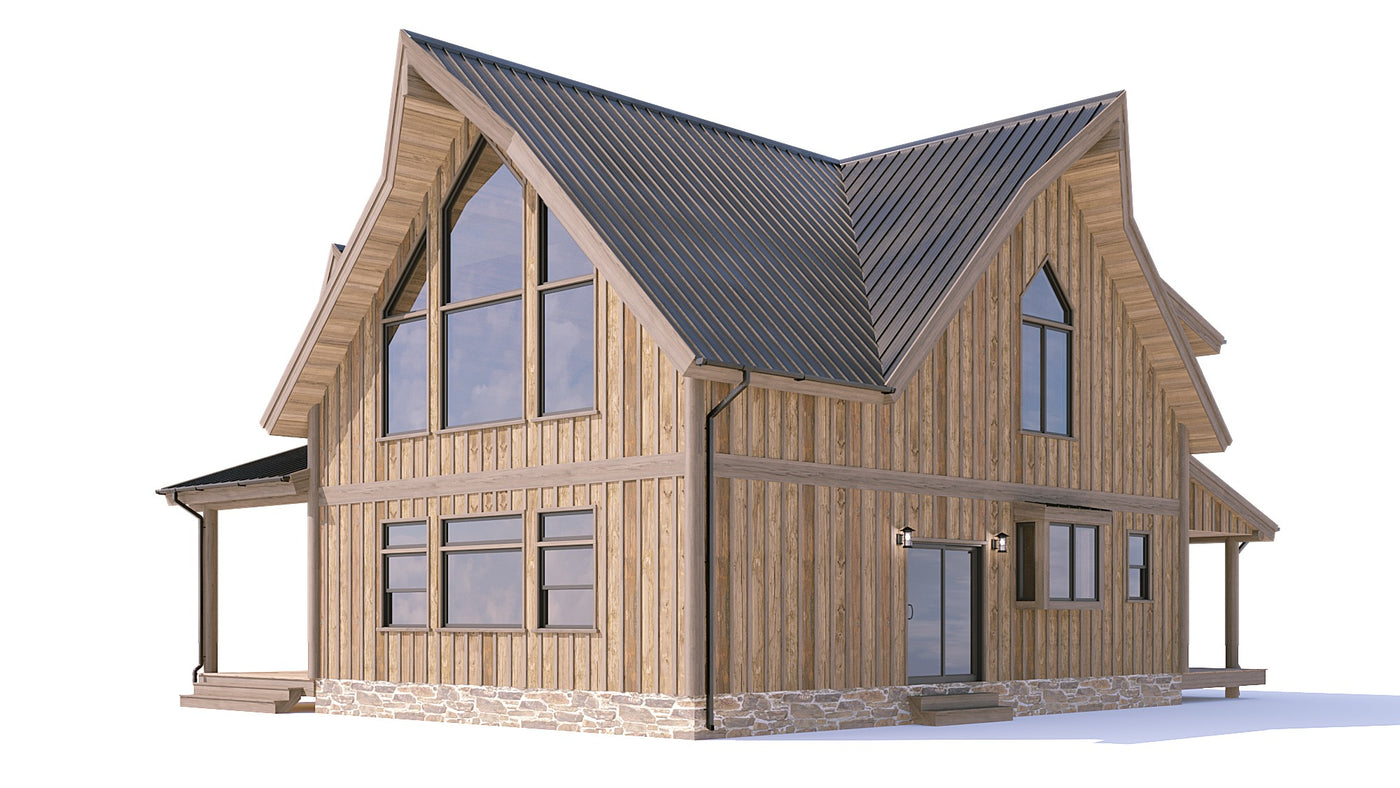

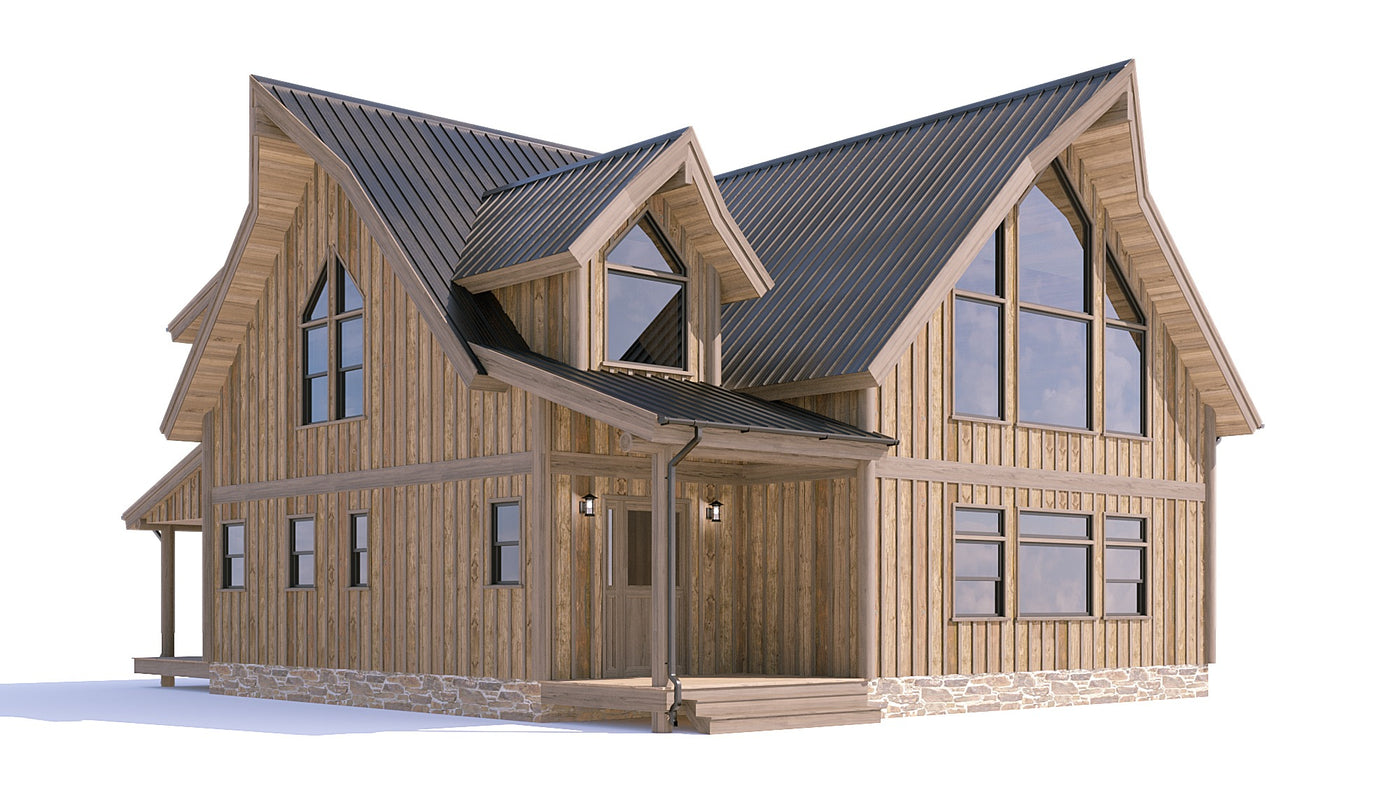

Perspective views
Renders

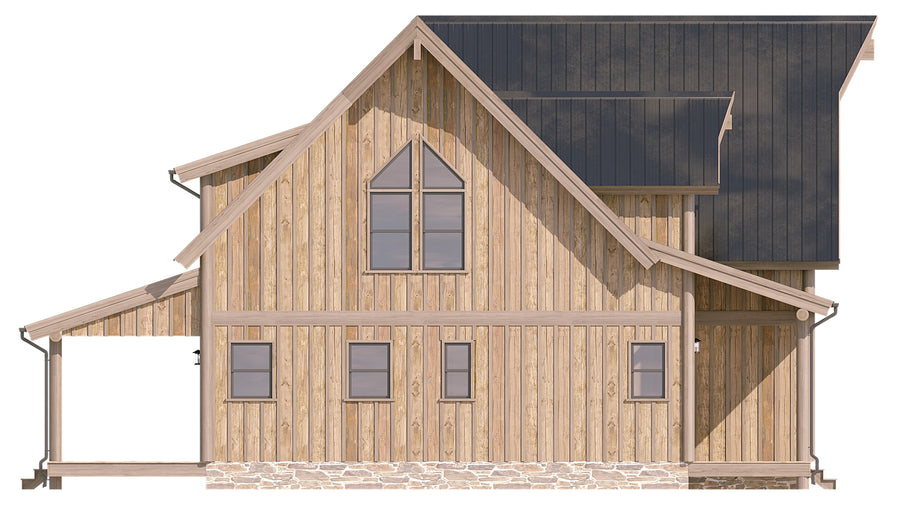

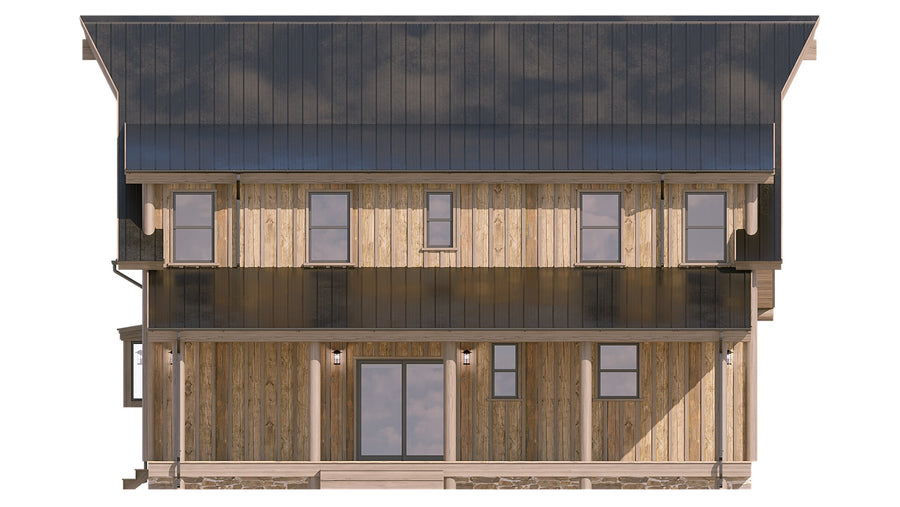

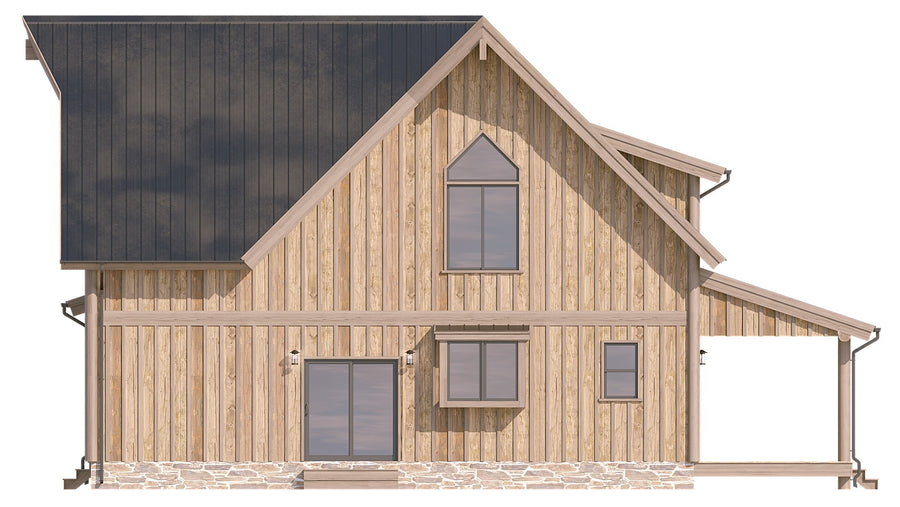

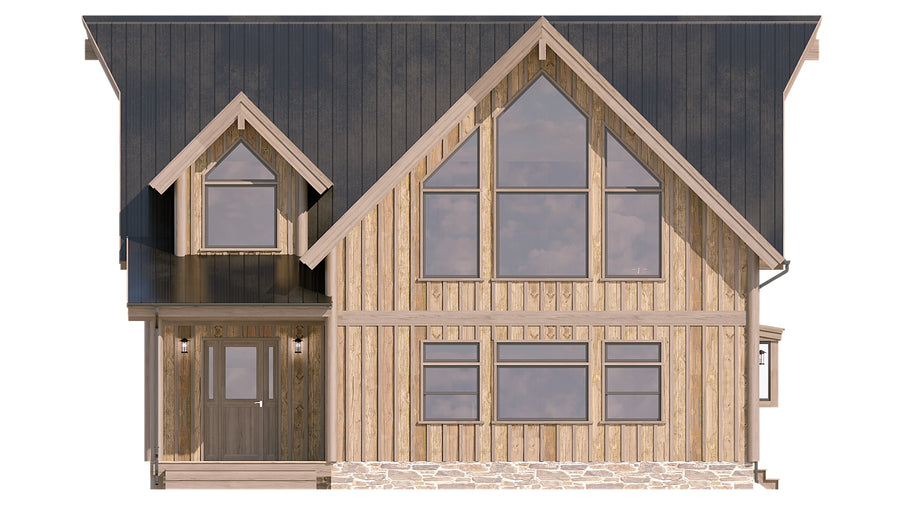

Ortho views
Technical

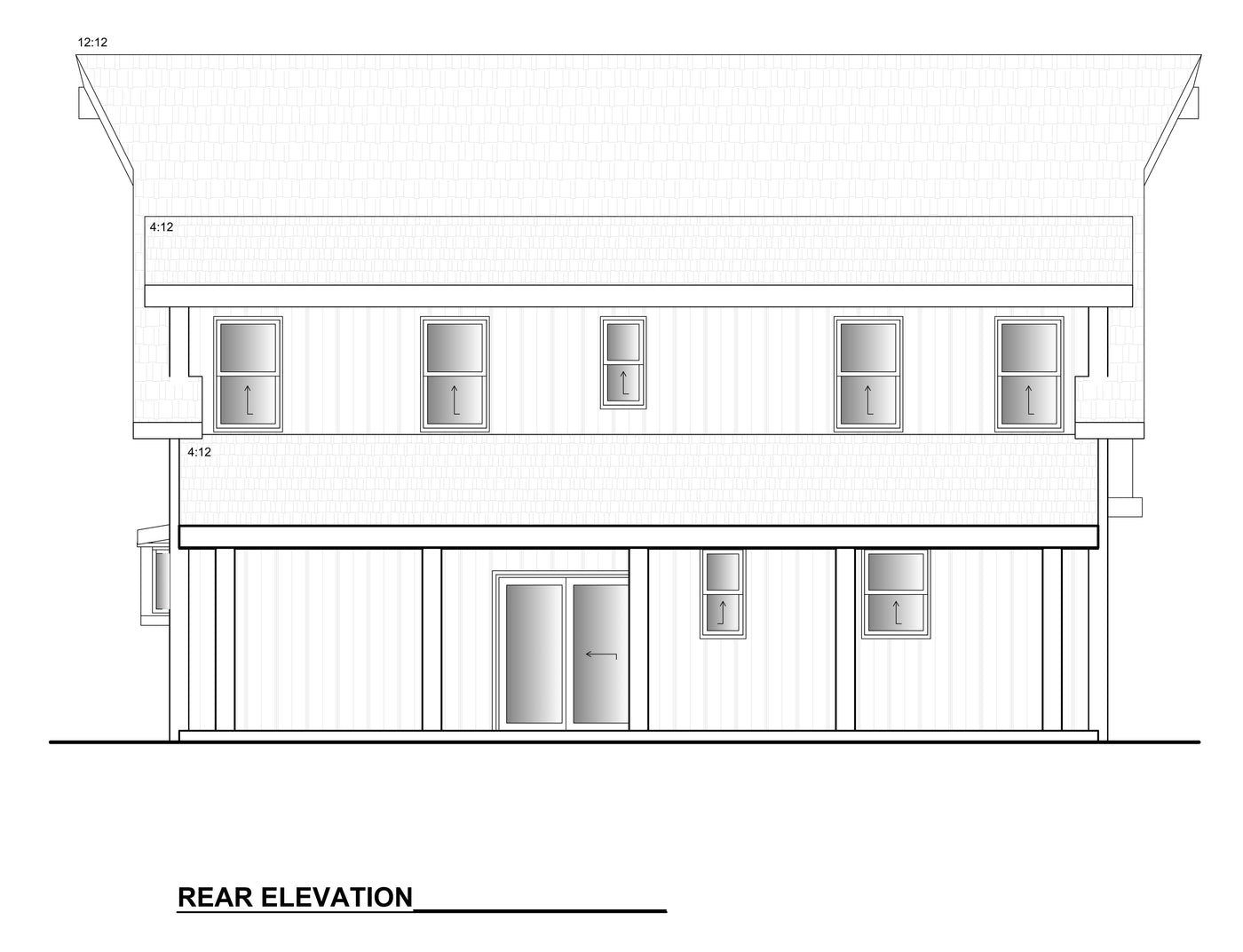

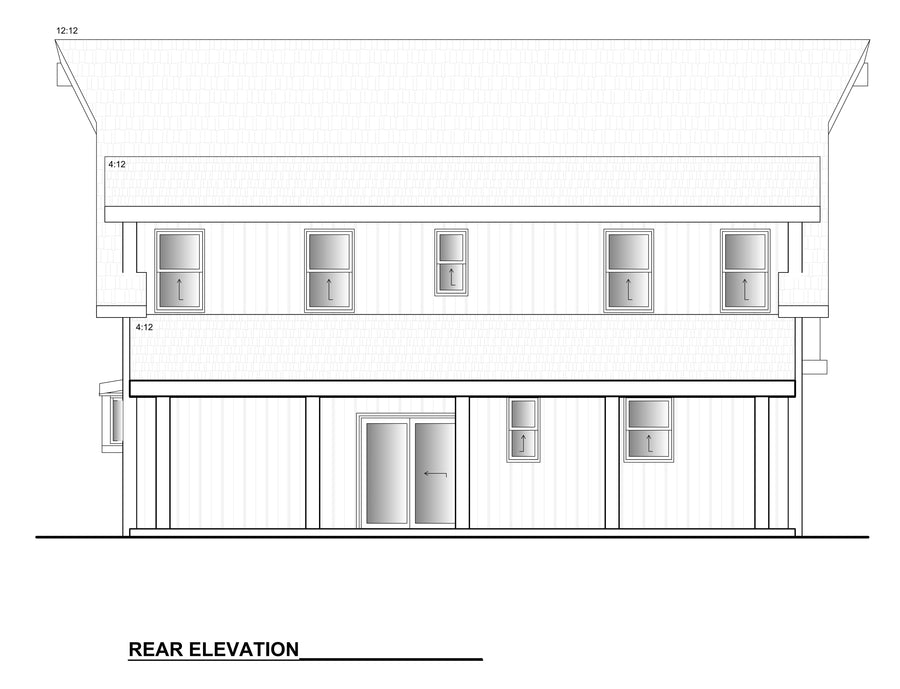

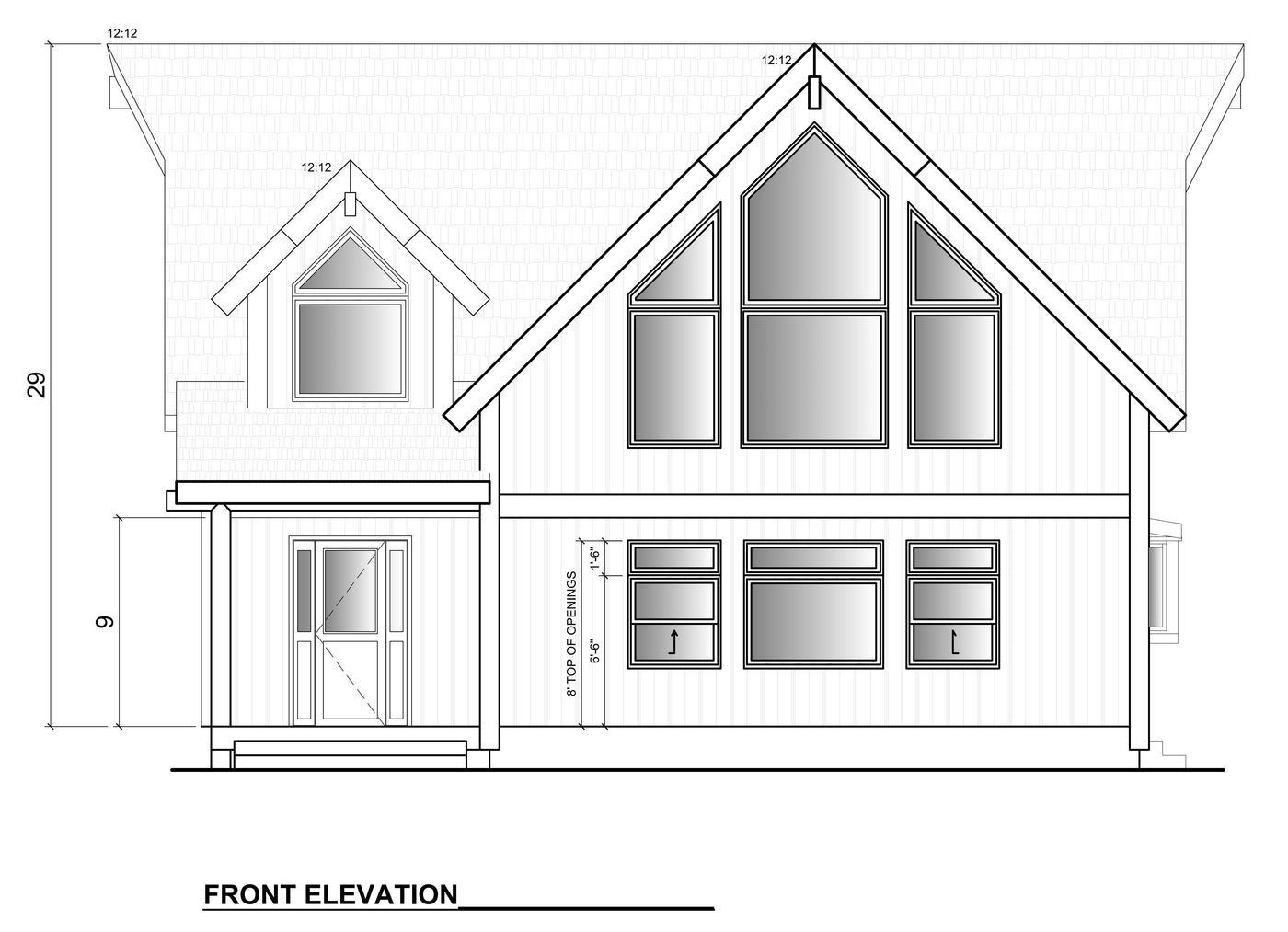

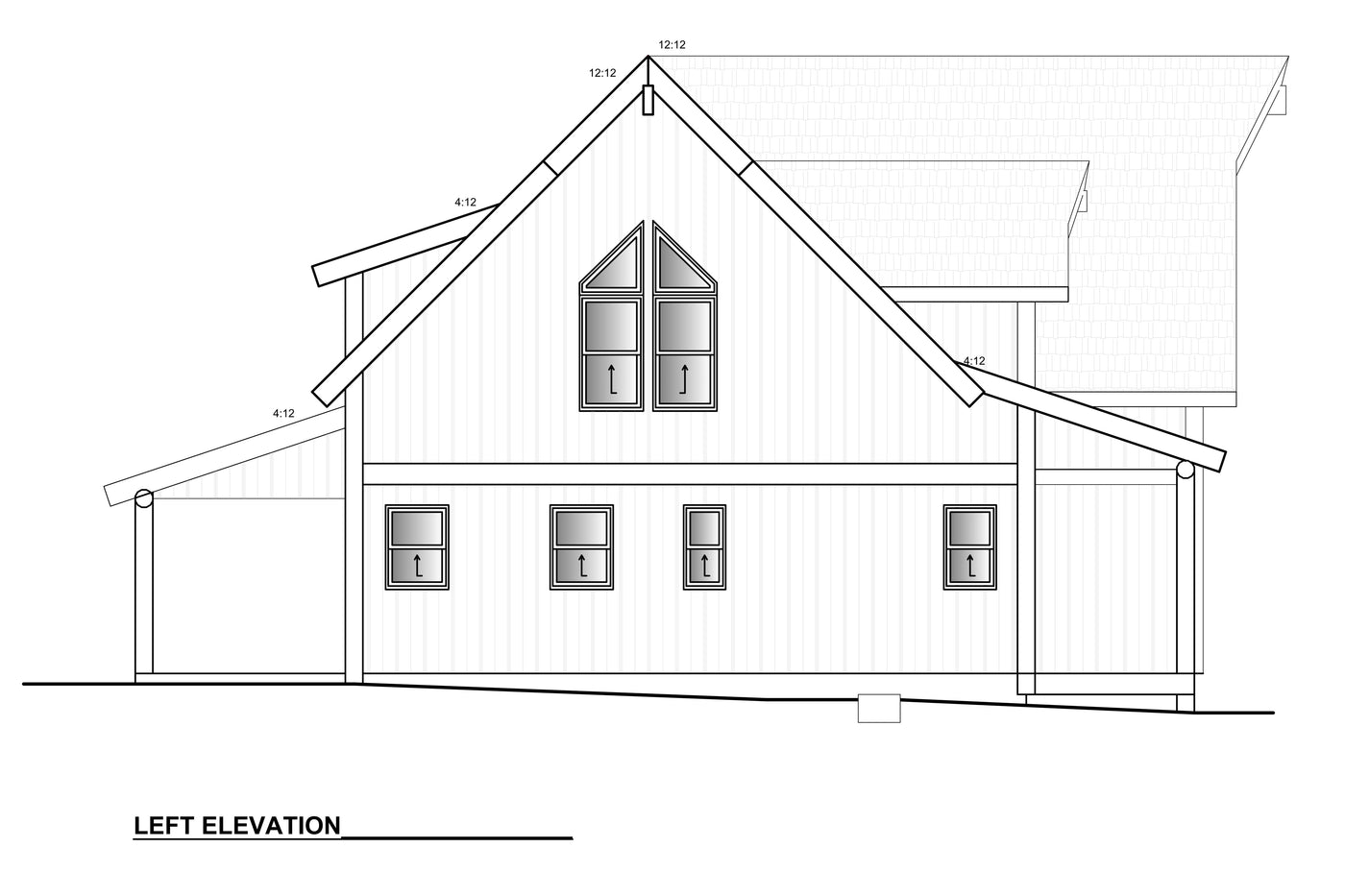

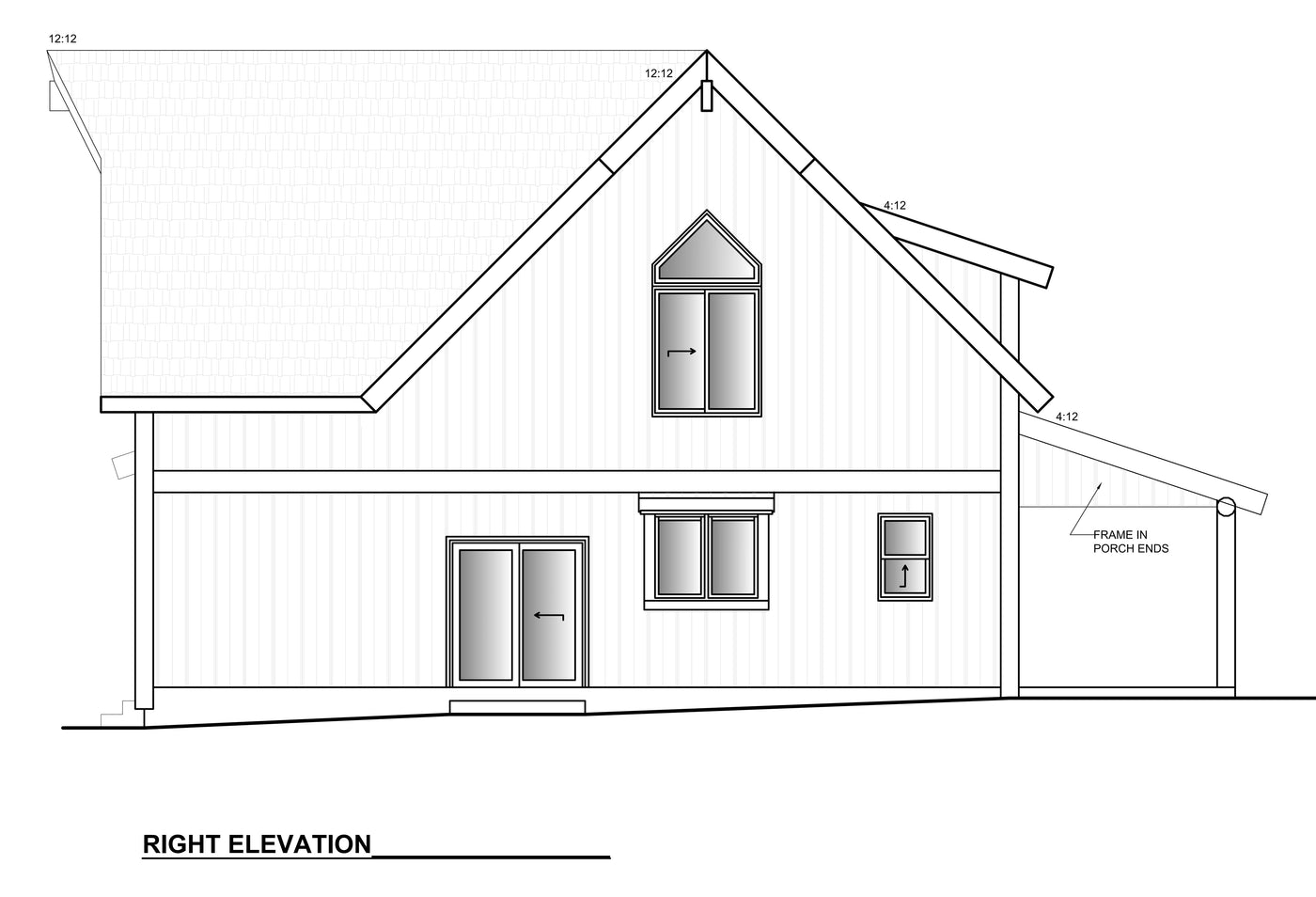

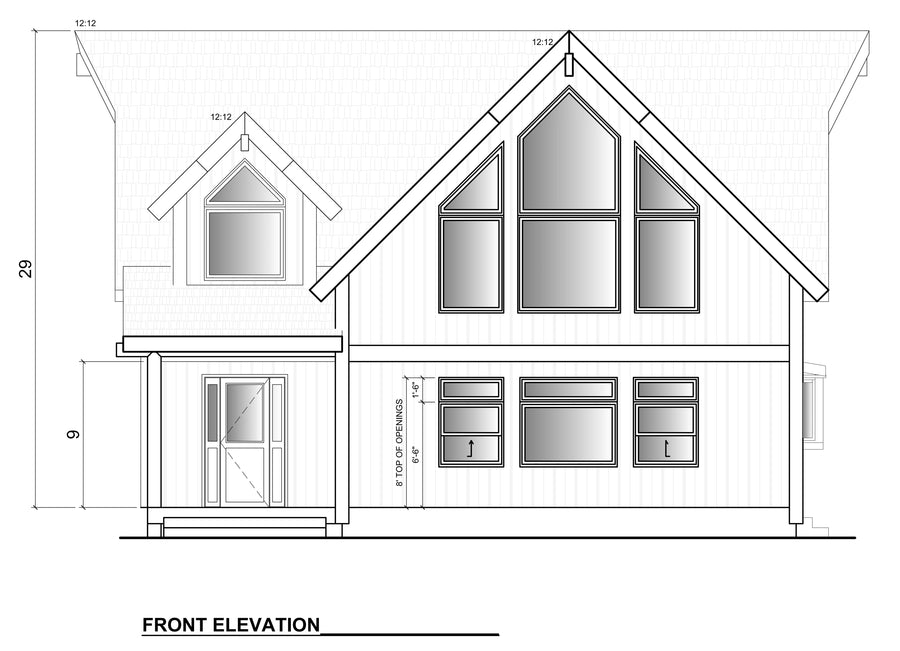

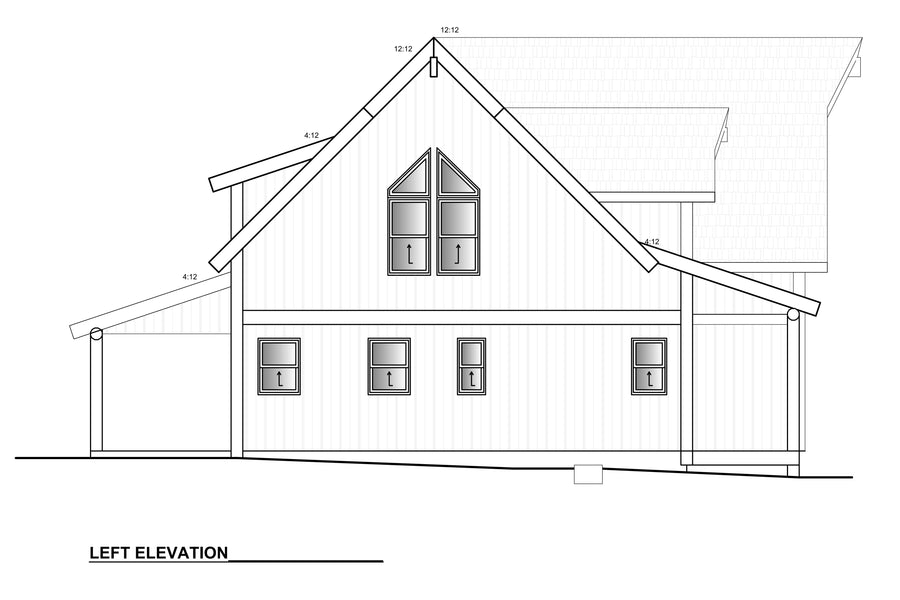

Elevation drawings
